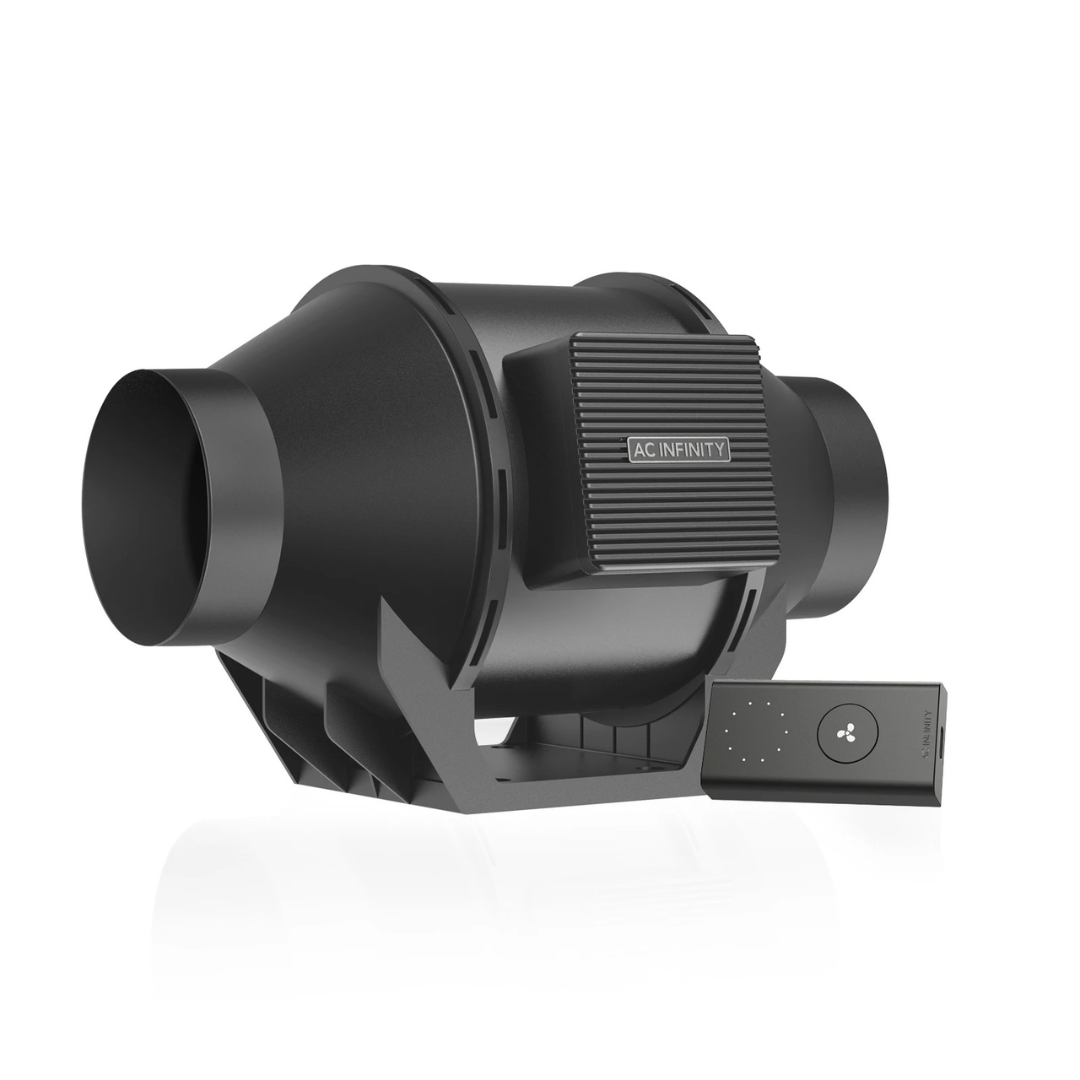

The CLOUDLINE A4 is a 4-inch inline duct fan designed to quietly ventilate grow tents, rooms, and closets. It can support air-circulation and exhaust applications, including cooling grow spaces, exhausting odors, transferring heating or cooling, and cooling AV equipment areas.
The system combines a mixed-flow design with an EC motor and PWM control to deliver up to 165 CFM of airflow. Its included wired controller provides 10 speed settings, a power switch, and backup memory for retaining the last selected speed.
Key Features
Quiet Ventilation: Designed to ventilate grow tents, rooms, and closets while supporting air-circulation and exhaust projects.

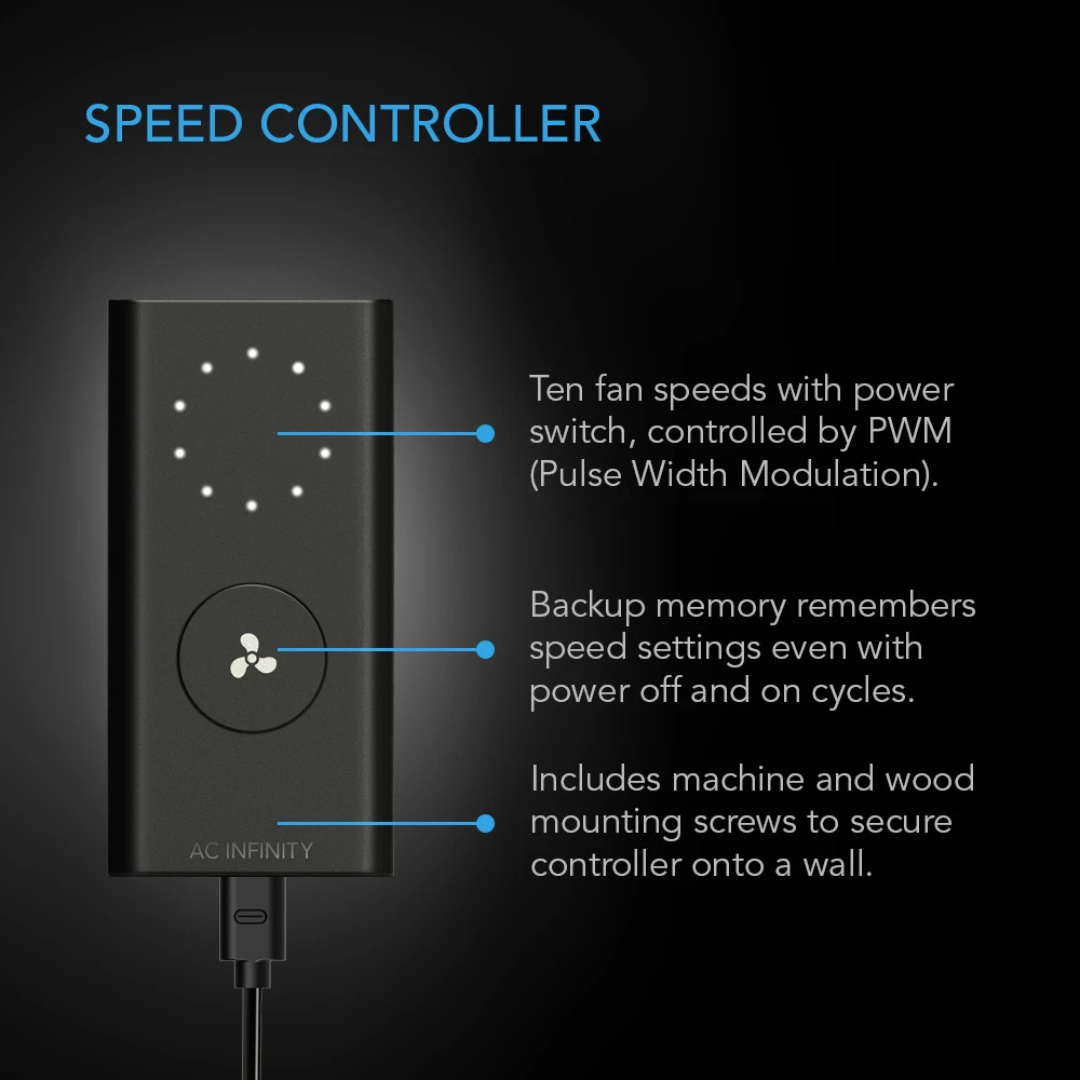

10-Speed Controller: The included wired controller provides 10 fan-speed options for adjusting airflow and noise levels.
Backup Memory: Retains the last selected fan-speed setting after the fan is powered down.

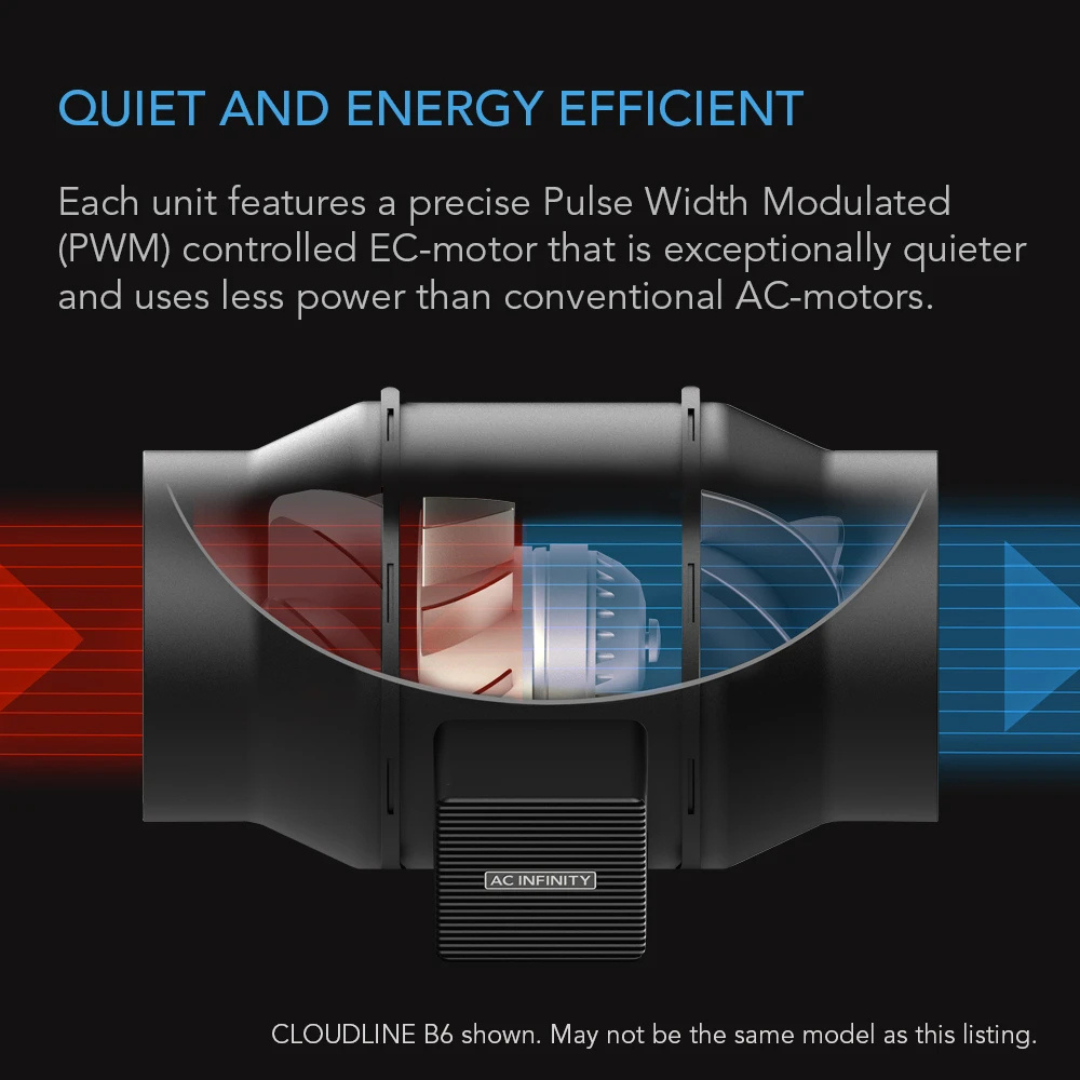

EC Motor: Uses PWM control for precise, quiet, and energy-efficient operation, including performance at low RPM speeds.
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to maintain airflow in high-static-pressure applications.
Dual Ball Bearings: Rated for a 67,000-hour lifespan and allow the fan to be mounted horizontally or vertically.
Vibration-Reducing Base: The plastic mounting base helps diminish noise caused by fan vibration.
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
Ingress Protection: IP44-rated construction provides resistance to dust and liquids.

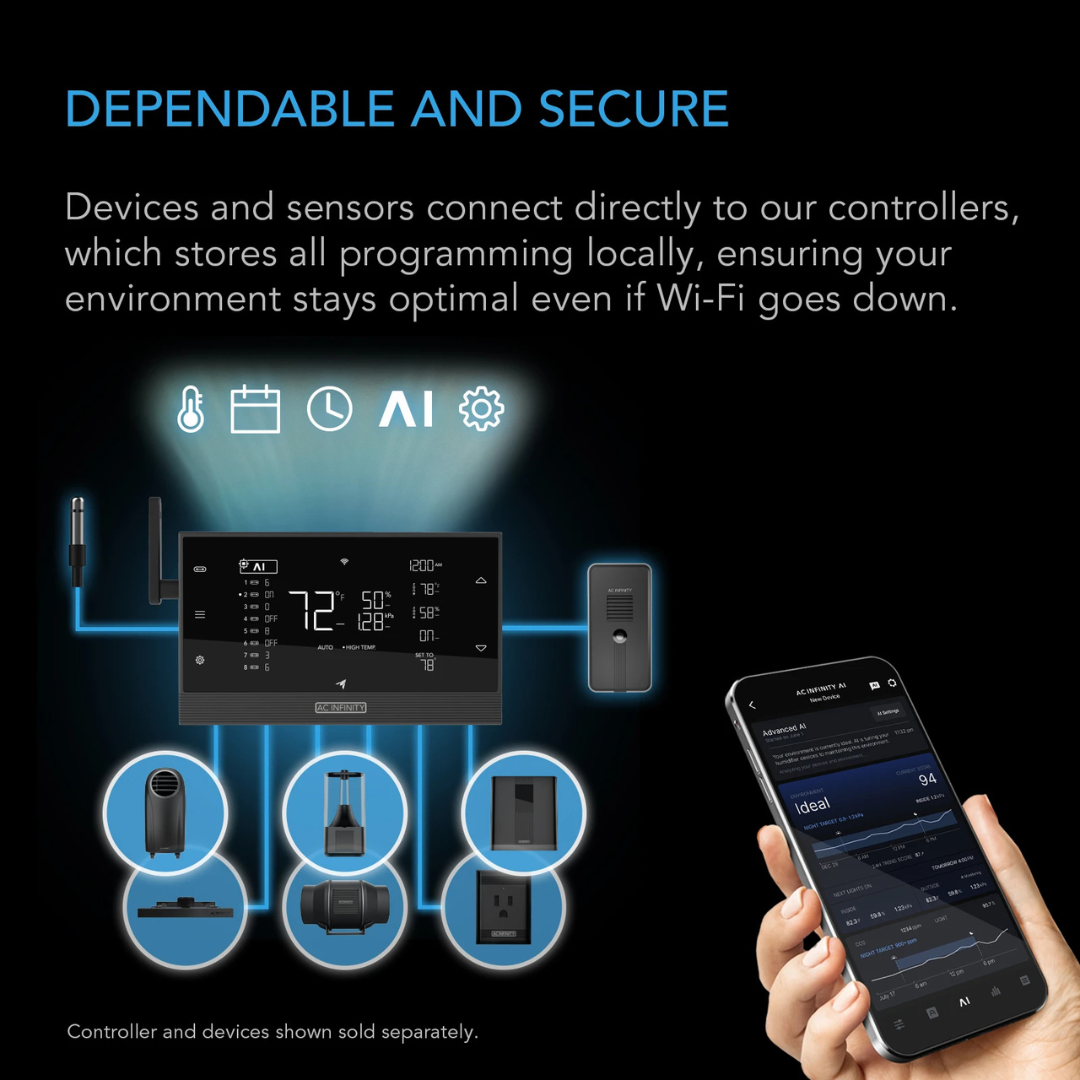

UIS™ Platform: Designed as part of the UIS™ platform for integration with compatible grow devices and smart controllers.

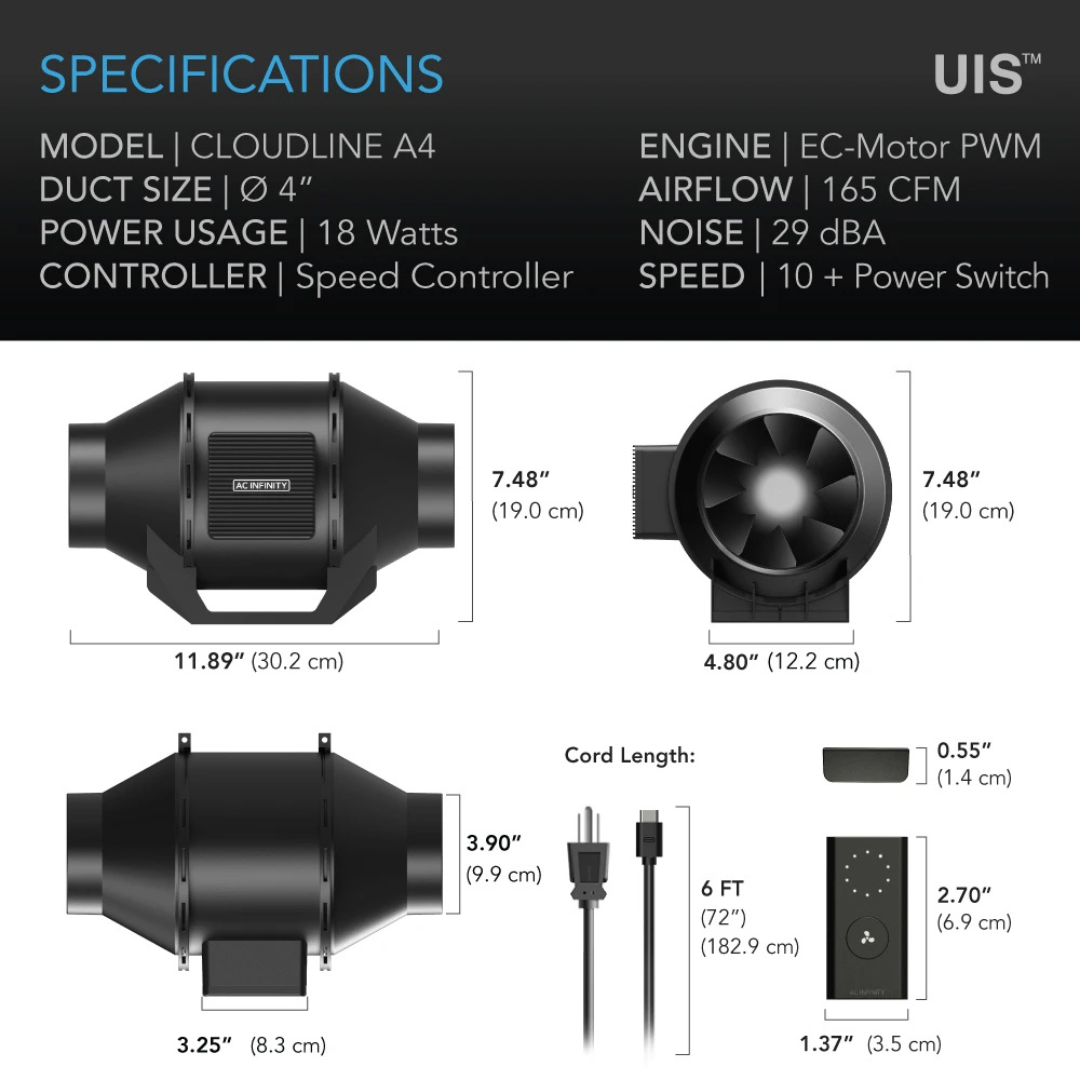

Specifications
-
Duct Size: 4 in.
-
Fan Unit Dimensions: 7.48 in. x 11.89 in. x 6.93 in. (19.0 x 30.2 x 17.6 cm)
-
Mounting Hole-to-Hole Distance: 3.15 in. x 2.36 in. (8.0 x 6.0 cm)
-
Screw Hole Diameter: 0.197 in. (0.5 cm)
-
Cord Length to Controller: 72 in. (6 ft.)
-
Cord Length to Plug: 72 in. (6 ft.)
-
Controller Dimensions: 3.34 in. x 2.95 in. x 0.51 in. (8.5 x 3.6 x 1.3 cm)
-
Total Airflow: 165 CFM
-
Total Noise: 29 dBA
-
Maximum Speed: 2800 RPM
-
Static Pressure: 324 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 35 W
-
Average Power Usage: 18 W
-
Current: 0.55 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: ETL, RoHS, and IC
Compatibility
Compatible With: B-Series Temperature Controller, T-Series Temperature and Humidity Controller, CONTROLLER 69, and CONTROLLER 67.
CLOUDLINE Controllers: Compatible with CLOUDLINE Series smart controllers.

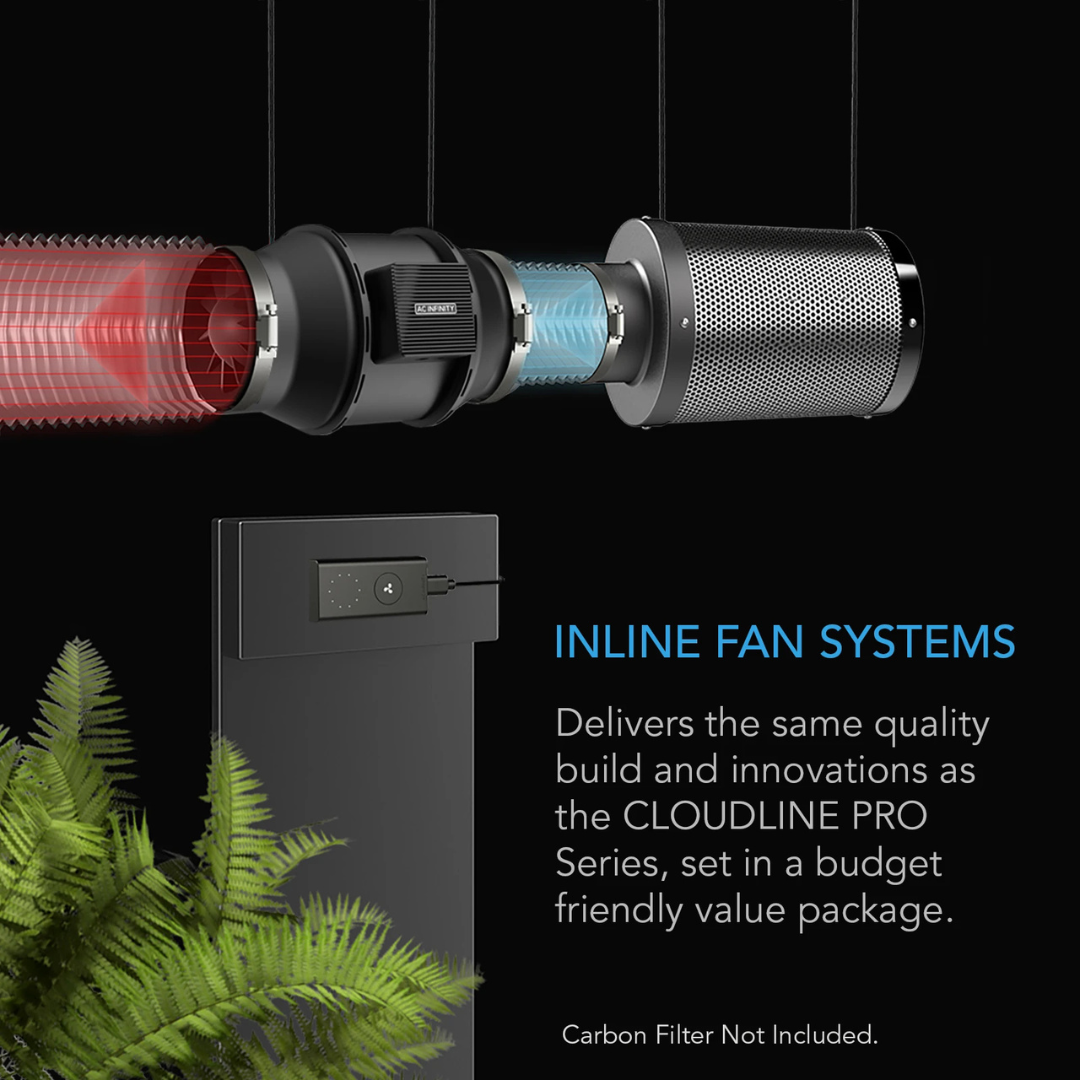

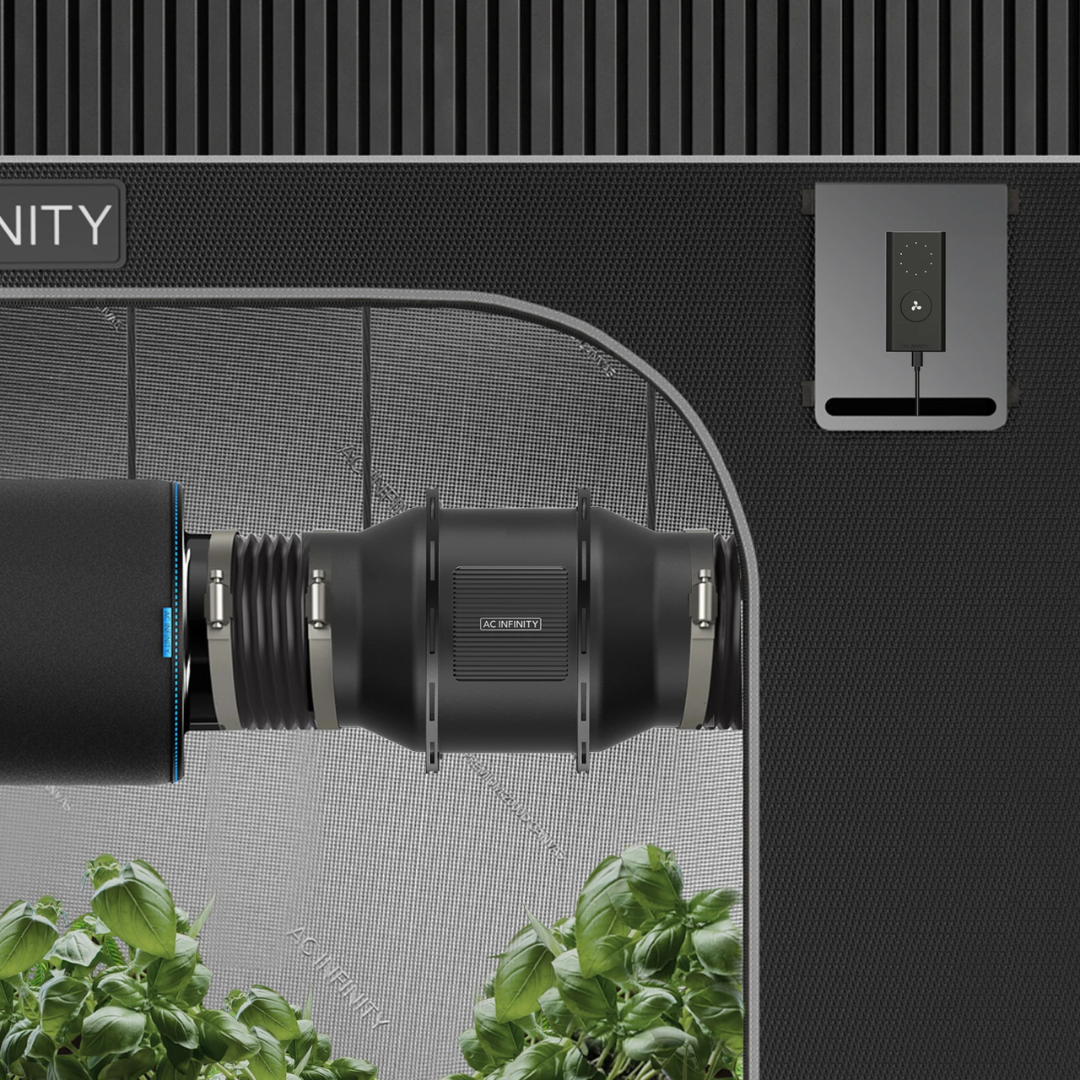

Ventilation Configuration: Can be used as an exhaust fan or an intake fan in grow rooms and larger grow tents.
Ducting: Designed for 4-inch ducting. Duct clamps are sold separately.
Included
- Duct fan system, 1
- Speed controller, 1
- 10-ft. UIS male-to-male cord, 1
- Hanging straps, 2
- Wire mounts, 6
- Adhesive wire mount, 1
- Wood screw for wall mounting, 1
- Controller plate bolts, 2
- Duct fan screw sets, 4
- Wall anchors, 4
- Hook-and-loop ties, 4
- Controller plate not included
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions of the official warranty program.
