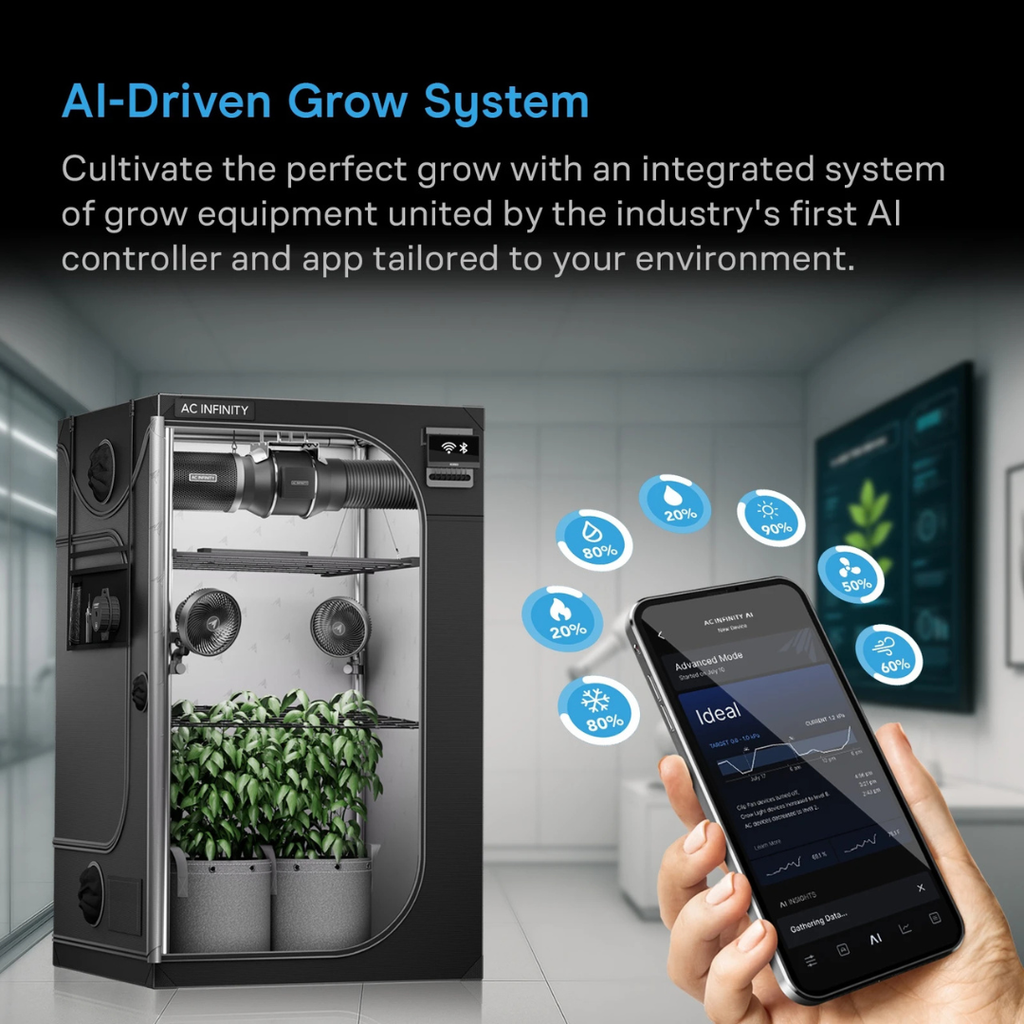

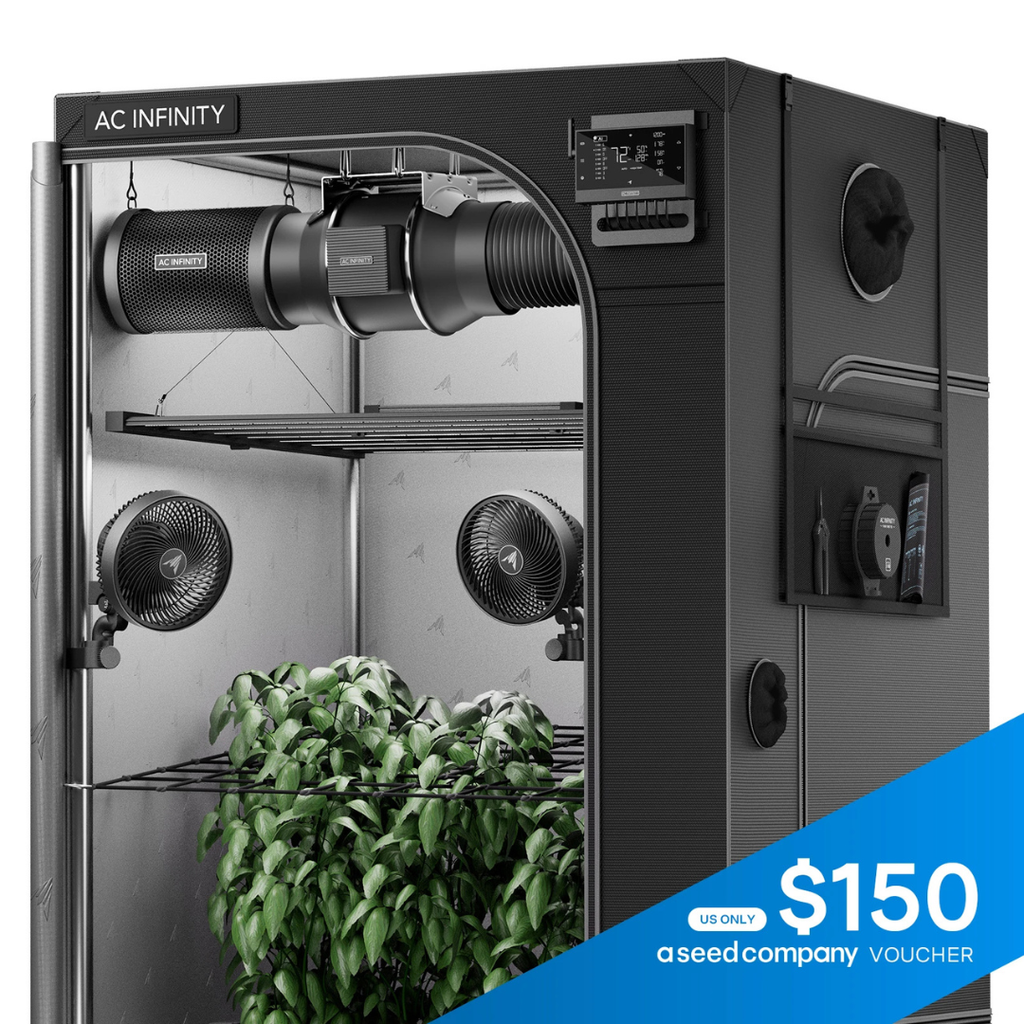

This complete 5 ft. x 5 ft. indoor growing system combines upgraded bar-style LED lighting, ventilation, refillable air filtration, circulation, environmental monitoring, and intelligent controls in one coordinated 6-plant kit.
The integrated controller monitors the growing environment and adjusts connected equipment using real-time and historical climate data. Wi-Fi and Bluetooth connectivity provide remote access to environmental insights, controls, guides, tutorials, and additional resources through the companion app.
Key Features
-

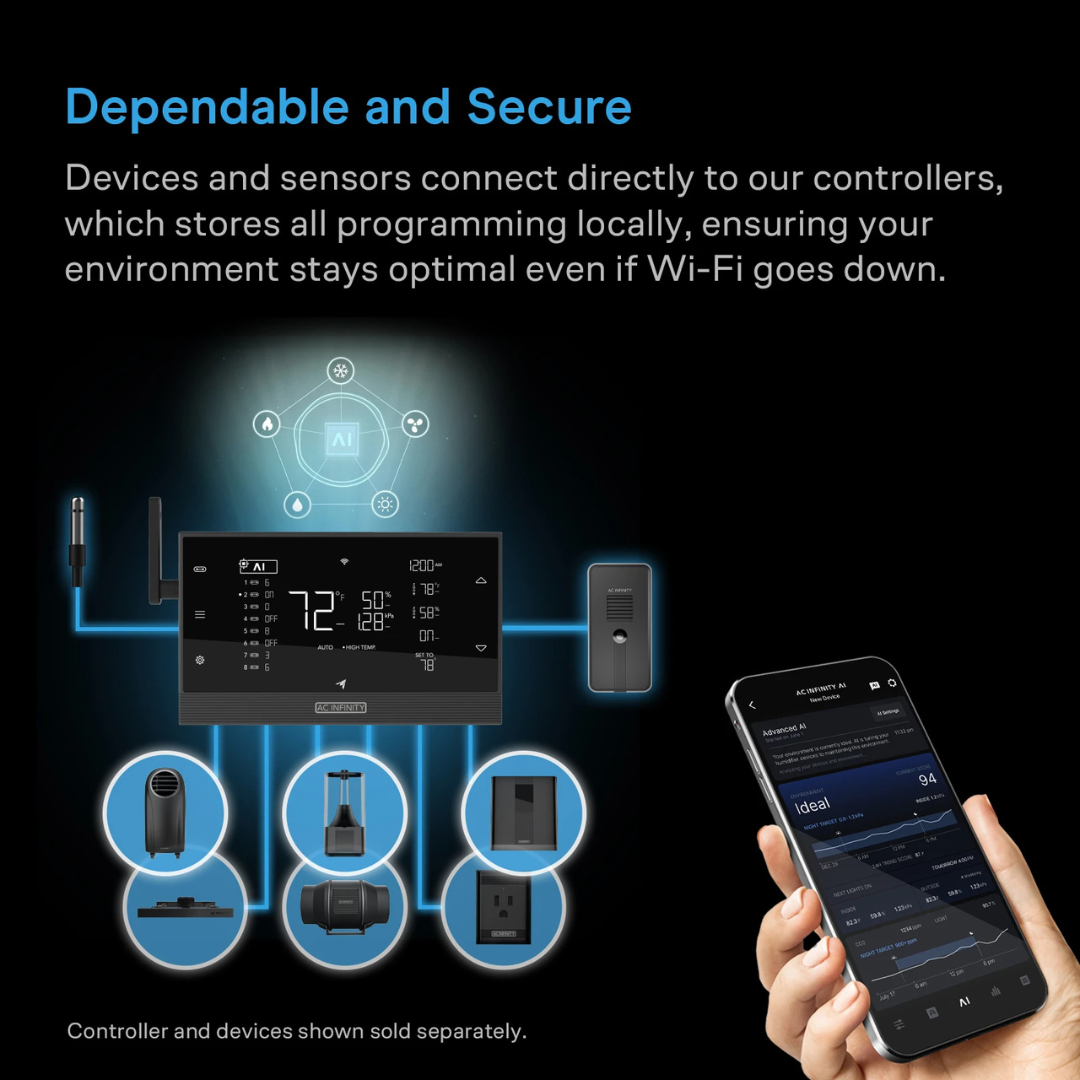

Dynamic Environmental Control: The intelligent controller monitors the grow space and adjusts the connected inline fan, circulation fans, and LED grow light based on current and historical climate data.
-

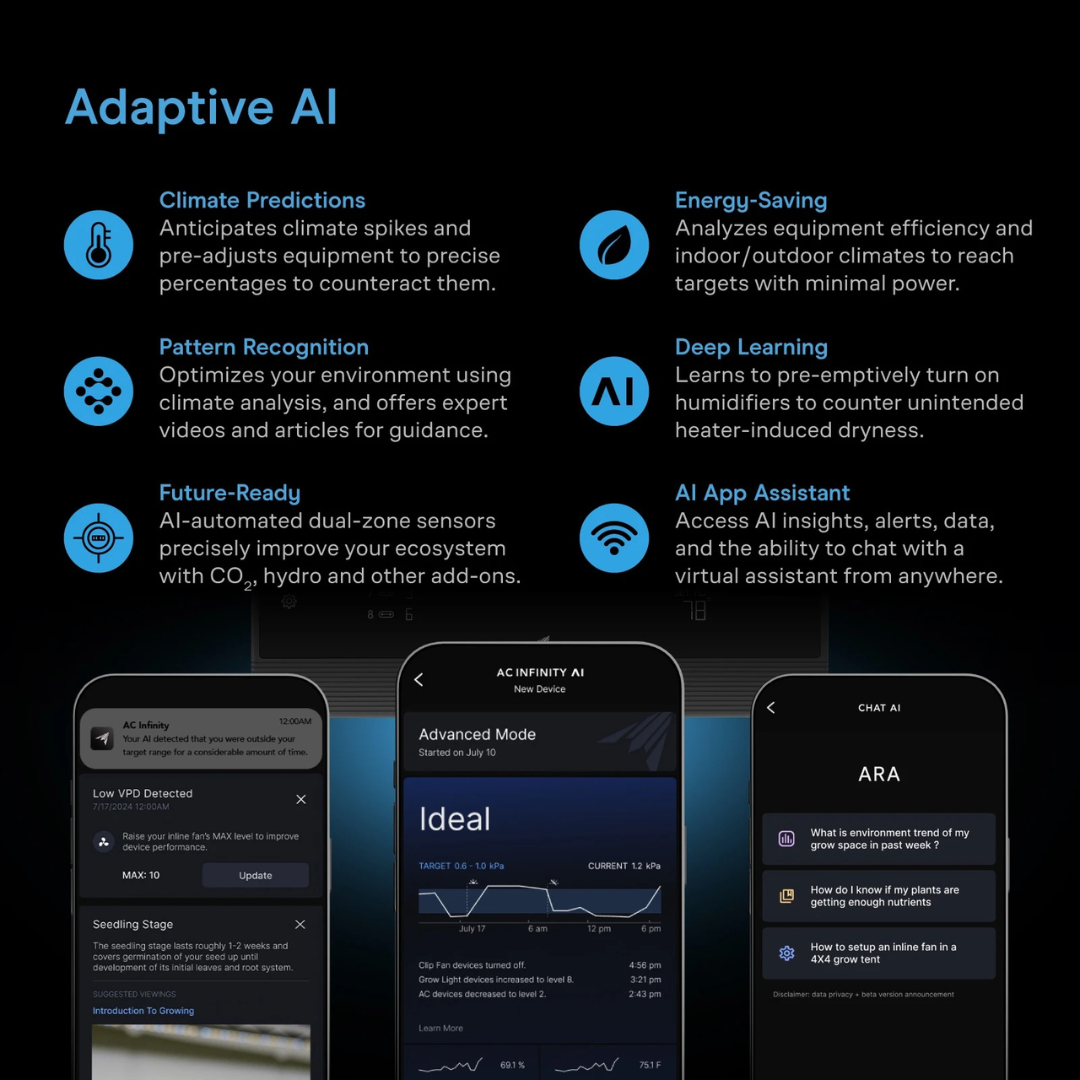

Remote App Access: Wi-Fi and Bluetooth connectivity provide access to controls, environmental information, intelligent insights, grow guides, tutorials, and chatbot assistance through the companion app.
-
Upgraded Bar-Style Lighting: The commercial LED grow light uses 2,688 diodes, including Samsung LM301H EVO, Seoul 395 nm, and OSRAM 660 nm and 730 nm chips.
-

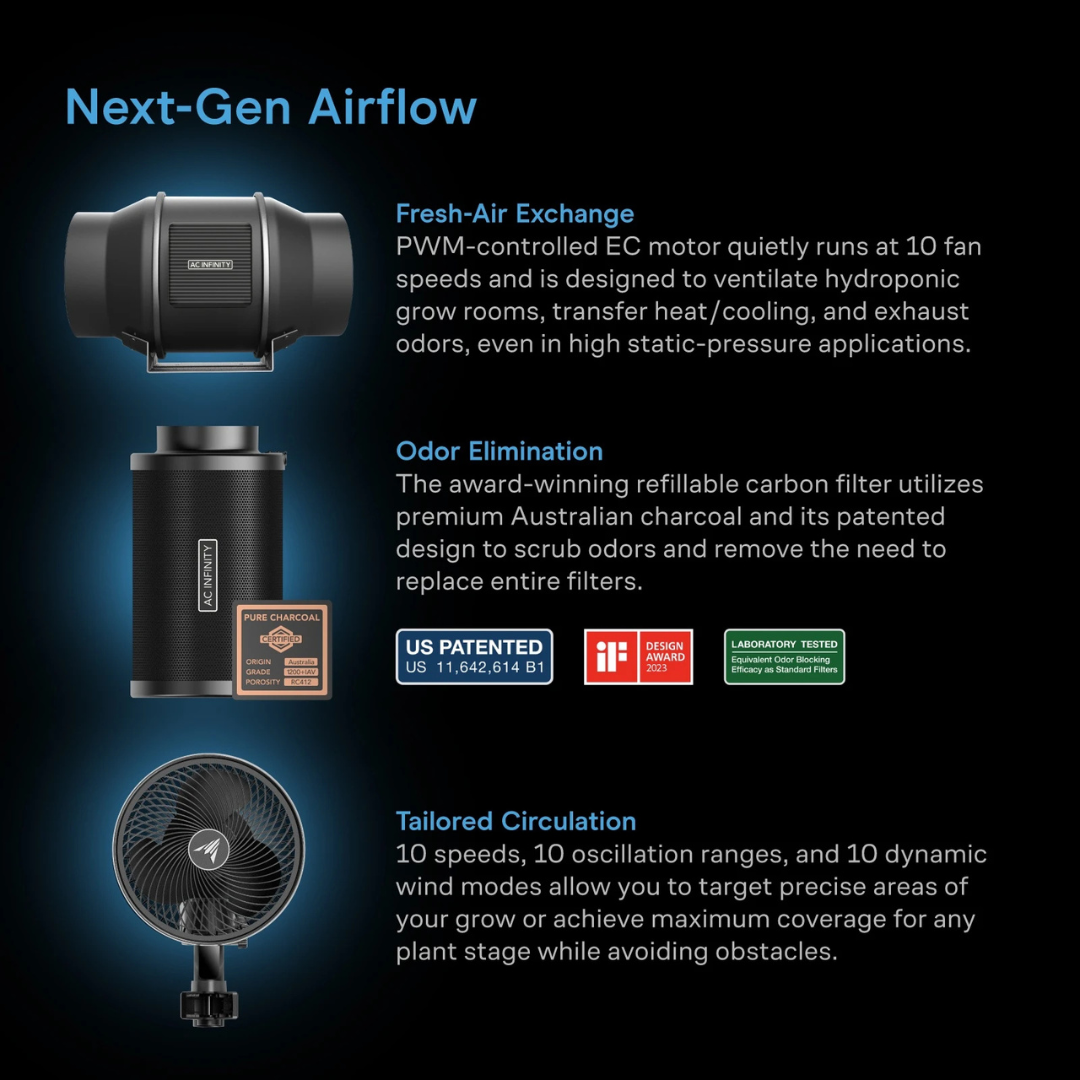

Upgraded Ventilation: The 6-inch inline fan delivers 402 CFM of airflow with a listed noise level of 32 dBA.
-
Refillable Air Filtration: The 6-inch carbon filter has a patented refillable design that allows its filtration media to be refreshed without replacing the entire filter.
-
Dual Circulation Fans: Two 6-inch oscillating clip fans provide adjustable circulation throughout the grow tent.
-

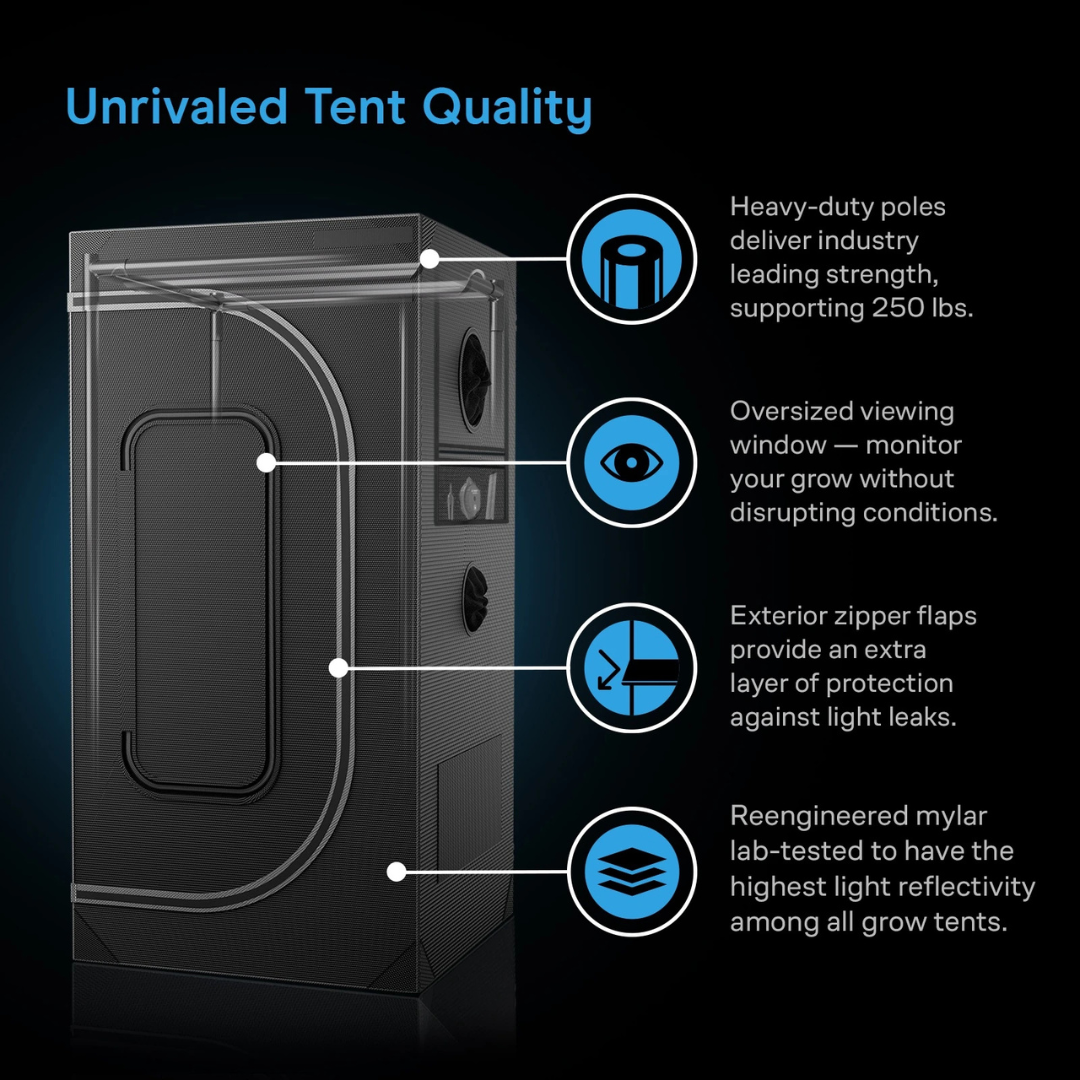

Reflective Grow Environment: The high-density Oxford grow tent has a steel frame, lab-tested reflective Mylar interior, enhanced light-blocking construction, and a large viewing window.
-
Complete 6-Plant Setup: The kit includes the principal equipment and growing accessories required to establish an indoor grow space for up to 6 plants in 5-gallon containers.
Specifications
-
Plant Capacity: 6 plants (5 gal.)
-
Tent Dimensions: 59.05 x 59.05 x 78.74 in. (150.0 x 150.0 x 200.0 cm)
-
Tent Outer Material: Oxford
-
Tent Inner Material: Mylar
-
Tent Pole Material: Steel
-
Pole Thickness: 22 mm
-
Beam Weight Capacity: 250 lbs.
-
Hanging Bars: 3, plus 1 extra
-
Tent Duct Openings: Two 4-inch openings and five 8-inch openings
-
Viewing Window Size: 13.78 x 47.24 in. (35.0 x 120.0 cm)
-
Rear Intake Opening Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)
-
Side Intake Opening Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)
-
Inline Fan Duct Size: 6 in.
-
Inline Fan Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
-
Inline Fan Mounting Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
-
Inline Fan Screw Hole Diameter: 0.236 in. (0.6 cm)
-
Inline Fan Controller Cord Length: 120 in. (10 ft.)
-
Inline Fan Plug Cord Length: 96 in. (8 ft.)
-
Inline Fan Airflow: 402 CFM
-
Inline Fan Noise: 32 dBA
-
Inline Fan Static Pressure: 503 Pa
-
Inline Fan Voltage: 100-240V AC
-
Inline Fan Frequency: 50/60 Hz
-
Inline Fan Maximum Power Draw: 70 W
-
Inline Fan Average Power Usage: 38 W
-
Inline Fan Current: 0.94 A
-
Inline Fan Power Connector: US plug, NEMA 1-15 Type-A
-
Inline Fan Operating Humidity: 35 to 85% RH
-
Inline Fan Operating Temperature: 32 to 140°F
-
Inline Fan Ingress Protection: IP-44
-
Inline Fan Bearings: Dual ball
-
Inline Fan Mounting Positions: Horizontal or vertical
-
Inline Fan Life Expectancy: 67,000 hours
-
Inline Fan Certifications: CE, ETL, RoHS, and SAA
-
Clip Fan Quantity: 2
-
Clip Fan Impeller Size: 6.5 in.
-
Clip Fan Dimensions: 8.74 x 10.47 in. (22.2 x 26.6 cm)
-
Clip Fan Cord Length: 96 in. (8 ft.)
-
Clip Fan Maximum Airflow: 325 CFM per fan
-
Clip Fan Noise: 31 dBA
-
Clip Fan Static Pressure: 25 Pa
-
Clip Fan Operating Voltage: 100-240V AC
-
Clip Fan Power: 11 W
-
Clip Fan Current: 0.15 A
-
Clip Fan Operating Humidity: 35 to 85% RH
-
Clip Fan Operating Temperature: 32 to 140°F
-
Clip Fan Waterproof Rating: IP-44
-
Clip Fan Rotation Range: 90°
-
Clip Fan Tilt Angle: 55°
-
Clip Fan Oscillation: Automatic oscillation
-
Clip Fan Bearings: Dual ball bearing
-
Clip Fan Mounting Positions: Horizontal or vertical
-
Clip Fan Life Expectancy: 67,000 hours
-
Clip Fan Certification: ETL
-
Controller Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)
-
Controller Display Size: 4.5 in.
-
Sensor Probe Length: 144 in. (12 ft.)
-
Maximum Devices Controlled: 8, or 32 with splitters
-
Controller Buttons: Capacitive touch
-
Sensors Supported: 3, including 1 built-in sensor
-
Onboard Sensor: Temperature and humidity
-
Corded Sensor: Temperature and humidity
-
Controller Functions: Temperature, humidity, and VPD control
-
Controller Power Source: Adapter
-
App Control: Wi-Fi and Bluetooth
-
Controller Maximum Wattage: 2 W
-
Controller Voltage: 100-240V AC
-
Controller Operating Temperature: 32 to 140°F
-
Controller Operating Humidity: 35 to 85% RH
-
Grow Light Dimensions: 44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
-
Grow Light Coverage: 5 x 5 ft.
-

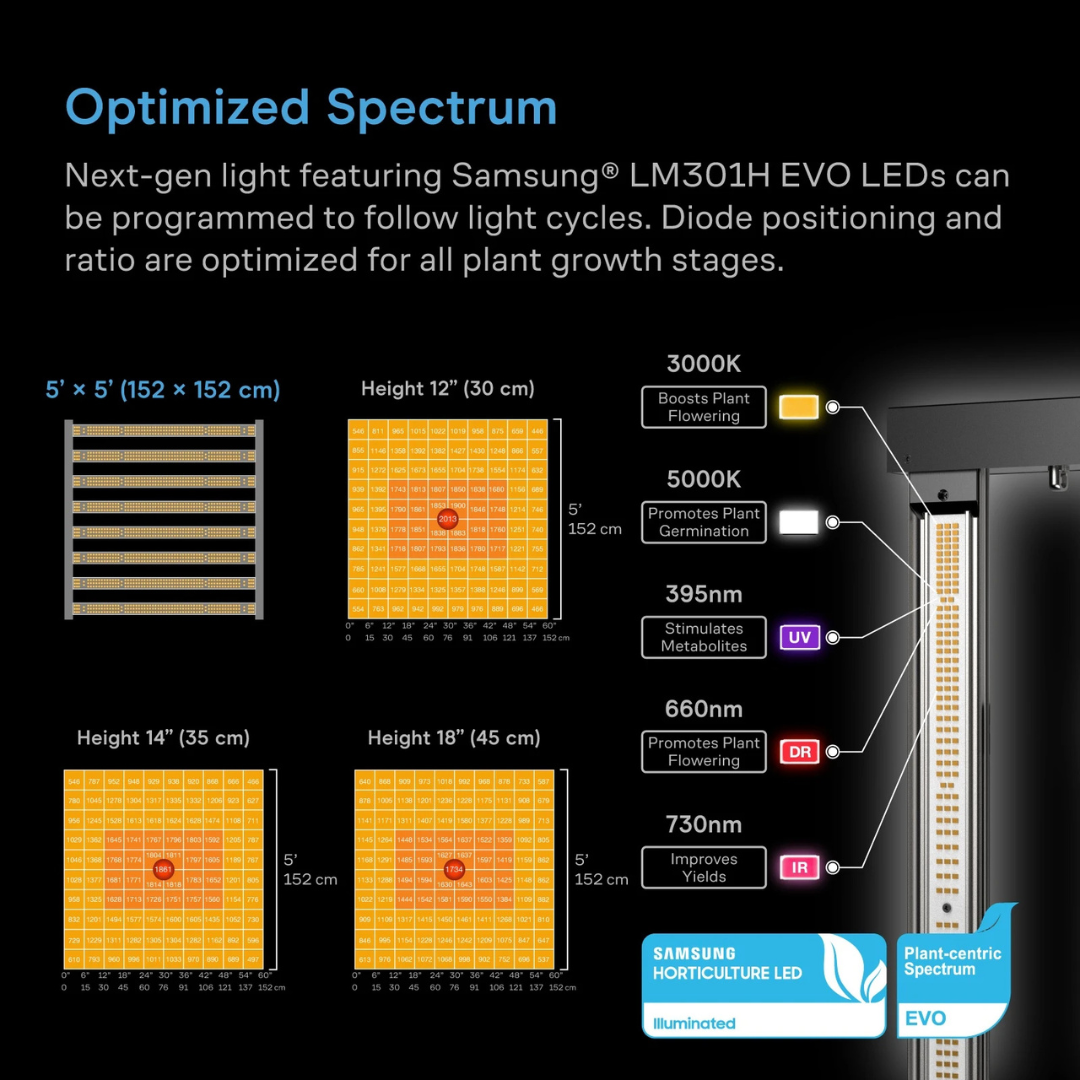

Primary Diodes: Samsung LM301H EVO
-
Listed Spectrum: 395 nm, 660 nm, 3000K, and 5000K
-
Total LED Chip Count: 2,688
-
EVO 3000K Chip Count: 1,720
-
EVO 5000K Chip Count: 864
-
Seoul 395 nm Chip Count: 8
-
OSRAM 660 nm Chip Count: 88
-
OSRAM 730 nm Chip Count: 8
-
LED Driver: SOSEN-320W
-
Single-Diode Efficiency: 3.14 µmol/J
-
PPFD: 2013 PPFD
-
Grow Light Wattage: 730 W
-
Grow Light Voltage: 100-277V AC
-
Grow Light Frequency: 50/60 Hz
-
Grow Light Current: 7.3 A
-
Grow Light Power Connector: US plug, NEMA 1-15 Type-A
-
Grow Light Operating Humidity: 35 to 85% RH
-
Grow Light Operating Temperature: 32 to 140°F
-
Grow Light Waterproof Rating: IP-65
-
Grow Light Life Expectancy: 50,000 hours
-
Carbon Filter Duct Opening: 6 in.
-
Carbon Filter Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)
-
Carbon Filter Flange Length: 1.57 in. (4.0 cm)
-
Carbon Filter Flange Material: Aluminum
-
Carbon Filter Flange Design: Reversible
-
Carbon Filter Mesh Material: Rust-resistant galvanized steel with gunmetal finish
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Carbon Filter Maximum Airflow: 410 CFM
-
Ducting Size: 6 in. (15.2 cm)
-
Ducting Length: 96 in. (8 ft.)
-
Ducting Outer Layer: PVC thermoplastic
-
Ducting Inner Material: Aluminum foil
-
Ducting Internal Structure: Spiral steel wire
Size Guide
-
Nominal Tent Size: 60 x 60 x 80 in.
-
Exact Tent Dimensions: 59.05 x 59.05 x 78.74 in. (150.0 x 150.0 x 200.0 cm)
-
Lighting Coverage: 5 x 5 ft.
-
Plant Capacity: 6 plants in 5-gallon containers

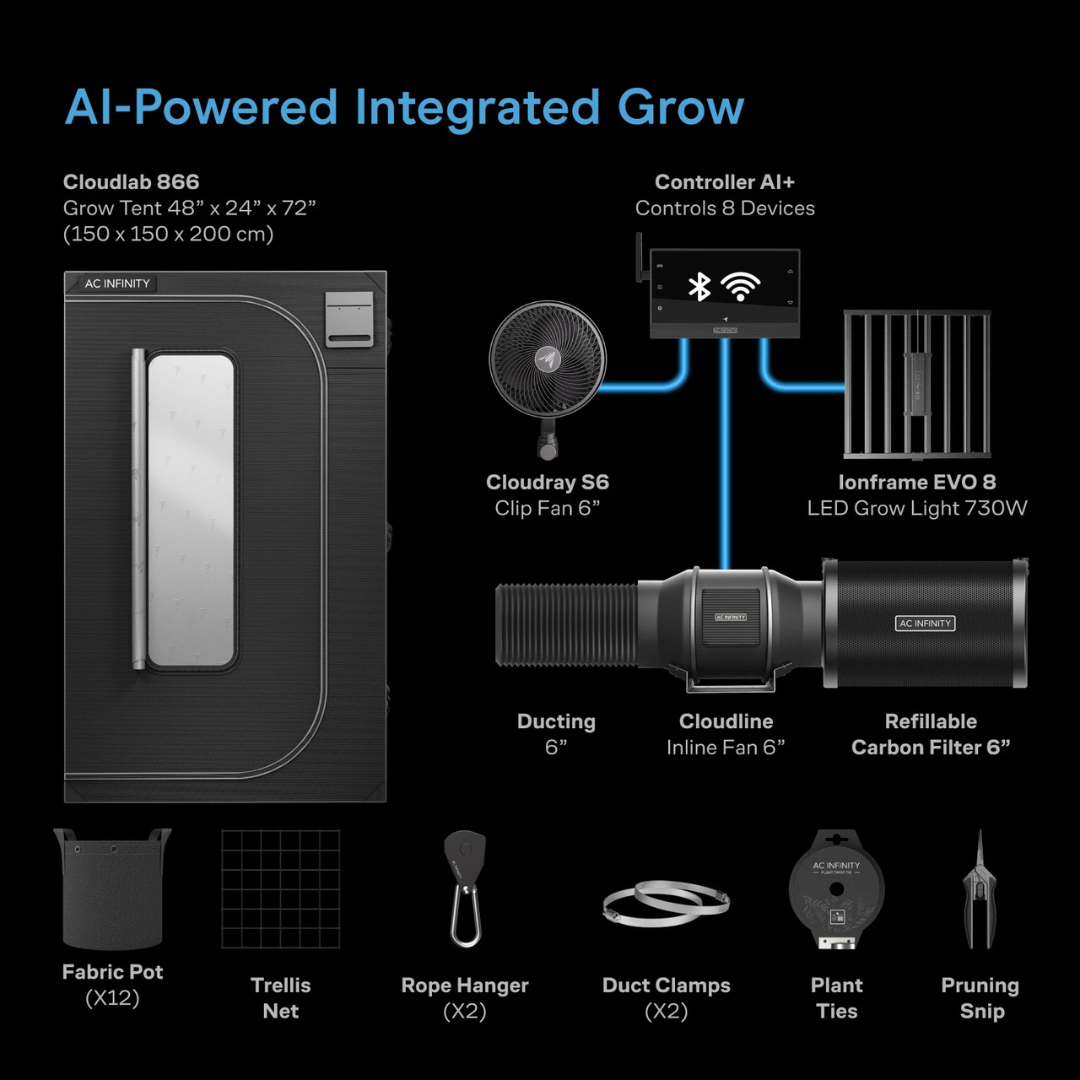

Included
- 1 CLOUDLAB 866 Advance Grow Tent, 60 x 60 x 80 in.
- 1 CONTROLLER AI+ Grow Tent Controller
- 1 CLOUDLINE PRO 6 Inline Fan, 6 in.
- 1 IONFRAME EVO8 Commercial Bar LED Grow Light, 5 ft. x 5 ft.
- 2 CLOUDRAY S6 Oscillating Circulation Clip Fans
- 1 Refillable Carbon Filter, 6 in.
- 1 Flexible Ducting, 6 in. x 8 ft.
- 2 Hanging Straps
- 2 Rope Clip Hangers
- 2 Steel Clamps, 6 in.
- 1 Duct Tape
- 10 Hook-and-Loop Ties
- 1 UIS Male-to-Male Controller Cord
- 2 L-Shaped UIS Male-to-Male Controller Cords
- 12 Fabric Pots, 5 gal.
- 1 Elastic Trellis Netting, 5 ft. x 5 ft.
- 1 Black Wire Twist Ties
- 1 Micro-Tip Pruning Shears
- $150 ASeedCompany.com voucher for orders within the 50 United States
- $50 digital grow course
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects. Commercial grow lights receive a 5-year warranty, subject to the terms and exclusions stated in the product manual.
