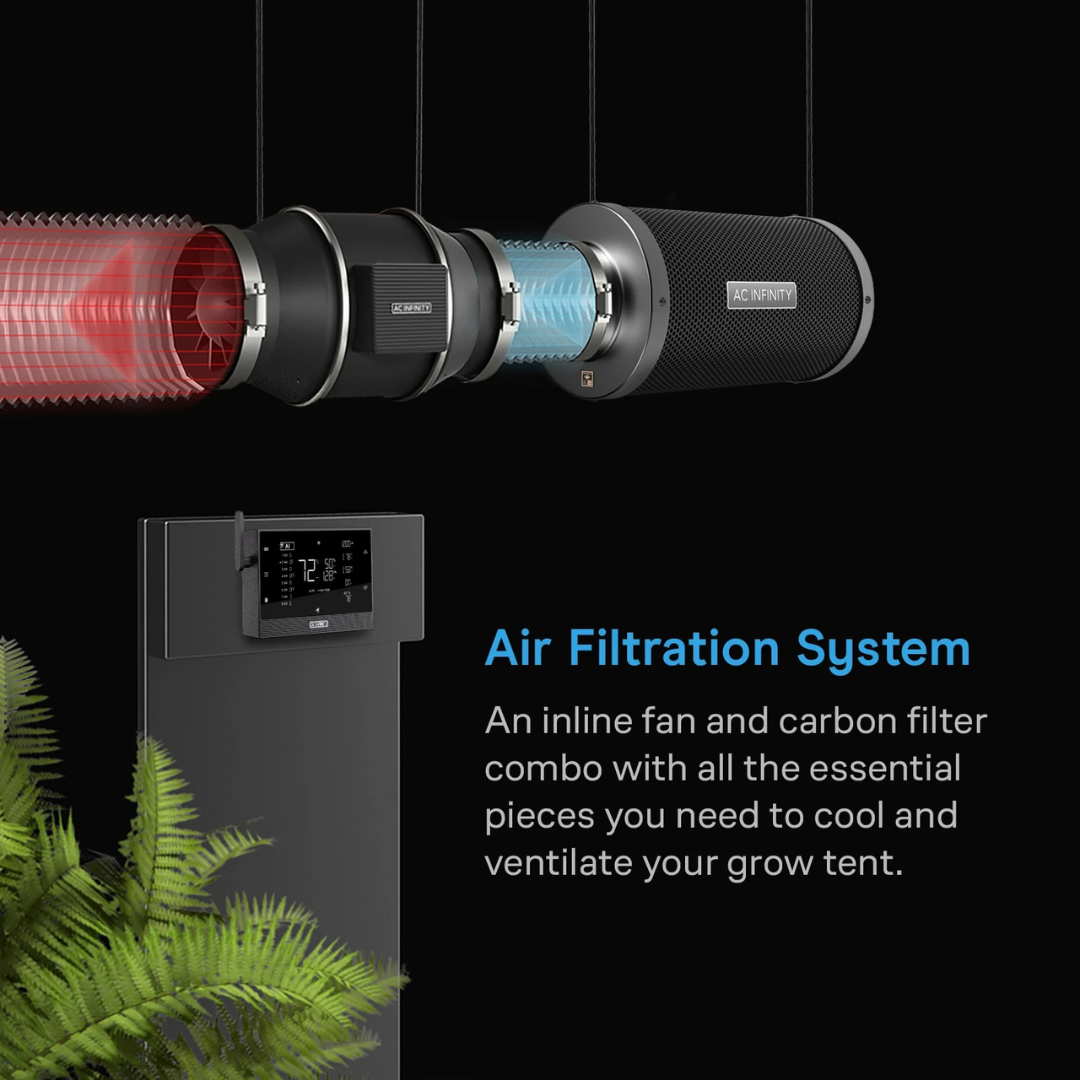

A complete 4-inch air filtration system designed to ventilate grow spaces, manage heat, circulate air, and control odors. The kit combines an upgraded inline duct fan, an AI-powered environmental controller, a carbon filter, flexible ducting, and installation accessories.
The controller observes climate patterns and adjusts fan output dynamically to help maintain environmental stability. WiFi app connectivity provides remote access to AI-generated presets, fine-tuned controls, real-time insights, grow guides, recipes, tutorials, and chatbot assistance.
Key Features
-

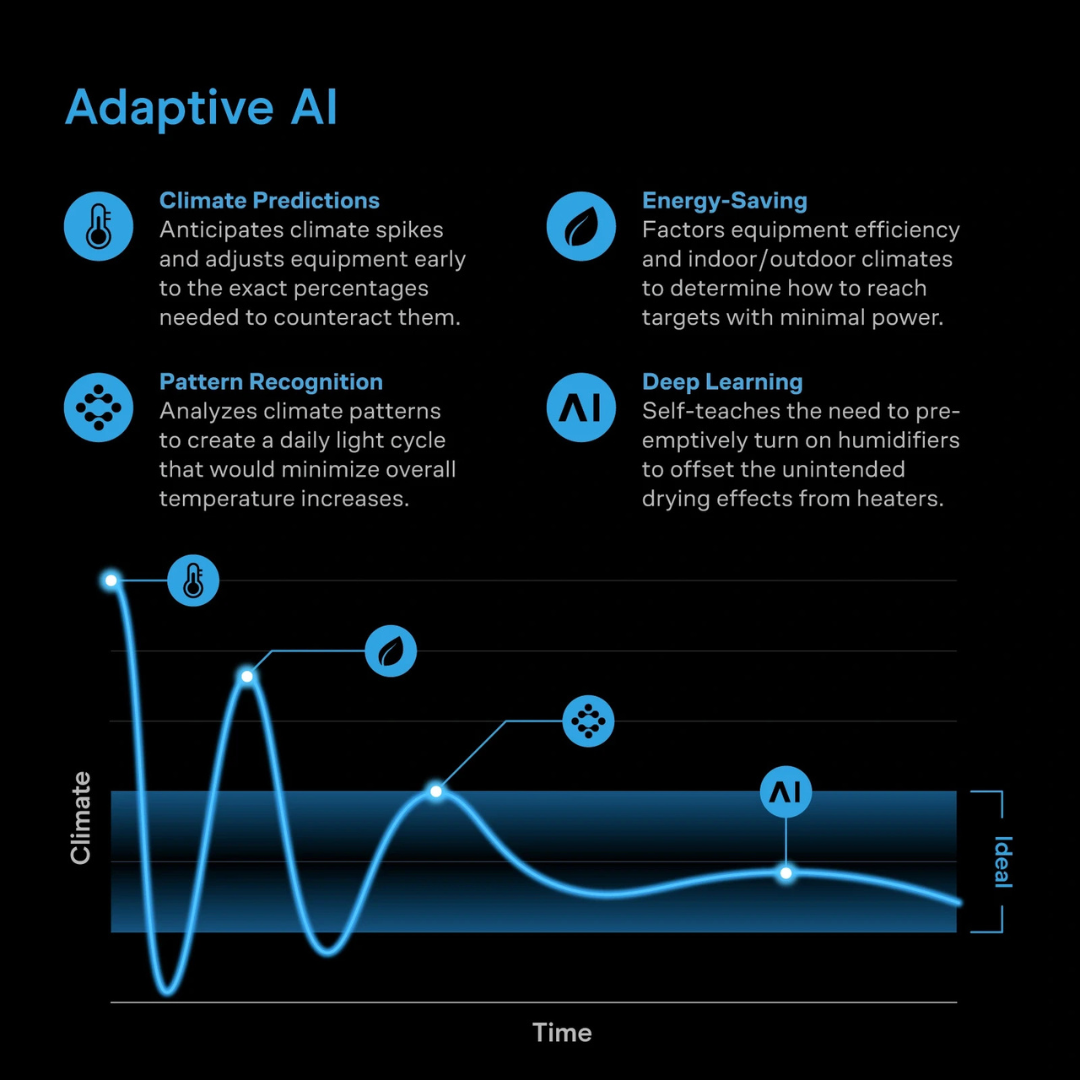

AI-Powered Environmental Control: Observes climate conditions, analyzes previous results, and adjusts inline fan output dynamically.
-
Anticipatory Programming: Responds to climate patterns to help avoid under- or overshooting environmental output levels.
-
Adjustable AI Inputs: Offers 2 AI input options for AI-generated automatic presets or more customized control.
-

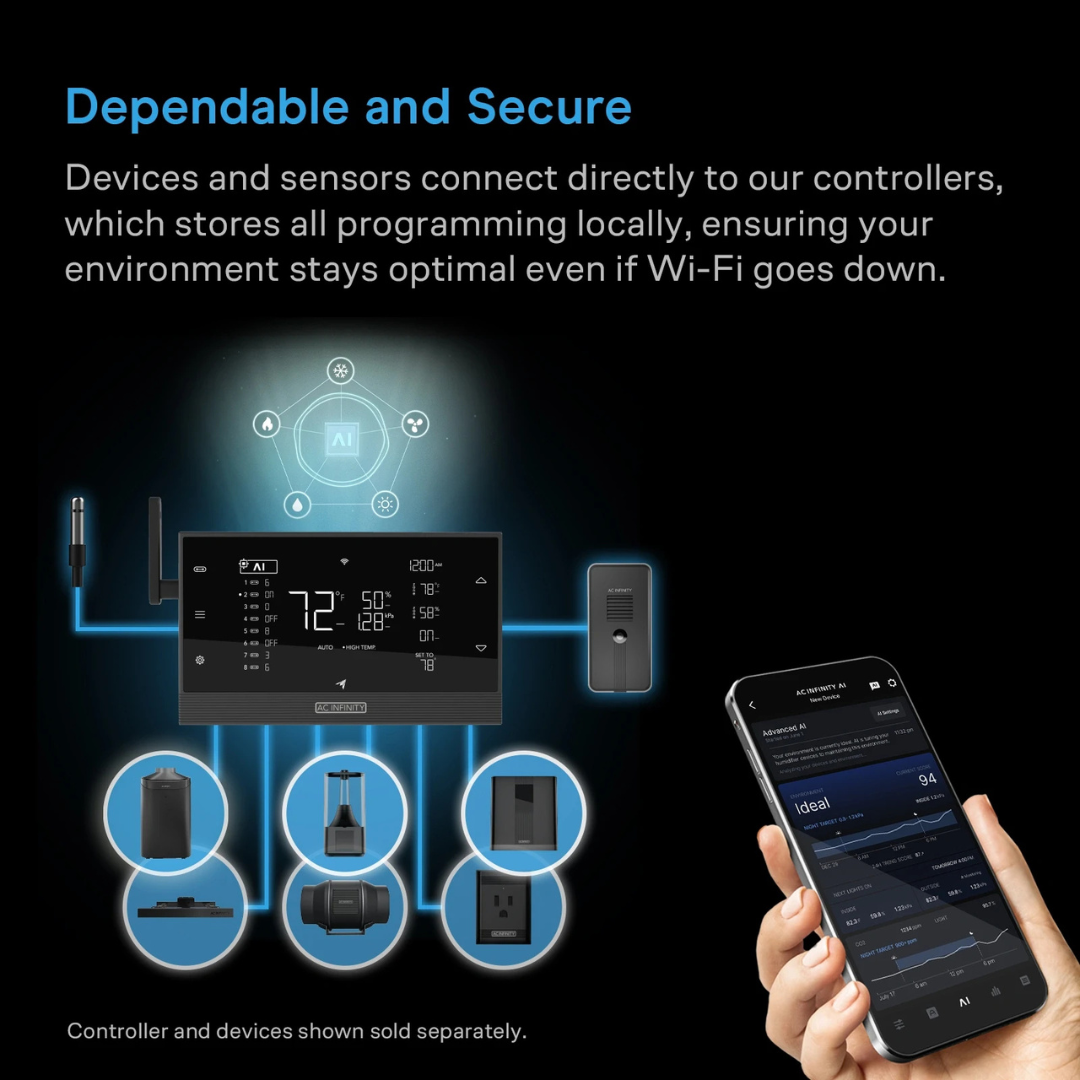

WiFi App Connectivity: Provides remote access to environmental controls, real-time AI insights, grow resources, tutorials, and chatbot assistance.
-
Complete Filtration System: Includes an upgraded inline fan, AI environment controller, carbon filter, flexible ducting, and installation accessories.
-

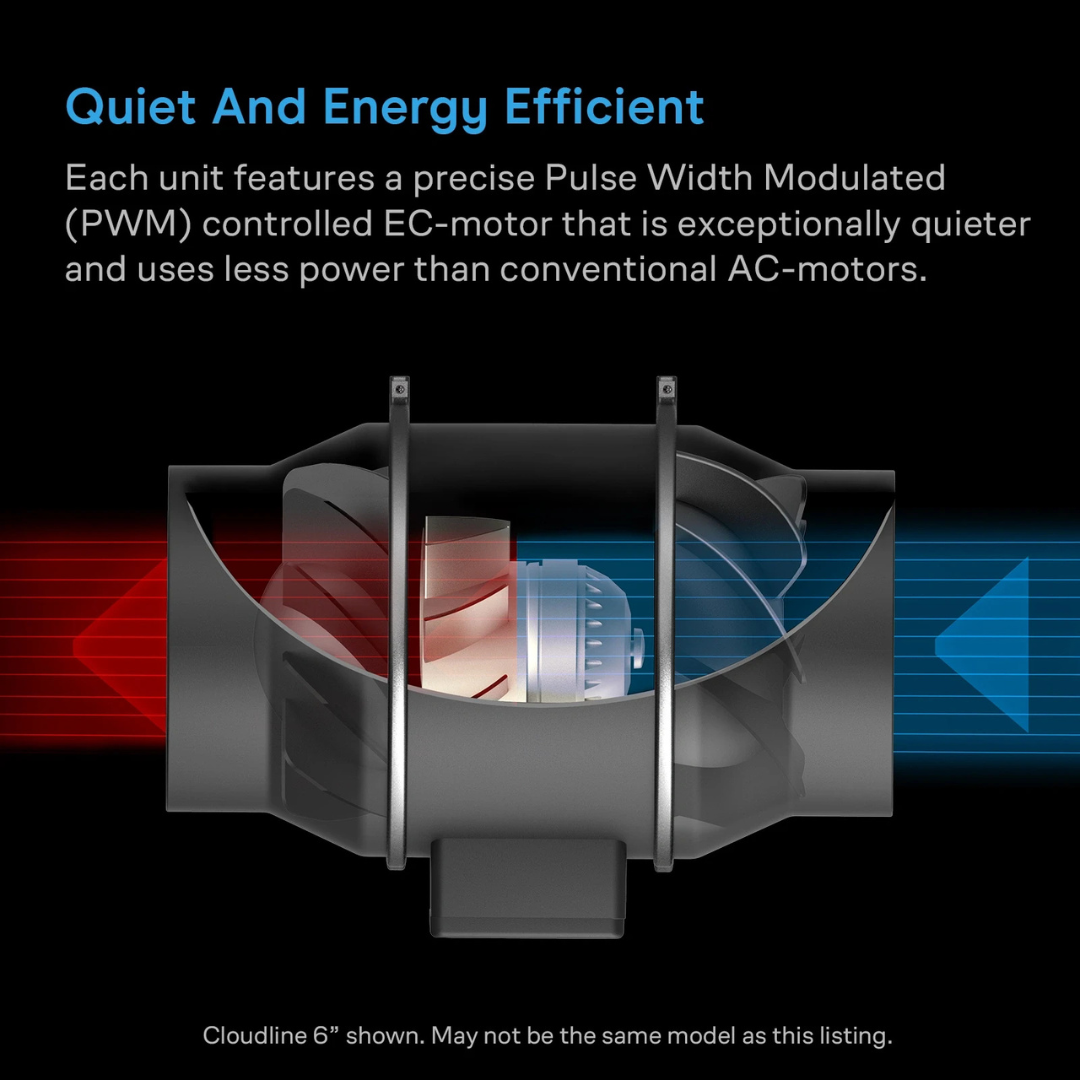

PWM-Controlled EC Motor: Enables smooth operation at low RPMs without generating additional heat or noise.
-
Mixed-Flow Design: Uses stator blades and hydrodynamic wind circles to support airflow in grow-tent ventilation applications.
-

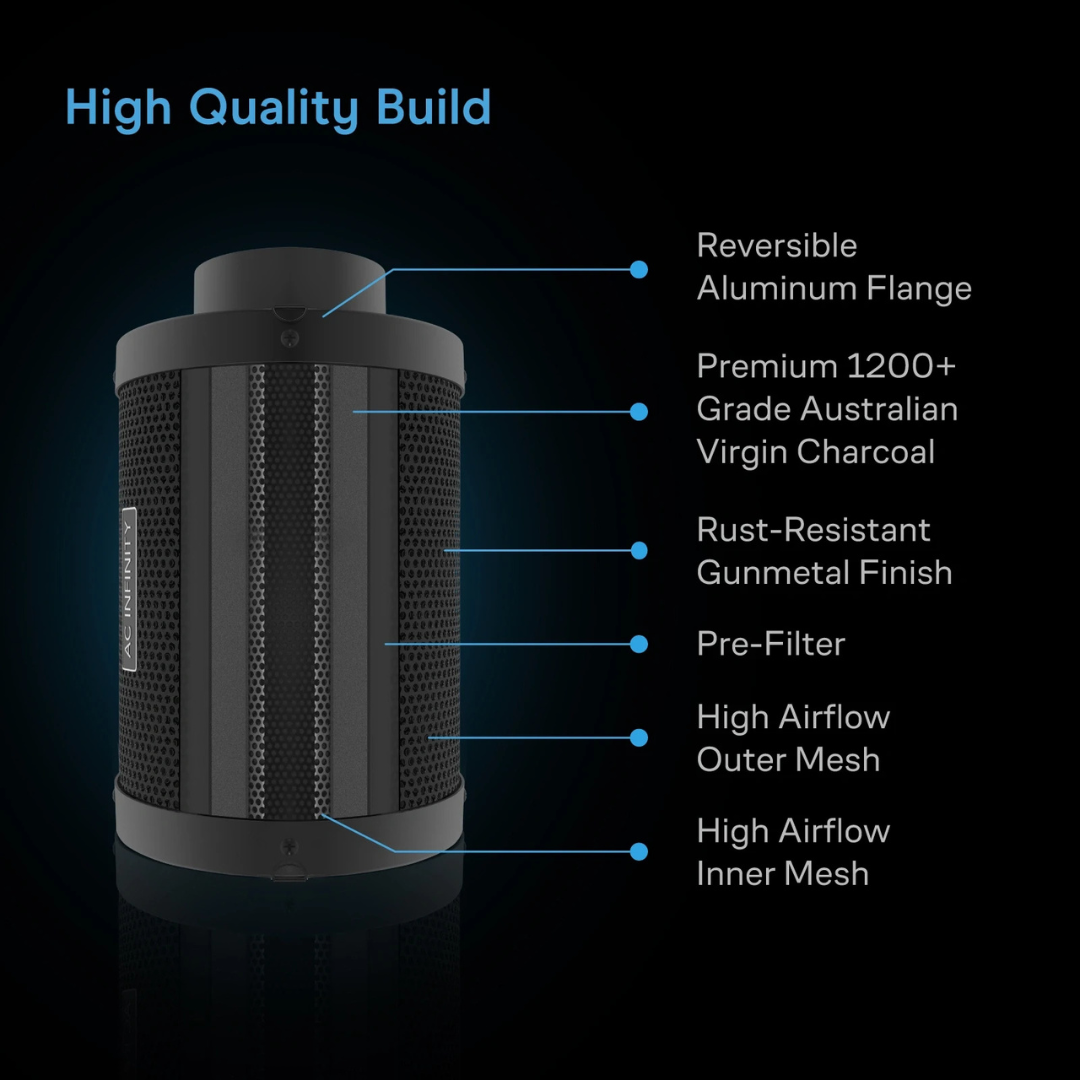

Activated Carbon Filtration: Uses Australian virgin RC412 activated charcoal with a 1200+ IAV rating to adsorb odors and unwanted chemicals.
-
Rust-Resistant Filter Construction: The galvanized steel mesh body has a powder-coated gunmetal finish to resist rust and corrosion in high-humidity growing environments.
-
Four-Layer Flexible Ducting: Routes stale and odorous air away from the grow space while providing protection against tears and air leakage.
-
Flexible Fan Installation: Dual ball bearings allow the fan to be mounted horizontally or vertically.
-
Ingress Protection: The fan’s IP44 sealing provides resistance to dust and splashing liquids.

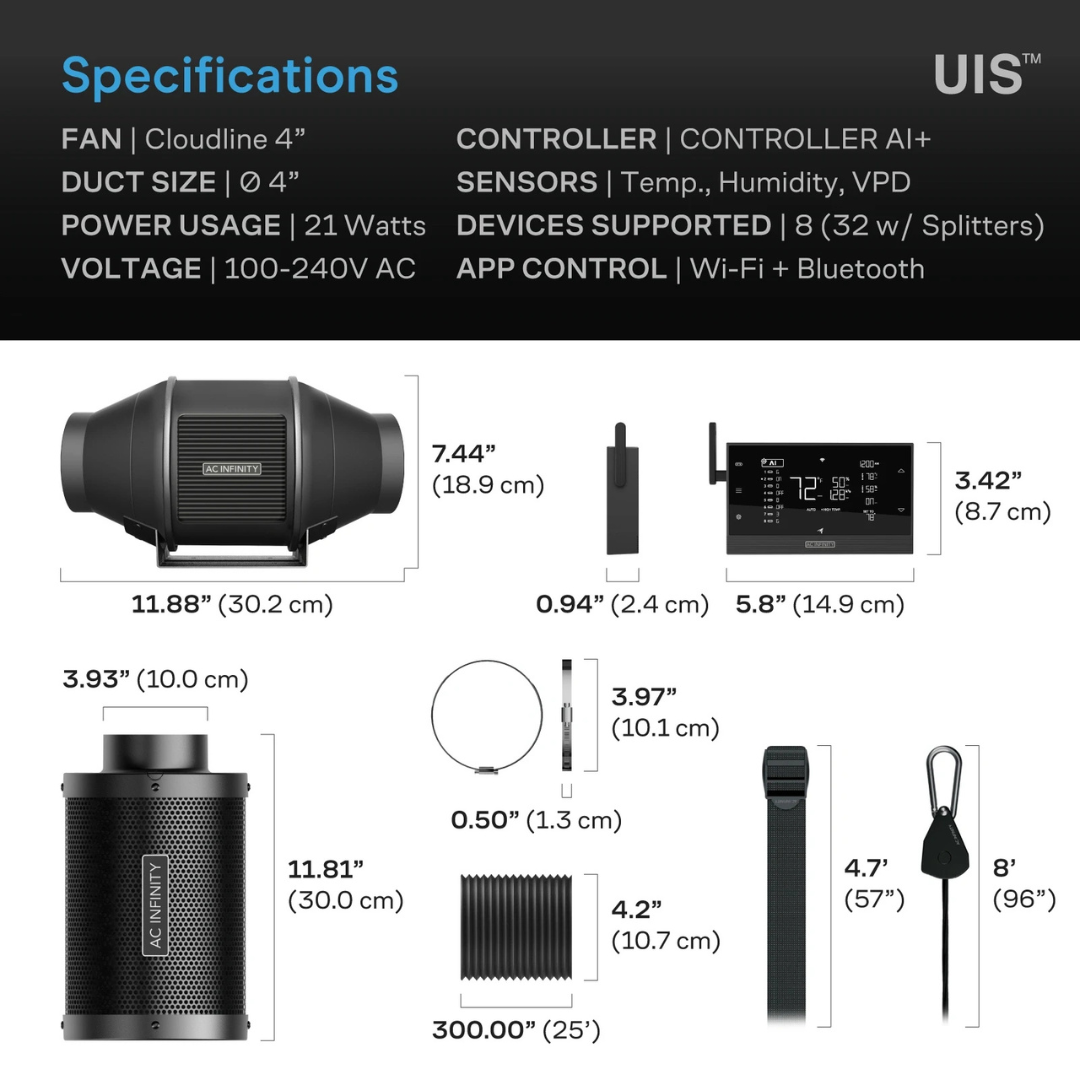

Specifications
-
Kit Duct Size: 4 in.
-
Fan Dimensions: 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
-
Fan Mounting Hole-to-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
-
Fan Screw Hole Diameter: 0.197 in. (0.5 cm)
-
Cord Length to Controller: 72 in. (6 ft.)
-
Cord Length to Plug: 72 in. (6 ft.)
-
Controller Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)
-
Total Airflow: 205 CFM
-
Total Noise: 29 dBA
-
Maximum Fan Speed: 2800 RPM
-
Static Pressure: 324 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 28 W
-
Average Power Usage: 21 W
-
Current: 0.4 A
-
Power Connector Type: US Plug (NEMA 1-15 Type A)
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 0–140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Fan Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Fan Quality Approvals: CE and RoHS
-
Fan Certifications: CE, ETL, RoHS, and SAA
-
Carbon Filter Duct Opening: 4 in.
-
Carbon Filter Dimensions: 13.35 x 6.97 in. (33.3 x 17.7 cm)
-
Filter Flange Length: 1.46 in. (3.7 cm)
-
Filter Flange Material: Aluminum
-
Filter Flange Design: Reversible
-
Filter Mesh Material: Galvanized steel
-
Filter Finish: Powder-coated gunmetal
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Carbon Filter Maximum Airflow: 210 CFM
-
Ducting Size: 4 in. (10.2 cm)
-
Ducting Length: 300 in. (25 ft.)
-
Ducting Outer Layer: PVC thermoplastic
-
Ducting Inner Material: Aluminum foil
-
Ducting Internal Structure: Spiral steel wire
Size Guide
-
Kit Duct Size: 4 in.
-
Fan Dimensions: 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
-
Carbon Filter Dimensions: 13.35 x 6.97 in. (33.3 x 17.7 cm)
-
Ducting Size and Length: 4 in. x 25 ft.
Compatibility
Compatible With: UIS platform grow devices and smart controllers.

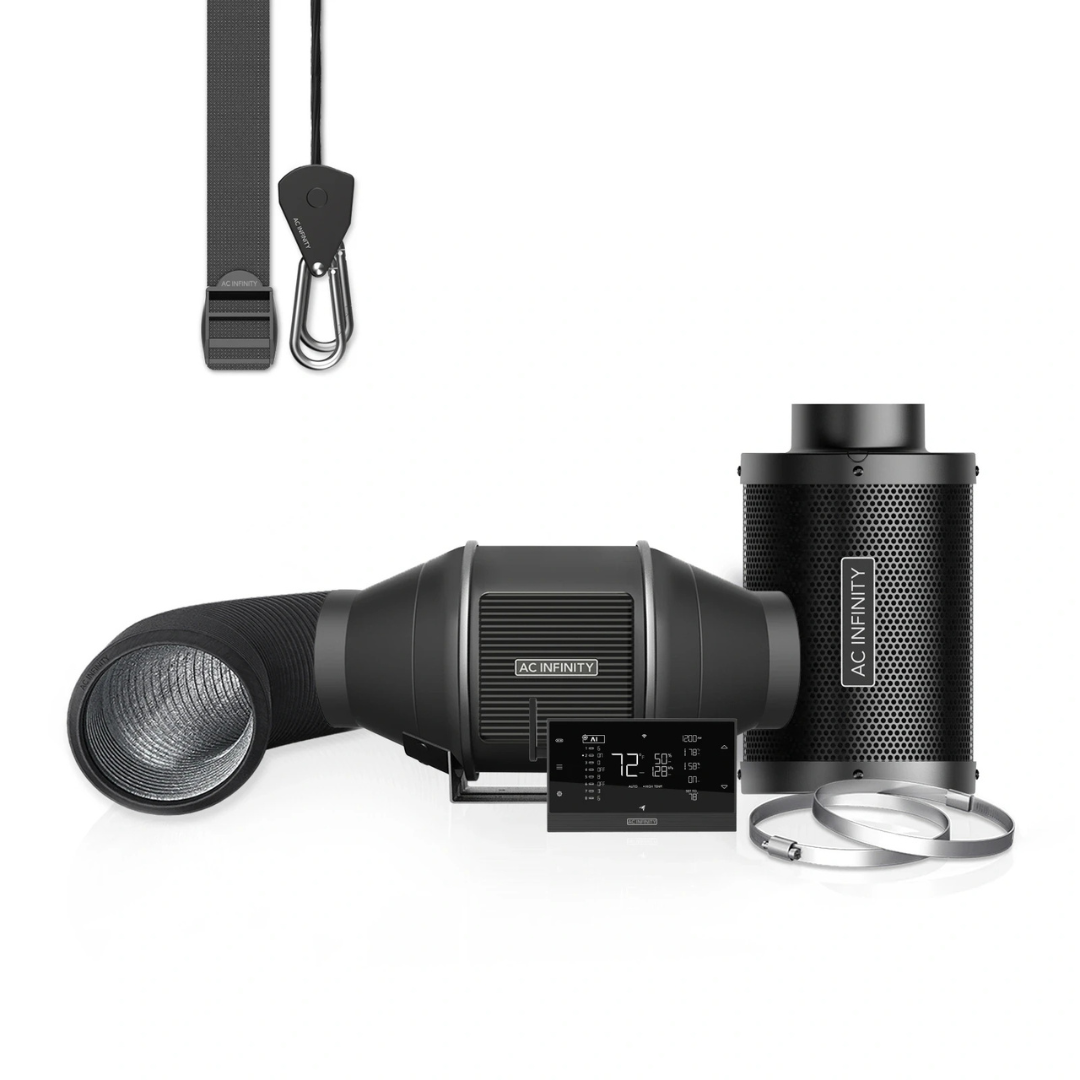

Included
- AI-powered environmental controller
- 4-inch upgraded inline duct fan
- 4-inch carbon filter
- 25-ft. flexible ducting
- Prefilter cloth
- Duct clamps
- Rope clip hangers
- Hanging straps
Warranty
Warranty: 2-year warranty from the date of purchase.
