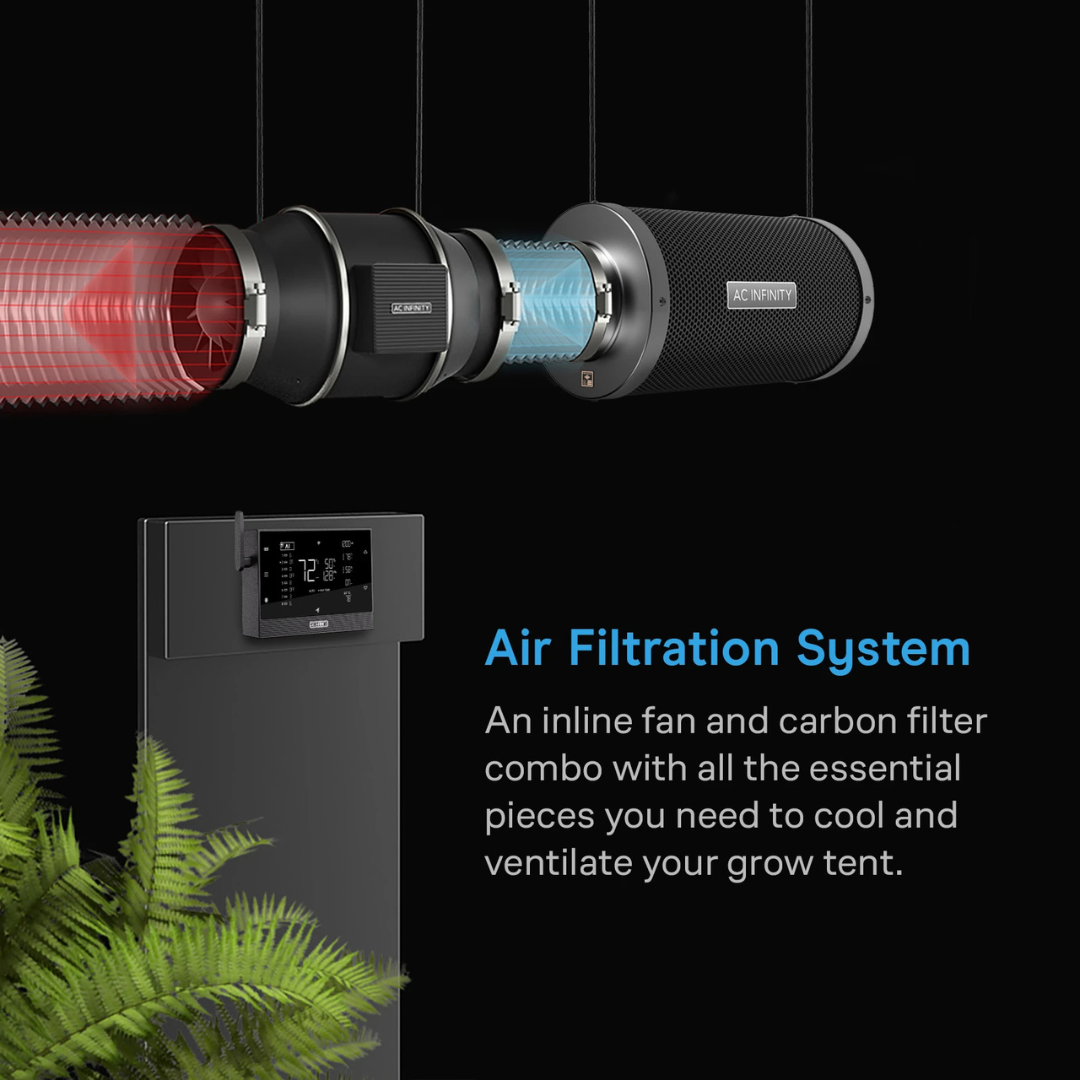

A complete 6-inch air filtration system designed to ventilate grow spaces, manage heat, circulate air, and control odors. The kit combines an upgraded inline duct fan, AI-powered environmental controller, carbon filter, flexible ducting, and installation accessories.
The controller observes climate patterns and adjusts fan output dynamically to help maintain environmental stability. WiFi app connectivity provides remote access to AI-generated presets, fine-tuned controls, real-time insights, grow guides, recipes, tutorials, and chatbot assistance.
Key Features
-

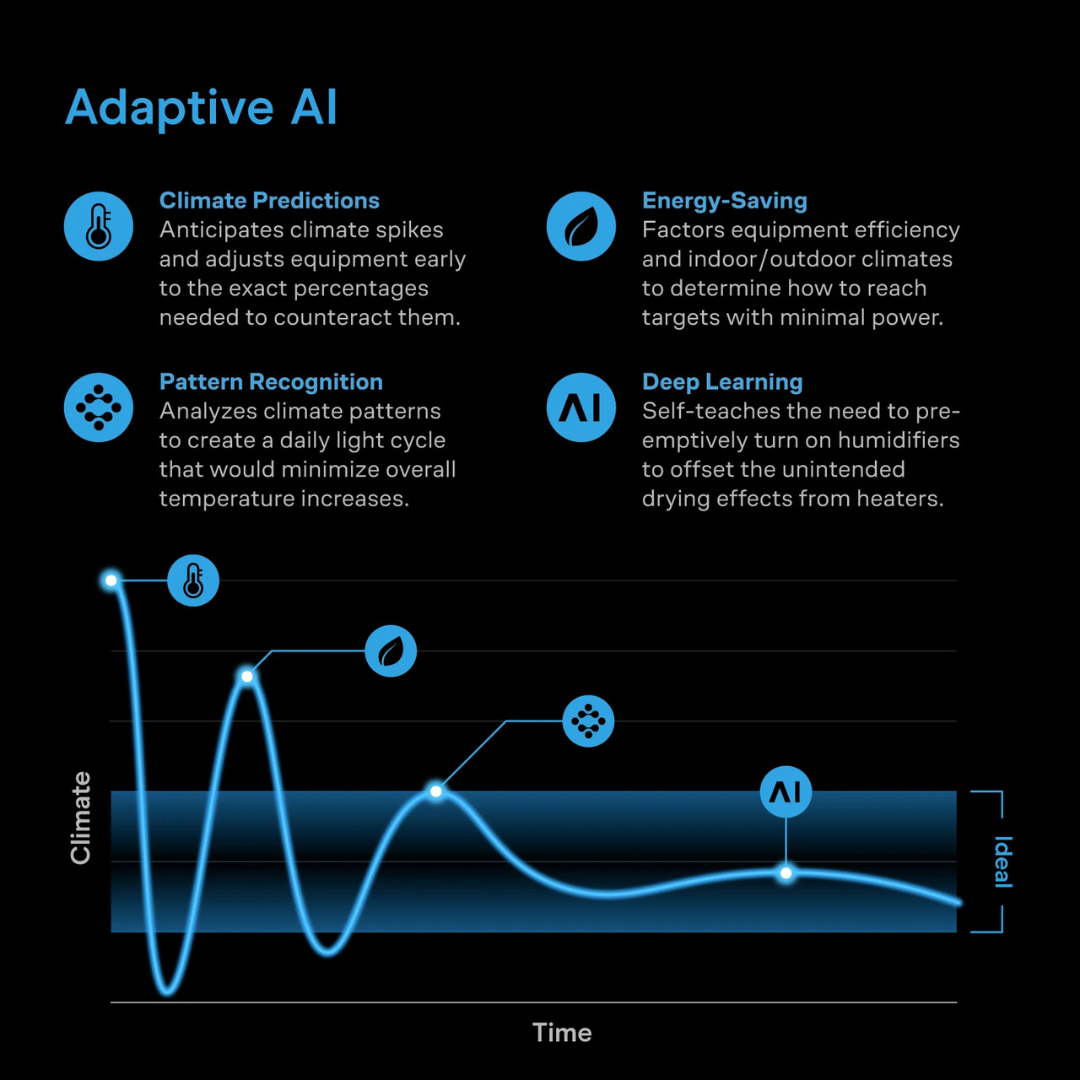

AI-Powered Environmental Control: Observes climate conditions, analyzes previous results, and adjusts inline fan output dynamically.
-
Anticipatory Programming: Responds to climate patterns to help avoid under- or overshooting environmental output levels.
-
Adjustable AI Inputs: Offers 2 AI input options for AI-generated automatic presets or more customized control.
-

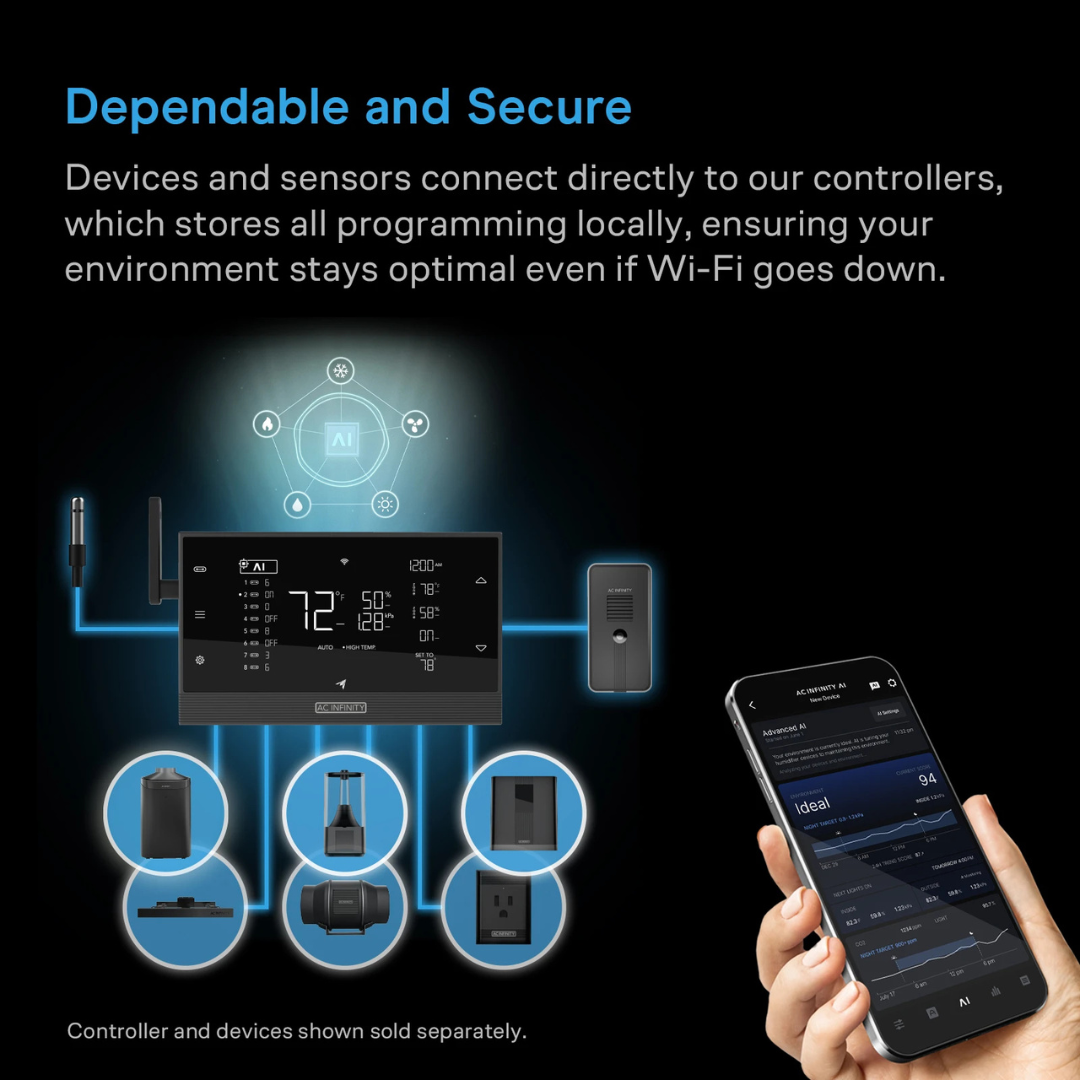

WiFi App Connectivity: Provides remote access to environmental controls, real-time AI insights, grow resources, tutorials, and chatbot assistance.
-
Complete Filtration System: Includes an upgraded inline fan, AI environment controller, carbon filter, flexible ducting, and installation accessories.
-

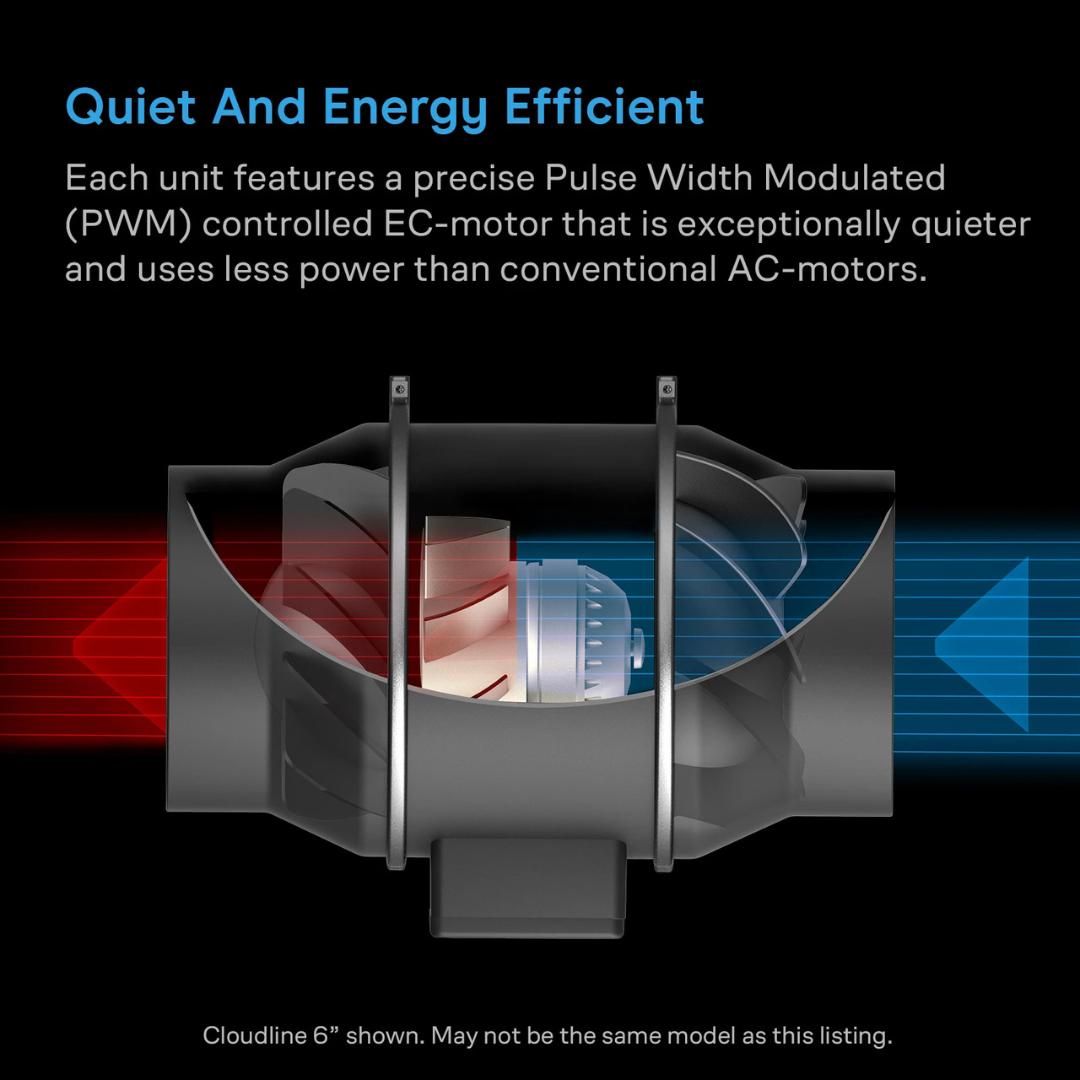

PWM-Controlled EC Motor: Enables smooth operation at low RPMs without generating additional heat or noise.
-
Mixed-Flow Design: Uses stator blades and hydrodynamic wind circles to support airflow in grow-tent ventilation applications.
-

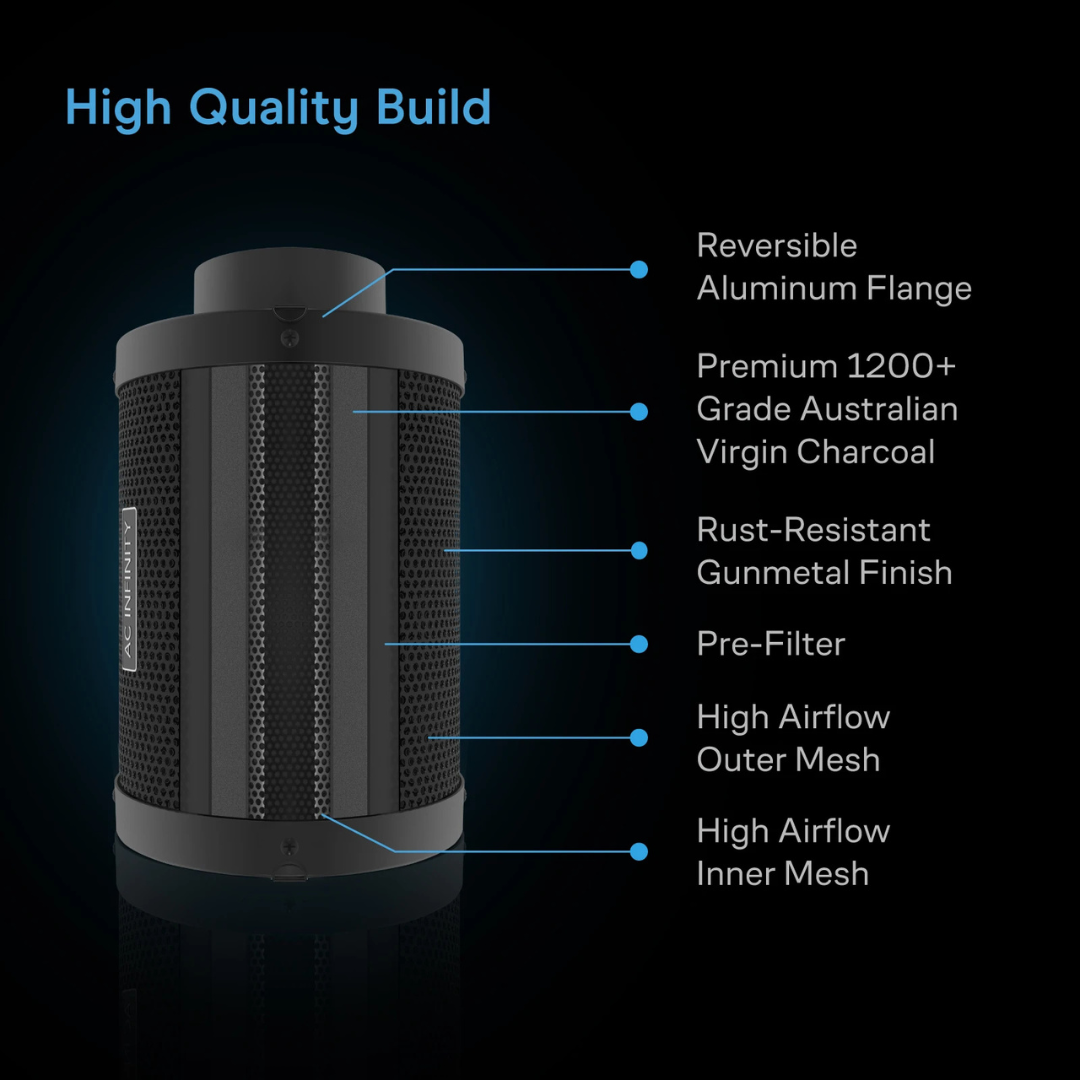

Activated Carbon Filtration: Uses Australian virgin RC412 activated charcoal with a 1200+ IAV rating and 60 mm carbon bed.
-
Rust-Resistant Filter Construction: The galvanized steel mesh body has a powder-coated gunmetal finish to resist rust and corrosion in high-humidity growing environments.
-
Four-Layer Flexible Ducting: Routes stale and odorous air away from the grow space while providing protection against tears and air leakage.
-
Flexible Fan Installation: Dual ball bearings allow the fan to be mounted horizontally or vertically.
-
Ingress Protection: The fan’s IP44 sealing provides resistance to dust and splashing liquids.
Specifications
-
Kit Duct Size: 6 in.
-
Fan Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
-
Fan Mounting Hole-to-Hole Distance: 3.15 x 2.36 in. (8.0 x 6.0 cm)
-
Fan Screw Hole Diameter: 0.236 in. (0.6 cm)
-
Cord Length to Controller: 72 in. (6 ft.)
-
Cord Length to Plug: 72 in. (6 ft.)
-
Controller Dimensions: 5.8 x 3.42 x 0.94 in. (14.9 x 8.7 x 2.4 cm)
-
Total Airflow: 402 CFM
-
Total Noise: 34 dBA
-
Maximum Fan Speed: 2800 RPM
-
Static Pressure: 394 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 70 W
-
Average Power Usage: 38 W
-
Current: 0.94 A
-
Power Connector Type: US Plug (NEMA 1-15 Type A)
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 0–140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Fan Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Fan Quality Approvals: CE and RoHS
-
Fan Certifications: CE, ETL, RoHS, and SAA
-
Carbon Filter Duct Opening: 6 in.
-
Carbon Filter Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)
-
Filter Flange Length: 1.57 in. (4.0 cm)
-
Filter Flange Material: Aluminum
-
Filter Flange Design: Reversible
-
Filter Mesh Material: Galvanized steel
-
Filter Finish: Powder-coated gunmetal
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 60 mm
-
Carbon Filter Maximum Airflow: 410 CFM
-
Ducting Size: 6 in.
-
Ducting Length: 300 in. (25 ft.)
-
Ducting Outer Layer: PVC thermoplastic
-
Ducting Inner Material: Aluminum foil
-
Ducting Internal Structure: Spiral steel wire

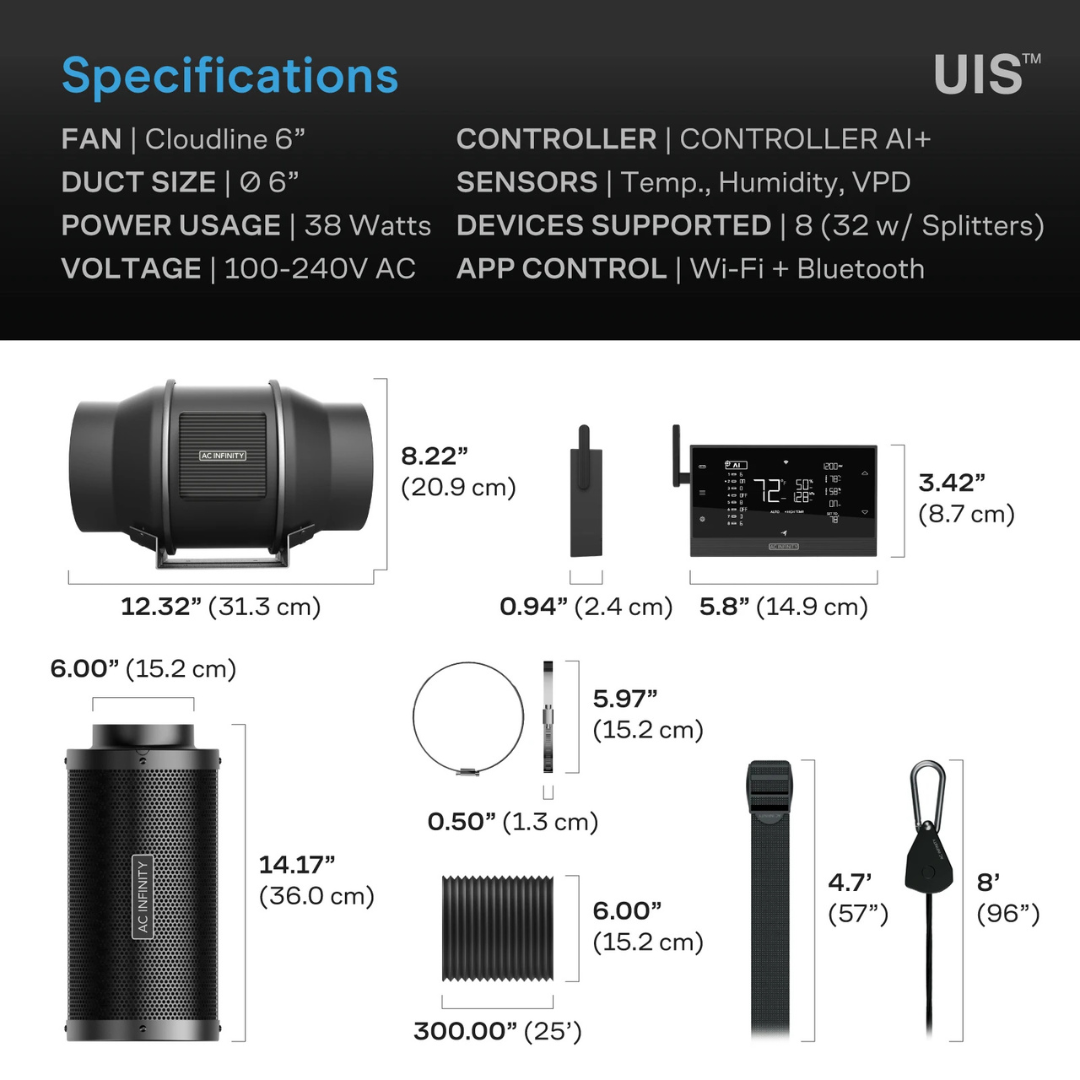

Size Guide
-
Kit Duct Size: 6 in.
-
Fan Dimensions: 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm)
-
Carbon Filter Dimensions: 15.94 x 8.93 in. (40.5 x 22.7 cm)
-
Ducting Size and Length: 6 in. x 25 ft.
Compatibility
Compatible With: UIS platform grow devices and smart controllers.

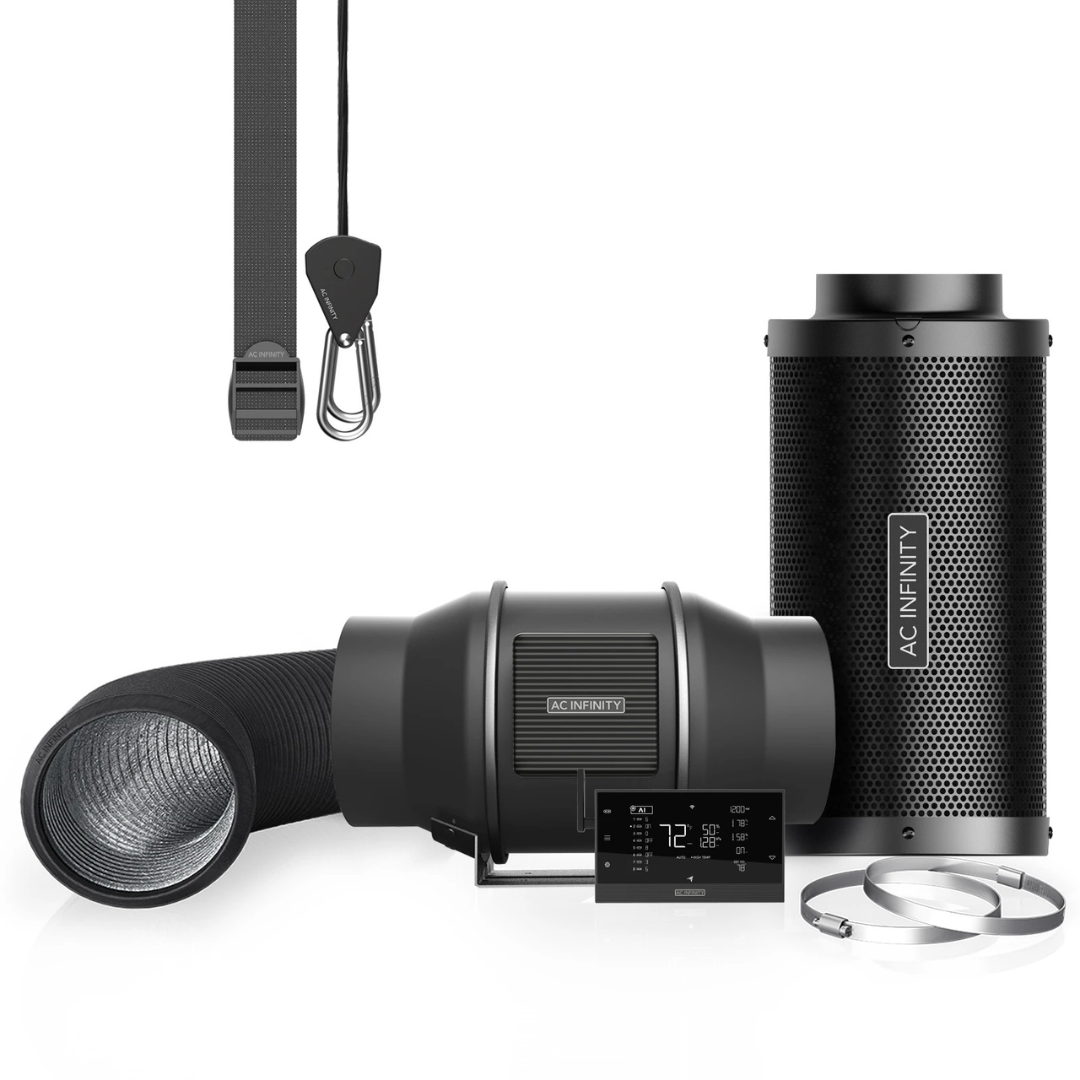

Included
- AI-powered environmental controller
- 6-inch upgraded inline duct fan
- 6-inch carbon filter
- 25-ft. flexible ducting
- Prefilter cloth
- Duct clamps
- Rope clip hangers
- Hanging straps
Warranty
Warranty: 2-year warranty from the date of purchase.
