AC Infinity Air Filtration Kit 8" with Speed Controller, Inline Fan, Carbon Filter

A complete 8-inch air filtration kit designed to ventilate grow spaces, manage heat, circulate air, and control odors. It combines an inline duct fan, carbon filter, flexible ducting, wired speed controller, and installation accessories.

The inline fan delivers up to 724 CFM and includes 10 speed levels for balancing airflow and operating noise. Australian virgin activated charcoal helps adsorb odors, while the included four-layer ducting routes stale and odorous air away from the grow space.

Key Features

• Complete Air Filtration System: Combines an inline fan, carbon filter, flexible ducting, speed controller, and installation accessories.

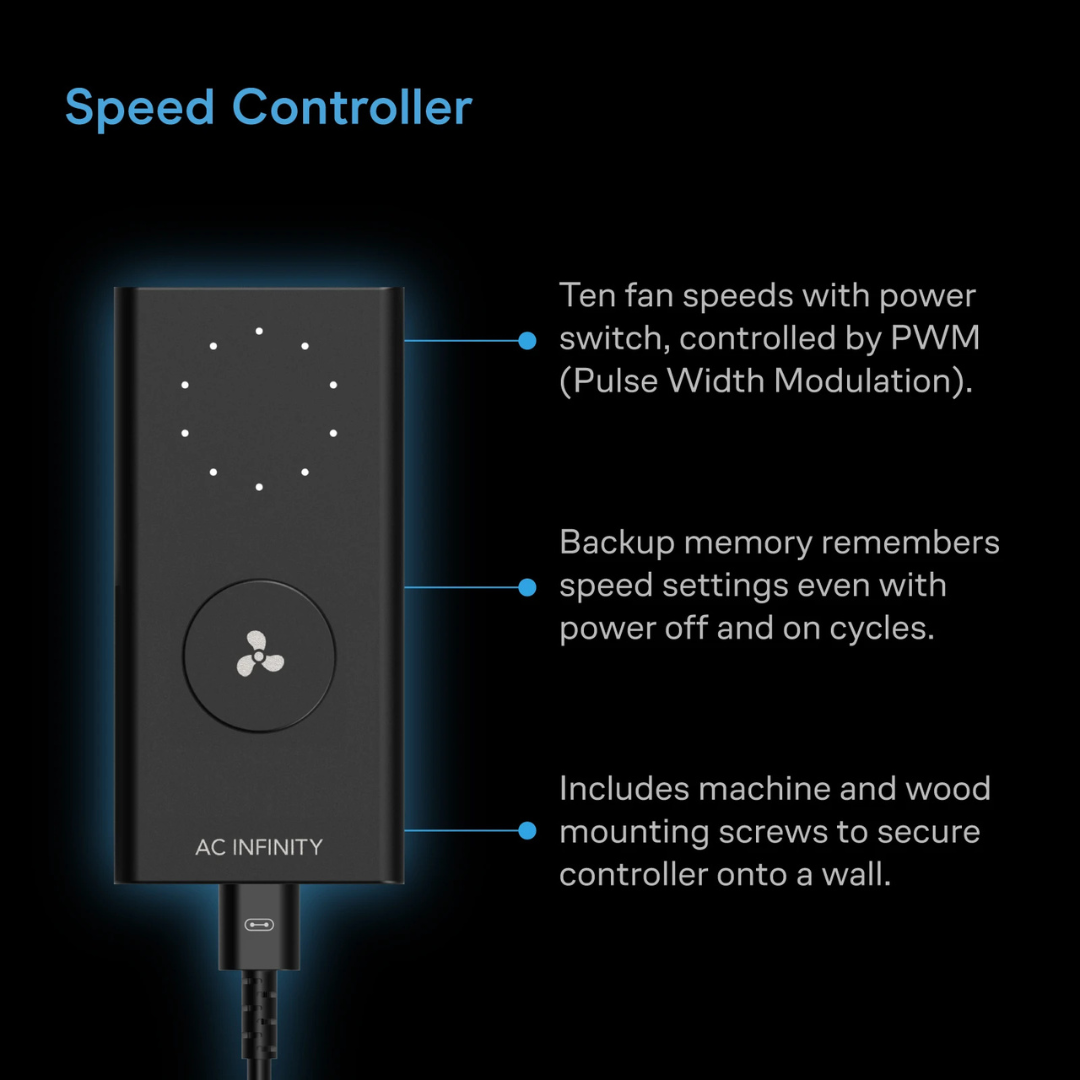

• 10-Speed Fan Control: The wired controller provides 10 speed levels for adjusting airflow and operating noise.
• Mixed-Flow Fan Design: Uses stator blades and dual hydrodynamic wind circles to deliver airflow in restrictive applications.

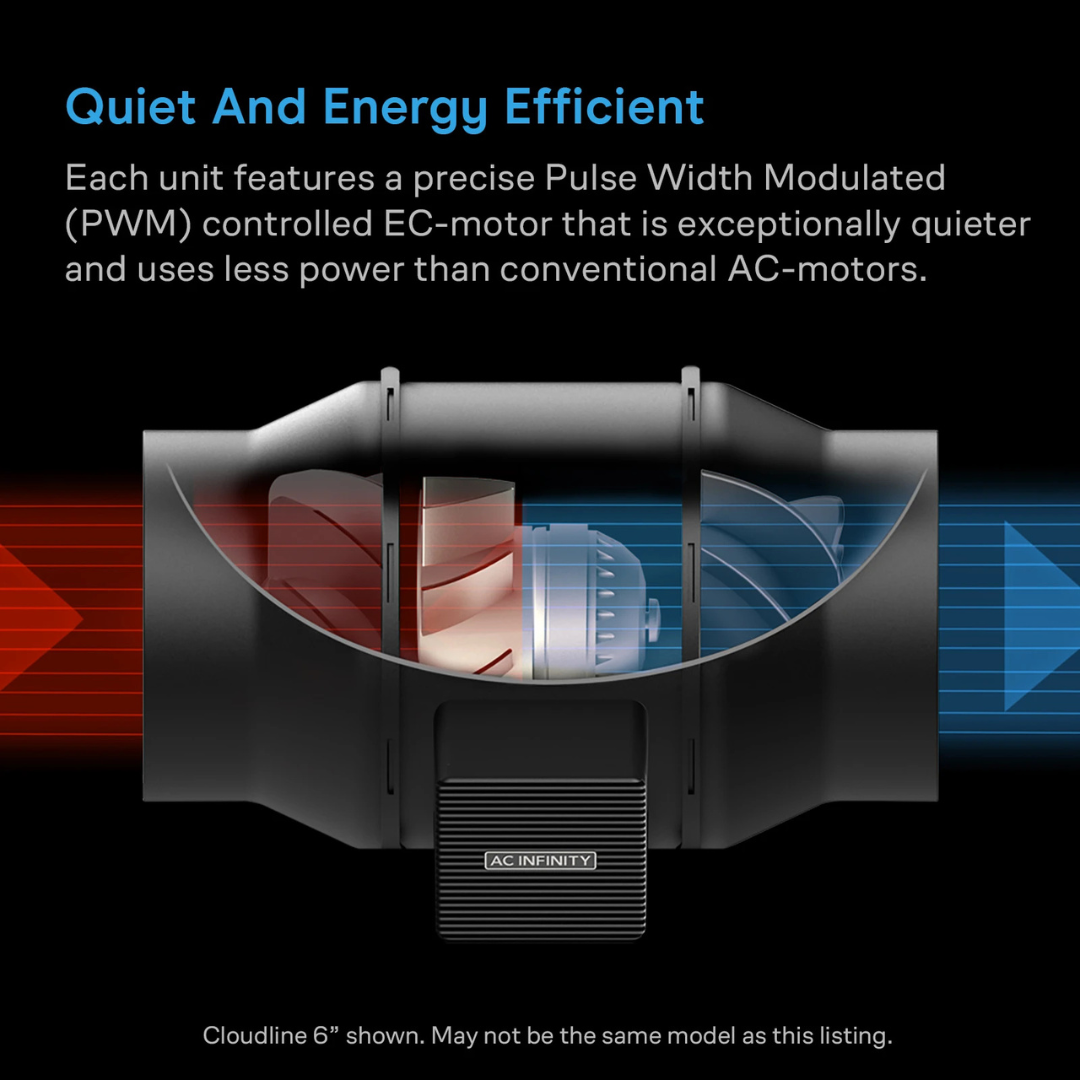

• PWM-Controlled Operation: Enables smooth fan-speed adjustment and operation at low RPMs with minimal motor noise.
• Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
• Vibration-Reducing Mounting Base: The plastic mounting base helps reduce noise caused by fan vibration.

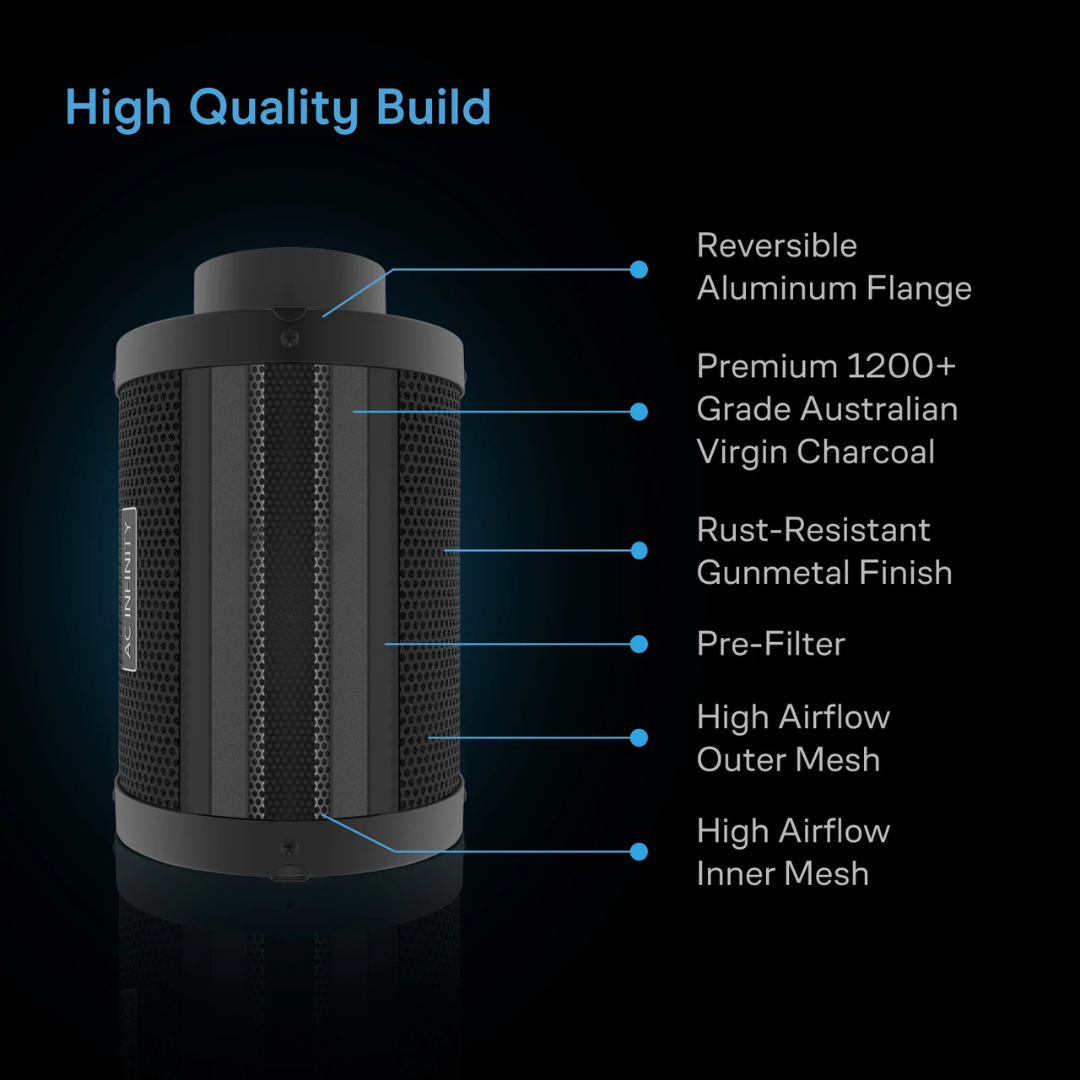

• Activated Carbon Filtration: Uses Australian virgin RC412 activated charcoal with a 1200+ IAV rating and 38 mm carbon bed.
• Reversible Filter Flanges: Allow the filter to be flipped to help extend use of the carbon bed.
• Prefilter Protection: The included prefilter cloth helps prevent dust and other particles from passing through the carbon filter.
• Four-Layer Ducting: Uses PVC thermoplastic outer layers, flame-resistant aluminum inner layers, and internal spiral steel wire to resist tears, leaks, and shape loss.
• Flexible Installation: The inline fan can be mounted horizontally or vertically.
• Ingress Protection: The fan is IP44-rated for resistance to dust and splashing liquids.

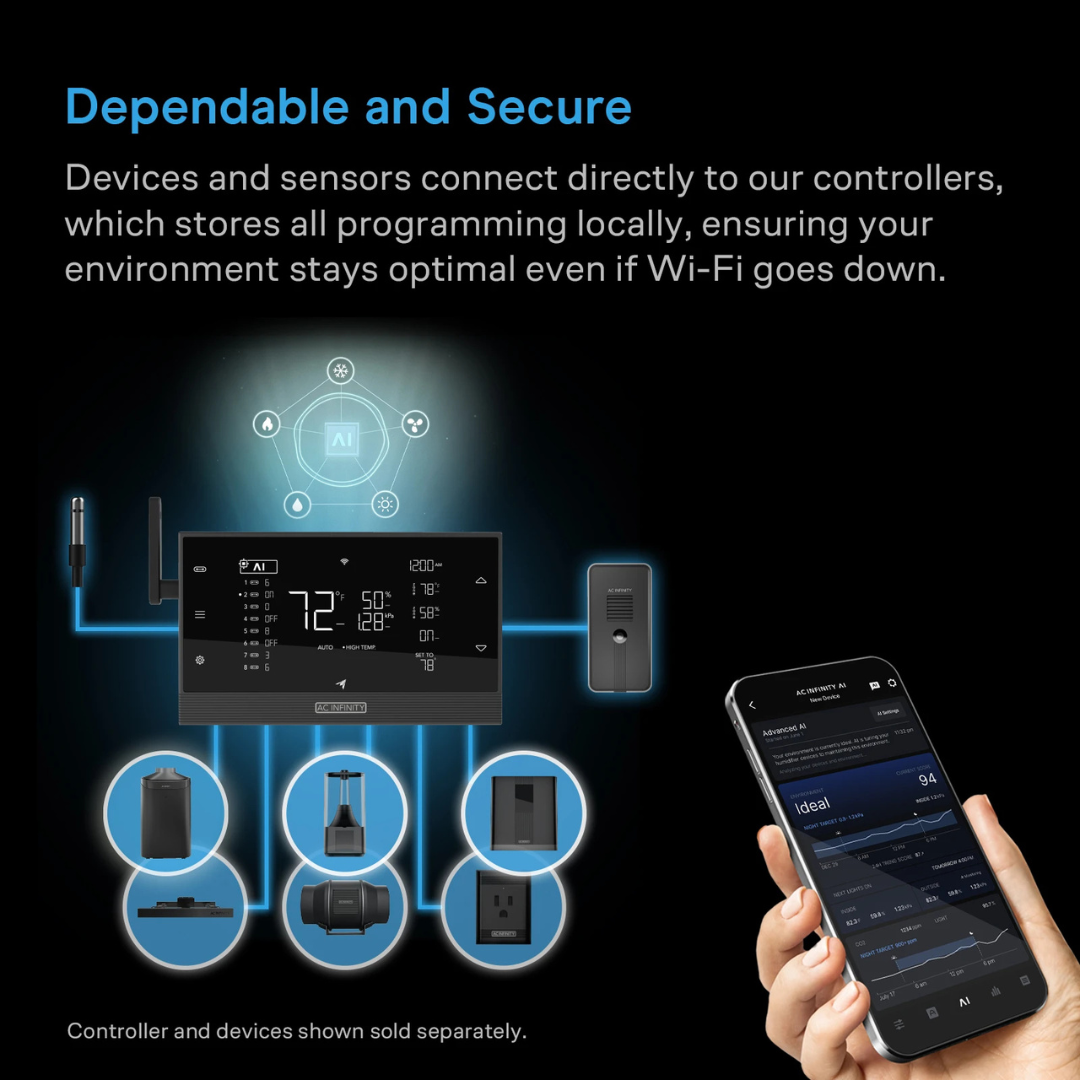

• UIS Compatibility: Part of the UIS platform and compatible with select environmental controllers.

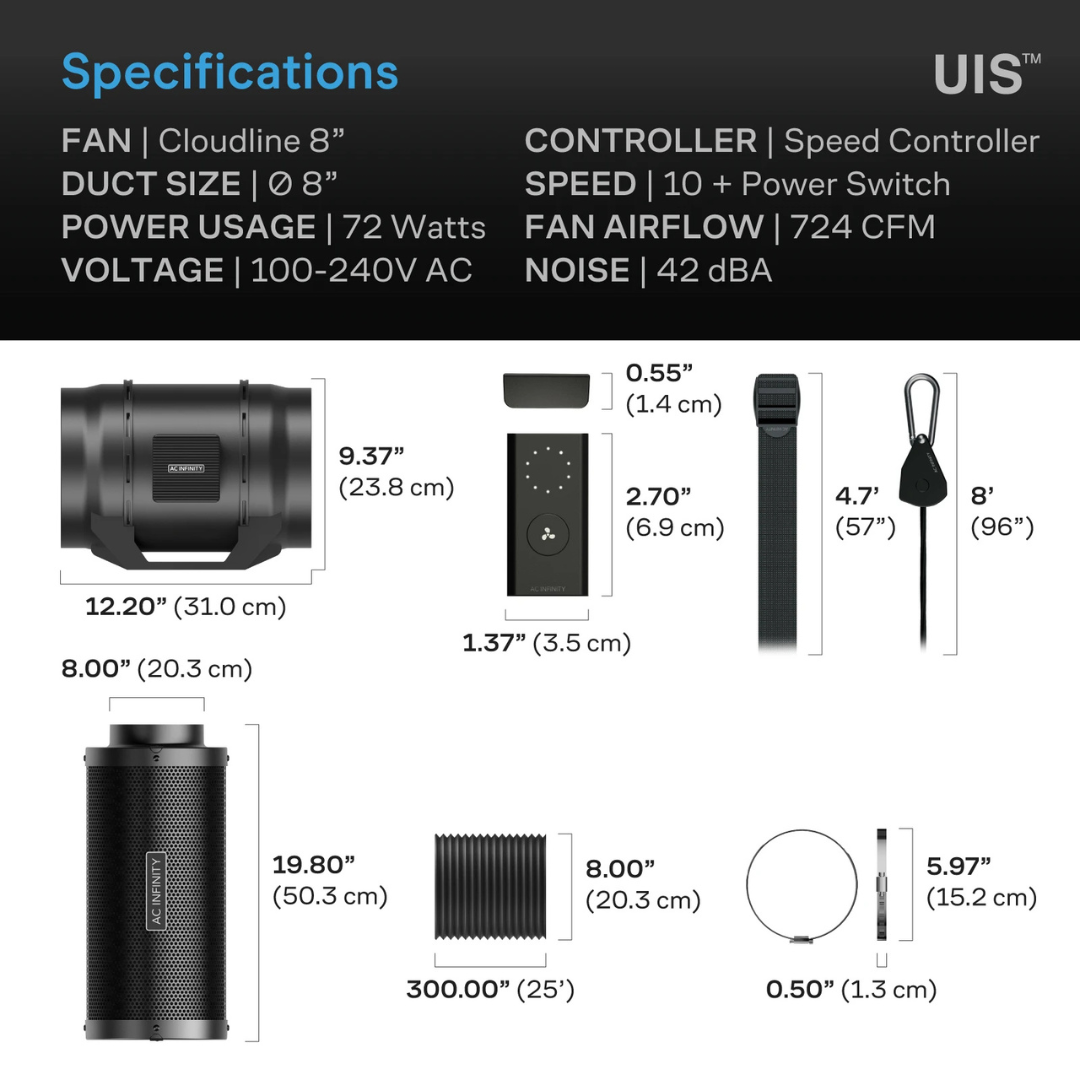

Specifications

• Kit Duct Size: 8 in.
• Fan Dimensions: 12.20 x 10 x 9.37 in. (31 x 25.4 x 23.8 cm)
• Fan Mounting Hole-to-Hole Distance: 3.54 x 1.96 in. (9.0 x 5.0 cm)
• Fan Screw Hole Diameter: 0.217 in. (0.55 cm)
• Cord Length to Controller: 72 in. (6 ft.)
• Cord Length to Plug: 72 in. (6 ft.)
• Controller Dimensions: 2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm)
• Fan Airflow: 724 CFM
• Fan Noise: 42 dBA
• Static Pressure: 746 Pa
• Voltage: 100–240V AC
• Frequency: 50/60Hz
• Maximum Power Draw: 190 W
• Average Power Usage: 72 W
• Current: 2.80 A
• Power Connector Type: US Plug (NEMA 1-15 Type A)
• Operating Humidity: 35–85% RH
• Operating Temperature: 32–140°F
• Ingress Protection: IP44
• Fan Bearings: Dual Ball
• Fan Mounting Positions: Horizontal or Vertical
• L10 Life Expectancy: 67,000 hours
• Fan Quality Approvals: CE and RoHS
• Carbon Filter Duct Opening: 8 in.
• Carbon Filter Dimensions: 19.8 x 10.94 in. (50.3 x 27.8 cm)
• Filter Flange Length: 3.39 in. (8.6 cm)
• Filter Flange Material: Aluminum
• Filter Flange Design: Reversible
• Filter Mesh Material: Galvanized steel
• Carbon Type: Australian Virgin RC412
• Carbon Grade: 1200+ IAV
• Carbon Thickness: 38 mm
• Carbon Filter Maximum Airflow: 770 CFM
• Ducting Size: 8 in.
• Ducting Length: 300 in. (25 ft.)
• Ducting Outer Layer: PVC thermoplastic
• Ducting Inner Material: Aluminum foil
• Ducting Internal Structure: Spiral steel wire

Size Guide

• Kit Duct Size: 8 in.
• Fan Dimensions: 12.20 x 10 x 9.37 in. (31 x 25.4 x 23.8 cm)
• Carbon Filter Dimensions: 19.8 x 10.94 in. (50.3 x 27.8 cm)
• Ducting Size and Length: 8 in. x 25 ft.

Compatibility

Compatible With:

• B-Series Temperature Controller
• CONTROLLER UNC529
• CONTROLLER 69
• CONTROLLER 67
• CONTROLLER 63

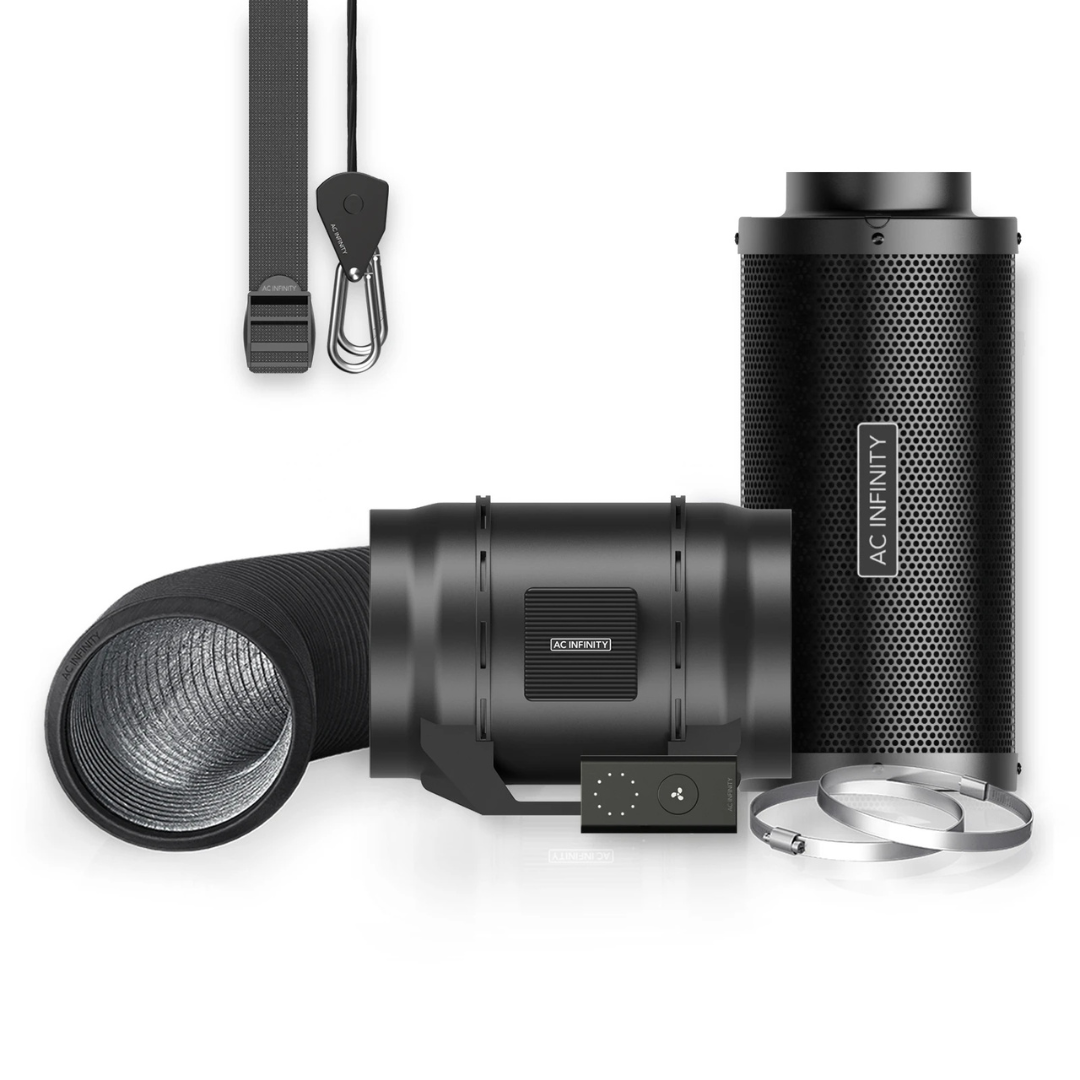

Included

• 1 x Inline duct fan system
• 1 x Wired 10-speed controller
• 1 x Carbon filter
• 2 x Prefilter cloths
• 1 x 25-ft. flexible ducting
• 2 x Duct clamps
• 2 x Hanging straps
• 2 x Rope clip hangers
• 4 x Wall anchors
• 4 x Duct fan screw sets
• 1 x Wood screw for controller wall mounting
• 2 x Controller plate bolts
• 1 x 10-ft. UIS male-to-male cord

Warranty

Warranty: 2-year warranty from the date of purchase.
