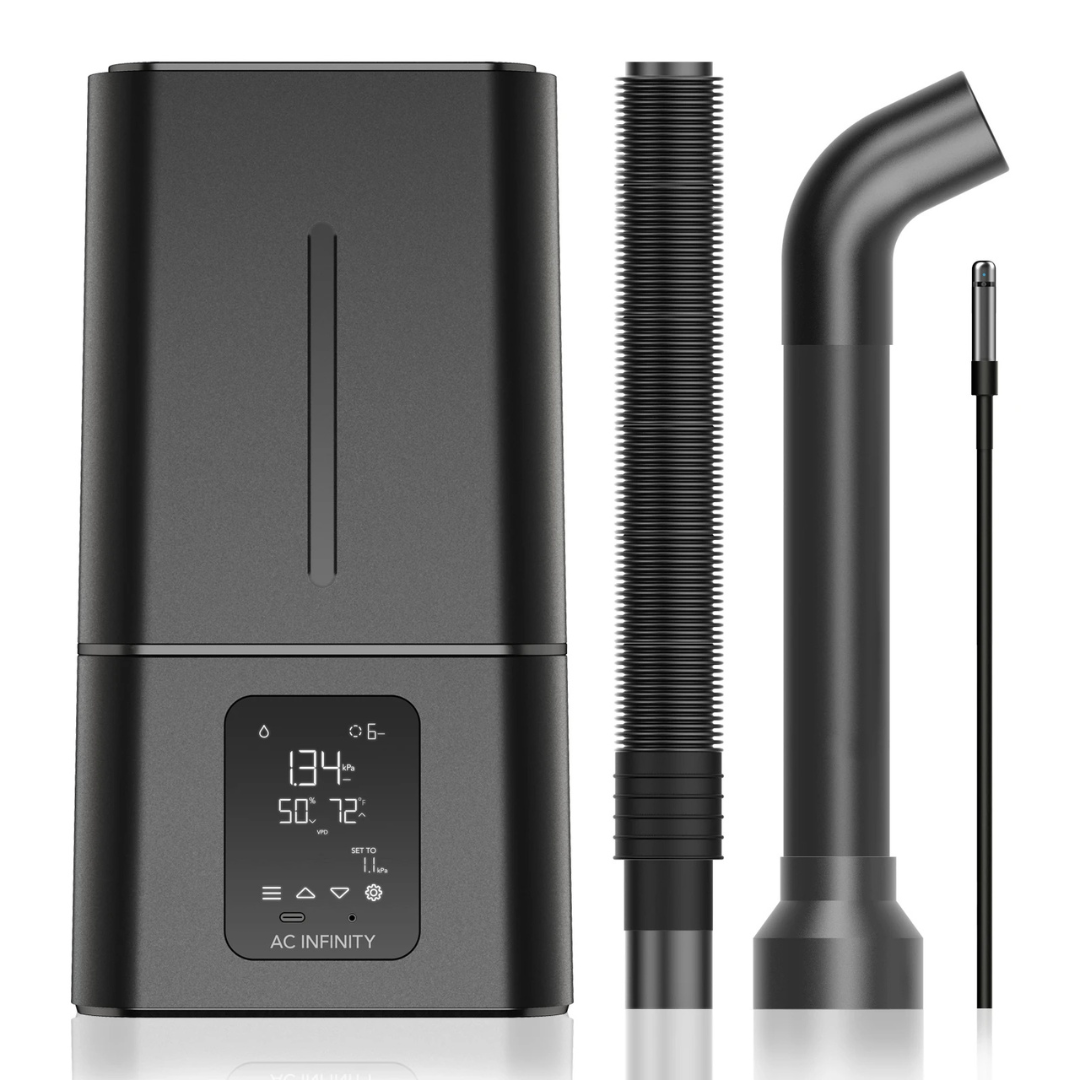

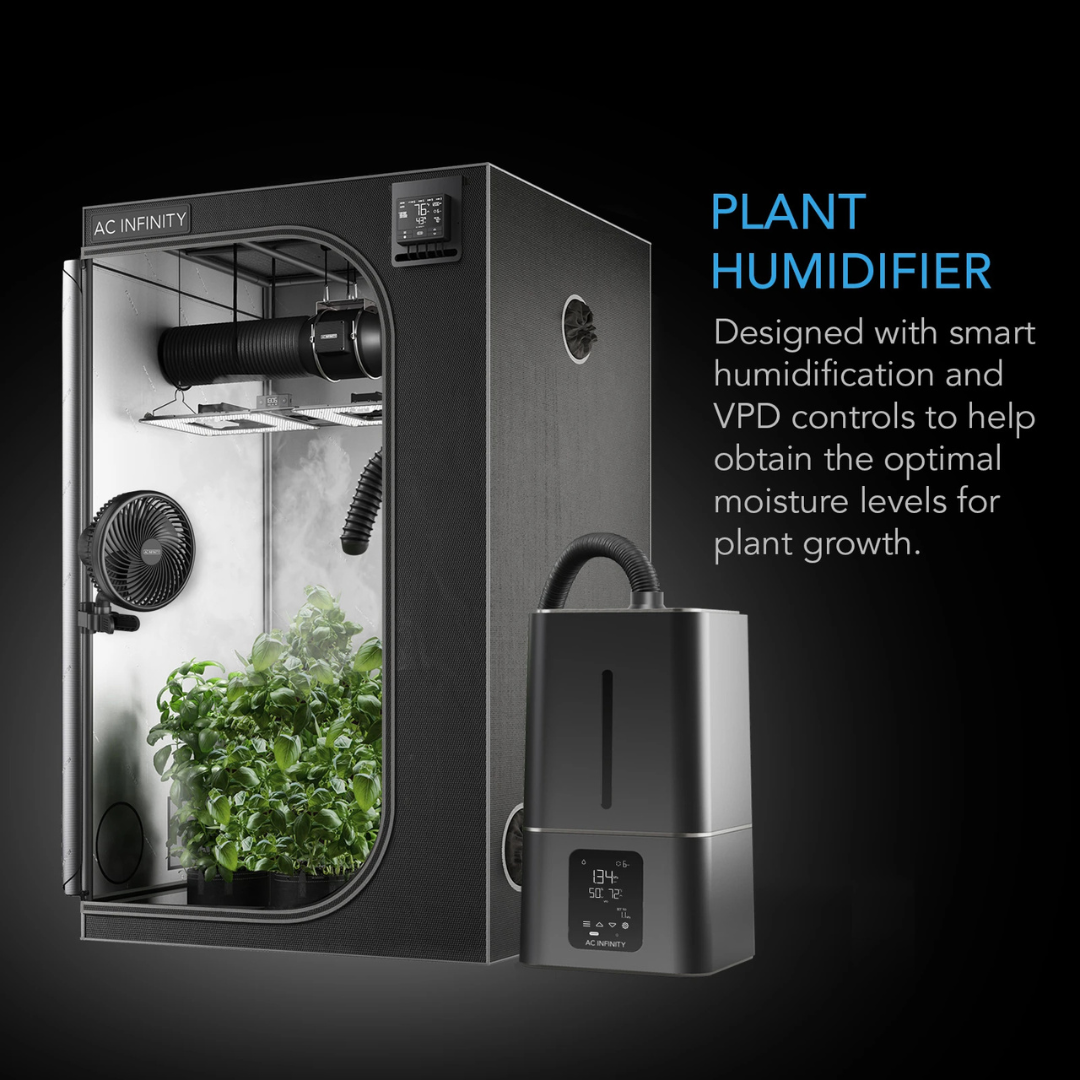

A 15L plant humidifier designed for controlled moisture delivery in grow tents, grow rooms, greenhouses, and other growing spaces. Its onboard controller uses a corded sensor probe to monitor temperature, humidity, and VPD while managing automated vapor output.
The EC ultrasonic vaporizer provides 10 moisture levels, while interchangeable hose and nozzle configurations support targeted, unidirectional, or wide-area distribution. Automatic low-water shutoff, backup memory, and a hidable display support consistent operation.
Key Features
-

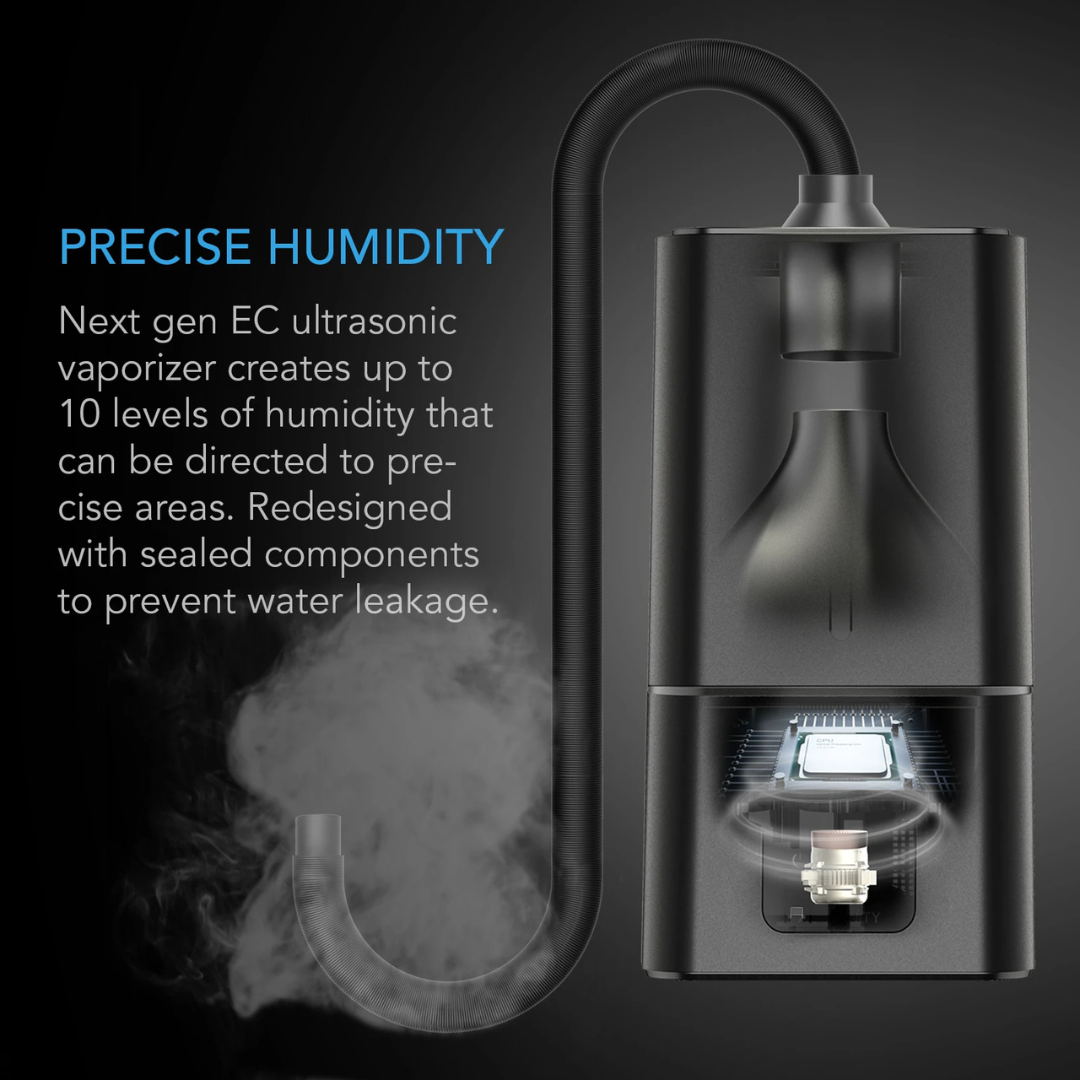

10-Level Moisture Control: The EC ultrasonic vaporizer digitally pulses water and offers 10 output levels for fine-tuned humidity control.
-
Humidity Trigger: AUTO Mode activates the humidifier when the measured humidity falls below the selected threshold.
-
VPD Trigger: VPD Mode activates the humidifier when the measured VPD reaches or exceeds the selected threshold.
-
Timer and Cycle Programming: TIMER Mode runs the humidifier for a selected countdown period, while CYCLE Mode alternates continuously between programmed on and off durations.
-
Precision Sensor Probe: The corded probe uses a Swiss-made thermal alloy sensor with an SAE grade-316 steel waterproof gasket for localized environmental readings.
-
Flexible Moisture Distribution: The included hose, pipe, elbow nozzle, and 5-way nozzle support multiple vapor-delivery configurations.
-
Unidirectional Output: The elbow nozzle directs high-volume moisture toward a selected area.
-

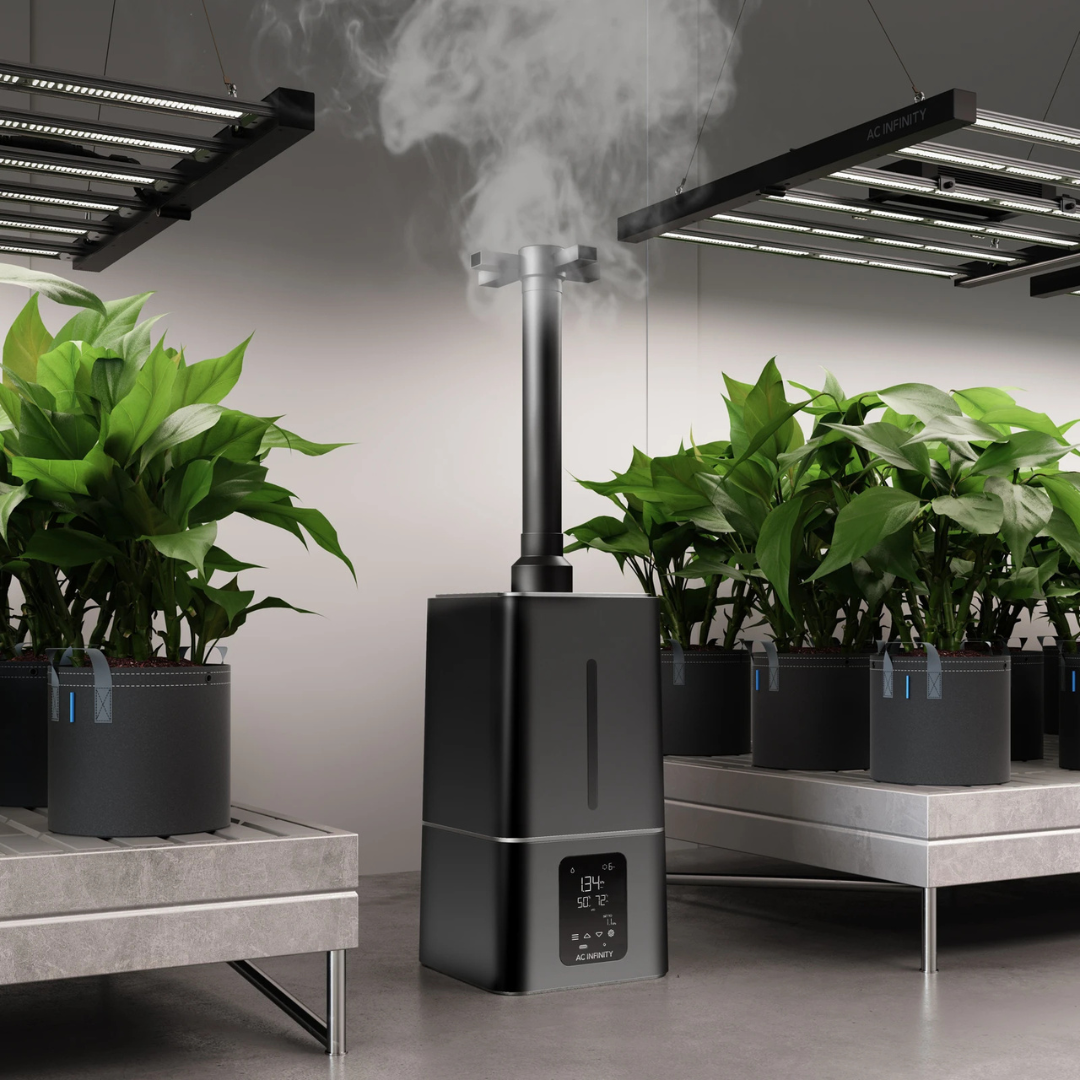

Wide-Area Output: The 5-way nozzle distributes moisture in multiple directions for broader coverage.
-
Water-Resistant Design: A specially designed tank seal helps prevent leakage, while waterproof ports protect controller connections from moisture.
-
Automatic Low-Water Shutoff: Operation stops when the water supply is depleted.
-
Tilt Fail-Safe: Programming pauses if the unit falls or tilts past a 20° angle and resumes after it is returned upright.
-

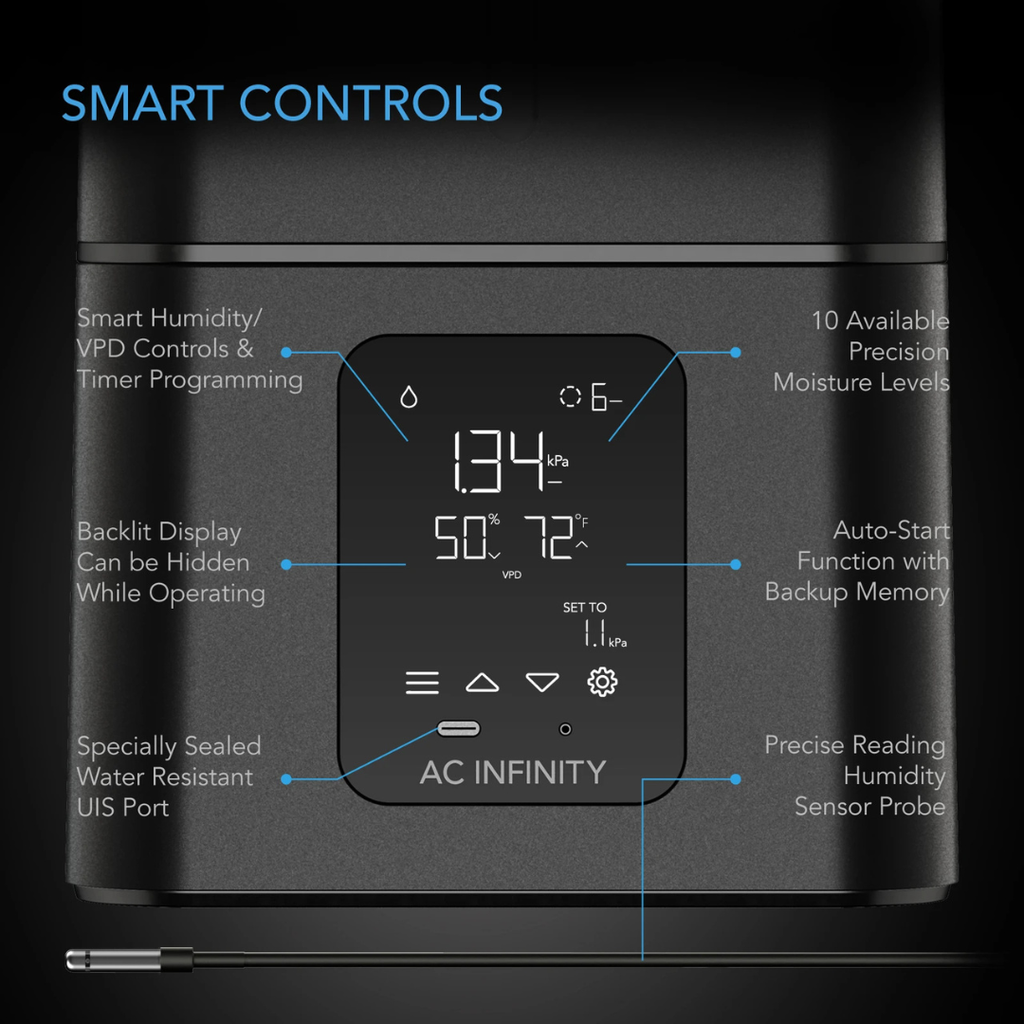

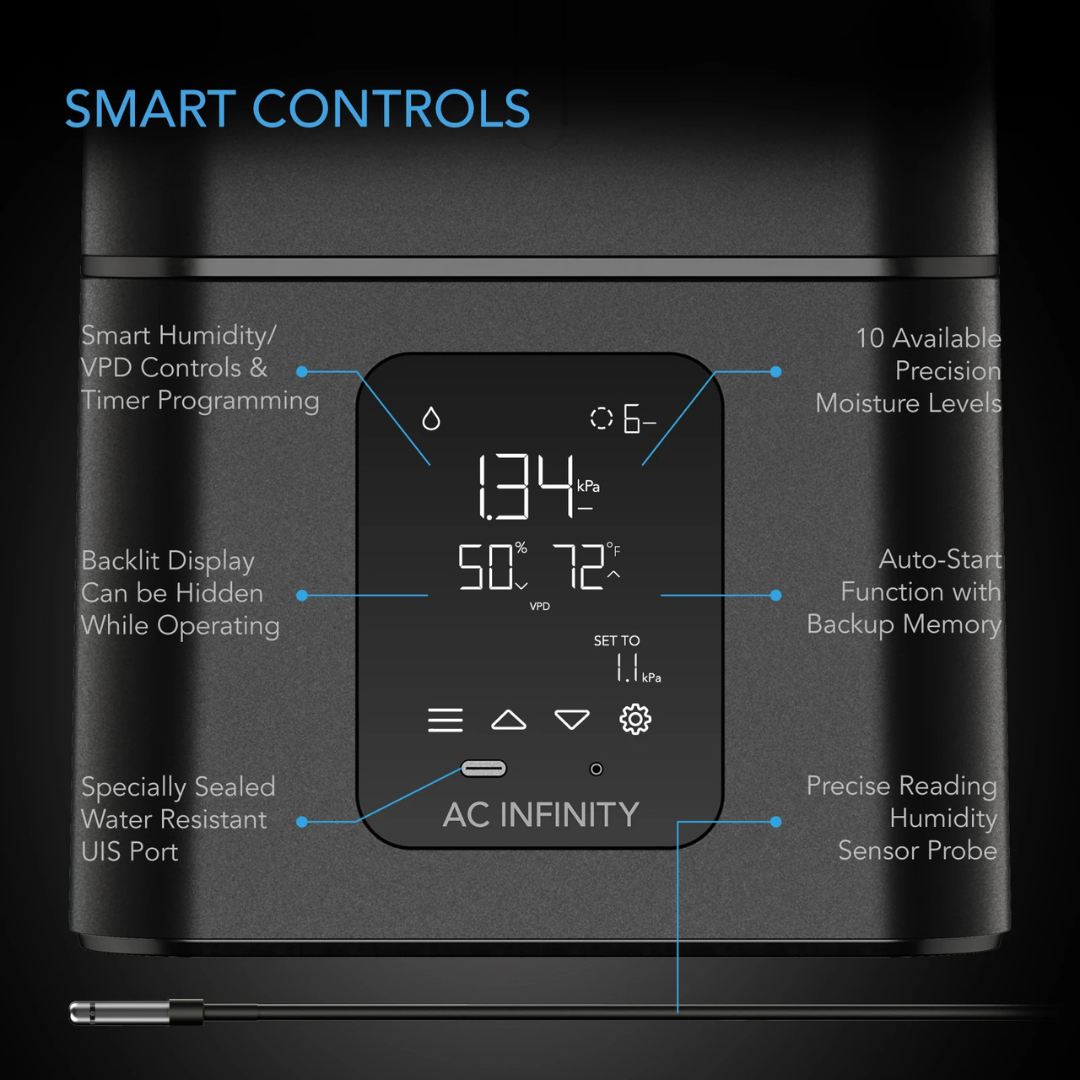

Hidable Backlit Display: The display can be switched off while programmed functions continue running.
-
Auto-Start and Backup Memory: Supports automatic restarting while retaining programmed settings.
-
Calibration Settings: Allows adjustment of temperature, relative humidity, and leaf-offset readings.
-
Controller Lock: Prevents accidental changes to the selected mode and operating parameters.
-
UIS Integration: Connection to a compatible UIS controller provides expanded climate programming, grow cycles, schedules, app control, automation, and climate data.

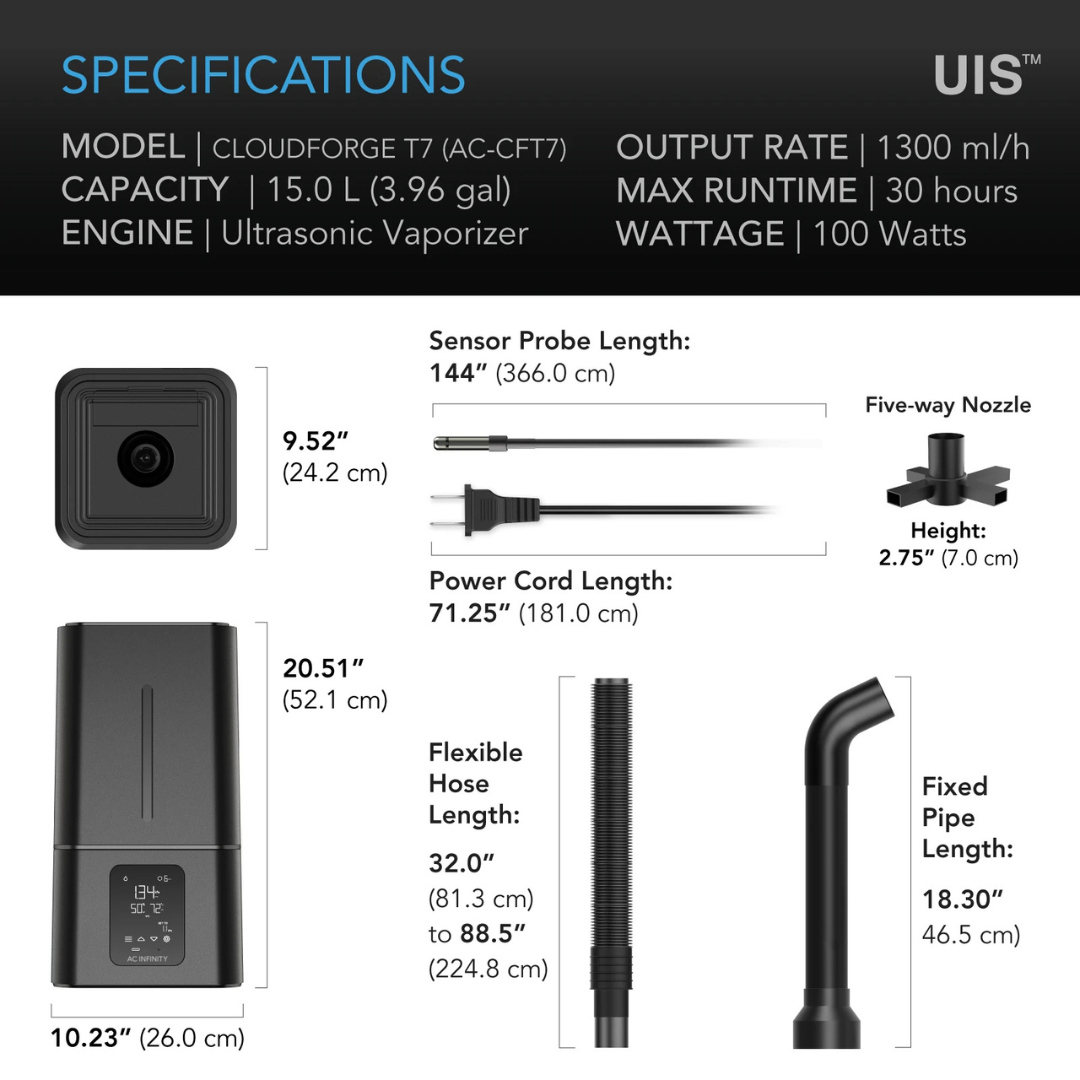

Specifications
-
Total Length: 9.52 in. (24.2 cm)
-
Total Width: 10.23 in. (26.0 cm)
-
Total Height: 20.51 in. (52.1 cm)
-
Capacity: 3.96 gal (15 l)
-
Maximum Runtime: 30 hrs
-
Output Rate: 43.95 fl oz/h
-
Noise: 46 dBA
-
Amperage: 0.85 A
-
Wattage: 100 W
-
Voltage: 100-240V AC
-
Frequency: 50/60 Hz
-
Operating Temperature: 41 to 122ºF
-
Operating Humidity: 30% to 85% RH
-
Moisture Levels: 10
-
Programming Modes: OFF, ON, AUTO, VPD, TIMER, and CYCLE
-
Temperature Calibration Range: -20°F to 20°F or -10°C to 10°C
-
Humidity Calibration Range: -10% to 10%
-
Leaf Offset Calibration Range: -20°F to 20°F or -10°C to 10°C
Size Guide
-
Water Capacity: 3.96 gal (15 l)
-
Overall Size: 9.52 in. long x 10.23 in. wide x 20.51 in. high (24.2 cm x 26.0 cm x 52.1 cm)
Compatibility
-
Compatible With: UIS controllers using the included UIS M-M extension cord.
-
Controller Compatibility: The official manual specifically confirms compatibility with CONTROLLER 69 PRO, sold separately.
-
App Access: App control, automation programming, and climate data are available when paired with a compatible UIS controller.
-
Controller Override: A connected UIS controller overrides the onboard programming and disables the humidifier’s display and touch controls while connected.
-
PVC Pipe Extension: User-supplied PVC pipes may be used to extend the humidifier’s reach with the included elastic bands.
Included
- 15L humidifier x1
- 5-way nozzle x1
- Elbow nozzle x1
- Pipe base x1
- PVC pipe x1
- Flexible hose x1
- Elastic bands x4
- Probe mount x1
- Nebulizer brush x1
- Hook-and-loop tie x1
- UIS extension cord (M-M) x1
- Sensor probe x1
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions stated in the official manual.
