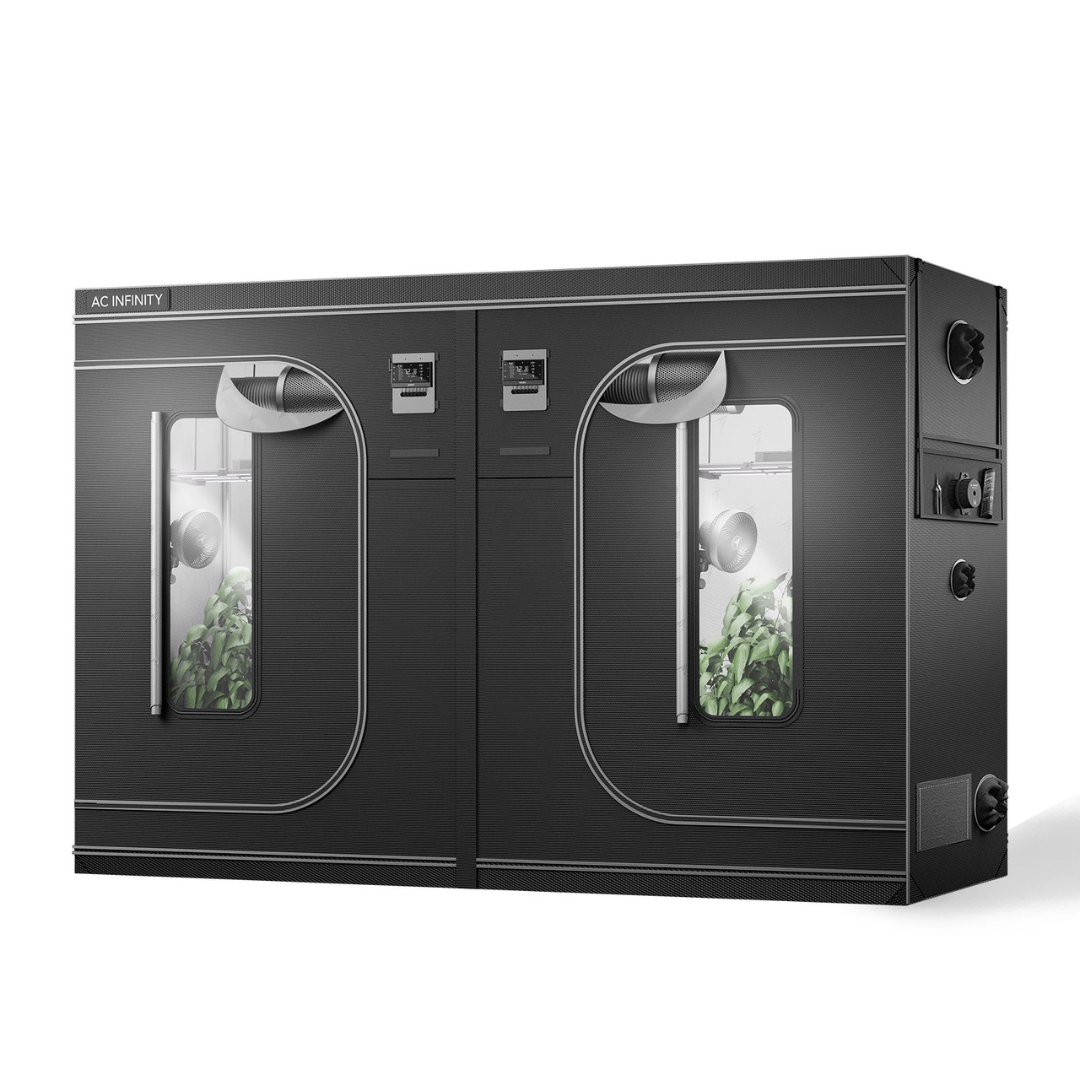

The CLOUDLAB 816 is a 10 ft. x 5 ft. indoor grow tent designed to create a sealed, stable environment for year-round plant cultivation. Its 2000D oxford canvas, reflective mylar interior, and reinforced steel frame support controlled indoor growing setups.
The tent includes multiple duct openings, intake holes, a large viewing window, and an integrated controller mounting plate for an organized setup. Additional hanging bars provide support for installed growing equipment, while the spill tray and reinforced construction help protect the growing area.
Key Features
-

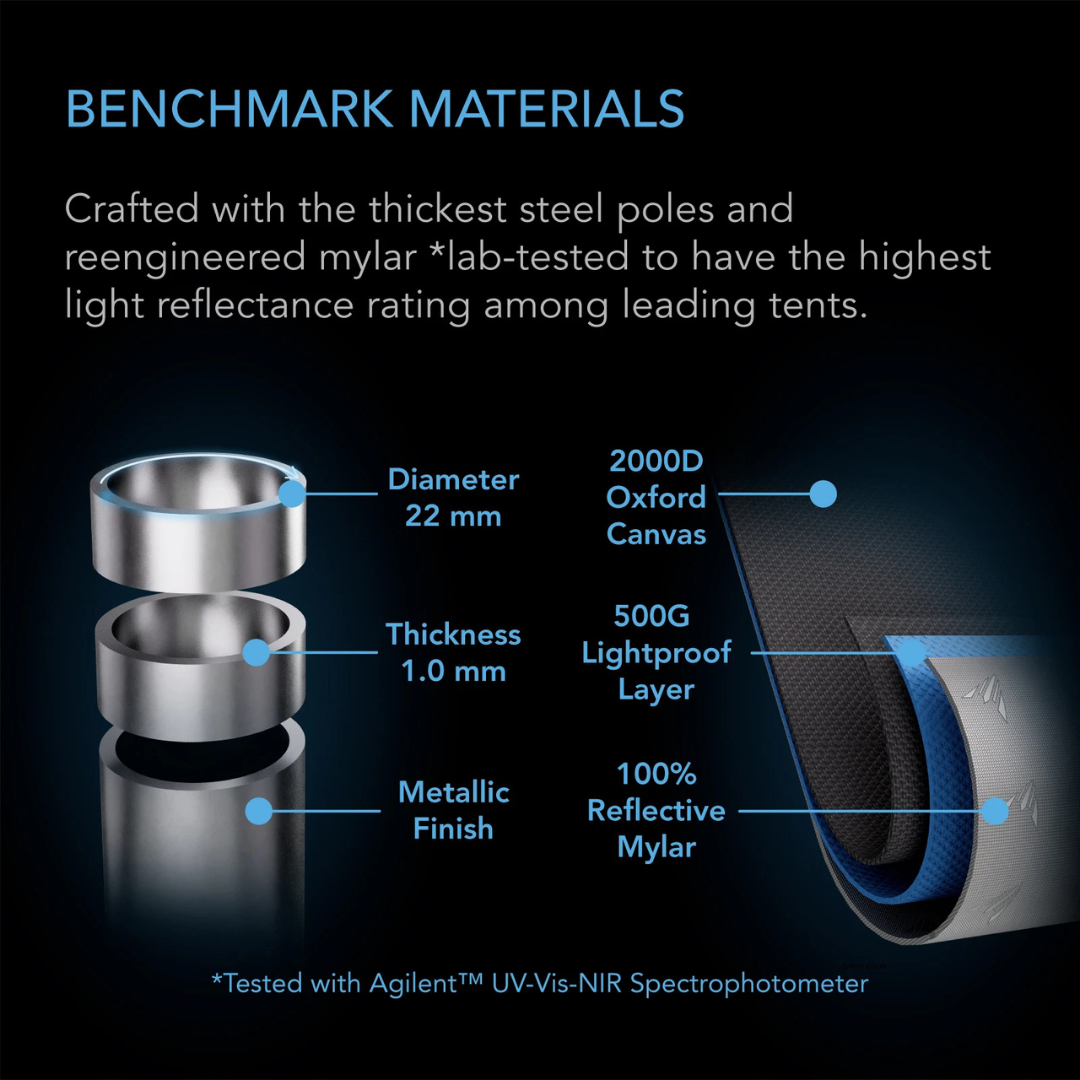

High-Density Canvas: Constructed with ultra-durable 2000D oxford canvas and a 500G light-proof layer for protection against external light leaks.
-
Reflective Interior: Reengineered diamond-patterned mylar lines the interior and is lab-tested with an Agilent™ UV-Vis-NIR Spectrophotometer for light reflectivity.
-

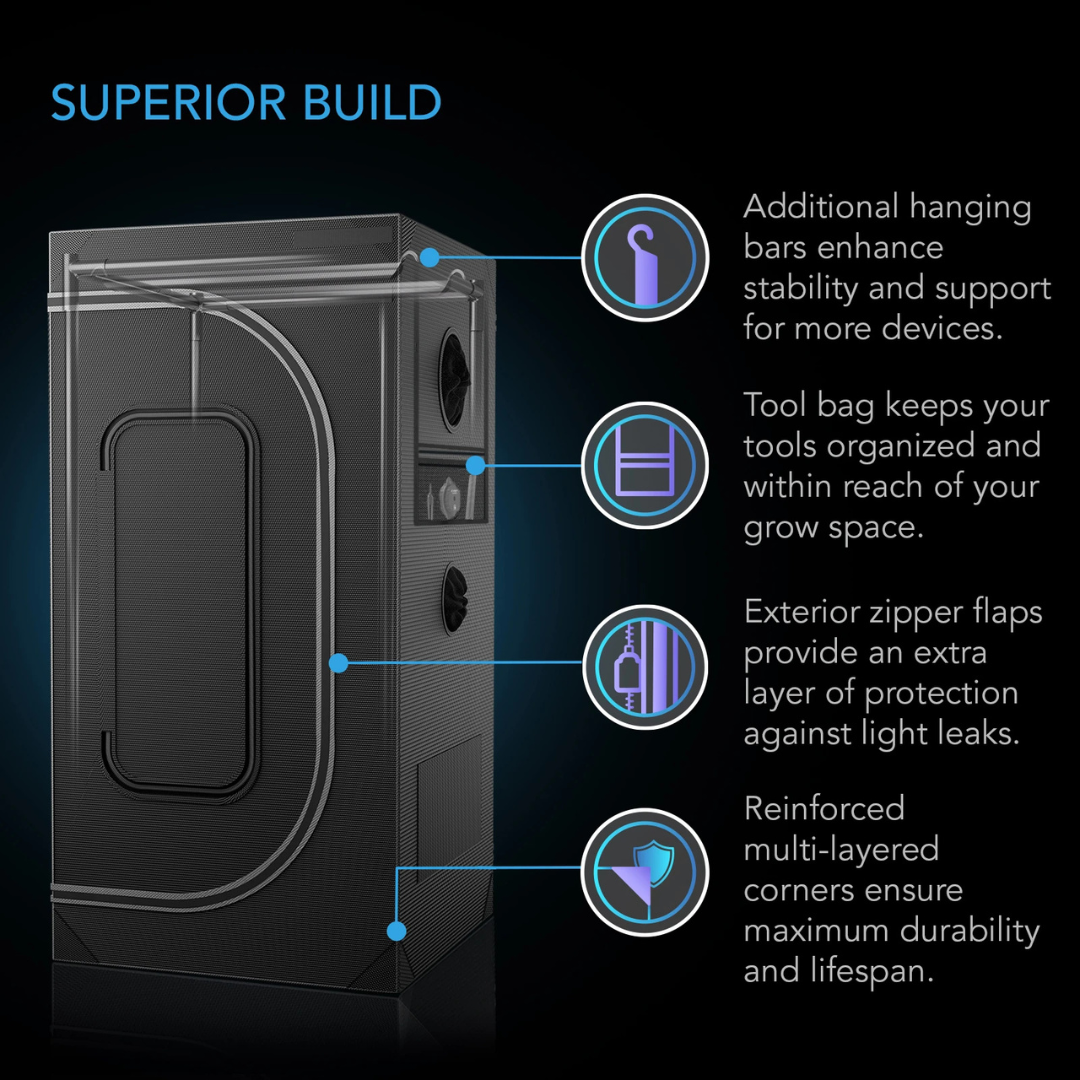

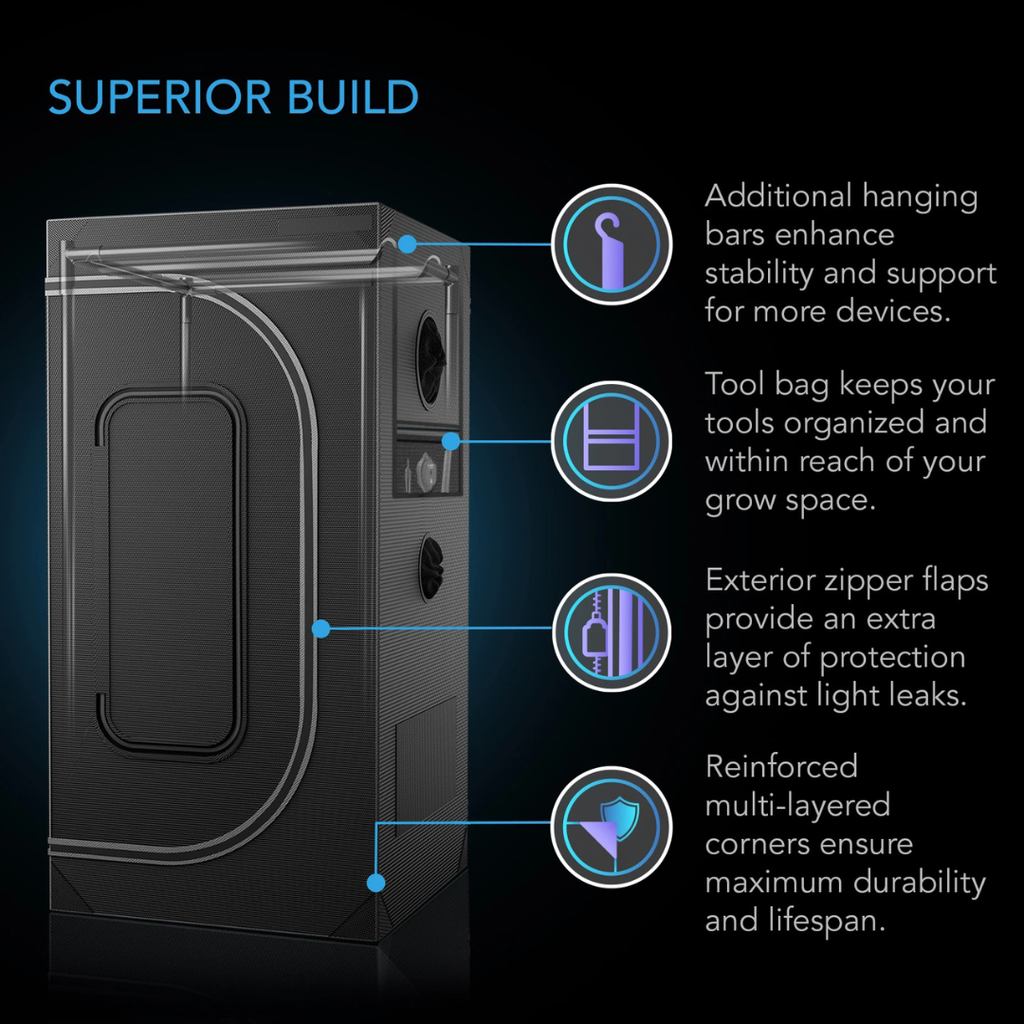

Reinforced Frame: Features 22 mm steel poles, reinforced tent corners, and additional hanging bars that support installed equipment.
-

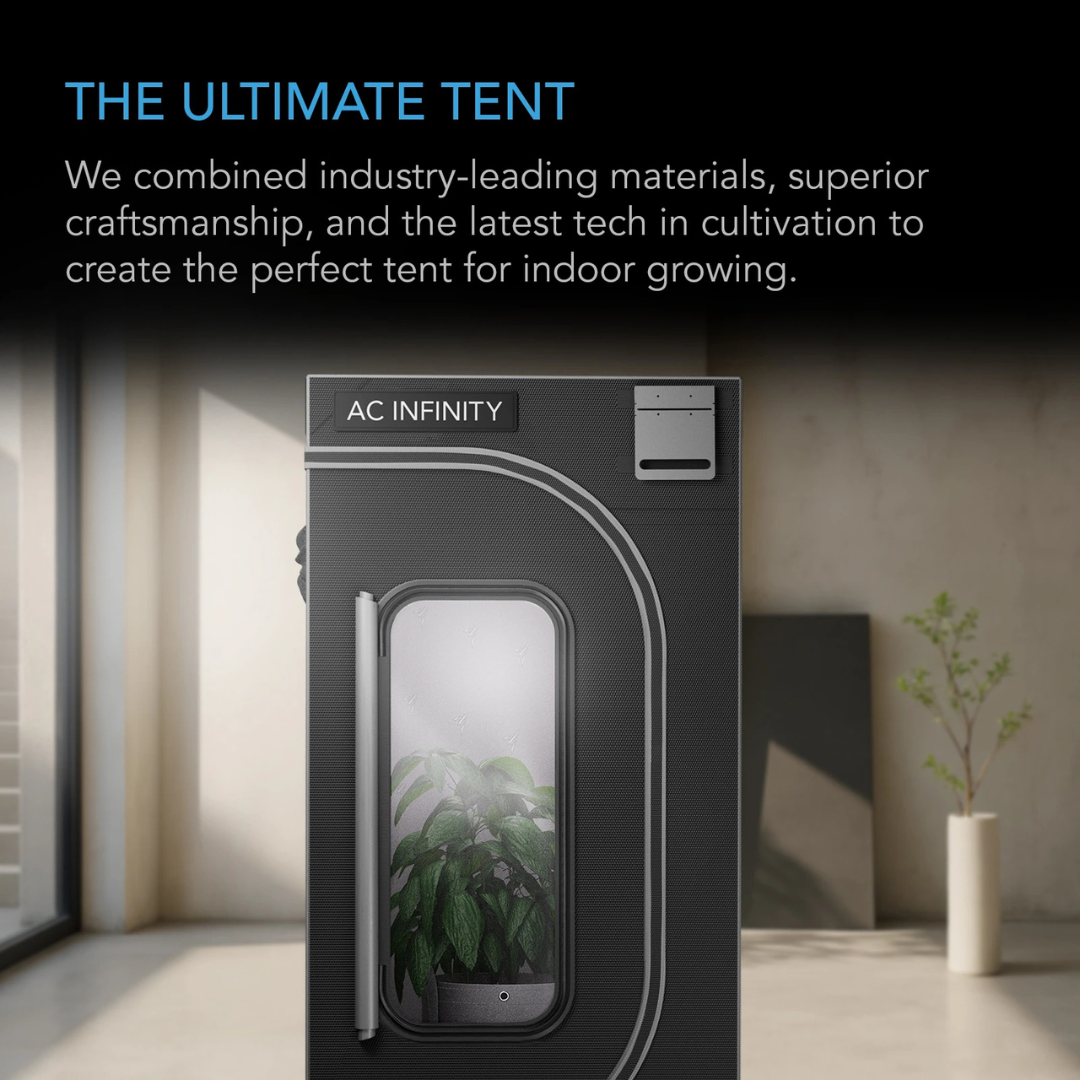

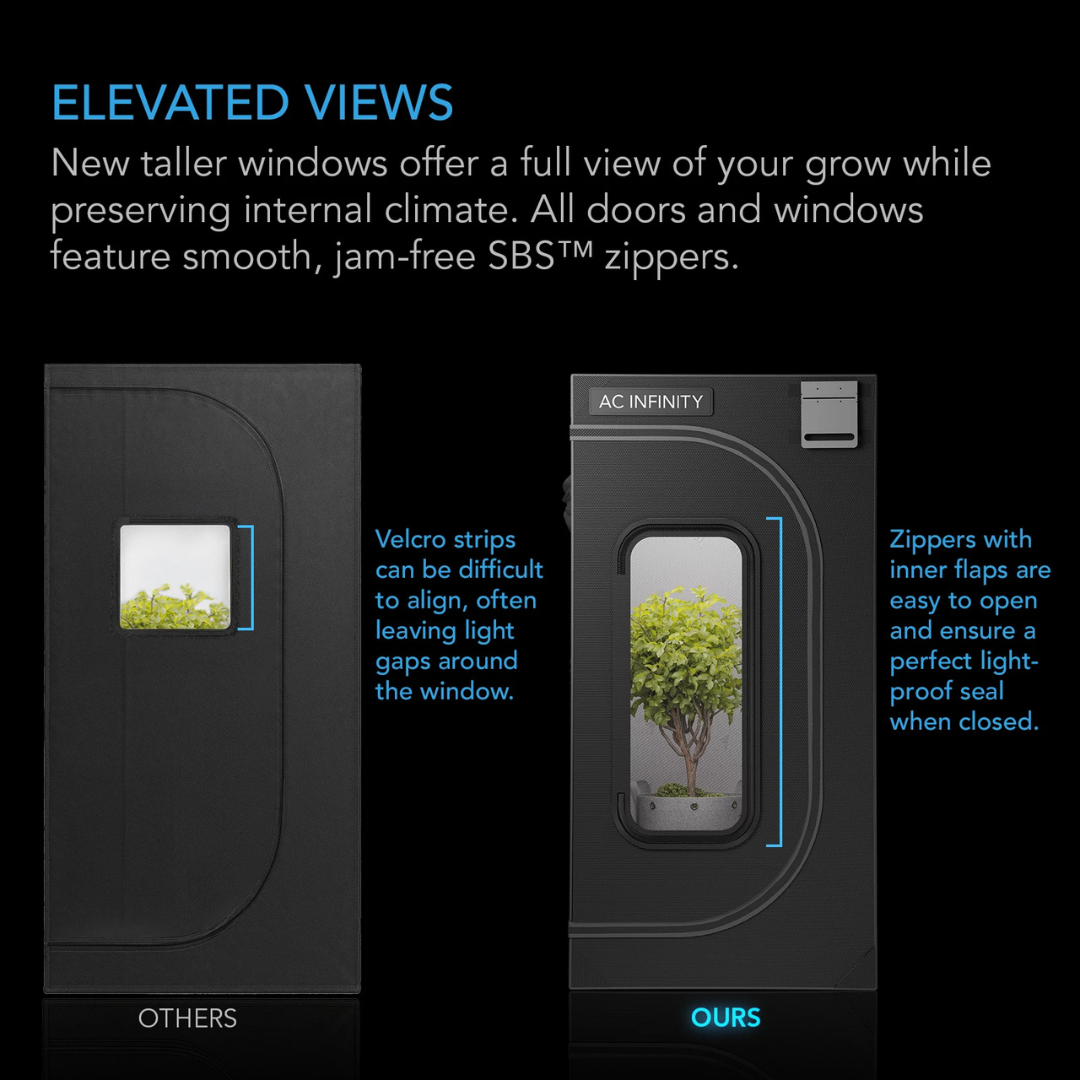

Observation Window: A tall, clear viewing window provides a view of the growing area without requiring the tent to be opened.
-

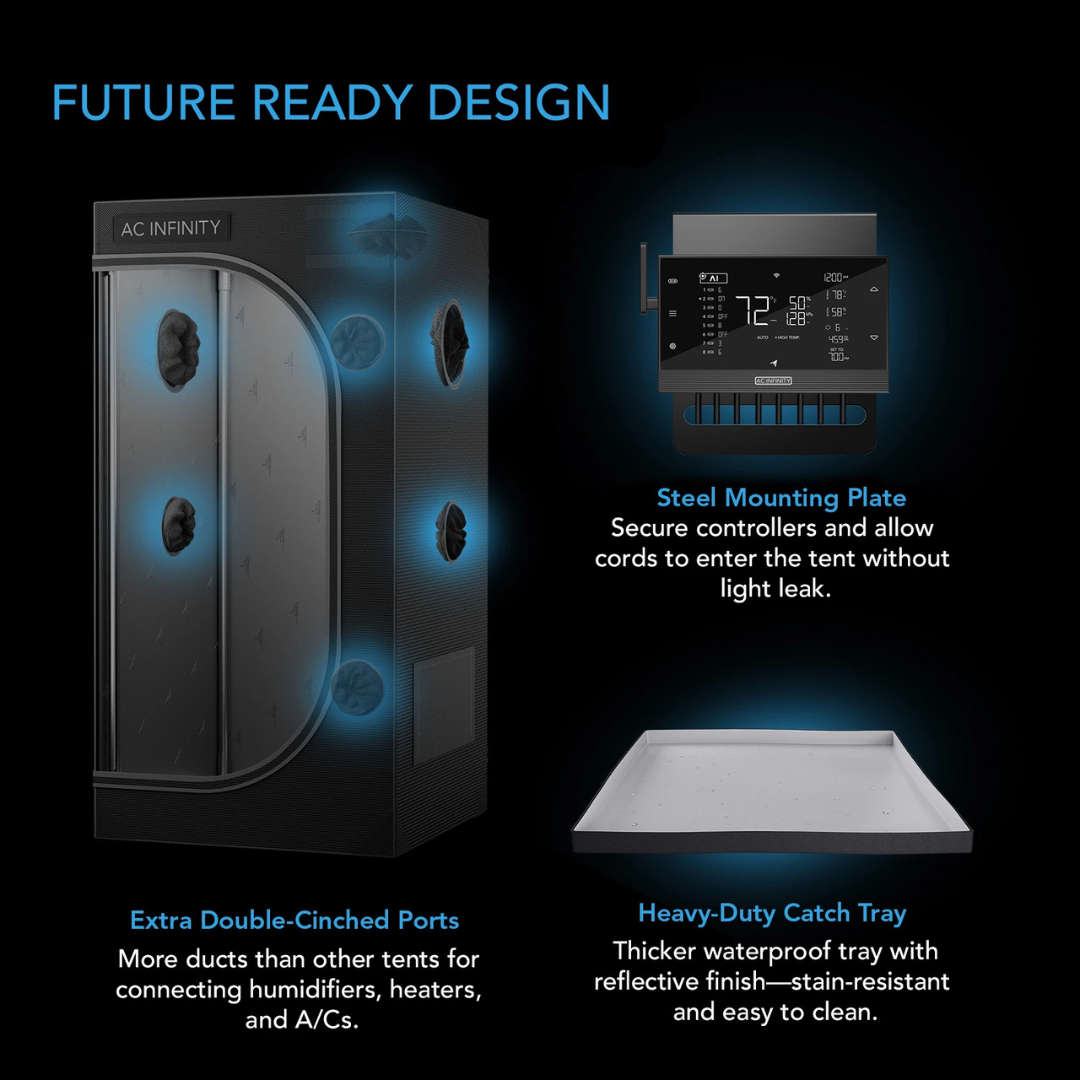

Controller Mounting Plate: The integrated steel plate provides a mounting location for compatible controllers and includes a lightproof cable passthrough for organized wiring.
-
Ventilation Access: Multiple duct openings and additional cinched ports support ductwork and the installation of humidifiers, heaters, or air conditioners.
-
SBS™ Zippers: High-performance zippers provide smooth access to the tent while helping maintain the internal growing environment.
-
Light-Leak Protection: Front zipper flaps provide an additional protective layer against light leaks.
-
Spill Protection: The heavy-duty spill tray has a waterproof lining designed to catch water, soil, and other debris.
-
Accessory Storage: A detachable tool bag provides storage for grow accessories inside or outside the tent.
Specifications
-
Tent Dimensions: 118.11 in. x 59.05 in. x 78.74 in. (300.0 x 150.0 x 200.0 cm)
-
Duct Opening Sizes: Six 4-inch openings, two 8-inch openings, and four 10-inch openings
-
Viewing Window Size: 13.77 in. x 39.37 in. (35.0 x 100.0 cm)
-
Rear Intake Hole Size: 5.90 in. x 13.77 in. (15.0 x 35.0 cm)
-
Side Intake Hole Size: 5.90 in. x 13.77 in. (15.0 x 35.0 cm)
-
Outer Tent Material: Oxford
-
Inner Tent Material: Mylar
-
Pole Material: Steel
-
Pole Thickness: 22 mm
-
Beam Weight Capacity: 250 lbs.
-
Hanging Bars: 4, plus 4 extra
-
Plant Capacity: 12 plants in 5-gallon containers
Size Guide
-
Nominal Tent Size: 10 ft. x 5 ft.
-
Exact Tent Dimensions: 118.11 in. x 59.05 in. x 78.74 in. (300.0 x 150.0 x 200.0 cm)
-
Plant Capacity: 12 plants in 5-gallon containers
Compatibility
Controller Mounting: The steel controller plate includes a mounting slot for AC Infinity controllers. Controllers with a rear magnet may attach magnetically, while the included controller adhesive can be used to attach a non-AC Infinity controller.
Ventilation and Climate Equipment: Cinched duct ports accommodate flexible ducting and support the installation of humidifiers, heaters, and air conditioners.
Included
- Grow tent
- Steel frame poles and connectors
- 4 hanging bars
- 4 additional hanging bars
- Controller mounting plates, 2
- Controller adhesive strips, 12
- Controller screws, 8
- Wall screws, 8
- Filter straps, 2
- Cable ties, 4
- Spill tray
- Detachable tool bag
- Controller not included
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions stated in the official warranty program.
