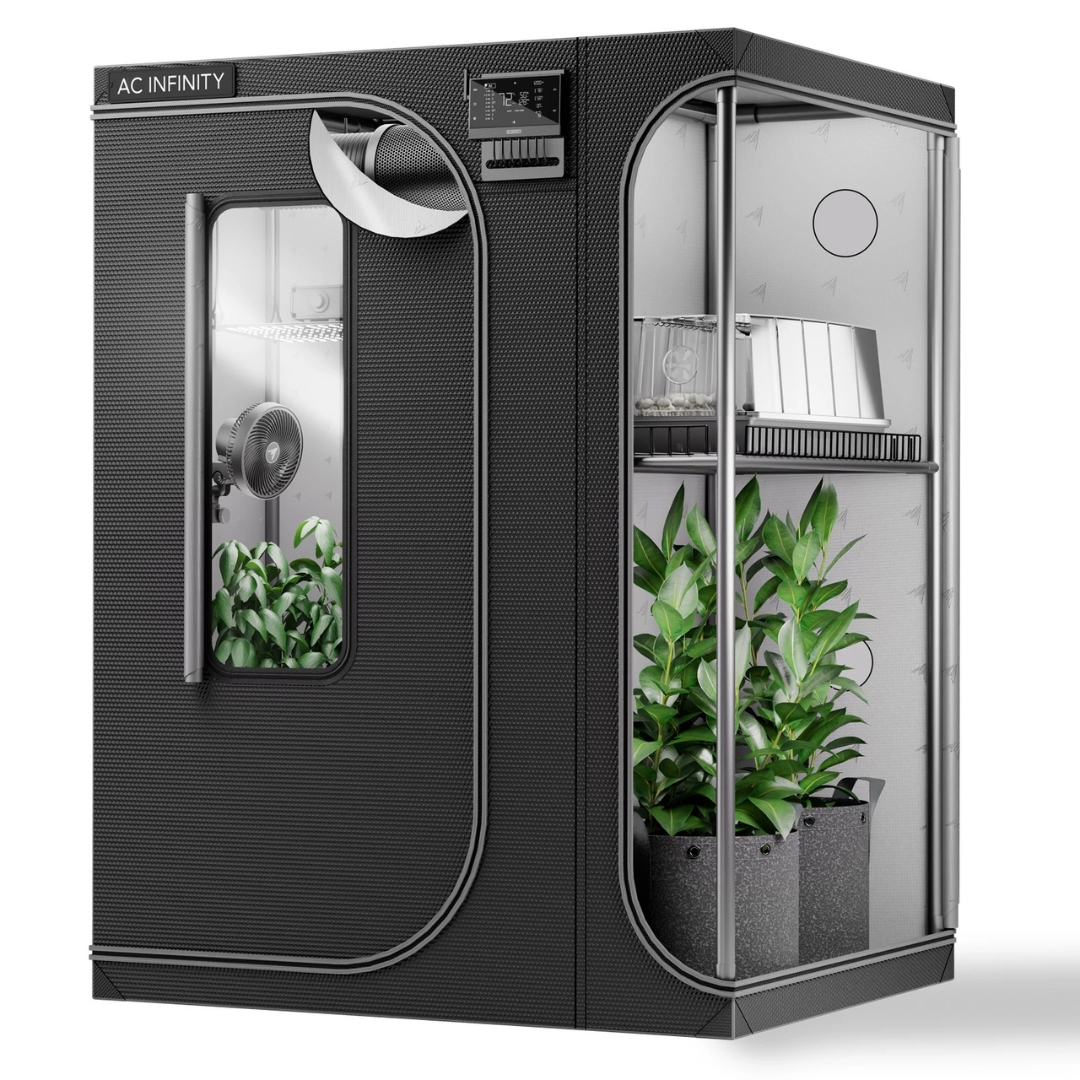

The CLOUDLAB 864D is a 5 ft. x 4 ft. indoor grow tent with a 2-in-1 chamber design for managing plants at different growth stages. Its secondary chamber is divided so the upper section can accommodate plants in the vegetative stage and the lower section can accommodate seedlings.
The enclosure combines 2000D Oxford canvas, a reflective diamond-mylar interior, a 500G light-proof layer, and a reinforced steel frame. A removable mylar wall, detachable trays, dual side doors, ventilation openings, and a controller mounting plate support an organized multi-stage growing environment.
Key Features
-
2-in-1 Chamber Design: A secondary chamber provides separate upper and lower sections for plants in vegetative and seedling stages.
-
Removable Divider: The included mylar wall separates the main growing area from the secondary chamber and can be removed when the divided configuration is not required.
-
Durable Enclosure: Constructed with 2000D Oxford canvas, reinforced tent corners, front zipper flaps, and a 500G light-proof layer for additional protection against light leaks.
-
Reflective Interior: Reengineered diamond-mylar lining was lab-tested with an Agilent™ UV-Vis-NIR spectrophotometer for high light reflectivity.
-
Reinforced Frame: Thick steel poles and additional hanging bars create a structure rated to support up to 250 lb. of equipment.
-
Multi-Angle Access: Dual side doors provide access from multiple angles for watering, pruning, monitoring, and equipment adjustment.
-
Observation Window: The viewing window provides a view of the growing area without requiring the enclosure to be opened.
-
SBS™ Zippers: High-performance zippers provide smooth access to the growing chambers.
-
Controller Mounting Plate: The integrated steel plate provides a mounting location for compatible controllers and includes a lightproof cable passthrough.
-
Ventilation Access: Cinching duct ports accommodate ventilation tubing and climate equipment such as humidifiers, heaters, and air conditioners.
-
Spill Protection: The included trays feature waterproof lining to catch water, soil, and other debris.
-
Detachable Tool Bag: Provides storage for growing accessories inside or outside the enclosure.
Specifications
-
Tent Dimensions: 59.05" x 47.24" x 78.74" (150.0 x 120.0 x 200.0 cm)
-
Nominal Size: 60" x 48" x 80"
-
Duct Opening Sizes: 4", 6", 8"
-
Viewing Window Size: 11.81 x 11.81 in. (30.0 x 30.0 cm)
-
Side Intake Hole Size: 5.90 x 13.77 in. (15.0 x 35.0 cm)
-
Mounting Strap Length: 5.27 in. (13.4 cm)
-
Outer Tent Material: Oxford
-
Inner Tent Material: Mylar
-
Pole Material: Steel
-
Pole Thickness: 22 mm
-
Beam Weight Capacity: 250 lb.
-
Hanging Bars: 4
-
Plant Capacity: 5 plants (5 gal.)
-
Canvas Density: 2000D
-
Light-Proof Layer: 500G
Size Guide
-
Grow-Tent Size: 5 ft. x 4 ft.
-
Nominal Dimensions: 60" x 48" x 80"
-
Exact Tent Dimensions: 59.05" x 47.24" x 78.74" (150.0 x 120.0 x 200.0 cm)
-
Plant Capacity: 5 plants in 5-gal. containers
Compatibility
Controller Mounting: The steel mounting plate accepts AC Infinity controllers using the included screws. Non-AC Infinity controllers may be attached using the included controller adhesive. Controllers are sold separately.
Ventilation Equipment: The tent provides 4-inch, 6-inch, and 8-inch duct openings for ventilation configurations.
Included
- 2-in-1 grow tent x1
- Spill trays x3
- Removable mylar wall x1
- Drying rack x1
- Filter straps x2
- Controller adhesive pieces x6
- Cable ties x4
- Wall screws x4
- Controller screws x4
- Controller plate x1
- Frame pole set x1
- Detachable tool bag x1
Warranty
Warranty: 2-year warranty against manufacturing defects from the date of purchase, subject to the terms and exclusions stated in the product manual.
