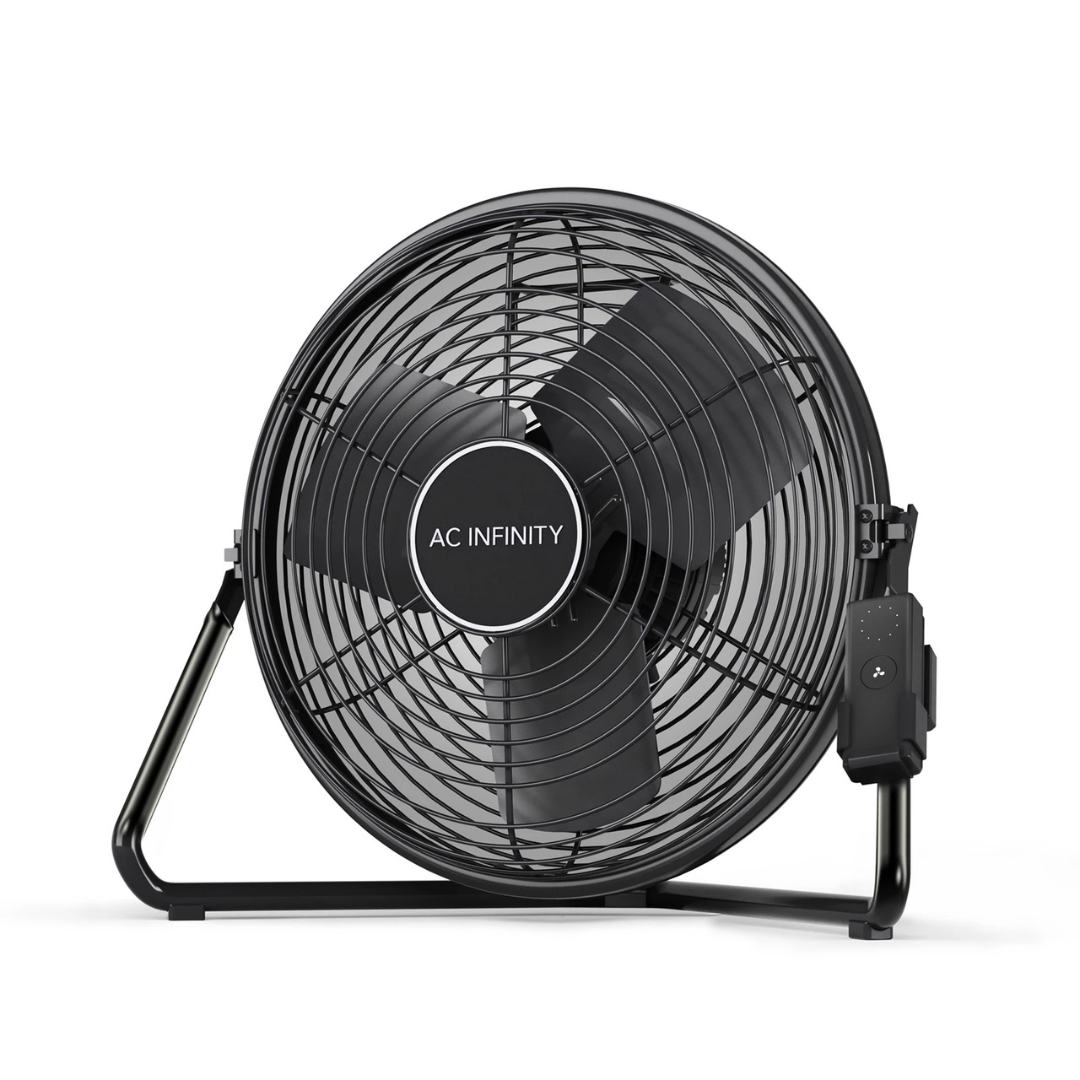

A 12-inch floor and wall circulation fan designed for plant-growing environments, detailed shop work, and personal comfort. It can operate from its floor stand or mount to a structurally suitable wall using the included hardware.
A wireless 10-speed controller provides convenient airflow adjustment, while the manually adjustable 360° tilt directs air where needed. Its EC motor, PWM speed control, rigid steel construction, aluminum blades, and IP44-rated enclosure support efficient operation in humid and variable-temperature environments.
Key Features
-

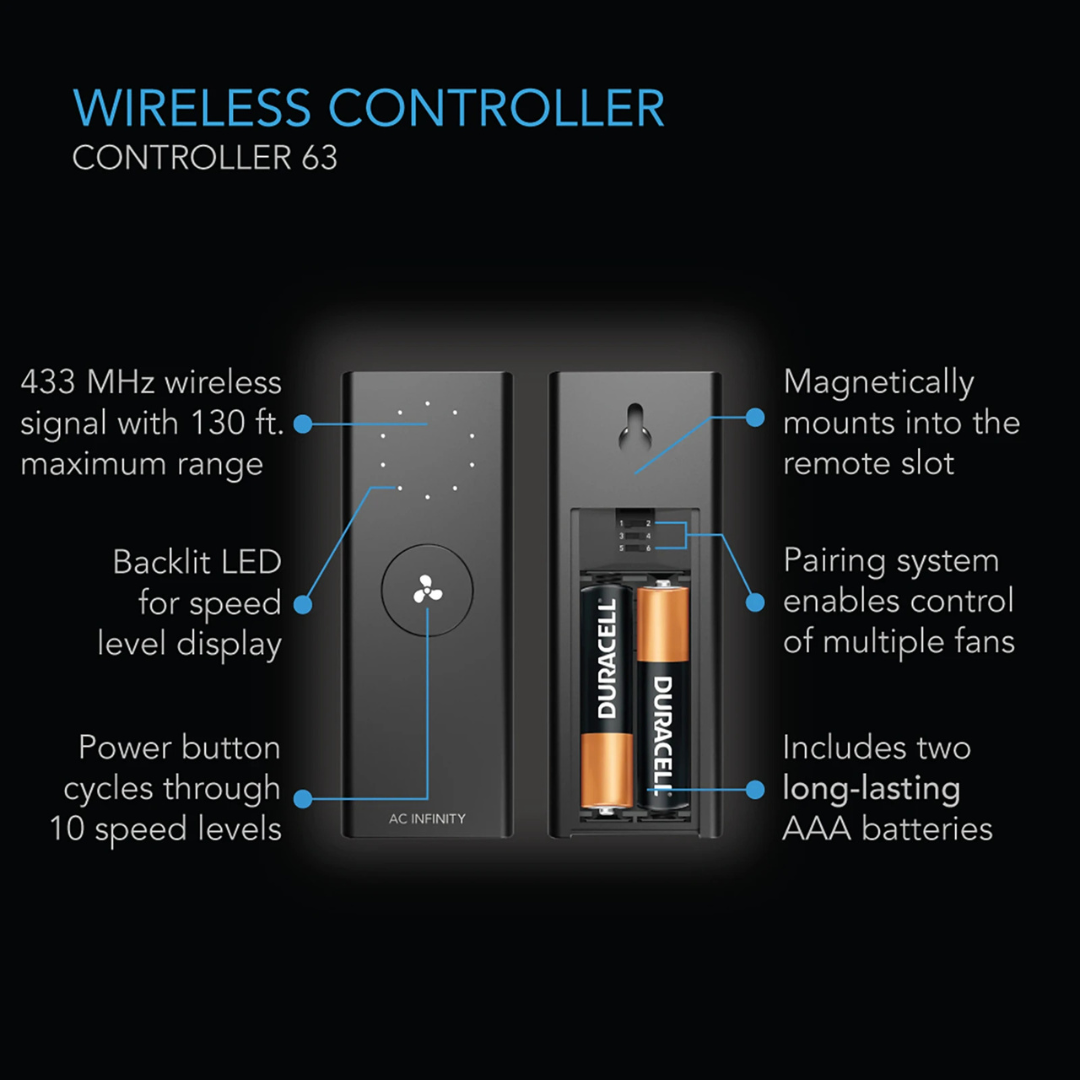

10-Speed Wireless Control: Included wireless controller provides access to 10 fan-speed levels.
-
PWM Speed Control: Digital pulse-width modulation provides precise speed adjustment from gentle breezes to high-velocity airflow.
-

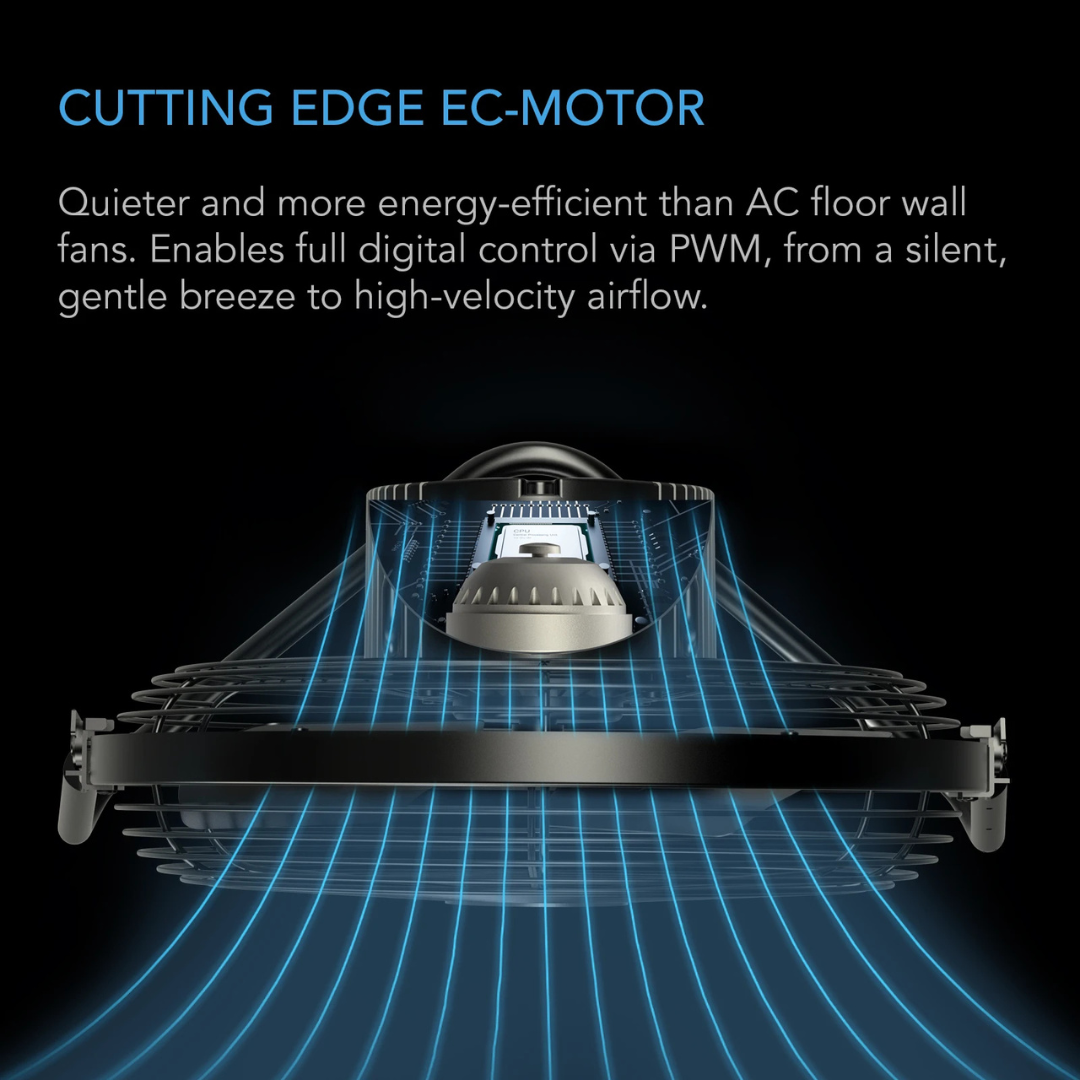

EC Motor: Electronically commutated motor operates more quietly and efficiently than traditional AC fan motors.
-
Dual-Ball Bearings: Motor bearings provide an estimated 67,000-hour lifespan and support multidirectional mounting.
-
360° Adjustable Tilt: Pivoting fan head can be manually positioned to direct airflow across a wide range.
-

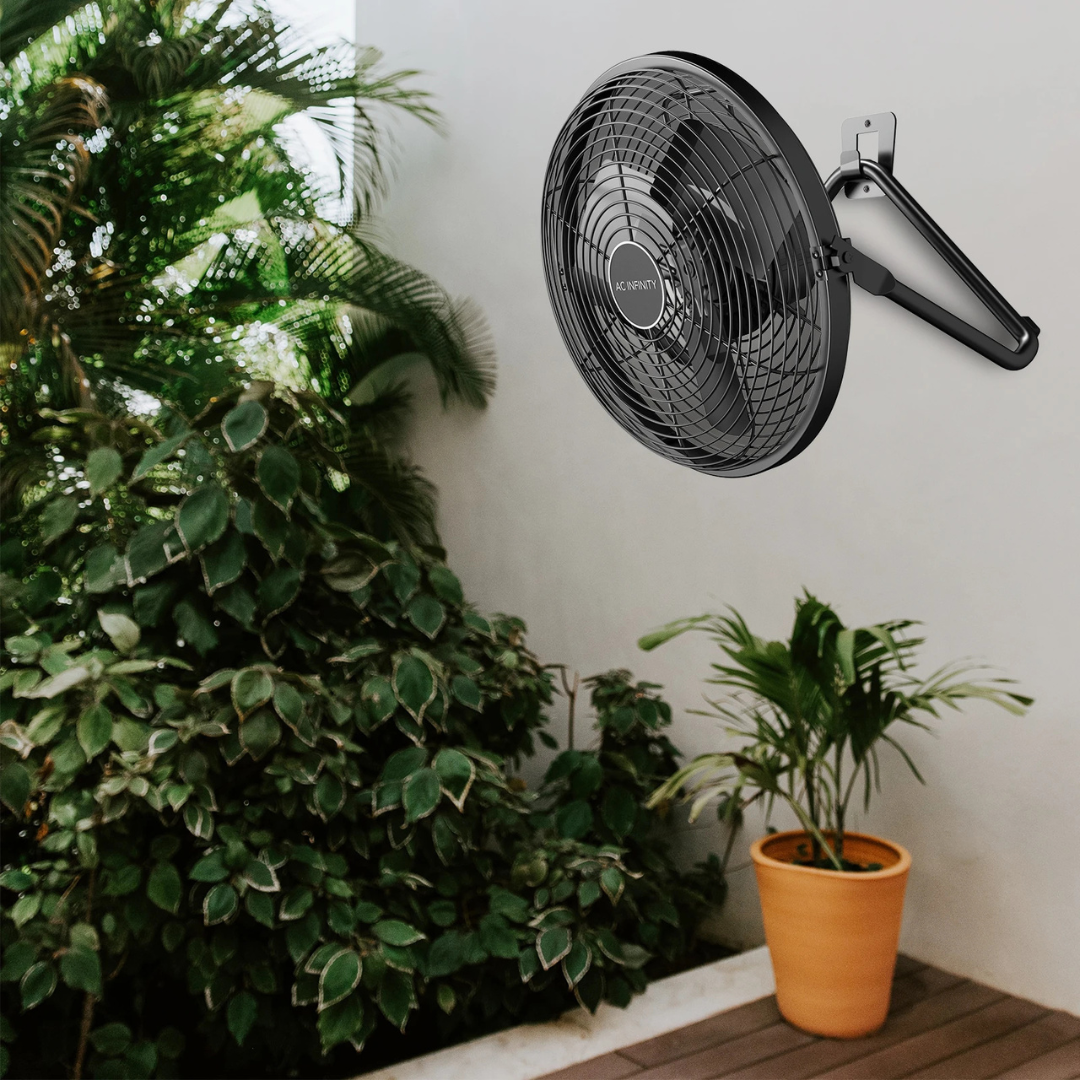

Floor or Wall Installation: Operates from its rigid floor stand or mounts to a wall using the included bracket and hardware.
-

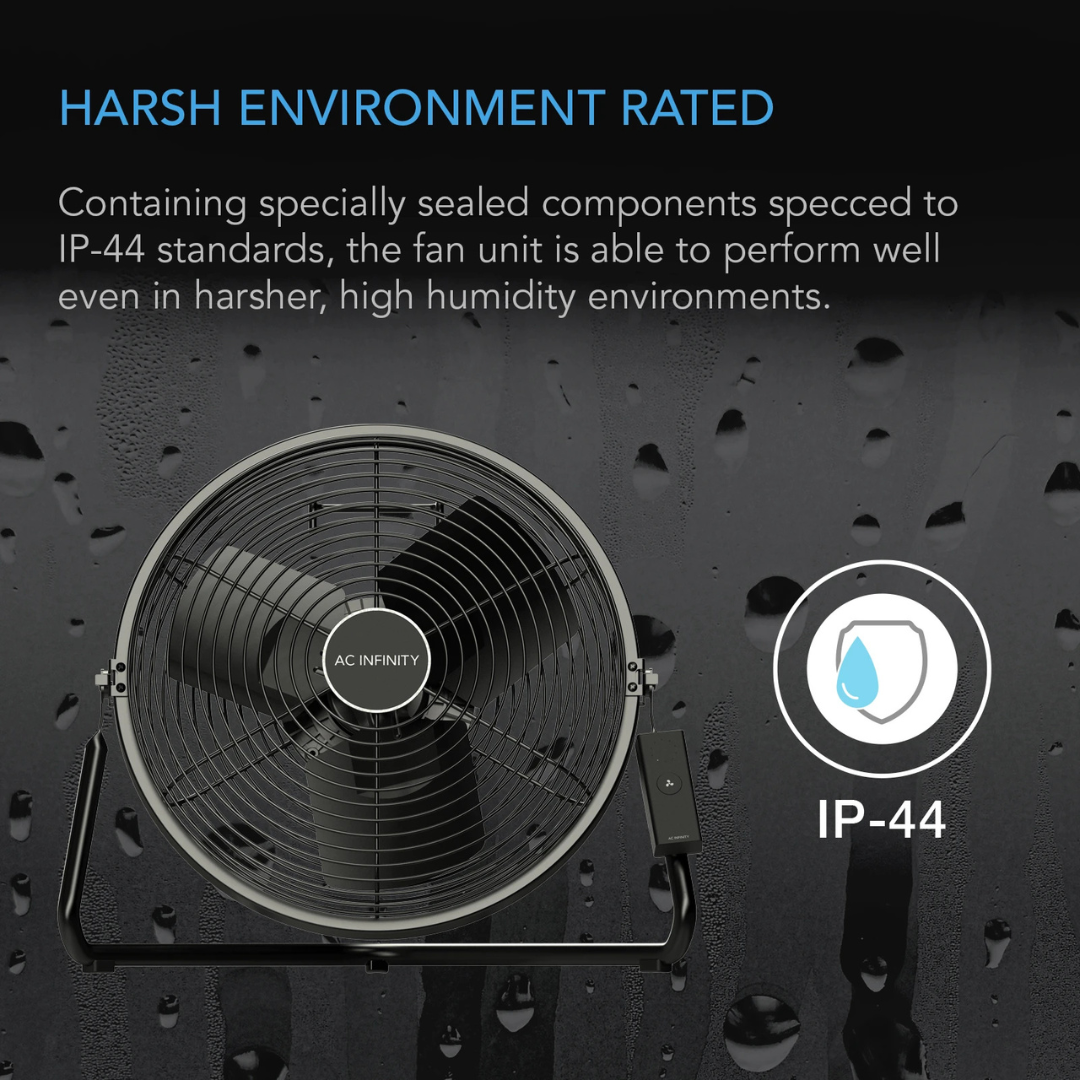

IP44 Protection: Sealed construction provides resistance to liquid and dust ingress.
-
Heavy-Duty Construction: Features a steel enclosure, rigid stand, and weight-balanced aluminum blades and impellers designed to reduce vibration.
-
UIS Platform Support: Integrates with compatible UIS controllers and accessories for expanded environmental programming.
-
Multi-Device Wireless Control: Multiple compatible fans can respond to the same wireless controller when their selector settings match.
Specifications
-
Airflow: 1,807 CFM
-
Static Pressure: 7.426 mm-H20
-
Noise: 62 dBA
-
Speed Levels: 10
-
Tilt Range: 360°
-
Operating Voltage: 100–240V
-
Power: 54 W
-
Current: 0.75 A
-
Wall Adapter Input: 100–240V AC
-
Operating Humidity: 35–85% RH
-
Ingress Protection Rating: IP44
-
Motor Type: Electronically commutated motor
-
Motor Bearings: Dual ball bearing
-
Fan Enclosure: Steel
-
Fan Blades and Impellers: Aluminum

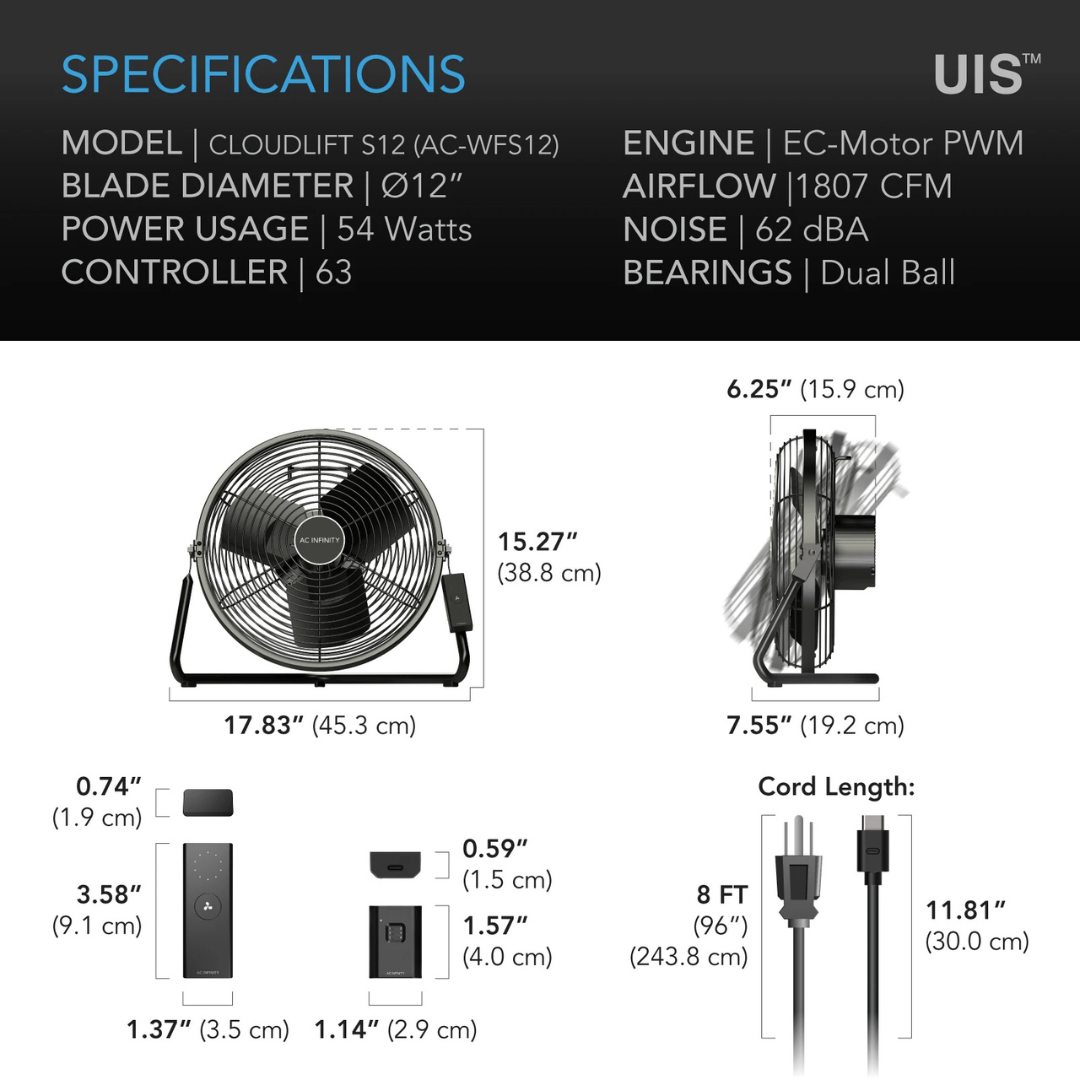

Size Guide
-
Fan Dimensions: 17.79 x 15.28 x 7.95 in. (45.2 x 38.8 x 20.2 cm)
-
Power Cord Length: 96 in. (243.8 cm)
-
Cord Length to Controller: 11.81 in. (30.0 cm)
-
Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
-
Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
-
Mounting Hole Size: Ø 0.25 in. (Ø 6.5 mm)
Compatibility
-
Compatible With: UIS controllers and compatible UIS platform accessories.
-
Wireless Controller Pairing: Any number of compatible fans may respond to the same wireless controller when their selector settings match. Multiple controllers may also operate the same fan when their settings match.
-
Daisy-Chain Compatibility: Compatible with same-series devices of different sizes using a separately sold daisy-chain adapter. Each supported controller port can manage up to 20 devices through this configuration.
-
App Compatibility: Remote app control, environmental programming, and climate data are available when connected to a compatible UIS smart controller.
Included
- Industrial wall and floor fan x 1
- Wireless controller x 1
- Wireless receiver x 1
- AAA batteries x 2
- Wall-hang bracket x 1
- Wall anchors x 2
- Wood screws for wall mounting x 2
- Controller screw sets x 2
- Wire ties x 1
- UIS male-to-male cord, 10 ft. x 1
- UIS male-to-male cord, 20 in. x 1
Warranty
-
Warranty: 2-year manufacturer warranty from the date of purchase covering qualifying manufacturing, material, and workmanship defects. The warranty excludes abuse, misuse, physical damage, water submersion, incorrect installation, improper voltage input, unintended use, and normal wear.
Product Support
