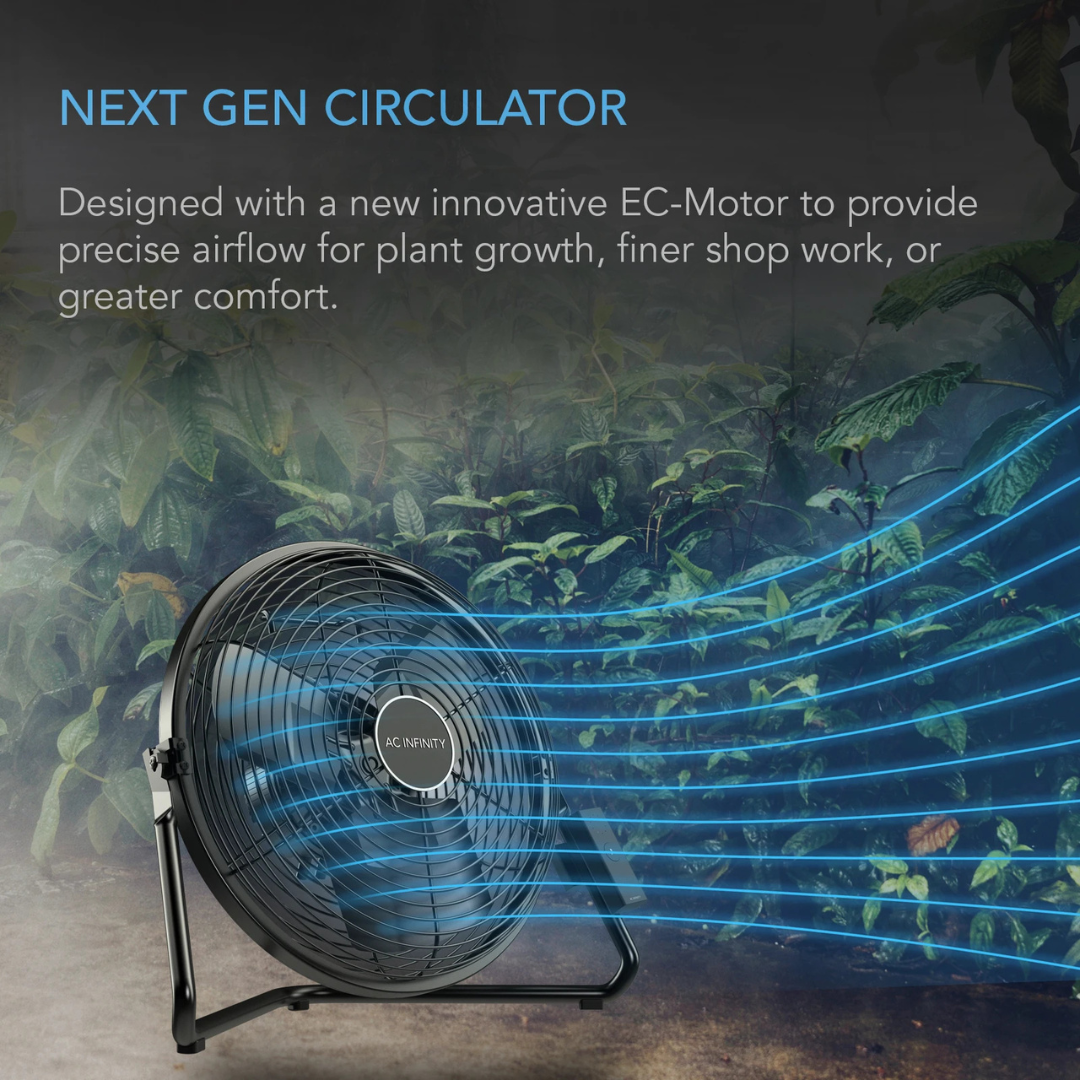

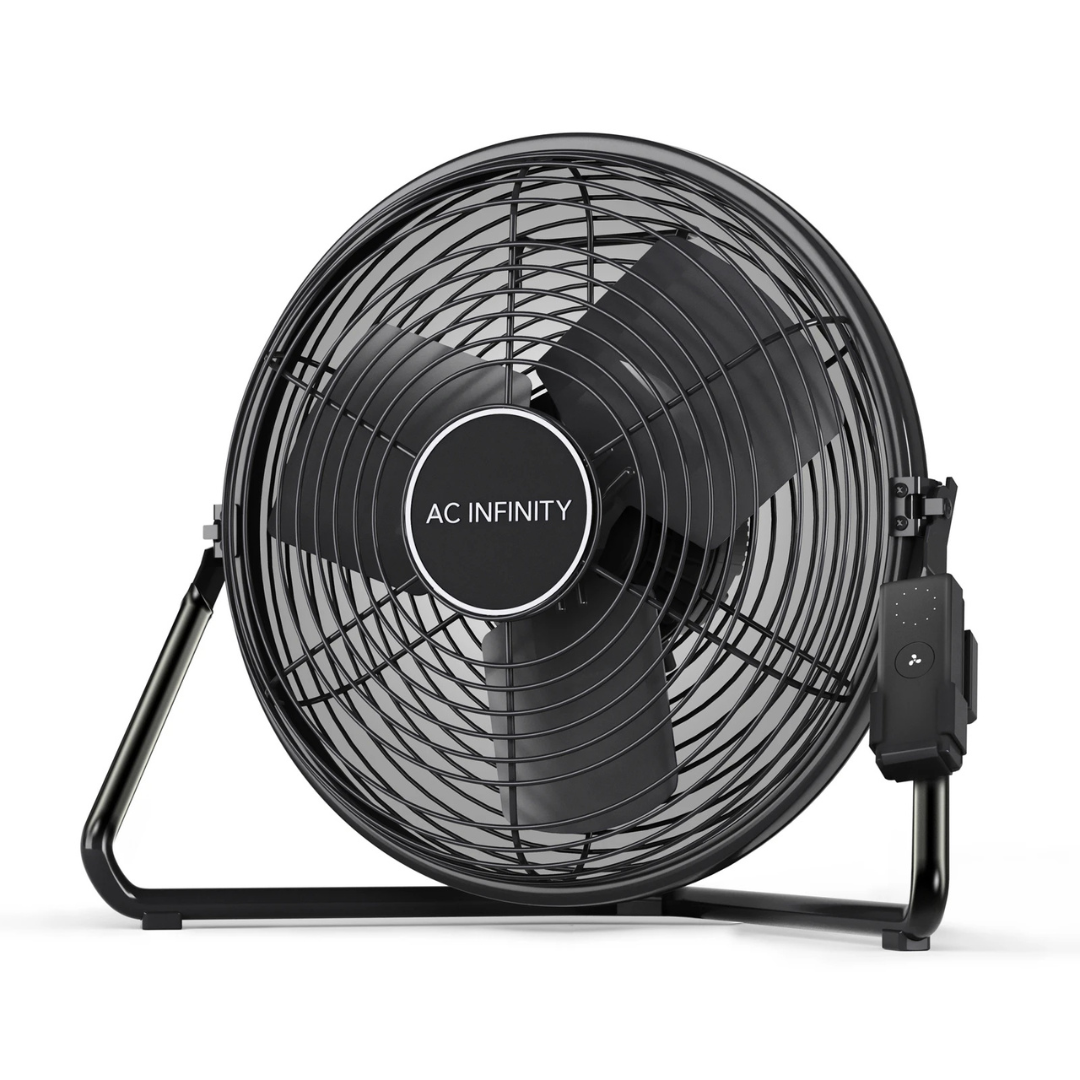

A heavy-duty 14-inch circulation fan designed for controlled airflow in indoor growing spaces, workshops, and personal-comfort applications. It can stand on the floor or mount to a wall using the included hardware.
The digitally controlled EC motor provides 10 speed levels ranging from gentle circulation to high-velocity airflow. A wireless controller, 360-degree adjustable tilt, and IP-44-rated construction support flexible operation in demanding environments.
Key Features
-

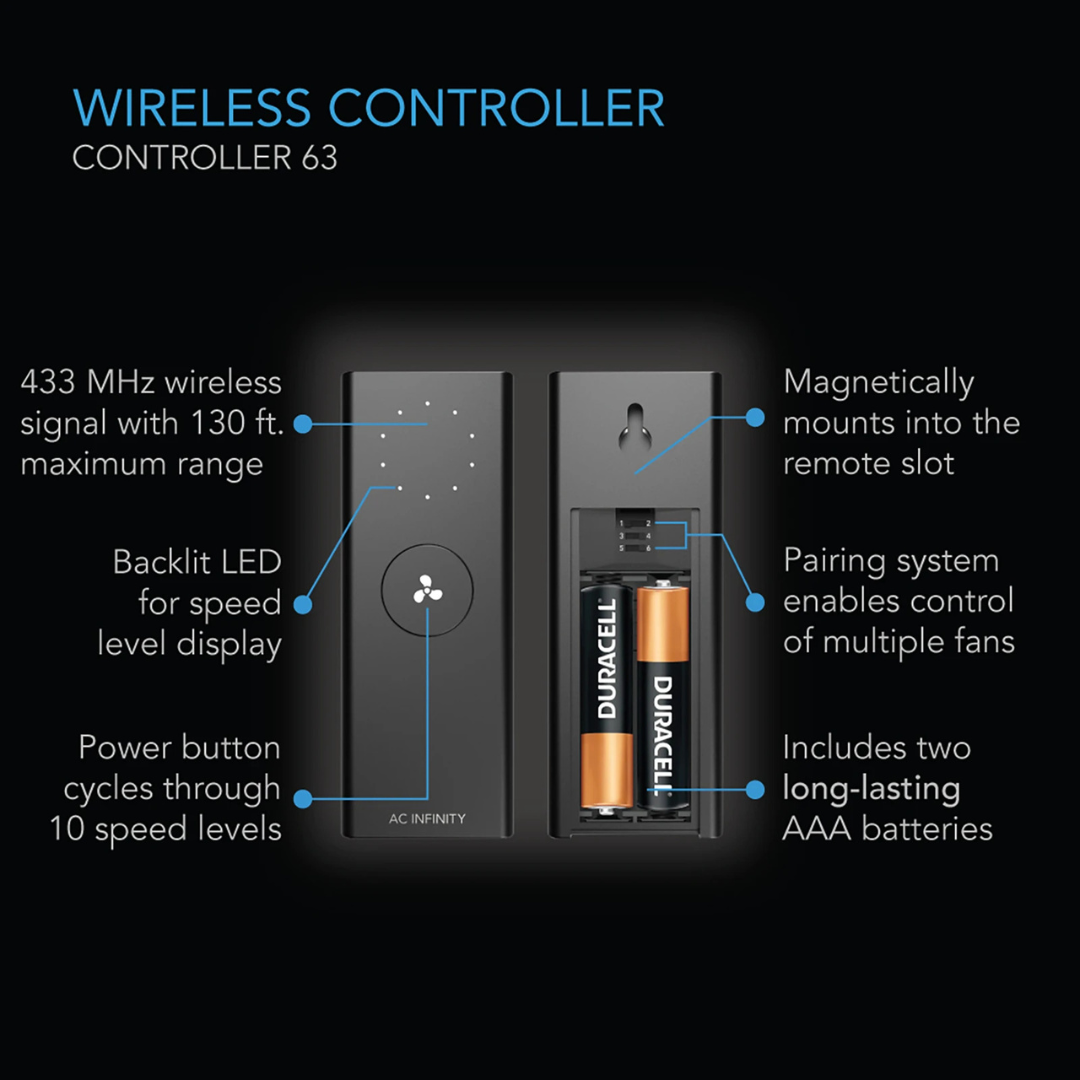

10-Speed Wireless Control: The included wireless controller provides 10 digitally controlled fan-speed levels.
-
EC Motor: The electronically commutated motor uses PWM control to regulate its full speed range while operating more quietly and efficiently than traditional AC motors.
-
Dual-Ball Bearings: The motor uses dual-ball bearings with an estimated lifespan of 67,000 hours and supports mounting in any direction.
-
Adjustable Airflow Direction: The fan offers 360-degree manual tilt for directing airflow.
-

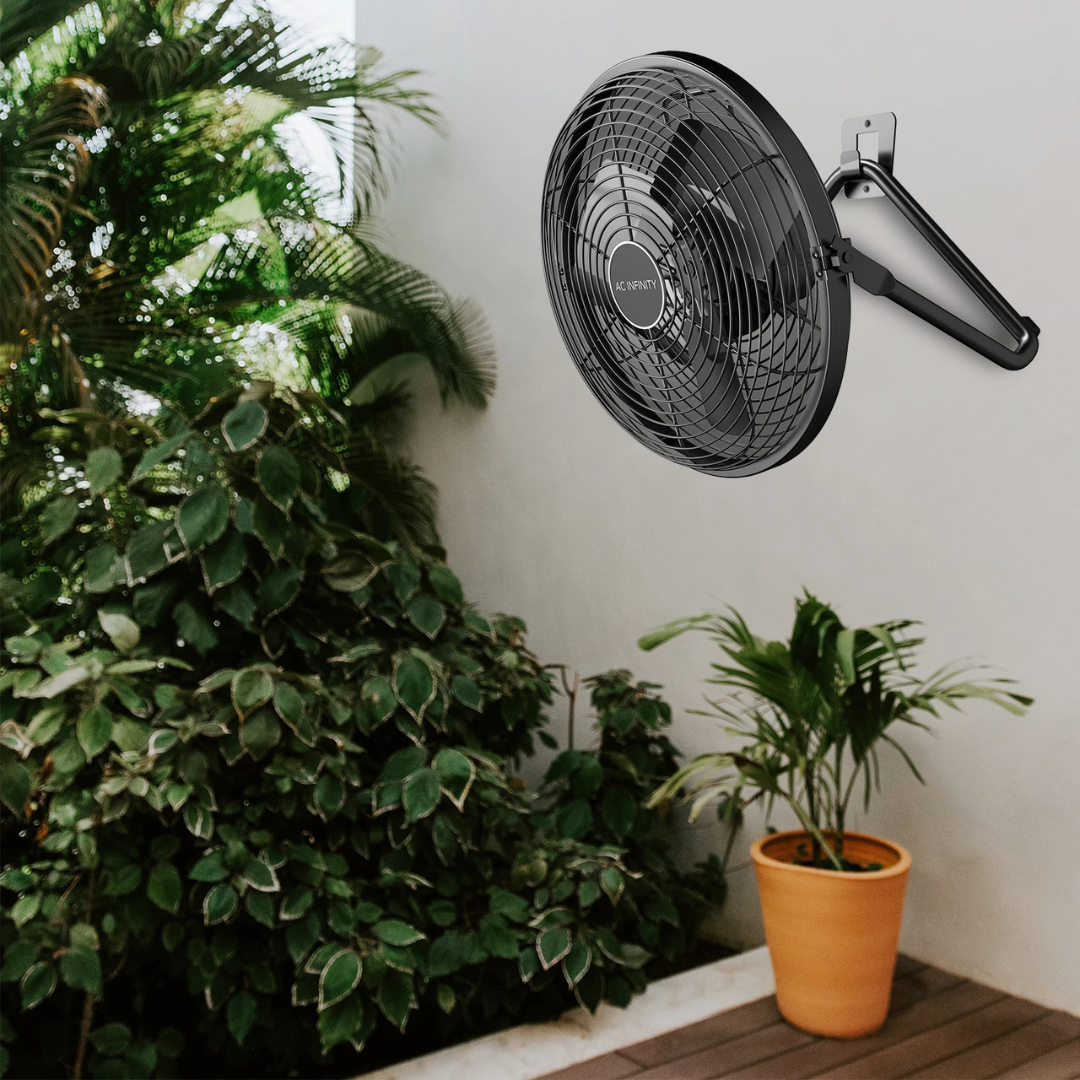

Floor or Wall Placement: The rigid stand supports floor placement, while the included bracket and mounting hardware allow wall installation.
-

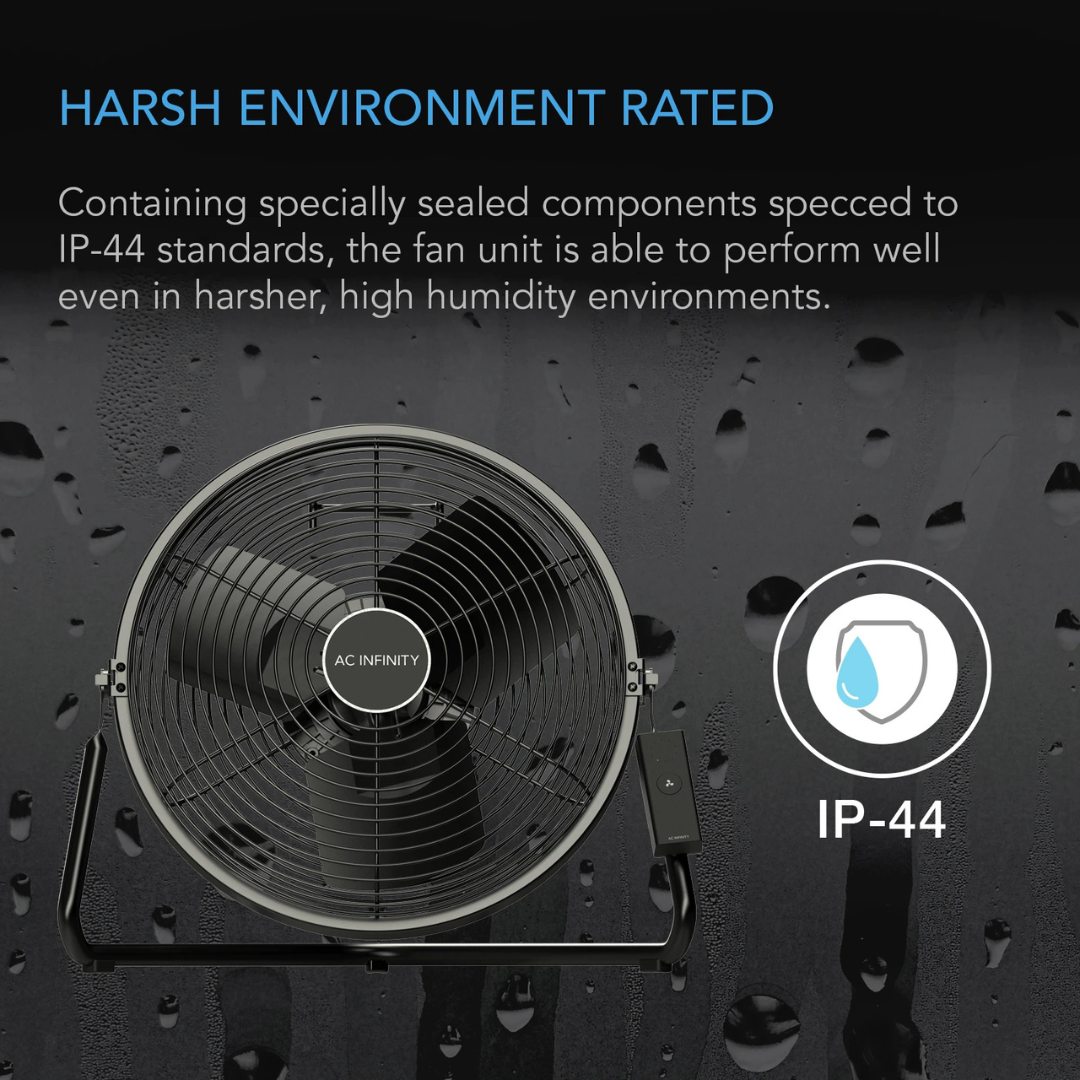

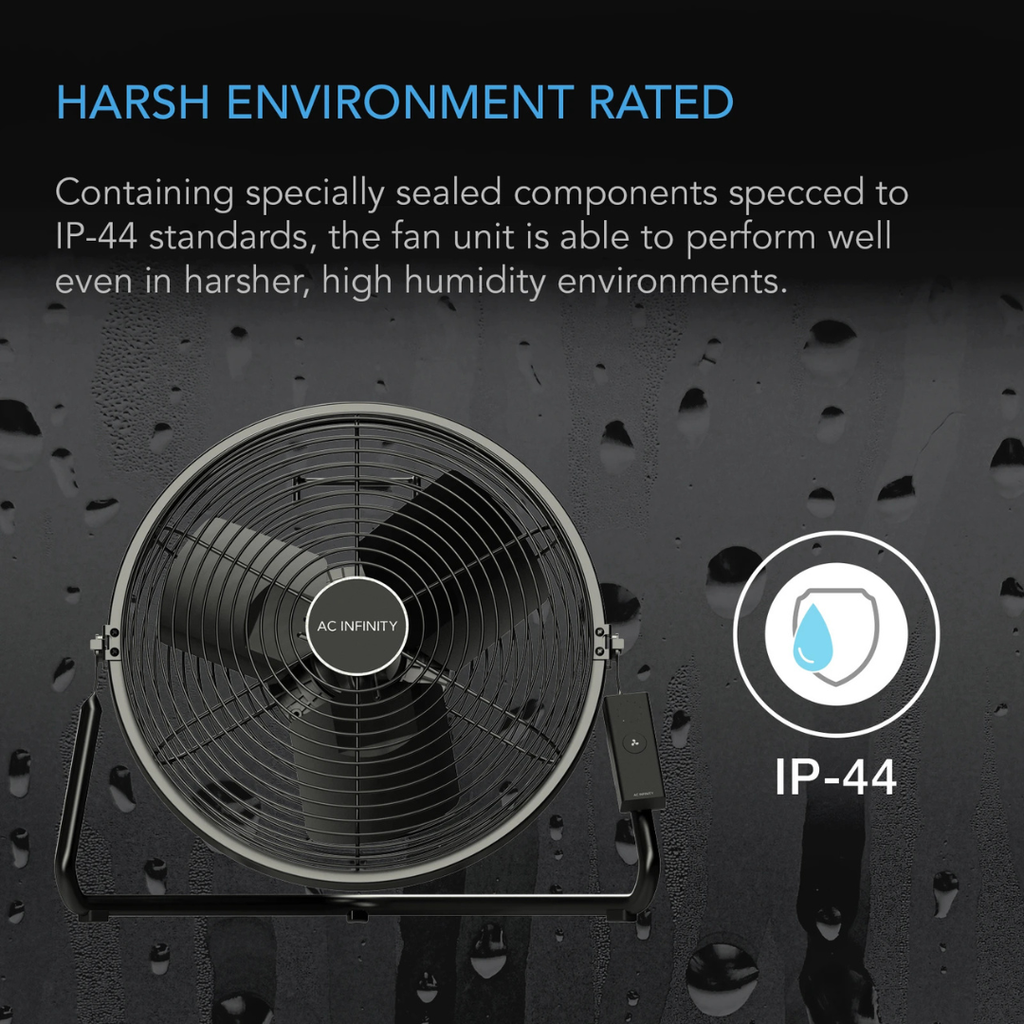

IP-44 Protection: Sealed components provide high resistance to liquids and dust for operation in environments with elevated humidity and varying temperatures.
-
Heavy-Duty Construction: The fan incorporates a black powder-coated steel guard, steel enclosure, rigid stand, and weight-balanced aluminum blades and impellers.
-

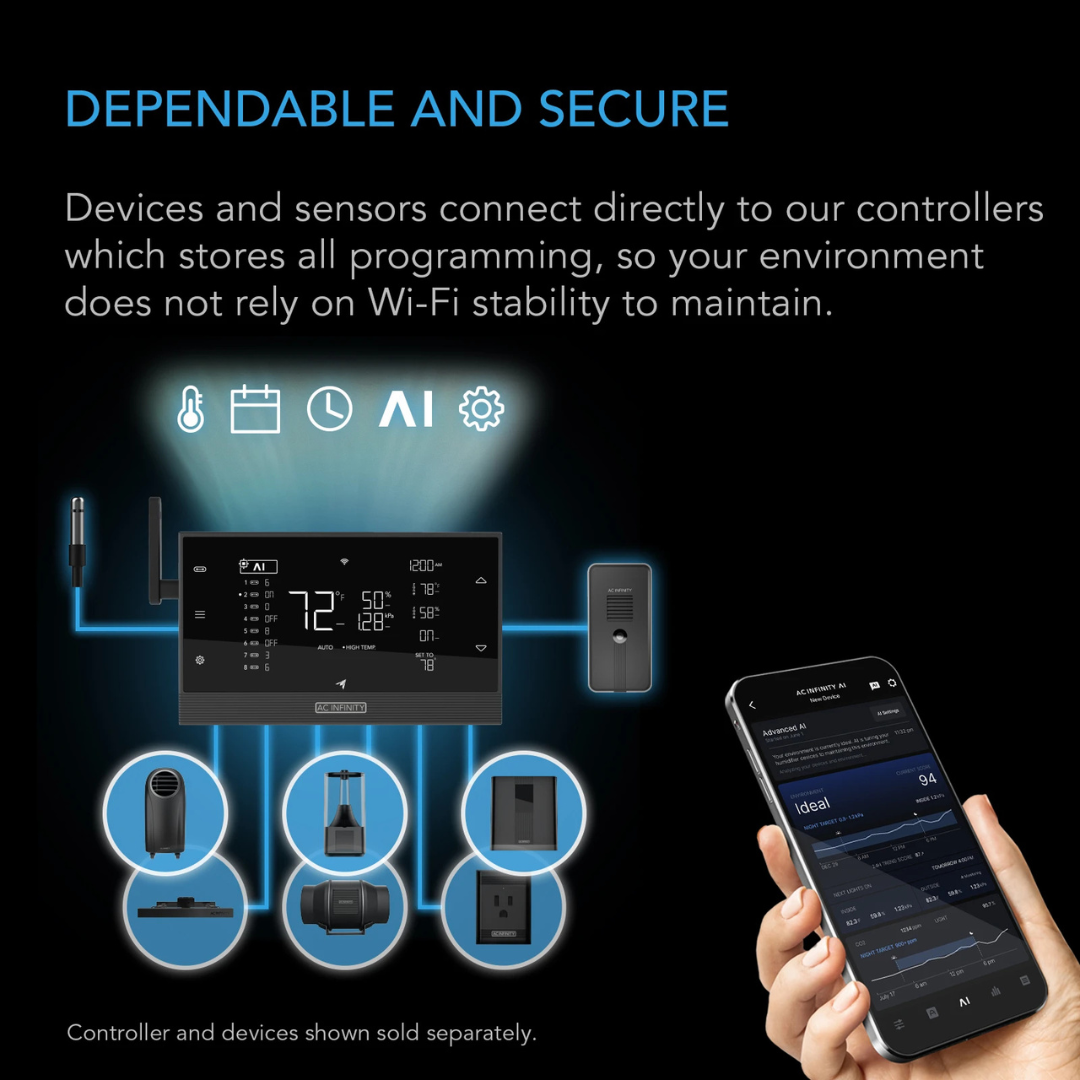

UIS Platform Integration: The fan can connect with compatible UIS controllers for centralized programming and app-based environmental management.
-
Multi-Device Wireless Control: Any number of compatible fans can respond to the same included wireless controller when their selector settings match.
Specifications
-

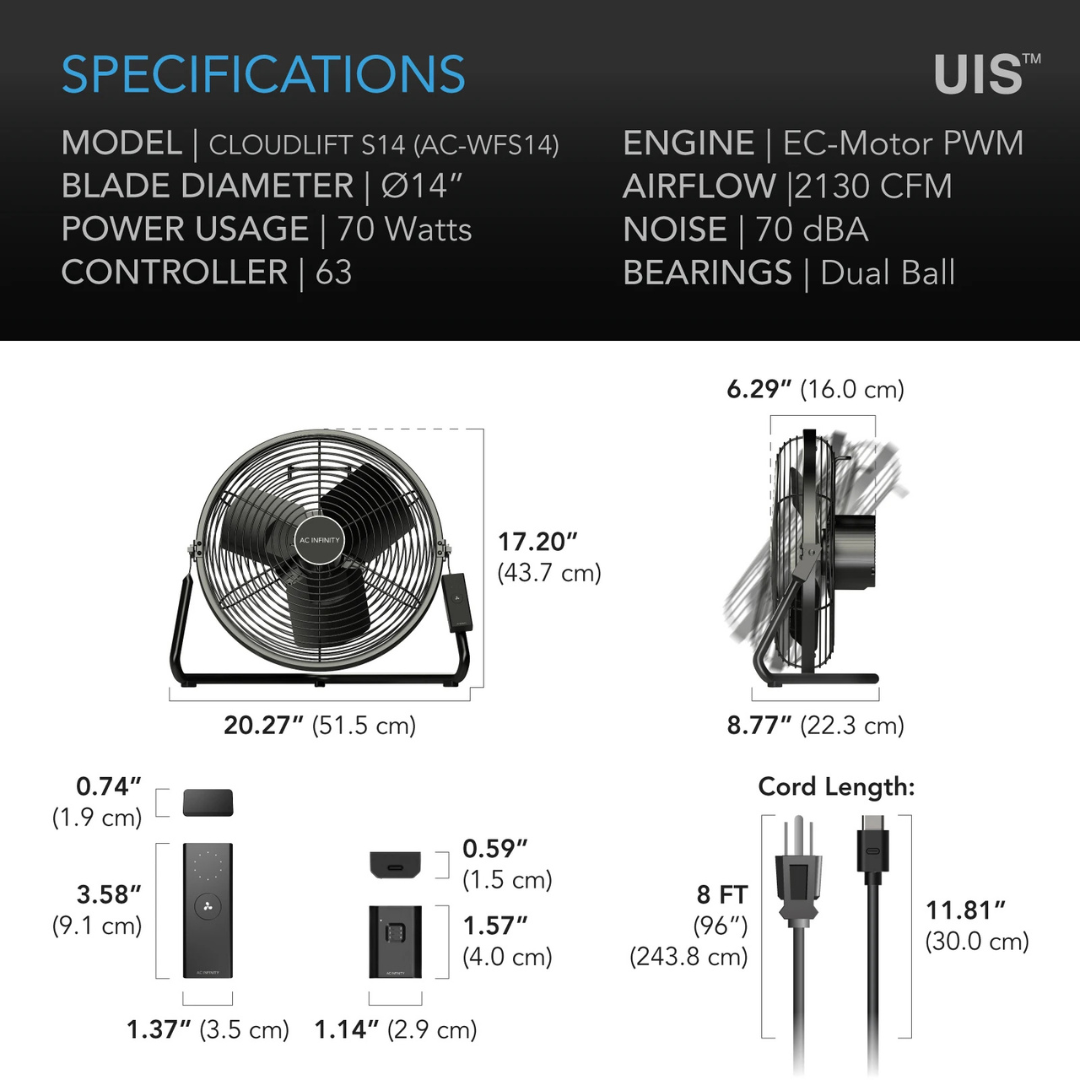

Total Dimensions: 20.27 x 17.16 x 6.29 in. (51.5 x 17.16 x 16.0 cm)
-
Power Cord Length: 96 in. (243.8 cm)
-
Cord Length to Controller: 11.81 in. (30.0 cm)
-
Controller Dimensions: 3.59 x 1.37 x 0.75 in. (9.1 x 3.5 x 1.9 cm)
-
Receiver Dimensions: 1.14 x 1.57 x 0.59 in. (2.9 x 4.0 x 1.5 cm)
-
Mounting Hole Size: Ø 0.25 in. (Ø 6.5 mm)
-
Airflow: 2130 CFM
-
Static Pressure: 7.182 mm-H20
-
Noise: 70 dBA
-
Operating Voltage: 100 to 240V
-
Power: 70 W
-
Current: 0.95 A
-
Wall Adapter Input: 100 to 240V AC
-
Operating Humidity: 35 to 85% RH
-
Speed Levels: 10
-
Ingress Protection: IP-44
-
Motor Bearing Lifespan: Estimated 67,000 hours
Size Guide
-
Fan Size: 14 in.
-
Total Dimensions: 20.27 x 17.16 x 6.29 in. (51.5 x 17.16 x 16.0 cm)
-
Placement Options: Floor standing or wall mounted
-
Tilt Range: 360-degree adjustable tilt
Compatibility
-
Compatible With: UIS controllers and UIS platform devices using compatible UIS connections.
-
Wireless Controller Pairing: Any number of compatible fans may use the same wireless controller when the fans’ selector settings match. Any number of controllers may operate the same fan when their selector settings match the fan.
-
Daisy-Chaining: Each compatible controller port can support up to 20 devices with a separately sold daisy-chain adapter. All connected devices must be from the same series but may be different sizes.
-
App Control: Remote app-based regulation is available when the fan is paired with a compatible controller.
Included
- Industrial wall fan x1
- Wireless controller x1
- Wireless receiver x1
- Wire ties x1
- Wall anchors x2
- Wood screws for wall hanging x2
- Controller screw sets x2
- AAA batteries x2
- Wall-hang bracket x1
- UIS M-M cord, 10 ft. x1
- UIS M-M cord, 20 in. x1
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions in the official manual.
