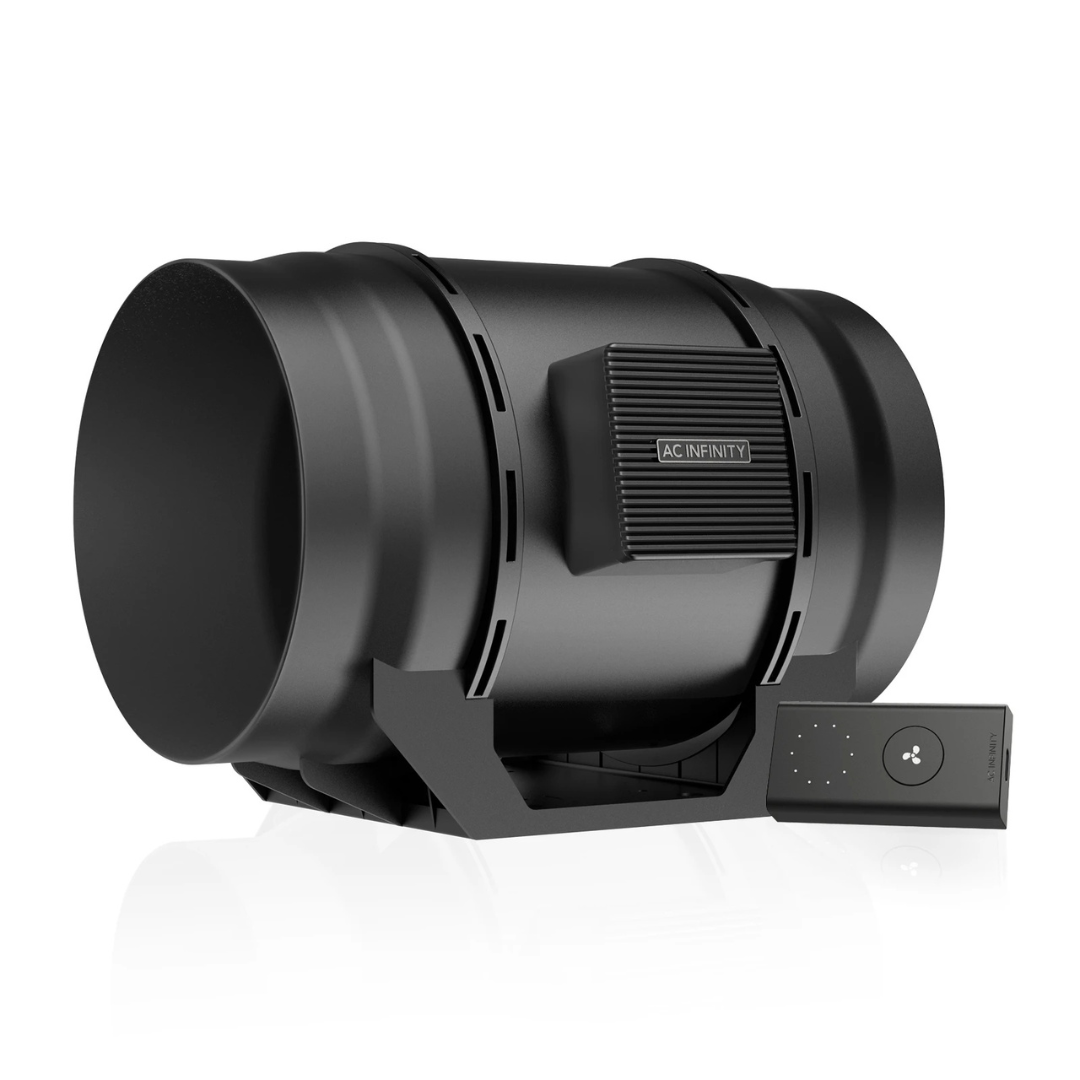

The CLOUDLINE A8 is an 8-inch inline duct fan designed to quietly ventilate grow tents, rooms, and closets. It supports air-circulation and exhaust projects, including cooling grow spaces, exhausting odors, transferring heating or cooling, and cooling AV equipment areas.
The system combines a mixed-flow design with a PWM-controlled EC motor to deliver up to 724 CFM of airflow. Its included wired controller provides 10 speed settings, a power switch, and backup memory for retaining the last selected speed.
Key Features
-
Quiet Ventilation: Designed to ventilate grow tents, rooms, and closets while supporting air-circulation and exhaust applications.
-

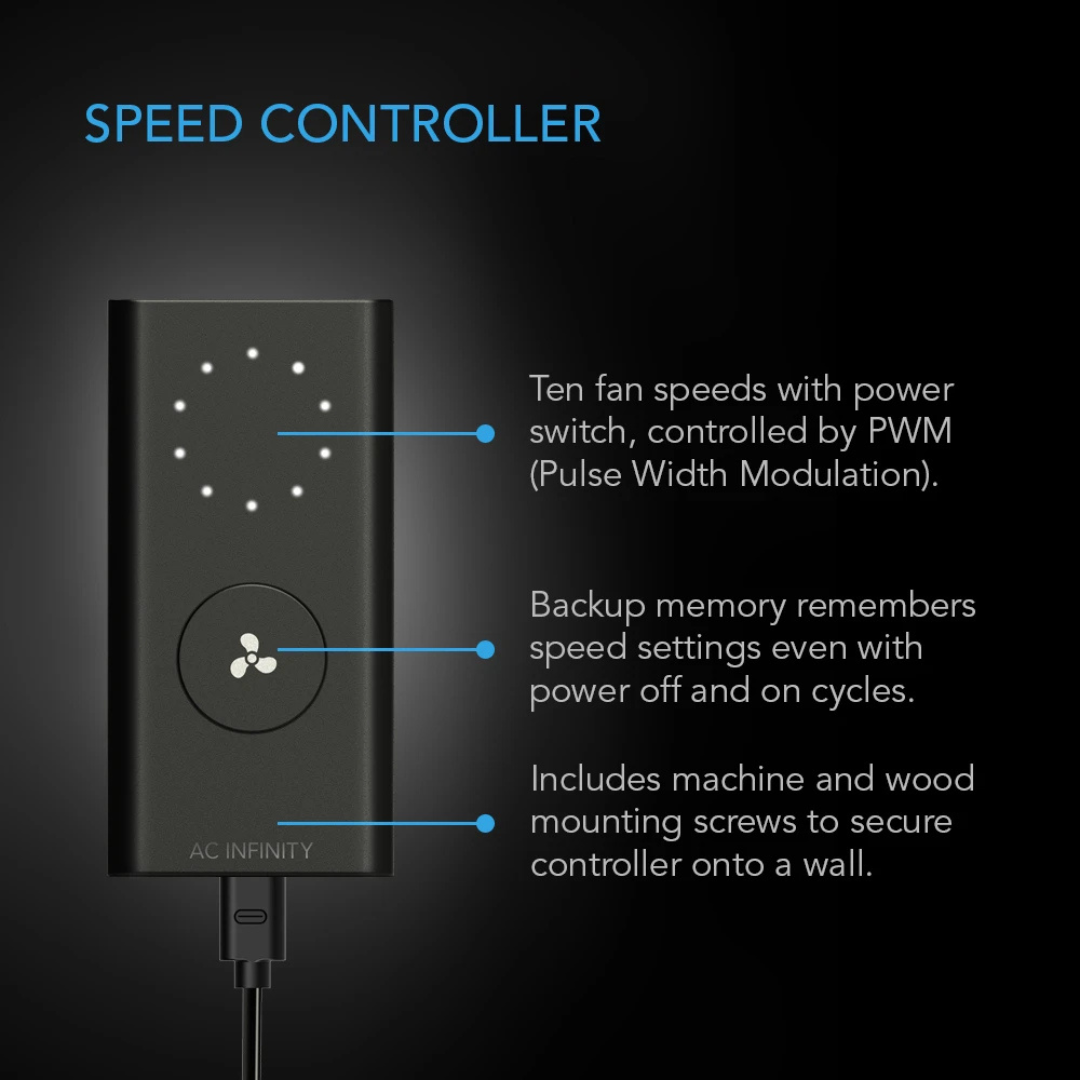

10-Speed Controller: The included wired controller provides 10 fan-speed options for adjusting airflow and noise levels.
-
Backup Memory: Retains the last selected fan-speed setting after the fan is powered down.
-

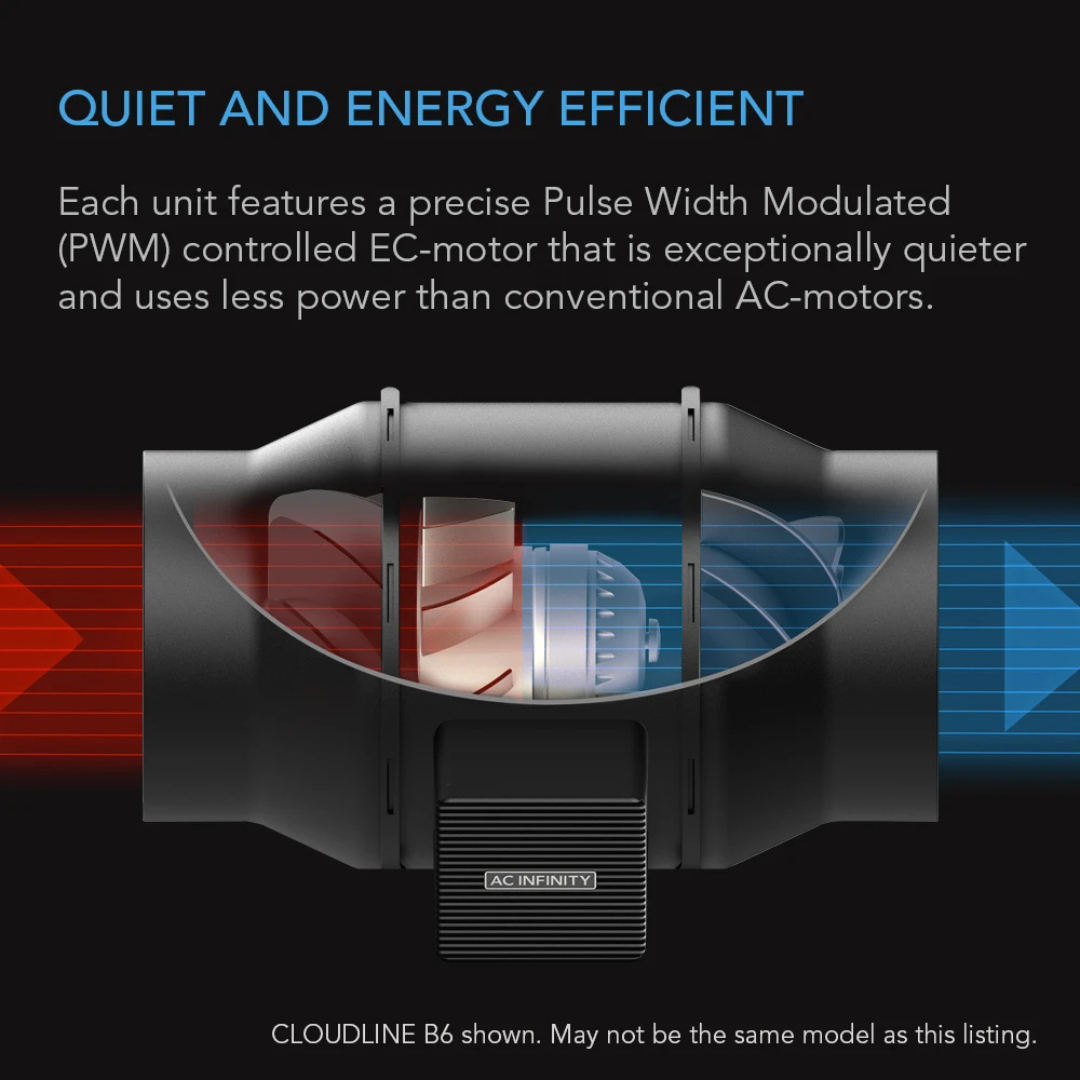

EC Motor: Uses PWM control for precise, quiet, and energy-efficient operation, including performance at low RPM speeds.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to maintain airflow in high-static-pressure applications.
-
Dual Ball Bearings: Rated for a 67,000-hour lifespan and allow the fan to be mounted horizontally or vertically.
-
Vibration-Reducing Base: The plastic mounting base helps diminish noise caused by fan vibration.
-
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
-
Ingress Protection: IP44-rated construction provides resistance to dust and liquids.
-
UIS™ Platform: Designed as part of the UIS™ platform for integration with compatible grow devices and smart controllers.

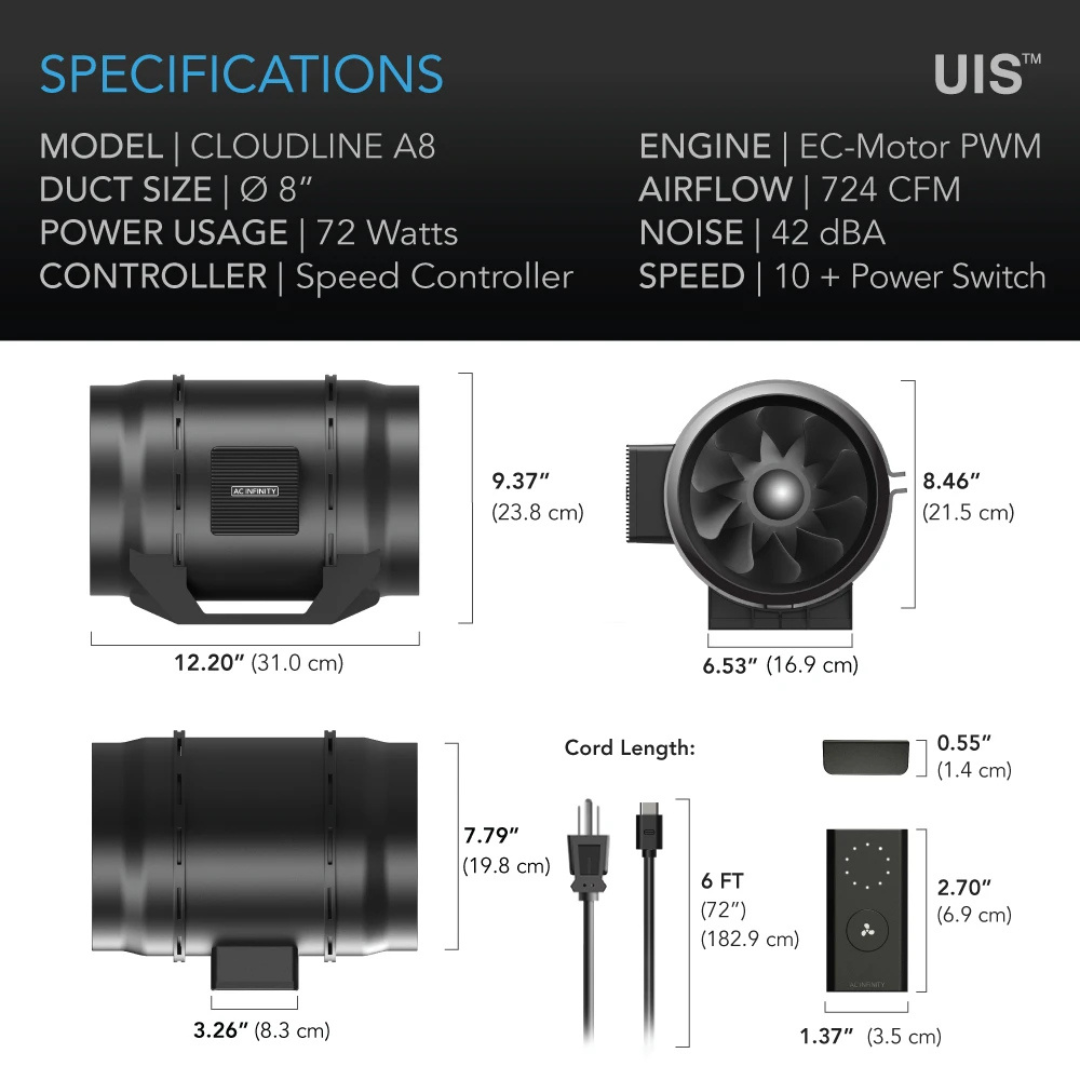

Specifications
-
Duct Size: 8 in.
-
Fan Unit Dimensions: 12.20 in. x 10 in. x 9.37 in. (31 x 25.4 x 23.8 cm)
-
Mounting Hole-to-Hole Distance: 3.54 in. x 1.96 in. (9.0 x 5.0 cm)
-
Screw Hole Diameter: 0.217 in. (0.55 cm)
-
Cord Length to Controller: 72 in. (6 ft.)
-
Cord Length to Plug: 72 in. (6 ft.)
-
Controller Dimensions: 2.70 in. x 1.37 in. x 0.55 in. (6.9 x 3.5 x 1.4 cm)
-
Total Airflow: 724 CFM
-
Total Noise: 42 dBA
-
Static Pressure: 746 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 190 W
-
Average Power Usage: 72 W
-
Current: 2.80 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: ETL, RoHS, and IC
Compatibility

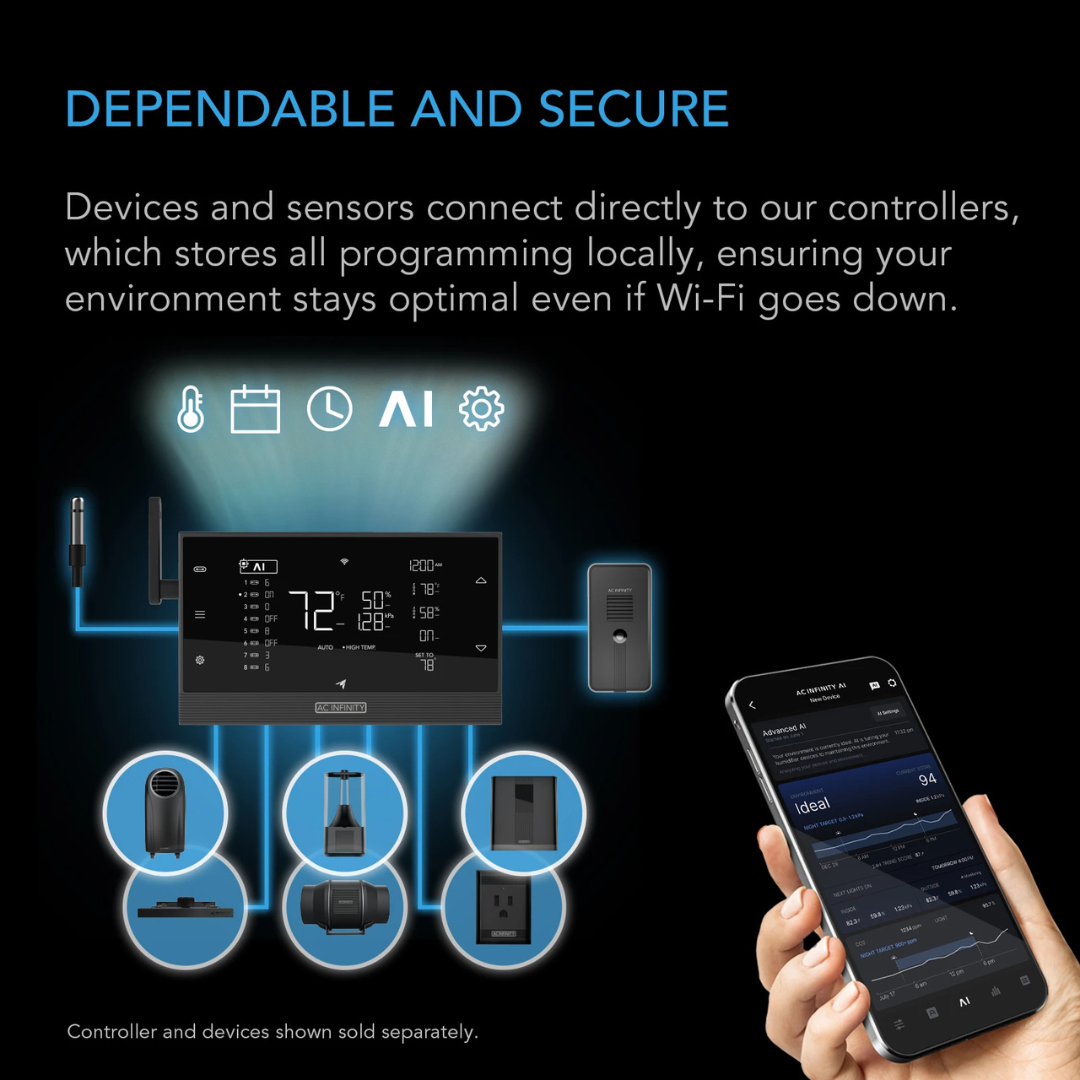

Compatible With: B-Series Temperature Controller, T-Series Temperature and Humidity Controller, CONTROLLER 69, and CONTROLLER 67.
CLOUDLINE Controllers: Compatible with CLOUDLINE Series smart controllers.

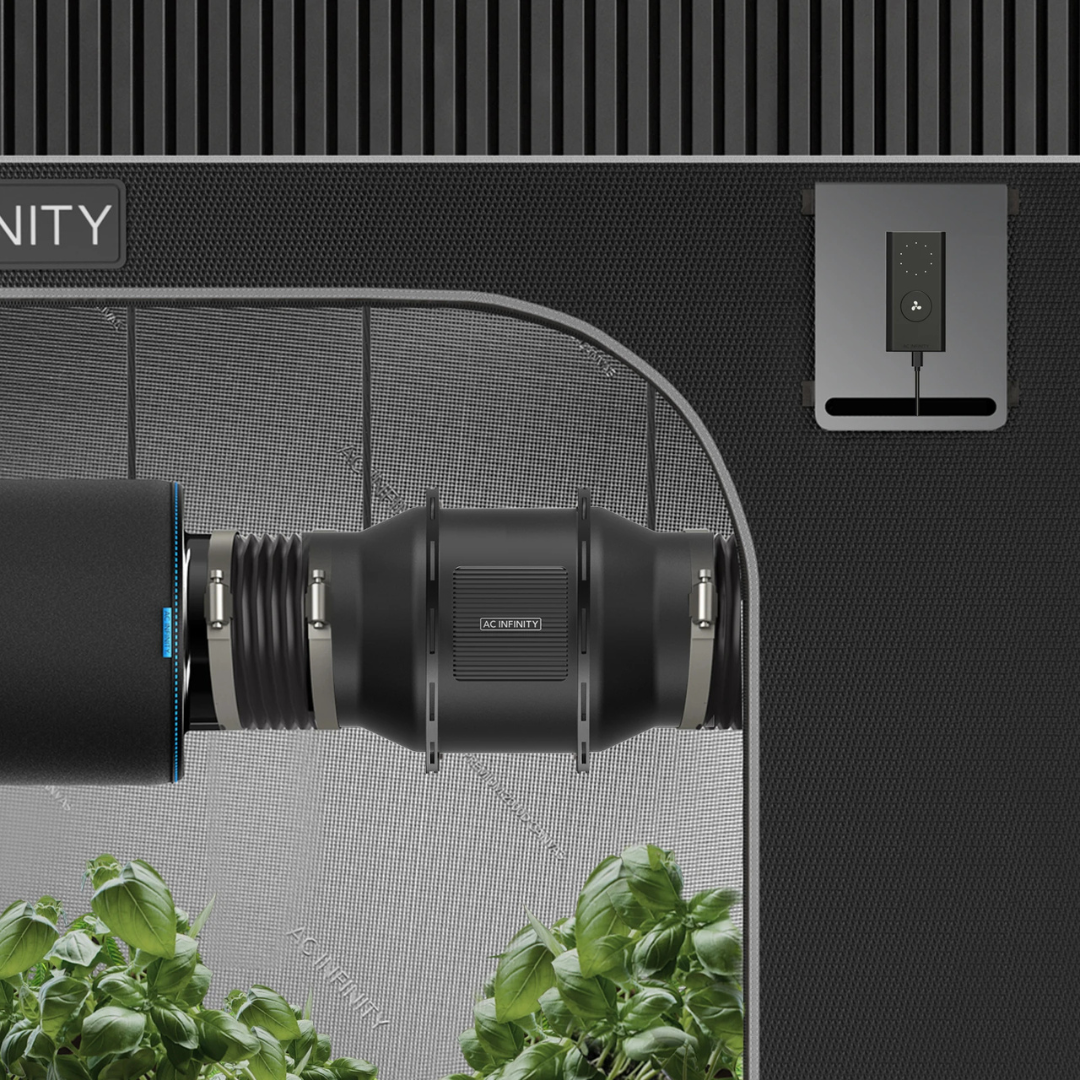

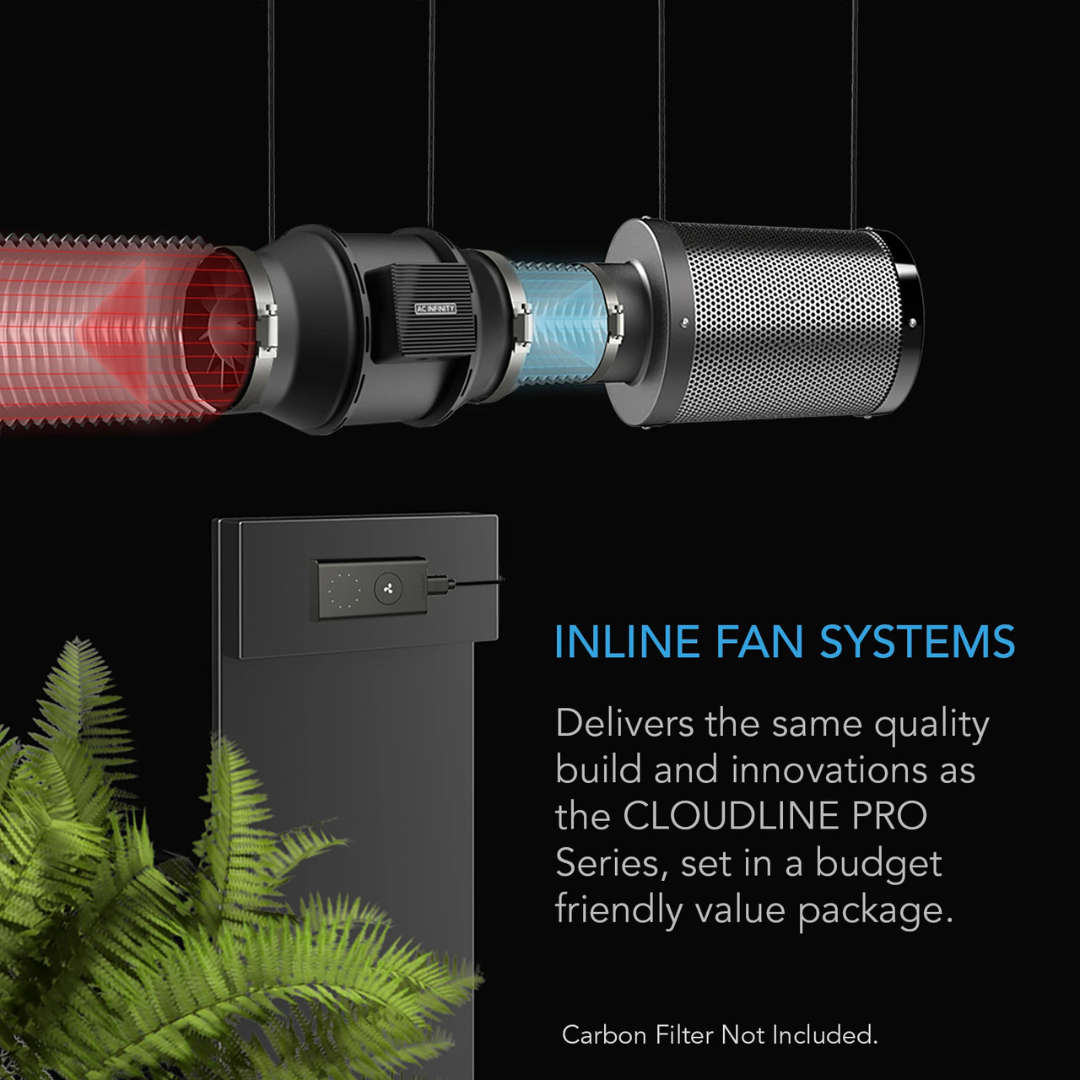

Ventilation Configuration: Can be used as an exhaust fan or intake fan in grow rooms and larger grow tents.
Ducting: Designed for 8-inch ducting. Duct clamps are sold separately.
Included
- Duct fan system, 1
- Speed controller, 1
- 10-ft. UIS male-to-male cord, 1
- Hanging straps, 2
- Wire mounts, 6
- Adhesive wire mount, 1
- Wood screw for wall mounting, 1
- Controller plate bolts, 2
- Duct fan screw sets, 4
- Wall anchors, 4
- Hook-and-loop ties, 4
- Controller plate not included
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions of the official warranty program.
