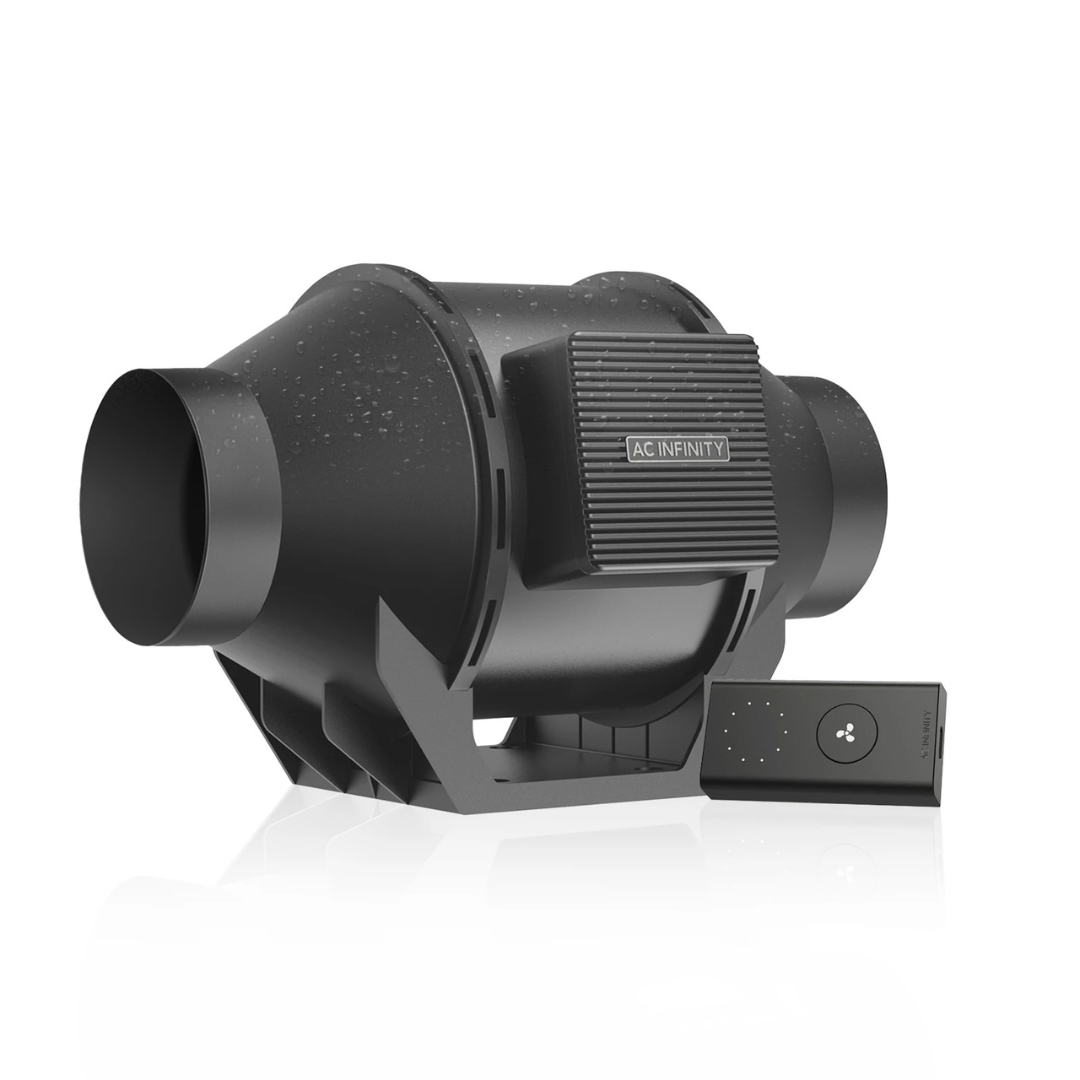

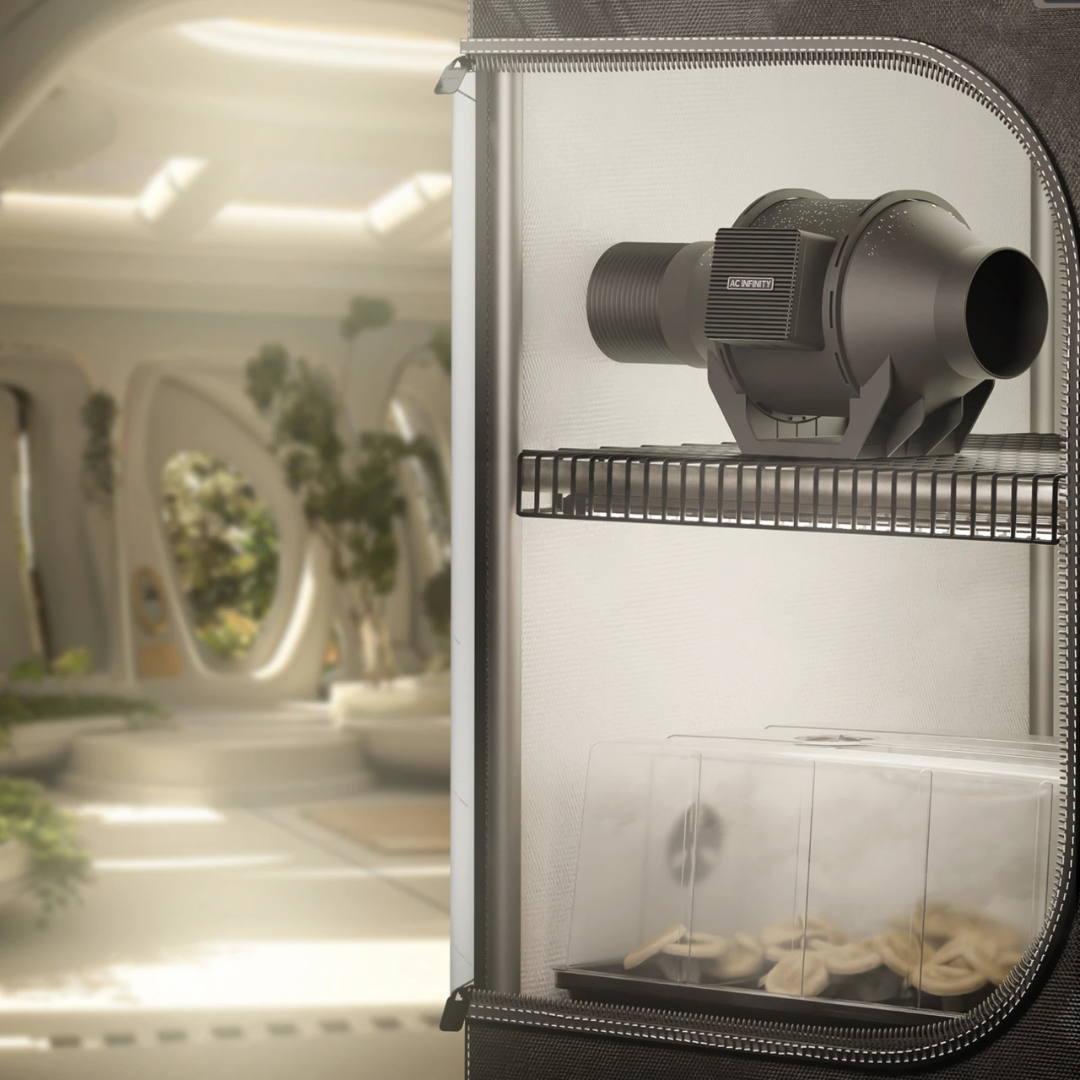

The CLOUDLINE H4 is a 4-inch inline duct fan designed to ventilate mushroom-growing spaces, grow tents, grow rooms, and fruiting chambers. Its IP65-rated construction resists dust, debris, moisture, and spores in high-humidity environments.
A 10-level speed controller provides precise airflow adjustment and retains the last selected setting after power is interrupted. The mixed-flow design, EC motor, and PWM control deliver up to 212 CFM of airflow with a listed noise level of 27 dBA.
Key Features
-

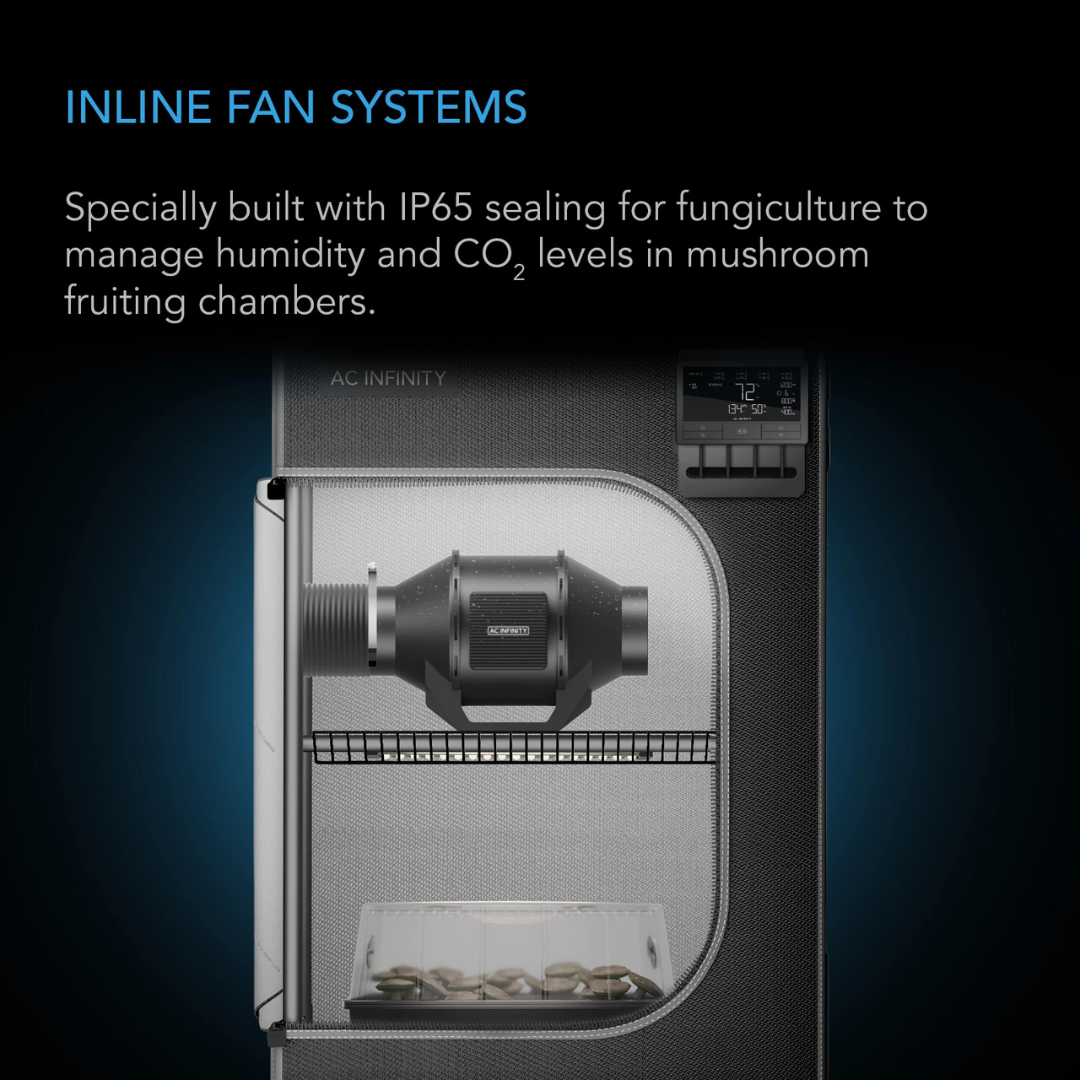

High-Humidity Ventilation: Designed for mushroom cultivation and fungiculture to ventilate grow spaces while supporting fresh air exchange and humidity and CO₂ management.
-
IP65-Rated Construction: Sealed to resist dust, debris, moisture, and spores in high-humidity environments.
-

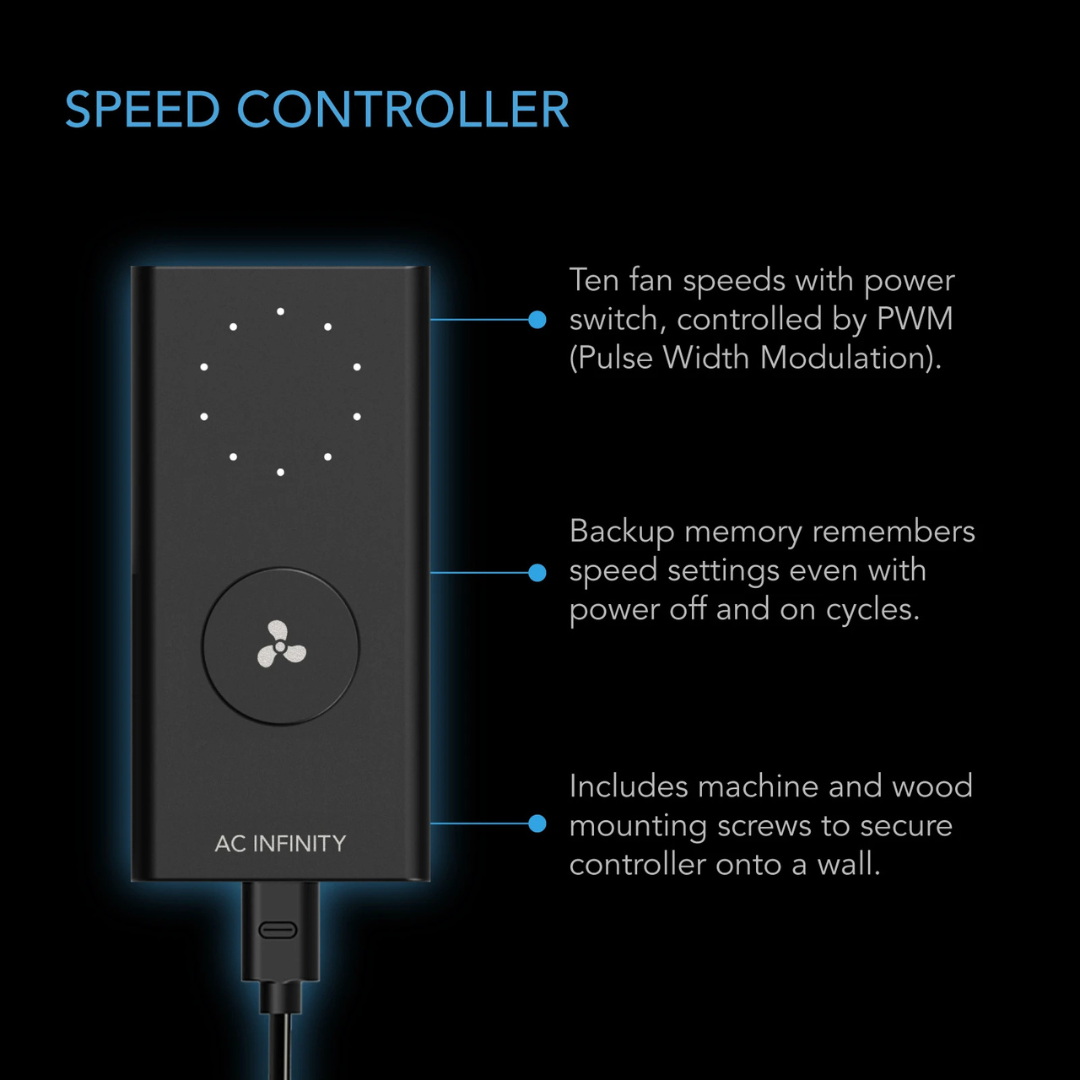

10-Level Speed Controller: Provides 10 precise fan-speed settings for adjusting airflow and noise levels.
-
Backup Memory: Retains the last selected fan-speed setting when power is interrupted.
-

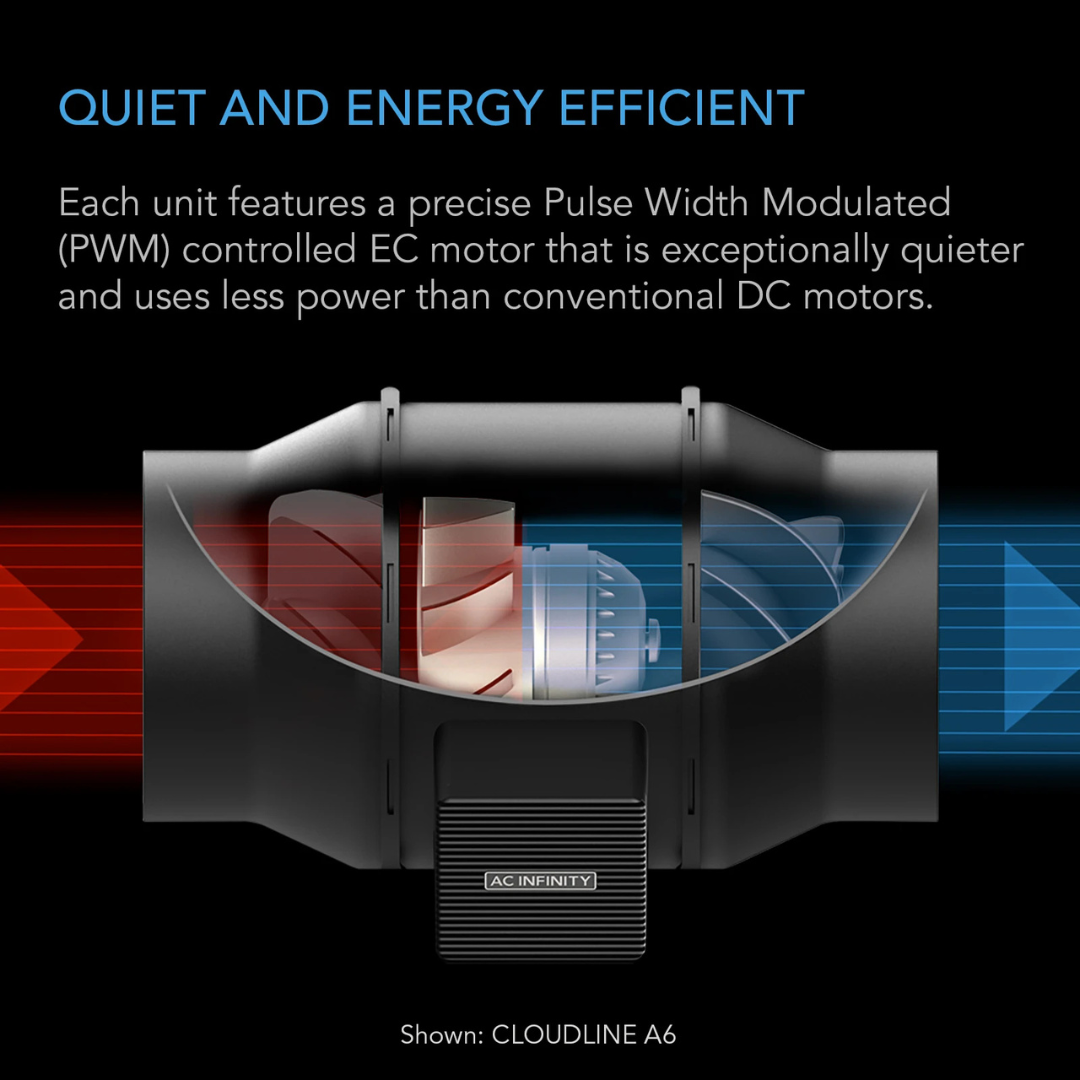

EC Motor: Uses PWM control for precise, quiet, and energy-efficient operation, including performance at low RPM speeds.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to deliver airflow in applications where air movement is restricted.
-
Dual Ball Bearings: Rated for a 67,000-hour lifespan and allow the fan to be mounted horizontally or vertically.
-
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
-
UIS™ Platform: Designed as part of the UIS™ platform for integration with compatible grow devices and smart controllers.

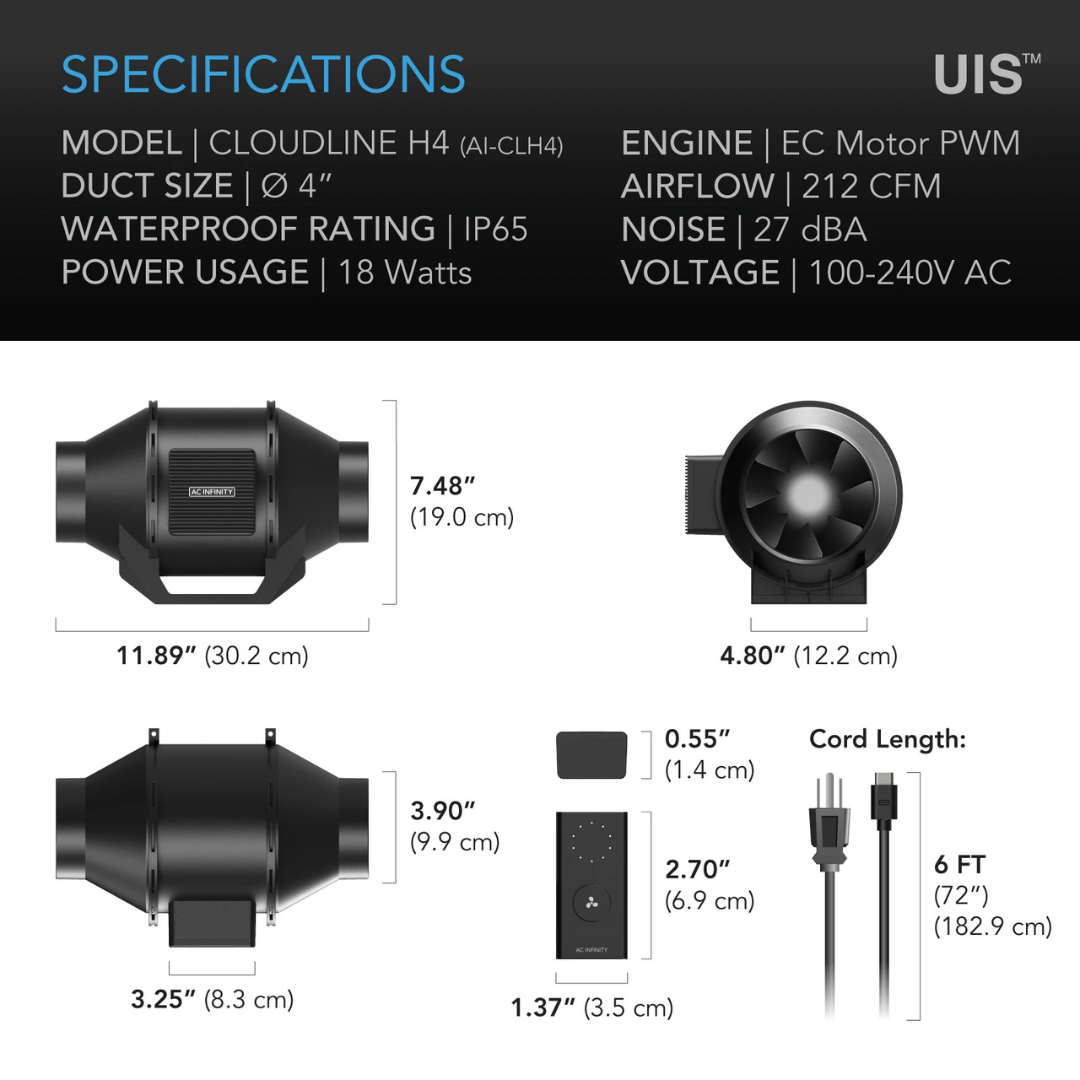

Specifications
-
Duct Size: 4 in.
-
Fan Unit Dimensions: 7.48 in. x 11.89 in. x 6.93 in. (19.0 x 30.2 x 17.6 cm)
-
Mounting Hole-to-Hole Distance: 3.15 in. x 2.36 in. (8.0 x 6.0 cm)
-
Screw Hole Diameter: 0.197 in. (0.5 cm)
-
Cord Length to Controller: 72 in. (6 ft.)
-
Cord Length to Plug: 72 in. (6 ft.)
-
Controller Dimensions: 3.34 in. x 2.95 in. x 0.51 in. (8.5 x 3.6 x 1.3 cm)
-
Total Airflow: 212 CFM
-
Total Noise: 27 dBA
-
Maximum Speed: 3000 RPM
-
Static Pressure: 324 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 35 W
-
Average Power Usage: 18 W
-
Current: 0.55 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35 to 95% RH
-
Operating Temperature: 32 to 140°F
-
Ingress Protection: IP65
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: ETL, RoHS, and IC
Compatibility

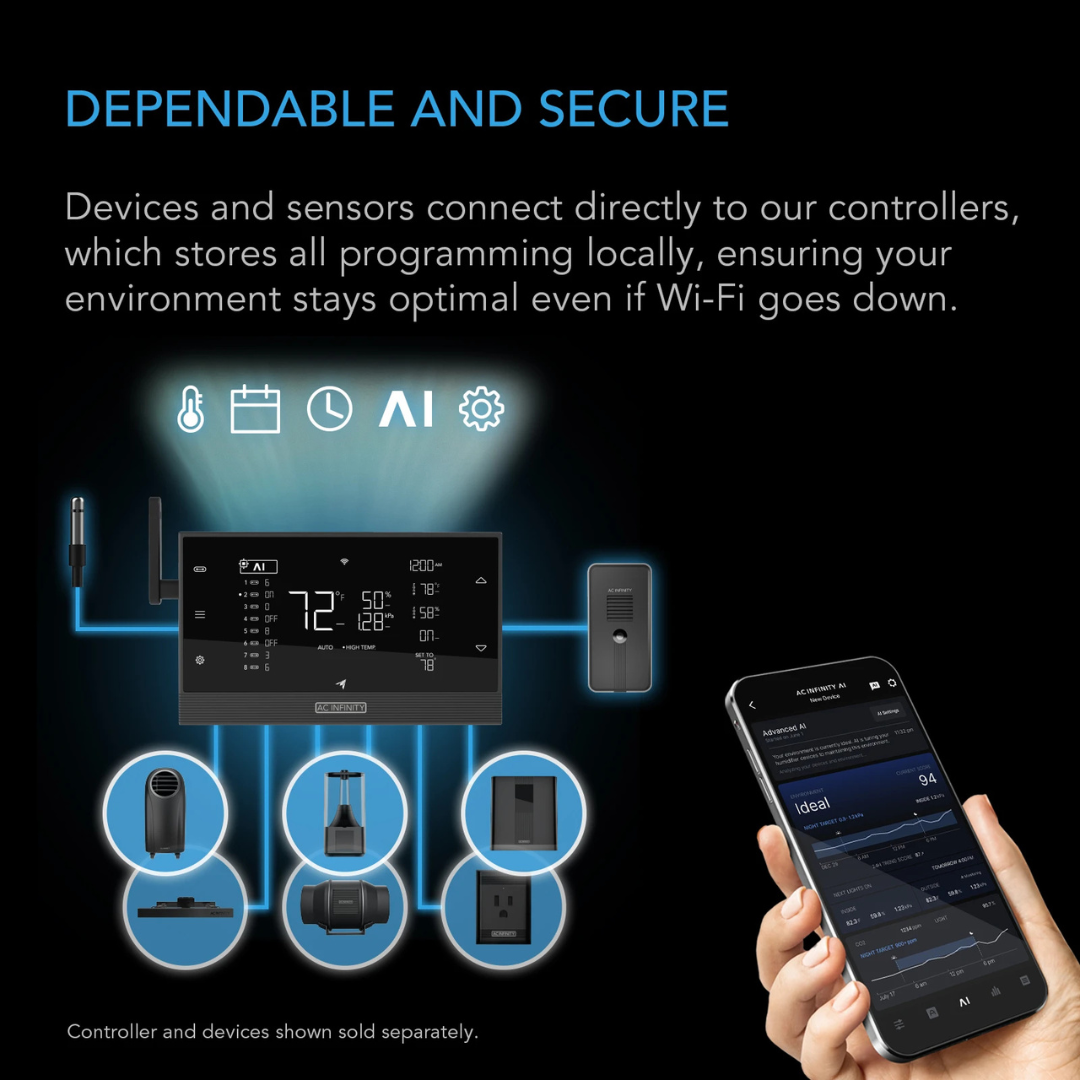

Compatible With: The UIS™ platform and compatible UIS smart controllers. A compatible controller can connect the grow system to the AC Infinity app over Wi-Fi for remote programming and access to climate data.
Ventilation Configuration: Can be used as an exhaust fan or intake fan in grow rooms and larger grow tents.
Ducting: Designed for 4-inch ducting. Duct clamps are sold separately.
Included
- Duct fan system, 1
- Speed controller, 1
- 10-ft. UIS male-to-male cord, 1
- Hanging straps, 2
- Wire mounts, 6
- Adhesive wire mount, 1
- Wood screw for wall mounting, 1
- Controller plate bolts, 2
- Duct fan screw sets, 4
- Wall anchors, 4
- Hook-and-loop ties, 4
- Controller plate not included
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions of the official warranty program.
