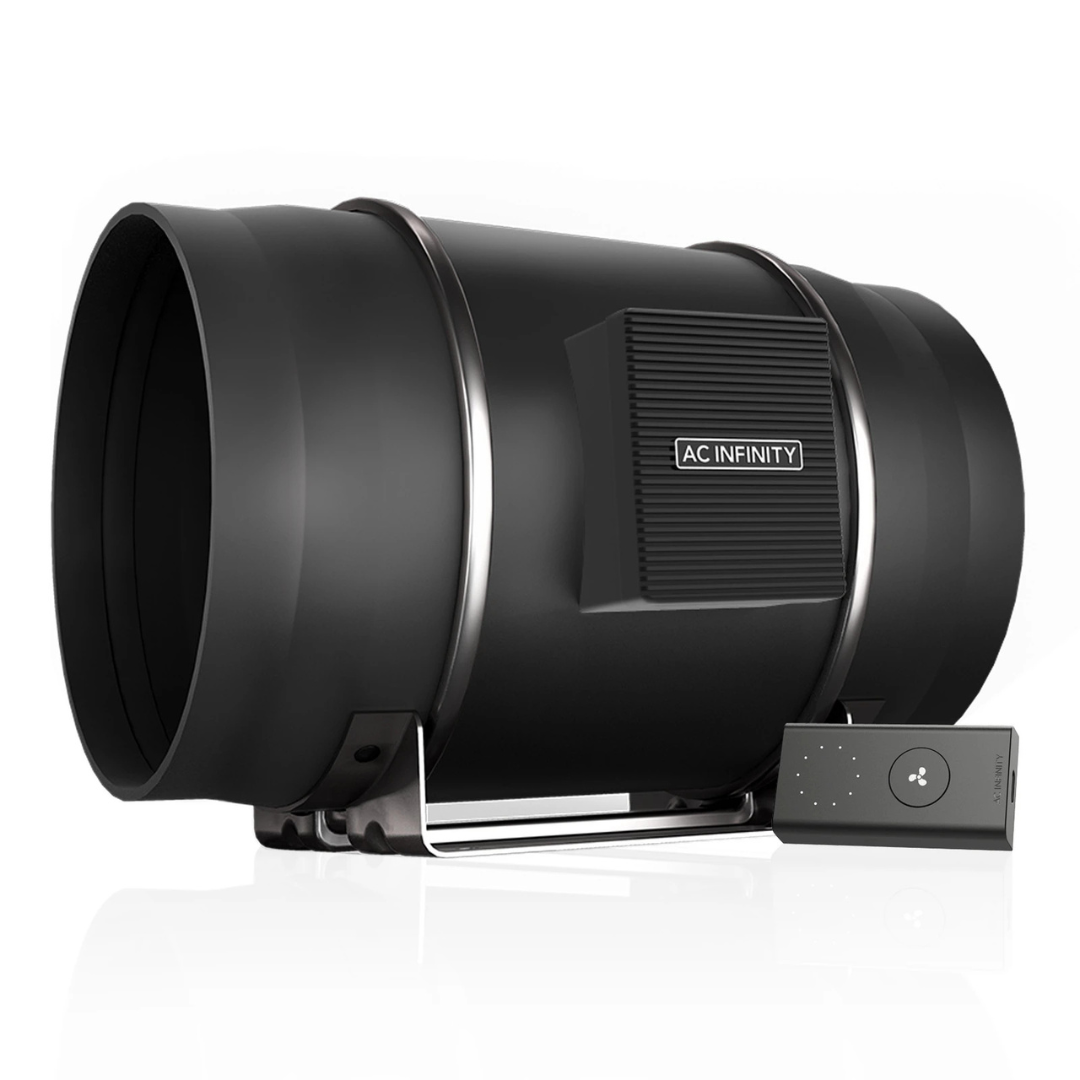

A mixed-flow inline duct fan designed to ventilate hydroponic grow rooms and tents, transfer heating and cooling, circulate fresh air, exhaust projects, and cool AV equipment spaces. Its 12-inch duct size and 1604 CFM airflow support high-volume ventilation applications.
The included wired controller provides 10 selectable fan speeds and backup memory that retains the last speed setting after power is interrupted. A PWM-controlled EC motor, mixed-flow construction, and dual ball bearings support controlled airflow, flexible mounting, and energy-efficient operation.
Key Features
-

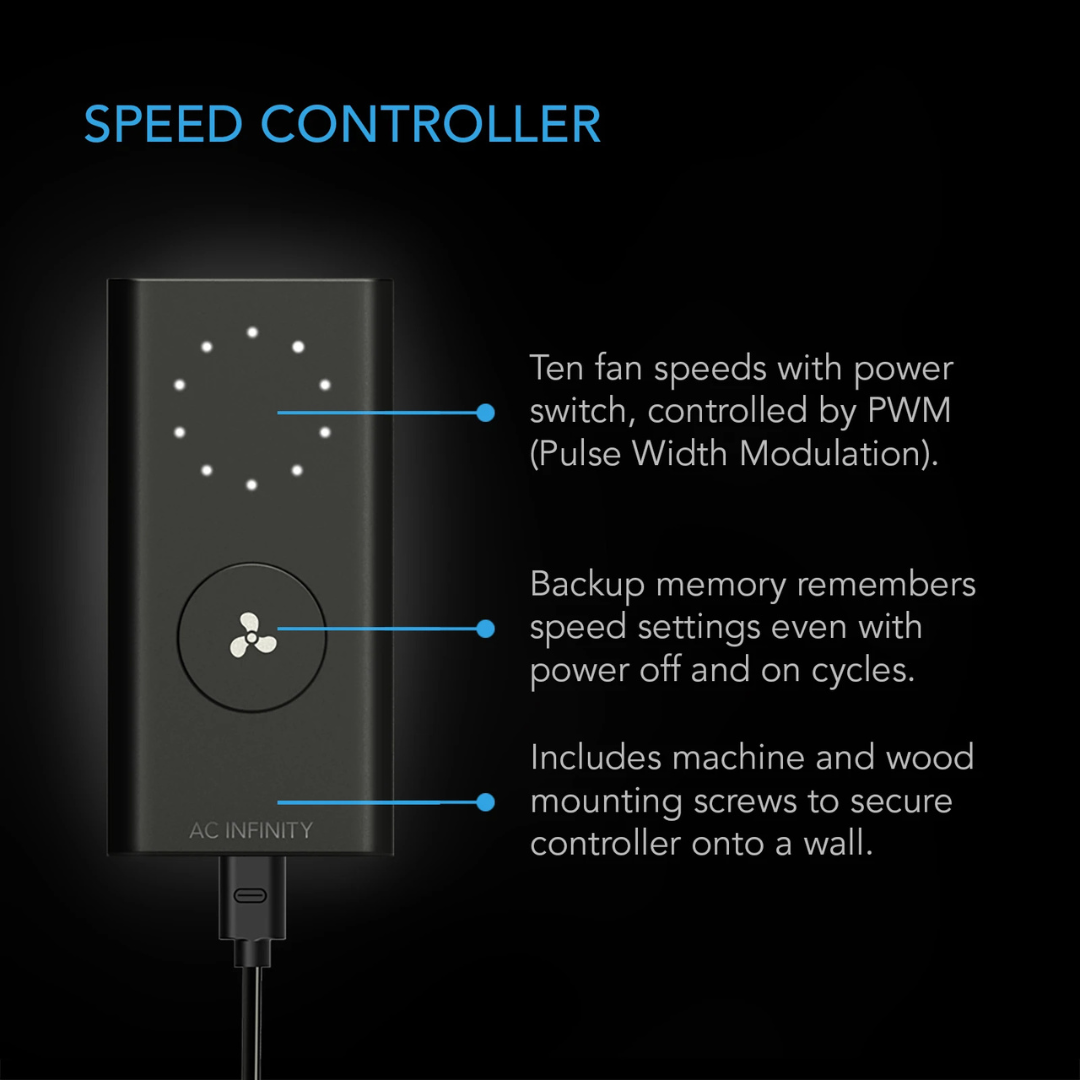

10-Speed Controller: The wired controller provides 10 fan-speed levels for adjusting airflow and operating noise.
-

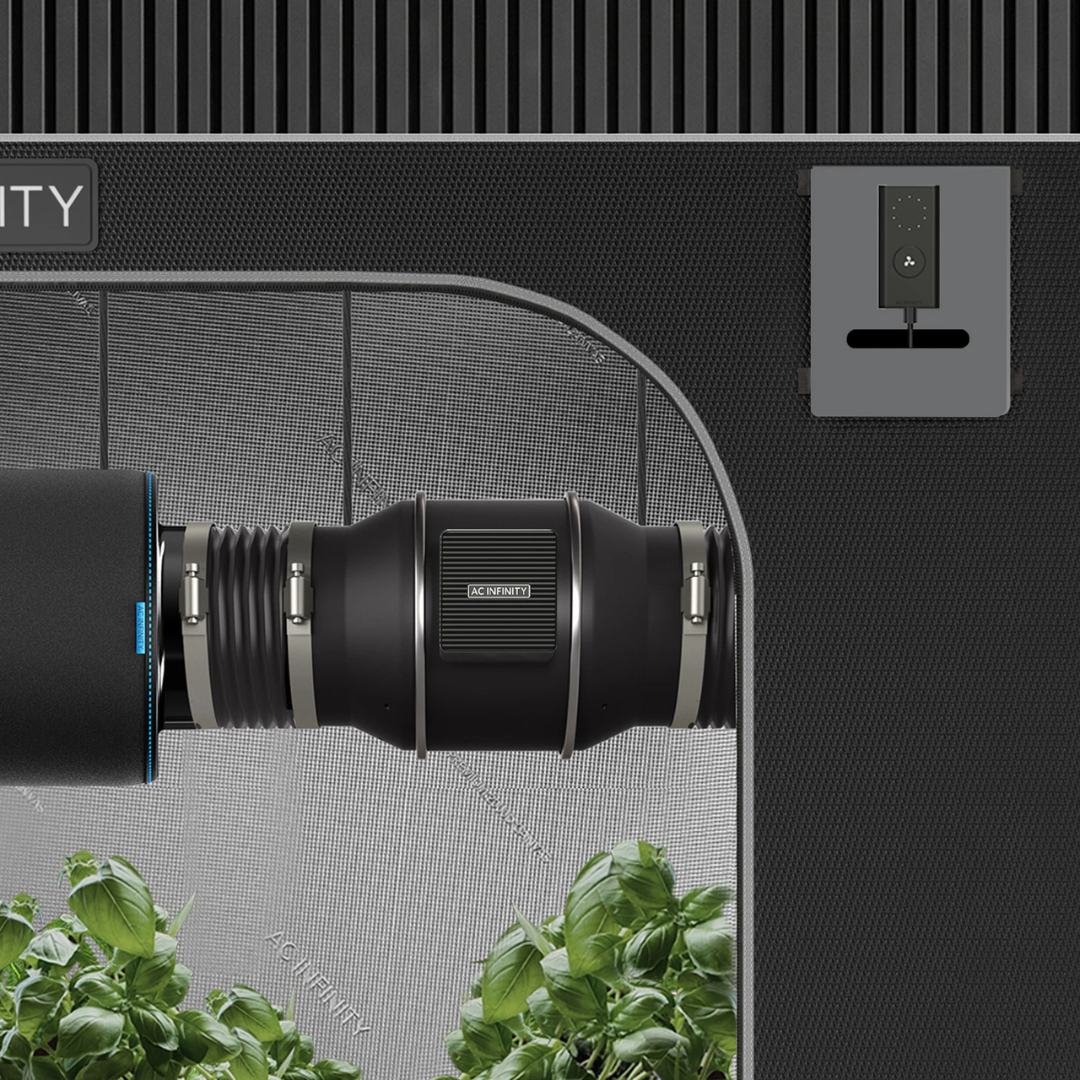

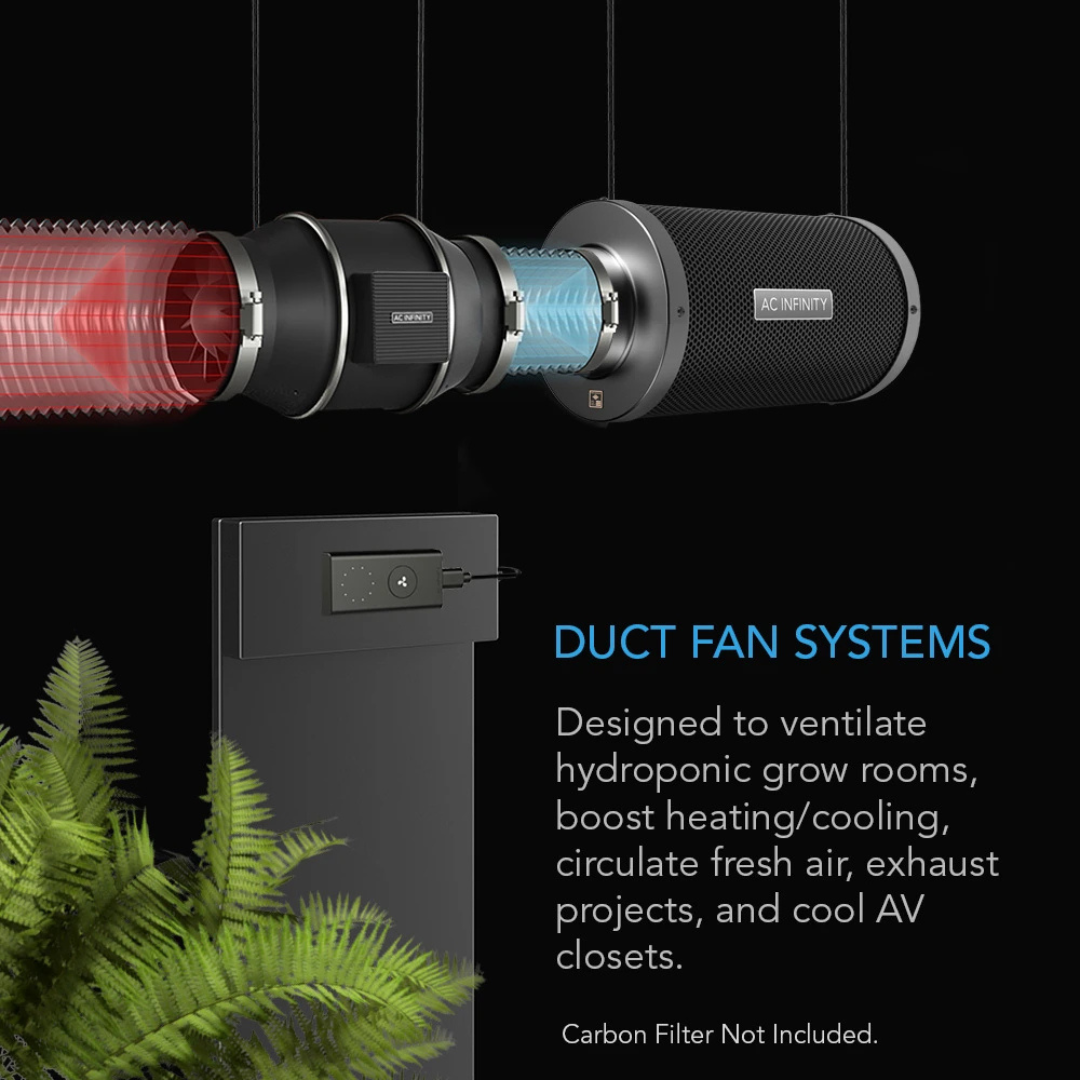

Designed to quietly ventilate grow tents, transfer heating/cooling to rooms, circulate fresh air, and cool AV closets.
-
Backup Memory: Retains the most recently selected speed setting when power to the controller is interrupted.
-

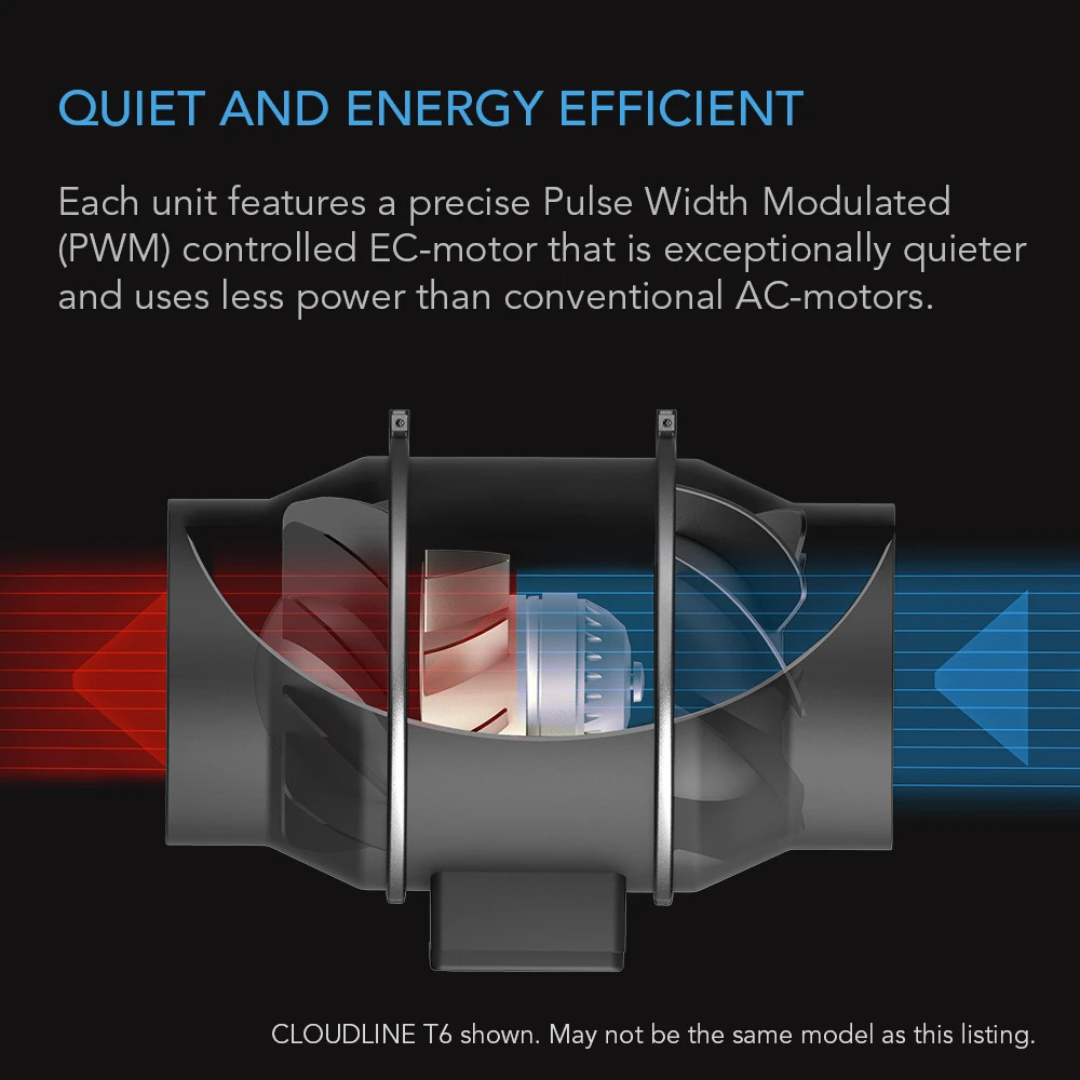

PWM-Controlled EC Motor: Provides precise speed control with reduced rotor noise, minimal heat generation, and energy-efficient operation.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to deliver airflow in areas with high resistance.
-
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
-
Flexible Mounting: Dual ball bearings allow horizontal or vertical installation.
-
Ingress Protection: IP44-rated construction provides resistance to dust and liquids.
-

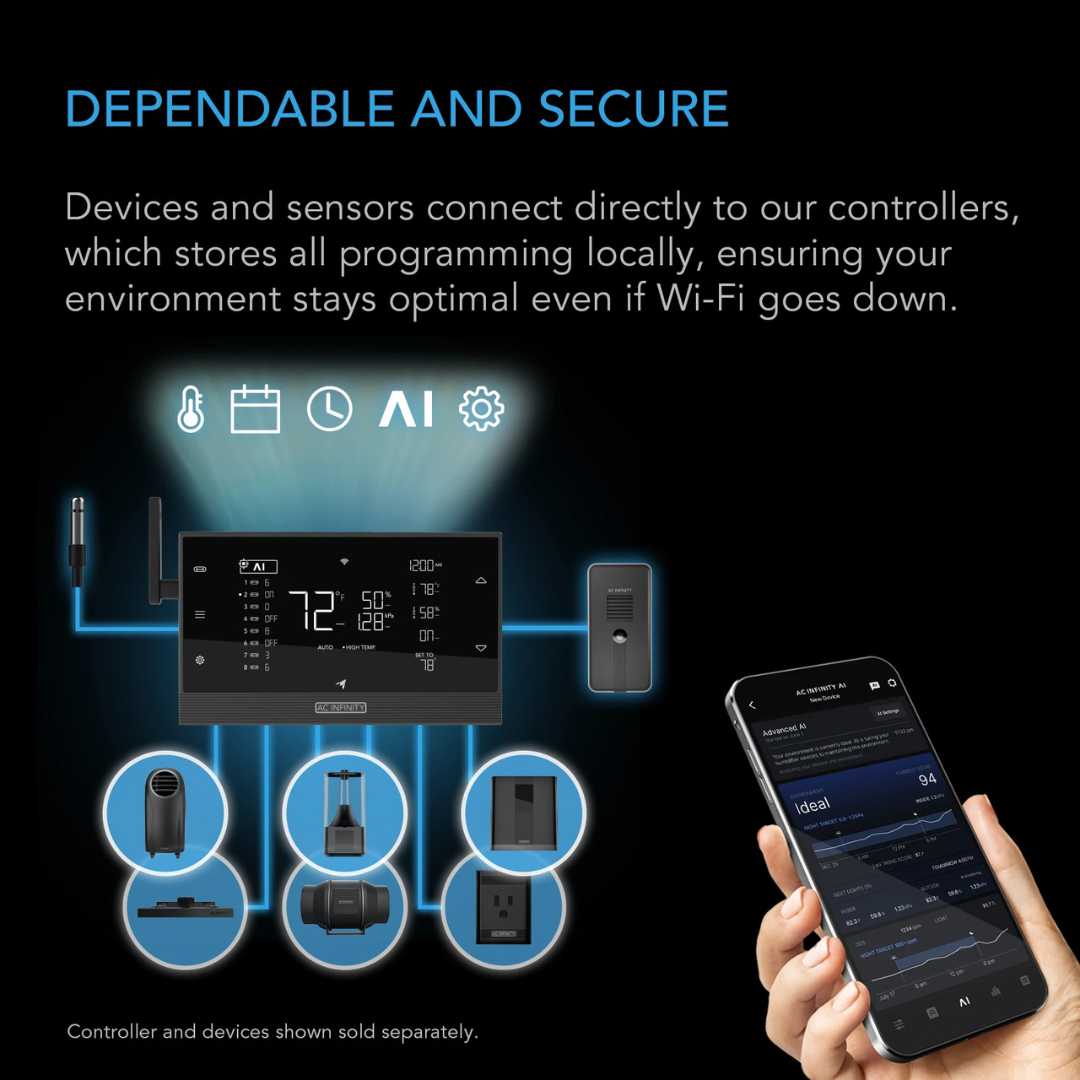

UIS Controller Compatibility: Compatible with UIS controllers that support intelligent programming; compatible smart controllers are sold separately.

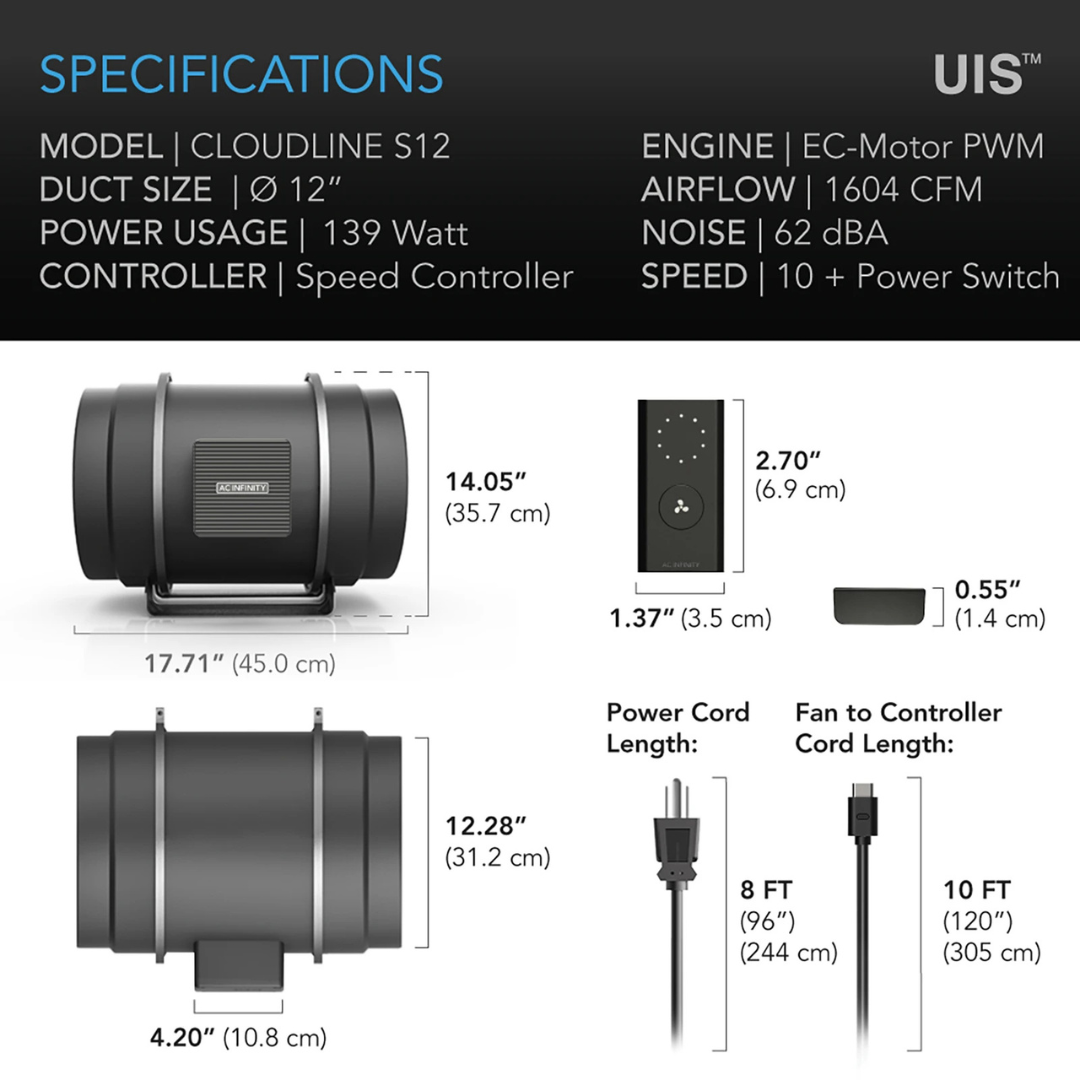

Specifications
-
Duct Size: 12 in.
-
Fan Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)
-
Fan Mounting Hole-to-Hole Distance: 7.00 x 7.12 in. (17.8 x 18.1 cm)
-
Fan Screw Hole Diameter: 0.462 in. (1.18 cm)
-
Cord Length to Controller: 120 in. (10 ft.)
-
Cord Length to Plug: 96 in. (8 ft.)
-
Controller Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
-
Speed Levels: 10
-
Total Airflow: 1604 CFM
-
Total Noise: 62 dBA
-
Static Pressure: 818 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 250 W
-
Average Power Usage: 139 W
-
Current: 2.5 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 32–140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: CE, ETL, RoHS, SAA, and IC
Size Guide
-
Compatible Duct Size: 12 in.
-
Fan Dimensions: 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm)
-
Controller Dimensions: 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
Compatibility
Compatible With: UIS controllers with intelligent programming.
Included
- 1 x Duct fan system
- 1 x Wired 10-speed controller
- 2 x Duct clamps
- 4 x Wall anchors
- 4 x Duct fan screw sets
- 2 x Hanging straps
- 1 x Wood screw for controller wall mounting
- 2 x Controller plate bolts
Warranty
Warranty: 2-year warranty from the date of purchase.
