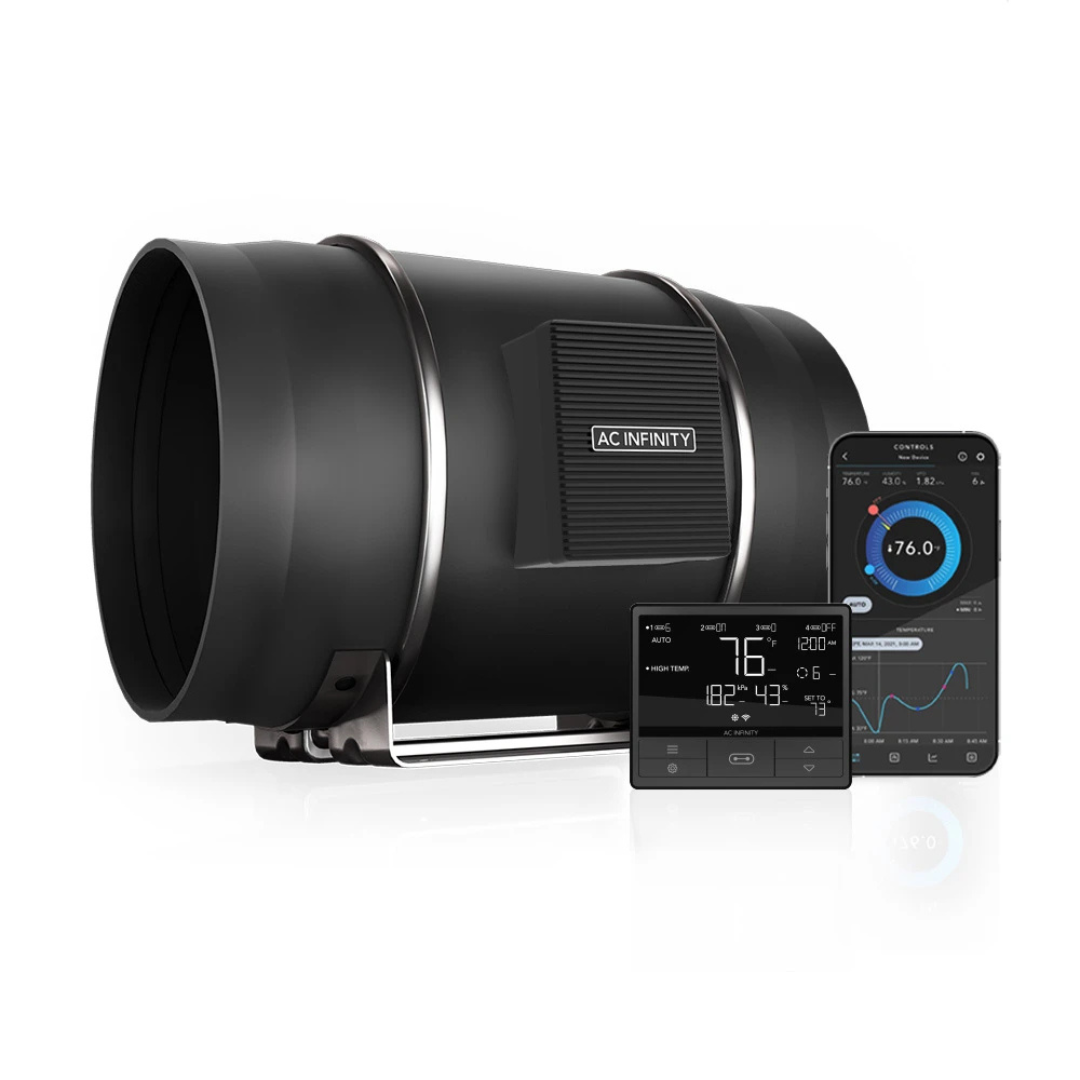

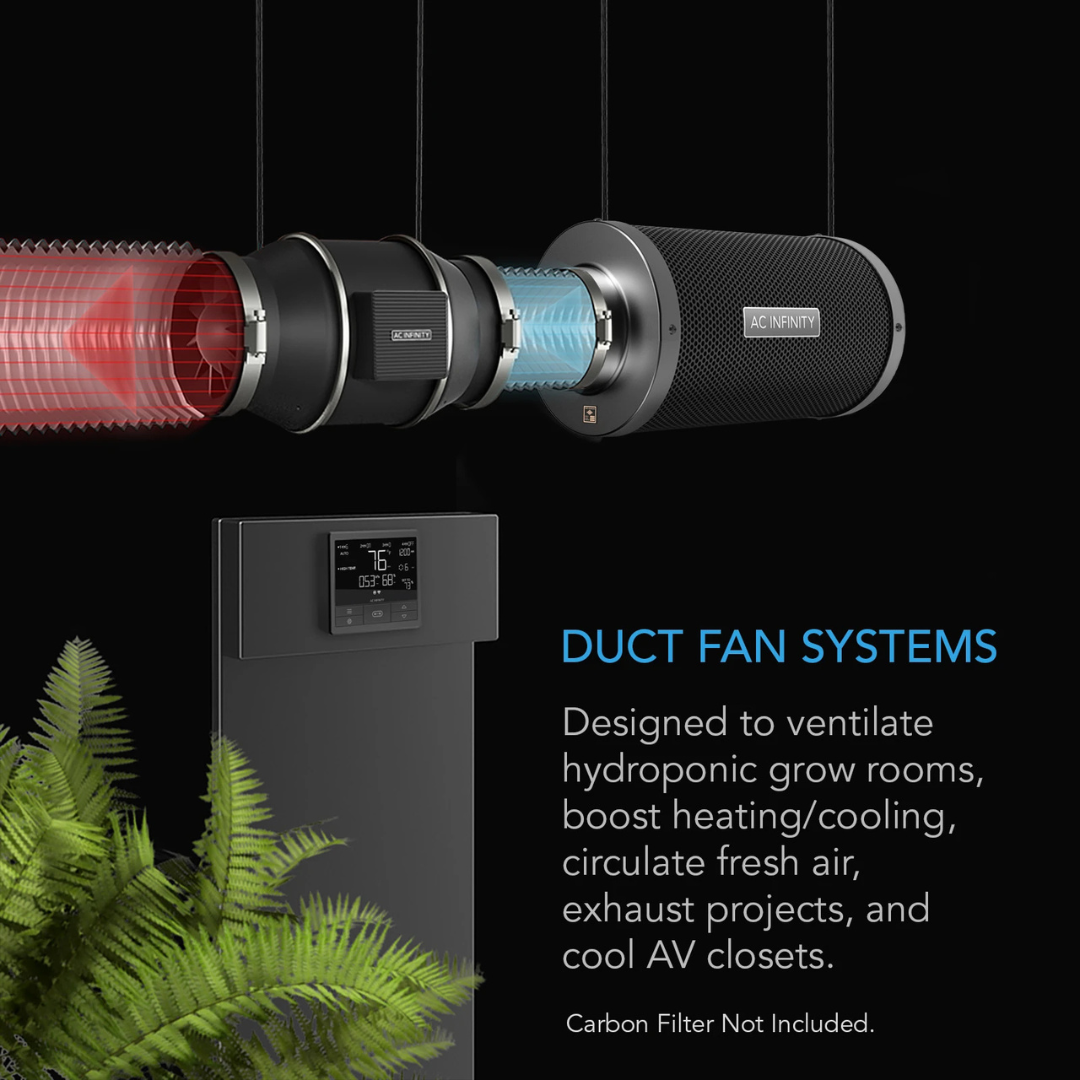

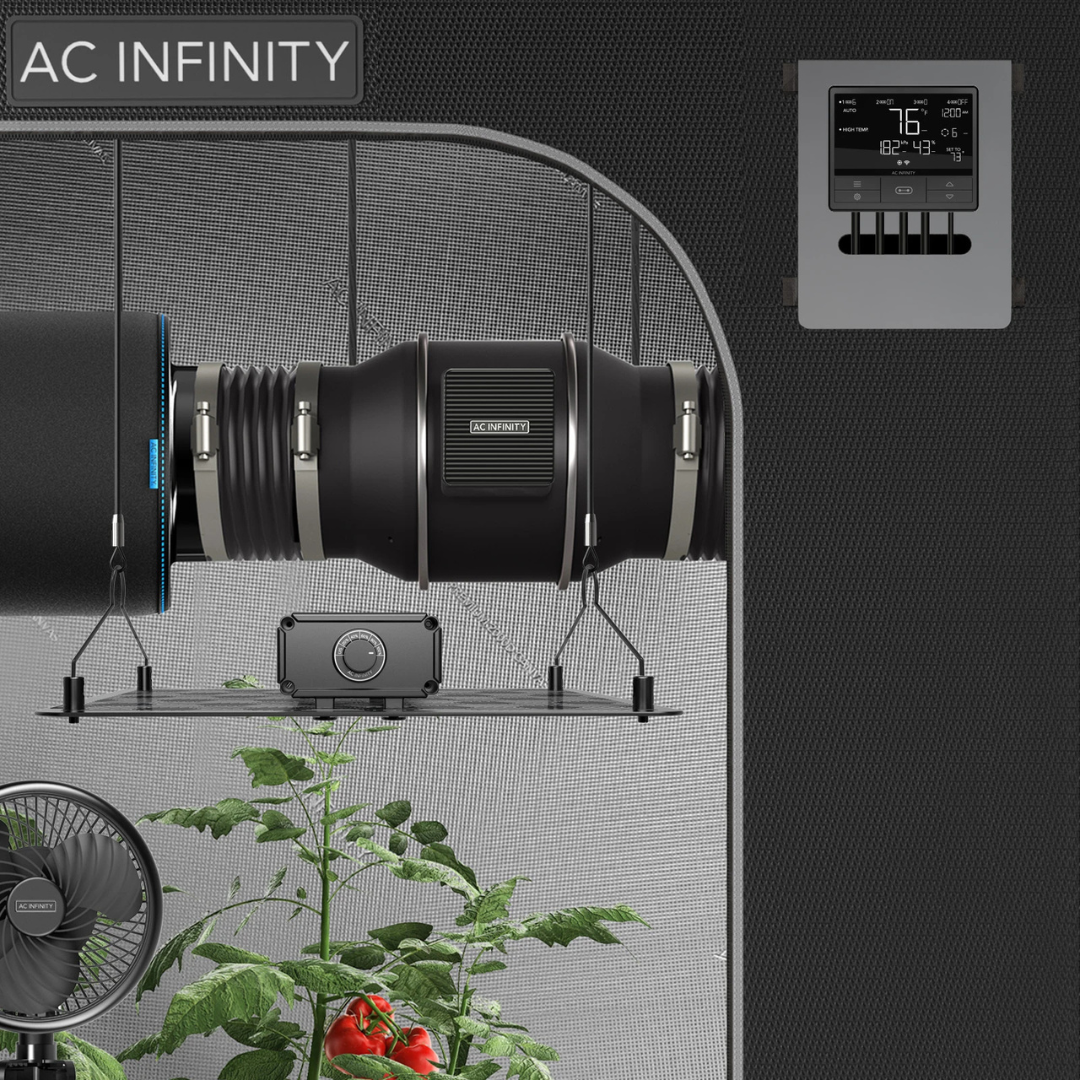

A smart inline duct fan designed for ventilating hydroponic grow rooms and tents, transferring heating and cooling, circulating fresh air, exhausting odors, and cooling AV equipment spaces. Its mixed-flow design helps maintain airflow in applications with high static pressure.

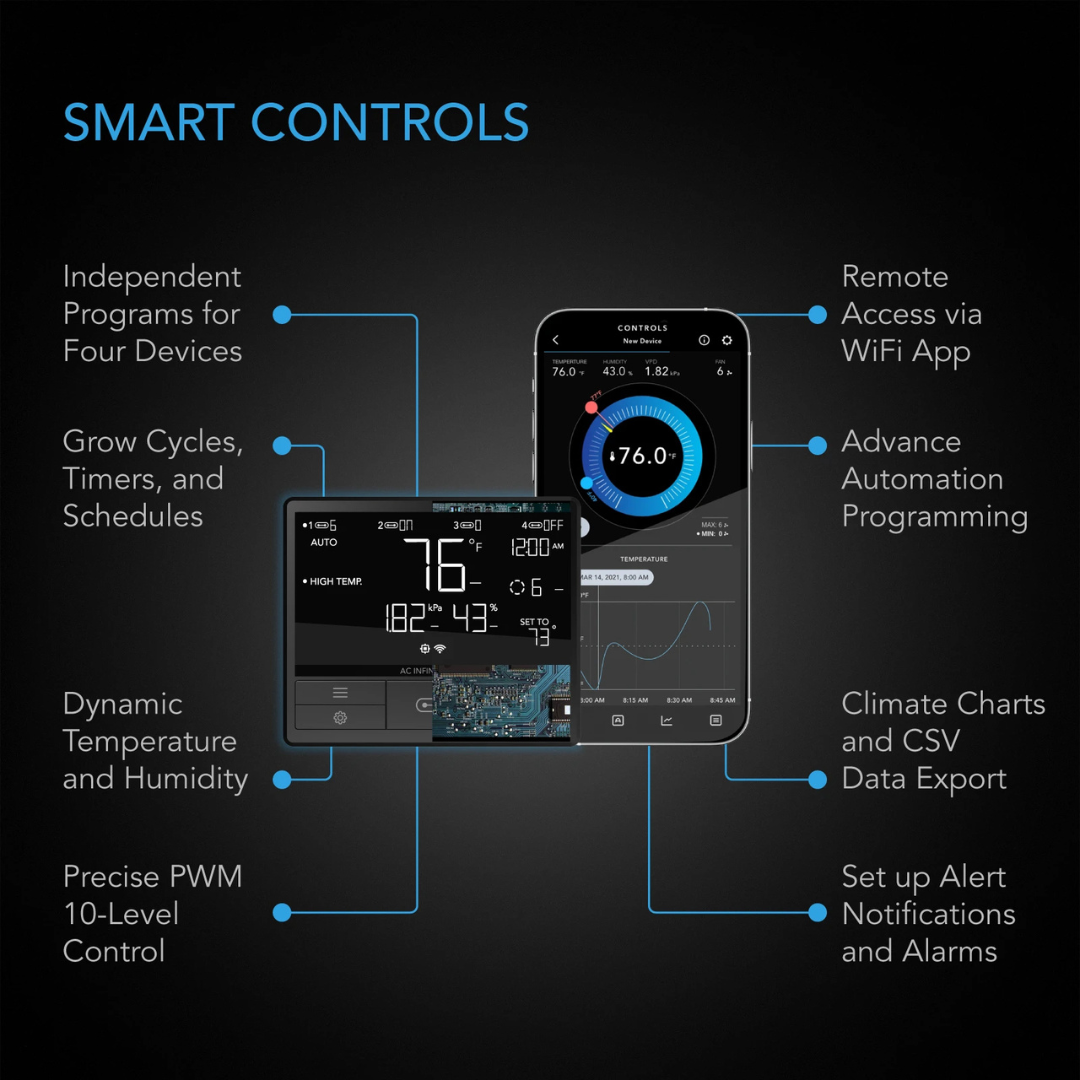

The included smart controller supports temperature, humidity, and VPD triggers, along with timer, cycle, schedule, and minimum-speed programming. WiFi connectivity enables remote control, automation, notifications, historical climate charts, and CSV data export through the app.
Key Features
-
Smart Climate Programming: Supports temperature, humidity, and VPD triggers with dynamic fan-speed responses.
-
Time-Based Controls: Includes timer, cycle, schedule, and minimum-speed programming for customized operation.
-
WiFi App Connectivity: Enables remote access, advanced programming, notifications, historical climate charts, and CSV data export.
-
Multi-Device Control: The included controller can connect to up to 4 UIS devices.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to maintain airflow in high-static-pressure applications.
-

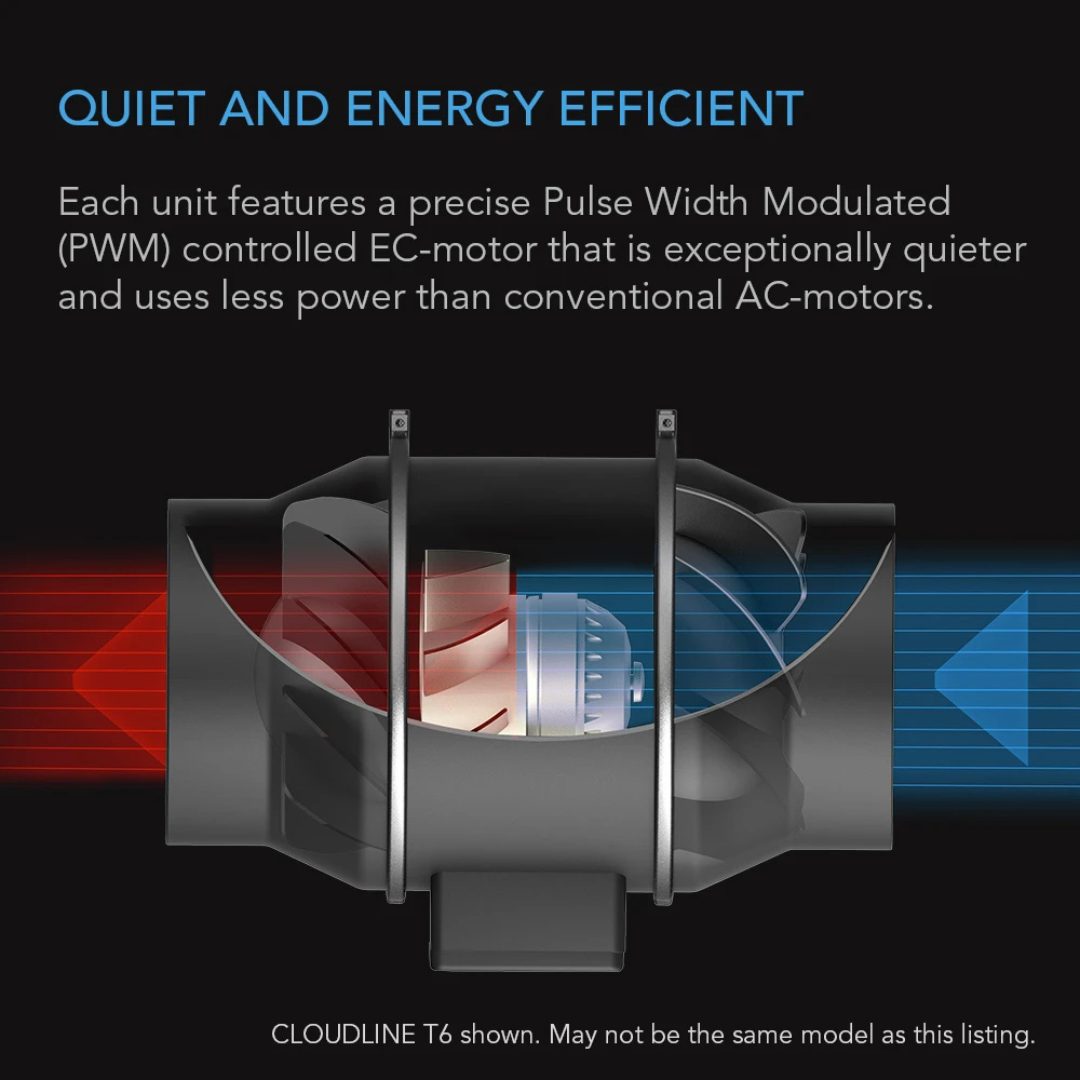

PWM-Controlled EC Motor: Provides precise fan control with quiet and energy-efficient operation.
-
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
-
Flexible Installation: Dual ball bearings allow the fan to be mounted horizontally or vertically.
-
Ingress Protection: IP44-rated construction provides resistance to dust and liquids.

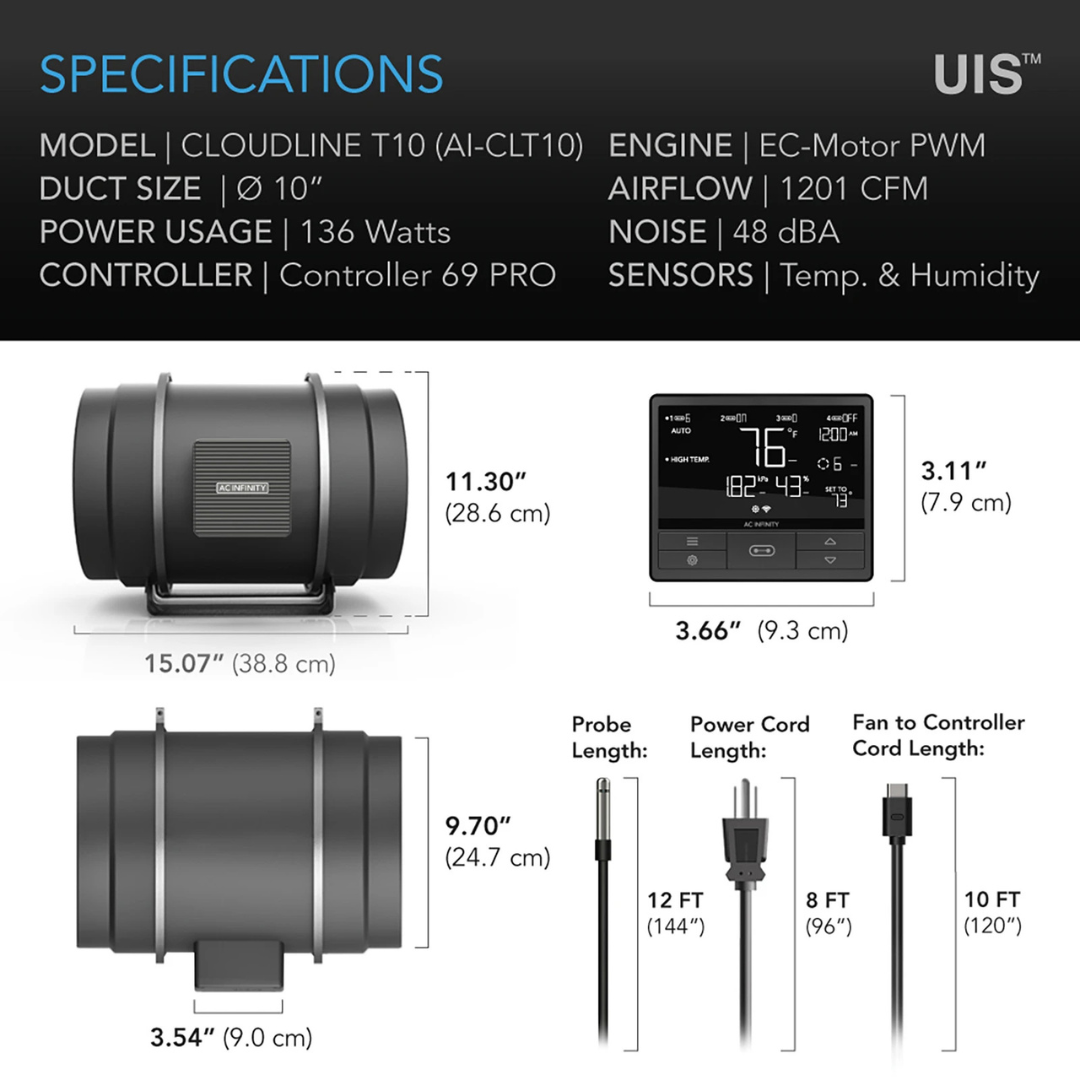

Specifications
-
Duct Size: 10 in.
-
Fan Dimensions: 9.81 x 15.20 x 11.30 in. (24.9 x 38.6 x 28.6 cm)
-
Fan Mounting Hole-to-Hole Distance: 5.90 x 5.90 in. (15.0 x 15.0 cm)
-
Fan Screw Hole Diameter: 0.472 in. (1.2 cm)
-
Cord Length to Controller: 120 in. (10 ft.)
-
Cord Length to Plug: 96 in. (8 ft.)
-
Controller Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
-
Controller Hole-to-Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
-
Controller Screw Hole Diameter: 0.119 in. (0.3 cm)
-
Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
-
Sensor Probe Length: 144 in. (12 ft.)
-
Total Airflow: 1201 CFM
-
Total Noise: 48 dBA
-
Static Pressure: 1059 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 255 W
-
Average Power Usage: 136 W
-
Current: 2.7 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 32–140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: CE, ETL, RoHS, SAA, FCC, and IC
Size Guide
-
Compatible Duct Size: 10 in.
-
Fan Dimensions: 9.81 x 15.20 x 11.30 in. (24.9 x 38.6 x 28.6 cm)
-
Controller Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
Compatibility
-
Compatible With: Up to 4 UIS devices, including products from the CLOUDLINE, CLOUDRAY, and IONFRAME Series.
-
Third-Party Integration: Select adapters can connect compatible grow lights and outlet devices outside the UIS platform.
Included
- 1 x Duct fan system
- 1 x Smart controller
- 1 x Sensor probe
- 2 x Duct clamps
- 2 x Hanging straps
- 4 x Wall anchors
- 4 x Duct fan screw sets
- 2 x Wood screws for wall hanging
- 2 x Controller plate bolts
- 6 x Wire mounts
- 1 x Adhesive wire mount
- 4 x Hook-and-loop ties
- 1 x 10-ft. UIS male-to-male cord
Warranty
Warranty: 2-year warranty from the date of purchase.
