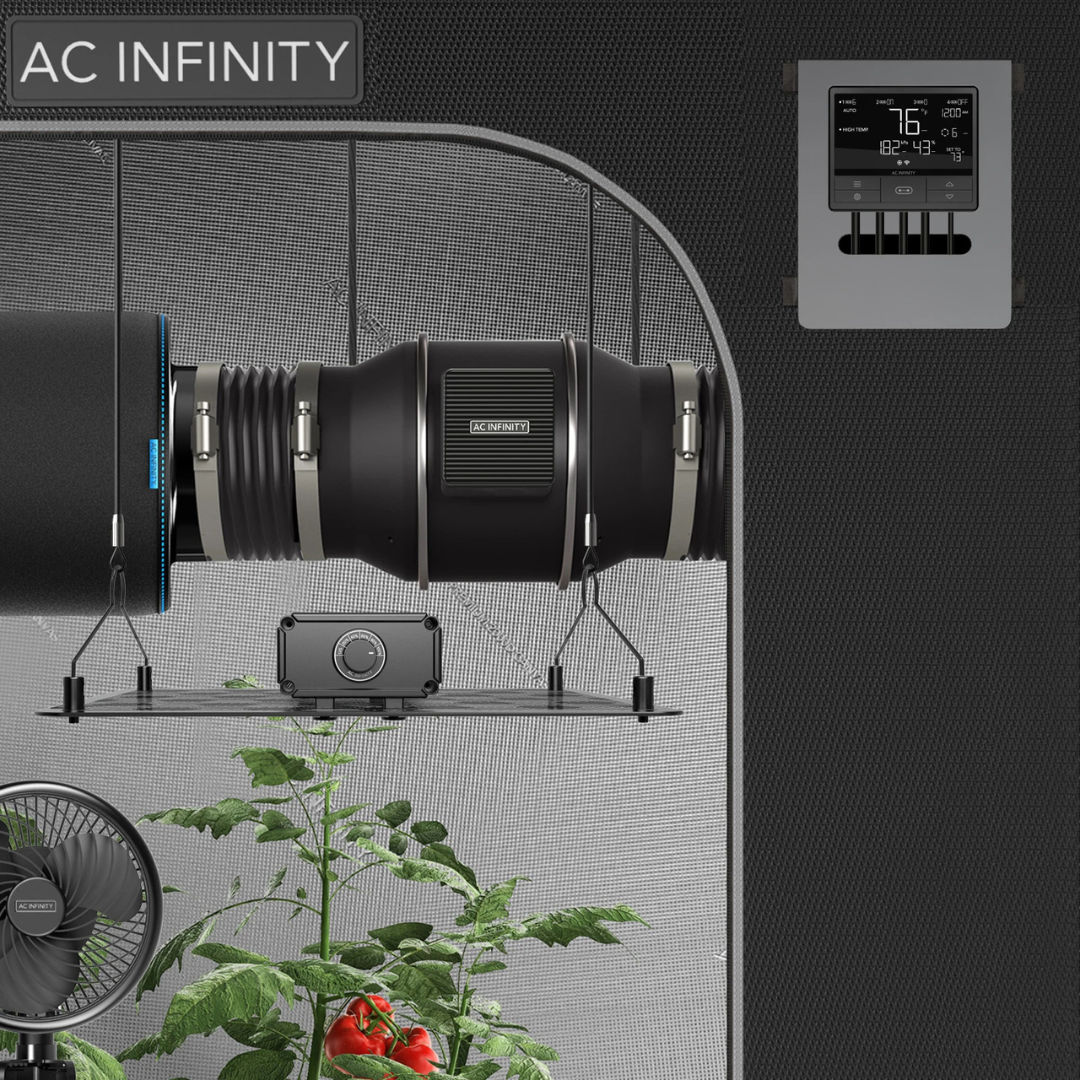

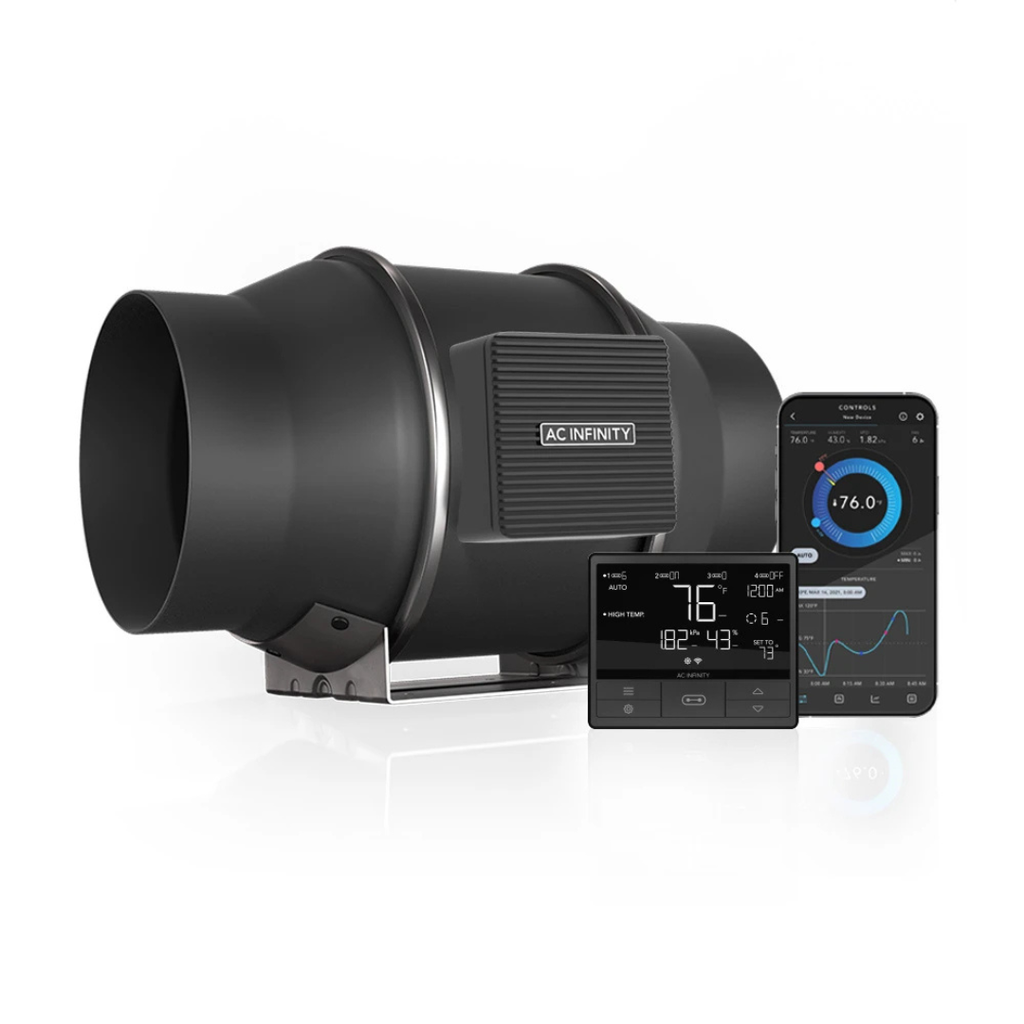

The CLOUDLINE T6 is a 6-inch smart inline duct fan designed to ventilate hydroponic grow rooms and tents, circulate fresh air, transfer heating or cooling, exhaust odors, and cool AV equipment spaces. Its mixed-flow design and PWM-controlled EC motor deliver up to 402 CFM of airflow with a listed noise level of 32 dBA.
The included CONTROLLER 69 PRO provides temperature, humidity, and VPD-based programming along with timers, cycles, schedules, and adjustable minimum fan speed. Wi-Fi connectivity enables remote access to automation settings, notifications, historical climate charts, and CSV data through the AC Infinity app.
Key Features
-
Smart Environmental Programming: Supports temperature, humidity, and VPD triggers with dynamic fan-speed adjustment.
-
Time-Based Controls: Includes timer, cycle, and schedule modes for customized activation.
-
Minimum Speed Setting: Allows the fan to operate continuously at a selected minimum speed and increase when triggered.
-
Wi-Fi App Control: Provides remote access to automation, advanced programming, notifications, climate data, historical charts, and CSV data export.
-
Multiple Device Control: The included controller can connect to as many as 4 UIS devices.
-

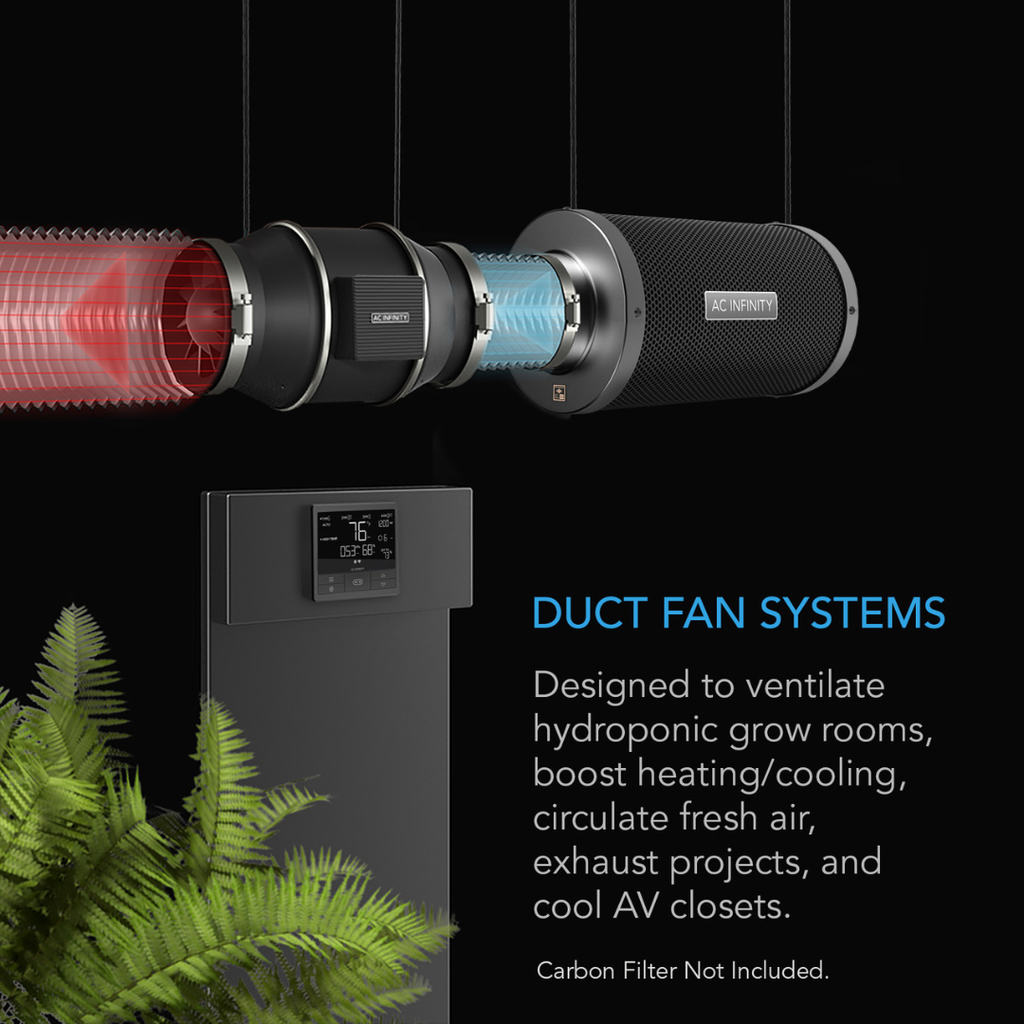

Quiet Ventilation: Designed for hydroponic grow rooms, grow tents, air circulation, heating and cooling transfer, exhaust projects, and AV equipment cooling.
-

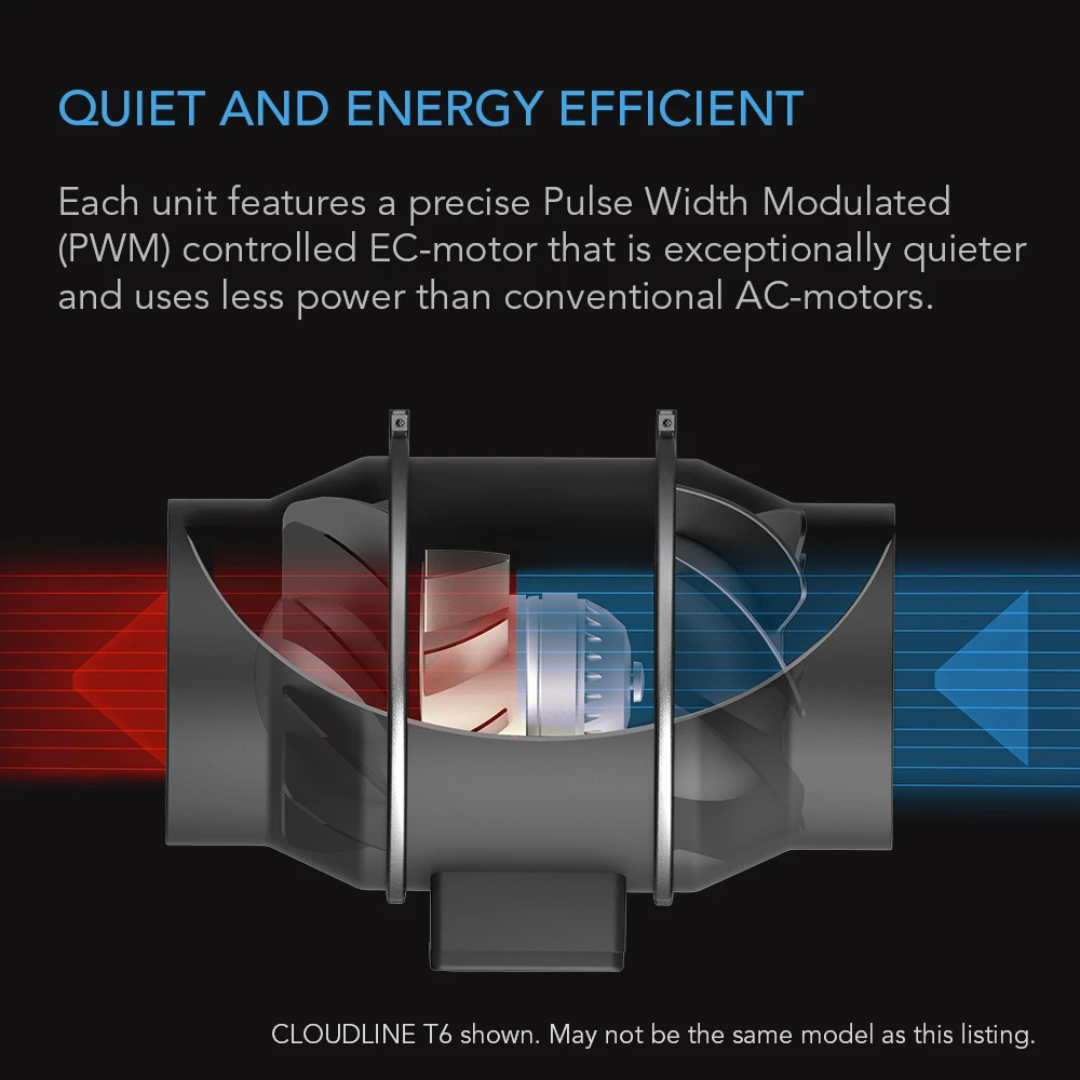

EC Motor: Uses PWM control for precise, quiet, and energy-efficient operation with minimal additional heat or noise.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to maintain airflow in high-static-pressure applications.
-
Dual Ball Bearings: Rated for a 67,000-hour lifespan and allow horizontal or vertical mounting.
-
Detachable Motor Box: The motor box containing the impeller and blades can be removed from the mounted frame for cleaning and maintenance.
-
Ingress Protection: IP44-rated construction provides resistance to dust and liquids.

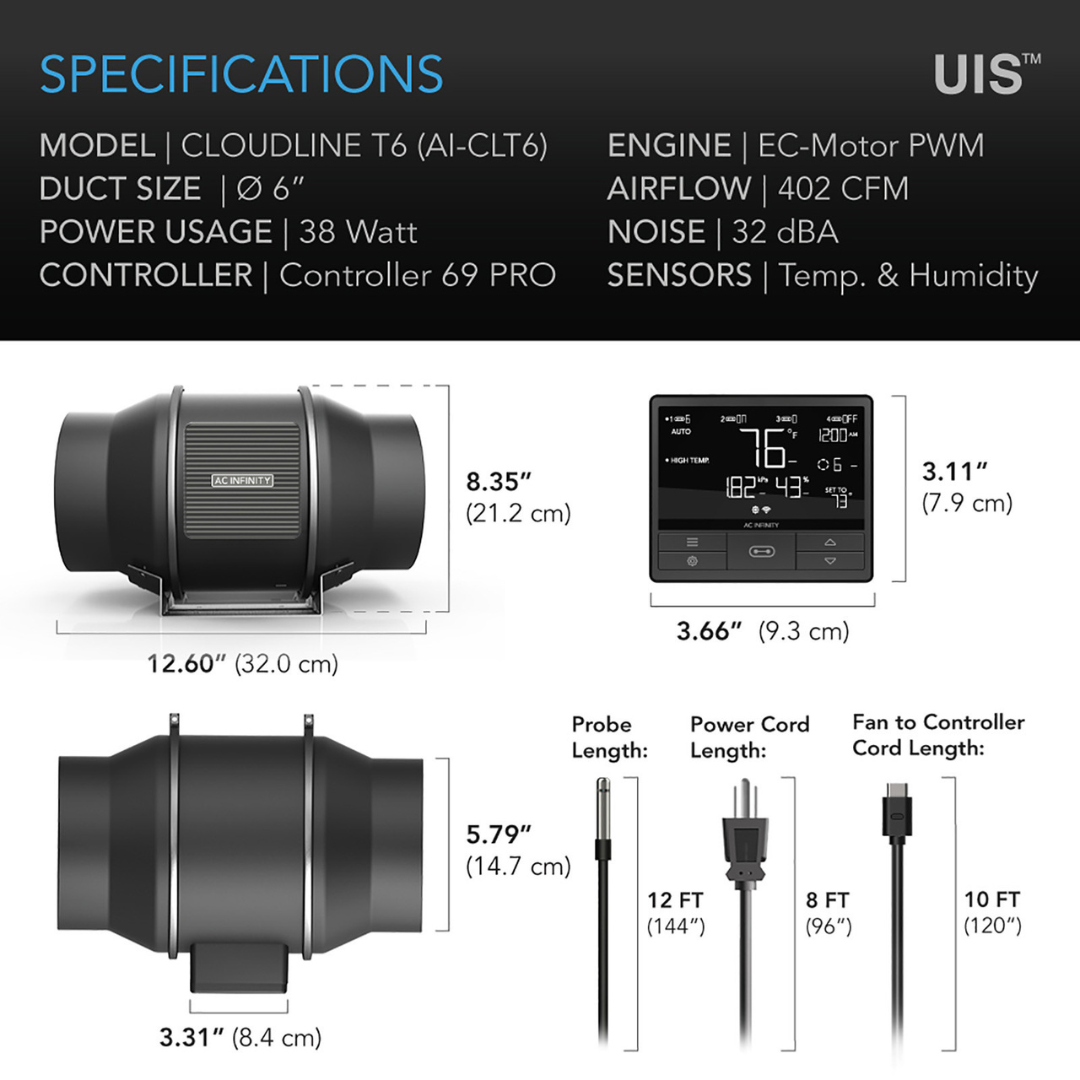

Specifications
-
Duct Size: 6 in.
-
Fan Unit Dimensions: 7.87 in. x 12.60 in. x 8.35 in. (21.2 x 32.0 x 20.0 cm)
-
Fan Mounting Hole-to-Hole Distance: 3.15 in. x 2.36 in. (8.0 x 6.0 cm)
-
Fan Screw Hole Diameter: 0.236 in. (0.6 cm)
-
Cord Length to Controller: 120 in. (10 ft.)
-
Cord Length to Plug: 96 in. (8 ft.)
-
Controller Dimensions: 5.19 in. x 2.91 in. x 1.06 in. (13.2 x 7.4 x 2.7 cm)
-
Controller Hole-to-Hole Distance: 4.71 in. x 2.64 in. (12.0 x 6.7 cm)
-
Controller Screw Hole Diameter: 0.119 in. (0.3 cm)
-
Display Size: 3.5 in. x 1.4 in. (9 x 3.5 cm)
-
Sensor Probe Length: 144 in. (12 ft.)
-
Total Airflow: 402 CFM
-
Total Noise: 32 dBA
-
Static Pressure: 503 Pa
-
Voltage: 100–240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 70 W
-
Average Power Usage: 38 W
-
Current: 0.94 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 hours
-
Certifications: CE, ETL, RoHS, SAA, and IC
Compatibility
Compatible UIS Devices: The controller can connect with UIS products, including the CLOUDLINE, CLOUDRAY, and IONFRAME Series.
Third-Party Equipment: Select adapters allow compatible grow lights and outlet devices outside the UIS platform to connect to the controller.
Motor Compatibility: The current EC-motor fan and controller are not backward-compatible with older-generation versions of the same product that use DC motors and older controllers.
Network Compatibility: Wi-Fi app connection requires a 2.4 GHz frequency-band router.
Ventilation Configuration: Can be used as an exhaust fan or intake fan in grow rooms and larger grow tents.
Ducting: Designed for 6-inch ducting.
Included
- Duct fan system, 1
- CONTROLLER 69 PRO smart controller, 1
- Sensor probe, 1
- 10-ft. UIS male-to-male cord, 1
- Duct clamps, 2
- Hanging straps, 2
- Wire mounts, 6
- Adhesive wire mount, 1
- Wood screws for wall hanging, 2
- Controller plate bolts, 2
- Duct fan screw sets, 4
- Wall anchors, 4
- Hook-and-loop ties, 4
- Controller plate not included
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions of the official warranty program.
