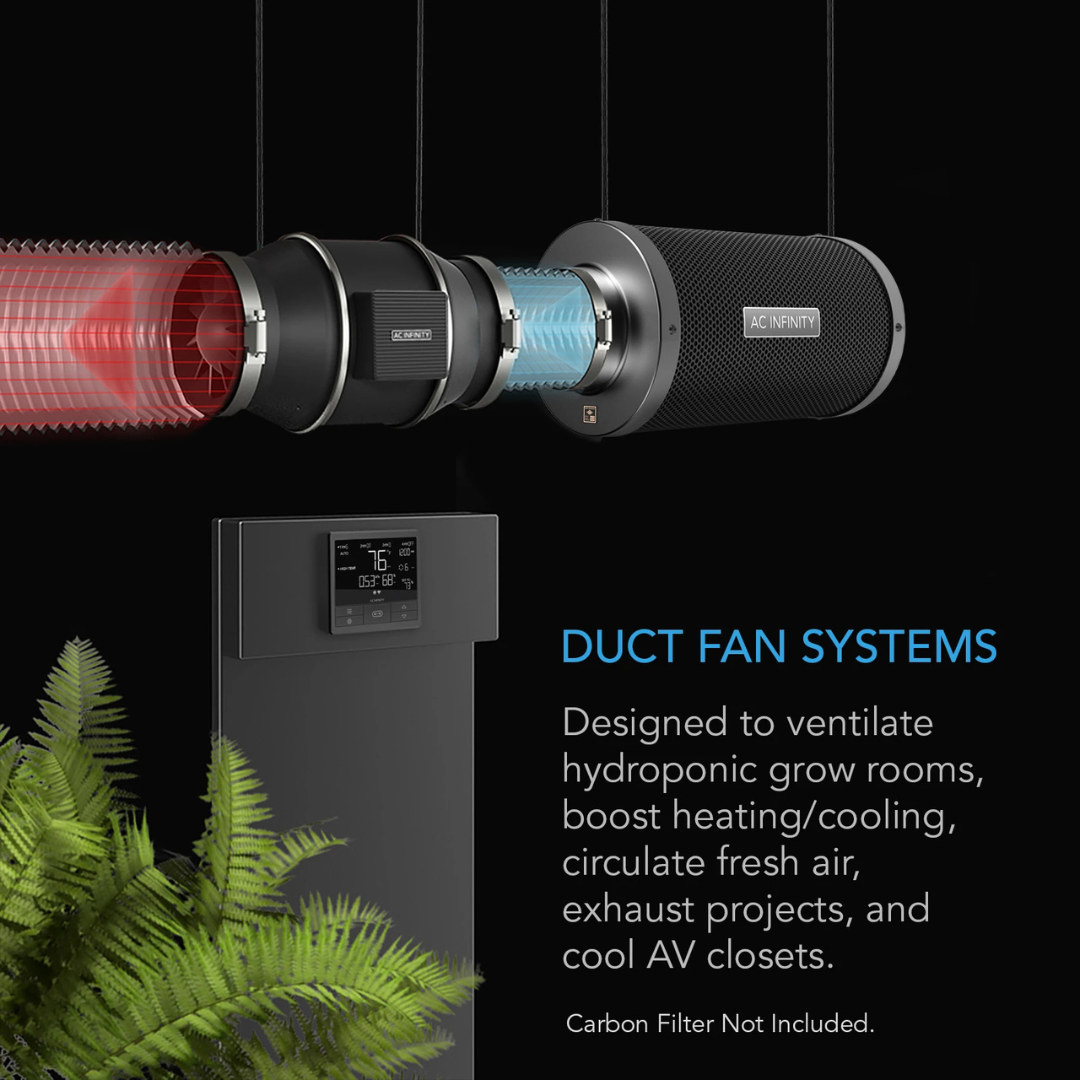

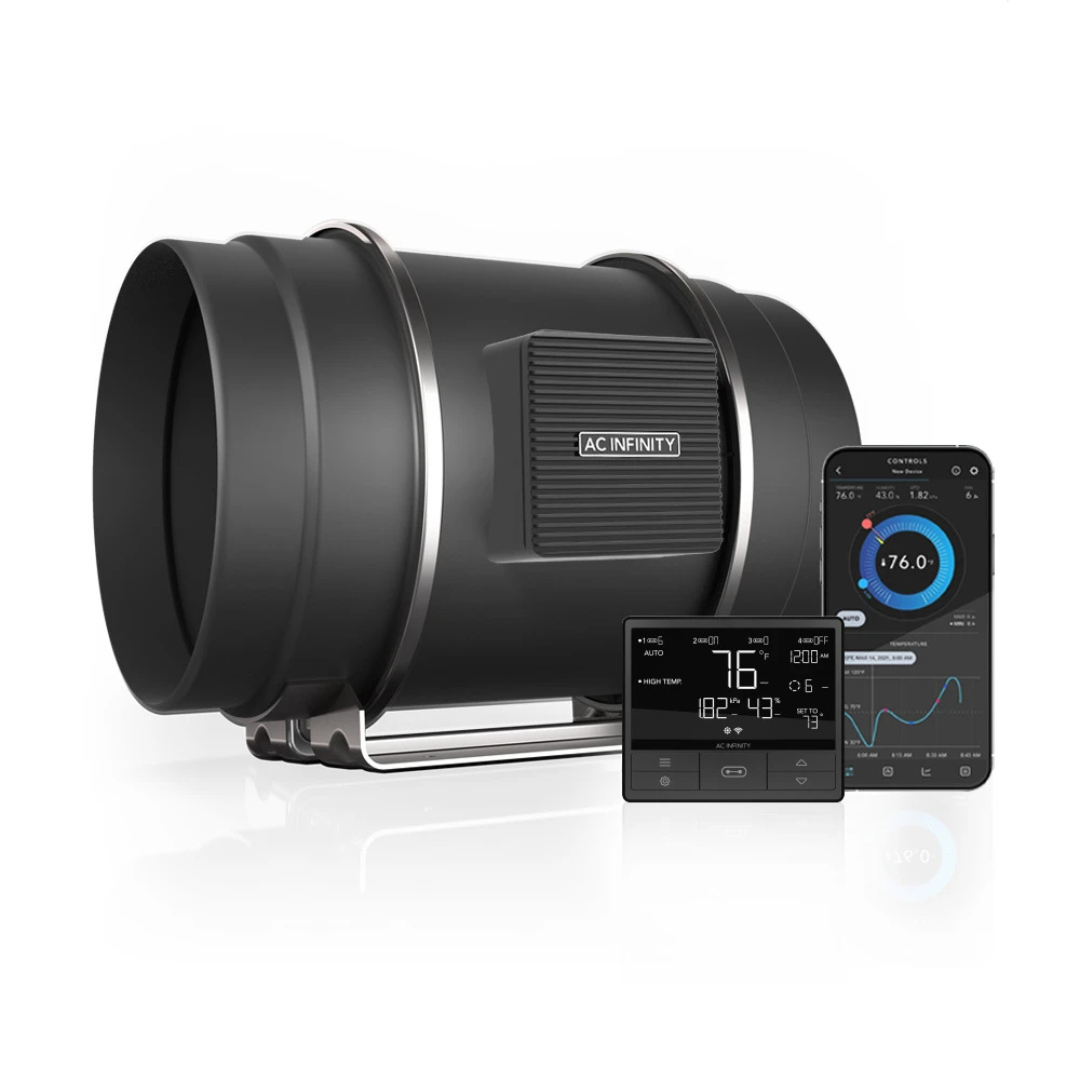

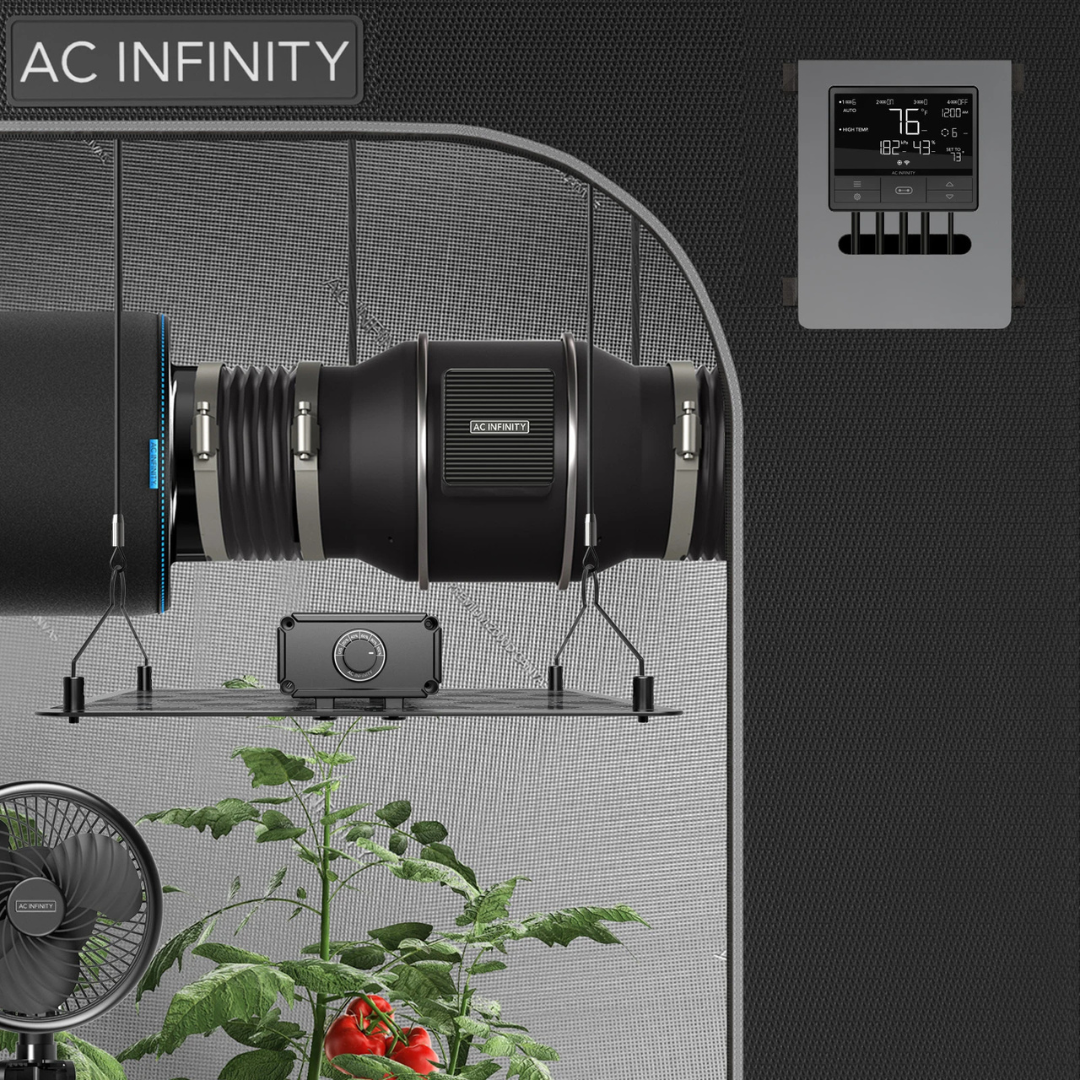

The CLOUDLINE T8 is an 8-inch smart inline duct fan designed to ventilate hydroponic grow rooms, transfer heating and cooling, circulate fresh air, exhaust projects and odors, and cool AV equipment spaces. Its mixed-flow design maintains airflow in high-static-pressure applications.

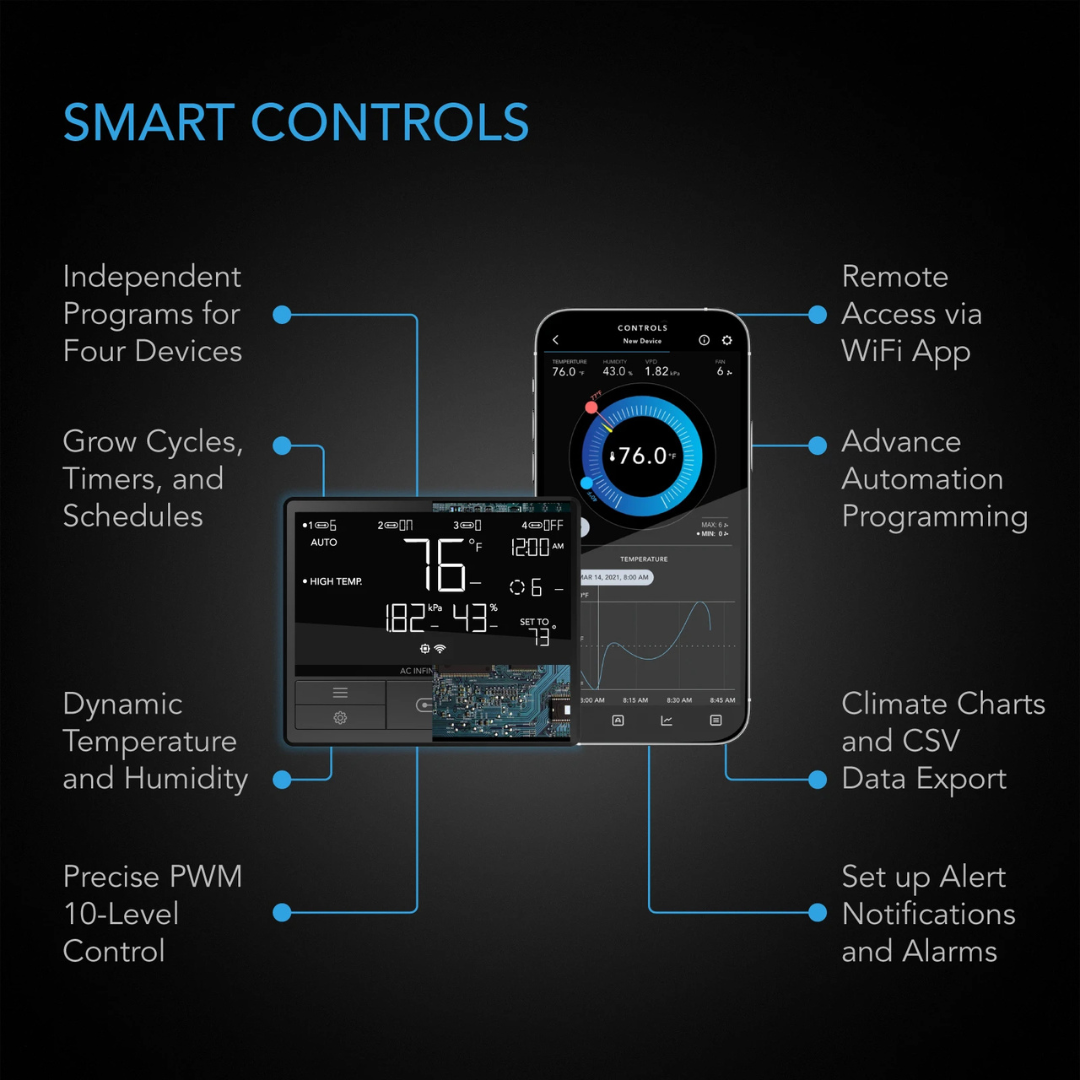

The included smart controller provides temperature, humidity, and VPD triggers, dynamic fan-speed control, minimum-speed settings, timers, cycles, and scheduling. WiFi connectivity enables remote control, automation, notifications, historical climate charts, and CSV data export through the companion app.
A PWM-controlled EC motor delivers up to 807 CFM of airflow at 39 dBA. The detachable motor box simplifies cleaning and maintenance, while dual ball bearings support horizontal or vertical installation.
Key Features
-
Smart Environmental Programming: Supports temperature, humidity, and VPD triggers with fan speeds that dynamically respond to changing conditions.
-
Minimum-Speed Setting: Maintains constant ventilation at a selected minimum speed and increases airflow when programmed conditions trigger the fan.
-
Timer and Schedule Controls: Includes timer, cycle, and schedule modes for customized fan activation.
-
WiFi App Connectivity: Provides remote access to automation programs, notifications, historical climate charts, and CSV data export.
-
Multi-Device Control: The included controller can connect to as many as 4 UIS devices.
-

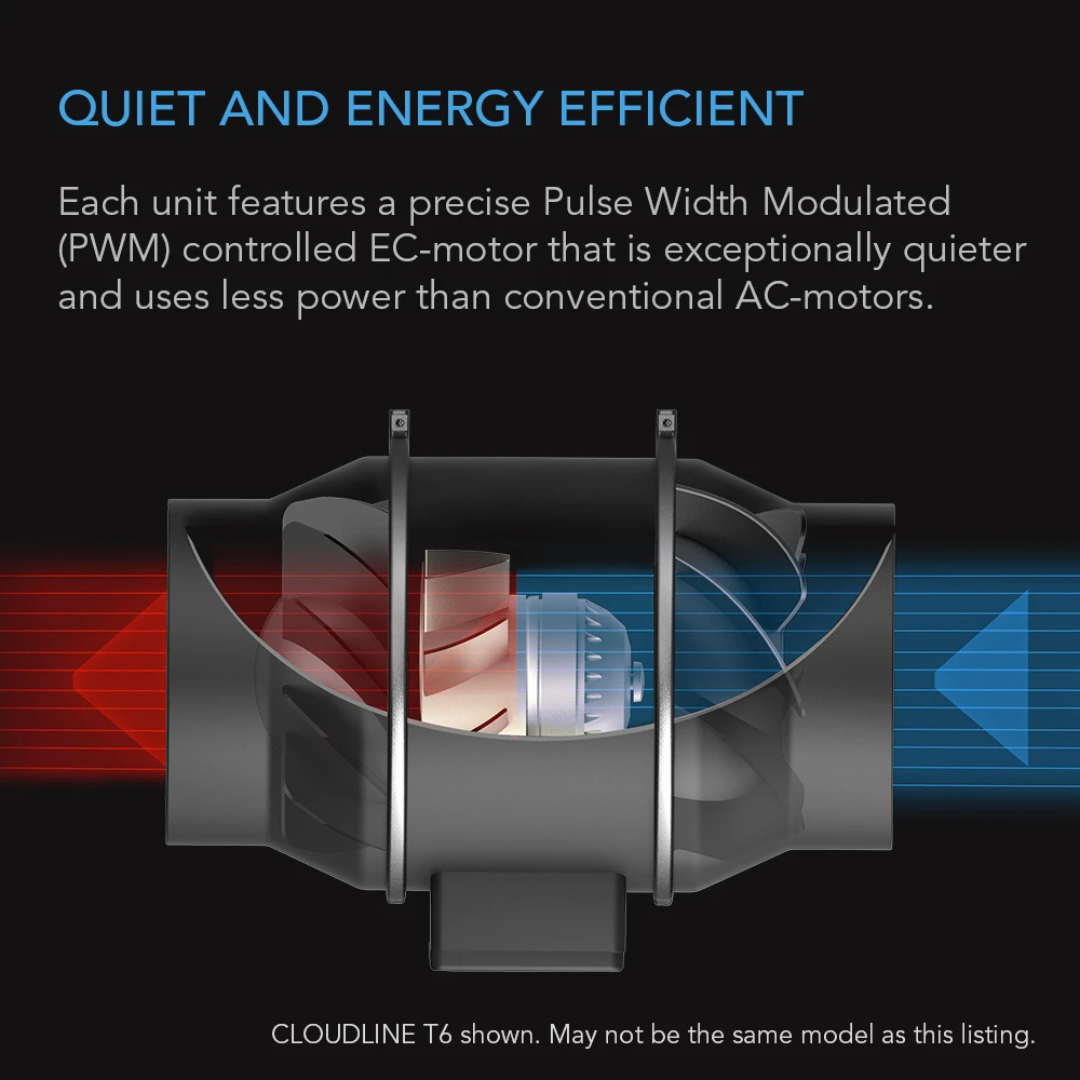

PWM-Controlled EC Motor: Enables precise speed control and smooth operation at low RPM without generating additional heat or noise.
-
Mixed-Flow Design: Uses a stator blade and dual hydrodynamic wind circles to support airflow in restricted and high-static-pressure environments.
-
Detachable Motor Box: The impeller and blade assembly can be removed from the mounted frame for cleaning and maintenance.
-
Flexible Installation: Dual ball bearings allow the fan to be mounted horizontally or vertically.
-
Ingress Protection: The fan is rated IP44 for resistance to dust and liquids.

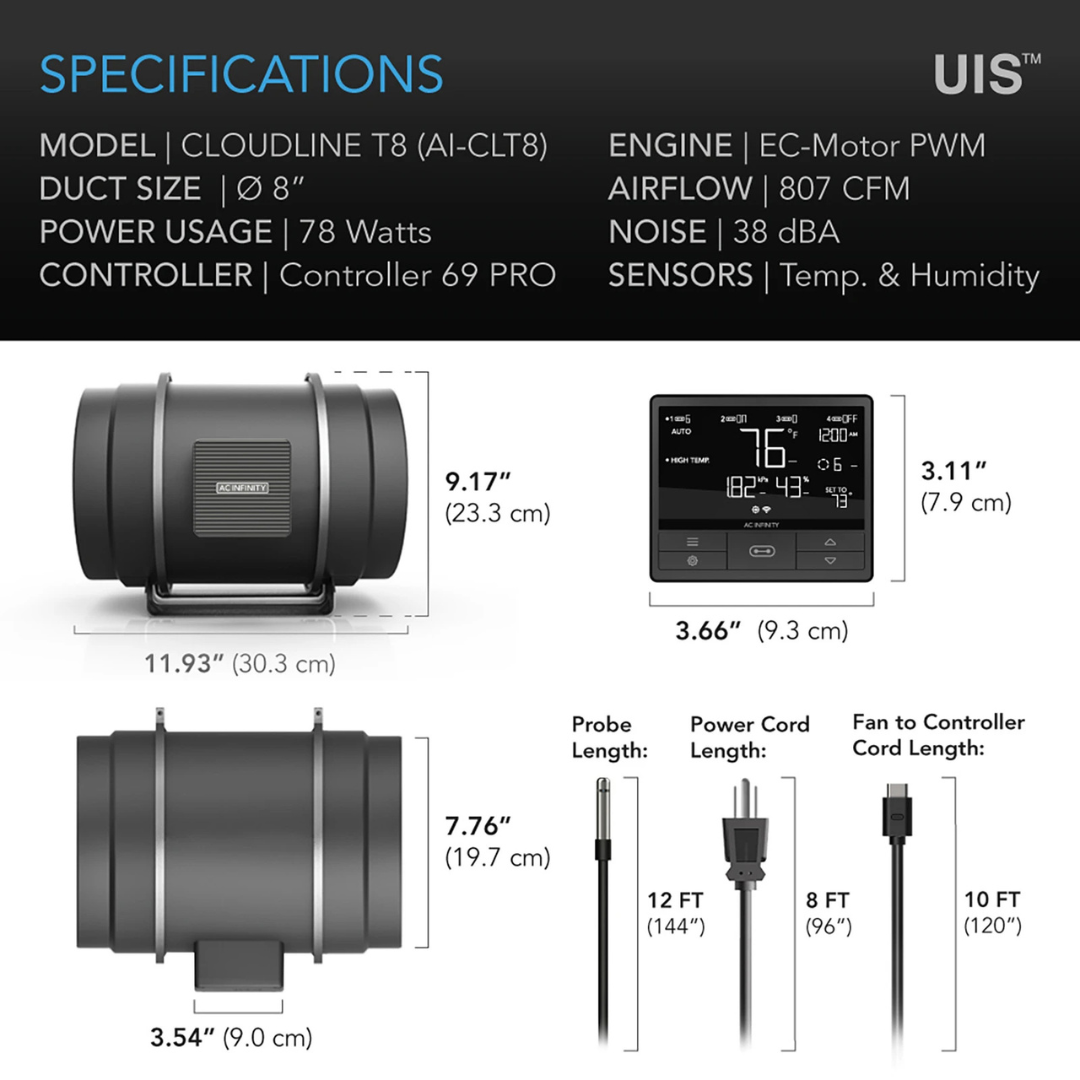

Specifications
-
Duct Size: 8"
-
Fan Unit Dimensions: 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm)
-
Fan Mounting Hole-to-Hole Distance: 3.94 x 3.70 in. (10.0 x 9.4 cm)
-
Fan Screw Hole Diameter: 0.217 in. (0.55 cm)
-
Cord Length to Controller: 120 in. (10 feet)
-
Cord Length to Plug: 96 in. (8 feet)
-
Controller Dimensions: 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm)
-
Controller Hole-to-Hole Distance: 4.71 x 2.64 in. (12.0 x 6.7 cm)
-
Controller Screw Hole Diameter: 0.119 in. (0.3 cm)
-
Display Size: 3.5 x 1.4 in. (9 x 3.5 cm)
-
Sensor Probe Length: 144 in. (12 feet)
-
Total Airflow: 807 CFM
-
Total Noise: 39 dBA
-
Static Pressure: 746 Pa
-
Voltage: 100-240V AC
-
Frequency: 50/60Hz
-
Maximum Power Draw: 180 W
-
Average Power Usage: 78 W
-
Current: 2.3 A
-
Power Connector Type: US Plug (NEMA 5-15 Type B)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
-
Ingress Protection: IP44
-
Fan Bearings: Dual Ball
-
Mounting Positions: Horizontal or Vertical
-
L10 Life Expectancy: 67,000 Hours
-
Certifications: CE, ETL, RoHS, SAA, FCC, and IC
- Size Guide
- The fan uses an 8-inch duct connection and measures 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm). It delivers up to 807 CFM of airflow.
Compatibility
Compatible With: UIS devices, including the CLOUDLINE, CLOUDRAY, and IONFRAME Series. Select adapters allow compatible grow lights and outlet devices outside the UIS platform to be connected.
Not Compatible With: Older-generation versions of the same product that use DC motors and older controllers. The fan and controller are not backward-compatible with those versions.
Included
- Duct fan system, x1
- Smart controller, x1
- Sensor probe, x1
- UIS male-to-male cord, 10 ft., x1
- Duct clamps, x2
- Hanging straps, x2
- Wire mounts, x6
- Adhesive wire mount, x1
- Wood screws for wall hanging, x2
- Controller plate bolts, x2
- Duct fan screw sets, x4
- Wall anchors, x4
- Hook-and-loop ties, x4
Warranty
Warranty: 2-year warranty against defects in manufacturing from the date of purchase, subject to the official warranty terms and exclusions.
