This 8-port smart climate controller provides centralized, independent programming for compatible grow devices, including fans and grow lights. It can dynamically adjust fan speed and light intensity in response to temperature, humidity, and VPD conditions.
Bluetooth and 2.4 GHz WiFi connectivity provide access to app-based controls, advanced programs, alarms, notifications, historical charts, and CSV data exports. Additional programming options include grow cycles, schedules, timers, minimum levels, and custom transitions.
Key Features
-
8-Port Control: Connects and independently programs up to 8 compatible devices.
-
Dynamic Climate Programming: Adjusts fan speed and light intensity in response to temperature, humidity, and VPD conditions.
-

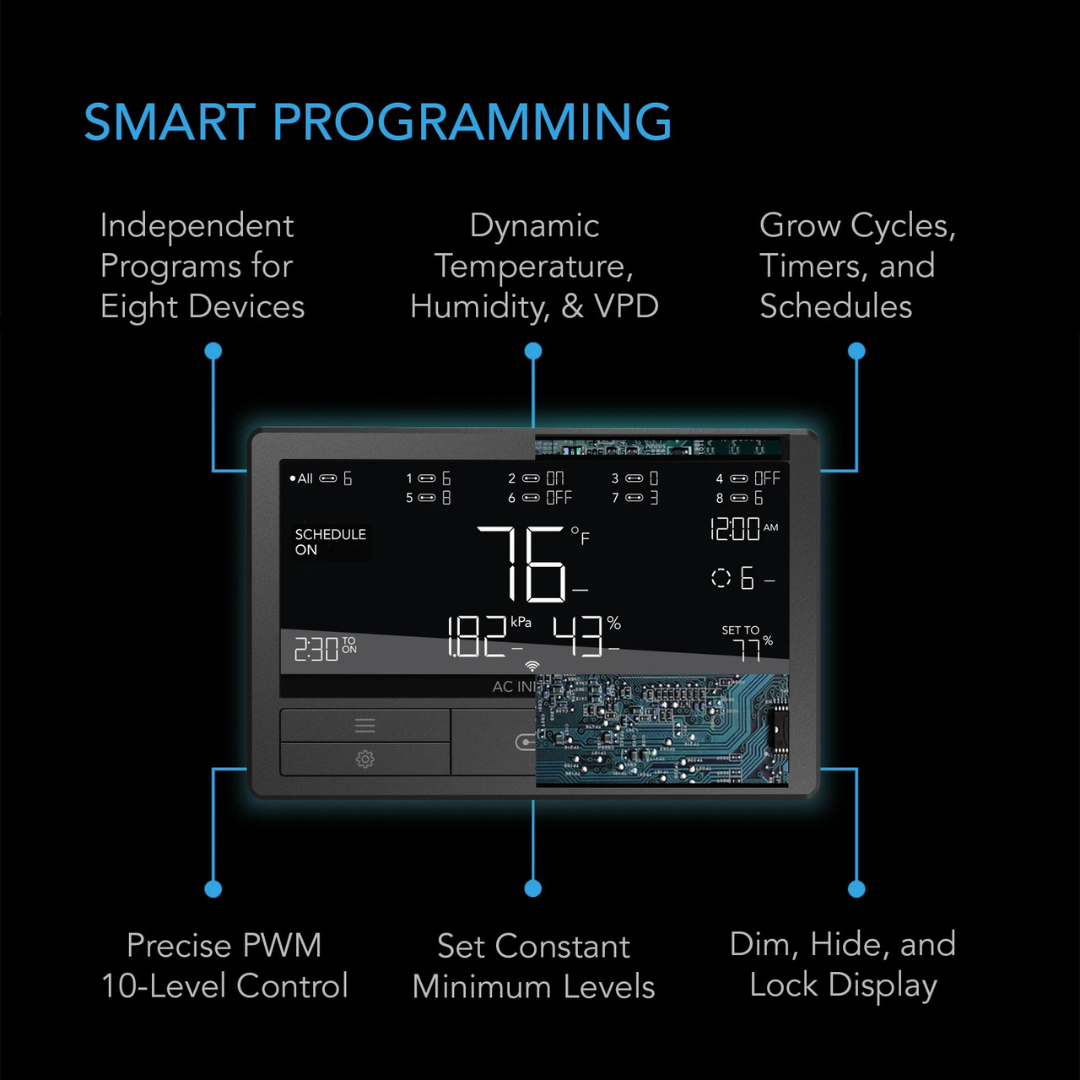

Multiple Programming Modes: Supports grow cycles, schedules, timers, minimum baseline levels, and custom transitions.
-

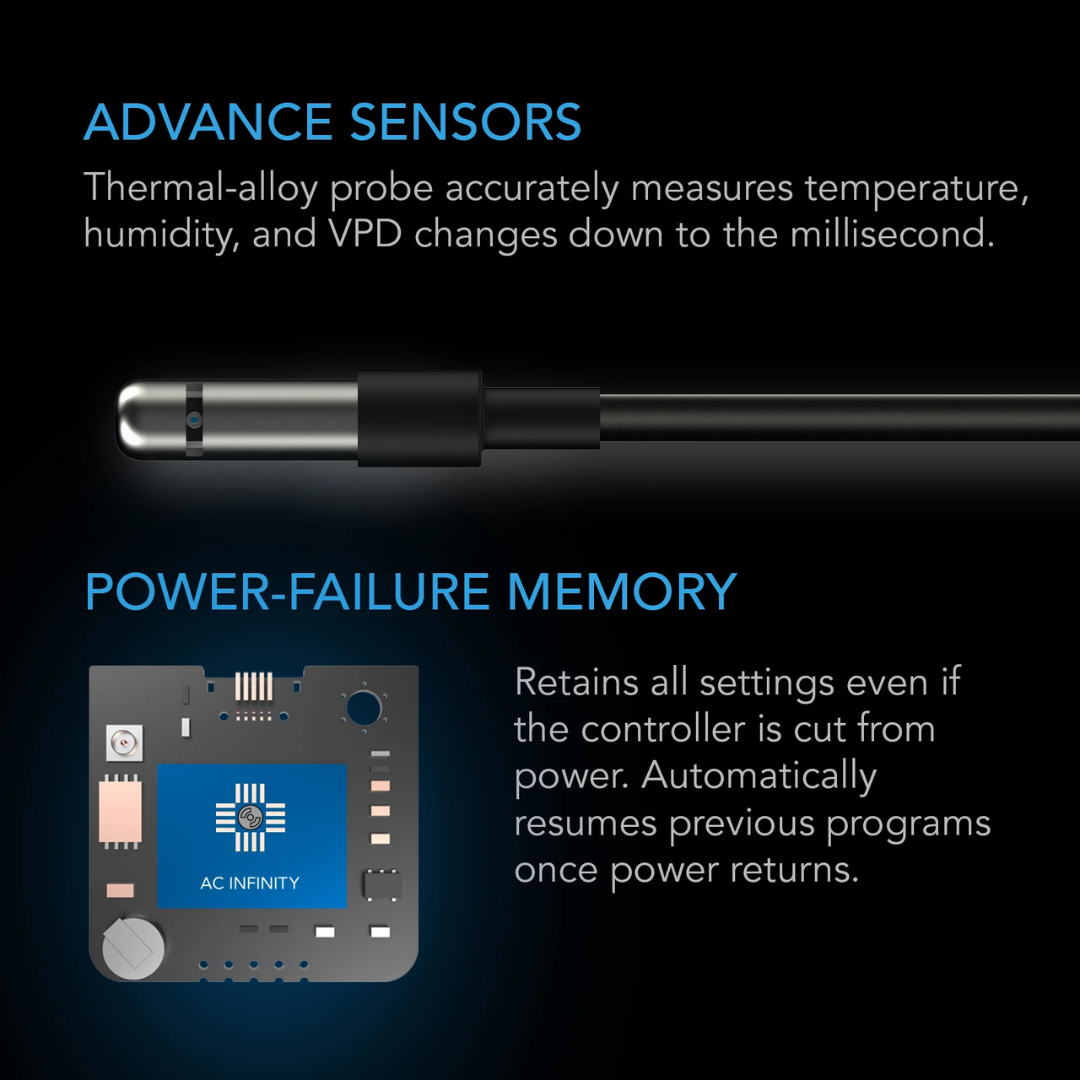

Climate Sensor: Includes a 12 ft. thermal-alloy sensor probe that detects temperature, humidity, and VPD.
-

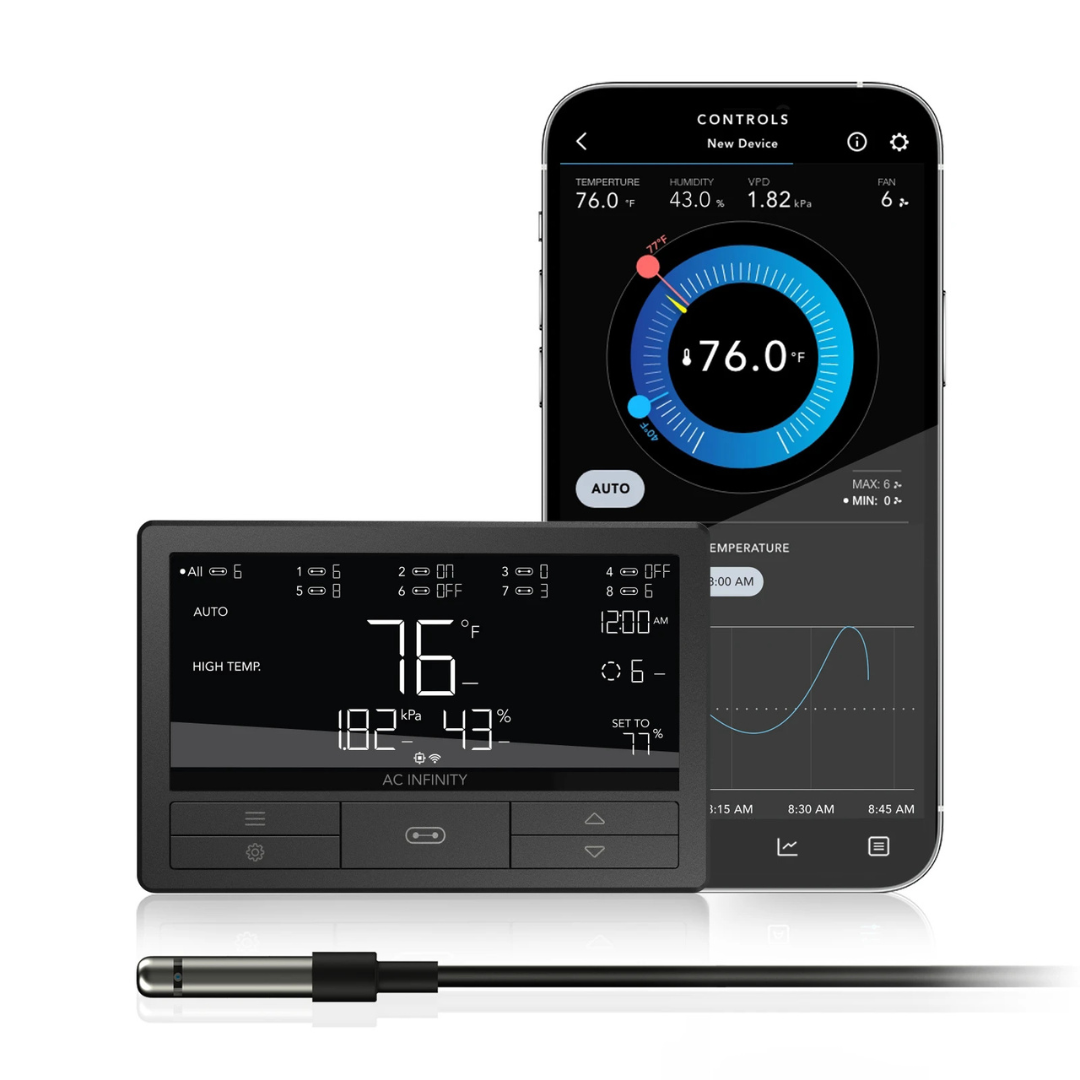

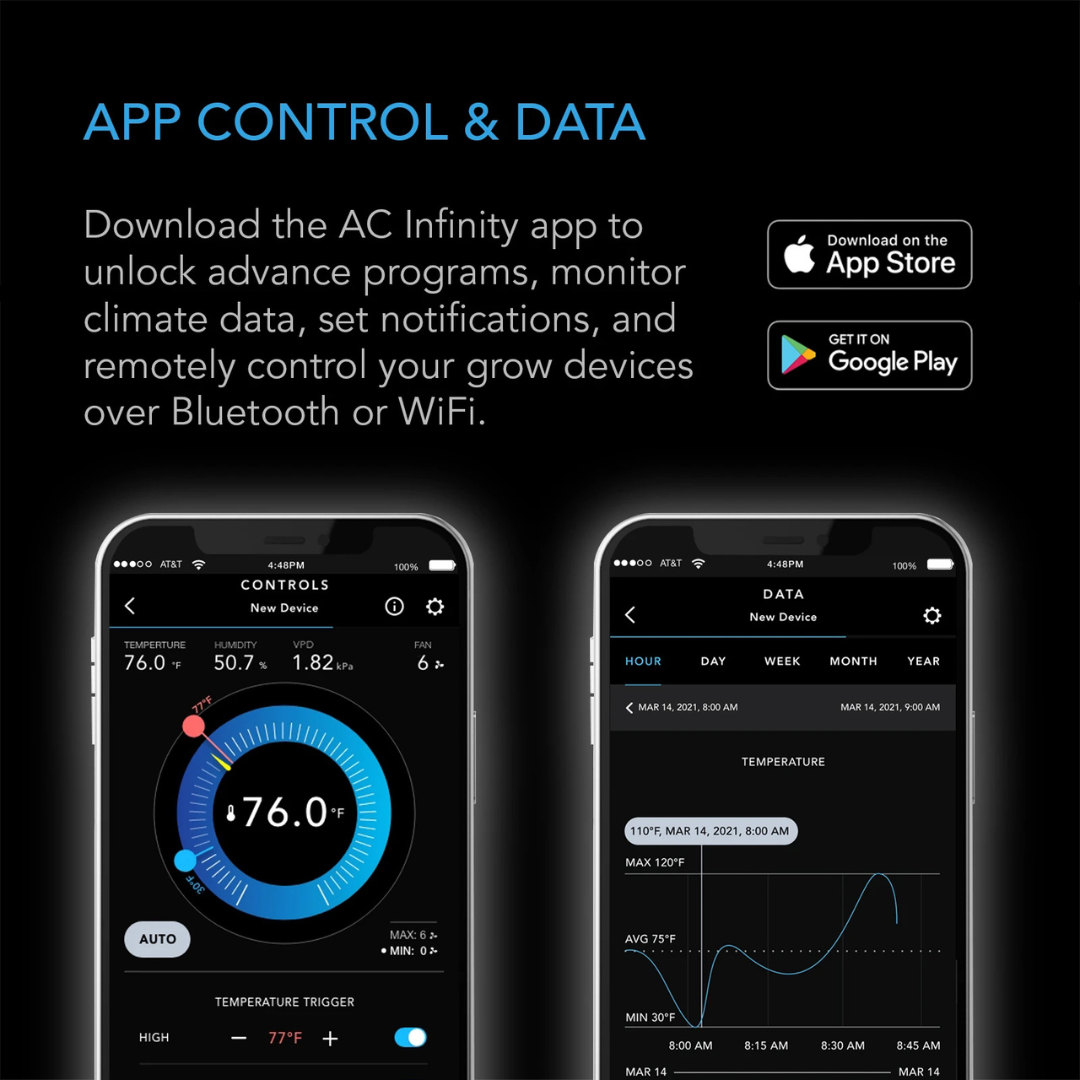

App Connectivity: Connects through Bluetooth or WiFi for remote device access, advanced programs, alarms, notifications, historical charts, and CSV data exports.
-
Independent Device Programming: Connected devices can use shared or independent climate and time-based programming.
-
Backlit Display: Displays temperature in Fahrenheit or Celsius and can be switched off while programs continue running.
-
Flexible Placement: Features a built-in kickstand and includes hardware for wall mounting.
-
UIS Platform Integration: Designed to integrate with devices and smart controllers in the UIS platform.
Specifications
-

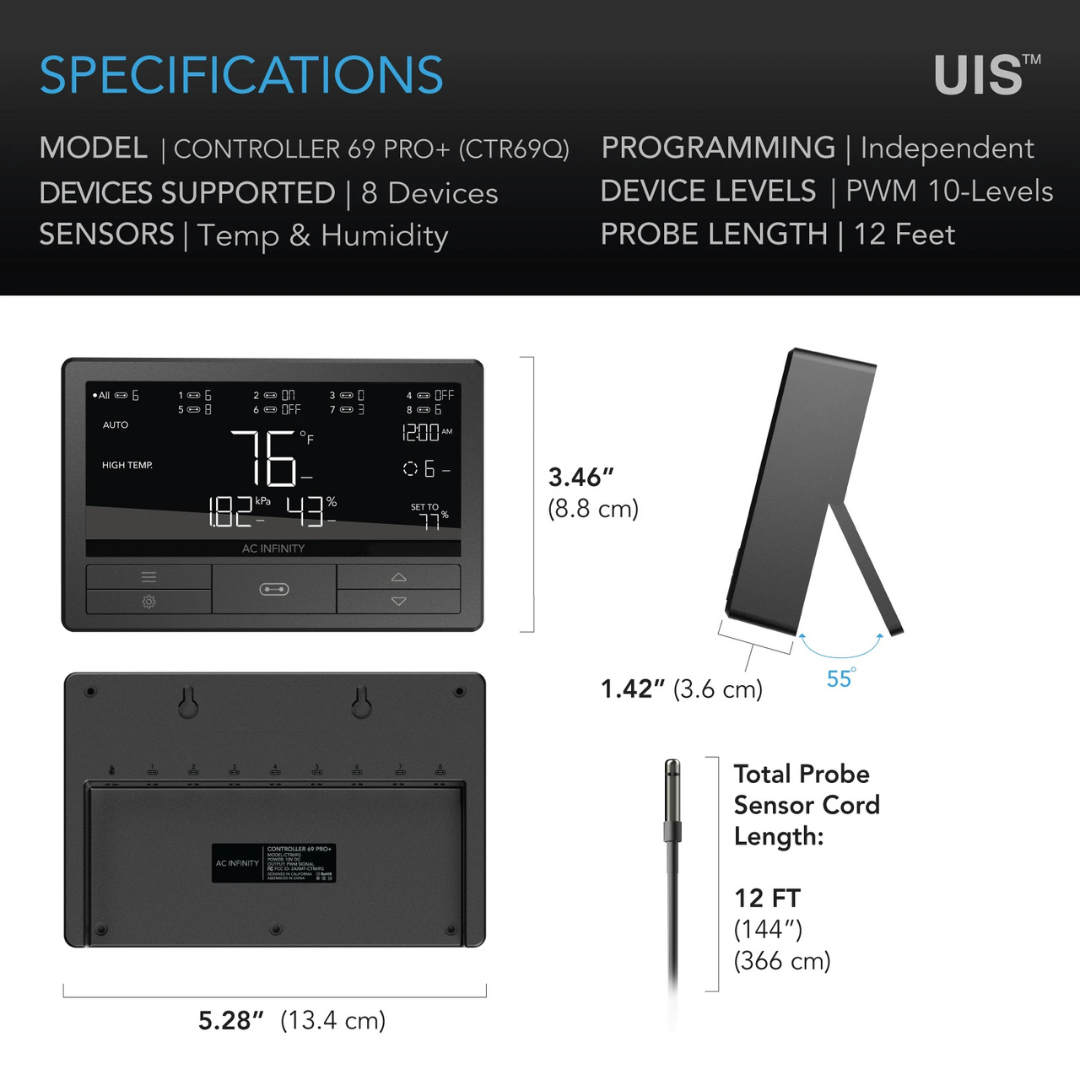

Controller Dimensions: 5.28 x 3.46 x 1.42 in. (13.4 x 8.8 x 3.6 cm)
-
Display Size: 4.56 x 1.96 in. (11.6 x 5.4 cm)
-
Sensor Probe Length: 144 in. (12 feet)
-
Maximum Devices Controlled: 8
-
Programming Temperatures: 32 to 140°F
-
Operating Voltage: 9 to 11V
-
Power: 1.4 W
-
Current: 0.14 A
-
Power Input: 10V from device
-
Operating Humidity: 35 to 85% RH
-
App Connection: 2.4 GHz WiFi
-
Additional Wireless Connection: Bluetooth
Compatibility
Compatible With: Devices in the UIS platform, including all AC Infinity LED grow lights and EC fans
Compatible Series and Devices:
- AIRLIFT Series – Shutter Exhaust Fans
- CLOUDFORGE Series – Environmental Humidifiers
- CLOUDLIFT Series – Floor Wall Circulation Fans
- CLOUDLINE Series – Inline Duct Fans
- CLOUDRAY Series – Clip-on Circulation Fans
- CLOUDWAY Series – Whole House Fans
- IONBEAM Series – LED Grow Light Bars
- IONBOARD Series – LED Grow Light Boards
- UIS Control Plug – Control Outlet Devices (0=Off, 1-10=On)
- UIS Lighting Adapters – Control Other Brand Lights
Included
- CONTROLLER 69 PRO+
- 12 ft. thermal-alloy sensor probe
- Wall-mounting hardware
Warranty
Warranty: 2-year warranty from the date of purchase
