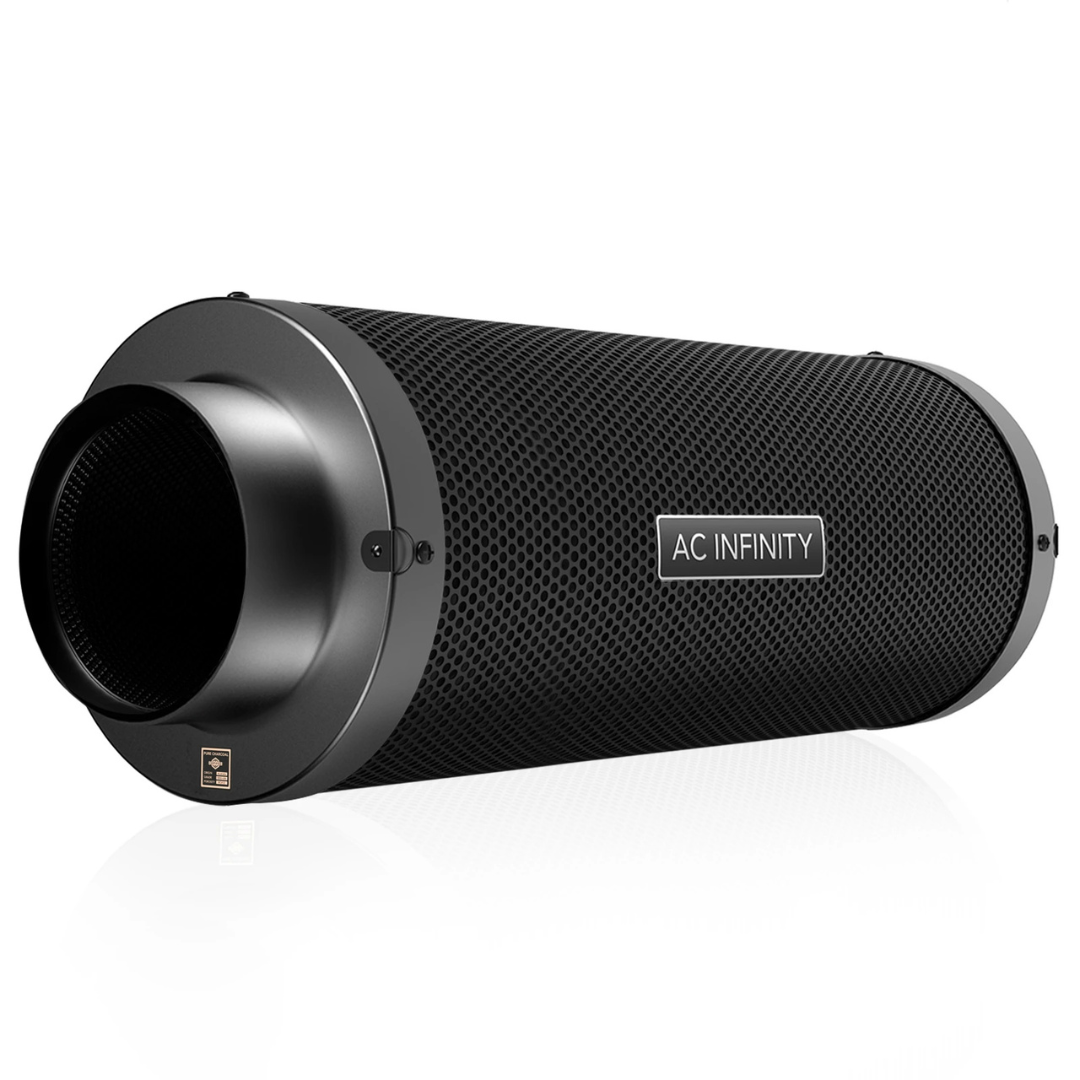

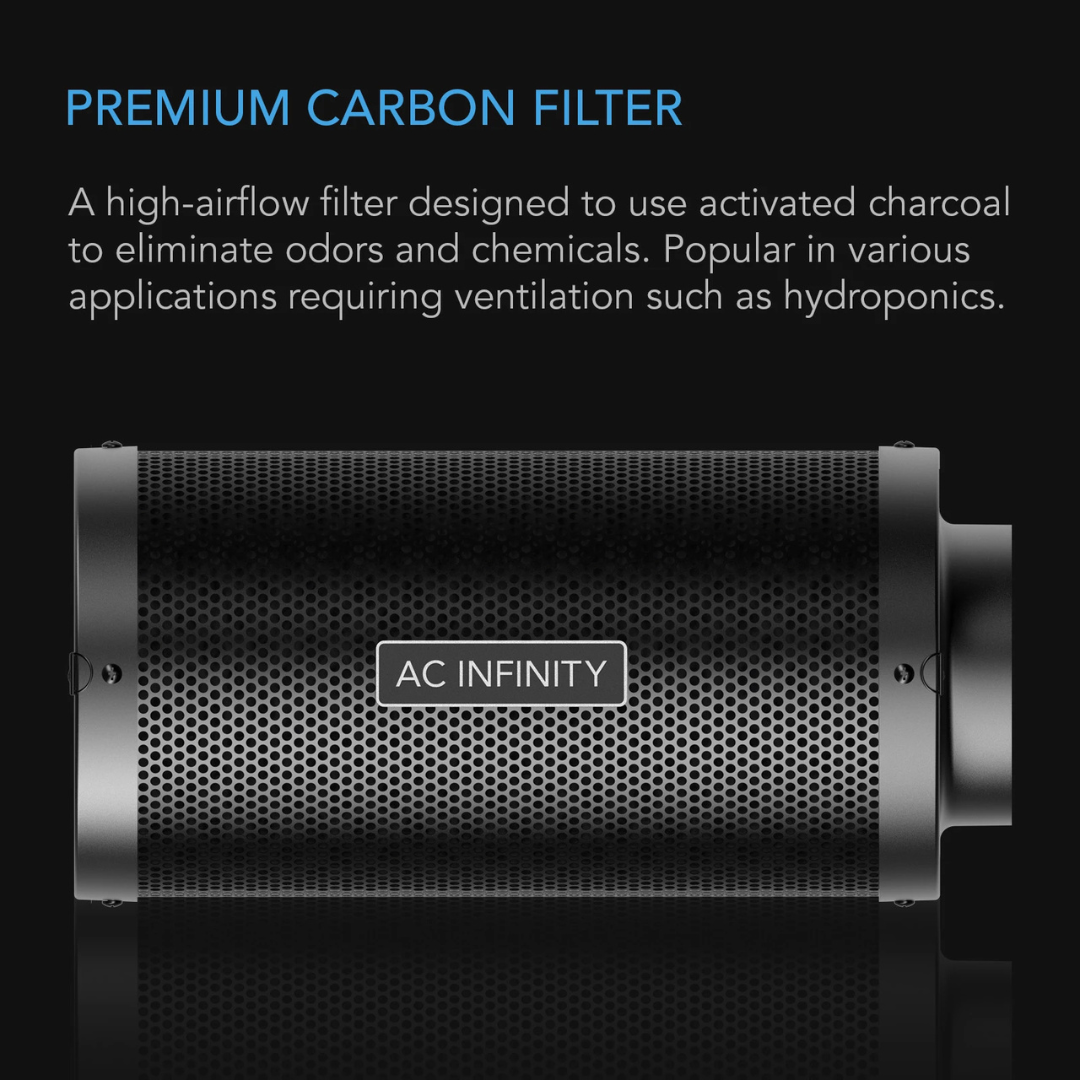

This 10-inch duct carbon filter is designed to remove odors and airborne chemicals from grow tents, hydroponics rooms, grow rooms, and other ventilation applications. It supports both intake and exhaust configurations when paired with an inline duct fan.

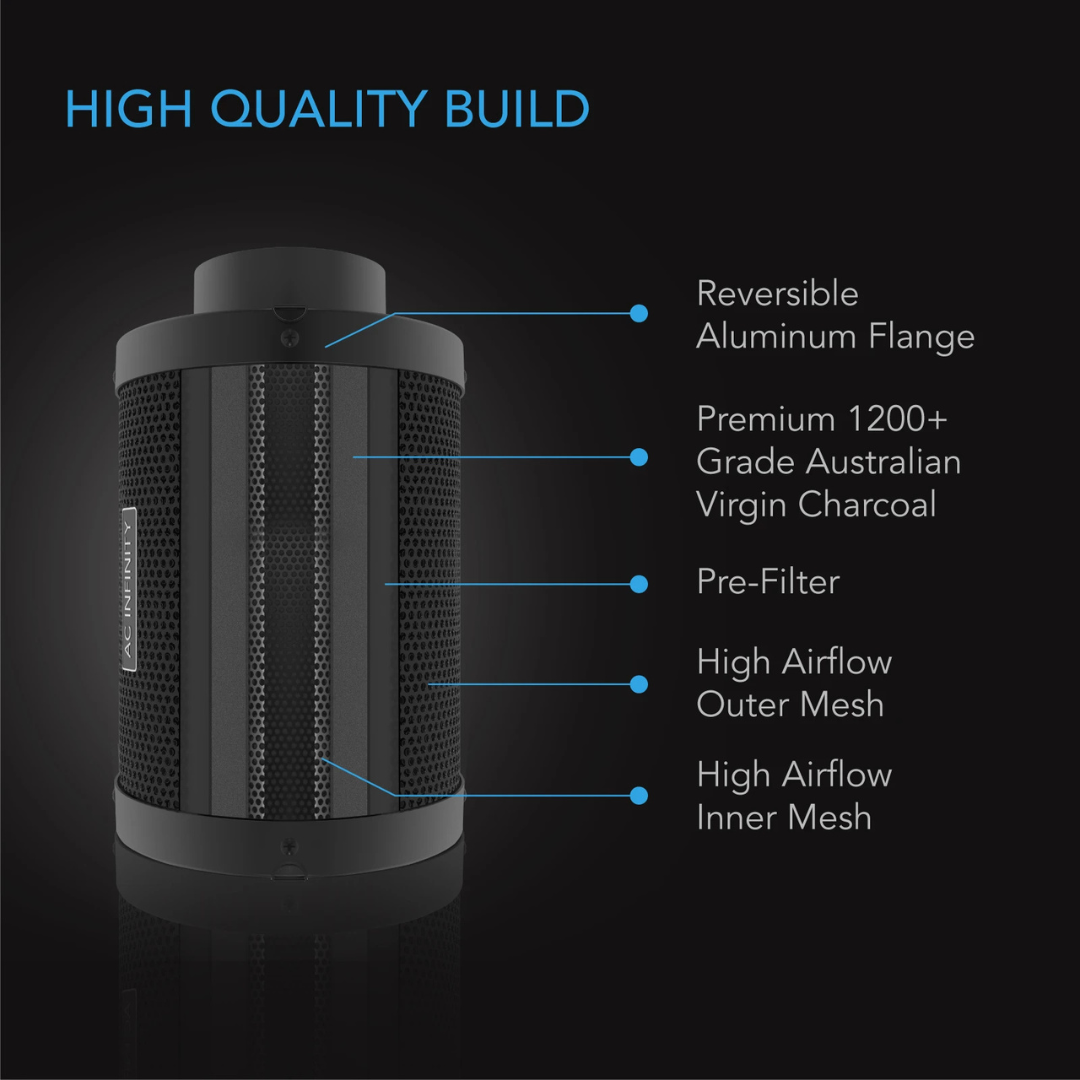

Its 38 mm bed of premium Australian Virgin RC412 activated carbon is rated at 1200+ IAV. Aluminum flanges, dual-sided galvanized steel mesh, and a powder-coated gunmetal finish provide a corrosion-resistant construction suitable for high-humidity environments.
Key Features
-
Odor and Chemical Filtration: Designed to prevent odors and airborne chemicals from escaping grow tents and hydroponics rooms.
-
Premium Australian Carbon: Uses Australian Virgin RC412 activated carbon rated at 1200+ IAV for high adsorption.
-
38 mm Carbon Bed: The thick charcoal bed and wide mesh openings support adsorption without restricting free airflow.
-
High-Airflow Design: Rated for a maximum airflow of 1249 CFM.
-

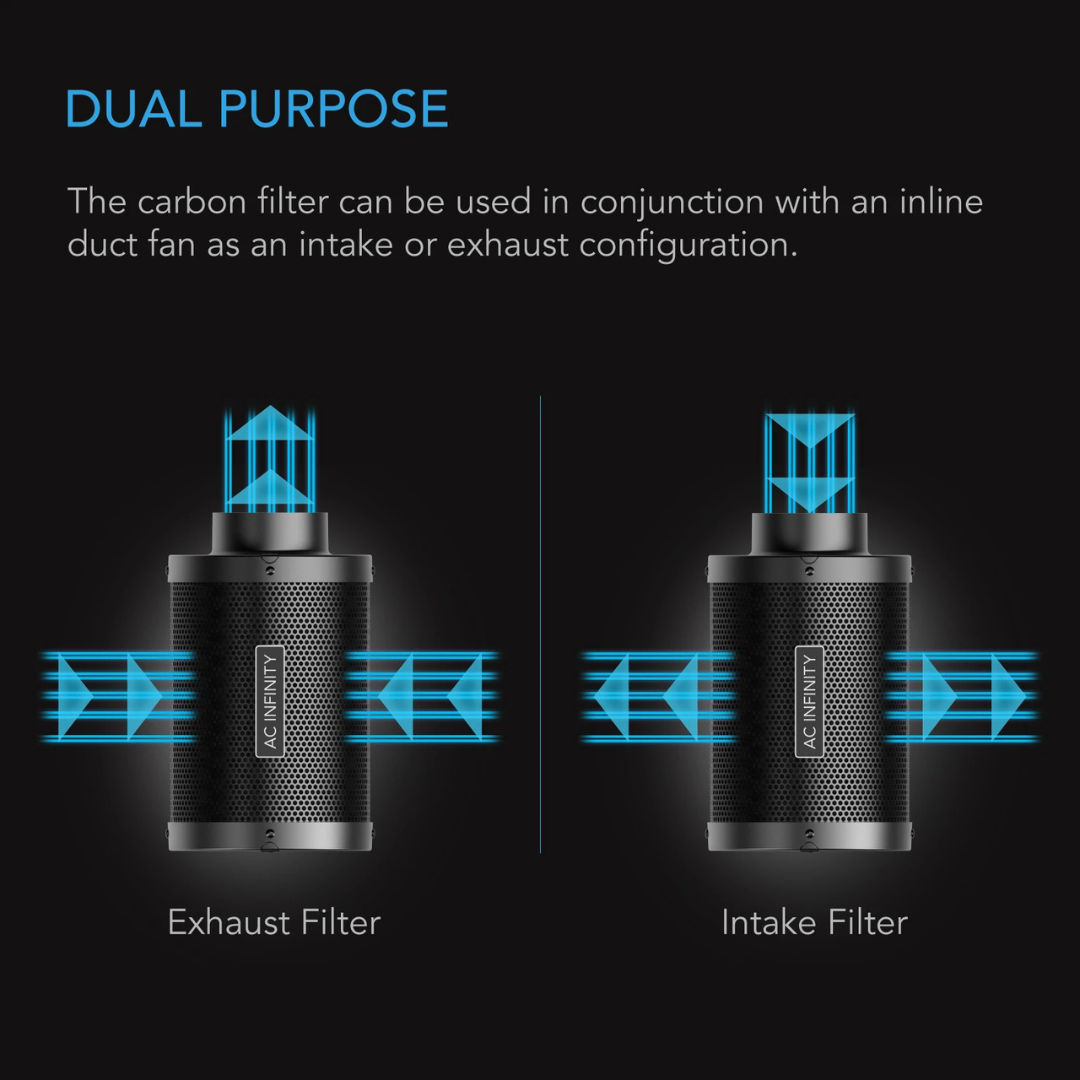

Intake and Exhaust Configurations: Can be connected to an inline duct fan for either intake or exhaust applications.
-
Reversible Flanges: The aluminum flanges can be moved to opposite ends to help utilize the entire carbon bed and prolong filter life.
-

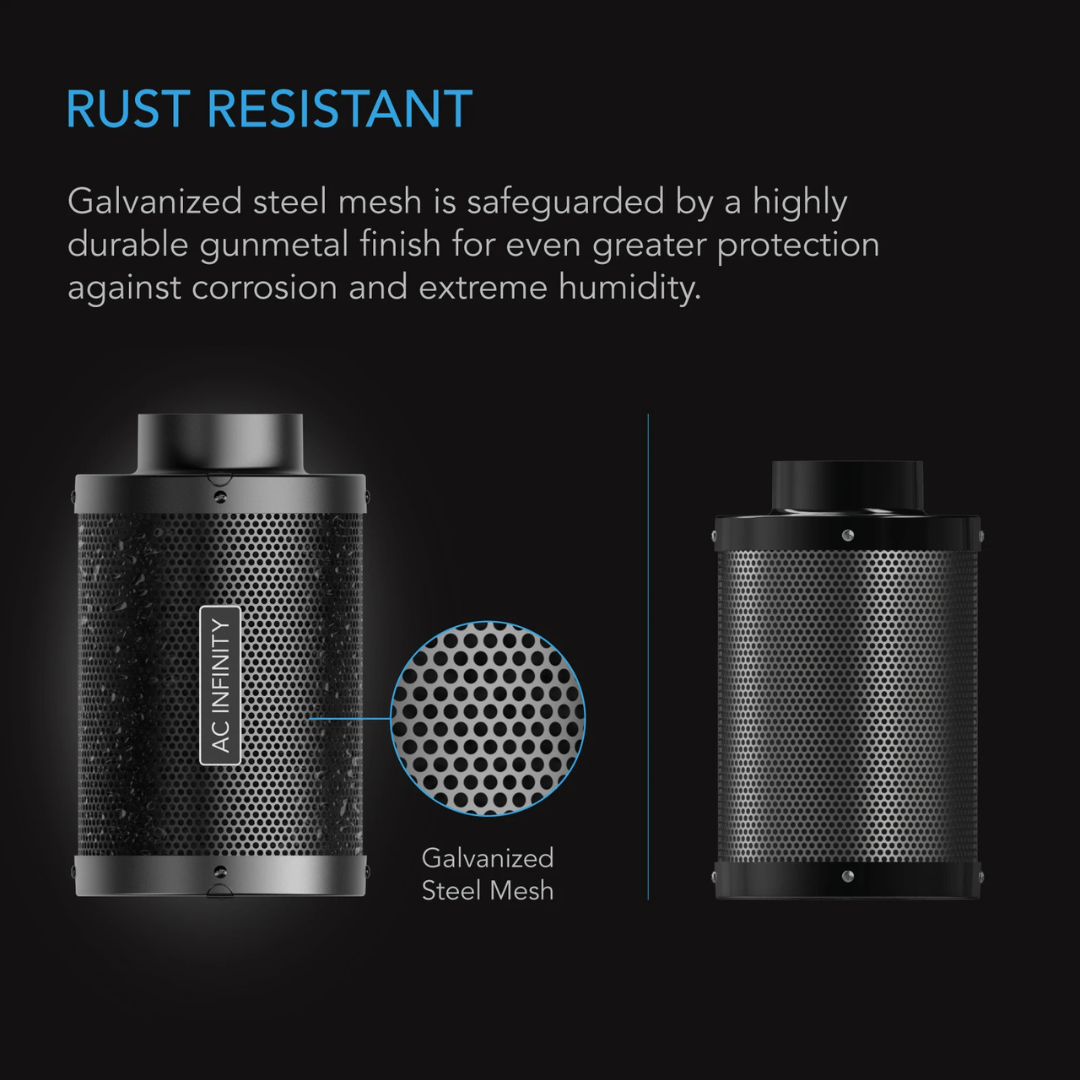

Humidity-Resistant Construction: Features galvanized steel mesh and a powder-coated gunmetal finish designed to resist corrosion in high-humidity settings.
-

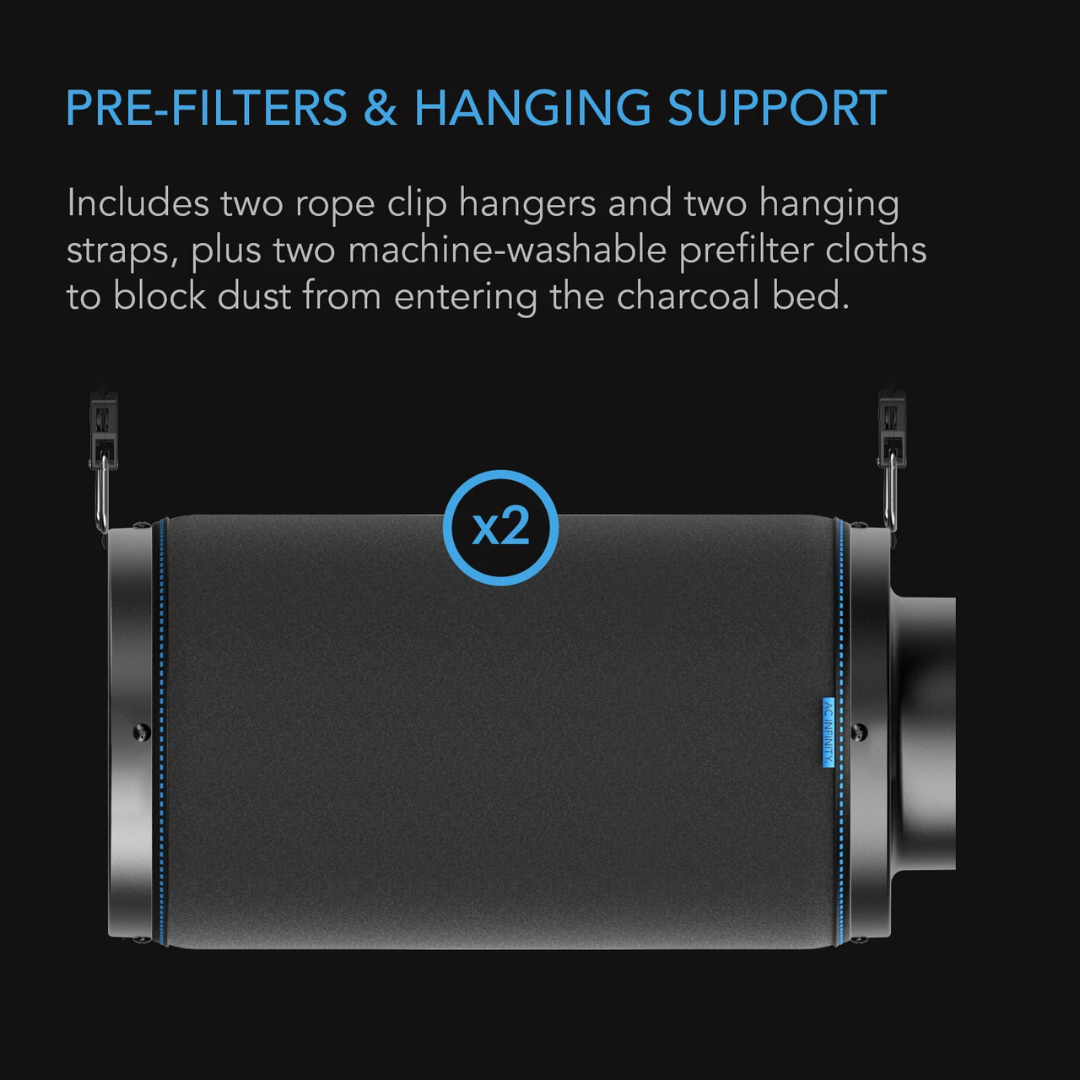

Reusable Pre-Filters: Includes 2 machine-washable pre-filter cloths that help prevent dust, particles, and carbon residue from passing through the filter.
-

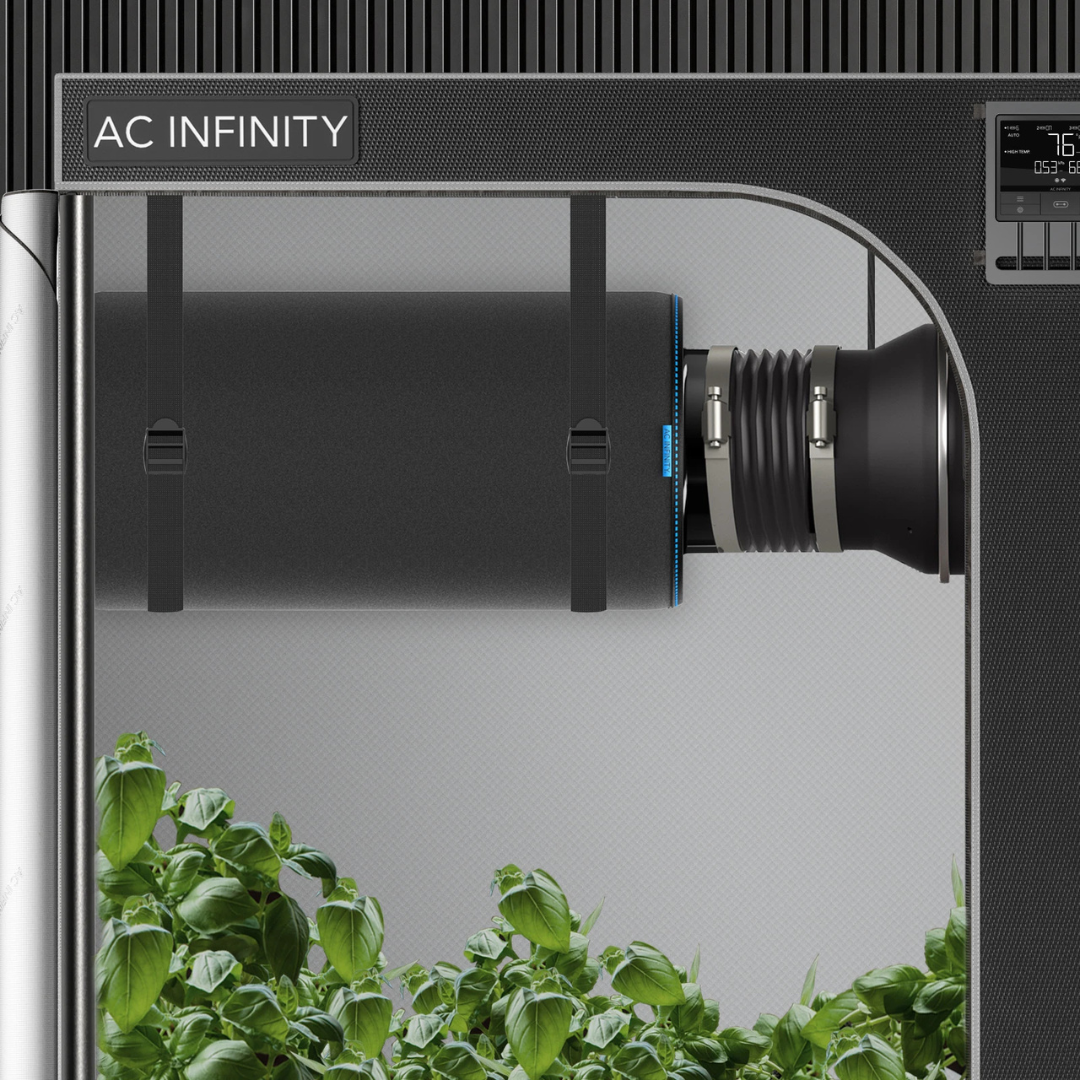

Installation Hardware: Includes hanging straps and rope clip hangers for installation.

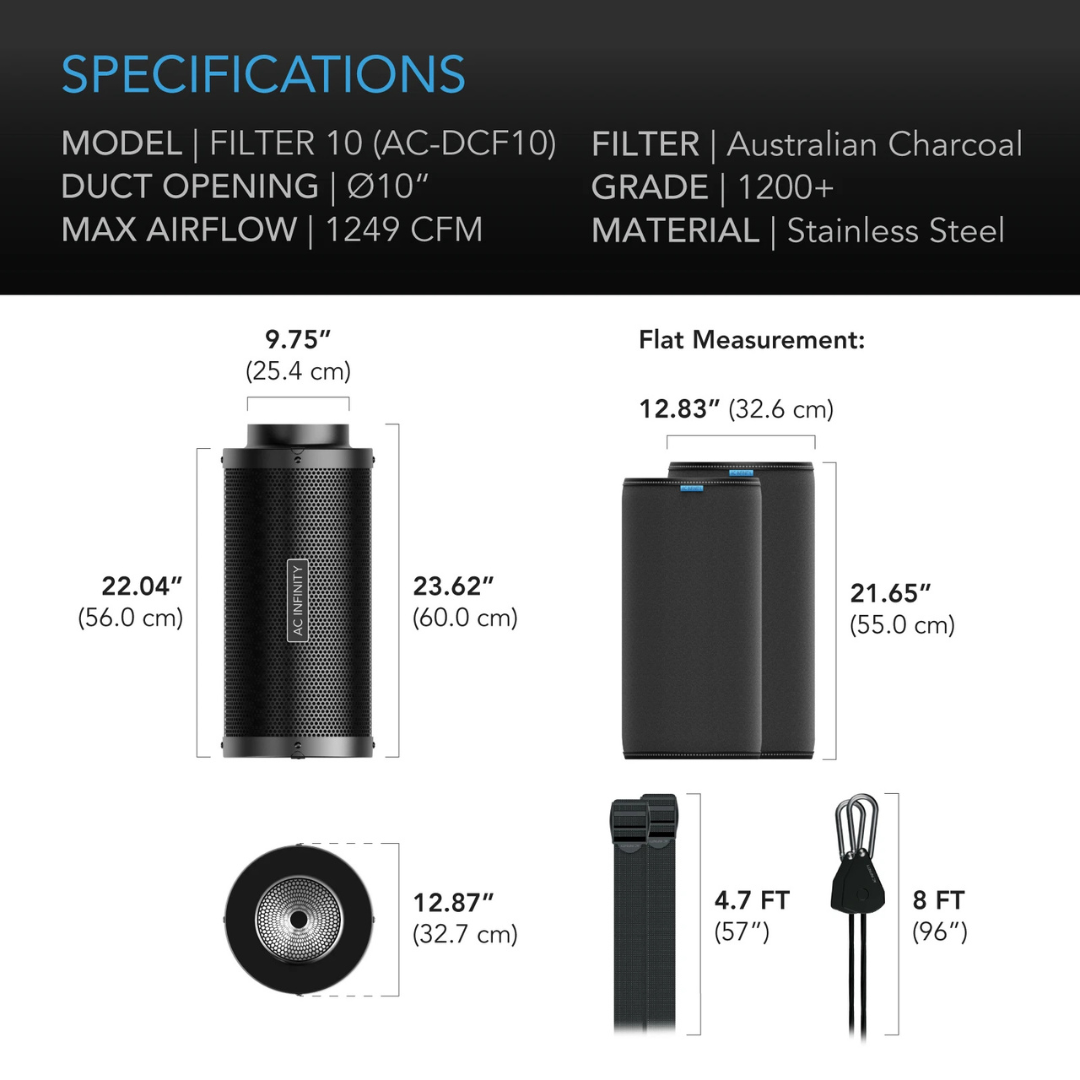

Specifications
-
Duct Opening Size: 10 in.
-
Total Dimensions: 23.62 x 12.83 in. (60.0 x 32.6 cm)
-
Flange Length: 1.5 in. (3.8 cm)
-
Maximum Airflow: 1249 CFM
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Flange Material: Aluminum
-
Flange Design: Reversible
-
Mesh Material: Galvanized steel
-
Finish: Powder-coated gunmetal
Size Guide
-
Duct Connection: Designed for a 10-inch duct opening.
-
Overall Filter Size: 23.62 x 12.83 in. (60.0 x 32.6 cm)
-
Flange Length: 1.5 in. (3.8 cm)
Compatibility
Compatible With: 10-inch ductwork and inline duct fans for intake and exhaust configurations.
Included
- 1 duct carbon filter
- 2 machine-washable pre-filter cloths
- 2 filter hanging straps
- 2 rope clip hangers
Warranty
Warranty: 2 years from the date of purchase, subject to the terms of the official warranty program.
