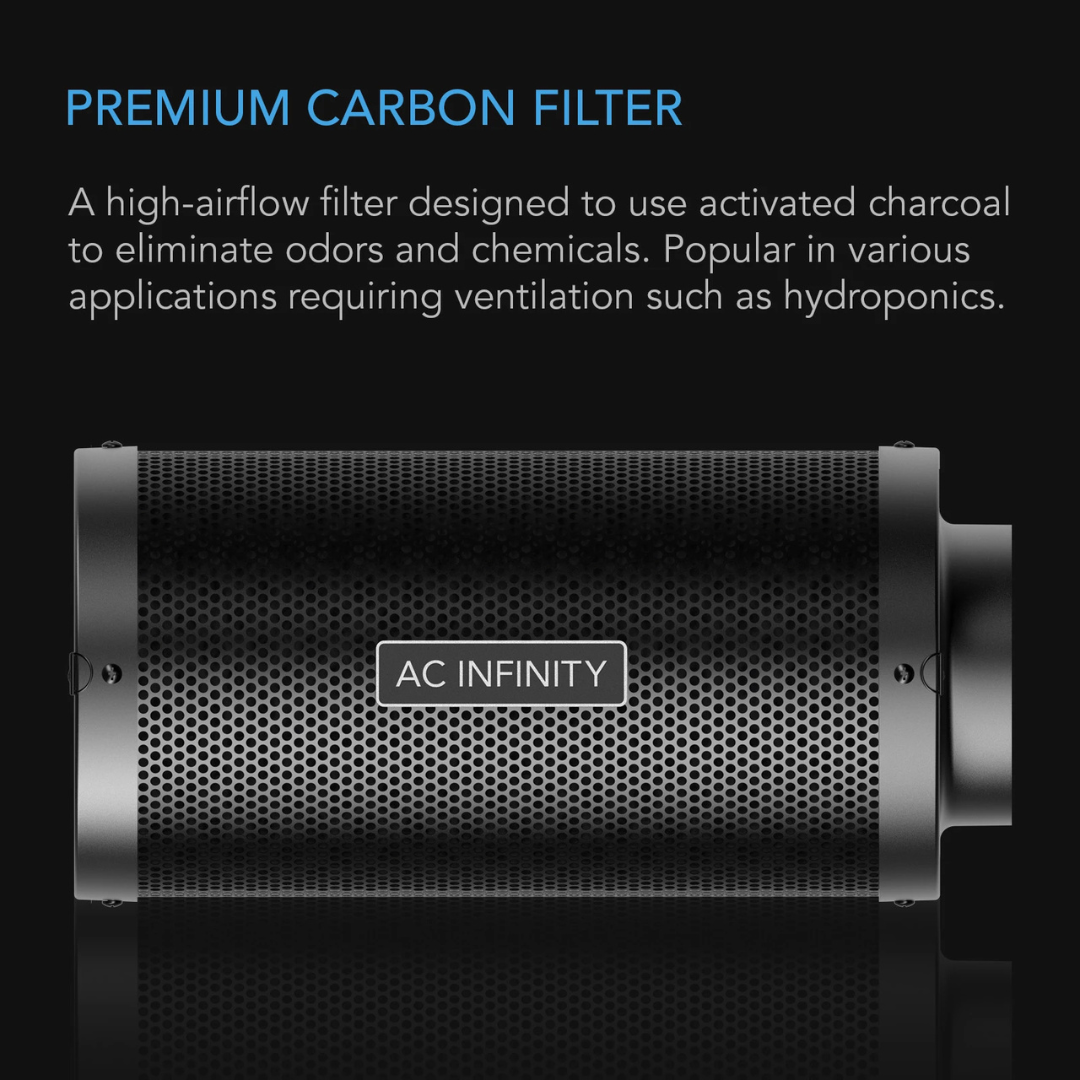

This 12-inch duct carbon filter is designed to remove odors and airborne chemicals from grow tents, hydroponics rooms, grow rooms, and other ventilation applications. It can be paired with an inline duct fan in either an intake or exhaust configuration.

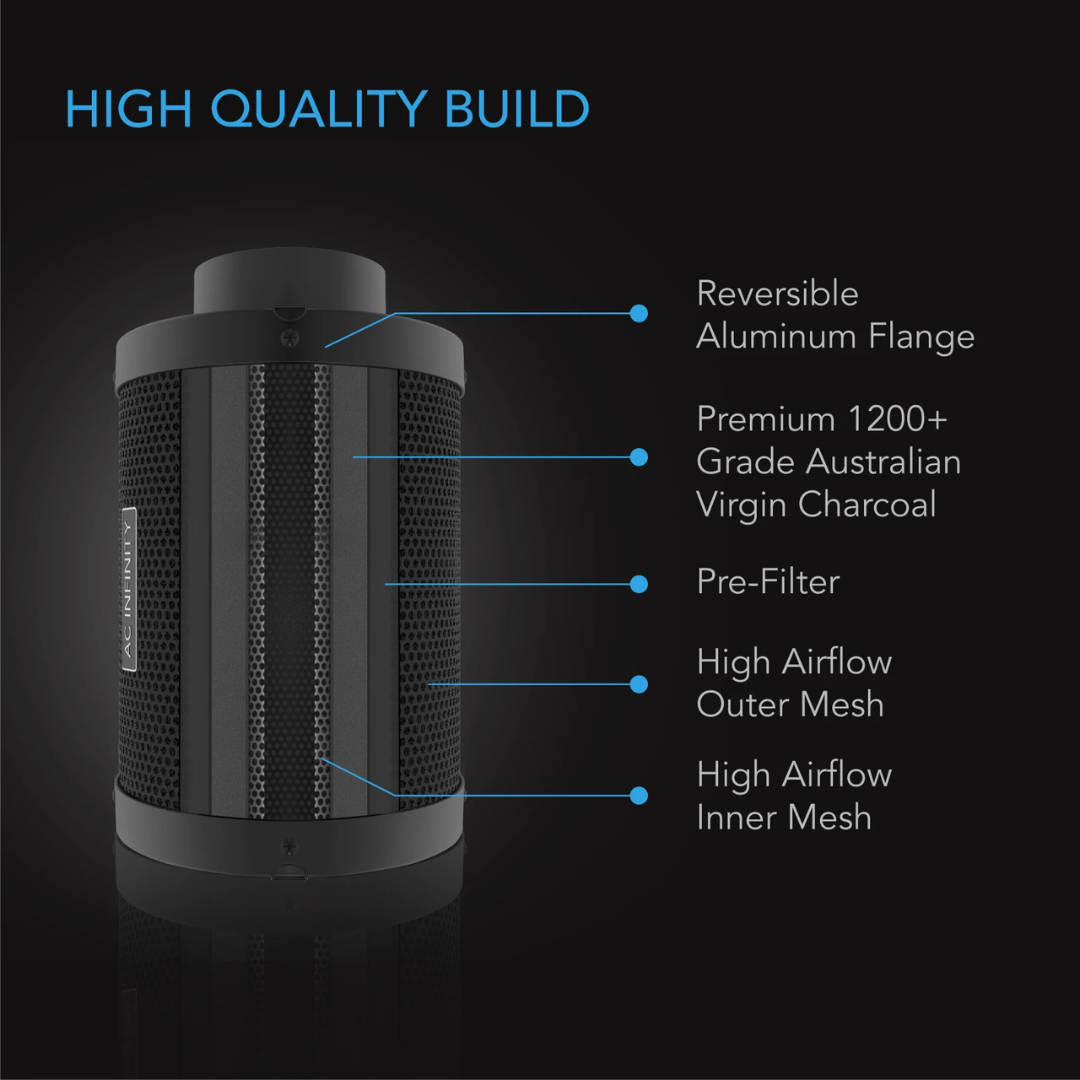

The filter uses a 38 mm bed of Australian Virgin RC412 activated carbon rated at 1200+ IAV. Its high-airflow construction combines reversible aluminum flanges with dual-sided galvanized steel mesh.
Key Features
-
Odor and Chemical Filtration: Designed to remove odors and airborne chemicals from grow tents and hydroponics rooms.
-
Premium Australian Carbon: Uses Australian Virgin RC412 activated carbon rated at 1200+ IAV for high adsorption.
-
38 mm Carbon Bed: The thick charcoal bed and wide mesh openings support adsorption without restricting free airflow.
-
High-Airflow Design: Provides a maximum airflow rating of 1668 CFM.
-

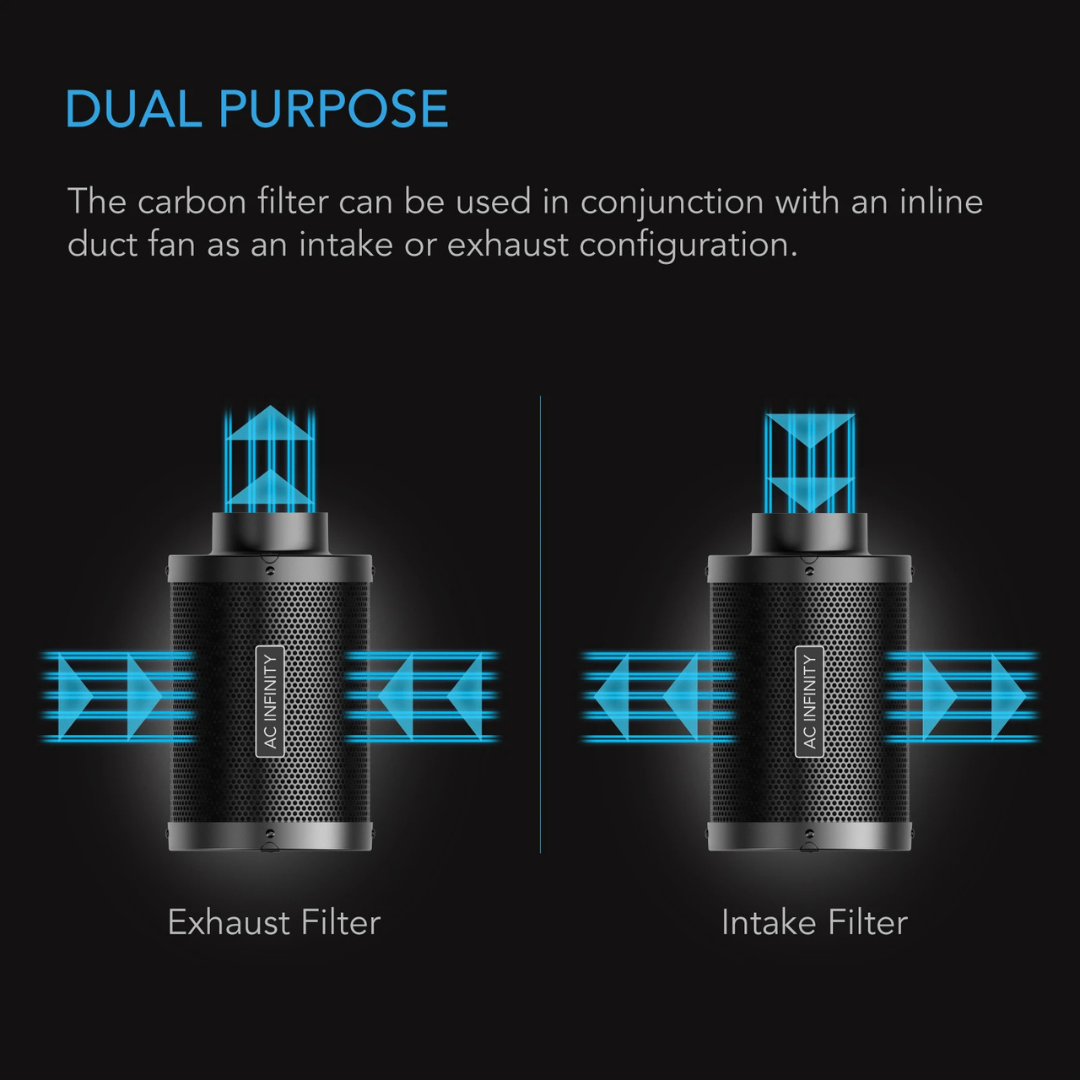

Intake and Exhaust Configurations: Can be paired with an inline duct fan for either intake or exhaust filtration.
-
Reversible Flanges: The aluminum flanges can be moved to opposite ends to help utilize the carbon bed and prolong the filter’s service life.
-

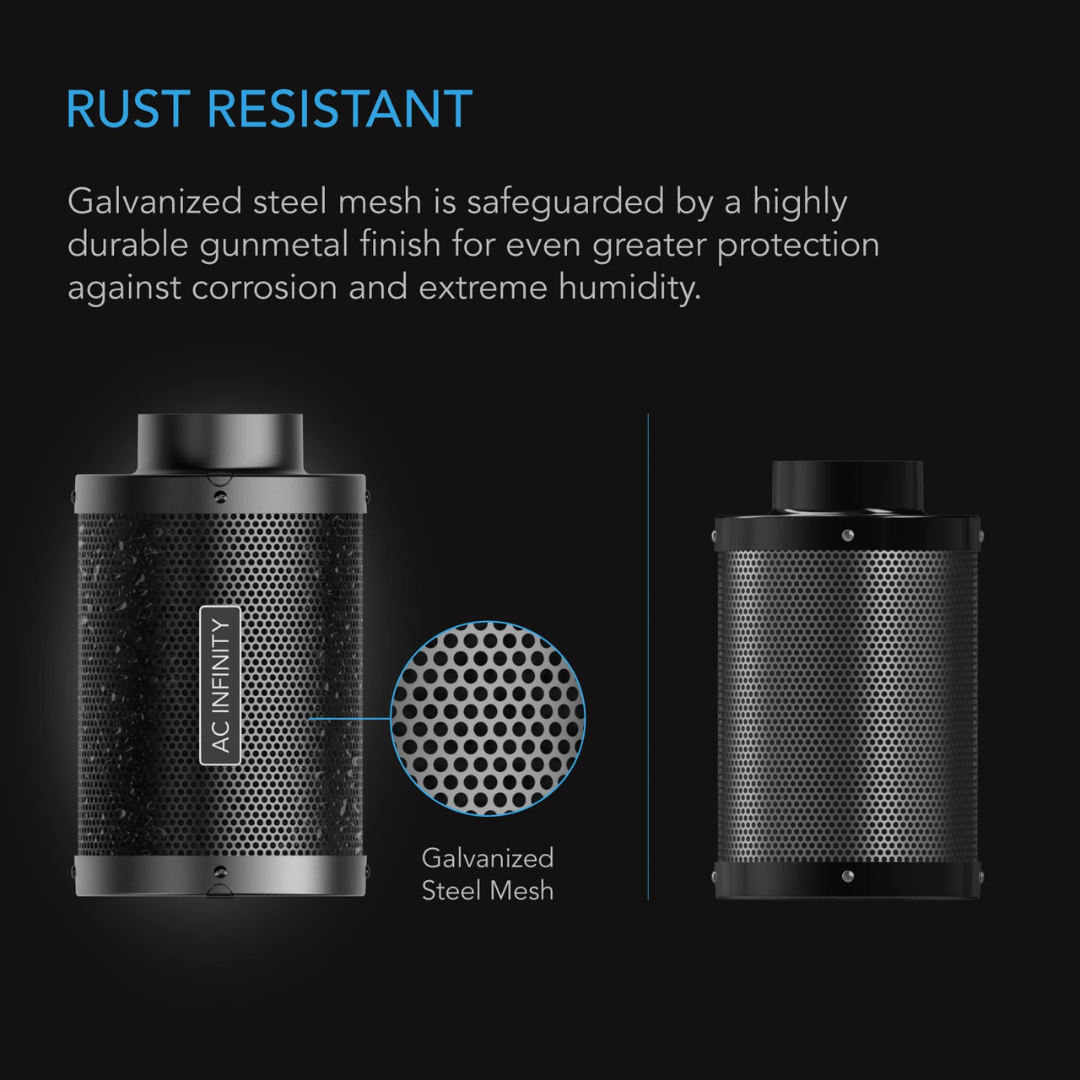

Durable Construction: Features aluminum flanges and dual-sided galvanized steel mesh.
-

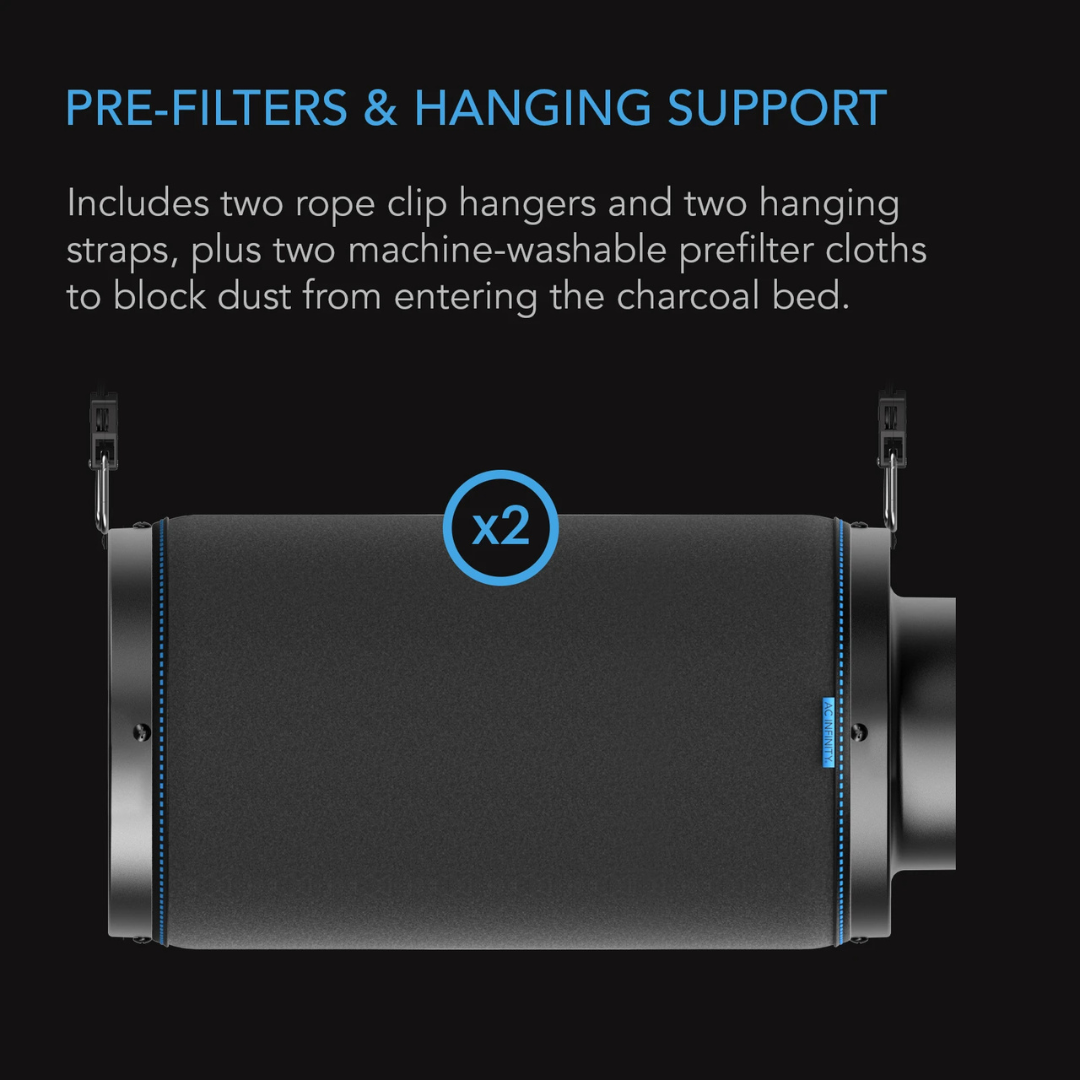

Reusable Pre-Filters: Includes 2 machine-washable pre-filter cloths that help prevent particles and carbon residue from passing through the filter.
-

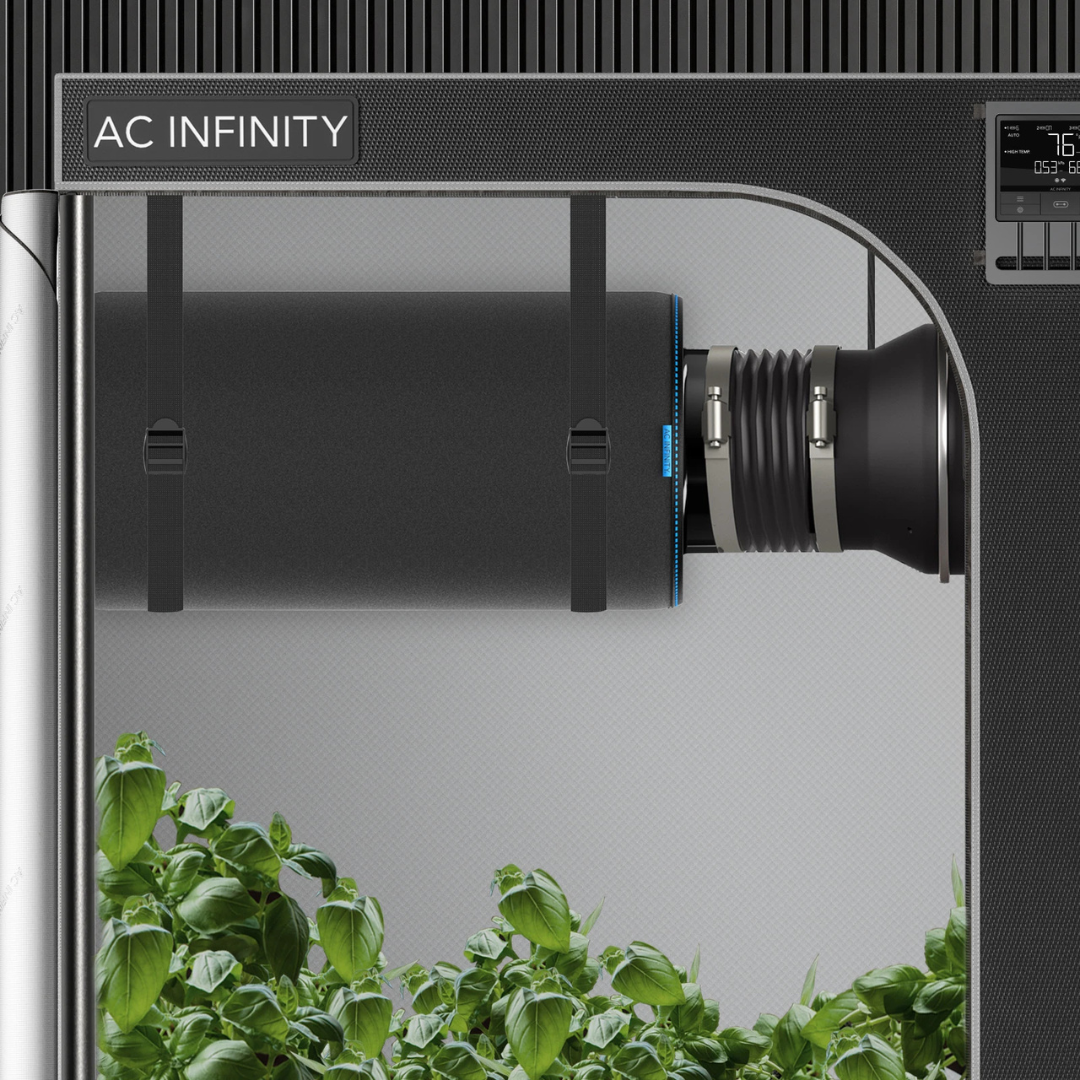

Hanging Installation: Includes 2 filter straps for mounting the filter to grow-tent support beams.

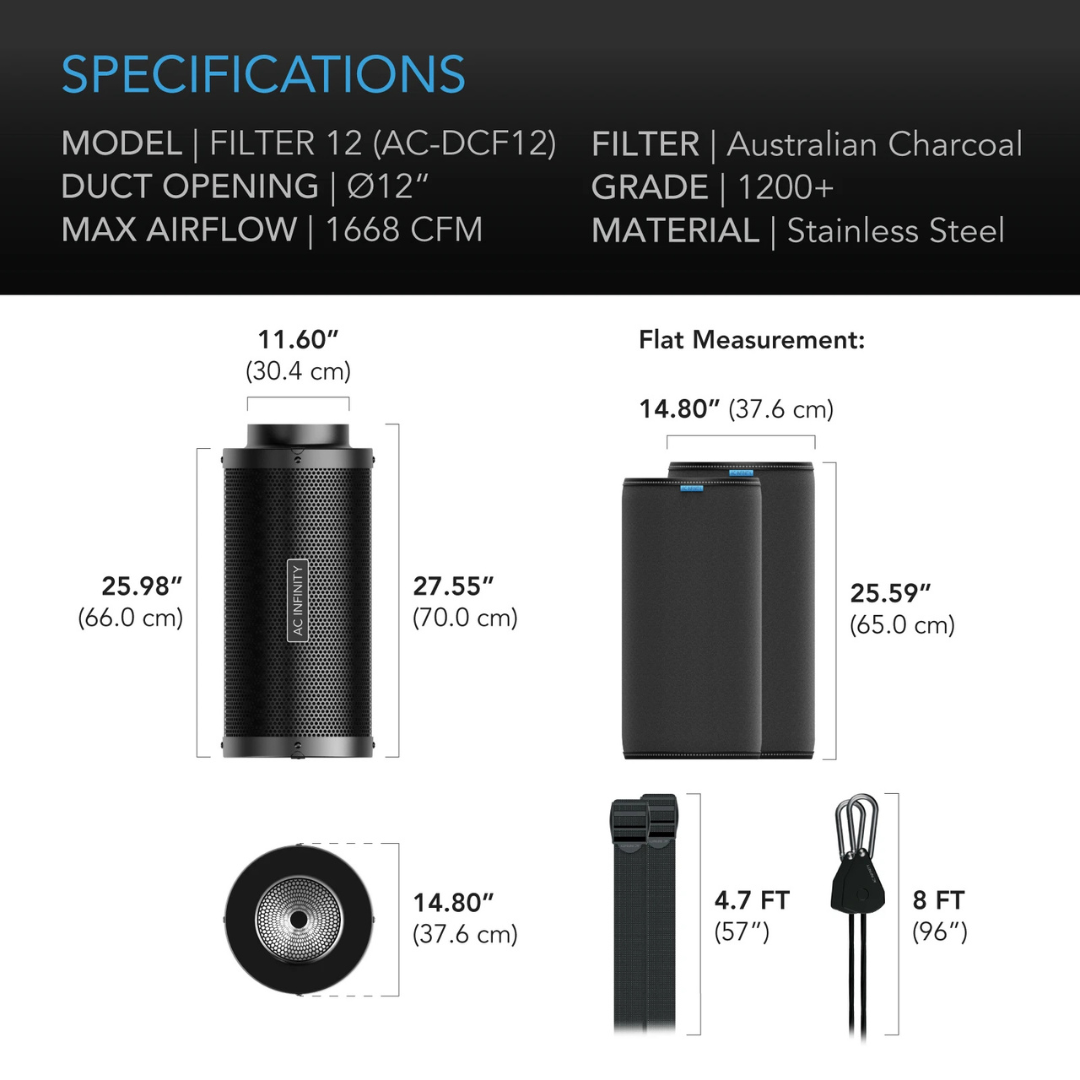

Specifications
-
Duct Opening Size: 12 in.
-
Total Dimensions: 27.56 x 14.8 in. (70.0 x 37.6 cm)
-
Flange Length: 2.04 in. (5.2 cm)
-
Maximum Airflow: 1668 CFM
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Flange Material: Aluminum
-
Flange Design: Reversible
-
Mesh Material: Galvanized steel
Size Guide
-
Duct Connection: Designed for a 12-inch duct opening.
-
Overall Filter Size: 27.56 x 14.8 in. (70.0 x 37.6 cm)
-
Flange Length: 2.04 in. (5.2 cm)
Compatibility
Compatible With: 12-inch ductwork and inline duct fans for intake and exhaust configurations.
Included
- 1 duct carbon filter
- 2 machine-washable pre-filter cloths
- 2 filter hanging straps
Warranty
Warranty: 2 years from the date of purchase, subject to the terms of the official warranty program.
