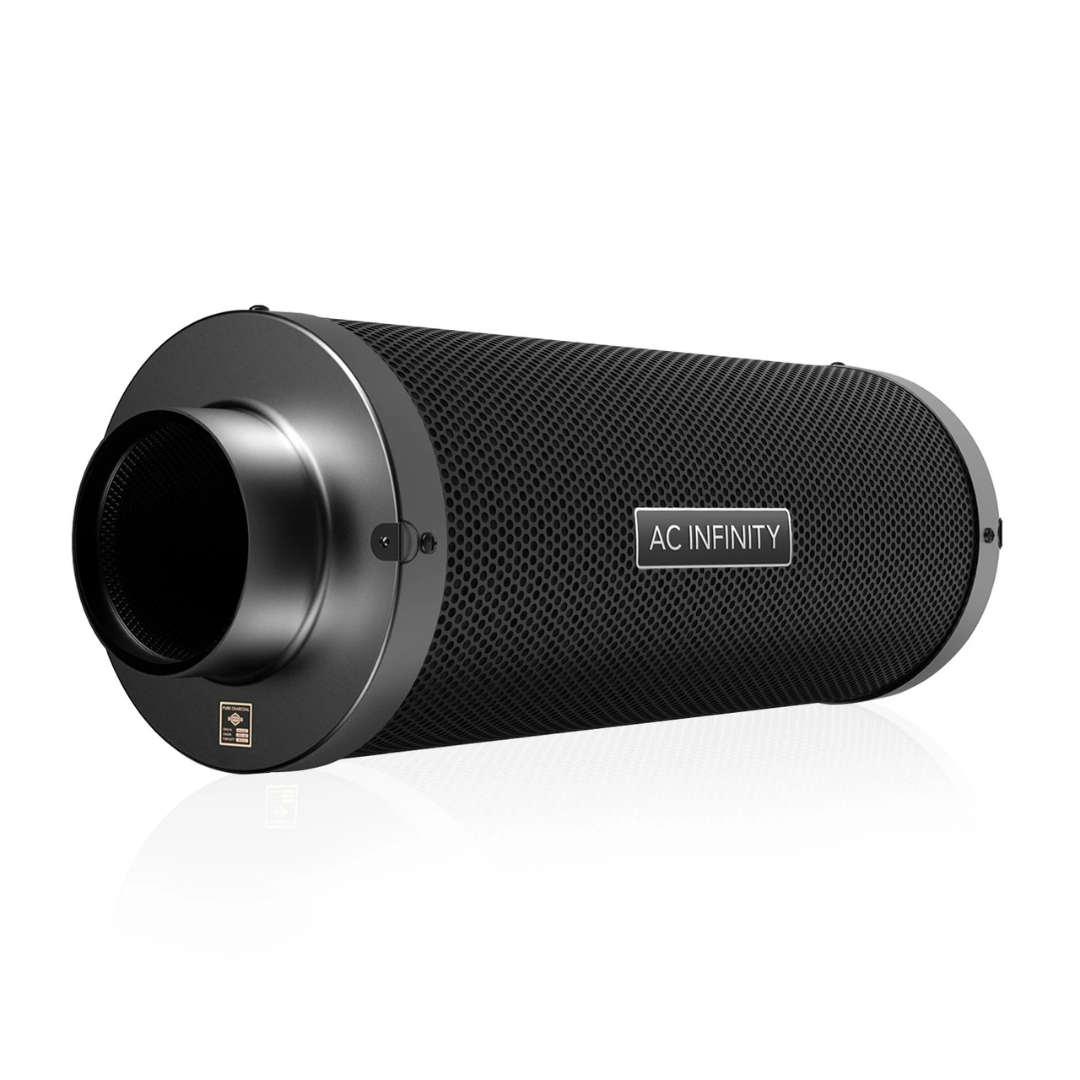

A 6-inch extra-long duct carbon filter designed to help control odors and chemicals in grow tents, hydroponic rooms, and other ventilation projects. Its extended body contains a larger activated-carbon bed than the standard-length configuration.
The filter uses Australian virgin RC412 activated charcoal with a 1200+ IAV rating and 38 mm bed thickness. Aluminum flanges, dual-sided metal mesh, reusable prefilters, and rope clip hangers support installation in intake and exhaust ventilation systems.
Key Features
-

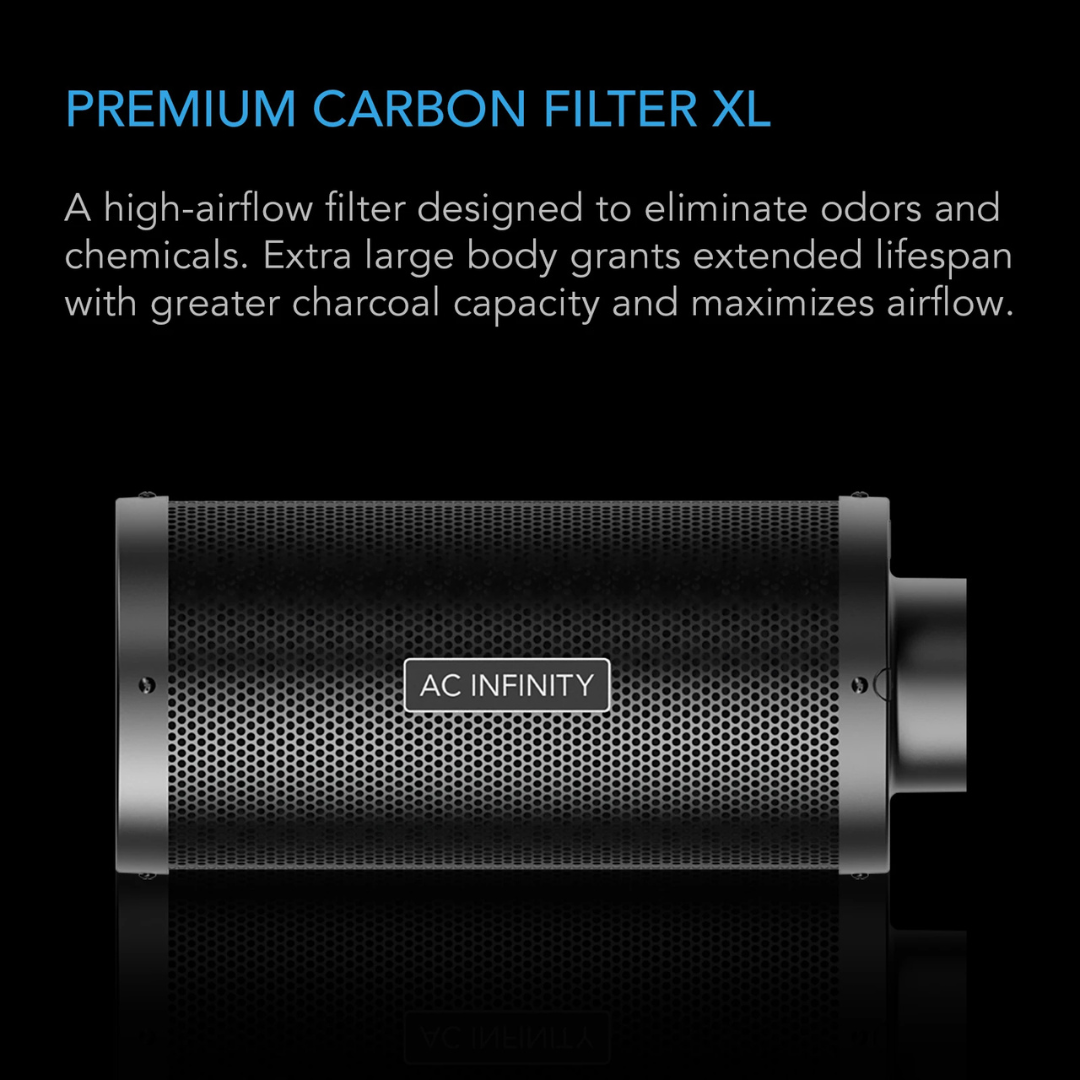

Extra-Long Construction: Contains a larger activated-carbon bed for extended service life while supporting airflow passage.
-
Activated Carbon Filtration: Uses Australian virgin RC412 activated charcoal to adsorb odors and unwanted chemicals.
-
1200+ IAV Carbon Grade: Provides high adsorption through increased microporosity and surface area.
-
38 mm Carbon Bed: Supports odor adsorption while allowing airflow through the filter.
-
High-Airflow Design: Rated for airflow up to 520 CFM.
-

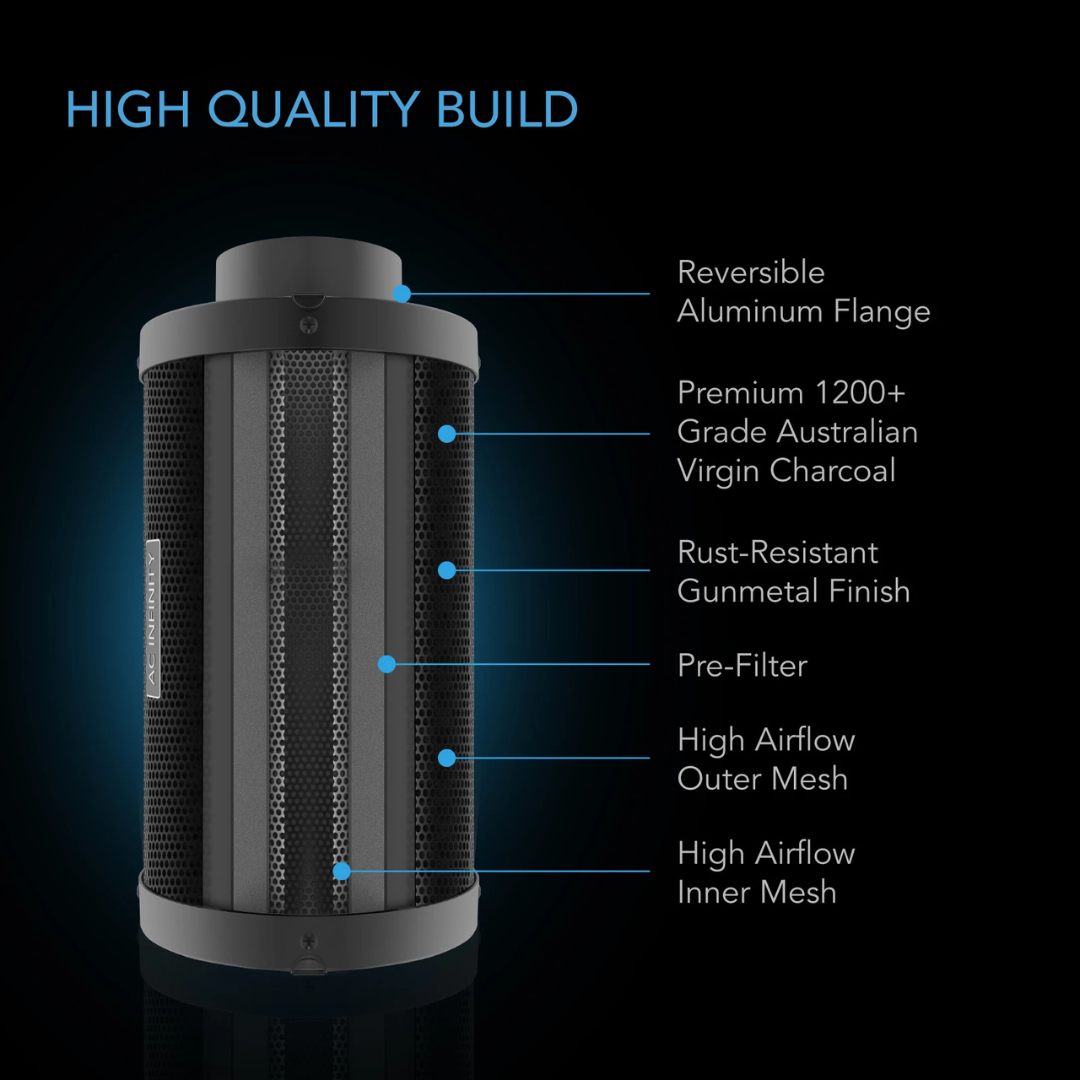

Heavy-Duty Construction: Uses aluminum flanges and dual-sided galvanized steel mesh.
-

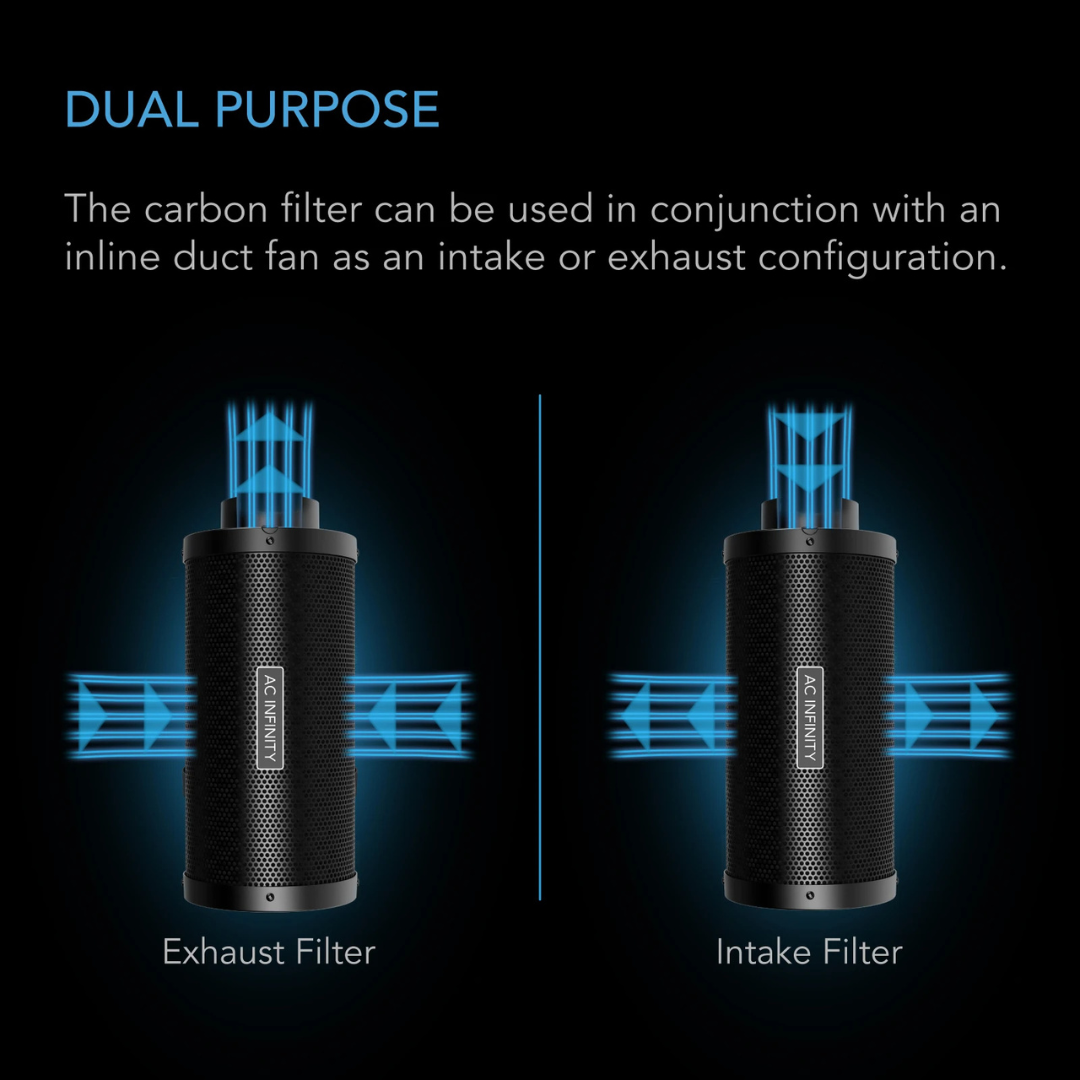

Intake and Exhaust Use: Can be paired with an inline duct fan in intake and exhaust configurations.
-

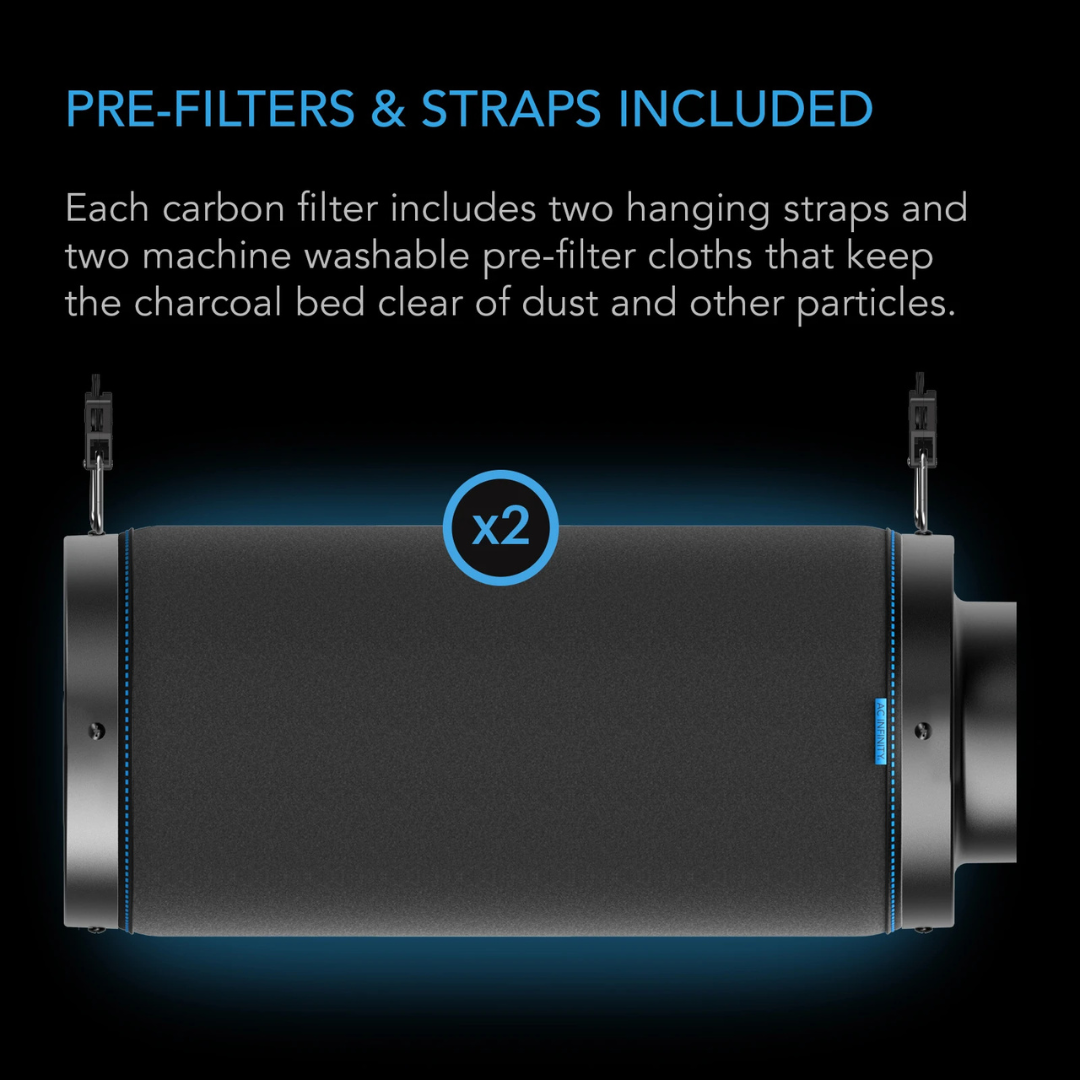

Machine-Washable Prefilters: Includes 2 prefilter cloths that help prevent carbon residue from passing through the filter.
-

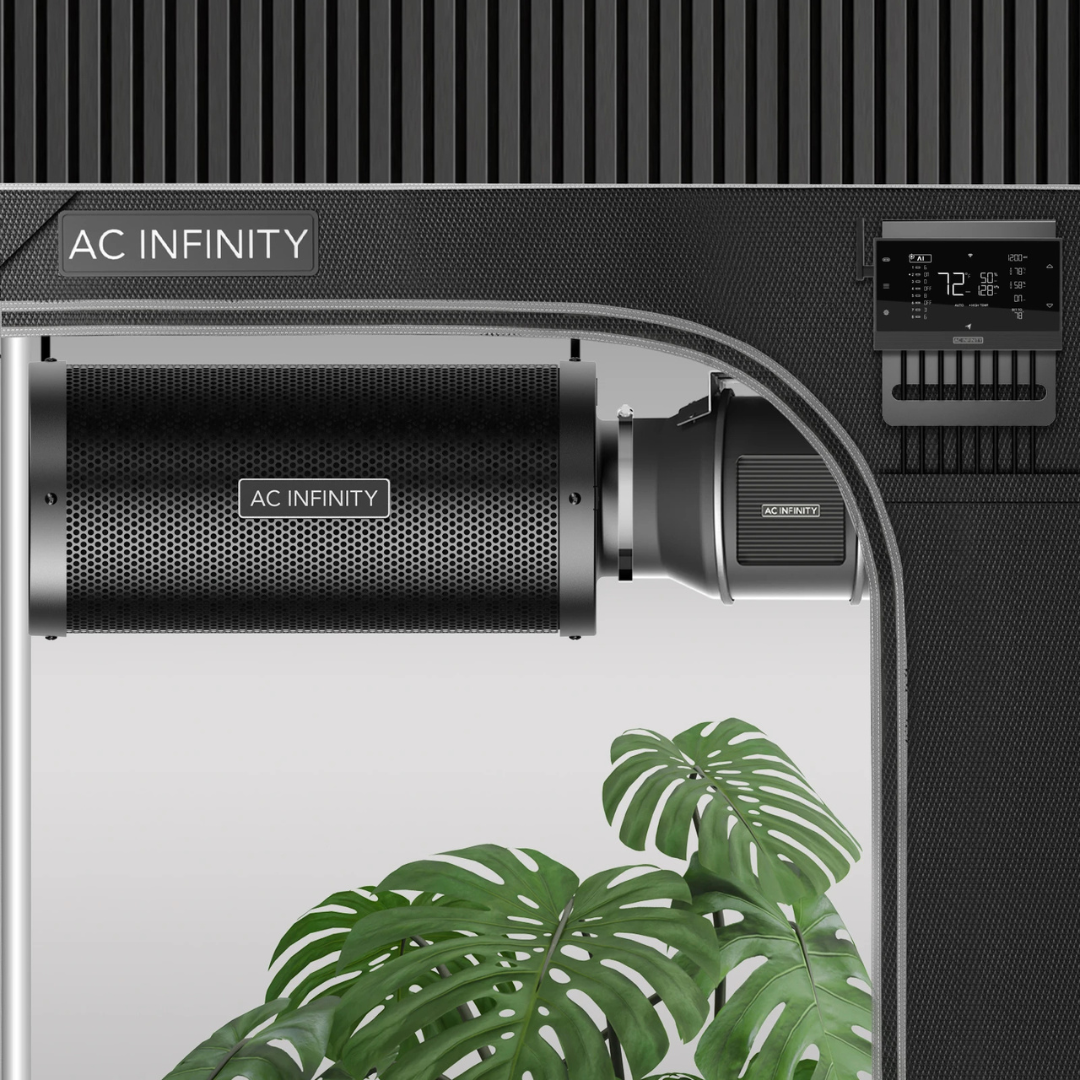

Overhead Hanging: Built-in flange hooks connect to the included rope clip hangers for suspension from grow-room support beams.

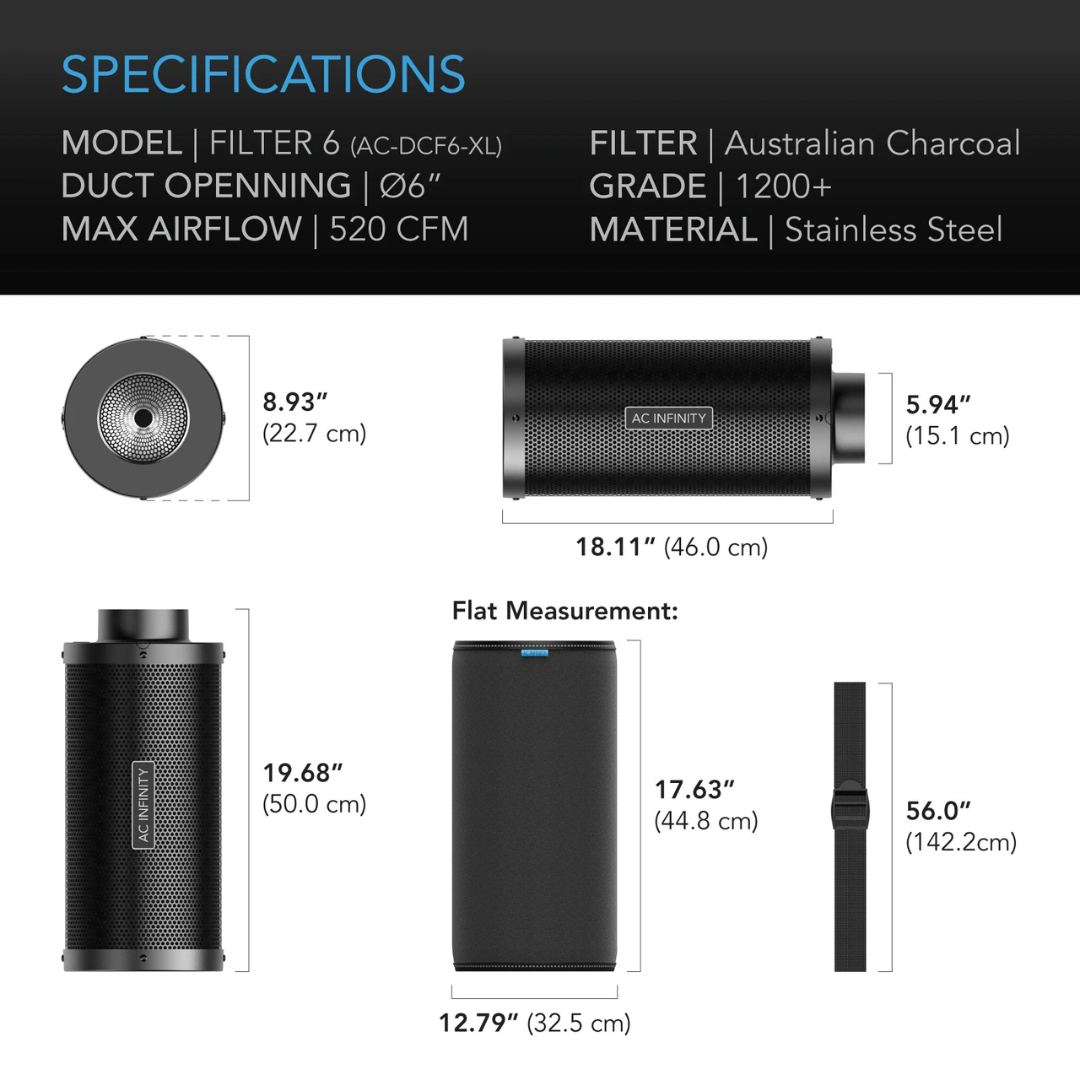

Specifications
-
Duct Opening Size: 6 in.
-
Total Dimensions: 19.68 x 8.93 in. (50.0 x 22.7 cm)
-
Flange Length: 1.46 in. (3.7 cm)
-
Flange Material: Aluminum
-
Mesh Material: Galvanized steel
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Maximum Airflow: 520 CFM
Size Guide
-
Compatible Duct Size: 6 in.
-
Filter Dimensions: 19.68 x 8.93 in. (50.0 x 22.7 cm)
-
Flange Length: 1.46 in. (3.7 cm)
Compatibility
Compatible With: 6-inch inline duct fans and ducting for intake and exhaust configurations.
Included
- 1 x Extra-long duct carbon filter
- 2 x Machine-washable prefilter cloths
- 2 x Rope clip hangers
Warranty
Warranty: 2-year warranty from the date of purchase.
