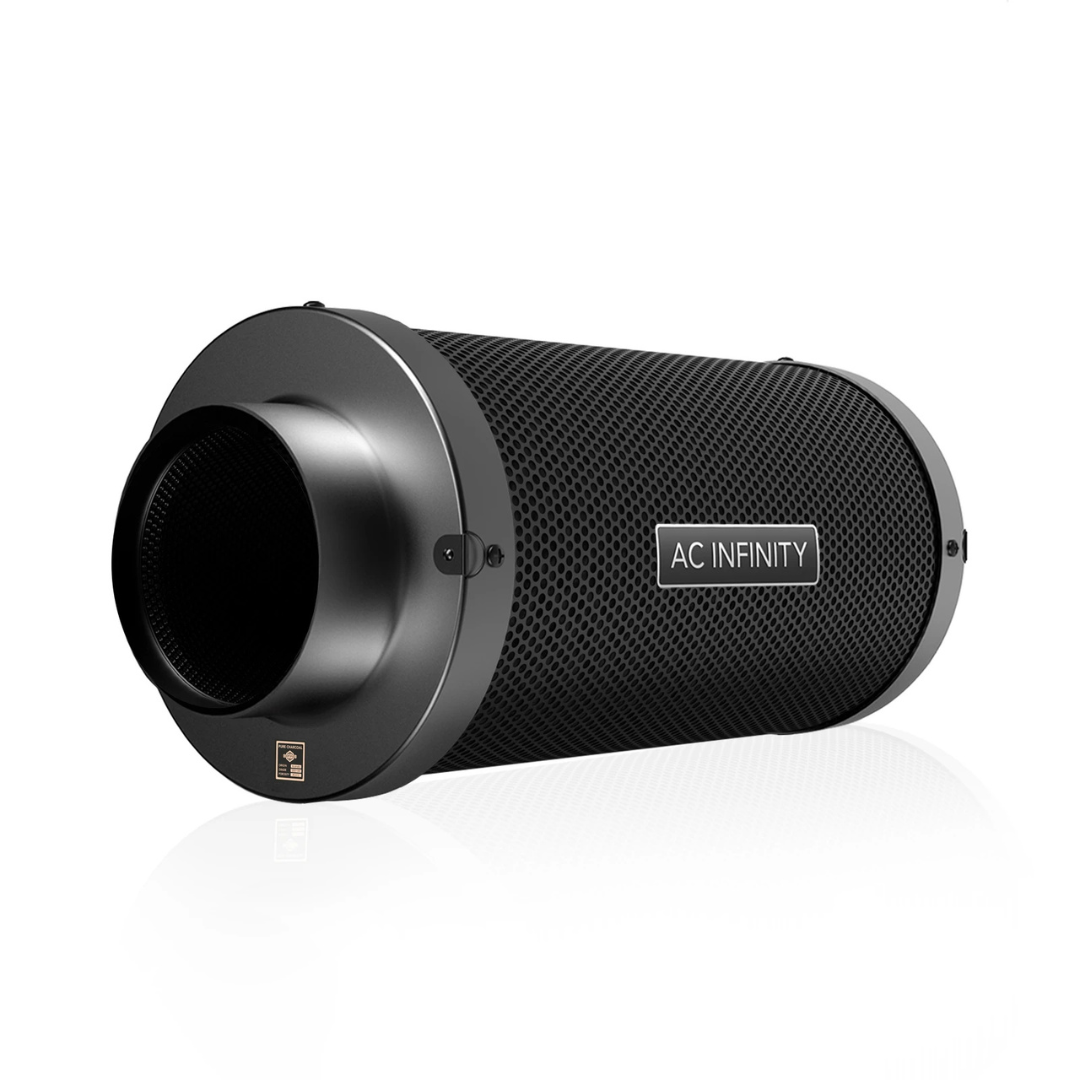

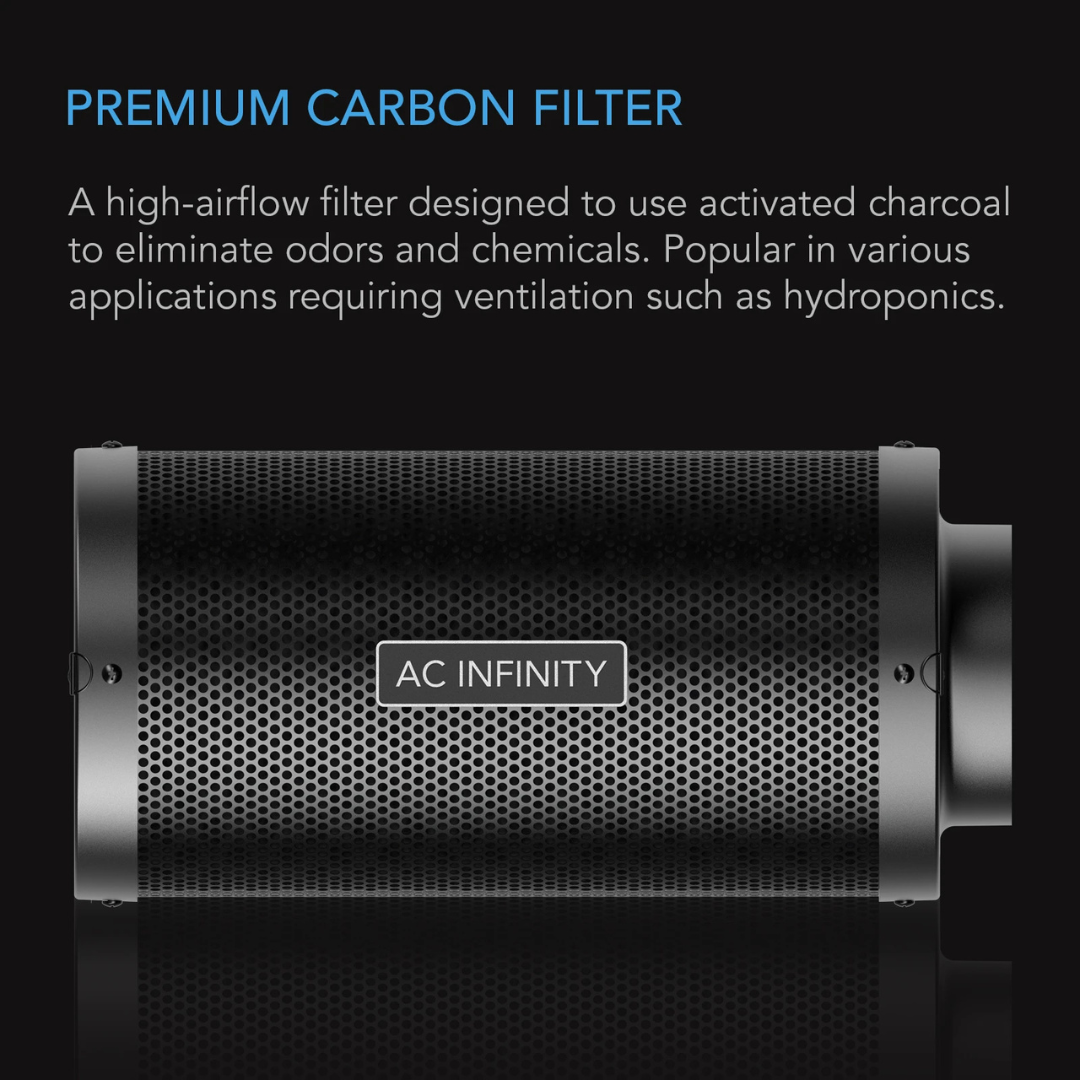

An 8-inch duct carbon filter designed to help control odors and chemicals in grow tents, hydroponic rooms, and other ventilation applications. It uses Australian virgin activated charcoal with RC412 microporosity and a 1200+ IAV rating.

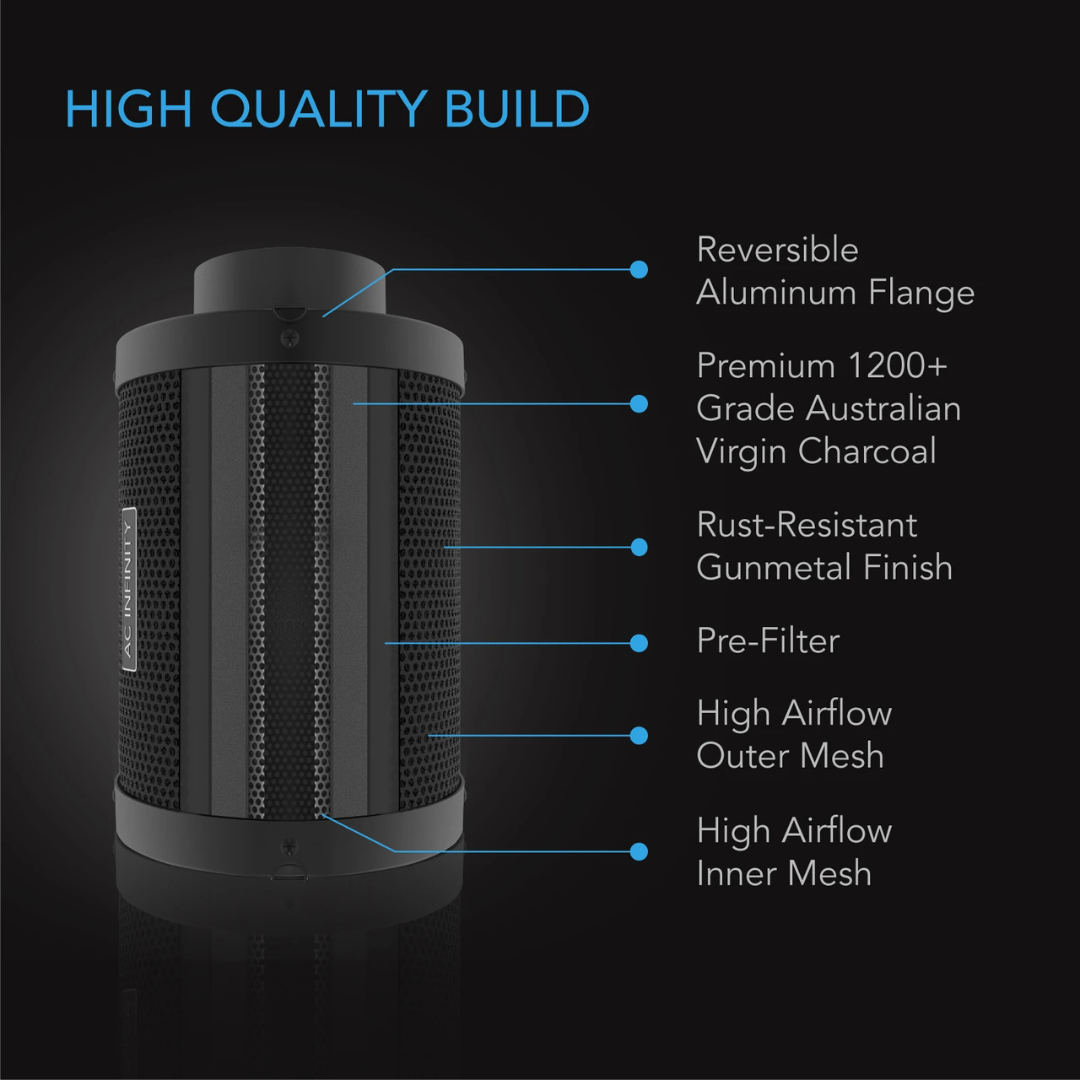

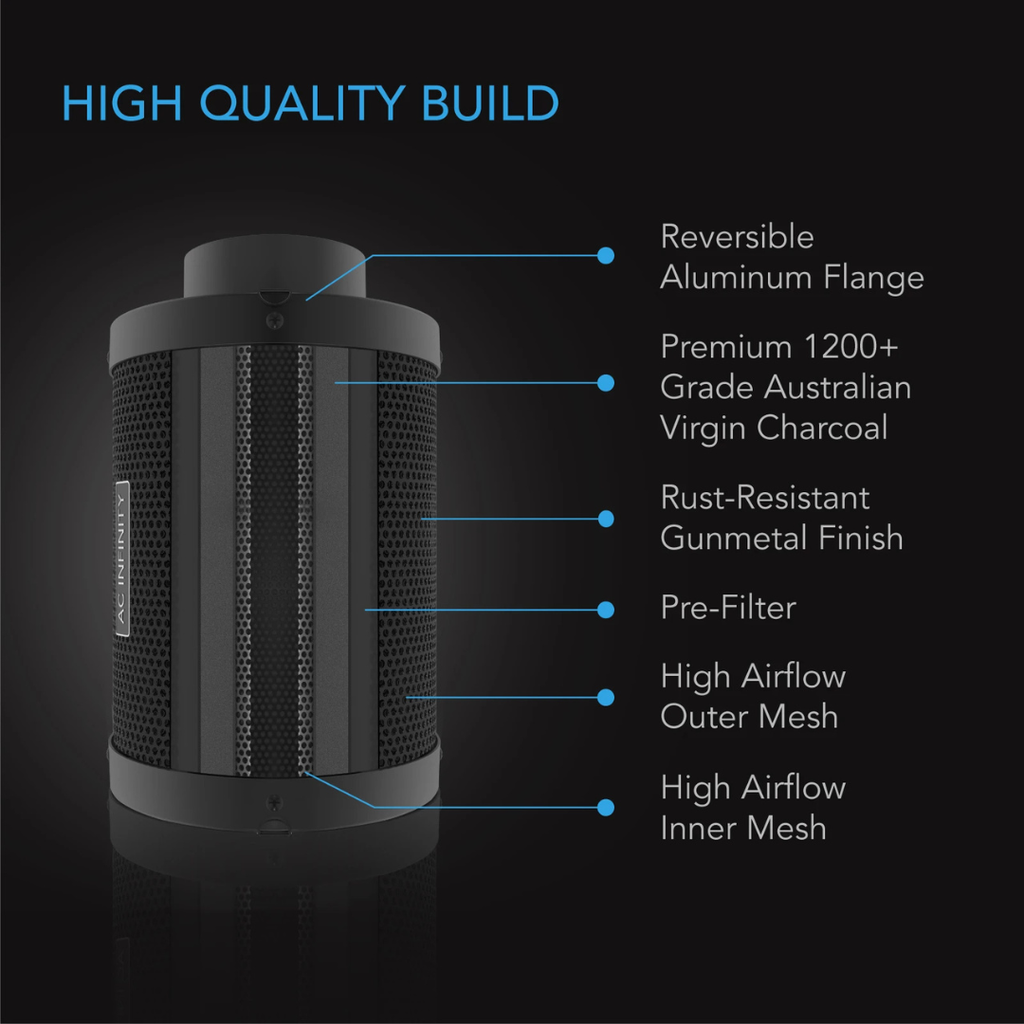

Its reversible aluminum flanges and galvanized steel mesh support intake and exhaust configurations. A powder-coated gunmetal finish helps protect the filter against rust and corrosion in high-humidity environments.
Key Features
-
Activated Carbon Filtration: Uses Australian virgin RC412 activated charcoal to adsorb odors and unwanted chemicals.
-
1200+ IAV Carbon Grade: Provides high adsorption through increased microporosity and surface area.
-
38 mm Carbon Bed: Supports odor adsorption while allowing airflow through the filter.
-
Reversible Flanges: The aluminum flanges can be moved to opposite ends to help utilize the entire carbon bed.
-

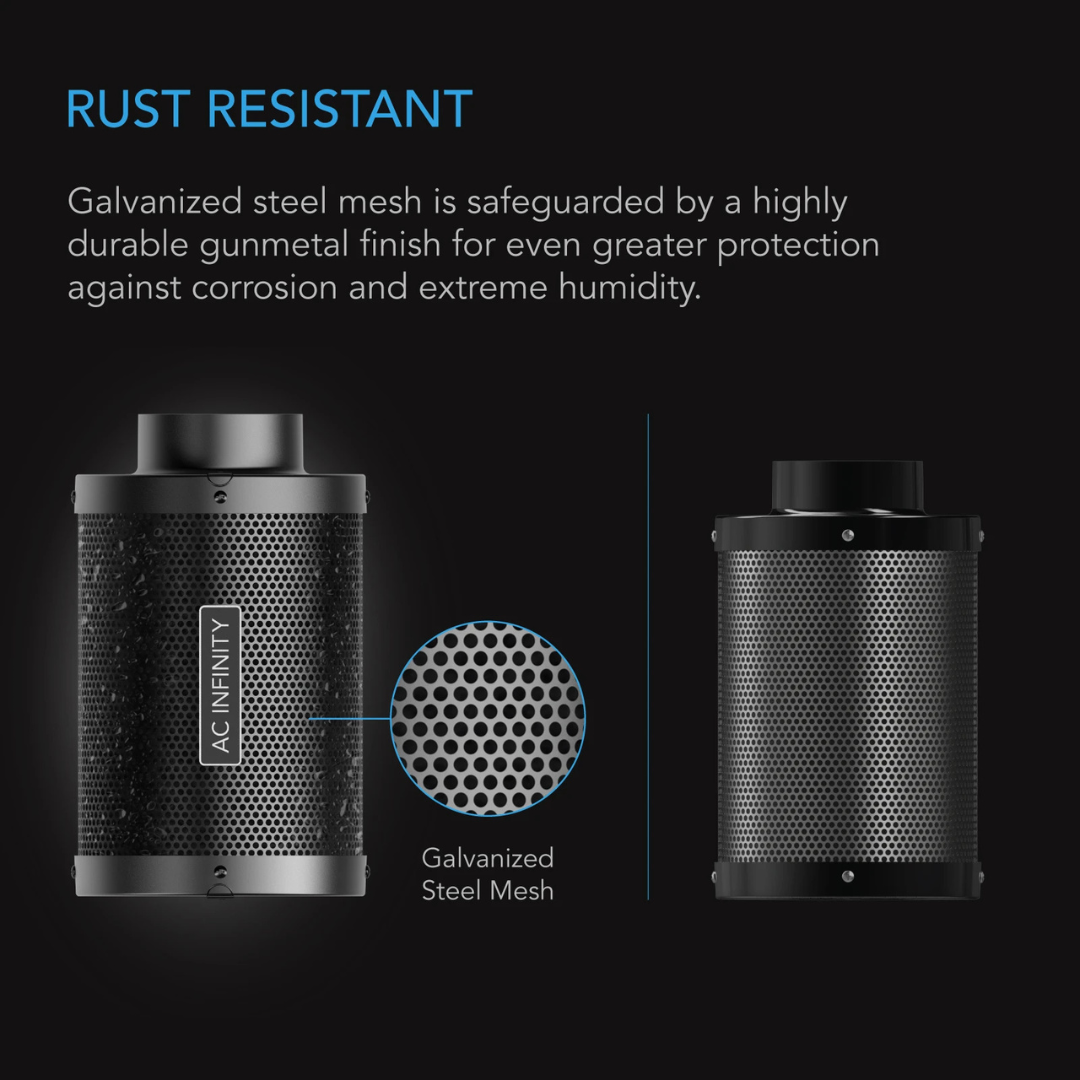

Rust-Resistant Construction: Dual-sided galvanized steel mesh has a powder-coated gunmetal finish for protection against corrosion and high humidity.
-
High-Airflow Design: Rated for airflow up to 770 CFM.
-

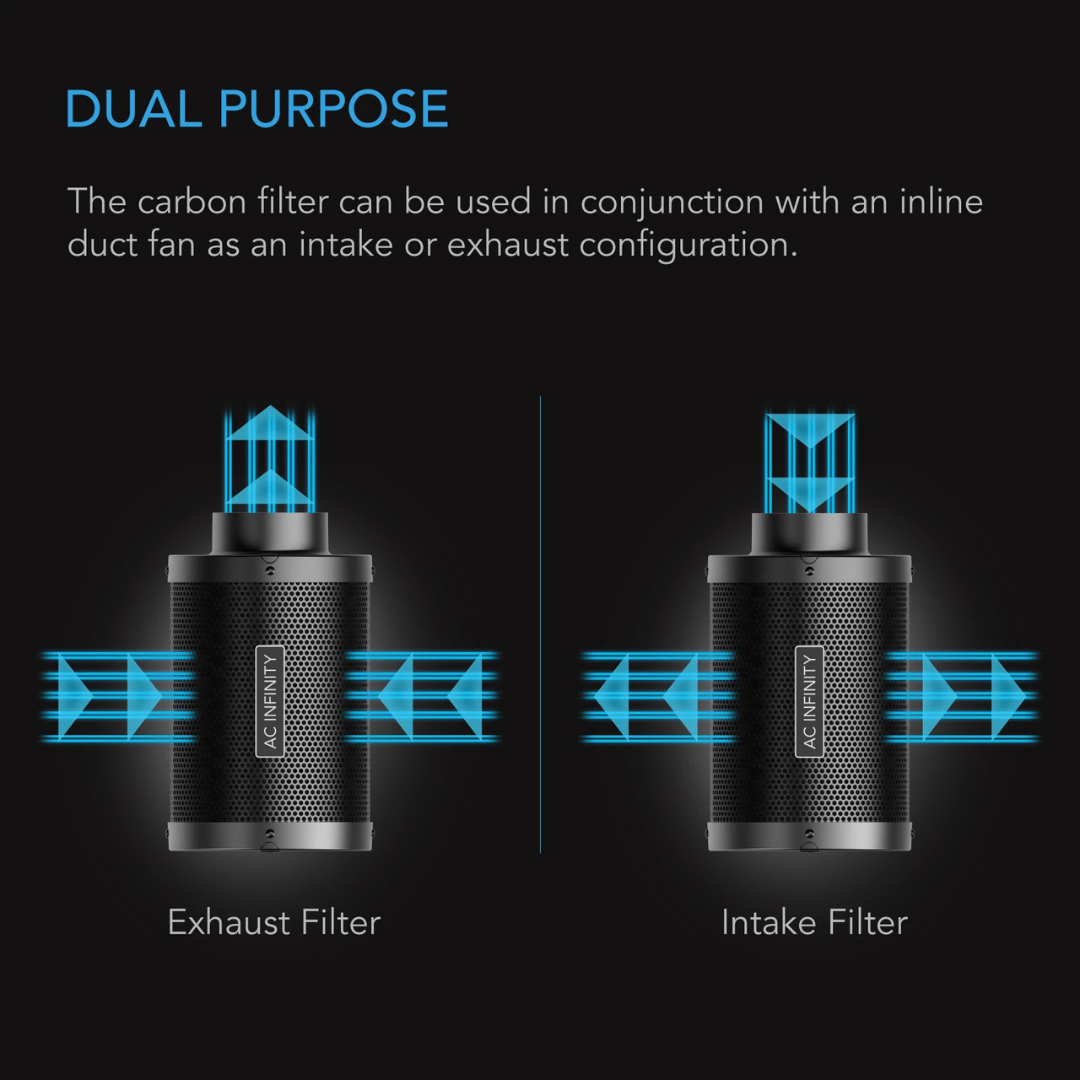

Intake and Exhaust Use: Can be connected to an inline duct fan in intake or exhaust configurations.
-

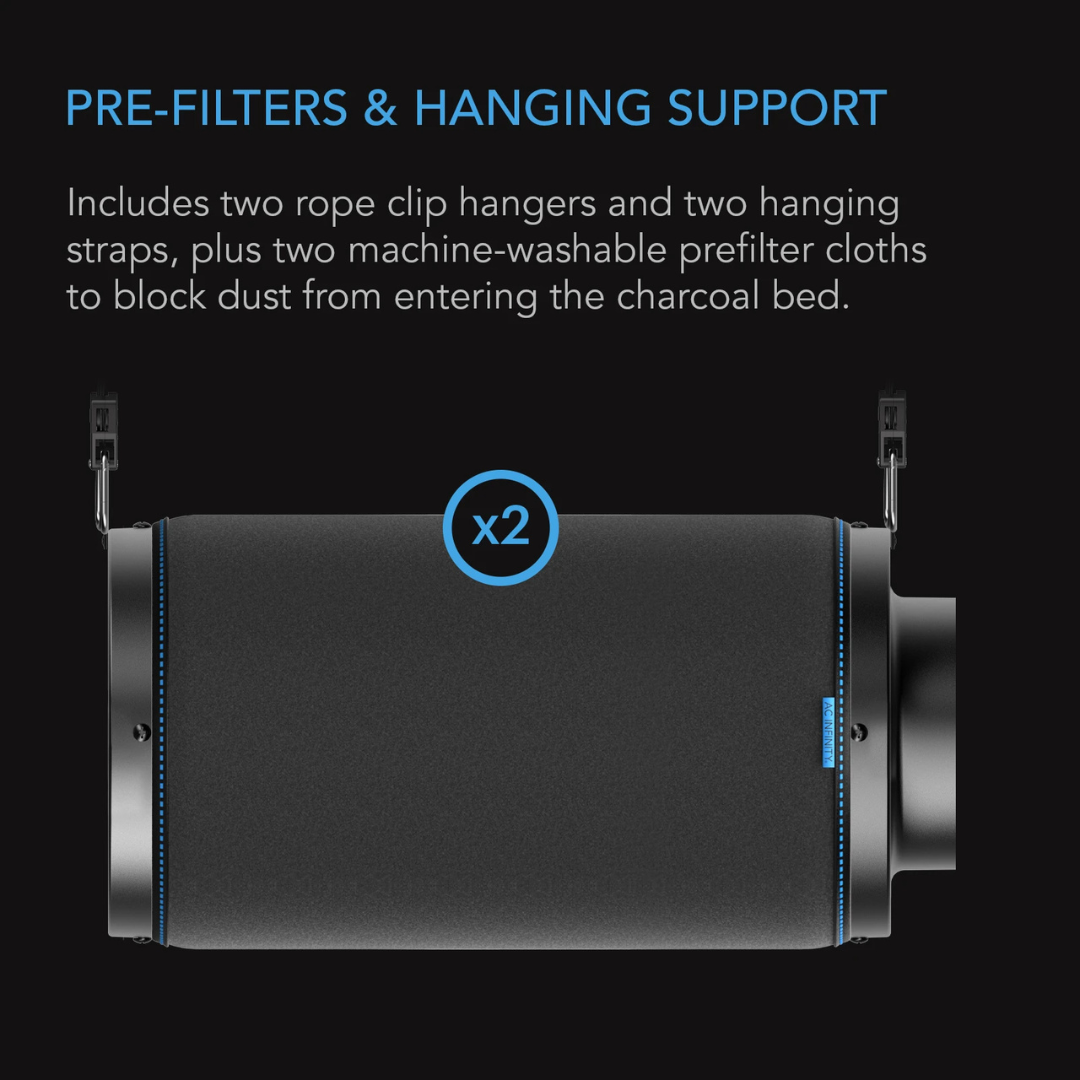

Reusable Prefilters: Includes 2 machine-washable prefilter cloths that help prevent carbon residue and other particles from passing through the filter.
-

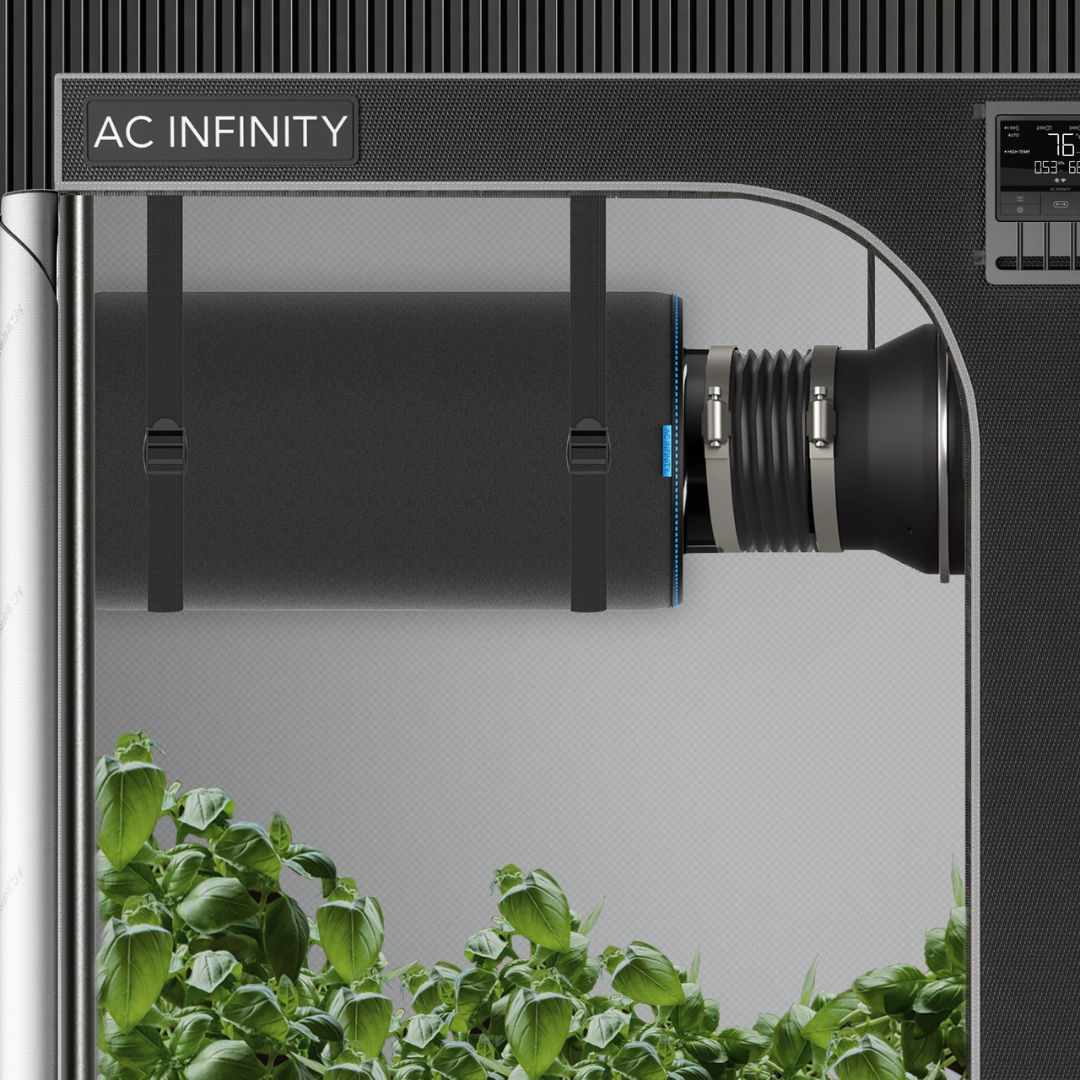

Hanging Accessories: Includes hanging straps and rope clip hangers for installation.

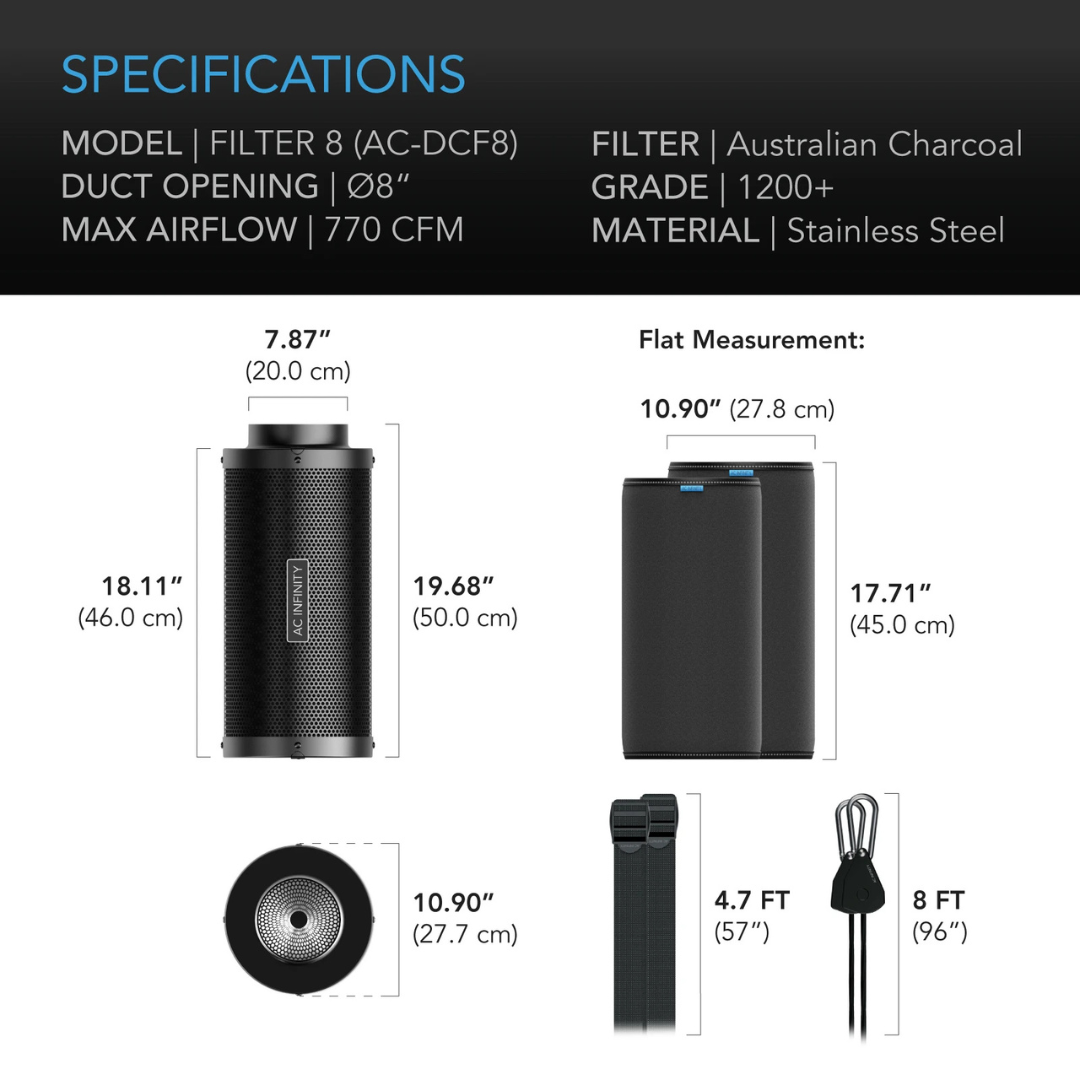

Specifications
-
Duct Opening Size: 8 in.
-
Total Dimensions: 18.11 x 10.90 in. (46.0 x 27.7 cm)
-
Flange Length: 3.39 in. (8.6 cm)
-
Flange Material: Aluminum
-
Flange Design: Reversible
-
Mesh Material: Rust-resistant galvanized steel with gunmetal finish
-
Carbon Type: Australian Virgin RC412
-
Carbon Grade: 1200+ IAV
-
Carbon Thickness: 38 mm
-
Maximum Airflow: 770 CFM
Size Guide
-
Compatible Duct Size: 8 in.
-
Filter Dimensions: 18.11 x 10.90 in. (46.0 x 27.7 cm)
-
Flange Length: 3.39 in. (8.6 cm)
Compatibility
Compatible With: 8-inch inline duct fans and ducting for intake and exhaust configurations.
Included
- 1 x Duct carbon filter
- 2 x Machine-washable prefilter cloths
- 2 x Hanging straps
- 2 x Rope clip hangers
Warranty
Warranty: 2-year warranty from the date of purchase.
