The IONBEAM S11 is a four-bar, full-spectrum LED lighting kit designed for supplemental, inter-canopy, under-canopy, or primary lighting in smaller indoor grow setups. Its 11-inch light bars help extend illumination into areas that may not be adequately reached by a primary grow light.
Each bar uses Samsung LM301H EVO diodes inside a unibody housing with an aluminum board for passive heat dissipation. Magnetic ends and included steel mounting bars support flexible placement on grow tent frames, canvas, or other compatible surfaces.
Key Features
-

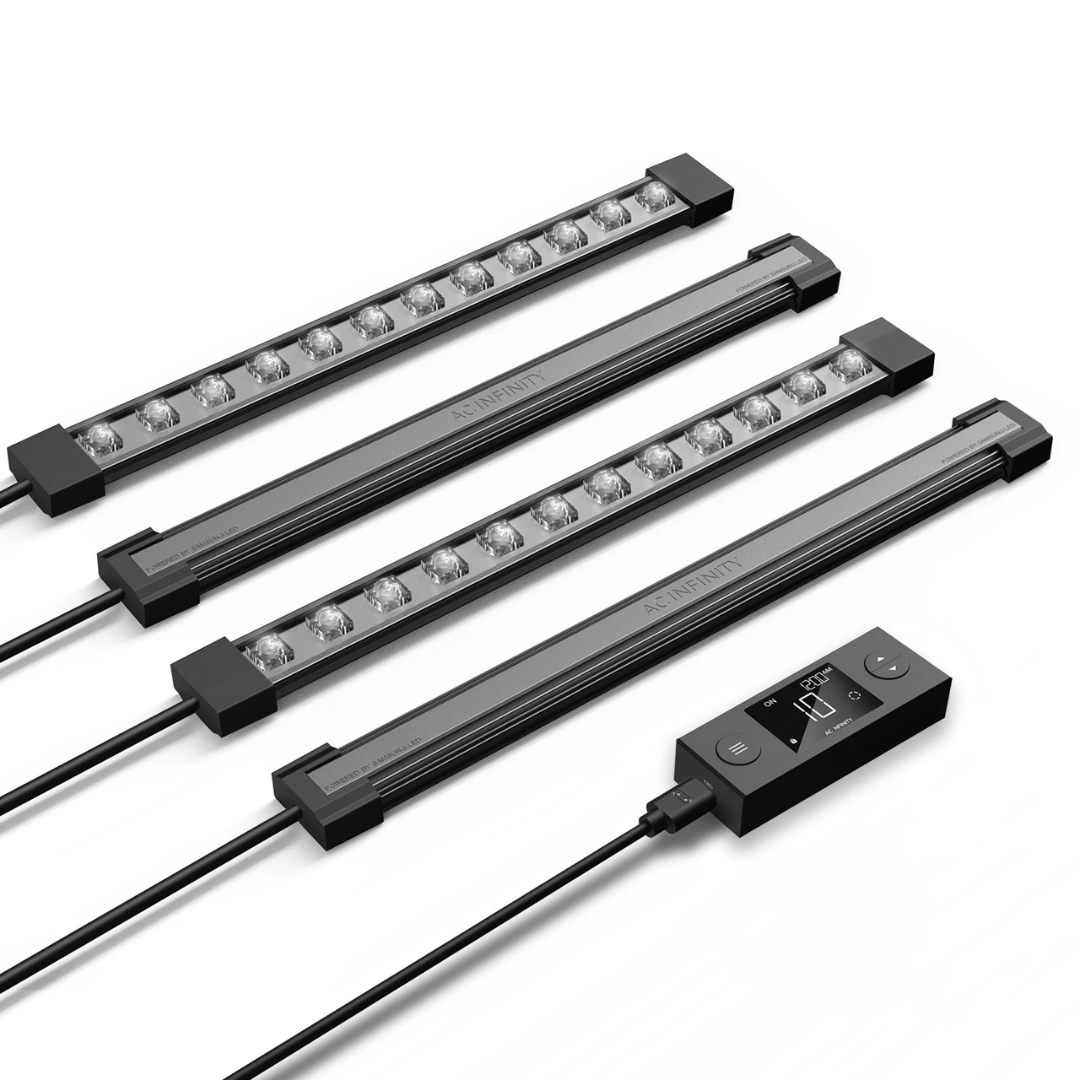

Four-Bar Lighting Kit: Includes four 11-inch LED light bars for supplemental, inter-canopy, under-canopy, or primary grow lighting.
-
Expanded Light Coverage: Helps illuminate dim corners and areas that primary grow lights may have difficulty reaching.
-

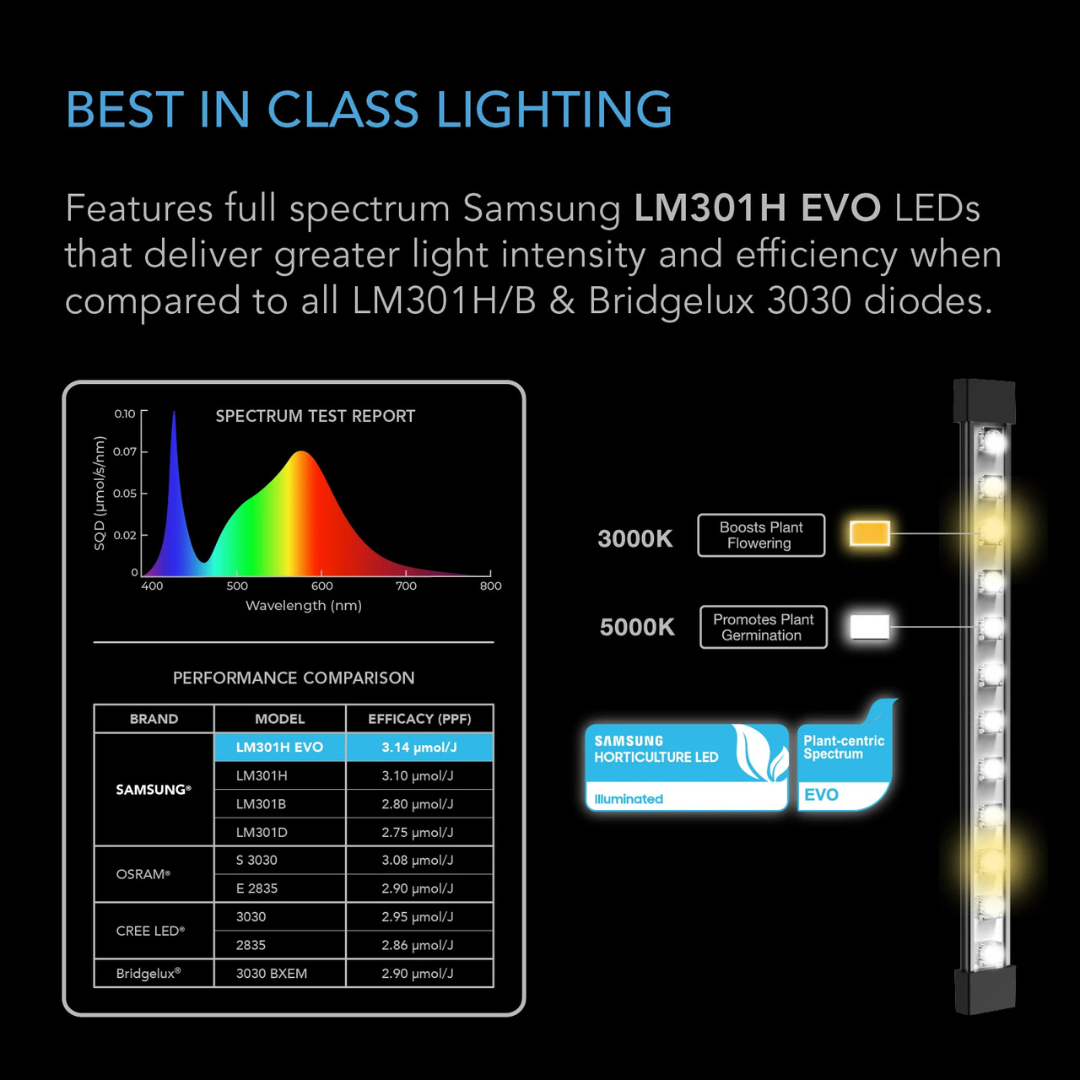

Samsung LM301H EVO Diodes: Each diode is rated at 3.14 µmol/J PPE and provides full-spectrum lighting for plant growth.
-
Full-Spectrum Output: Produces a 3000K and 5000K spectrum for use throughout plant growth cycles.
-

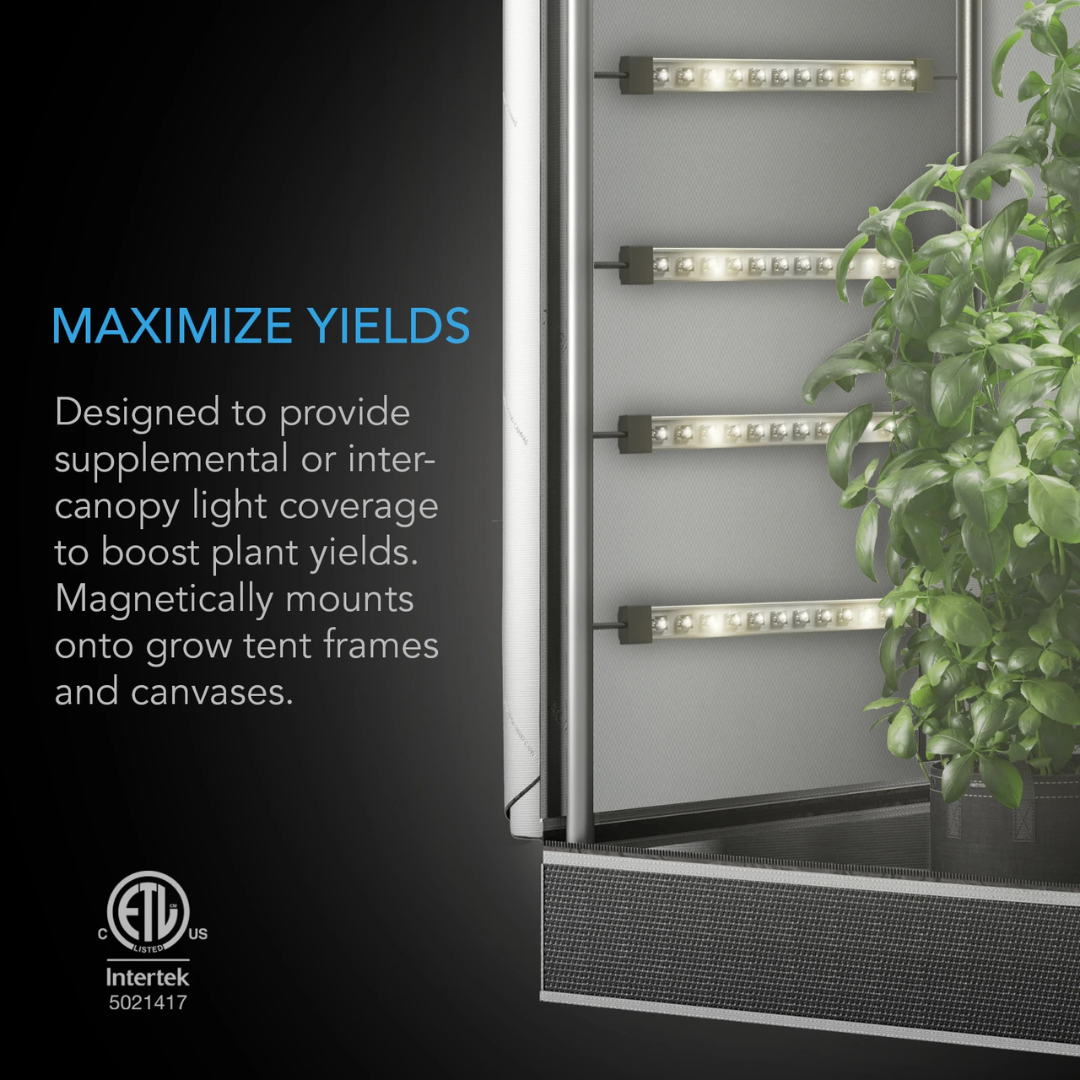

Magnetic Installation: Magnetic ends allow the light bars to mount directly onto steel grow tent frames.
-
Canvas Mounting: Included cold-rolled steel mounting bars allow magnetic placement through grow tent canvas.
-

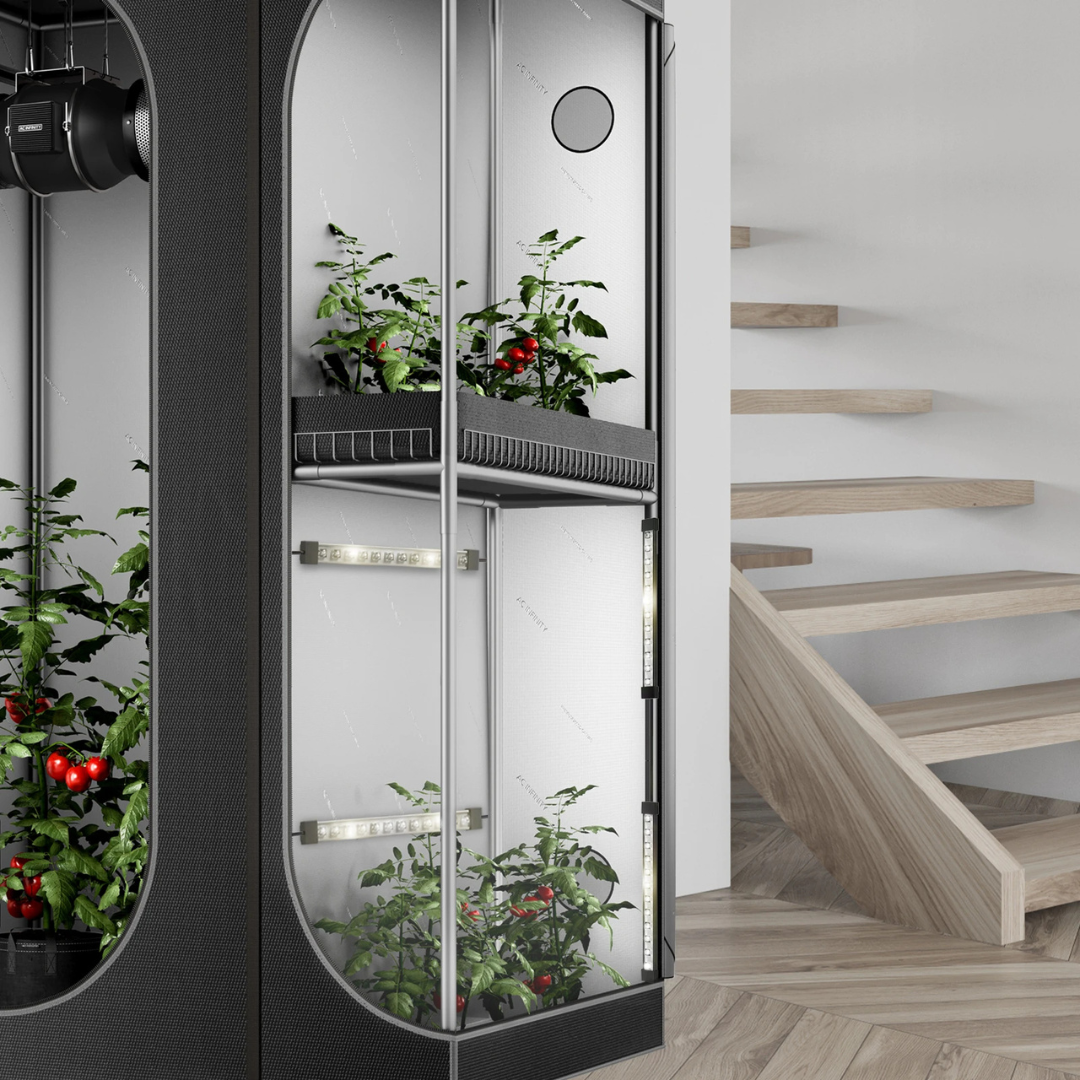

Flexible Positioning: Supports placement above, beside, between, or beneath the plant canopy.
-

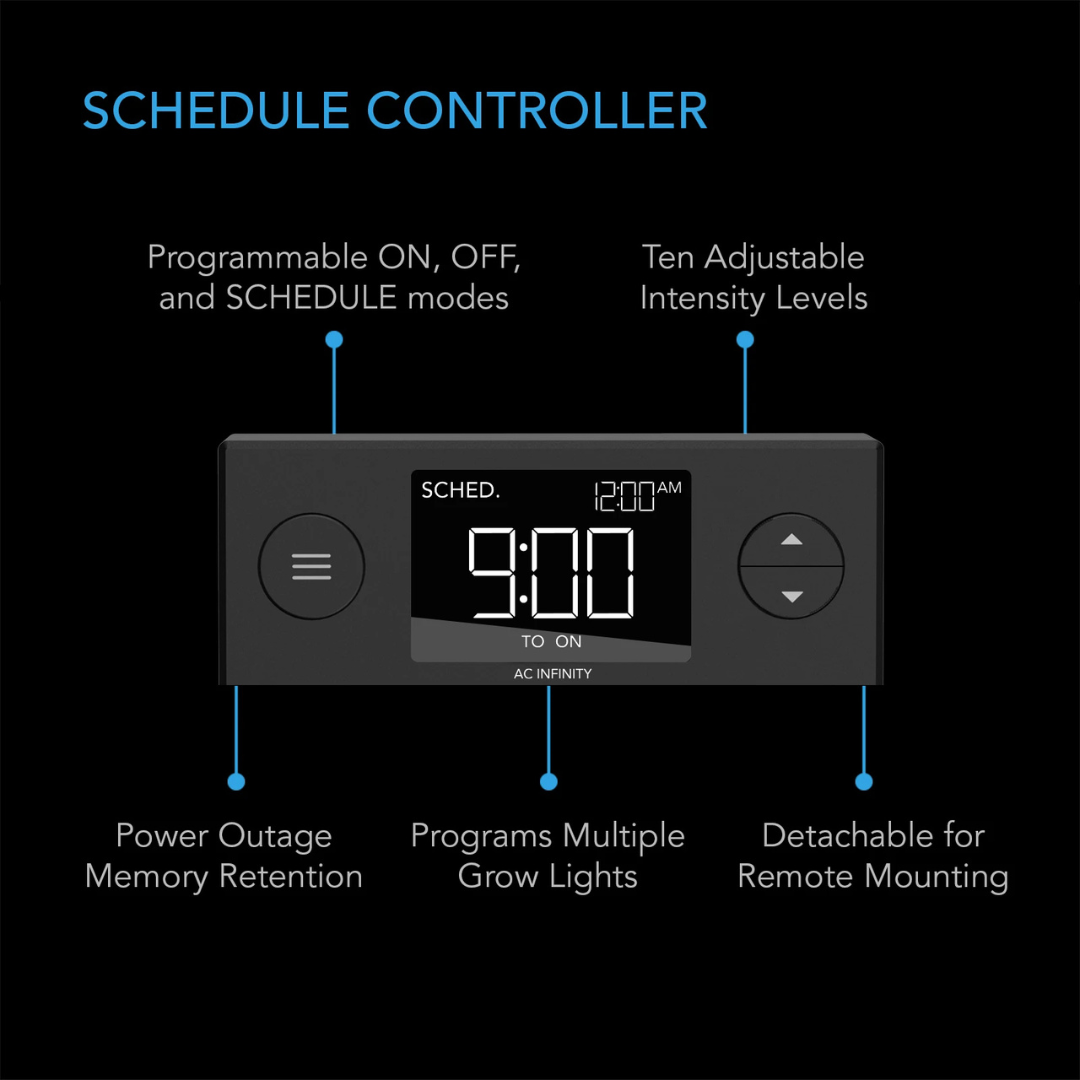

Dimming Schedule Controller: Provides 10 brightness levels with OFF, ON, SCHEDULE, and SUNSET/RISE modes.
-

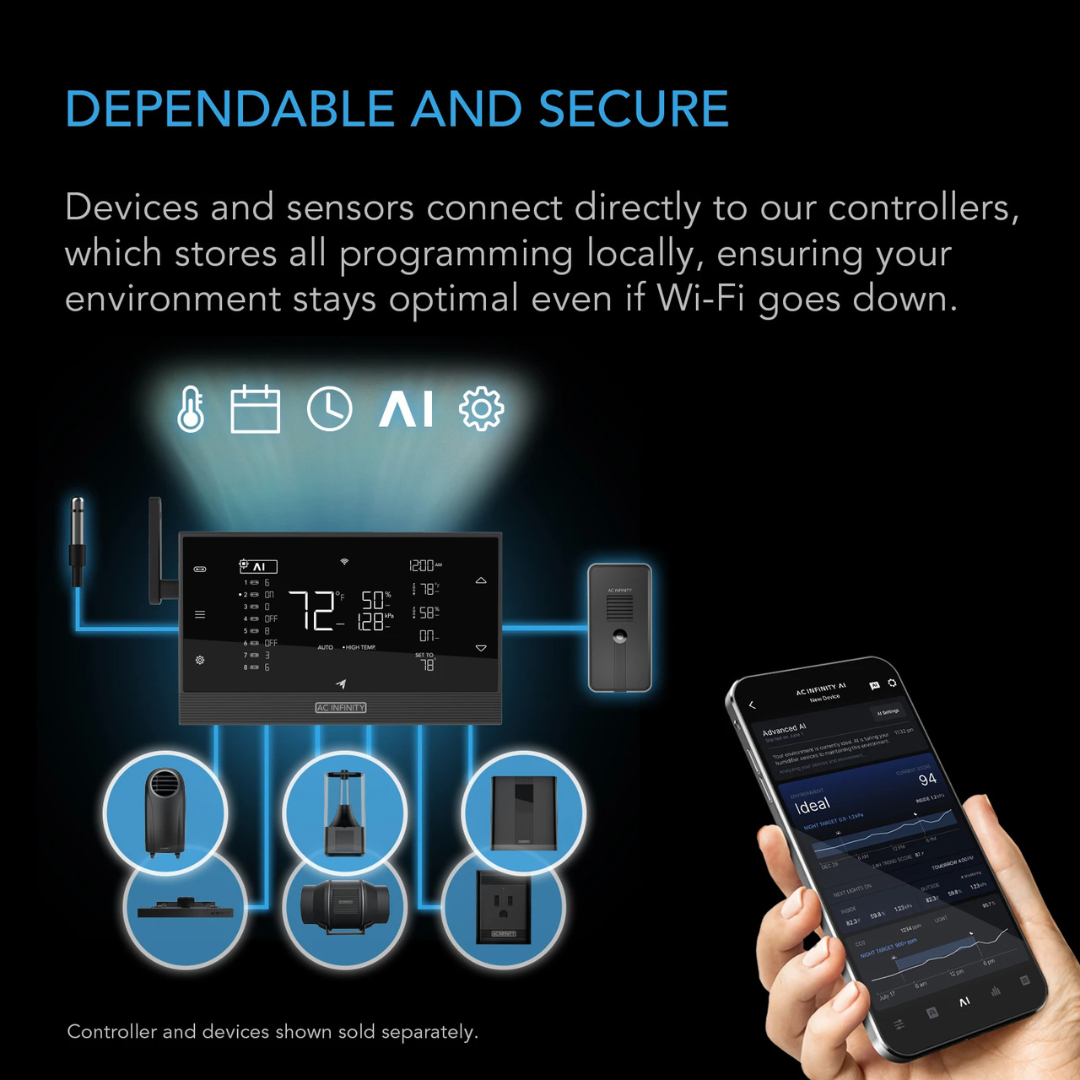

UIS Compatibility: Connects with compatible UIS controllers for integration with other grow equipment and access to additional programming features.
-
Expandable Lighting: Additional compatible light bars can be linked to extend lighting coverage.
-
Passive Heat Dissipation: The unibody housing and aluminum board dissipate heat without a fan.
-
IP65 Protection: The light bars resist water and dust entry for use in humid growing environments.
-
Propagation Compatibility: Compatible with humidity domes for seed germination and propagation applications.

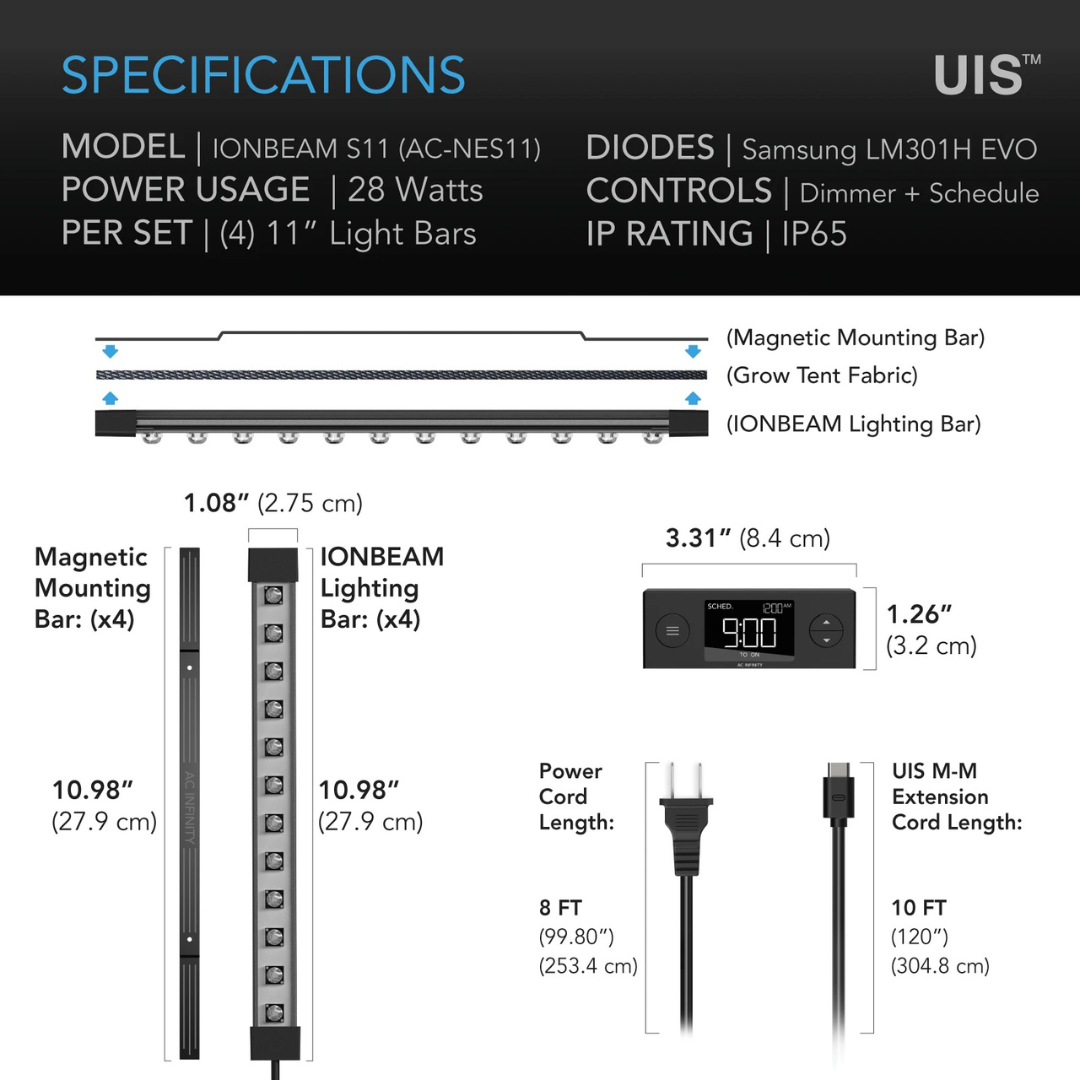

Specifications
-
Light Bar Quantity: 4
-
Light Dimensions: 10.98 x 1.08 in. (27.9 x 2.75 cm)
-
Controller Dimensions: 3.31 x 1.26 in. (8.4 x 3.2 cm)
-
Power Cord Length: 99.8 in. (253.4 cm)
-
Connector Cord Length: 9.1 in. (23.2 cm)
-
Diodes: Samsung LM301H EVO
-
LED Chip Count: 12 per bar
-
Diode Efficiency: 3.14 µmol/J PPE per diode
-
Spectrum: 3000K, 5000K
-
Wattage: 30 W
-
Voltage: 100-240V AC
-
Frequency: 50/60 Hz
-
Amperage: 0.06 A
-
Controller: Dimming Schedule Controller
-
Brightness Levels: 10
-
Controller Modes: OFF, ON, SCHEDULE, SUNSET/RISE, CLOCK
-
Power Connector Type: US Plug (NEMA 1-15 Type-A)
-
Waterproof Rating: IP65
-
Operating Humidity: 35-85% RH
-
Operating Temperature: 32-140°F
-
Life Expectancy: 50,000 hours
Size Guide
-
Light Bar Length: 10.98 in. (27.9 cm)
-
Light Bar Width: 1.08 in. (2.75 cm)
-
Number of Light Bars: 4
Compatibility
-
Compatible With: Select UIS controllers, additional compatible light bars, and humidity domes for seed germination and propagation applications.
-
Compatible Grow Tents: CLOUDLAB Advance Propagation Grow Tent 24 x 24 x 36 in.; CLOUDLAB 422; CLOUDLAB 722; CLOUDLAB 632; CLOUDLAB 642; CLOUDLAB 733; CLOUDLAB 844; CLOUDLAB 866; CLOUDLAB 811; CLOUDLAB 816; CLOUDLAB 899; CLOUDLAB 894; CLOUDLAB 632D; CLOUDLAB 743D; and CLOUDLAB 864D.
Included
- 4 LED grow light bars
- 1 lighting schedule controller
- 4 steel mounting bars
- Mounting screws
Warranty
-
Warranty: 2-year warranty from the date of purchase.
