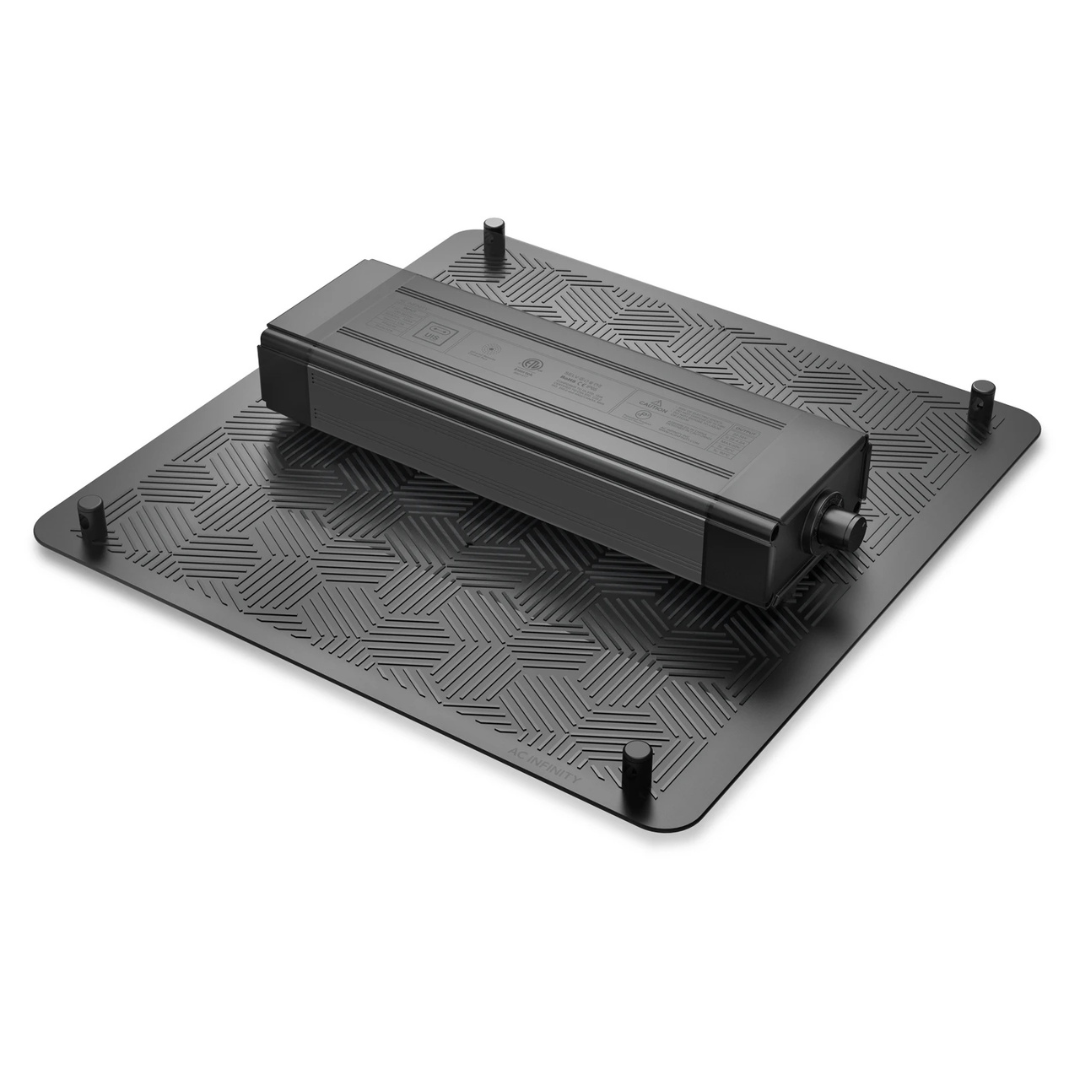

This 115W full-spectrum LED grow light board is designed to provide 2 ft. x 2 ft. coverage for indoor plants. Its Samsung LM301H diodes are algorithmically positioned to deliver uniform PAR distribution and deep canopy penetration throughout germination, vegetative, and flowering stages.
The fanless, unibody aluminum board dissipates heat without operating noise, while its IP65-sealed construction supports use in grow environments with higher humidity and temperatures. Built-in dimming provides adjustable light intensity, and UIS compatibility enables access to grow cycles, scheduling, and app controls when connected to a compatible smart controller.
Key Features
-

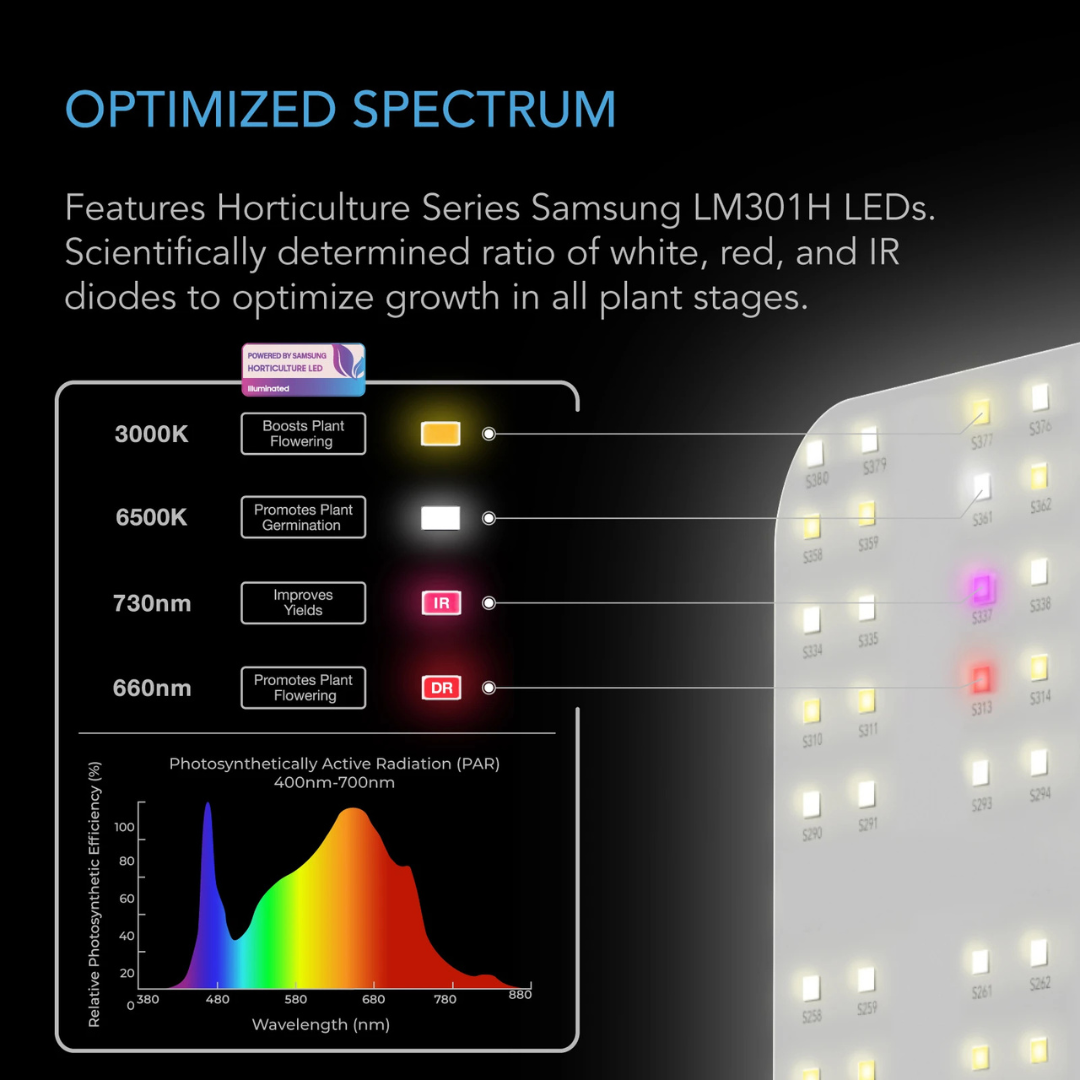

Full-Spectrum Lighting: Uses Samsung LM301H 3000K and 6500K white diodes with 660 nm and 730 nm output for all plant growth stages.
-

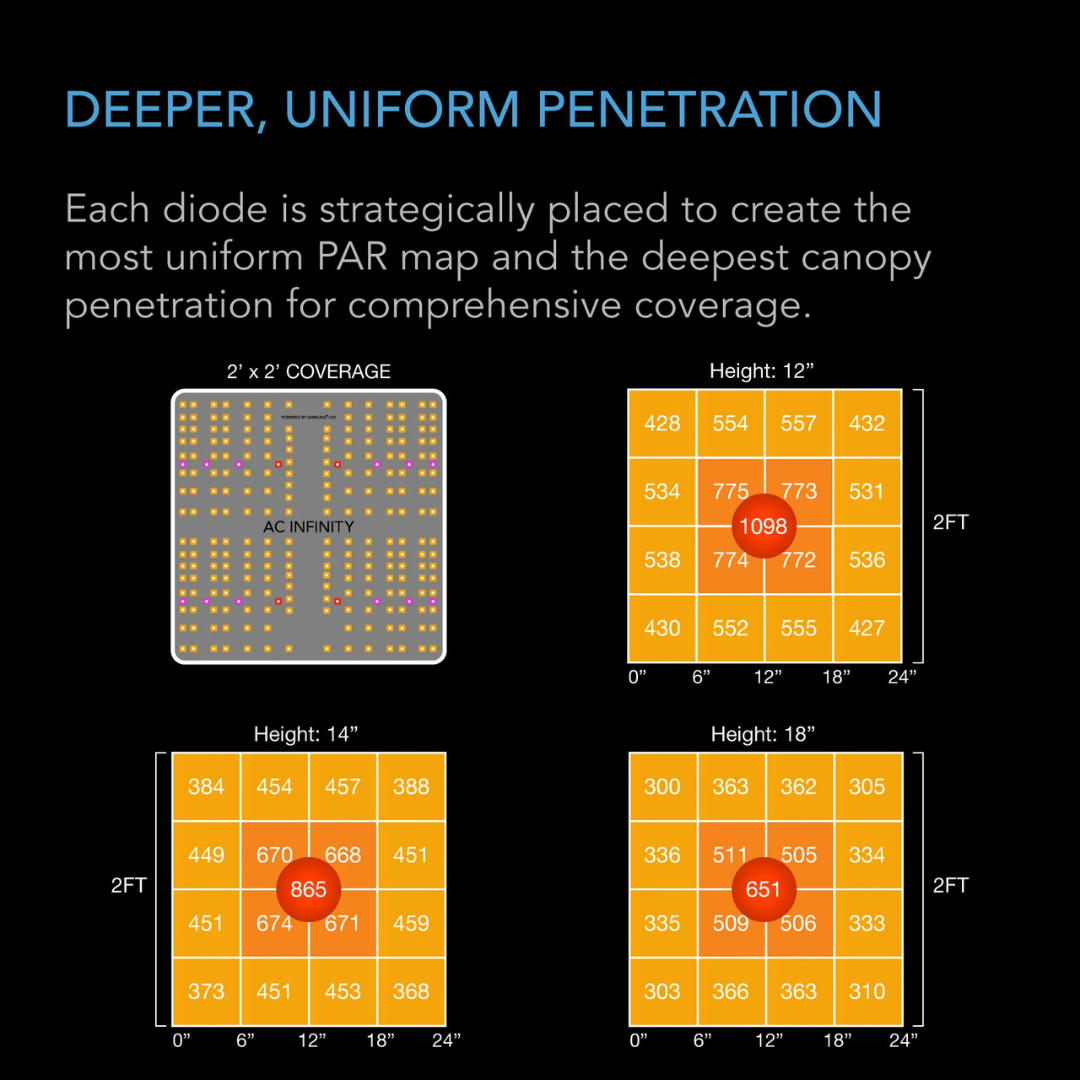

Uniform PAR Distribution: Algorithmically positioned diodes provide uniform PAR coverage and deep light penetration while reducing hot spots.
-

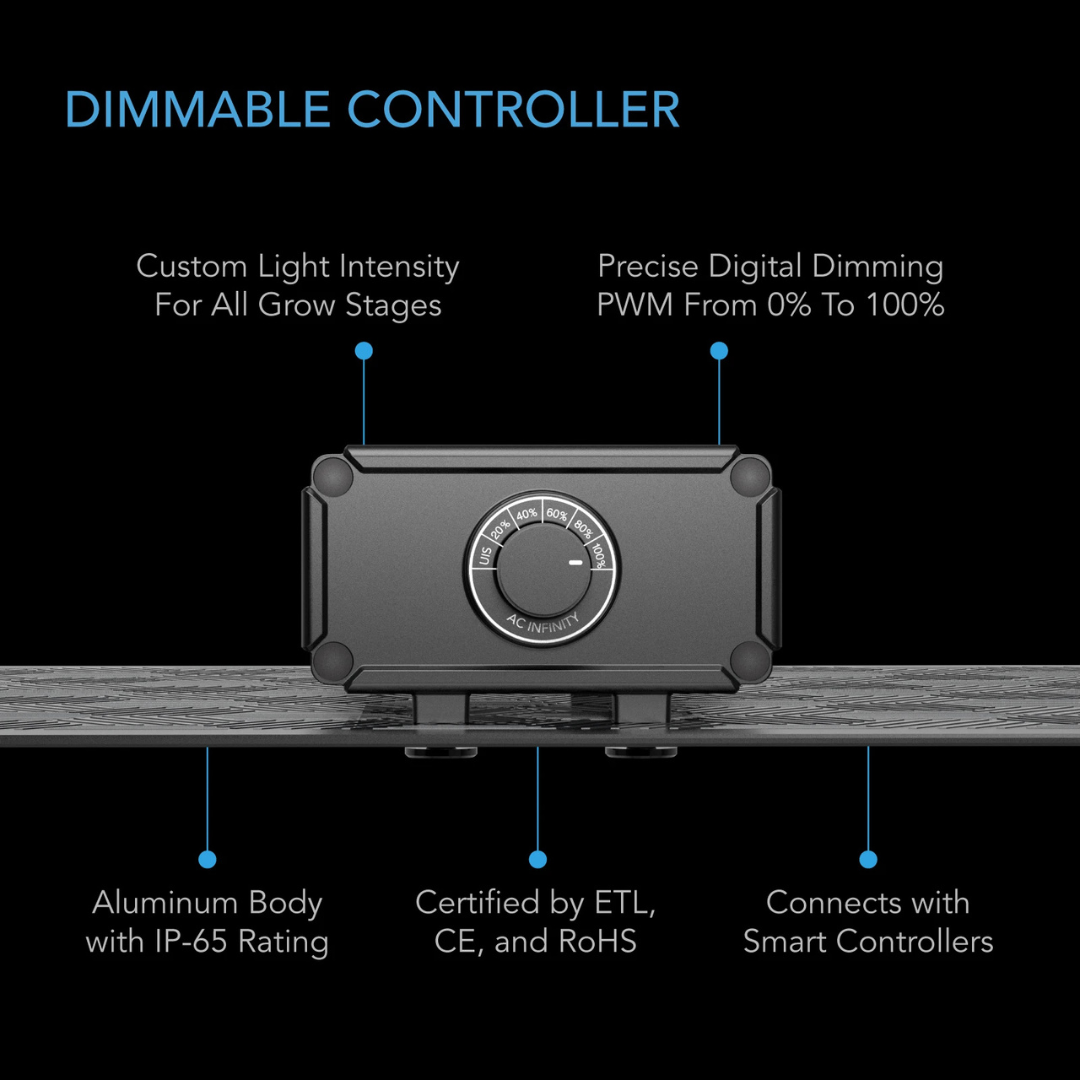

Adjustable Brightness: The proprietary LED driver supports 0–100% dimming through a control knob with 20%, 40%, 60%, 80%, and 100% intensity levels.
-
Fanless Heat Dissipation: The unibody aluminum board dissipates heat without a cooling fan.
-
IP65 Protection: Components are sealed to IP65 standards for protection against liquids and dust in grow tent environments.
-

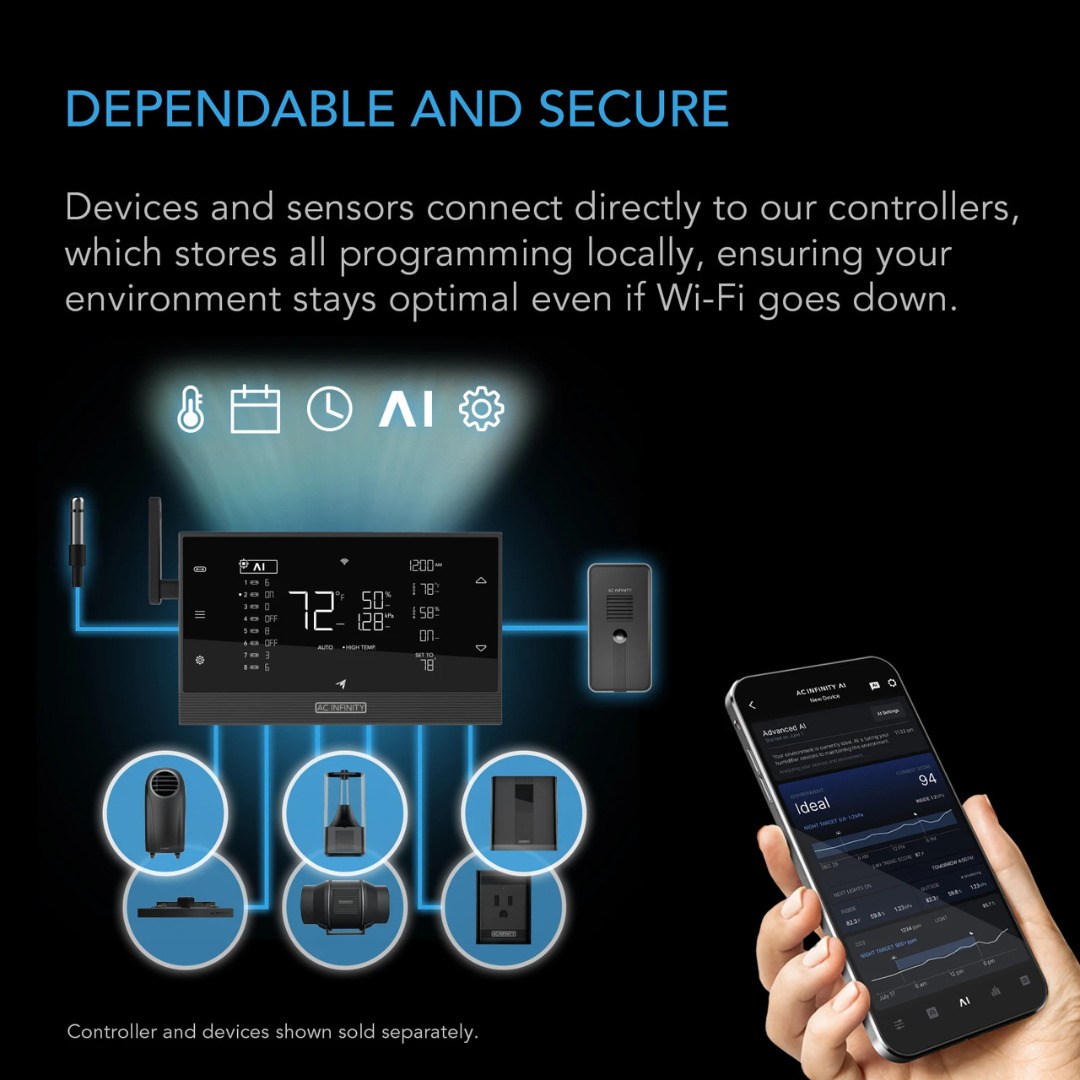

UIS Compatibility: Connects with compatible smart controllers for grow cycles, scheduling, automation programming, and app controls.
-
Daisy-Chain Connectivity: The driver includes a connection port for pairing with additional LED grow lights using expansion dongles sold separately.
-

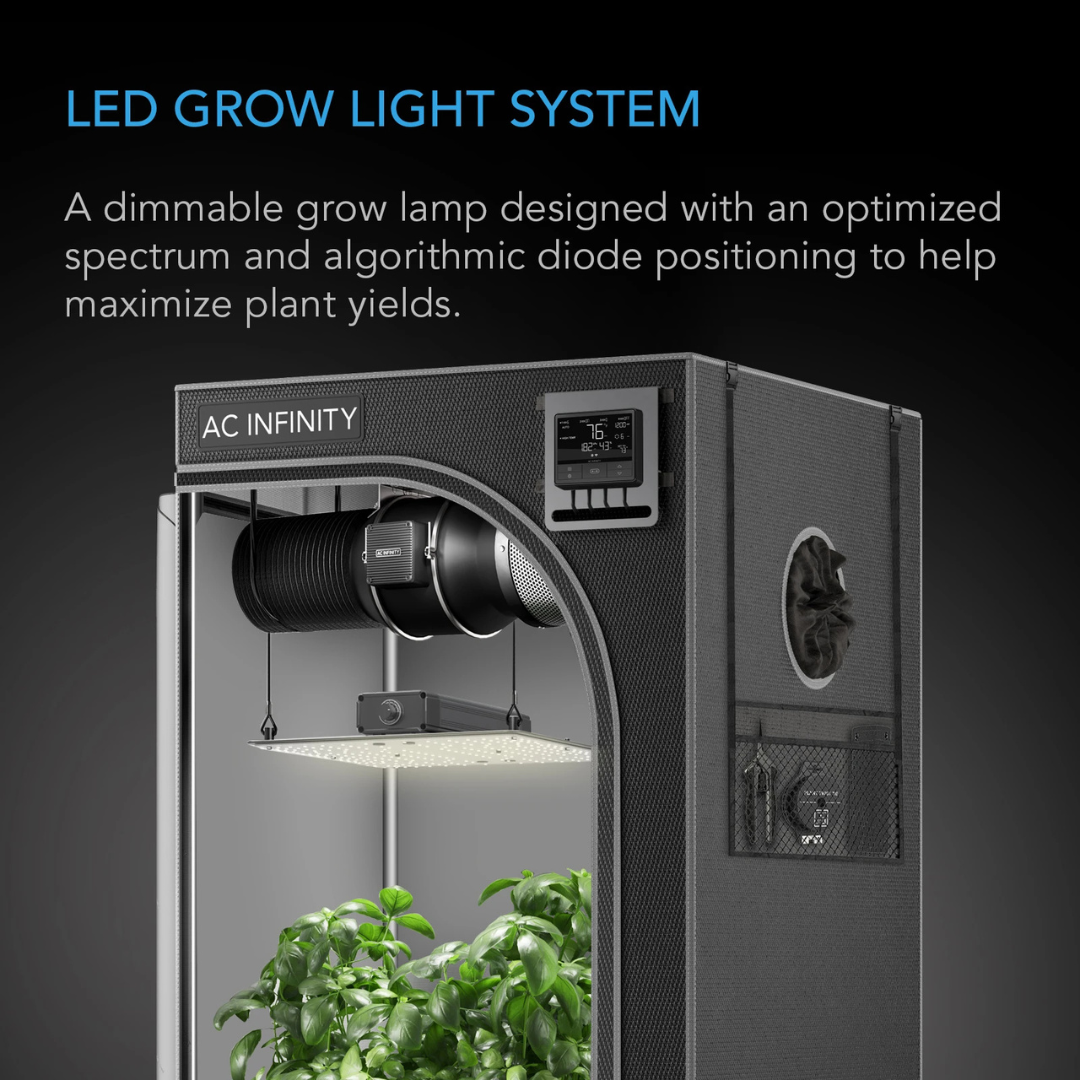

Indoor Cultivation: Designed for grow tents with reflective Mylar interiors and for cultivating plants, fruits, and vegetables.

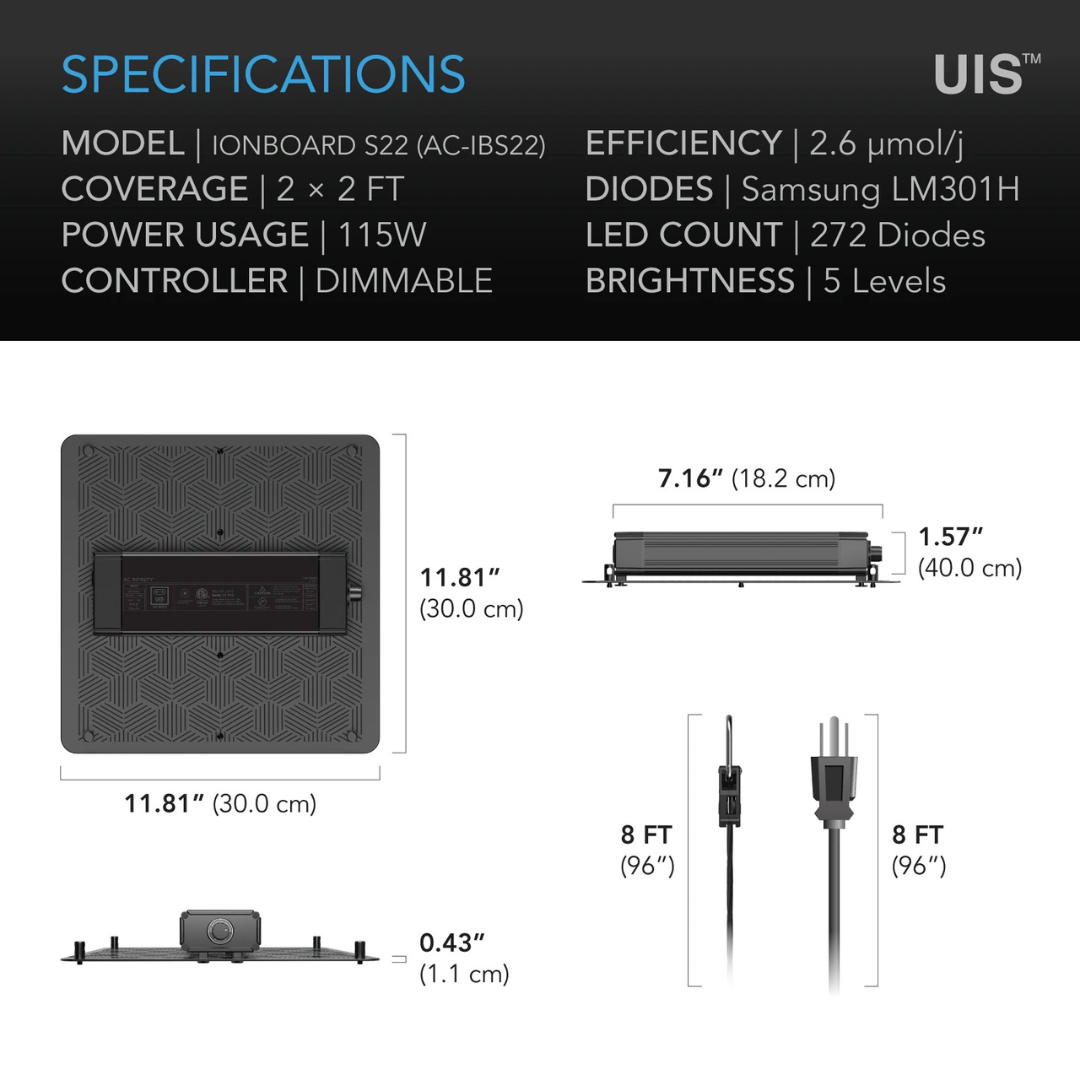

Specifications
-
Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)
-
LED Board Thickness: 0.43 in. (1.1 cm)
-
Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)
-
Coverage: 2 x 2 ft.
-
Diodes: Samsung LM301H
-
LED Chip Count: 272
-
LED Driver: AC Infinity Proprietary Driver IB-150
-
Efficiency: 2.7 µmol/J
-
PPFD: 1098 PPFD
-
Spectrum: 660 nm, 730 nm, 3000K, 6500K
-
Wattage: 115 W
-
Voltage: 100–277V AC
-
Frequency: 50/60 Hz
-
Amperage: 0.94 A @ 120V | 0.47 A @ 240V | 0.40 A @ 277V
-
Controller: Digital Dimming Timer
-
Dimming Levels: 20%, 40%, 60%, 80%, and 100%
-
Power Connector Type: US Plug (NEMA 1-15 Type-A)
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 32–140°F
-
Life Expectancy: 50,000 hours
-
Construction: Fanless unibody aluminum board
-
Frame Material: Black anodized aluminum
-
Protection Rating: IP65
-
Certification: ETL certified
Size Guide
-
Light Dimensions: 11.81 x 11.81 in. (30.0 x 30.0 cm)
-
Coverage Area: 2 x 2 ft.
Compatibility
Compatible With: UIS smart controllers for grow cycles, scheduling, automation programming, and app controls.
Compatible Grow Tents:
- CLOUDLAB Advance Propagation Grow Tent 24 in. x 24 in. x 36 in.
- CLOUDLAB 422 – Advance Grow Tent 24 in. x 24 in. x 48 in.
- CLOUDLAB 722 – Advance Grow Tent 24 in. x 24 in. x 72 in.
- CLOUDLAB 632 – Advance Grow Tent 36 in. x 24 in. x 72 in.
- CLOUDLAB 642 – Advance Grow Tent 48 in. x 24 in. x 72 in.
- CLOUDLAB 733 – Advance Grow Tent 36 in. x 36 in. x 72 in.
- CLOUDLAB 844 – Advance Grow Tent 48 in. x 48 in. x 80 in.
- CLOUDLAB 866 – Advance Grow Tent 60 in. x 60 in. x 80 in.
- CLOUDLAB 811 – Advance Grow Tent 120 in. x 120 in. x 80 in.
- CLOUDLAB 816 – Advance Grow Tent 120 in. x 60 in. x 80 in.
- CLOUDLAB 899 – Advance Grow Tent 96 in. x 96 in. x 80 in.
- CLOUDLAB 894 – Advance Grow Tent 96 in. x 48 in. x 80 in.
- CLOUDLAB 632D – Advance Grow Tent 36 in. x 24 in. x 72 in.
- CLOUDLAB 743D – Advance Grow Tent 48 in. x 36 in. x 72 in.
- CLOUDLAB 864 – Advance Grow Tent 60 in. x 48 in. x 80 in.
Included
- Grow Light (x1)
- LED Driver (x1)
- Rope Clip (x2)
- Stainless Steel Hanging Hook (x2)
- Hook-and-Loop Tie Set (x4)
- UIS M-M Cord (x1)
- Wire Tie Set (x1)
Warranty
Warranty: 2 years from the date of purchase against defects in manufacturing, material, or workmanship, subject to the official warranty terms.
