The IONBOARD S44 is a 430W full-spectrum LED grow light designed to provide 4 ft. x 4 ft. coverage in indoor grow tents with reflective Mylar lining. Its Samsung LM301H diodes are algorithmically positioned to create uniform light distribution and deeper canopy penetration throughout germination, vegetative, and flowering stages.
A fanless unibody aluminum construction supports passive heat dissipation, while IP65-sealed components provide protection in humid and high-temperature grow environments. The built-in dimmer offers adjustable light intensity, and UIS compatibility enables expanded scheduling, grow-cycle, and app controls when connected to a compatible smart controller.
Key Features
-

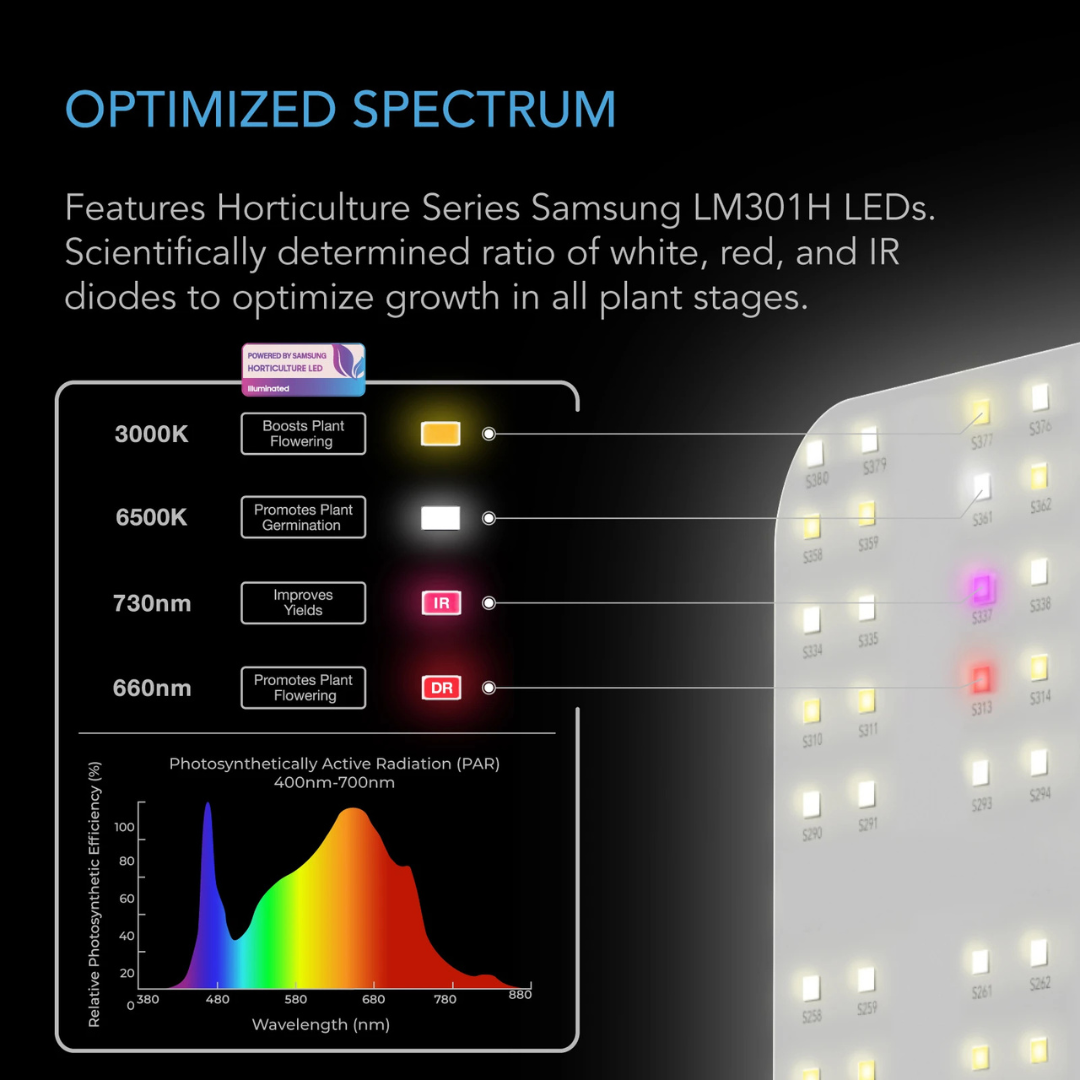

Full-Spectrum Lighting: Uses Samsung LM301H diodes with 660nm, 730nm, 3000K, and 6500K light for multiple plant growth stages.
-

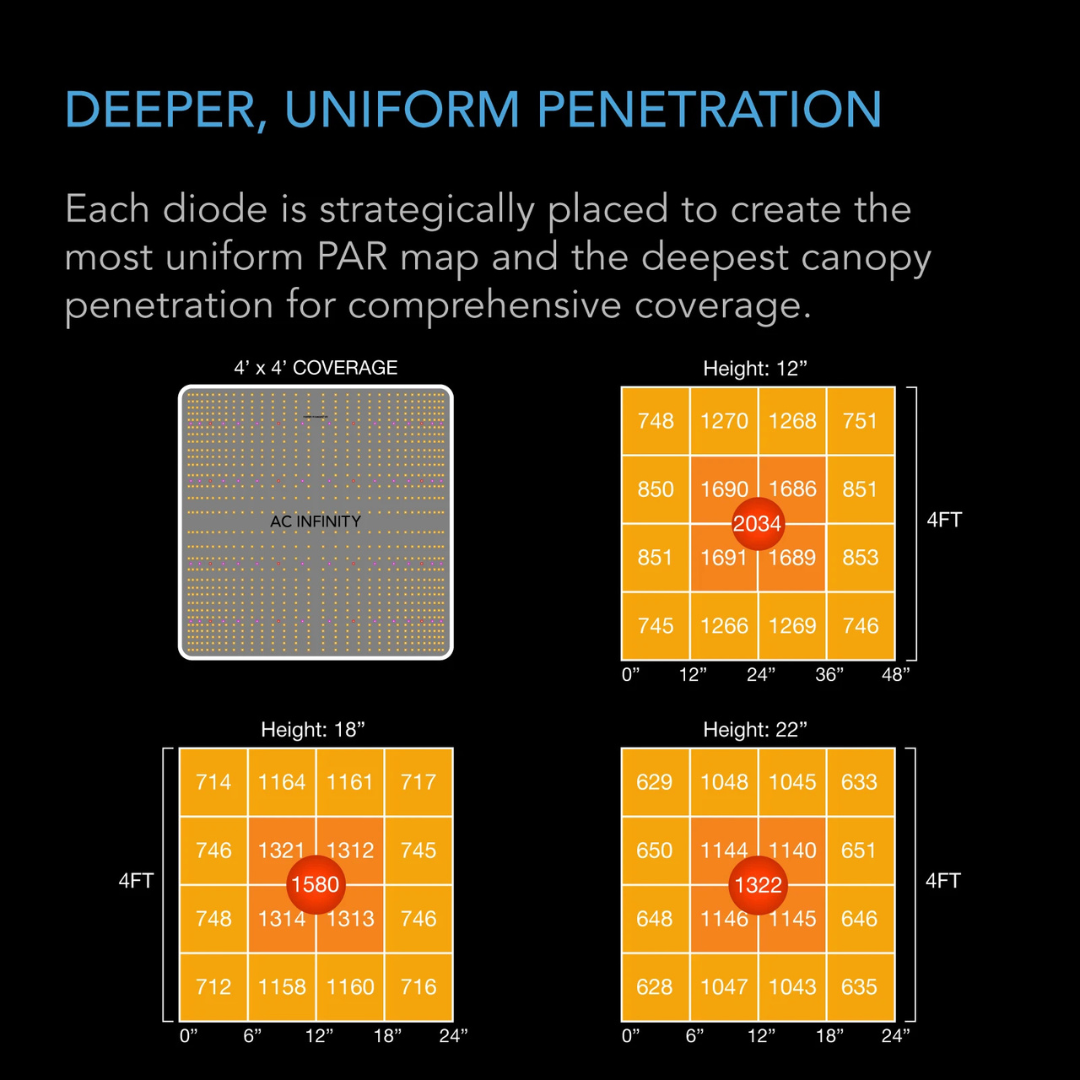

Uniform Light Distribution: Algorithmically positioned diodes provide an even PAR map, wider light spread, and deeper canopy penetration.
-

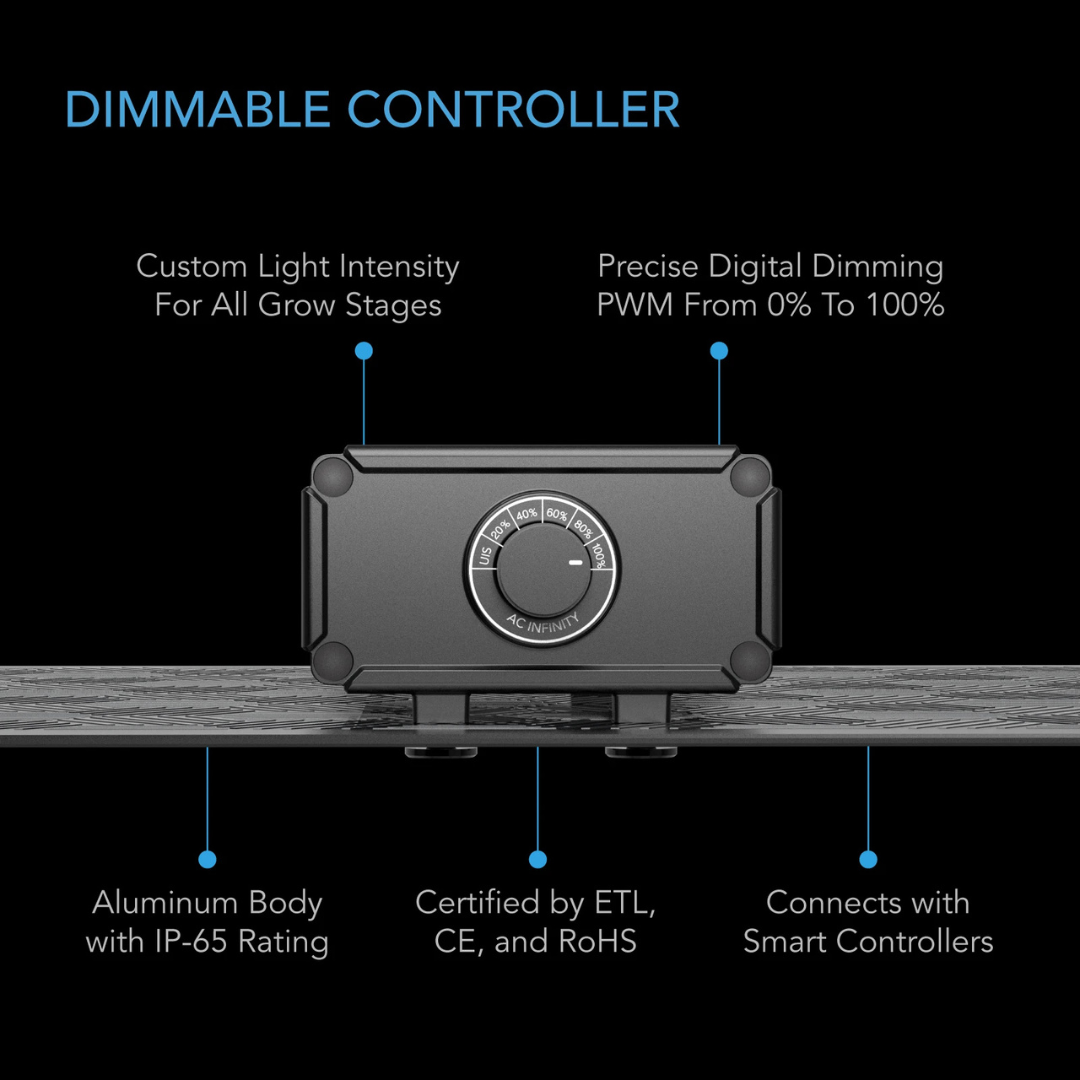

Adjustable Brightness: The built-in dimmer adjusts light intensity from 0% to 100% in 20% increments.
-

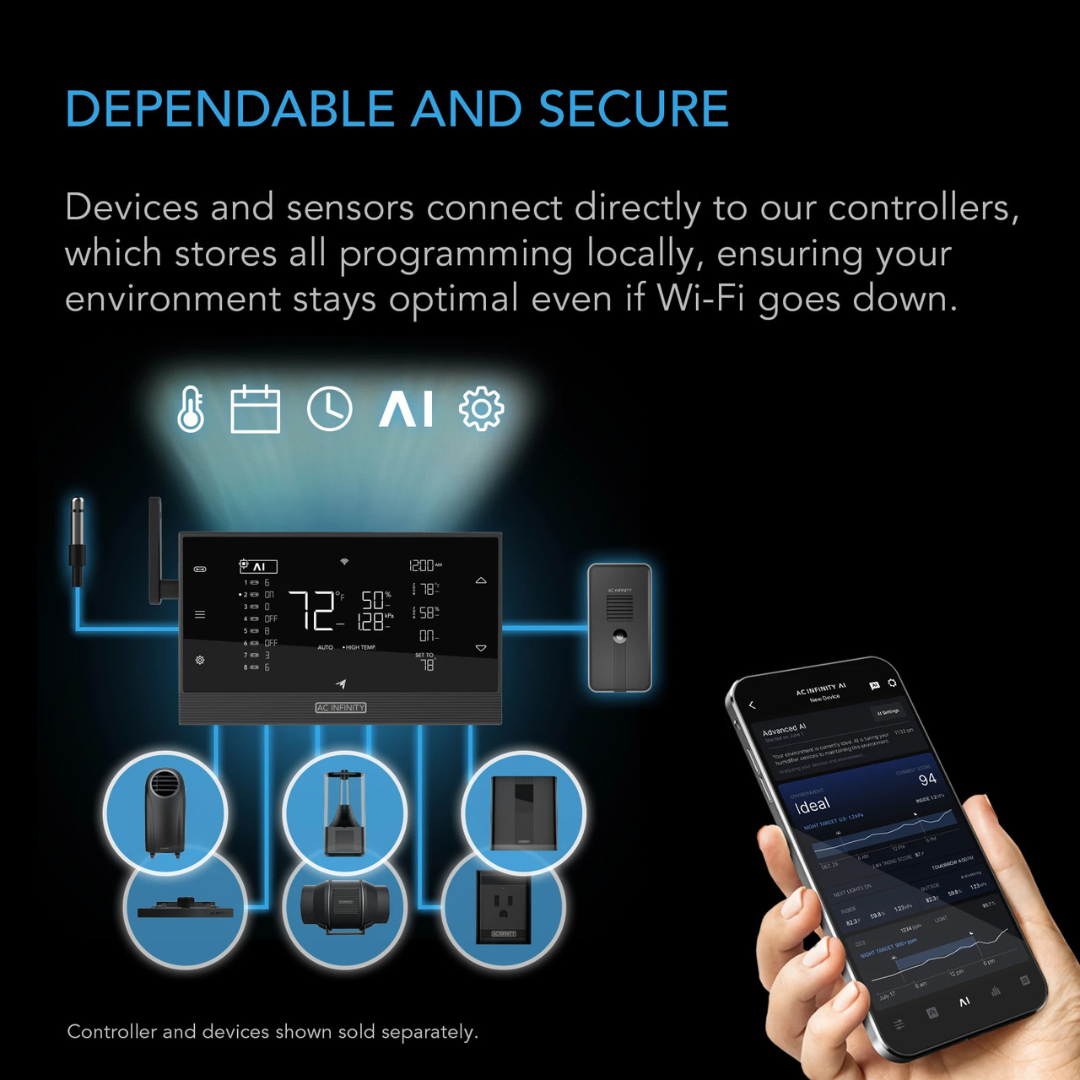

UIS Compatibility: Connects with compatible smart controllers for grow cycles, scheduling, app control, and additional programming options.
-
Expandable Lighting: Supports connection with additional LED grow lights when used with compatible expansion dongles, sold separately.
-

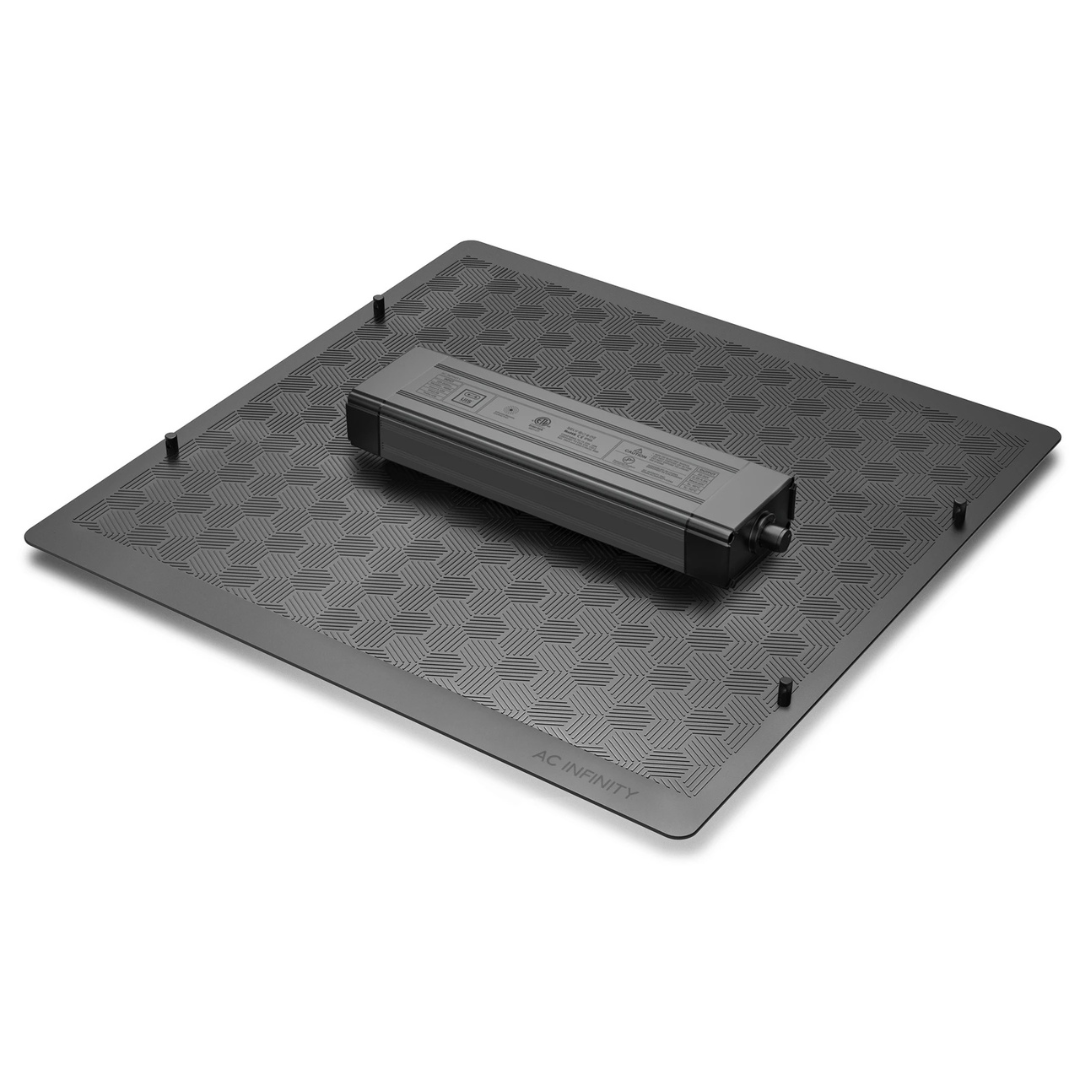

Fanless Heat Dissipation: The unibody aluminum board provides passive, noise-free heat dissipation.
-
IP65 Protection: Sealed components help maintain performance in grow environments with higher humidity and temperatures.
-

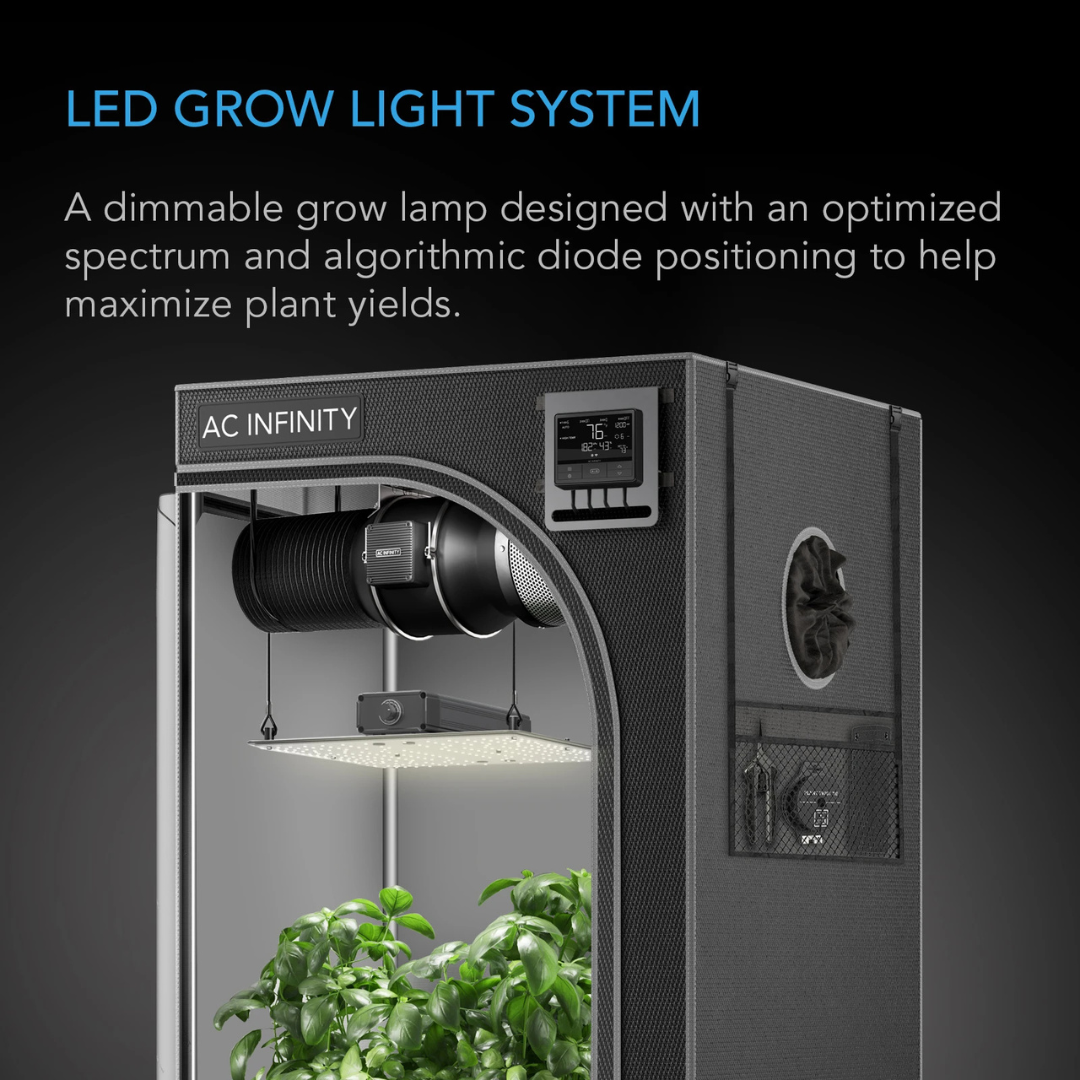

Indoor Growing Application: Designed for grow tents with reflective Mylar interiors and the cultivation of plants, fruits, and vegetables.

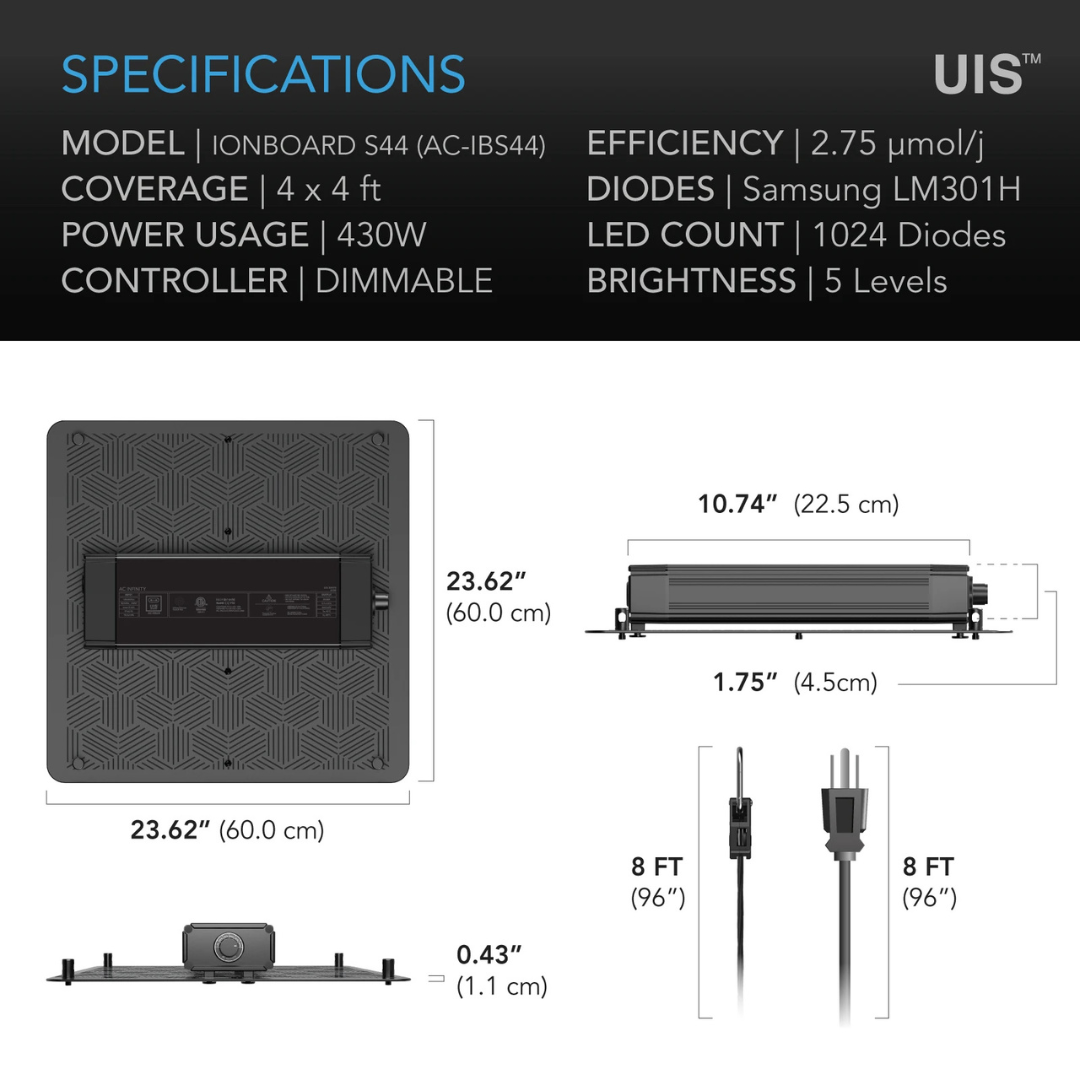

Specifications
-
Light Dimensions: 23.62 x 23.62 in. (60.0 x 60.0 cm)
-
LED Board Thickness: 0.43 in. (1.1 cm)
-
Driver Dimensions: 10.74 x 1.75 in.
-
Coverage: 4 x 4 ft.
-
Diodes: Samsung LM301H
-
LED Chip Count: 1,024
-
LED Driver: AC Infinity Proprietary Driver IB-400
-
Efficiency: 2.75 µmol/J
-
PPFD: 2034 PPFD
-
Spectrum: 660nm, 730nm, 3000K, 6500K
-
Wattage: 430 W
-
Voltage: 100-277V AC
-
Frequency: 50/60 Hz
-
Amperage: 3.60 A at 120V; 1.80 A at 240V; 1.56 A at 277V
-
Controller: Digital Dimming Timer
-
Power Connector Type: US Plug (NEMA 1-15 Type-A)
-
Operating Humidity: 35-85% RH
-
Operating Temperature: 32-140°F
-
Life Expectancy: 50,000 hours
-
Ingress Protection: IP65
-
Certification: ETL certified as a complete product
Size Guide
-
Light Dimensions: 23.62 x 23.62 in. (60.0 x 60.0 cm)
-
LED Board Thickness: 0.43 in. (1.1 cm)
-
Coverage Area: 4 x 4 ft.
Compatibility
-
Compatible With: UIS smart controllers and other compatible UIS grow lights.
-
Compatible Grow Tents: CLOUDLAB 632, CLOUDLAB 642, CLOUDLAB 733, CLOUDLAB 844, CLOUDLAB 866, CLOUDLAB 811, CLOUDLAB 816, CLOUDLAB 899, CLOUDLAB 894, CLOUDLAB 743D, and CLOUDLAB 864D.
-
Expansion Compatibility: Additional grow lights may be connected using compatible expansion dongles, sold separately.
Included
- 1 grow light
- 1 LED driver
- 2 rope clips
- 2 stainless steel hanging hooks
- 4 hook-and-loop ties
- 1 UIS male-to-male cord
- 1 wire tie set
Warranty
-
Warranty: 2-year warranty from the date of purchase.
