This 1000W full-spectrum LED grow light is designed for grow tents and large indoor growing spaces. Its bar-style fixture uses algorithmically spaced diodes to distribute light evenly, support canopy penetration, and reduce hotspots.
The included schedule controller provides 10 brightness levels, daily scheduling, and gradual sunrise and sunset dimming. The modular design uses removable drivers that can be mounted away from the fixture for flexible heat management.
Key Features
-
Full-Spectrum Lighting: Uses Samsung LM301H EVO diodes with supplementary 395 nm UV, 660 nm red, and 730 nm far-red diodes.
-

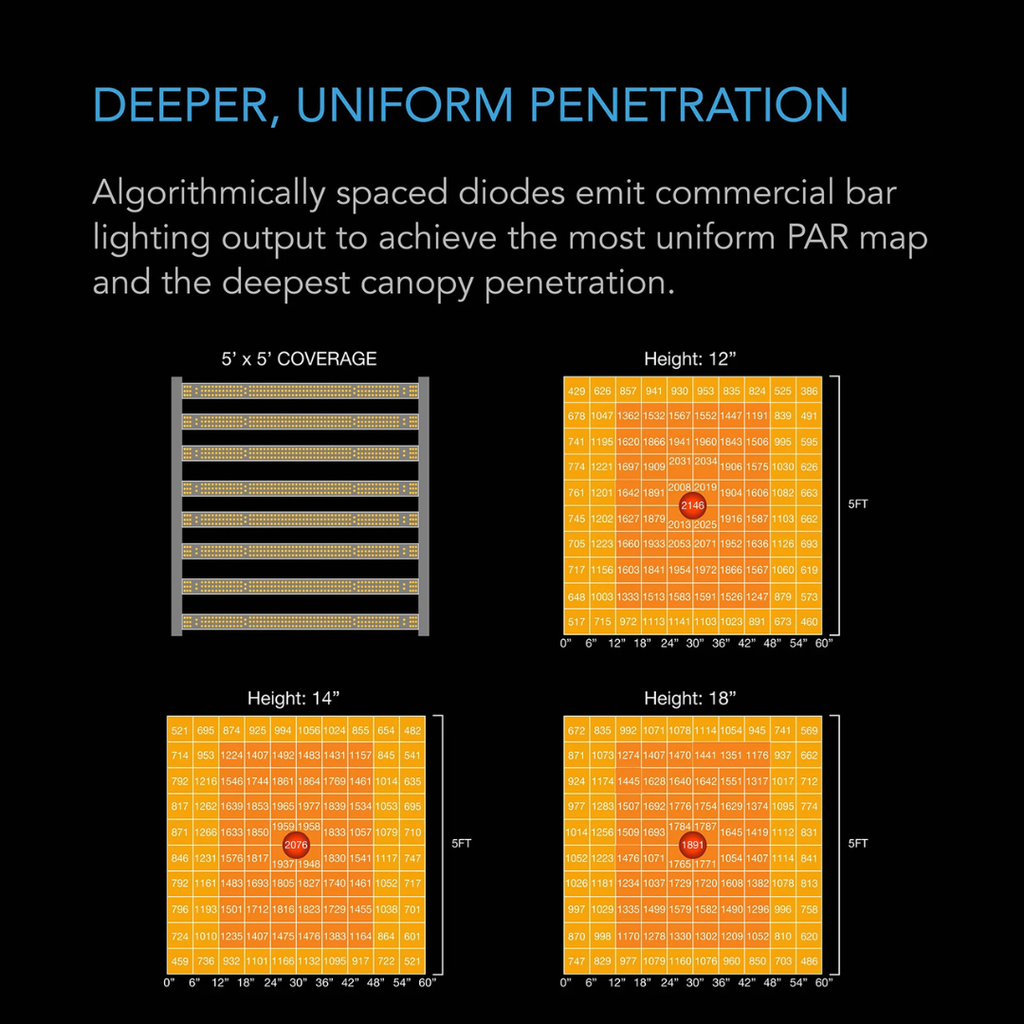

Even Light Distribution: Algorithmically spaced diodes provide a wider light spread while reducing hotspots.
-

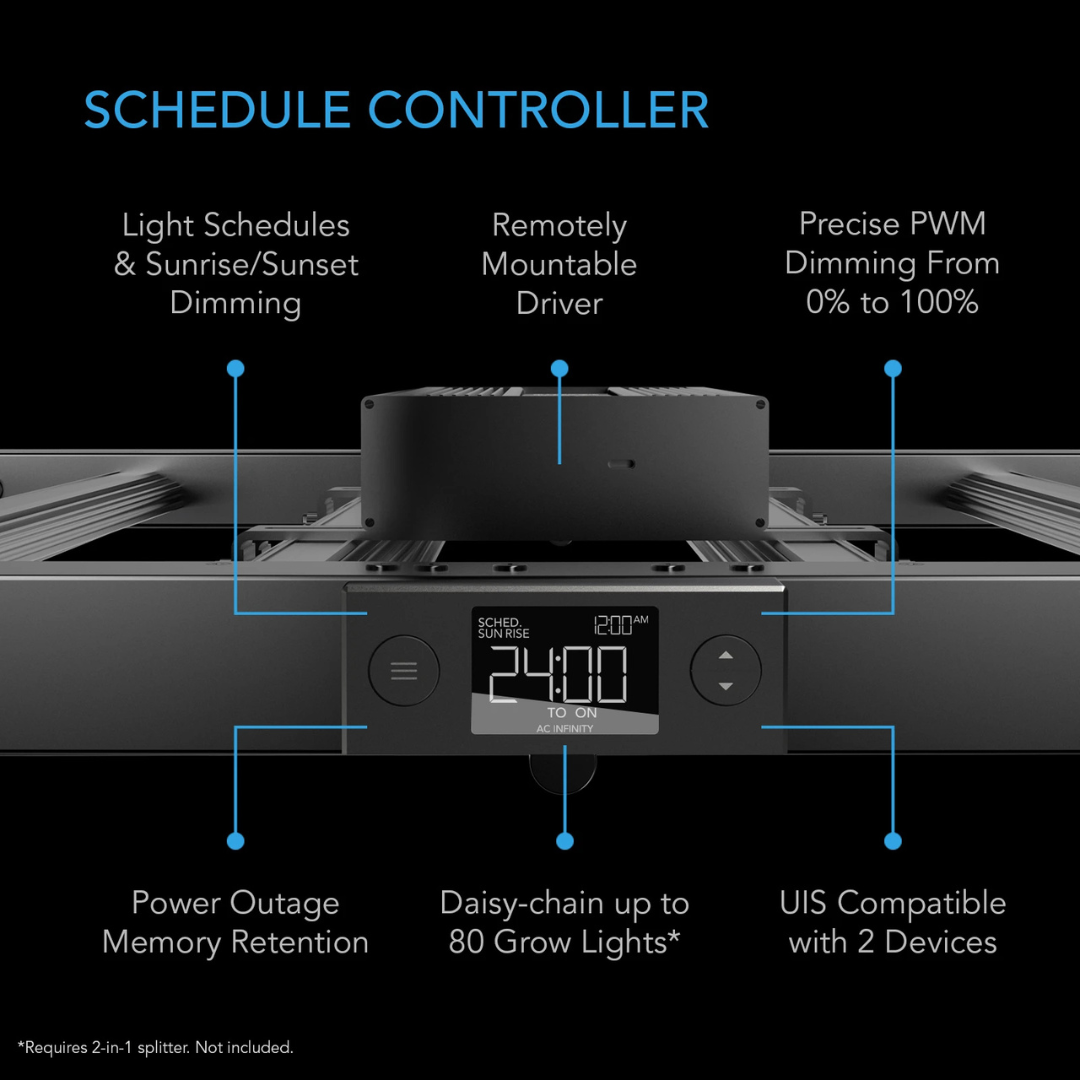

Schedule Controller: The included digital controller provides daily schedule programming and 10 light-intensity levels.
-
Sunrise and Sunset Dimming: Lighting can gradually brighten and dim according to the programmed schedule.
-
Removable LED Drivers: The drivers can be detached and remotely mounted away from the fixture to help manage heat distribution.
-
Passive Cooling: The steel and aluminum construction supports heat dissipation without active cooling fans.
-

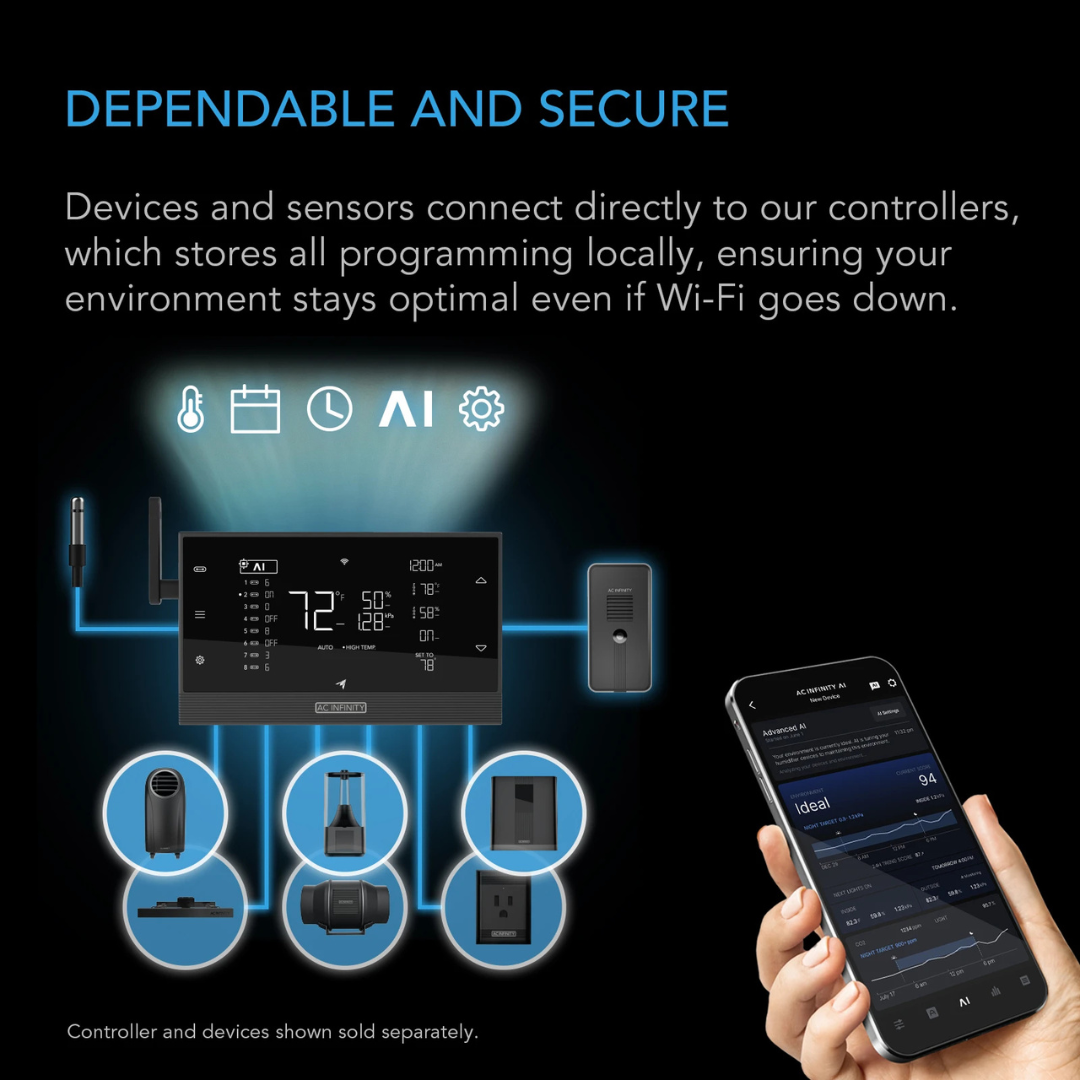

UIS Platform Compatibility: Can integrate with compatible UIS controllers for expanded automation and app-based control.
-
Daisy-Chain Support: Supports connecting up to 80 grow lights using compatible splitter dongles.
-
Humid-Environment Protection: The IP-65-rated construction provides protection against dust and liquids in grow tent environments.
-
Magnetic Mounting Support: The steel and aluminum frame supports magnetic mounting of compatible supplemental light bars sold separately.

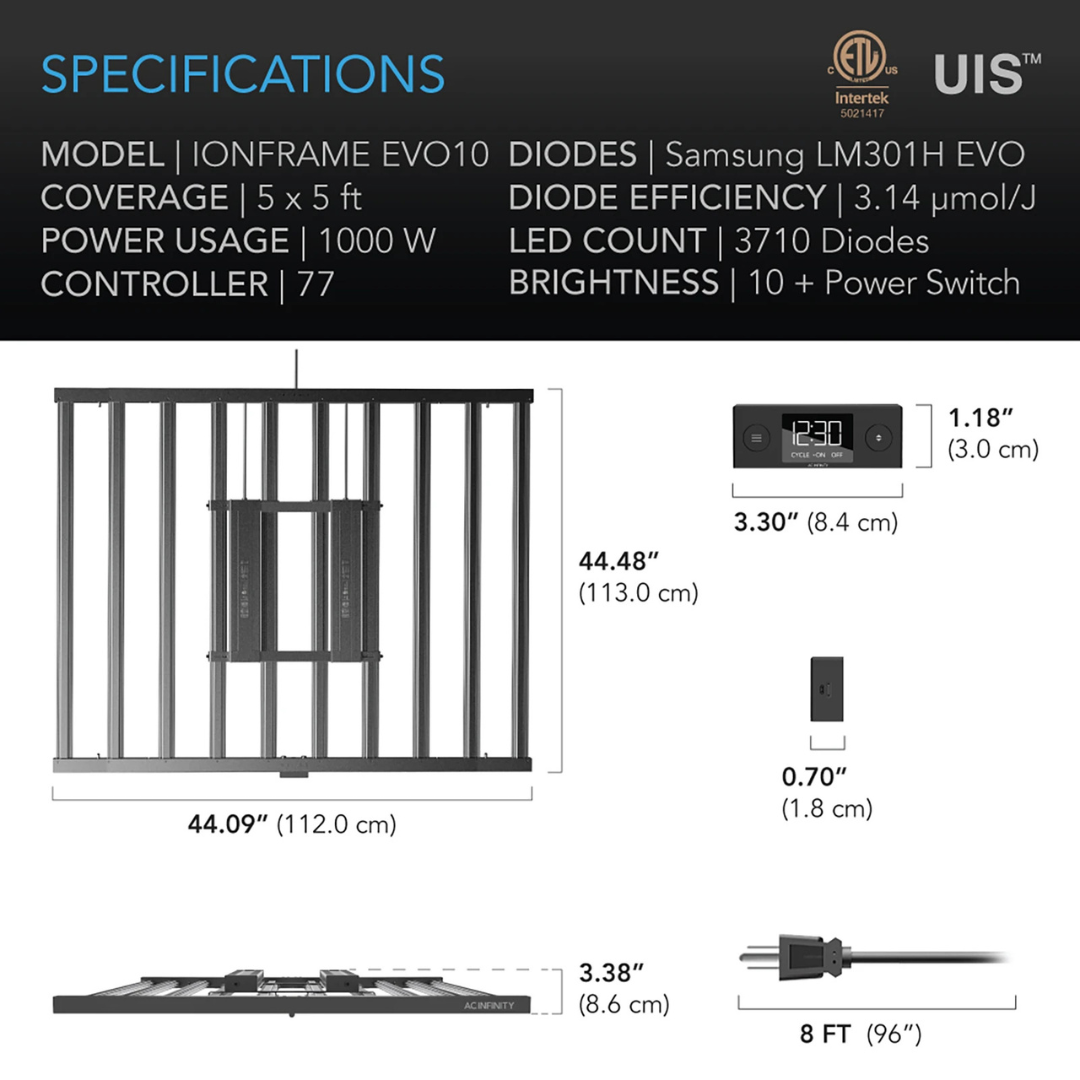

Specifications
-
Light Dimensions: 44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
-
Driver Dimensions: 7.16 x 1.57 in. (18.2 x 4.0 cm)
-
Coverage: 5 ft. x 5 ft.
-
Vegetative Coverage: 7 ft. x 7 ft.
-
Flowering Coverage: 6 ft. x 6 ft.
-
Diodes: Samsung LM301H EVO
-

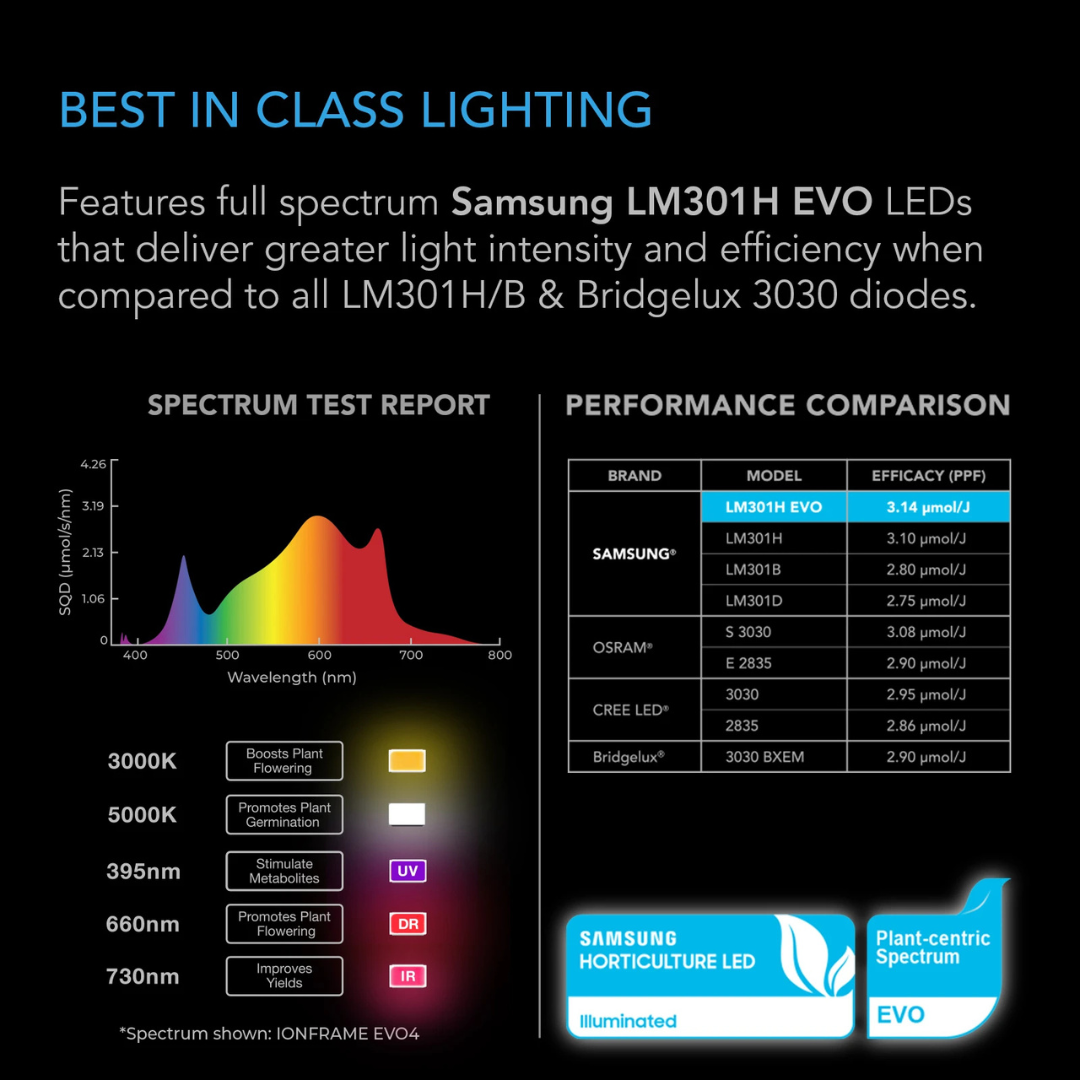

Spectrum: 395 nm, 660 nm, 730 nm, 3000K, 5000K
-
Total Chip Count: 3710
-
EVO 3000K Chip Count: 2360
-
EVO 5000K Chip Count: 1200
-
Seoul 395 nm Chip Count: 10
-
OSRAM 660 nm Chip Count: 130
-
OSRAM 730 nm Chip Count: 10
-
Single-Diode Efficiency: 3.14 µmol/J
-
PPFD: 2146 PPFD
-
Wattage: 1000 W
-
Voltage: 100-277V AC
-
Frequency: 50/60 Hz
-
Amperage: 5.0 A (x2)
-
Controller: Schedule controller
-
Power Connector Type: US plug (NEMA 1-15 Type-A)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
-
Waterproof Rating: IP-65
-
Life Expectancy: 50,000 hours
-
ETL Certification: Certificate No. 5021417
Size Guide
-
General Coverage Listed in Technical Specifications: 5 ft. x 5 ft.
-
Vegetative Coverage Listed in Product Highlights: 7 ft. x 7 ft.
-
Flowering Coverage Listed in Product Highlights: 6 ft. x 6 ft.
-
Light Dimensions: 44.09 x 44.48 x 3.38 in. (112.0 x 113.0 x 8.6 cm)
-
Suggested Dynamic Placement Height: 1.5 ft. from the plant canopy for seedling, vegetative, and flowering stages
-
Suggested Dynamic Light Intensity: 40% for seedlings, 80% for the vegetative stage, and 100% for the flowering stage
Compatibility
Compatible Grow Tents:
- CLOUDLAB 844 – Advance Grow Tent 48" x 48" x 80"
- CLOUDLAB 866 – Advance Grow Tent 60" x 60" x 80"
- CLOUDLAB 811 – Advance Grow Tent 120" x 120" x 80"
- CLOUDLAB 816 – Advance Grow Tent 120" x 60" x 80"
- CLOUDLAB 899 – Advance Grow Tent 96" x 96" x 80"
- CLOUDLAB 894 – Advance Grow Tent 96" x 48" x 80"
- CLOUDLAB 864D – Advance Grow Tent 60" x 48" x 80"
Compatible Controllers: CONTROLLER 69 PRO, CONTROLLER 69 PRO+, and CONTROLLER AI+
Compatible Supplemental Lighting: IONBEAM LED light bars can be magnetically mounted to the frame and connected to the schedule controller. Supplemental lights are sold separately.
Included
- 1 grow light
- 2 LED drivers
- 1 schedule controller
- 2 driver cords
- 1 dual-driver power cord
- 1 daisy-chain adapter
- 2 rope clips
- 2 stainless steel wire hangers
- 4 hook-and-loop ties
- 1 wire tie set
- 1 UIS male-to-male cord, 1 ft.
- 1 UIS male-to-male cord, 2 ft.
- 1 UIS male-to-male cord, 10 ft.
- 8 wood screws for the drivers
- 8 driver screws for bracket mounting
Warranty
Warranty: 2 years from the date of purchase against manufacturing defects, subject to the terms and exclusions stated in the official product manual
