The IONGRID T24 is a 260W full-spectrum LED grow light designed to provide 2 ft. x 4 ft. coverage in indoor grow tents with reflective Mylar lining. Its four-sided halo design uses Samsung LM301H diodes to distribute light evenly and provide deeper canopy penetration during germination, vegetative, and flowering stages.
The included digital transition controller supports adjustable brightness, timers, cycles, daily schedules, transition settings, and backup memory. A raised driver and aluminum frame provide passive, noise-free heat dissipation, while extension ports allow additional compatible grow lights to share the same programming.
Key Features
-

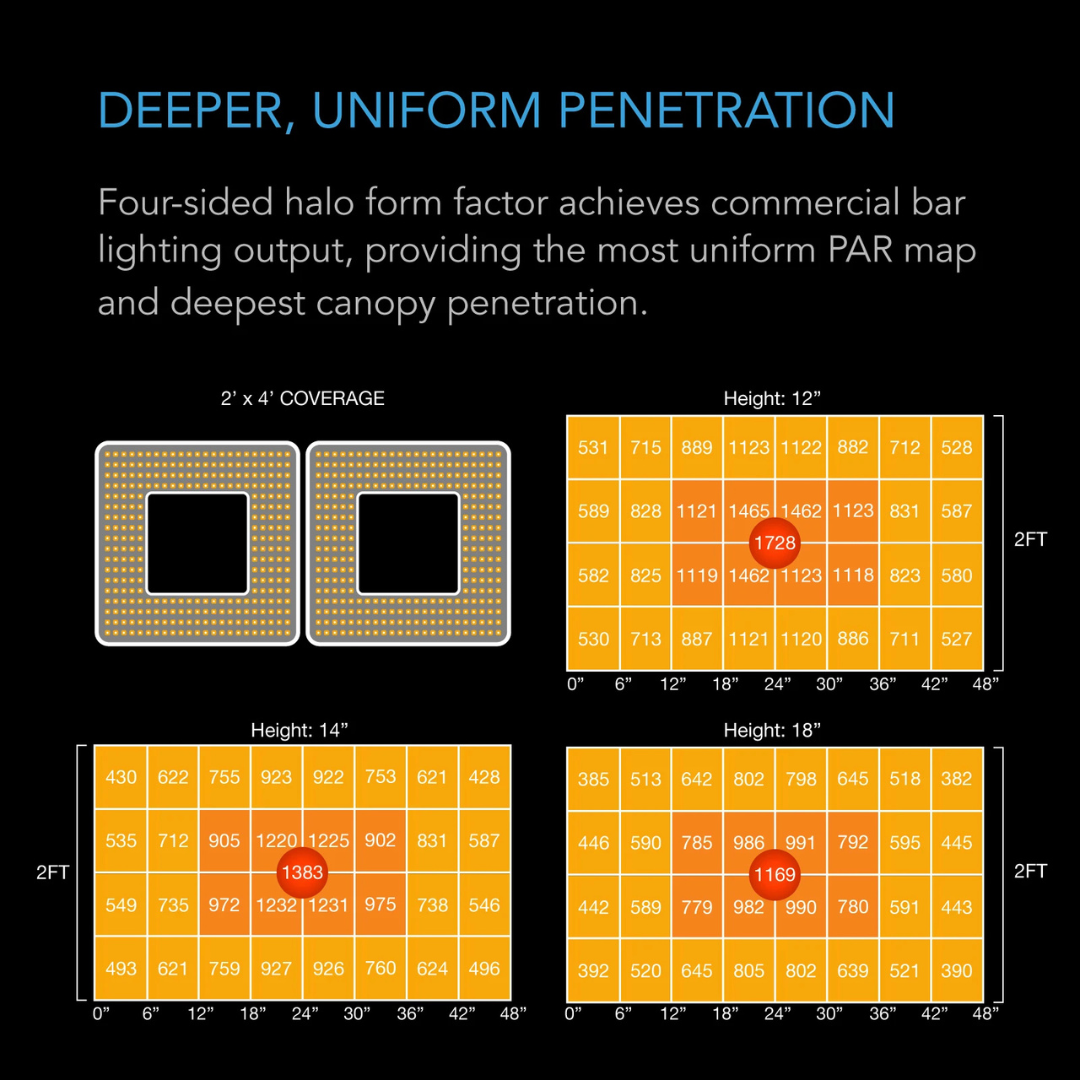

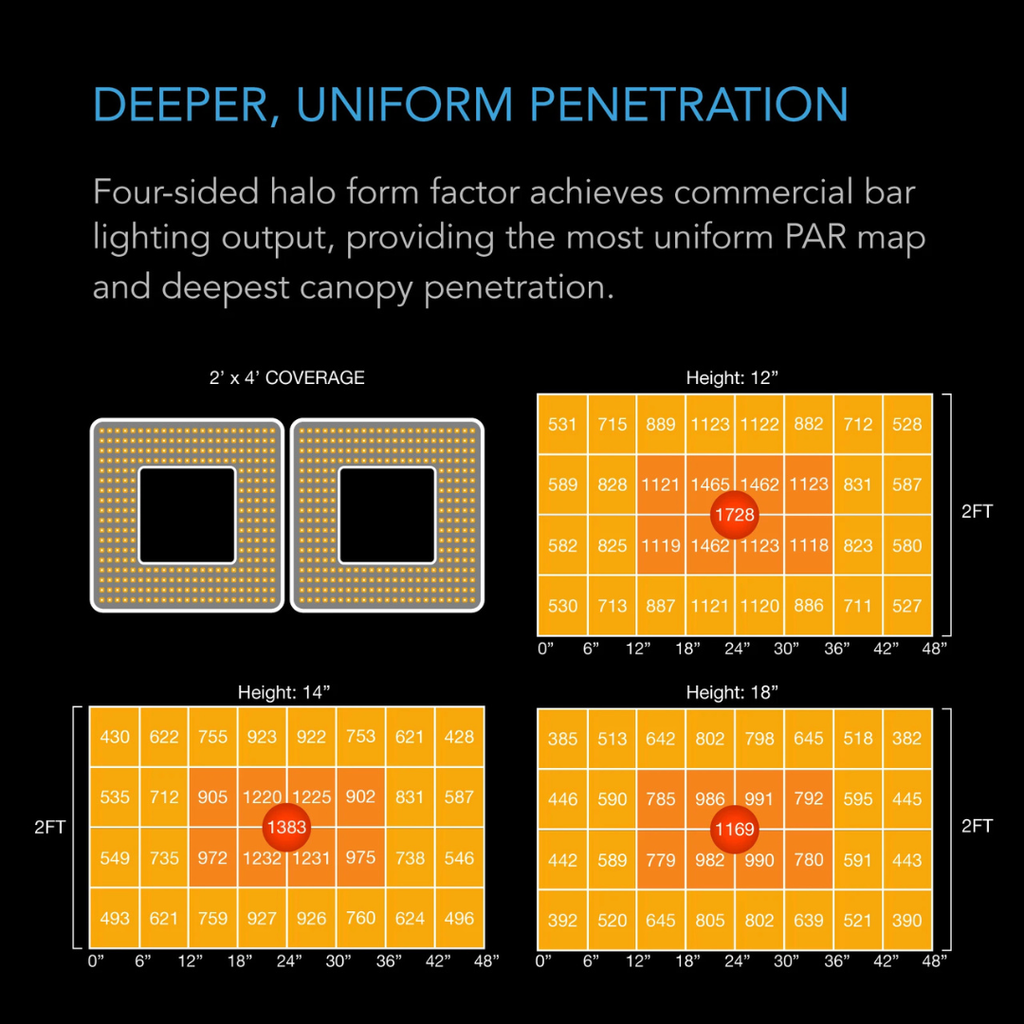

Halo Lighting Design: The four-sided halo form arranges the diodes for uniform coverage, wider light distribution, and deeper canopy penetration.
-

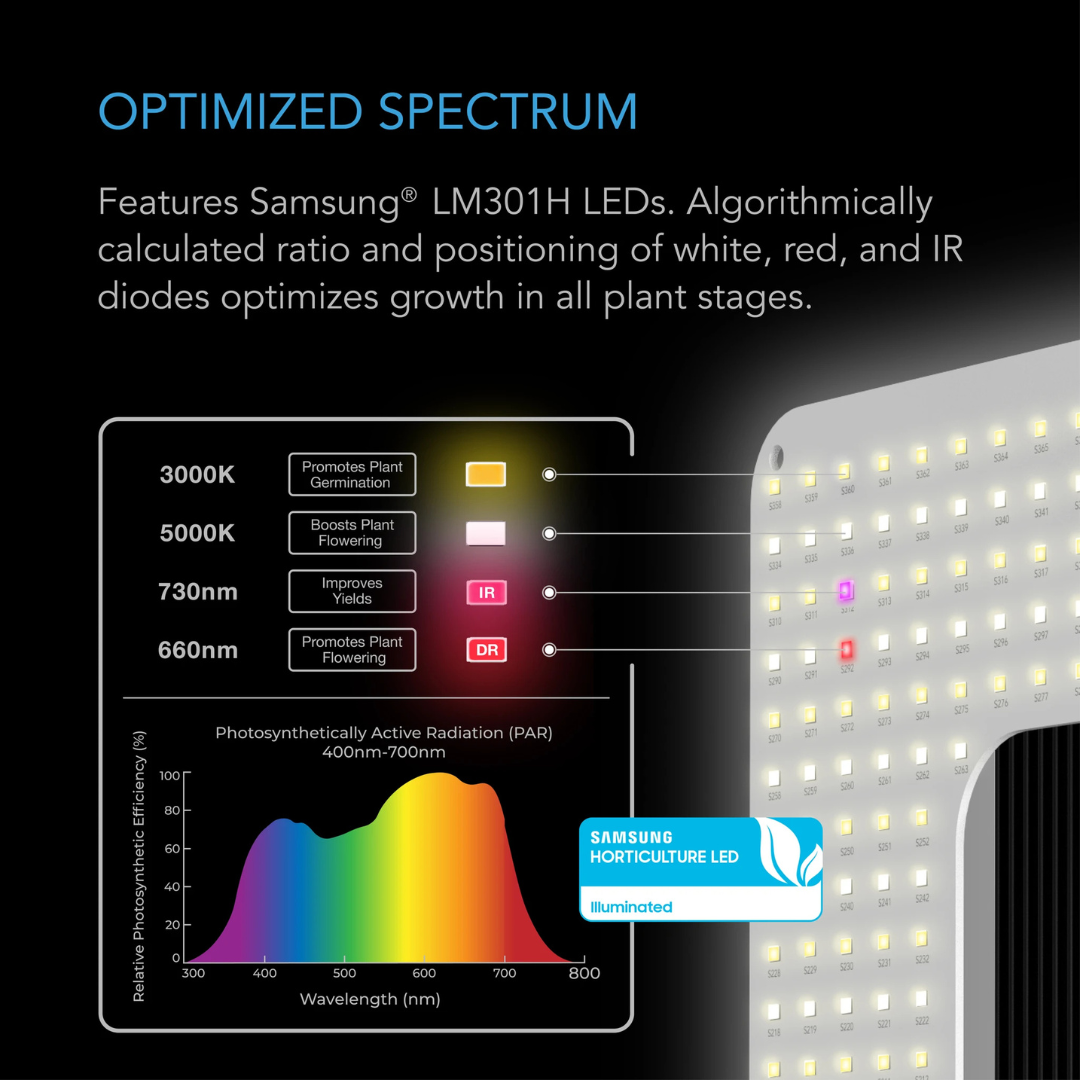

Full-Spectrum Lighting: Uses Samsung LM301H white, red, and infrared diodes with a 660nm, 730nm, 3000K, and 5000K spectrum.
-

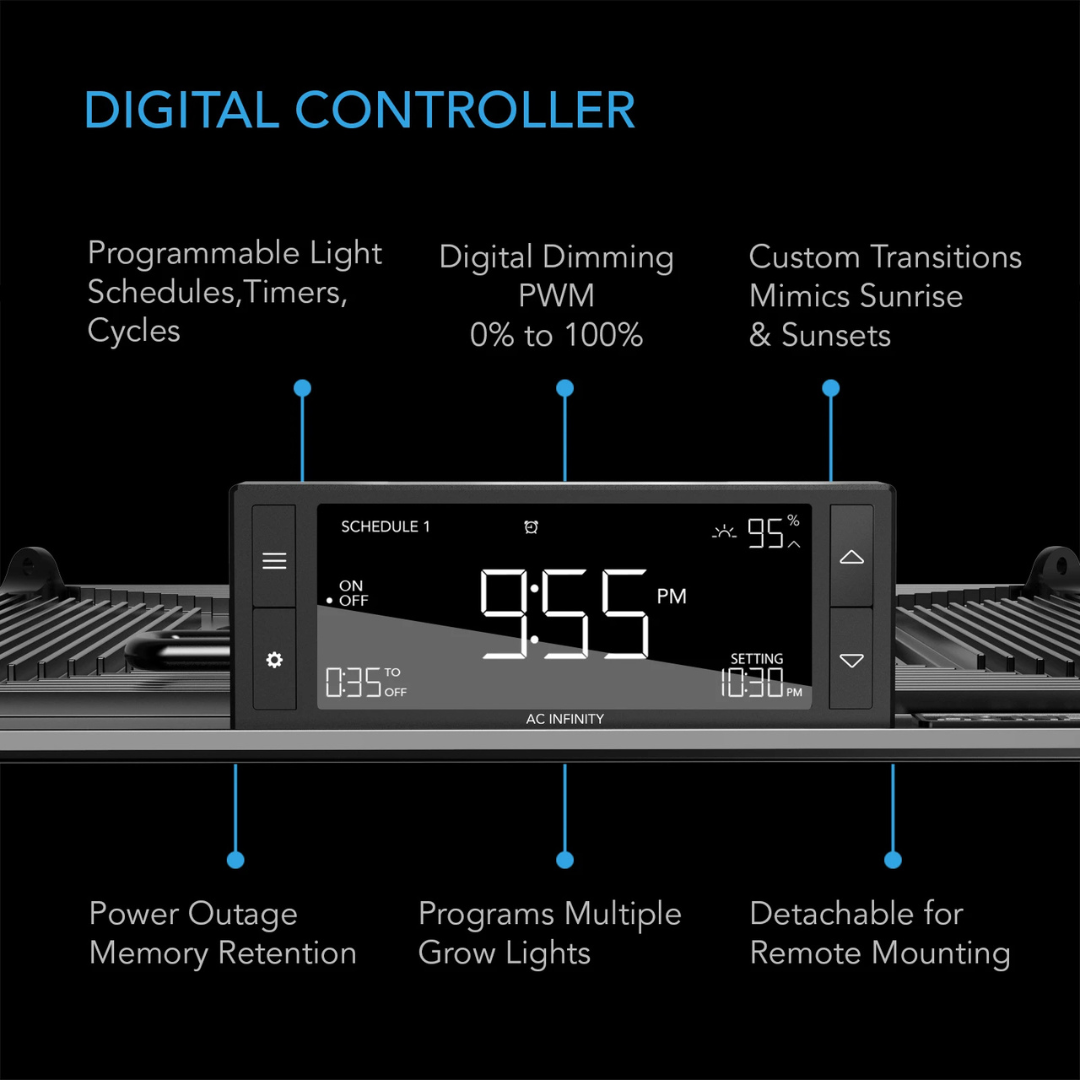

Digital Transition Controller: Provides 0-100% PWM dimming, timers, lighting cycles, daily schedules, transition settings, and backup memory.
-
Sunrise and Sunset Transitions: Programmable transitions can gradually increase or decrease light intensity.
-
Expandable Lighting: Controller extension ports support programming for additional compatible LED grow lights.
-
Daisy-Chain Support: Additional grow lights may be connected using compatible expansion dongles, sold separately.
-

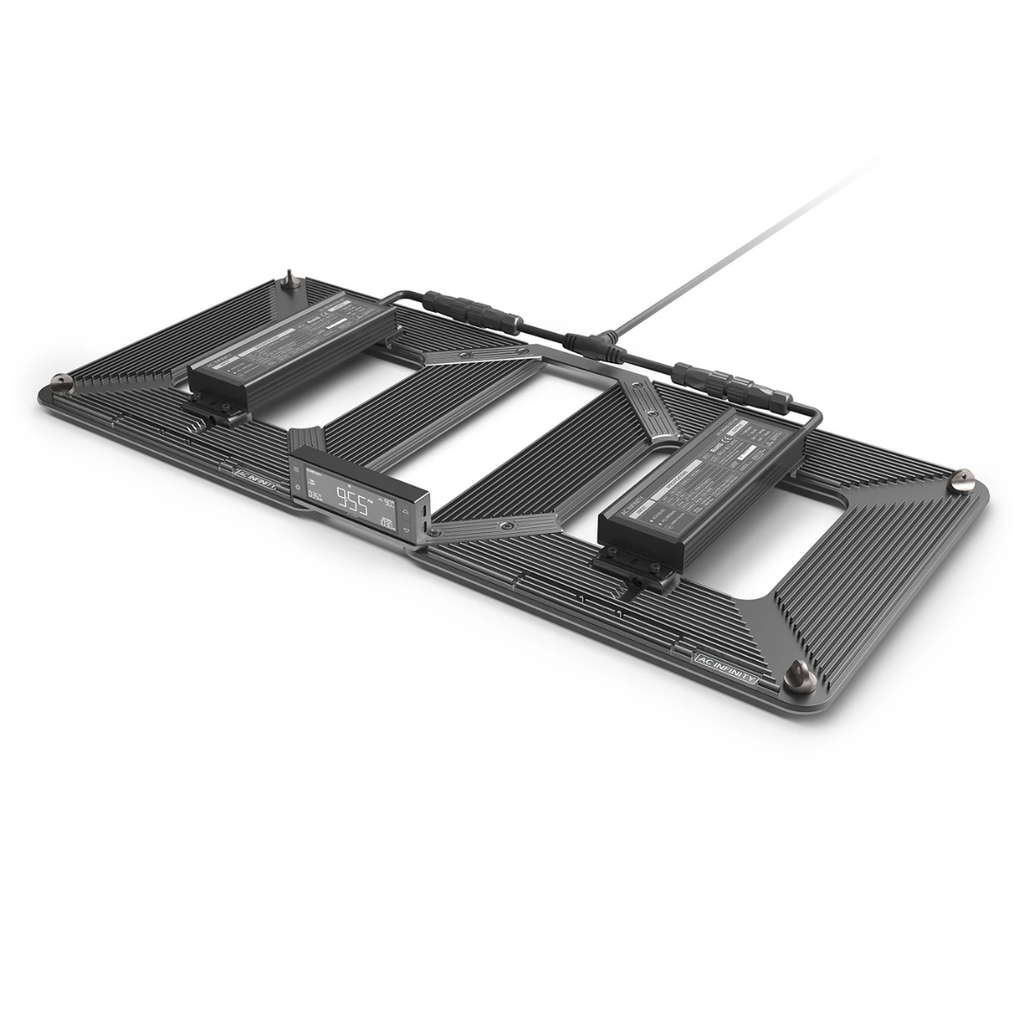

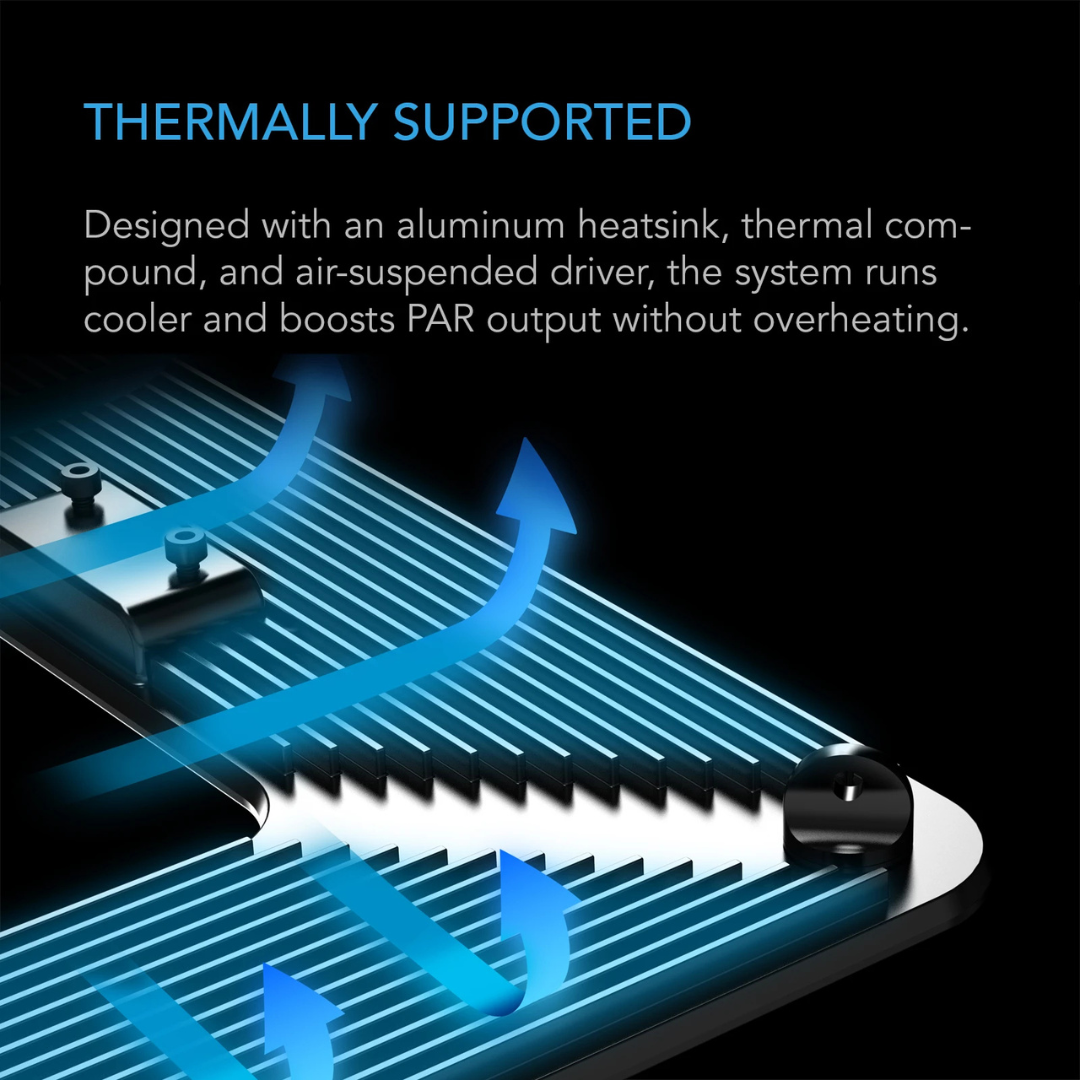

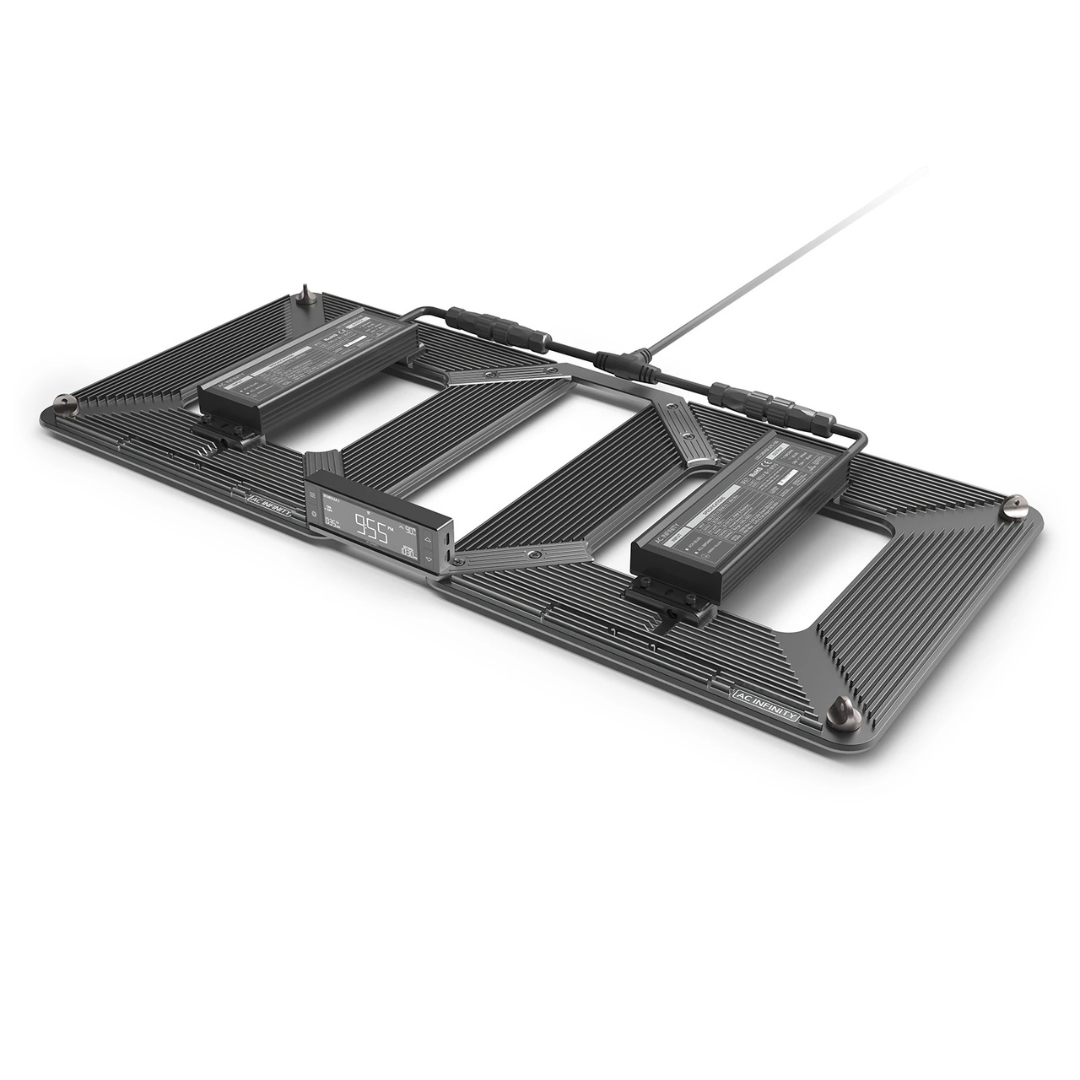

Passive Heat Dissipation: An air-suspended driver, aluminum frame, and thermal compound provide noise-free cooling.
-
Remote Controller Placement: The controller can be detached and mounted remotely using the included extension equipment.
-
Plug-and-Play Setup: Includes a digital controller and rope-hanging hardware for installation.
-

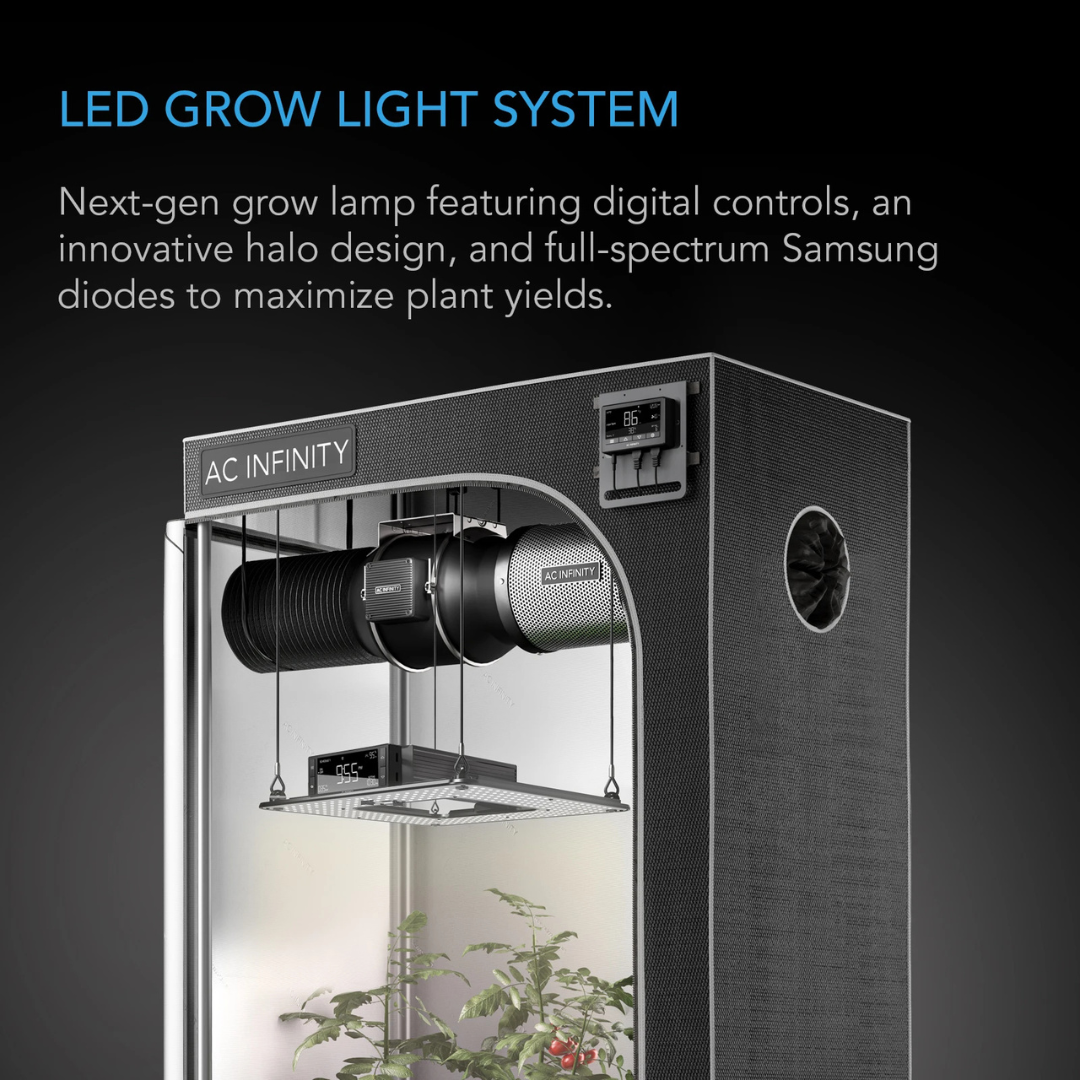

Indoor Growing Application: Designed for grow tents with reflective Mylar lining and the cultivation of plants, fruits, and vegetables.

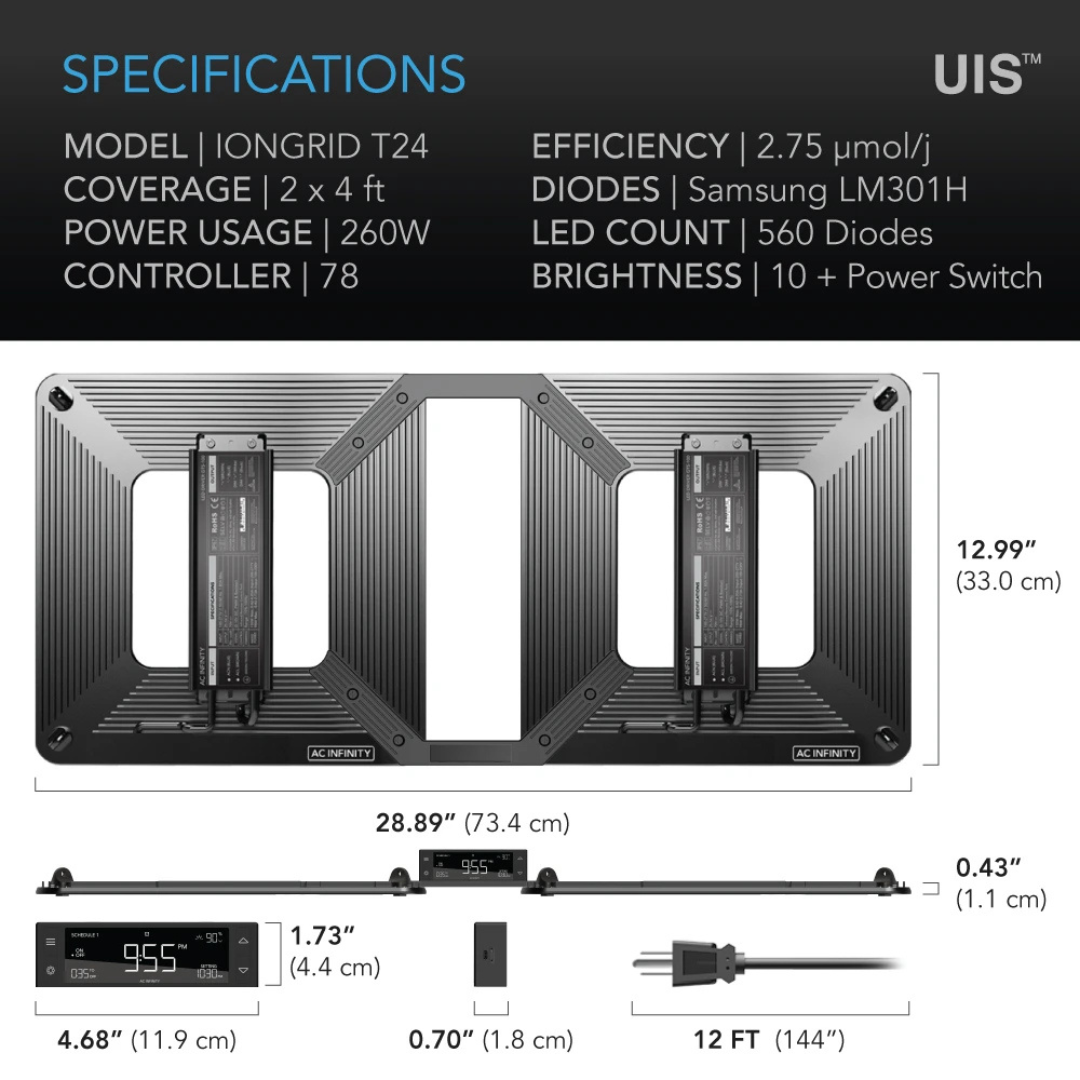

Specifications
-
Light Dimensions: 28.89 x 12.99 in. (73.4 x 33.0 cm)
-
Heatsink Height: 0.43 in. (1.1 cm)
-
Controller Dimensions: 3.30 x 1.18 x 0.70 in. (8.4 x 3.0 x 1.8 cm)
-
Coverage: 2 x 4 ft.
-
Diodes: Samsung LM301H
-
LED Chip Count: 560
-
LED Drivers: 2 Moso drivers
-
Efficiency: 2.75 µmol/J
-
PPFD: 1728 PPFD
-
Spectrum: 660nm, 730nm, 3000K, 5000K
-
Wattage: 260 W
-
Voltage: 100-277V AC
-
Frequency: 50/60 Hz
-
Amperage: 1.17 A at 120V; 0.58 A at 240V; 0.51 A at 277V
-
Controller: Digital Transition Controller
-
Dimming Range: 0-100% PWM dimming
-
Power Connector Type: US Plug (NEMA 1-15 Type-A)
-
Operating Humidity: 35-85% RH
-
Operating Temperature: 32-104°F
-
Life Expectancy: 50,000 hours
Size Guide
-
Light Dimensions: 28.89 x 12.99 in. (73.4 x 33.0 cm)
-
Heatsink Height: 0.43 in. (1.1 cm)
-
Coverage Area: 2 x 4 ft.
Compatibility
-
Compatible Grow Tents: CLOUDLAB 632, CLOUDLAB 642, CLOUDLAB 733, CLOUDLAB 844, CLOUDLAB 866, CLOUDLAB 811, CLOUDLAB 816, CLOUDLAB 899, CLOUDLAB 894, CLOUDLAB 743D, and CLOUDLAB 864.
-
Expandable Lighting: Additional compatible grow lights may be connected through the controller’s extension ports.
-
Expansion Dongles: Compatible expansion dongles can be used to add more grow lights beyond the controller’s available ports. Expansion dongles are sold separately.
-
Driver Adapter Use: The included driver adapters are designed for connecting IONGRID grow lights to compatible independent-port controllers. They are not intended for use with the included controller or other UIS devices.
Included
- 1 grow light
- 1 Controller 78
- 2 driver adapters
- 2 wire tie sets
- 2 UIS male-to-female extension cords
- 2 DC male-to-female extension cords
- 2 rope clips
- 2 stainless steel hanging hooks
- 4 hook-and-loop tie straps
- 2 wood screws
- 2 wall-hanging bolts
Warranty
-
Warranty: 2-year warranty from the date of purchase.
