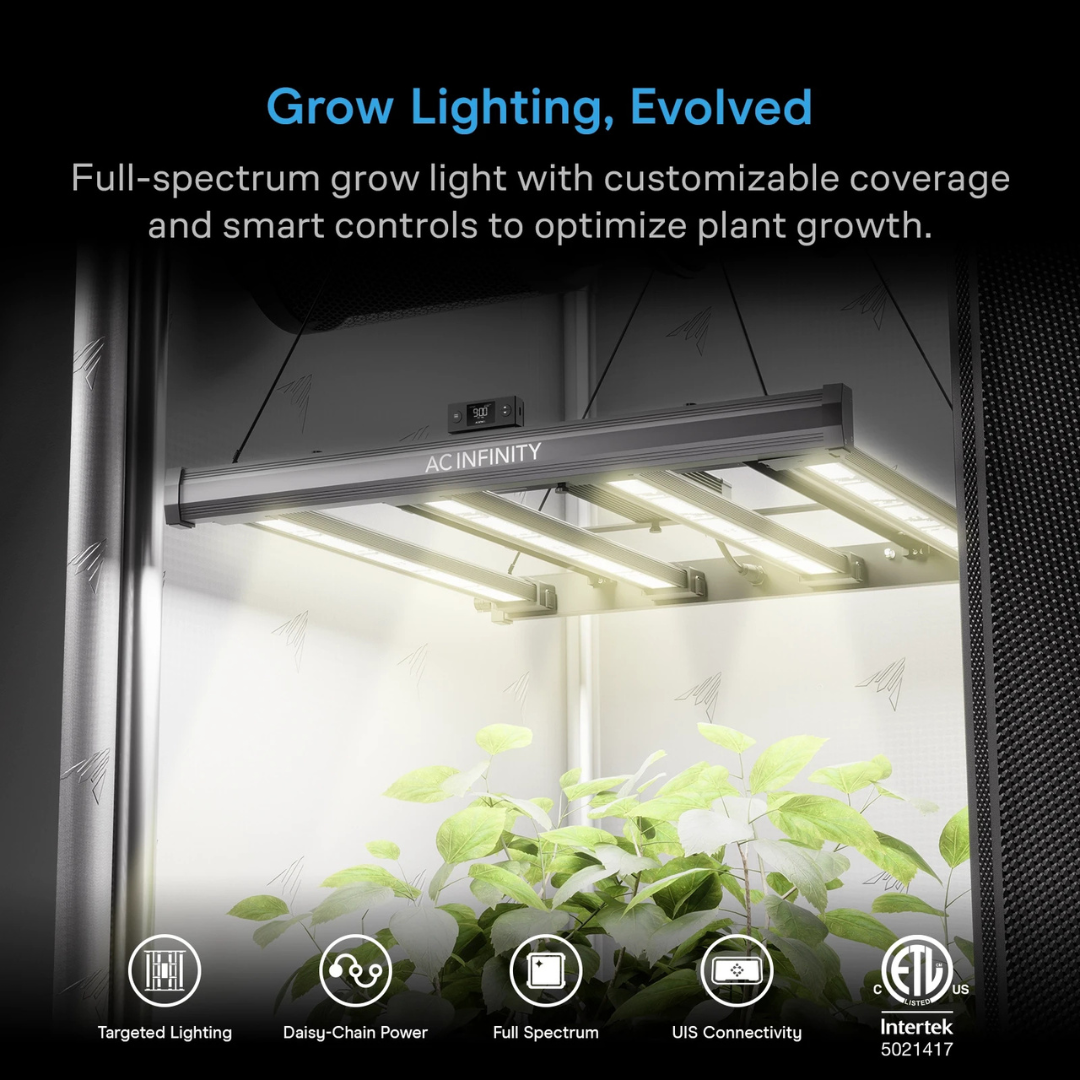

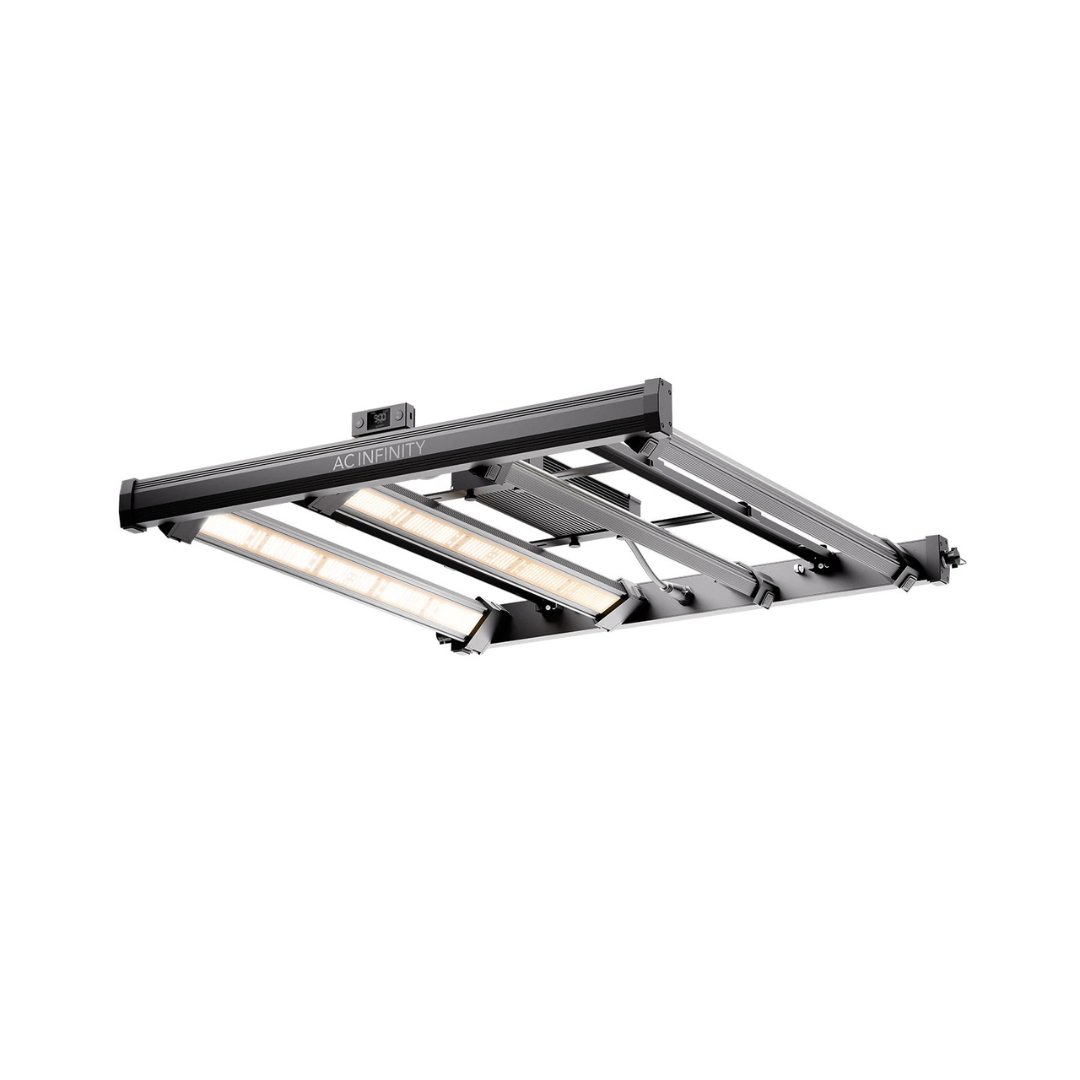

This 500W full-spectrum LED grow light features adjustable-angle light bars for customizing light placement across a 4 ft. x 4 ft. growing area. Each bar can rotate up to 180° to provide targeted or dispersed coverage across different plant-growth stages.
The onboard controller supports 0–100% PWM dimming, custom schedules, sunrise and sunset transitions, and power-outage memory. When connected to a compatible UIS controller, the light can also be managed remotely through the Wi-Fi app.
Key Features
-

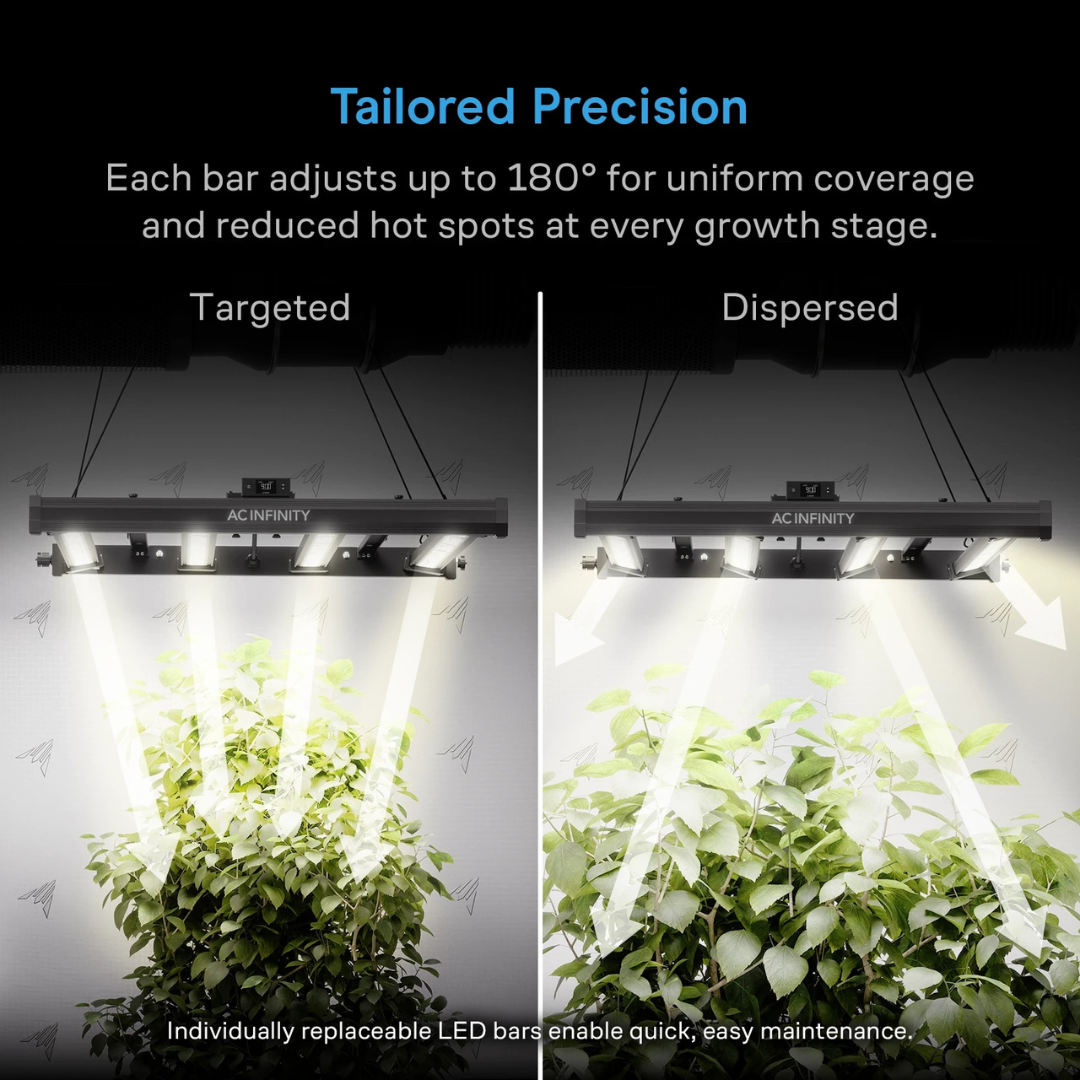

Adjustable-Angle Light Bars: Each LED bar can rotate up to 180° for targeted or dispersed light positioning.
-
Individually Replaceable Bars: Individual light bars can be replaced separately for easier maintenance.
-

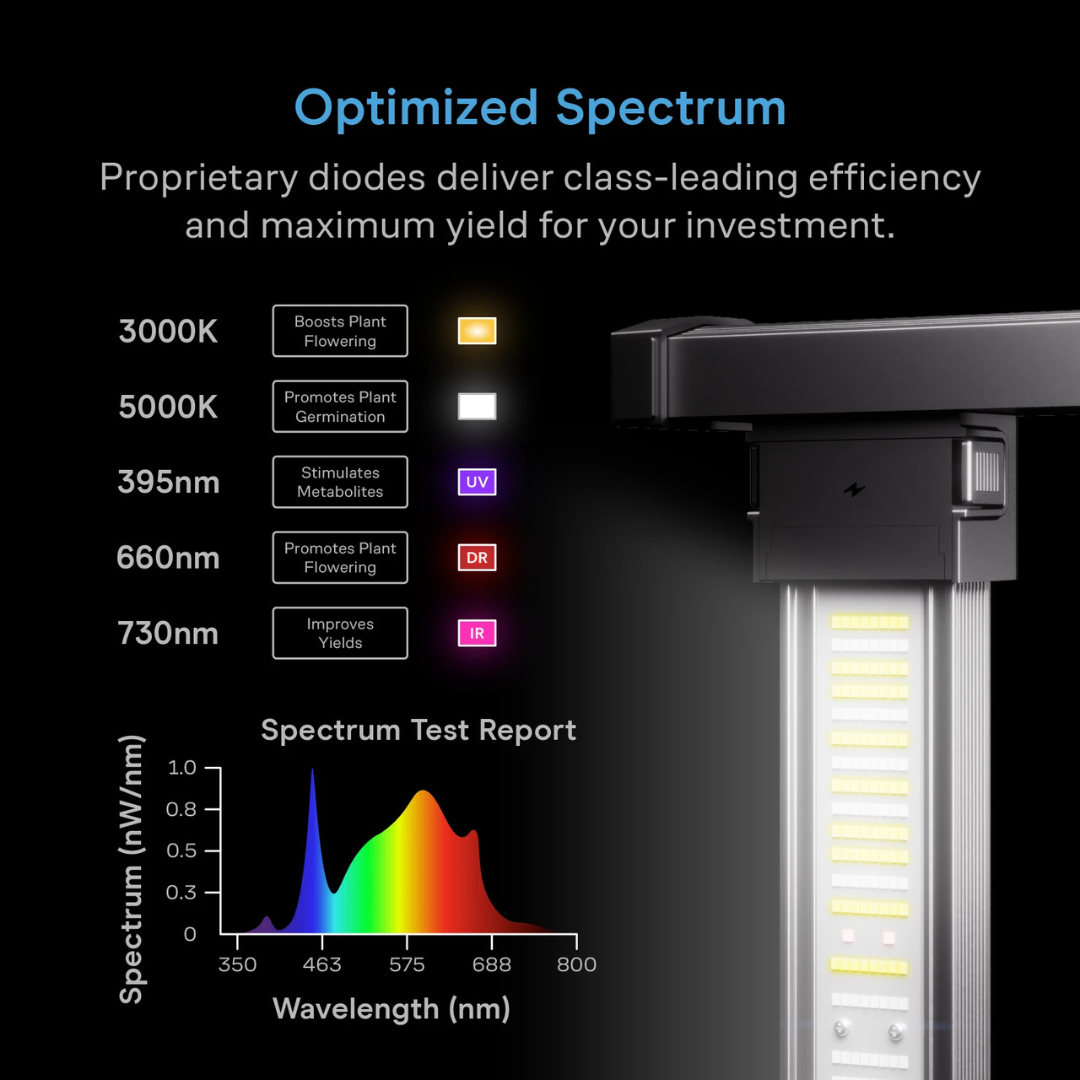

Full-Spectrum Lighting: Combines 395 nm, 660 nm, 730 nm, 3000K, and 5000K light output.
-

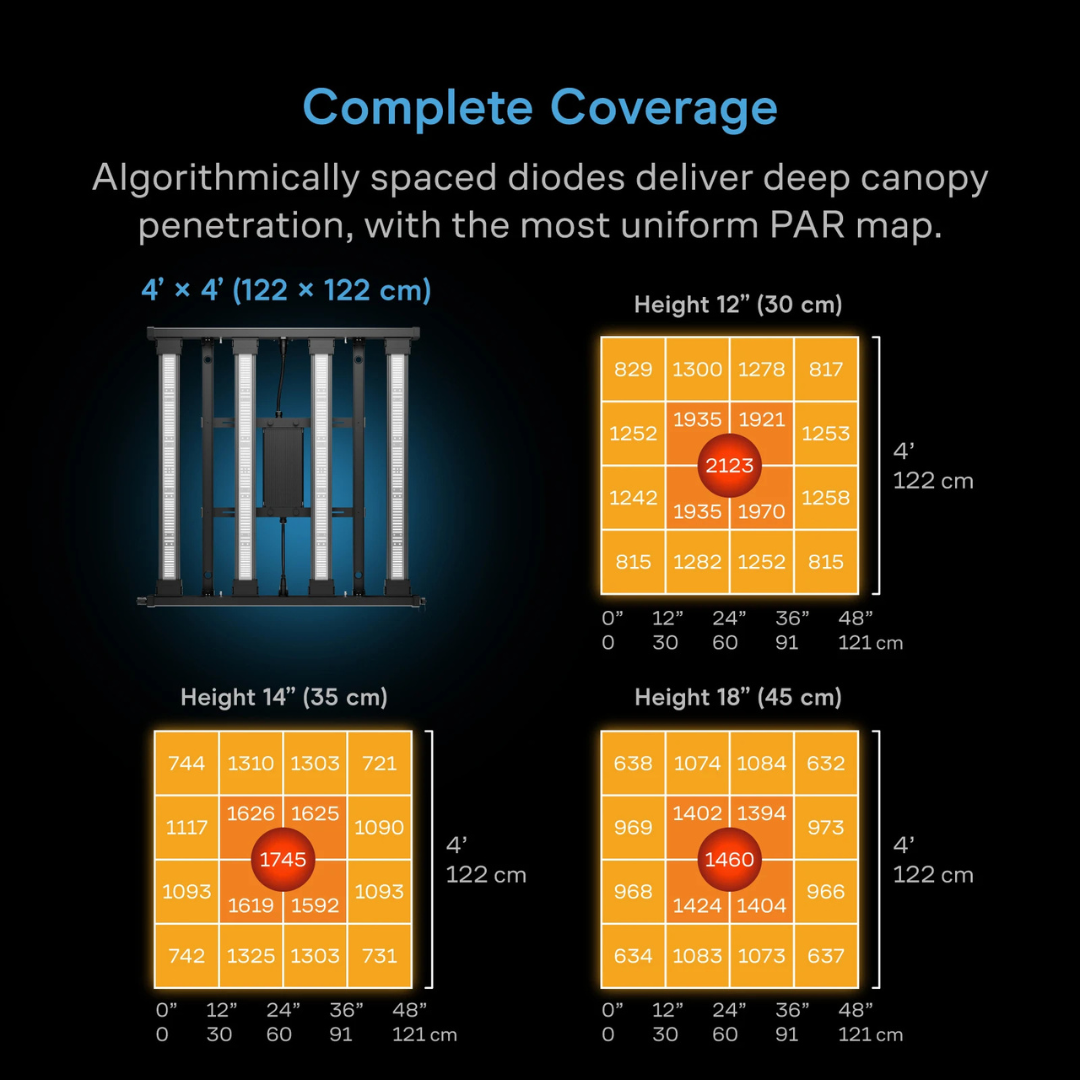

Uniform PAR Distribution: Algorithmically spaced LEDs support edge-to-edge coverage, canopy penetration, and reduced hotspots.
-

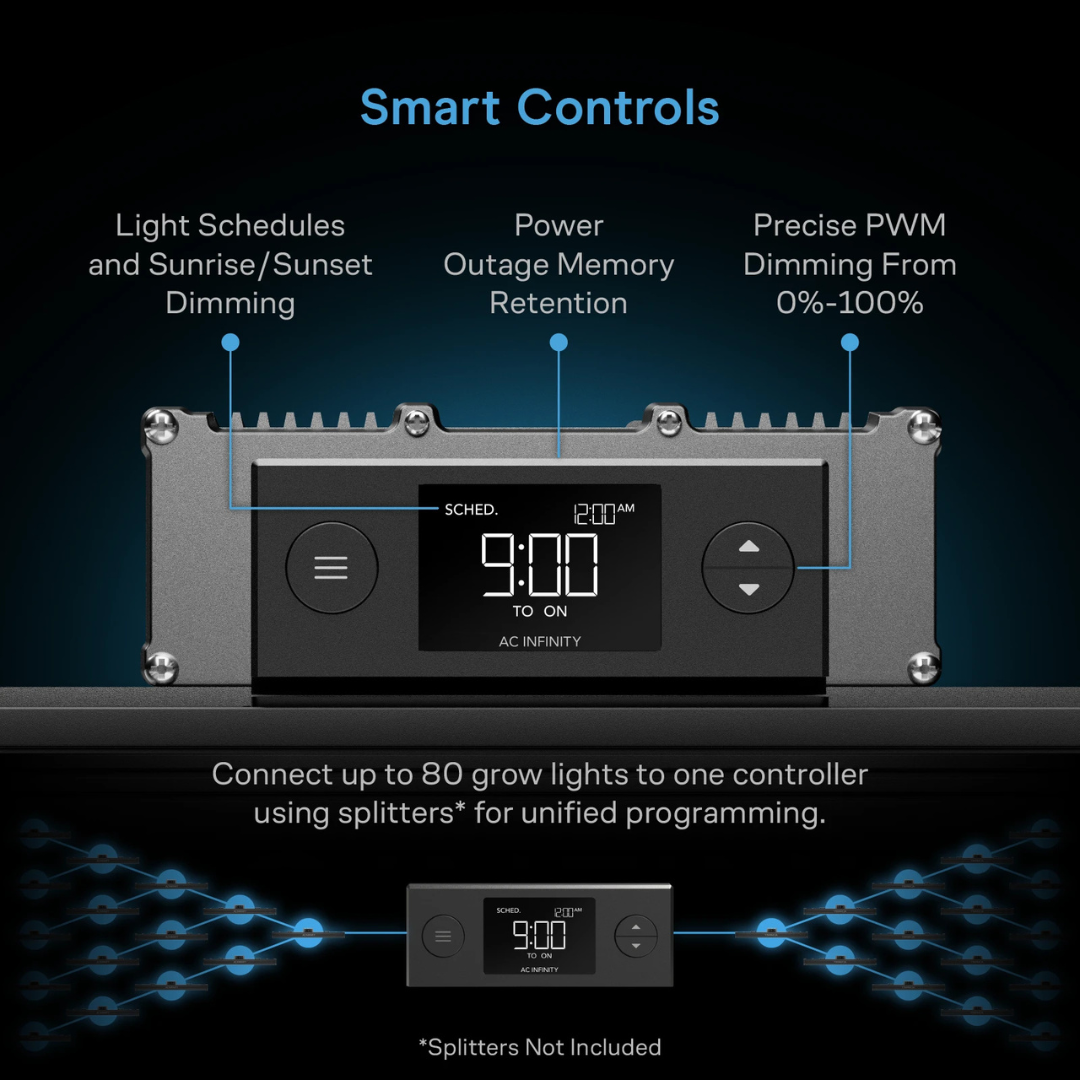

PWM Dimming: The onboard controller provides adjustable output from 0–100%.
-
Custom Scheduling: Supports programmable lighting schedules with sunrise and sunset transitions.
-
Power-Outage Memory: Retains programmed settings following a power interruption.
-
Remote App Control: Supports remote control through the Wi-Fi app when connected to a compatible UIS controller.
-

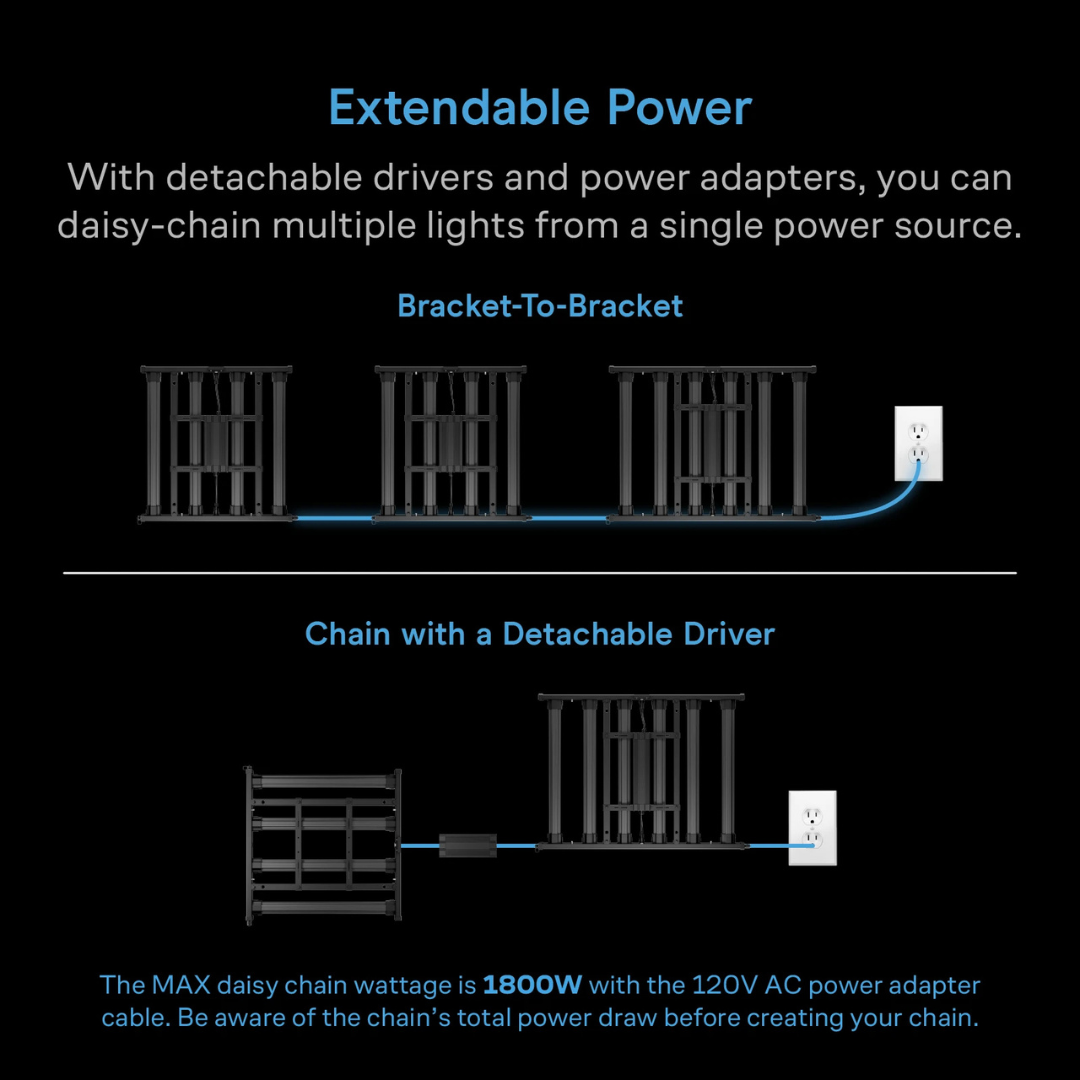

Detachable Driver: The detachable driver supports flexible positioning and custom programming configurations.
-
Scalable Connectivity: Up to 80 grow lights can connect to one controller using compatible UIS splitters and adapters.

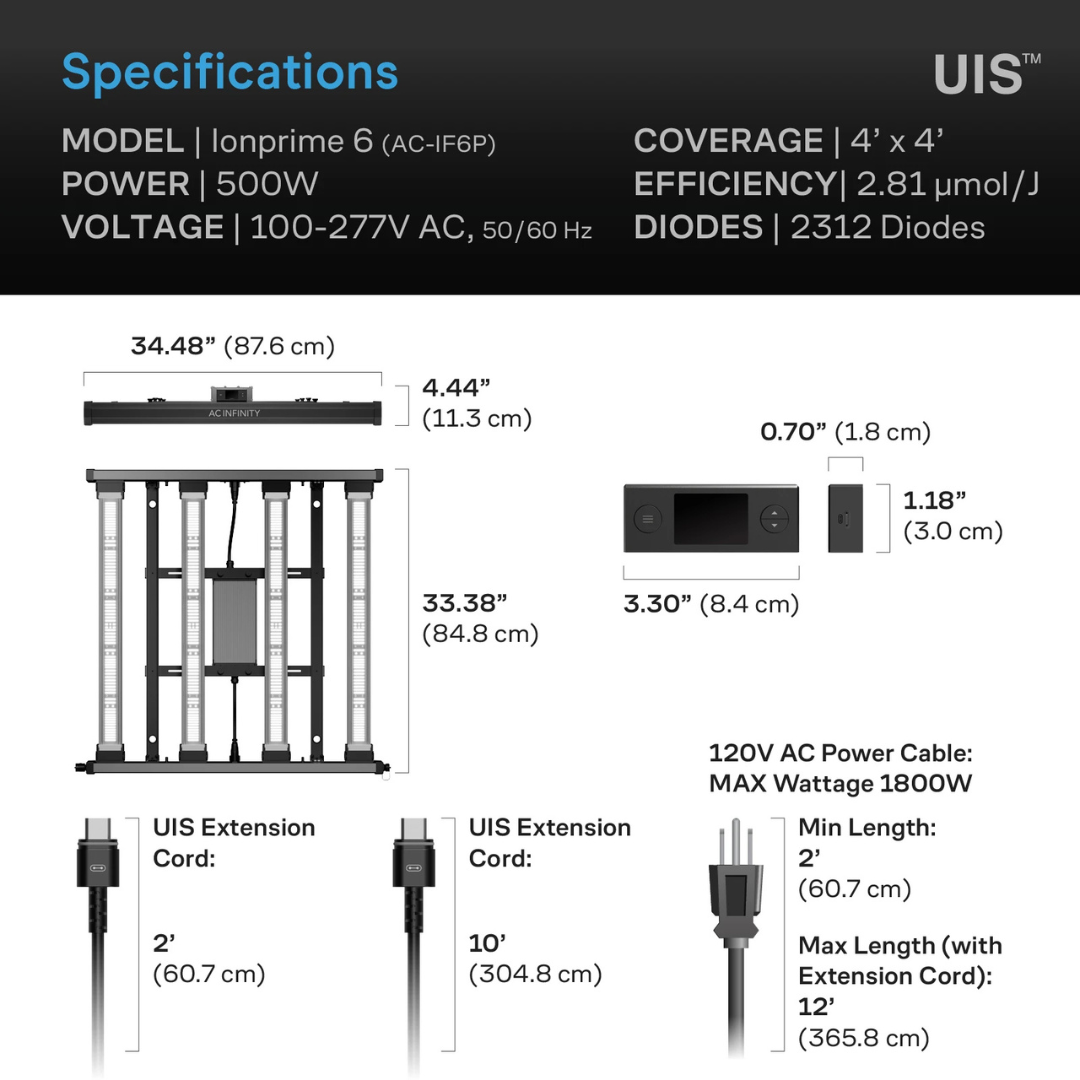

Specifications
-
Light Dimensions: 33.38 x 34.48 x 4.44 in. (84.8 x 87.6 x 11.3 cm)
-
Coverage: 4 ft. x 4 ft. (122 x 122 cm)
-
Light-Bar Adjustment: Up to 180°
-
Diodes: Full-spectrum
-
Spectrum: 395 nm, 660 nm, 730 nm, 3000K, 5000K
-
Total Chip Count: 2312
-
3000K Chip Count: 1280
-
5000K Chip Count: 992
-
Seoul 395 nm Chip Count: 4
-
Everlight 660 nm Chip Count: 32
-
Bridgelux 730 nm Chip Count: 4
-
Single-Diode Efficiency: 2.81 µmol/J
-
PPFD: 2123 PPFD
-
Wattage: 500 W
-
Voltage: 100-277V AC
-
Frequency: 50/60 Hz
-
Controller: Schedule controller
-
Power Connector Type: US plug (NEMA 1-15 Type-A)
-
Operating Humidity: 35 to 85% RH
-
Operating Temperature: 32 to 140°F
Size Guide
-
Coverage: 4 ft. x 4 ft. (122 x 122 cm)
-
Light Dimensions: 33.38 x 34.48 x 4.44 in. (84.8 x 87.6 x 11.3 cm)
-
Light-Bar Adjustment: Up to 180°
Compatibility
Compatible Controllers Displayed on the Product Page: CONTROLLER 69 PRO, CONTROLLER 69 PRO+, and CONTROLLER AI+
UIS Connectivity: Compatible UIS splitters and adapters can connect up to 80 grow lights to one controller.
App Control Requirement: A compatible UIS controller is required for remote control through the Wi-Fi app.
