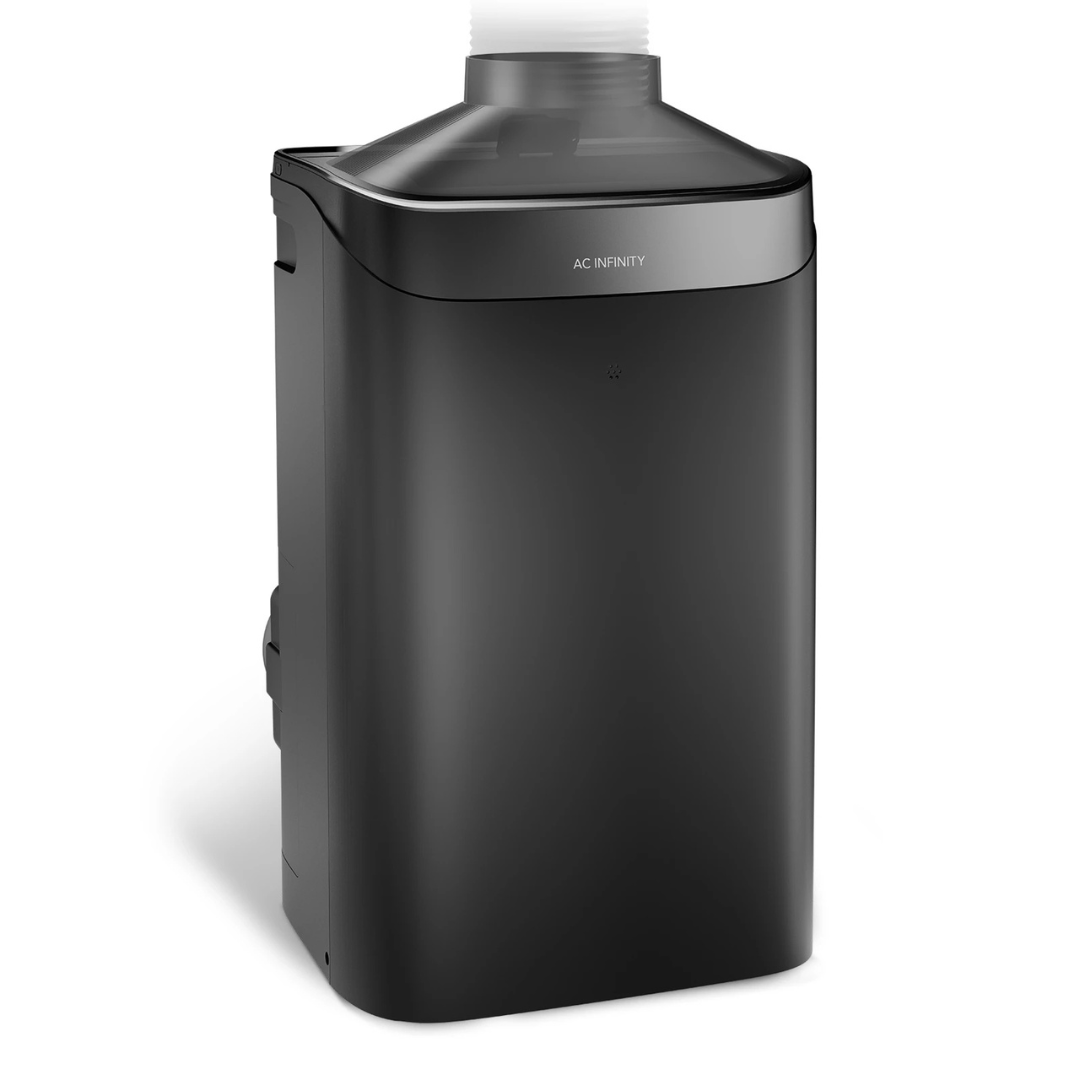

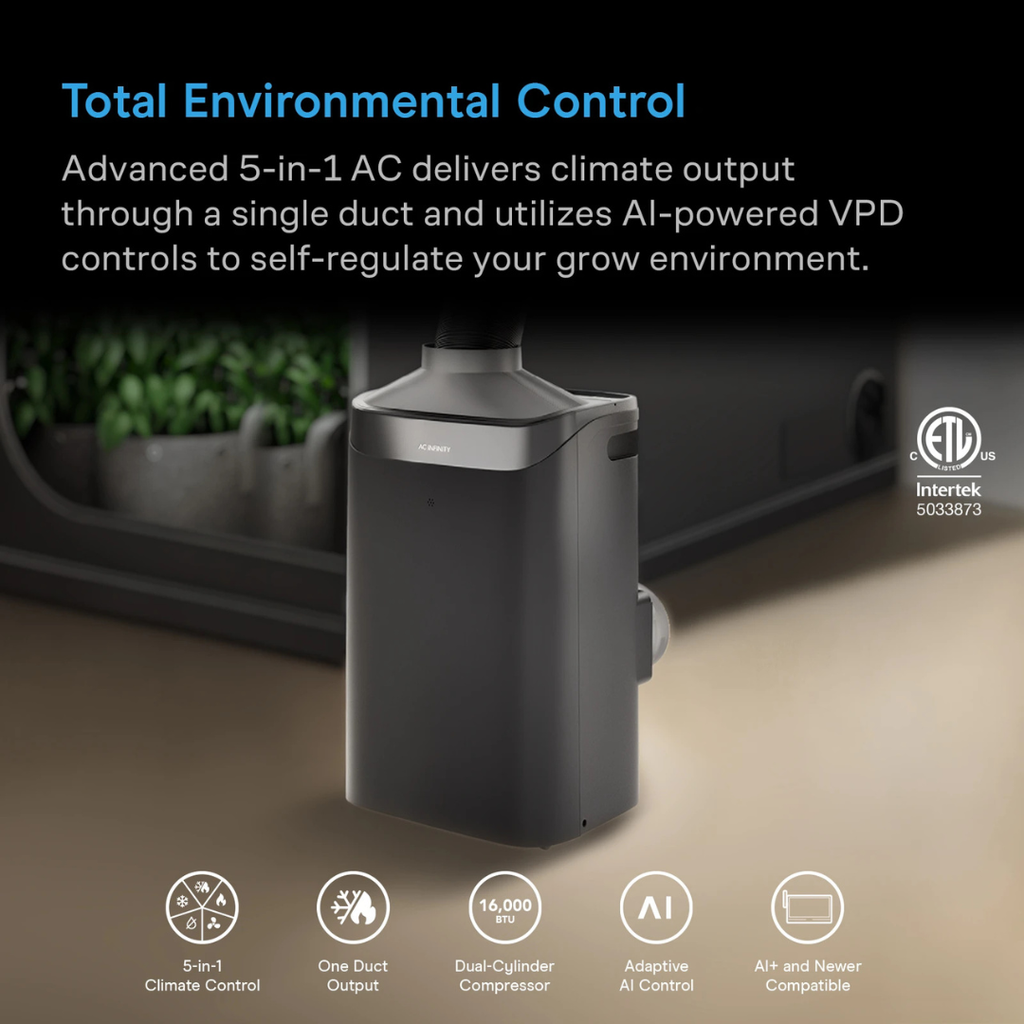

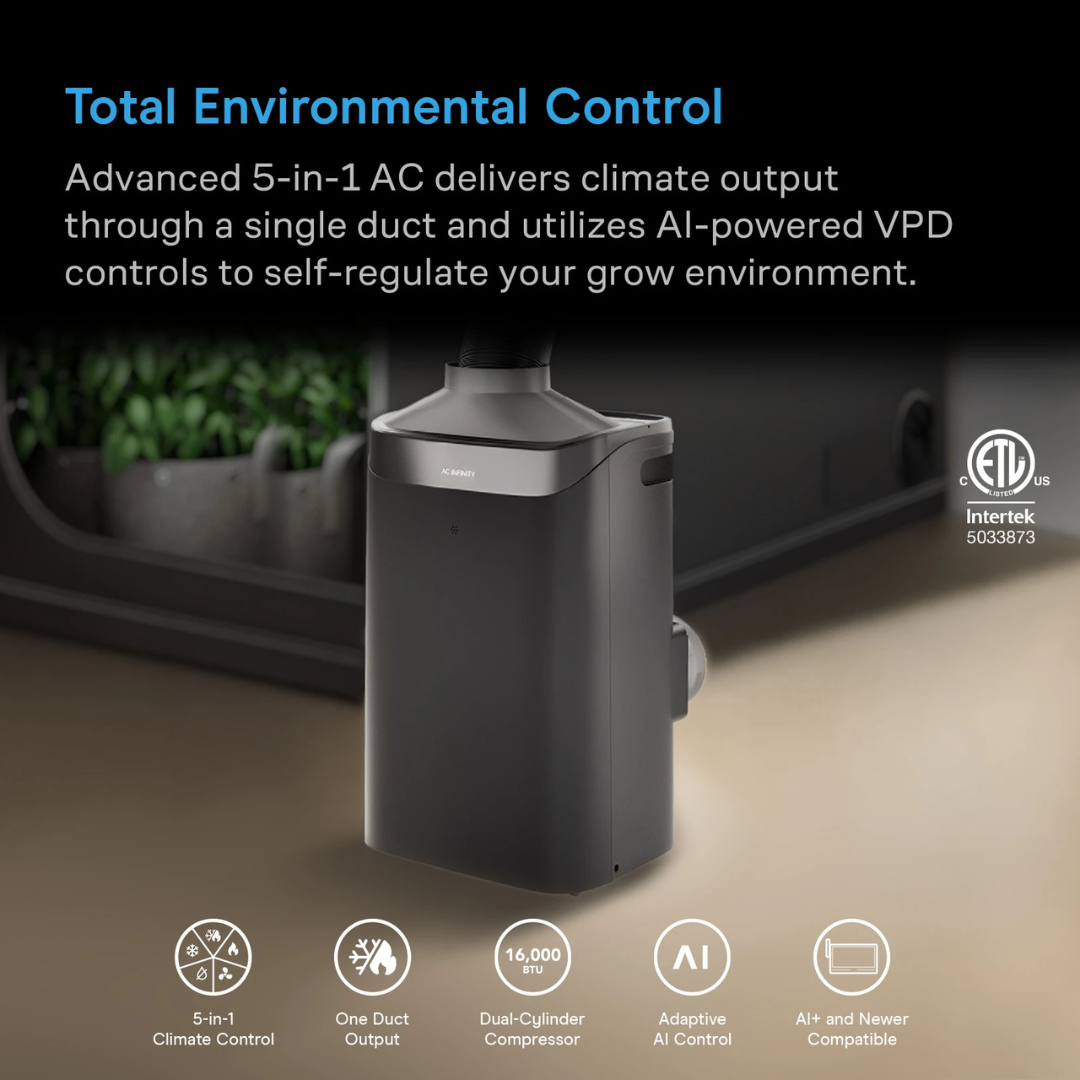

A 5-in-1 climate-control system designed to regulate temperature, humidity, and VPD in grow tents up to 20 ft. x 20 ft. It provides cooling, heating, dehumidifying, circulation, and air-exchange functions through configurable ducting.
The dual-cylinder DC inverter delivers 16,000 BTU cooling with variable-speed operation for stable output. When paired with a compatible advanced controller, the system can automatically switch between cooling, heating, and fan modes to maintain the selected temperature or VPD target.
Key Features
-
5-in-1 Climate Control: Provides cooling, heating, dehumidifying, circulation, and air-exchange functions.
-

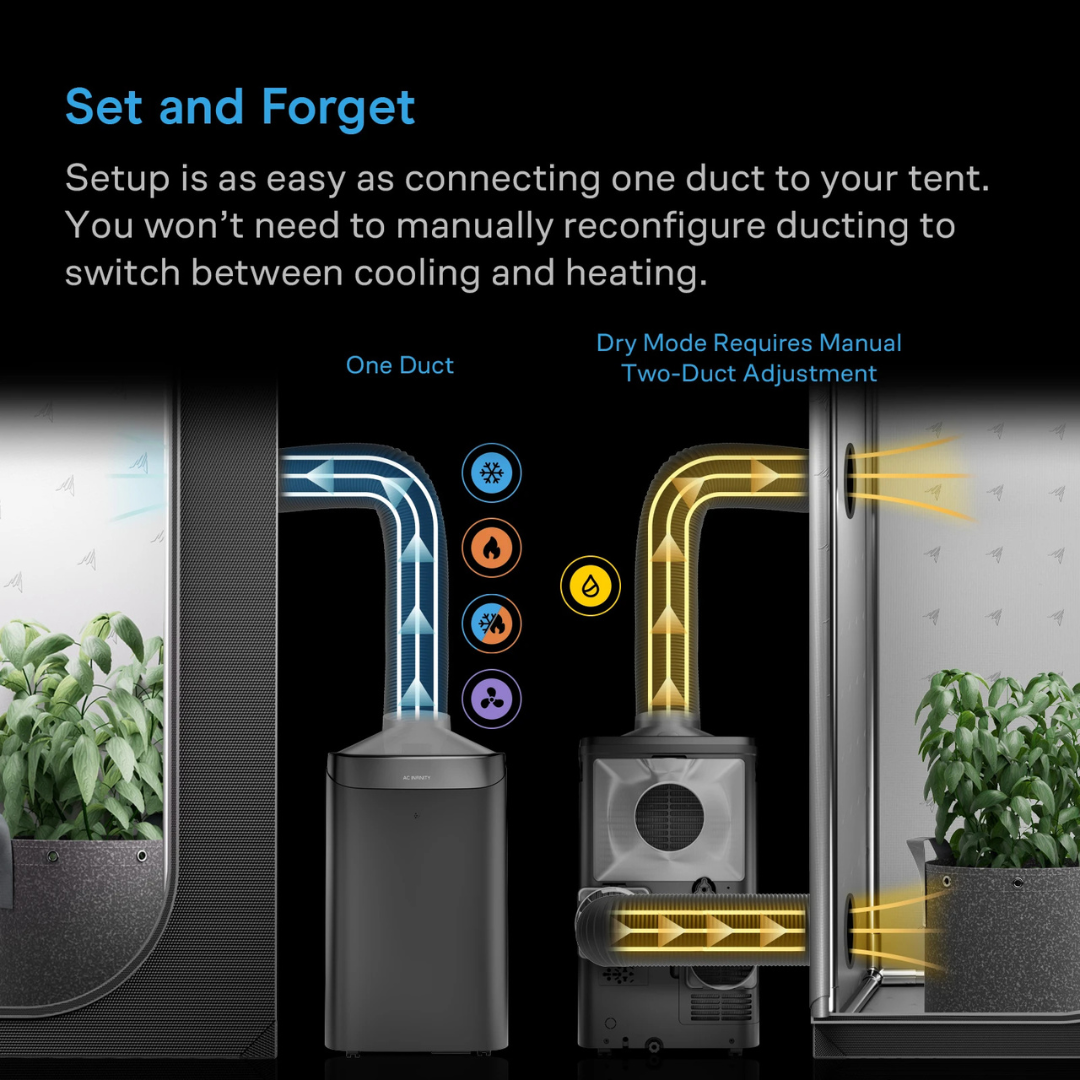

One-Duct Automatic Switching: Cooling, heating, and fan modes can operate through a single duct without manual duct adjustments.
-
AI Climate Regulation: When paired with a compatible advanced controller, the AI setting analyzes climate patterns and adjusts output to maintain the selected temperature, humidity, or VPD target.
-
Automatic Mode Changes: Switches between cooling, heating, and fan operation as environmental conditions change.
-

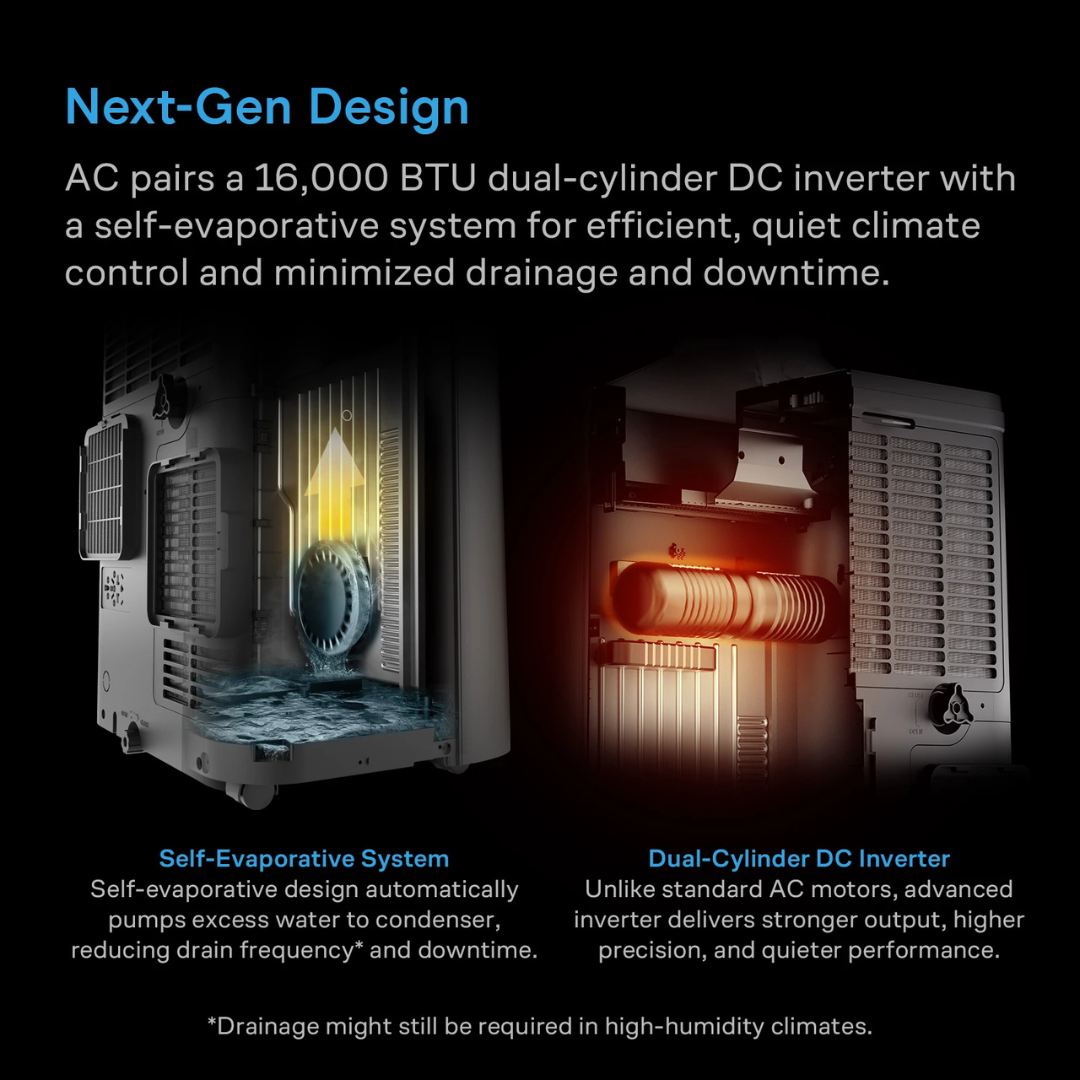

Dual-Cylinder DC Inverter: Variable-speed inverter technology continuously adjusts output for stable temperatures, quieter operation, improved efficiency, and precise climate control.
-
16,000 BTU Cooling: Provides high-capacity cooling for growing spaces up to 20 ft. x 20 ft.
-
12,000 BTU Heating: Supplies heating output for maintaining temperatures in cooler conditions.
-
Advanced Dehumidification: Uses a two-duct configuration for precise moisture removal. Drying requires manual duct adjustments.
-

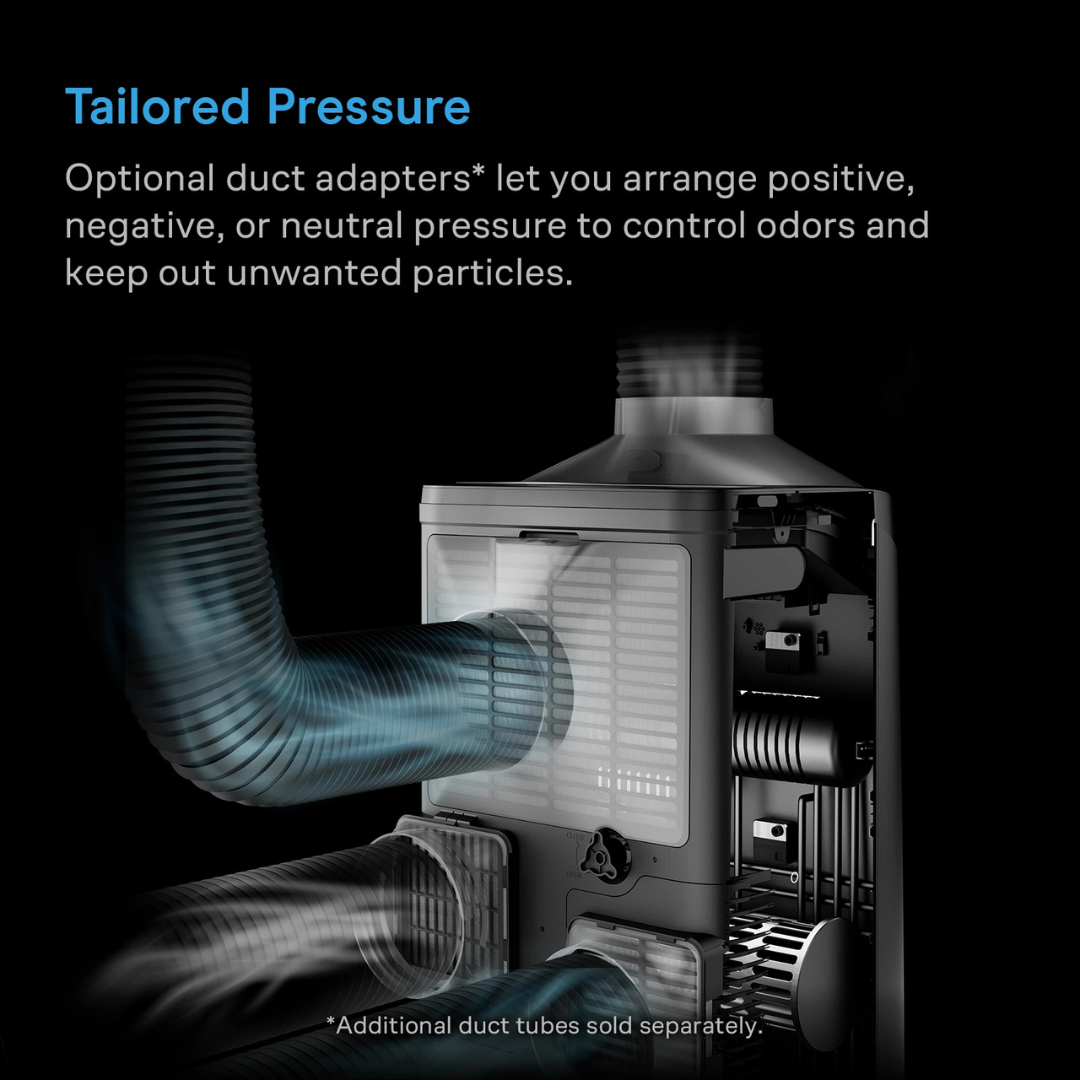

Four-Way Ducting Support: Two additional ports support positive, negative, or neutral pressure configurations when used with separately sold ducting.
-
Odor and Airflow Management: Optional 4-way ducting can balance airflow and support odor control.
-
Self-Evaporative System: Recycles excess water through the condenser to reduce drainage frequency.
-

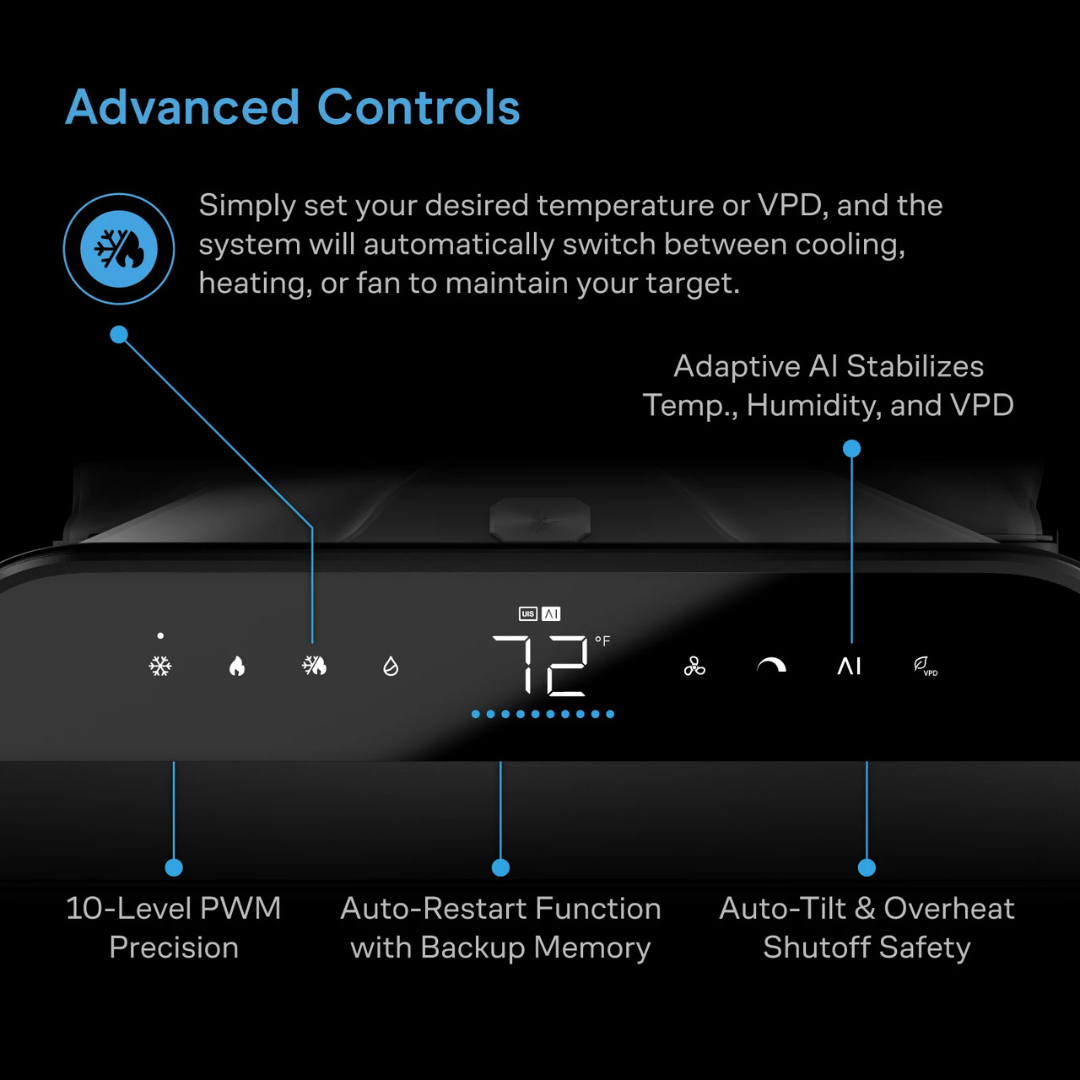

10-Level Control: Cooling, heating, dehumidifying, and circulation output can be adjusted through 10 levels.
-
Hidable Display: The display can be switched off while the mode indicator remains illuminated.
-
Full-Tray Protection: Operation pauses when the condensation tray is full and resumes after the water is emptied.
-
Tilt Protection: Programming pauses if the unit falls or tilts and resumes after it is returned upright.
-
Transportation Wheels: Integrated wheels support easier repositioning.
-
WiFi App Connectivity: Compatible controllers provide advanced automation, data tracking, alerts, and grow guides.
-
US Availability: Available for use in the United States only.

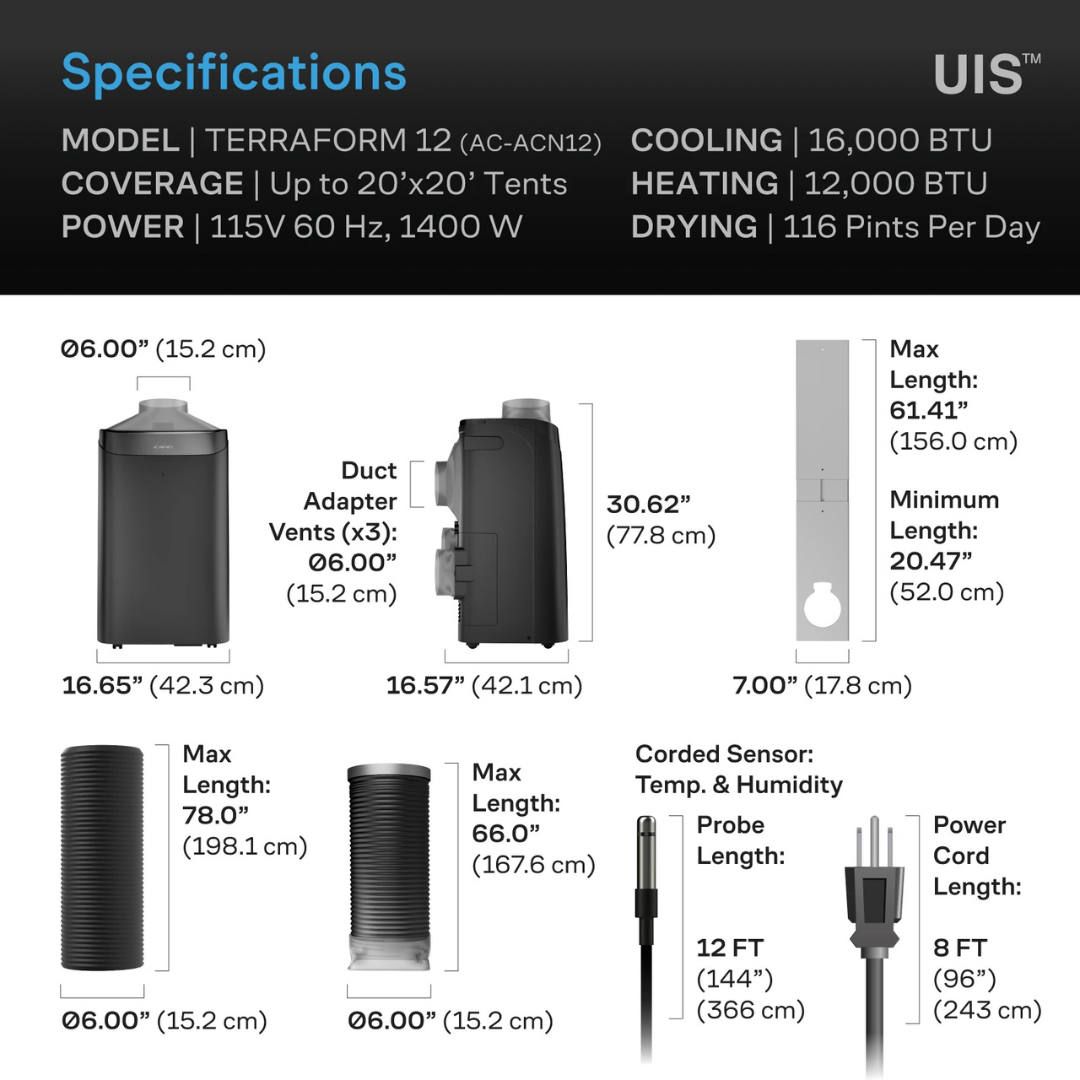

Specifications
-
Unit Length: 16.57 in. (42.1 cm)
-
Unit Width: 16.65 in. (42.3 cm)
-
Unit Height: 30.62 in. (77.8 cm)
-
Duct Tube Lengths: 78.00 in. (198.1 cm), 66.00 in. (167.6 cm)
-
Recommended Grow Tent Size: Up to 20 ft. x 20 ft.
-
Smart Controls: Temperature, Humidity, VPD
-
Available Modes: Cooling, Heating, Dehumidifying, Circulation
-
Control Range: 10 Levels
-
Cooling Power: 16000 BTU
-
Heating Power: 12000 BTU
-
Maximum Power Draw: 1400 W
-
Voltage: 115V AC
-
Frequency: 60 Hz
-
Current: 11.8 A
-
Operating Temperature: 61 to 95ºF
-
Operating Humidity: 35 to 85% RH
-
Control Type: 10-Level PWM
-
Programming: Cool Mode, Heat Mode, Cool/Heat Mode, Dry Mode, Fan Mode, Temperature Triggers, Humidity Triggers, and VPD Triggers
Size Guide
-
Recommended Coverage: Grow tents up to 20 ft. x 20 ft.
-
Unit Dimensions: 16.57 in. long x 16.65 in. wide x 30.62 in. high (42.1 cm x 42.3 cm x 77.8 cm)
-
Duct Tube Lengths: 78.00 in. (198.1 cm) and 66.00 in. (167.6 cm)
Compatibility
-

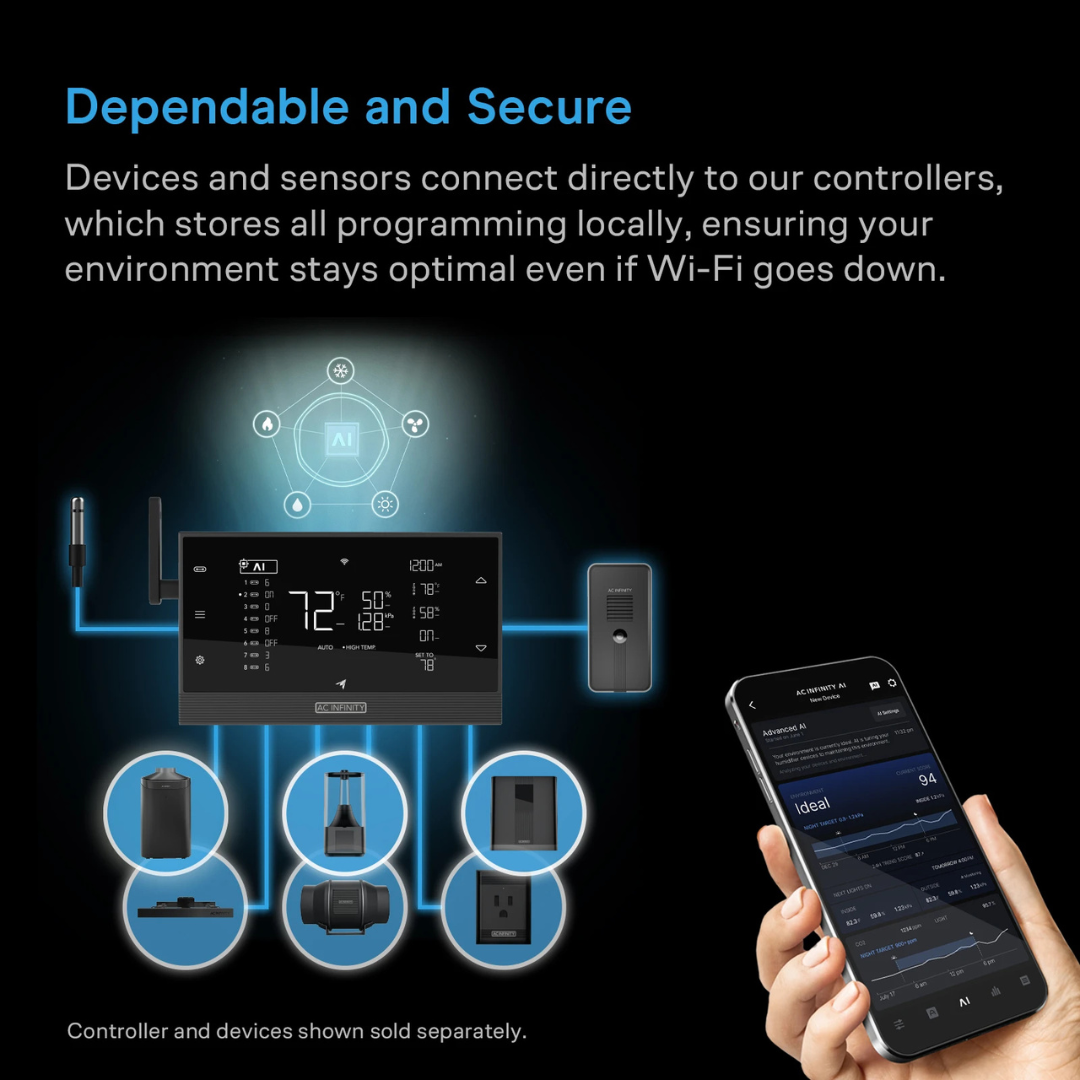

Compatible With: Controller AI+ and newer controllers for WiFi app connectivity, adaptive AI operation, advanced automation, data tracking, alerts, and grow guides.
-
Automatic Switching Compatibility: Automatic switching between cooling, heating, and fan modes is available when paired with Controller AI+ and newer controllers.
-
Limited Compatibility: Automatic AI mode switching is not available with Controller 69 Pro+ or earlier controller models.
-
Single-Duct Operation: Cooling, heating, and fan operation can use one connected duct.
-
Dual-Duct Operation: Dehumidifying operation requires manual adjustment to a two-duct configuration.
-
Four-Way Ducting: Two optional ports support positive, negative, or neutral pressure control with additional ducting sold separately.
Included
- All-in-one climate-control A/C unit x1
- 78.00 in. (198.1 cm) duct tube x1
- 66.00 in. (167.6 cm) duct tube x1
Warranty
Warranty: 2 years from the date of purchase, subject to the terms and exclusions of the official warranty program.
