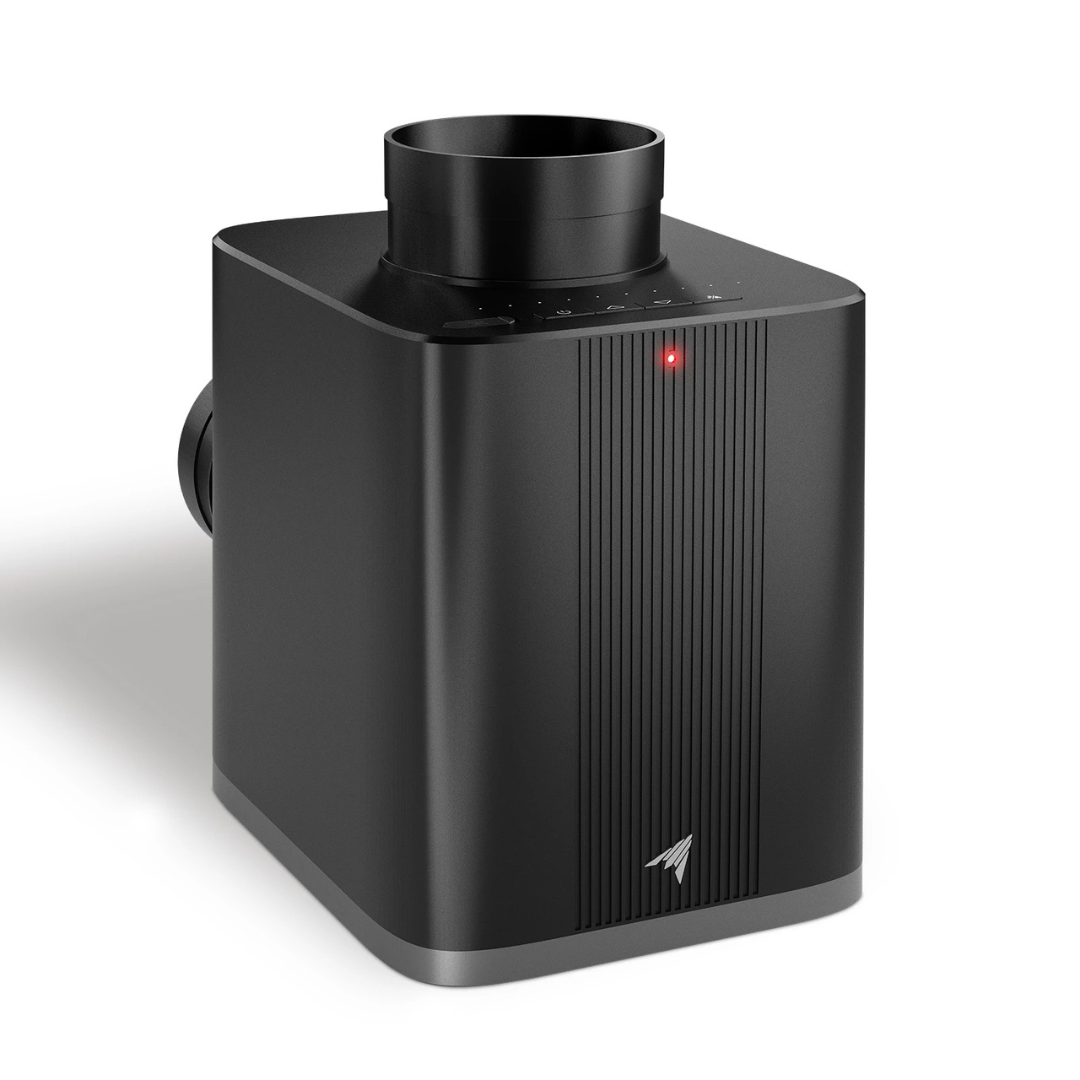

AC Infinity THERMOFORGE S7, Plant Heater 1000W with 10 Heating and Air Intake Levels

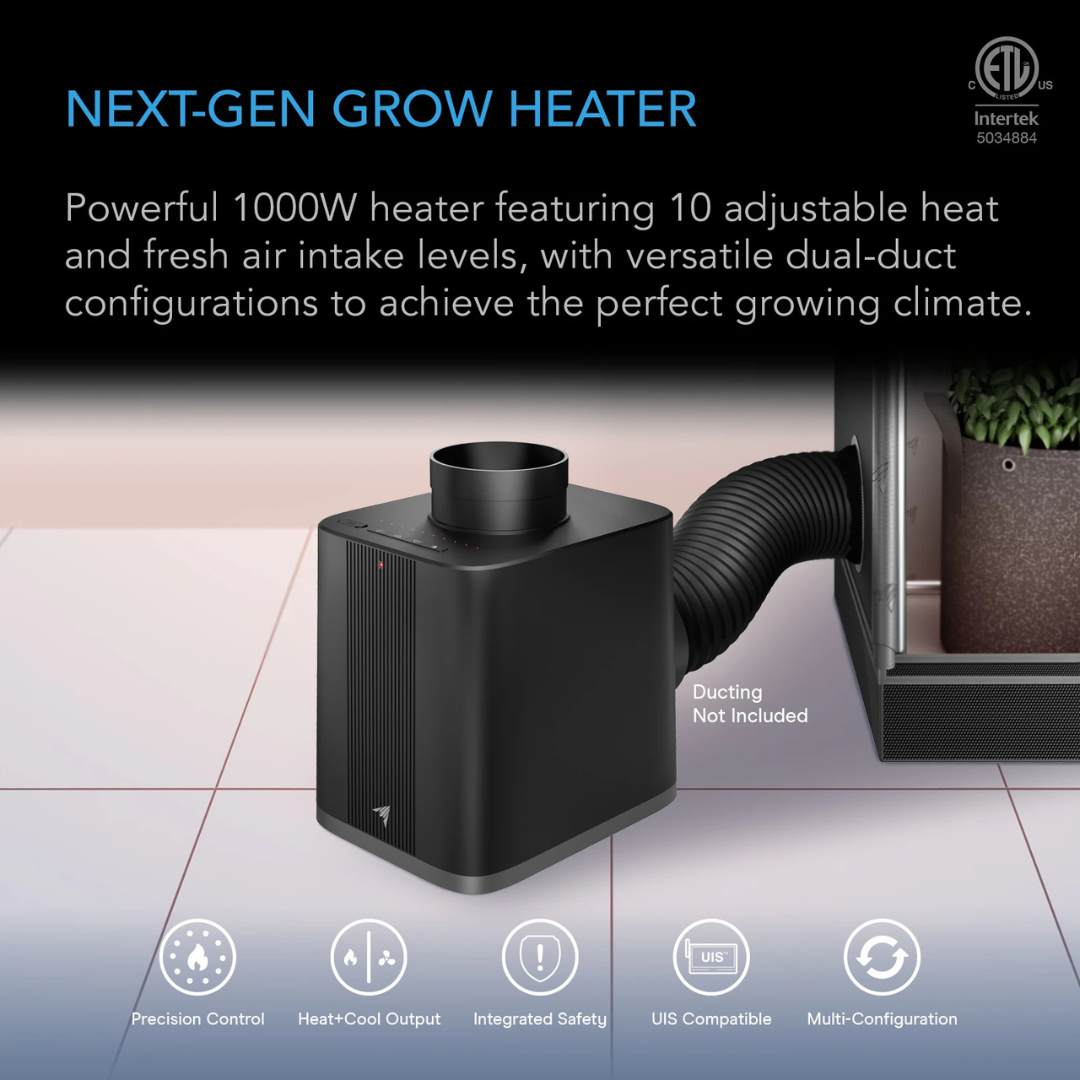

The THERMOFORGE S7 is a 1000W plant heater designed for controlled indoor growing environments. Individual PTC plates and PWM control provide 10 heating levels, along with 10 fan levels for drawing fresh air into the growing space.

Dual 4-inch duct ports support open-loop fresh-air exchange or closed-loop heat circulation. Built-in safeguards include tip-over alarms, flame-retardant materials, and overheat protection with auto-restart.

Key Features

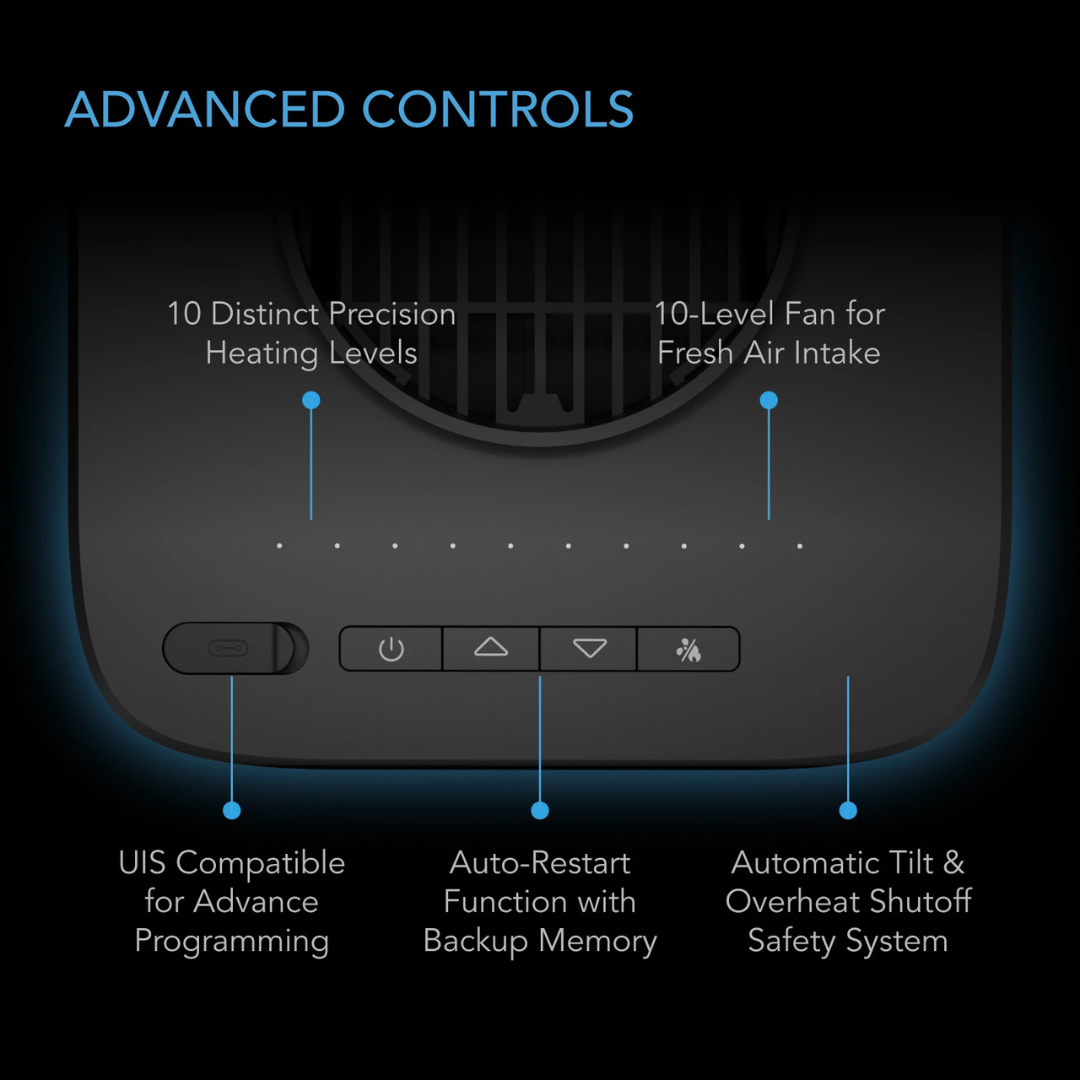

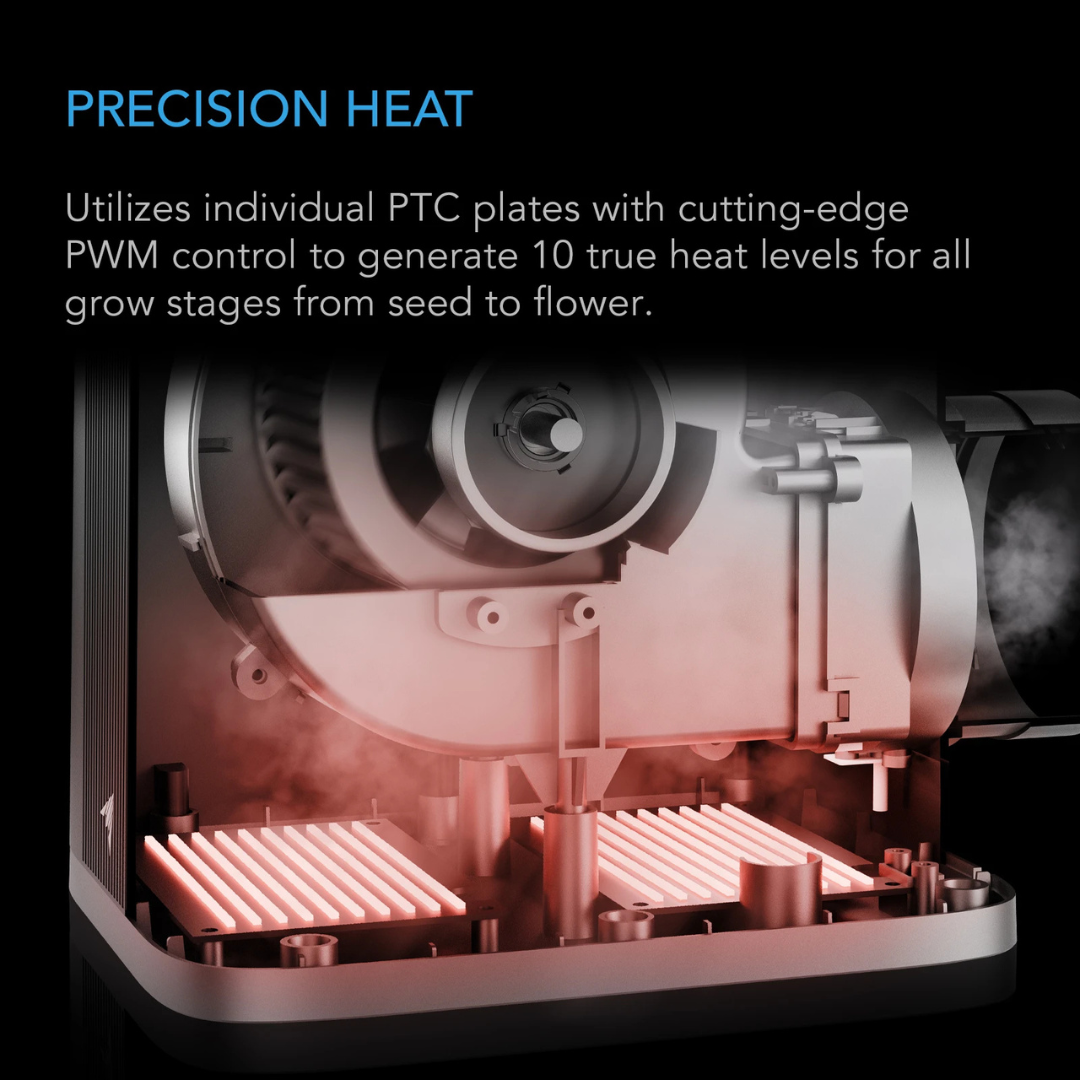

• Adjustable Heat Output: Individual PTC plates with PWM control deliver 10 heating levels.

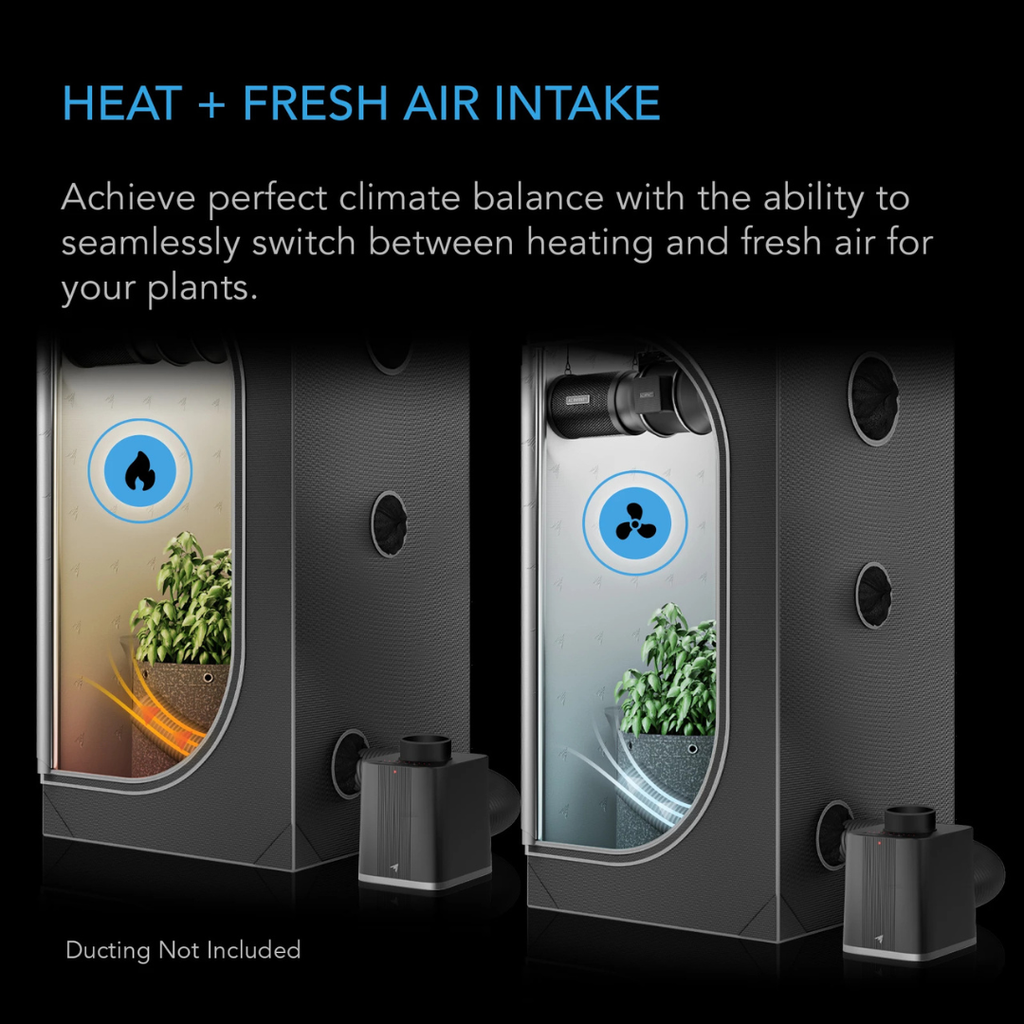

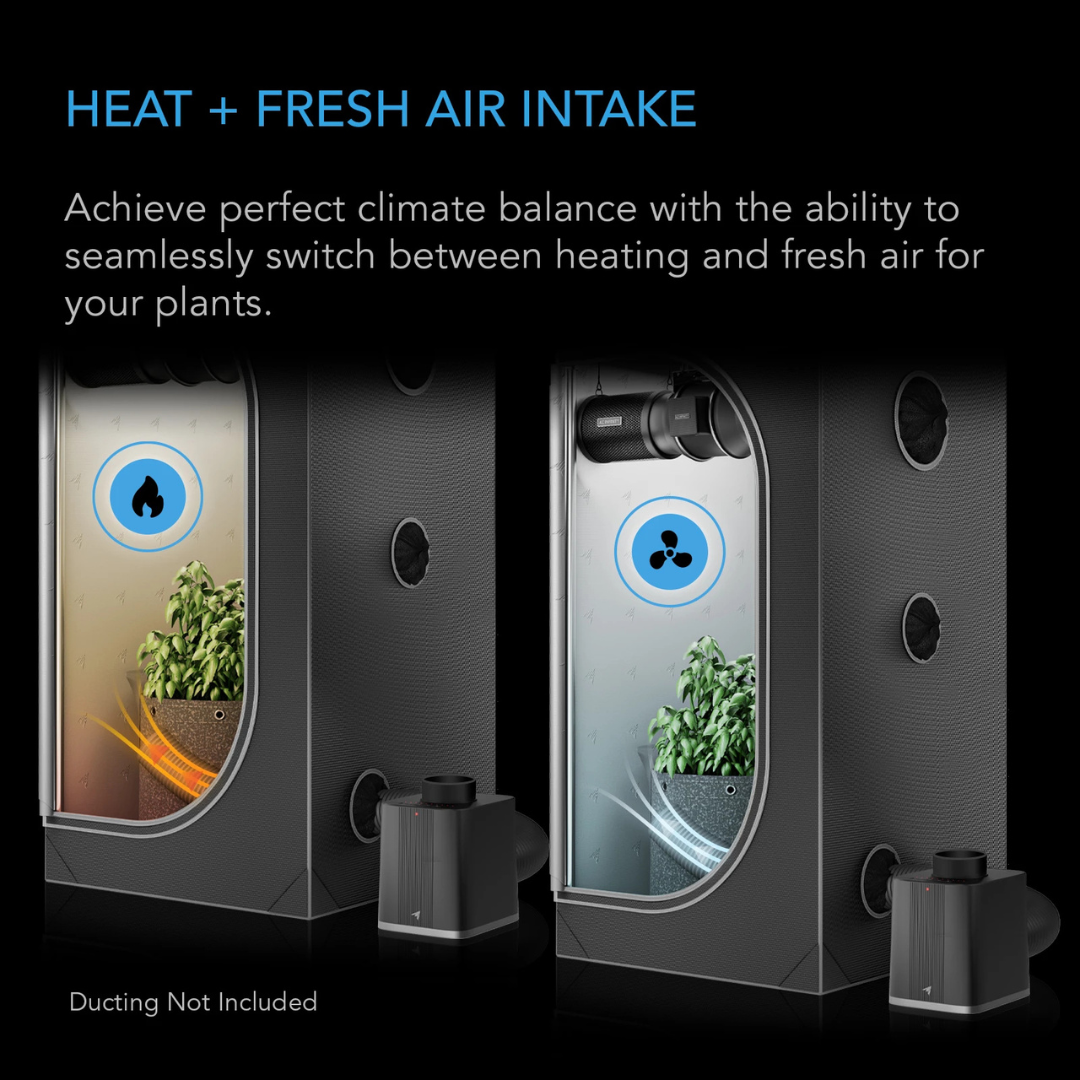

• Fresh-Air Intake: Fan mode provides 10 levels for drawing cooler outside air into the growing environment.

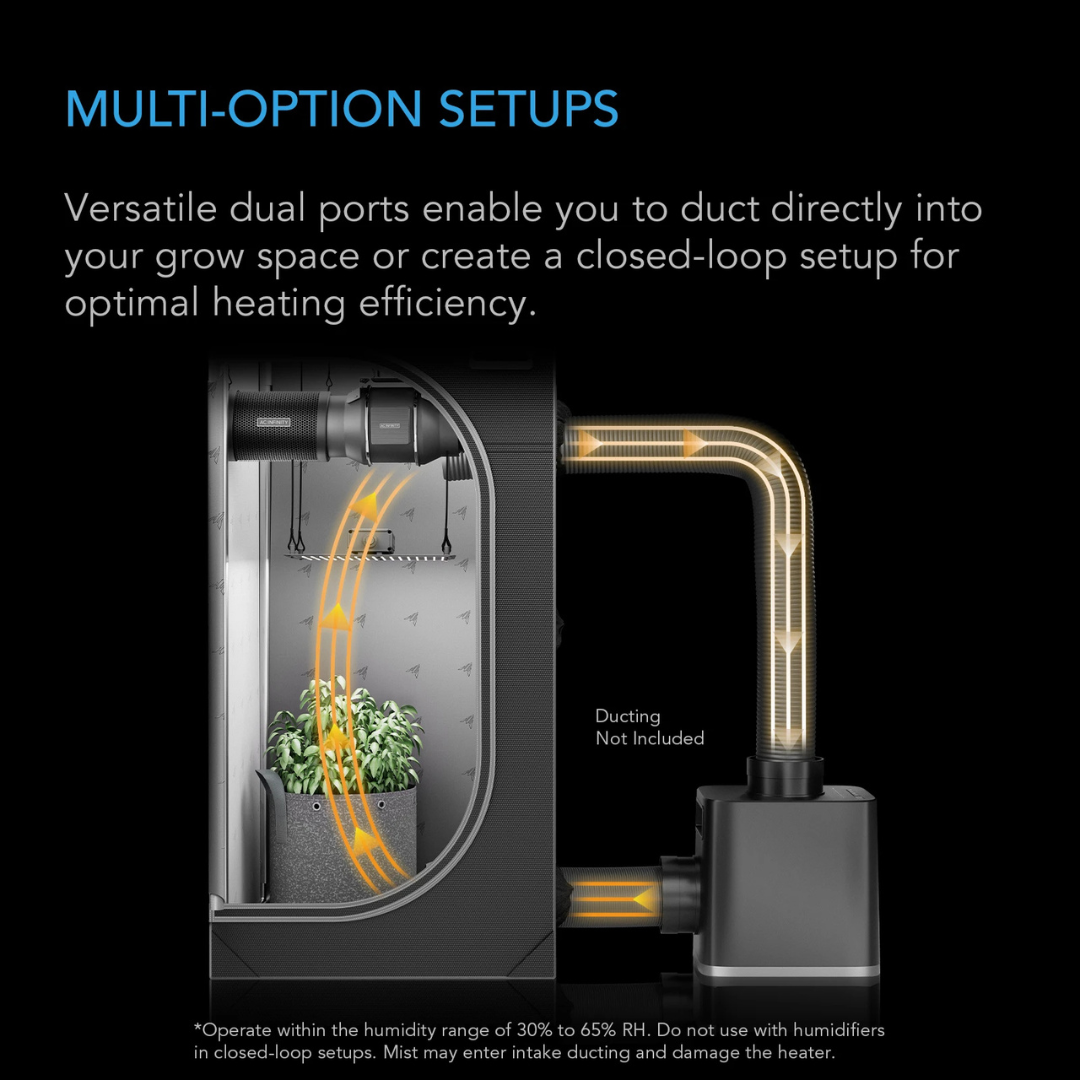

• Dual-Duct Configuration: 2 duct ports support direct ducting into a grow space and open- or closed-loop configurations.

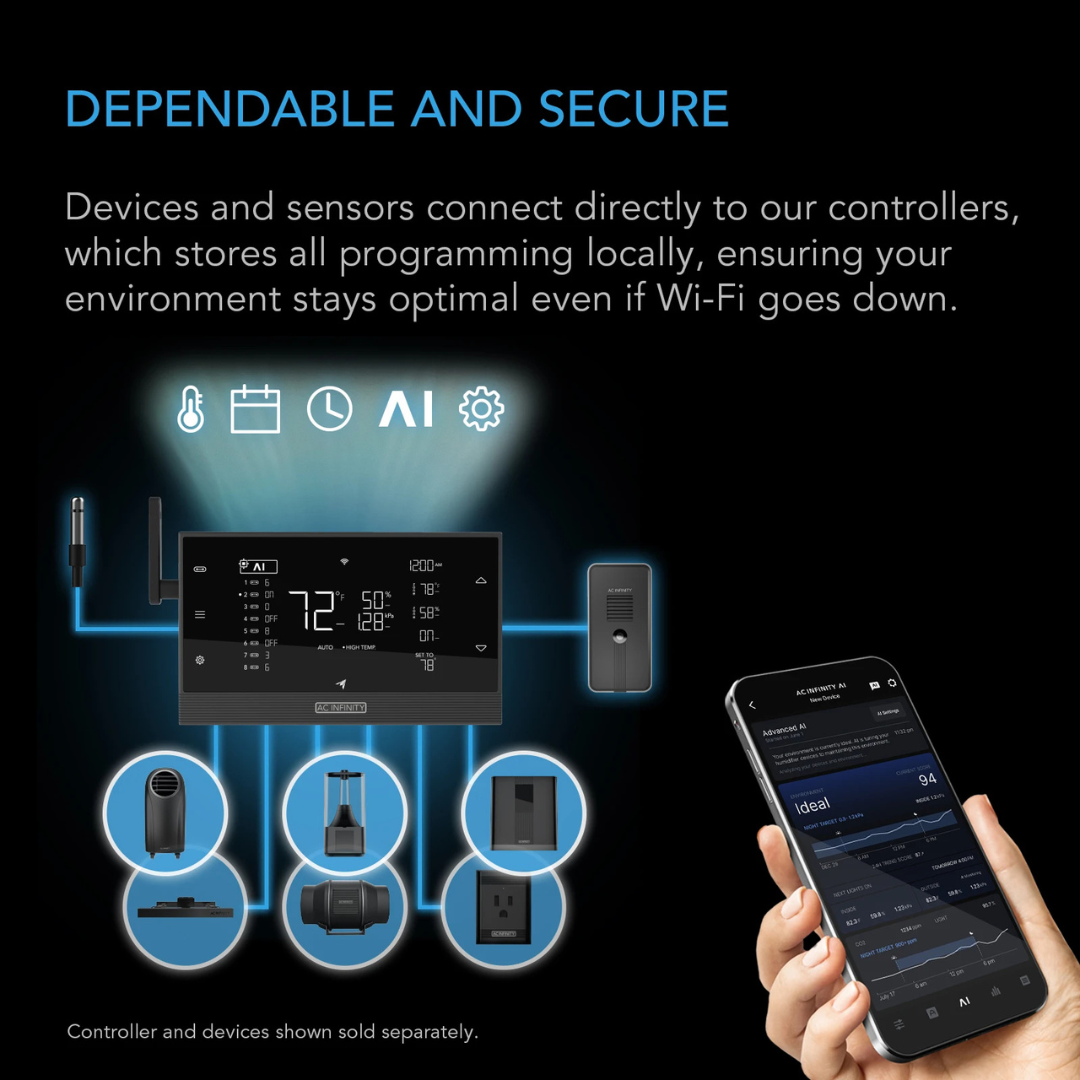

• UIS Integration: Connects with UIS controllers for advanced automation, climate-based programming, data tracking, alerts, grow guides, and Wi-Fi app connectivity.
• Tip-Over Protection: An alarm sounds, the lights flash, and programming pauses if the heater falls or tilts past a 20° angle.
• Overheat Protection: An alarm sounds and programming pauses if the heater overheats.
• Safety-Focused Construction: ETL-certified design includes flame-retardant materials and overheat protection with auto-restart.
• Indoor Growing Application: Designed exclusively for indoor use in controlled environments with 30% to 65% RH.

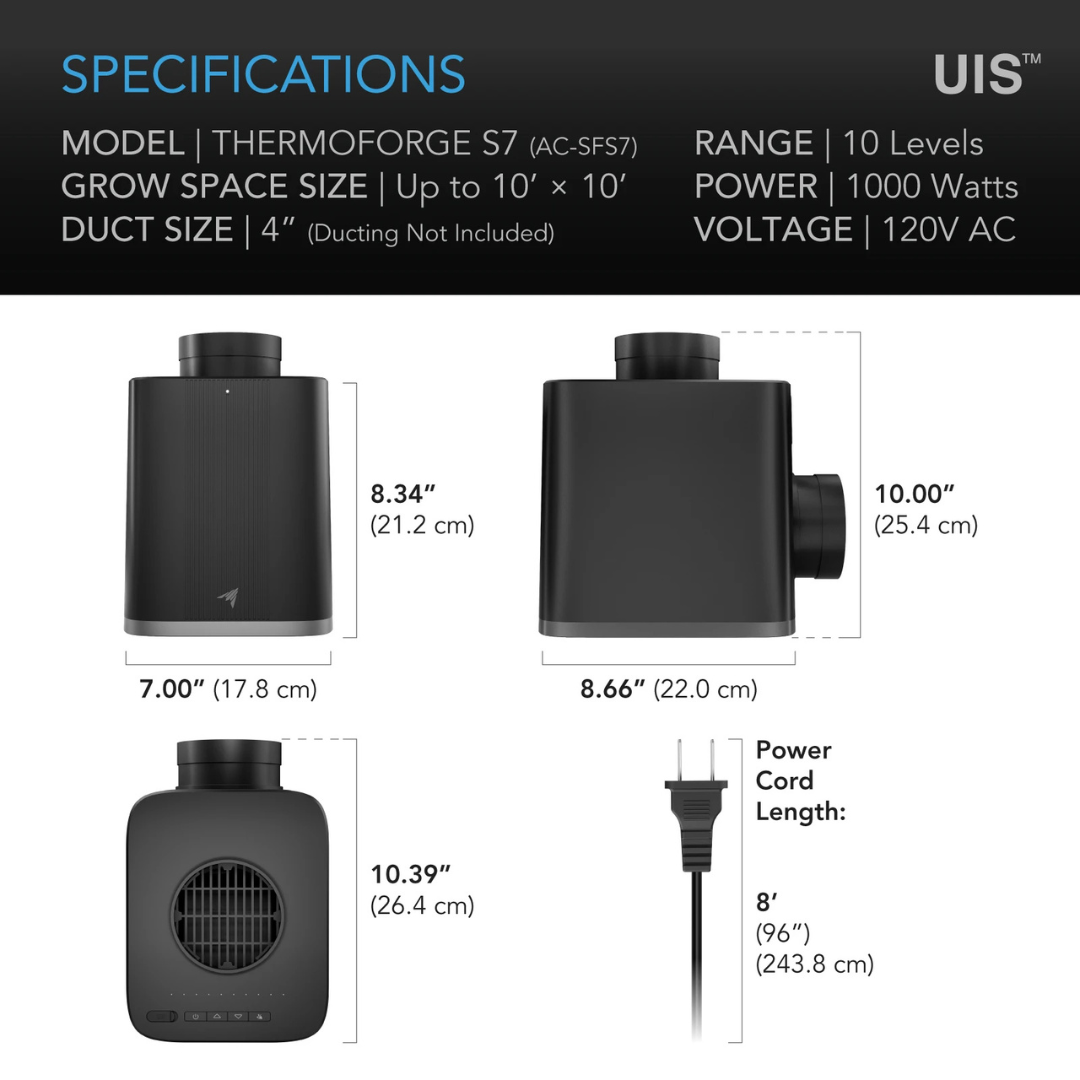

Specifications

• Available Modes: Heating, fan
• Control Range: 10 levels
• Control Type: 10-level PWM
• Maximum Power Draw: 1000 W
• Voltage: 120V AC
• Current: 10 A
• Operating Temperature: 14 to 140ºF
• Operating Humidity: 30% to 65% RH
• Unit Length: 8.66 in. (22.0 cm)
• Unit Width: 7.00 in. (17.8 cm)
• Unit Height: 10.00 in. (25.4 cm)
• Duct Size: 4.00 in. (10.2 cm)
• Duct Ports: Dual ports
• Certification: ETL certified
• Installation Environment: Indoor use only
• Required Power Connection: Grounded wall outlet with surge protection
• Ducting: Not included

Size Guide

• Product Dimensions: 8.66 in. x 7.00 in. x 10.00 in. (22.0 cm x 17.8 cm x 25.4 cm)
• Duct Connection Size: 4.00 in. (10.2 cm)

Compatibility

• Compatible With: UIS controllers for advanced programs and climate sensing.
• Optional Controllers Shown: CONTROLLER 69 PRO, CONTROLLER 69 PRO+, and CONTROLLER AI+.
• Optional Ducting Shown: Flexible Thermal-Resistant Hose, 8 ft. long.
• Closed-Loop Restriction: Do not use with humidifiers in closed-loop configurations because mist may enter the intake ducting and damage the heater.
• Power Restrictions: Do not use with extension cords or power strips, and do not share the outlet with other devices.

Warranty

• Warranty: 2-year warranty from the date of purchase against manufacturing defects.
