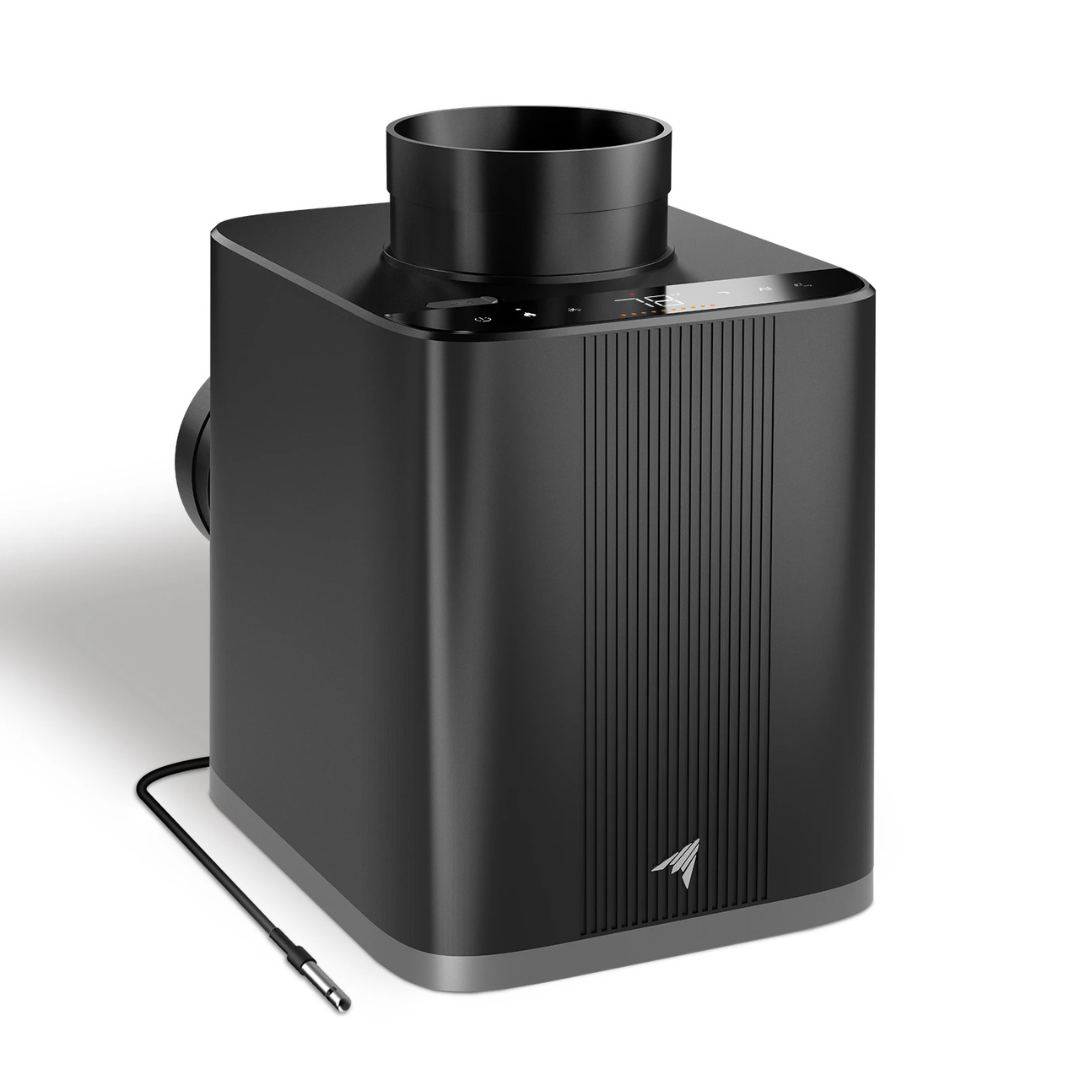

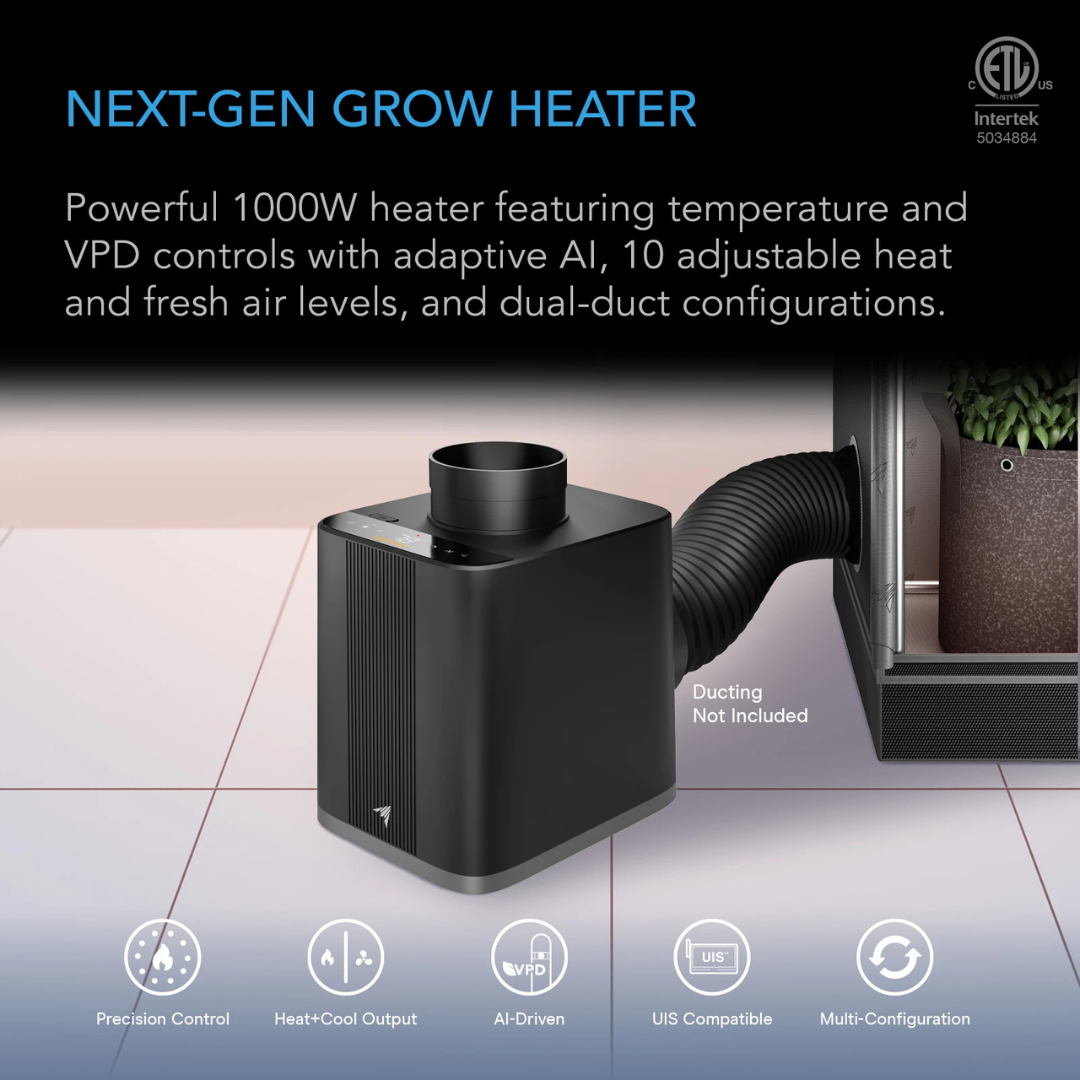

AC Infinity THERMOFORGE T7, Plant Heater 1000W with AI-Powered VPD Temp Controller

The THERMOFORGE T7 is a 1000W plant heater with onboard temperature and VPD controls for controlled indoor growing environments. Its adaptive AI setting analyzes climate patterns and dynamically adjusts heat levels to maintain the selected temperature or VPD target.

Individual PTC plates and PWM control provide 10 heating levels, while fan mode draws fresh air into the growing space. Dual 4-inch duct ports support open-loop air exchange and closed-loop heat circulation.

Key Features

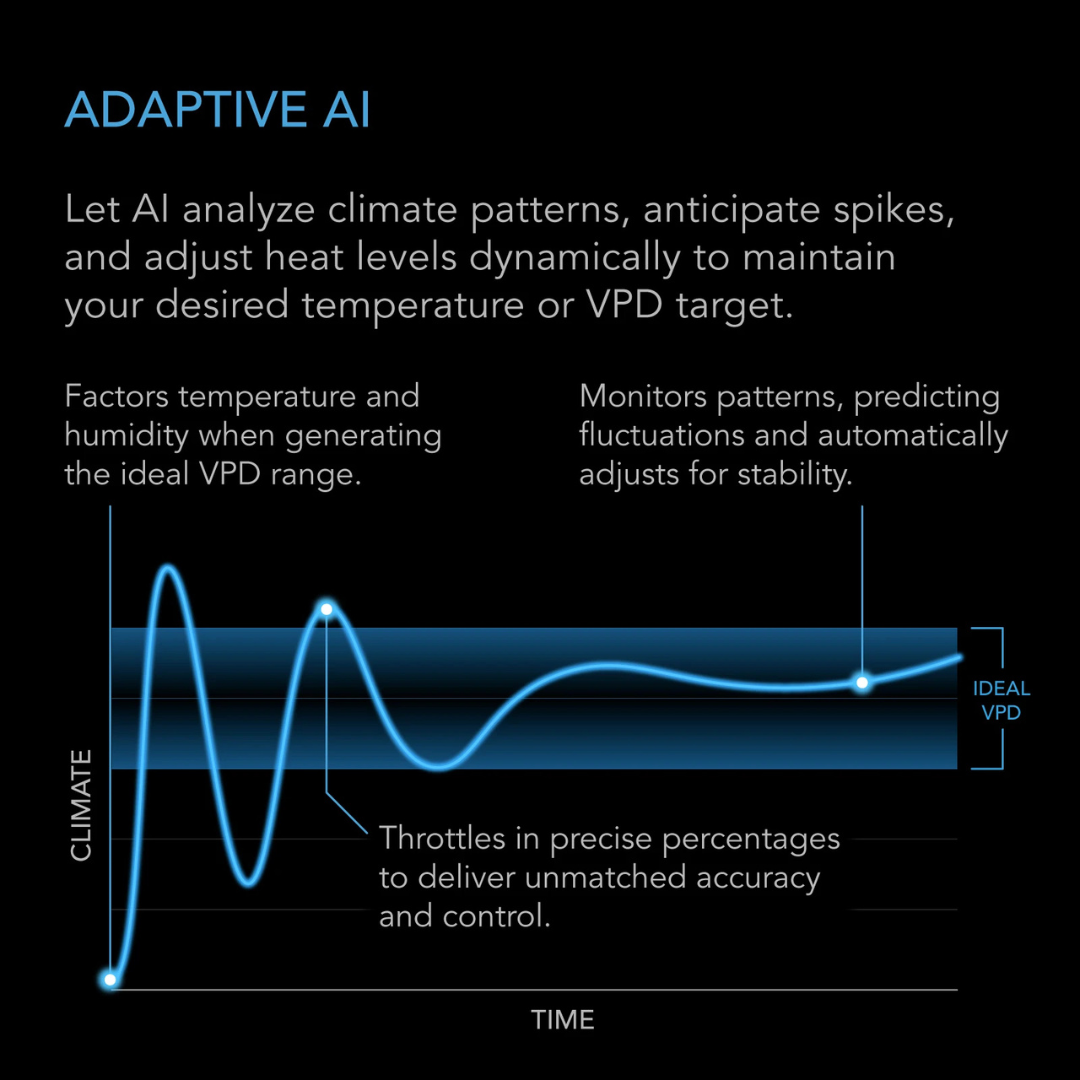

• Adaptive AI Control: The Heat Mode AI setting analyzes climate patterns, anticipates changes, and dynamically adjusts heat levels to maintain the selected temperature or VPD target.

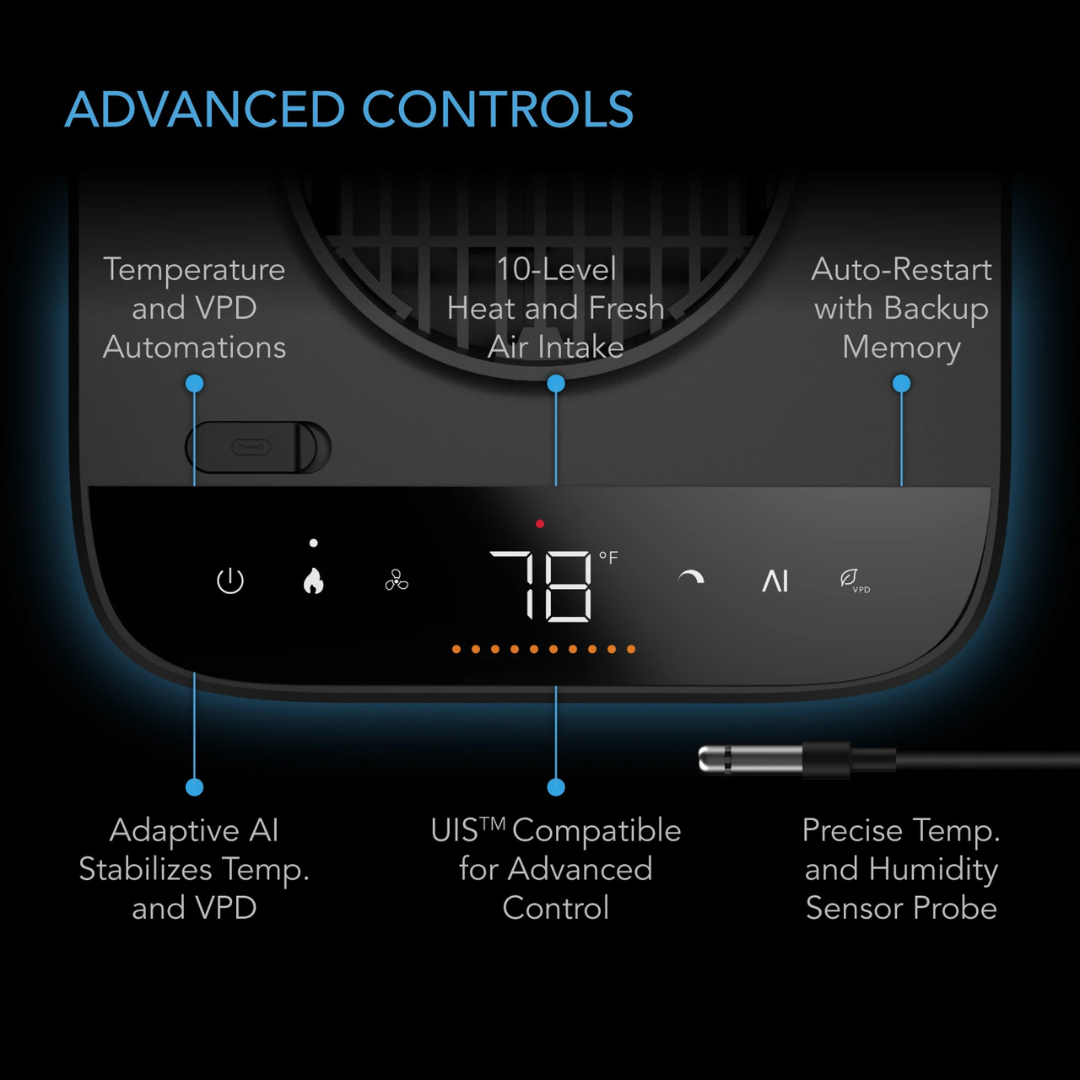

• Temperature and VPD Programming: Onboard controls support temperature and VPD targets using readings from the included precision sensor probe.

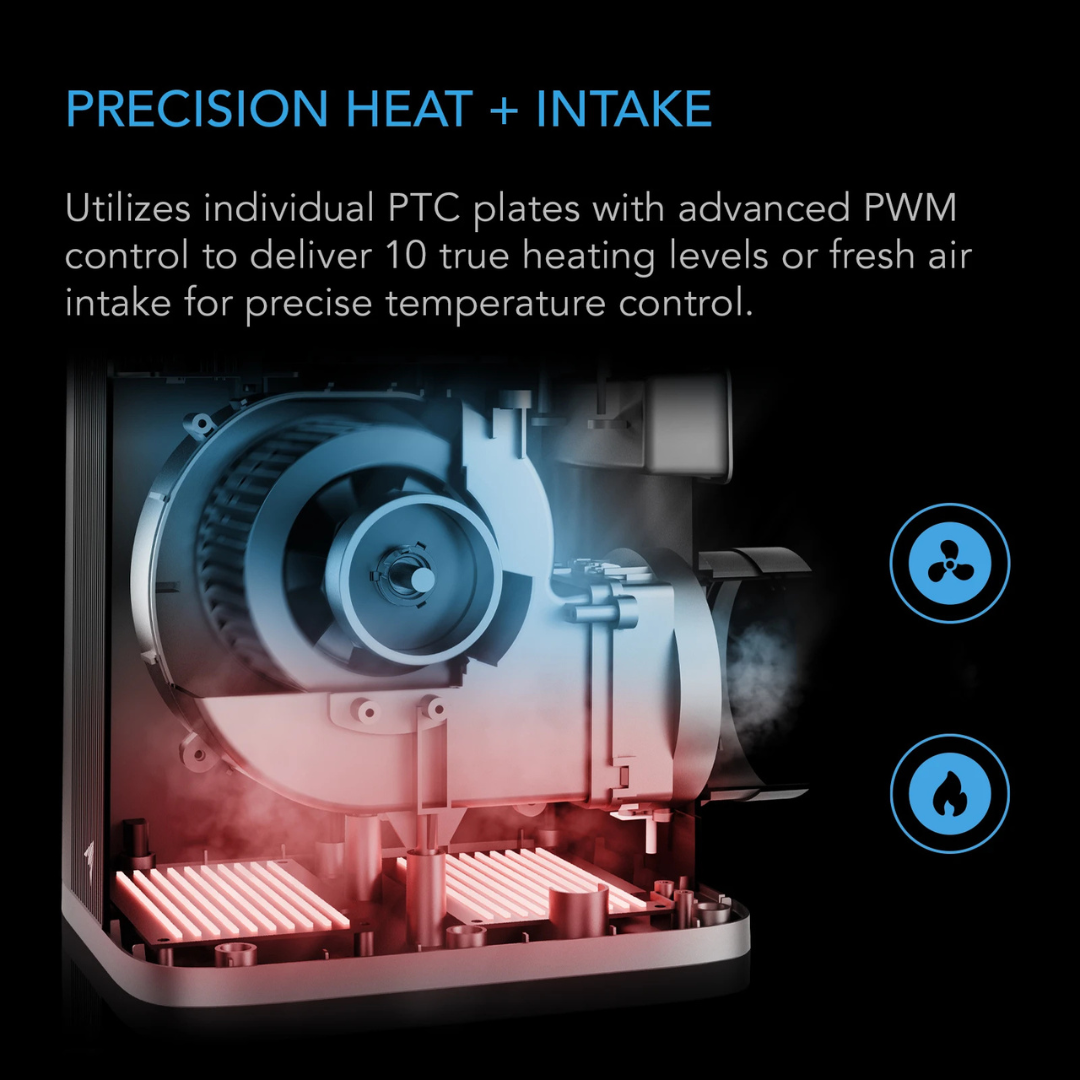

• Adjustable Heating: Individual PTC plates with PWM control provide 10 heat-output levels.
• Fresh-Air Intake: Fan mode draws cooler outside air into the growing environment.

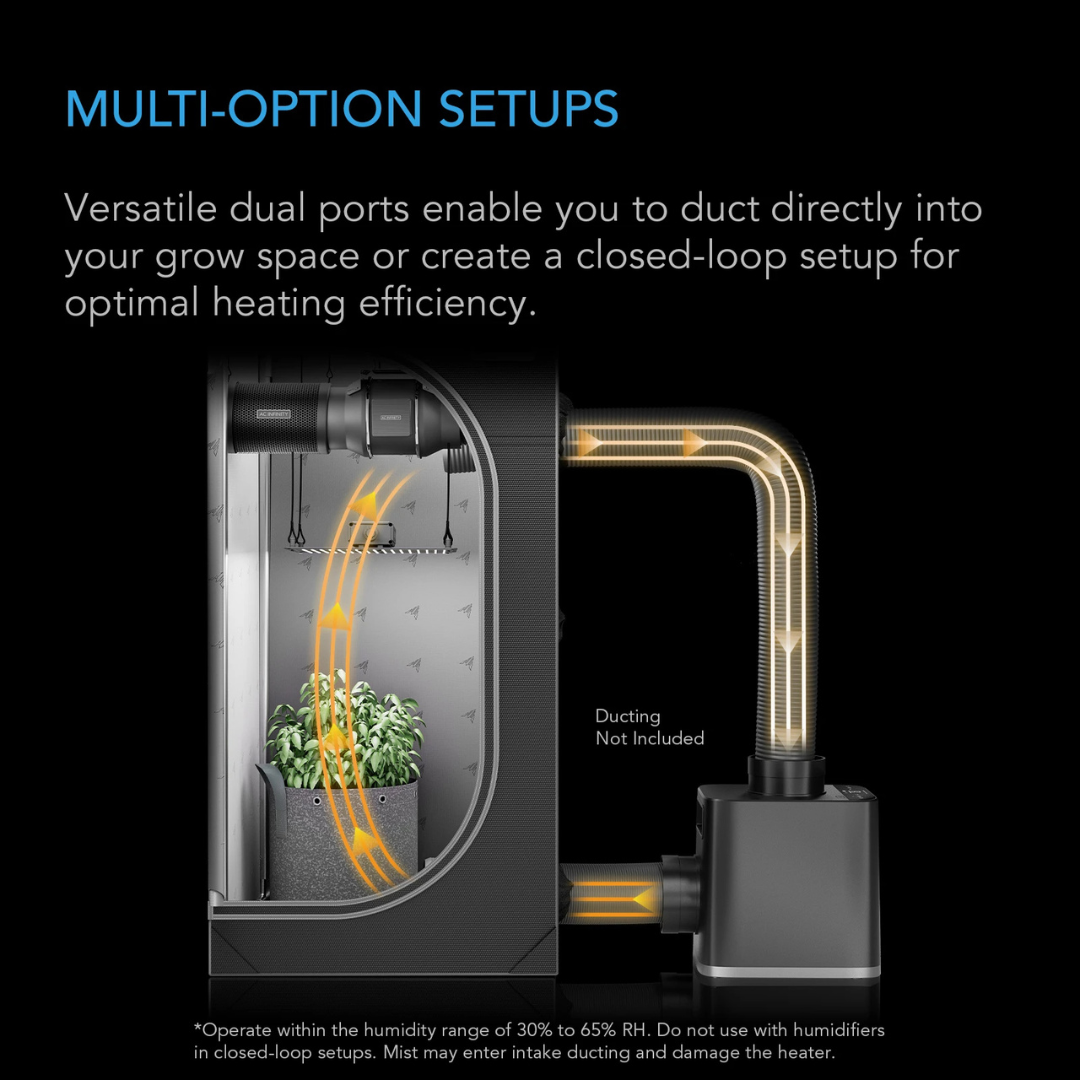

• Dual-Duct Configuration: 2 duct ports support direct ducting into the grow space and open- or closed-loop configurations.

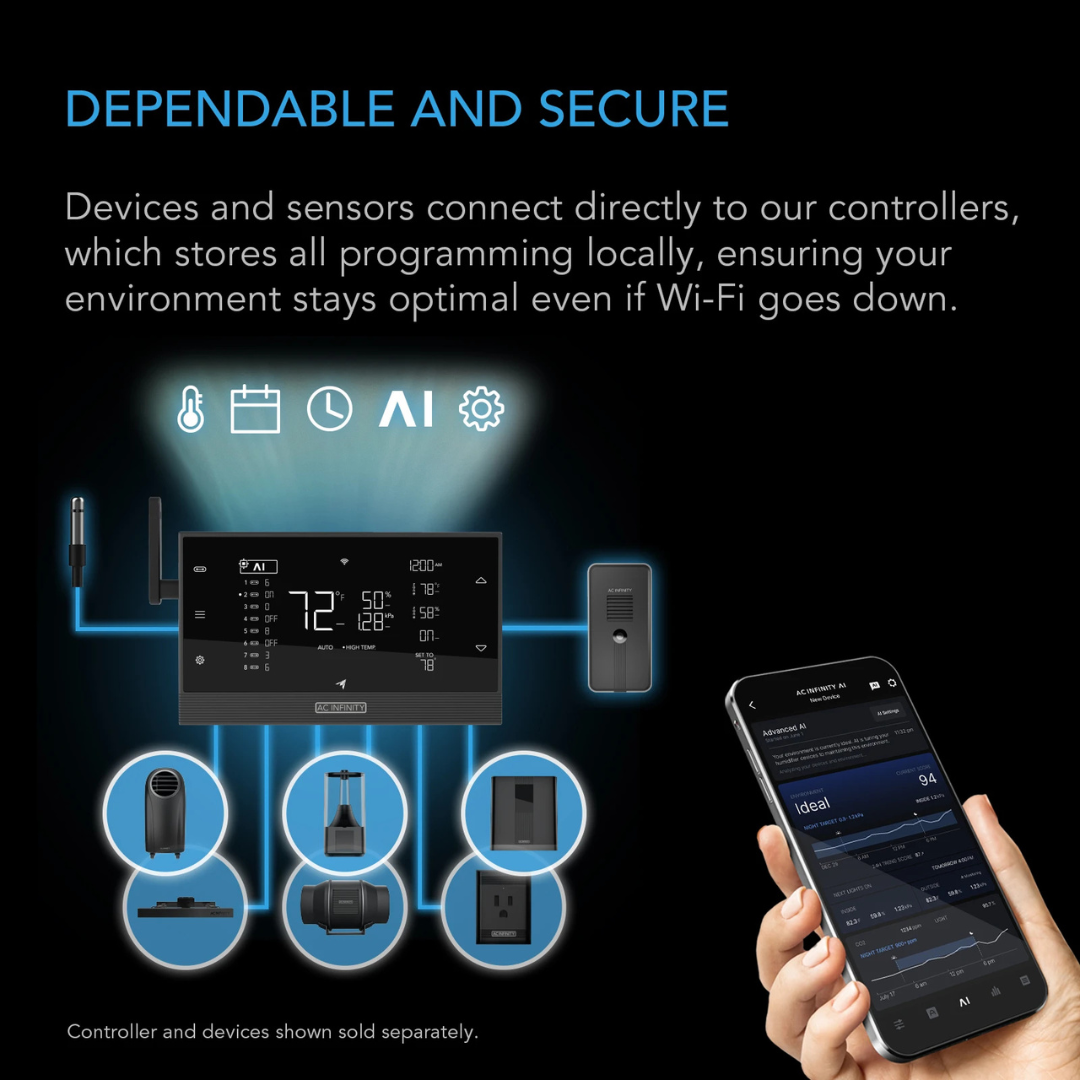

• UIS Integration: Connects with UIS controllers for advanced automation, real-time data tracking, alerts, grow guides, and Wi-Fi app connectivity.
• Tip-Over Protection: An alarm sounds and programming pauses if the heater falls or tilts past a 20° angle.
• Overheat Protection: An alarm sounds and programming pauses if the heater overheats.
• Fault Detection: An alert appears when the heater detects a fault with its internal components.
• Safety-Focused Construction: ETL-certified design includes flame-retardant materials and overheat protection with auto-restart.

Specifications

• Smart Controls: VPD, temperature
• Available Modes: Heating, fan
• Control Type: 10-level PWM
• Control Range: 10 levels
• Climate Sensors: Temperature, humidity, VPD
• Maximum Power Draw: 1000 W
• Voltage: 120V AC
• Current: 10 A
• Operating Temperature: 14 to 140ºF
• Operating Humidity: 30% to 65% RH

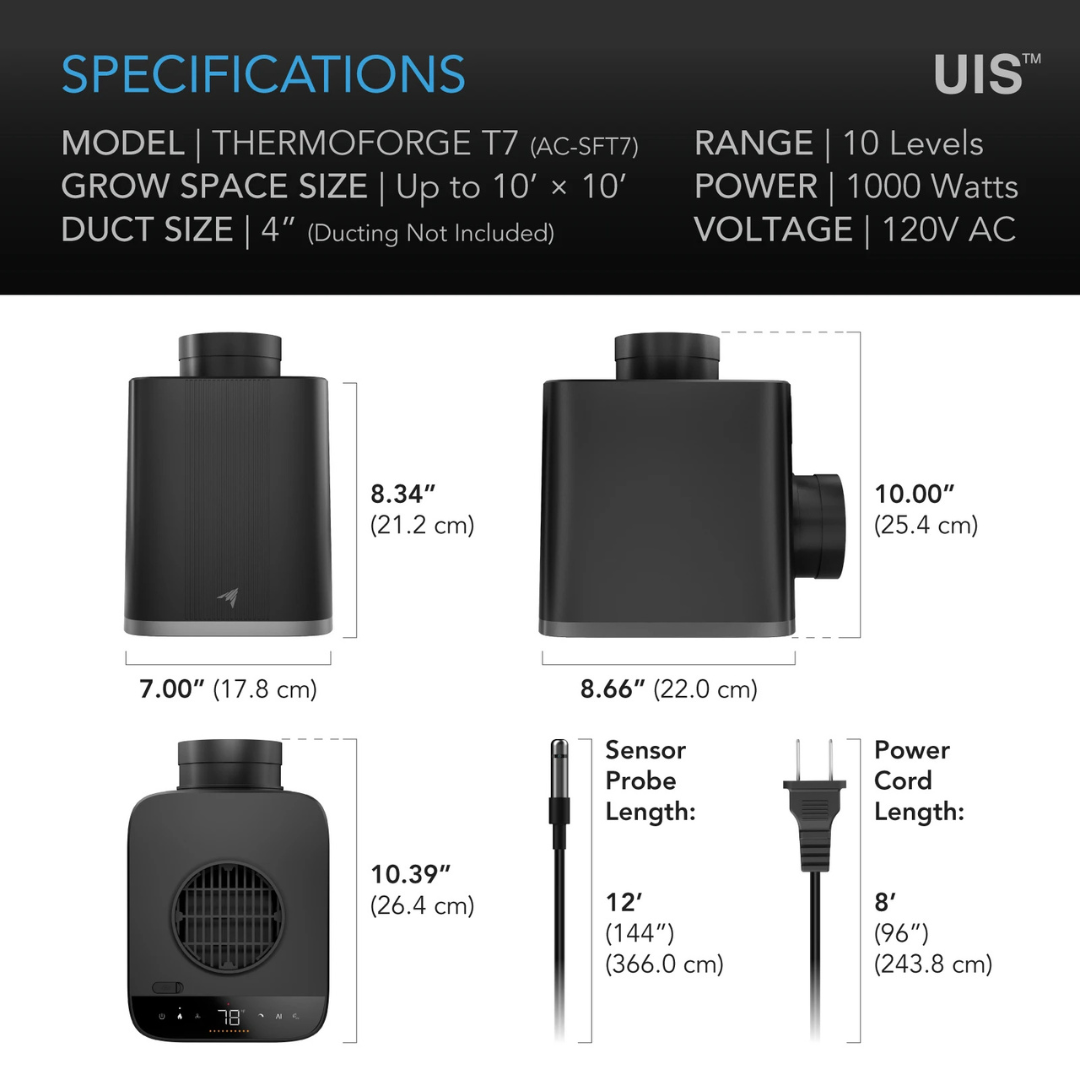

• Unit Length: 8.66 in. (22.0 cm)
• Unit Width: 7.00 in. (17.8 cm)
• Unit Height: 10.00 in. (25.4 cm)
• Duct Size: 4.00 in. (10.2 cm)
• Duct Ports: Dual ports
• Certification: ETL certified
• Installation Environment: Indoor use only
• Required Power Connection: Grounded wall outlet with surge protection
• Ducting: Not included

Size Guide

• Product Dimensions: 8.66 in. x 7.00 in. x 10.00 in. (22.0 cm x 17.8 cm x 25.4 cm)
• Duct Connection Size: 4.00 in. (10.2 cm)

Compatibility

• Compatible With: UIS controllers for Wi-Fi app connectivity, advanced automation, data tracking, alerts, and grow guides.
• Optional Controllers Shown: CONTROLLER 69 PRO, CONTROLLER 69 PRO+, and CONTROLLER AI+.
• Optional Ducting Shown: Flexible Thermal-Resistant Hose, 8 ft. long.
• Closed-Loop Restriction: Do not use with humidifiers in closed-loop configurations because mist may enter the intake ducting and damage the heater.
• Power Restrictions: Do not use with extension cords or power strips, and do not share the outlet with other devices.

Included

• Precision sensor probe

Warranty

• Warranty: 2-year warranty from the date of purchase against manufacturing defects.

Product Support

• Owner's Manual
