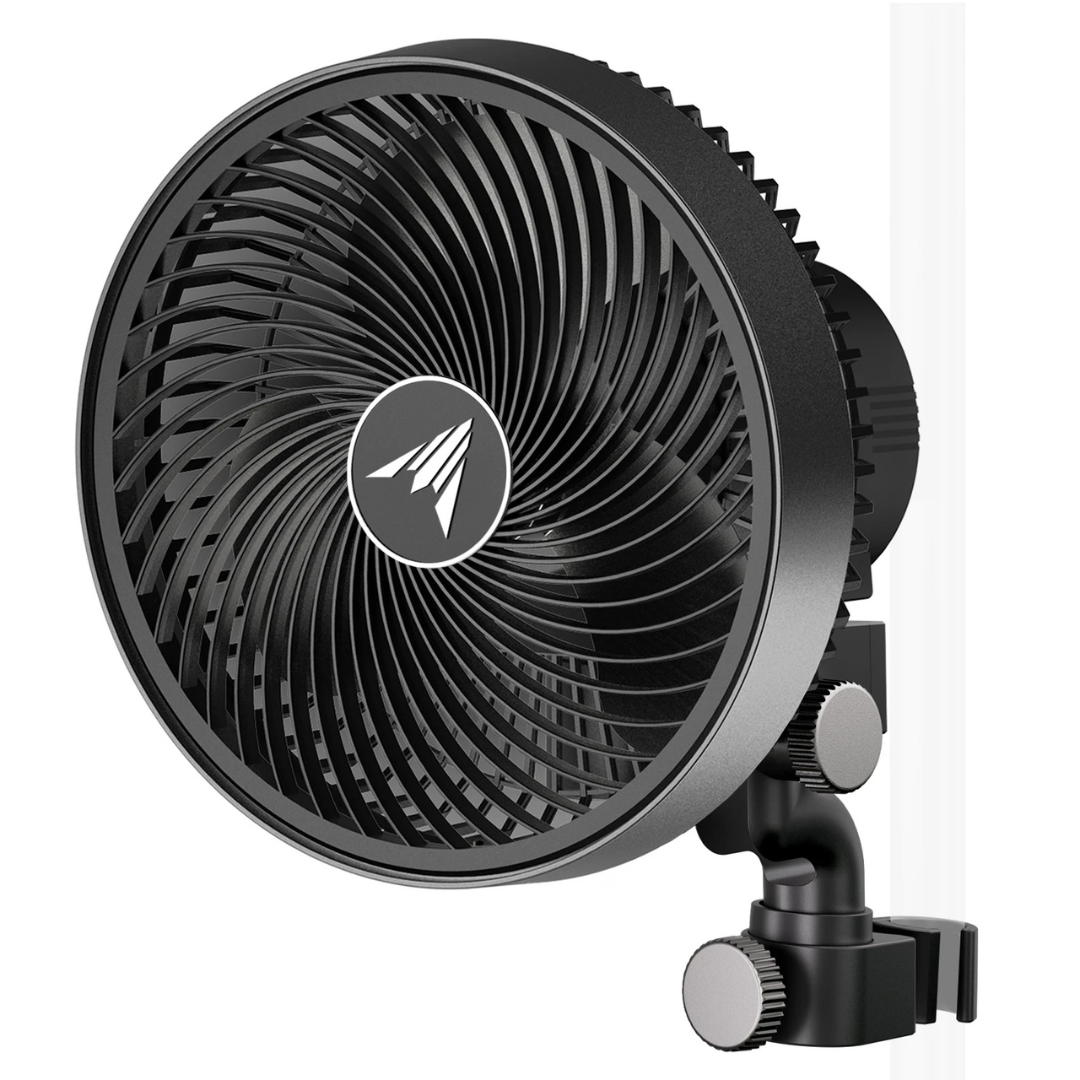

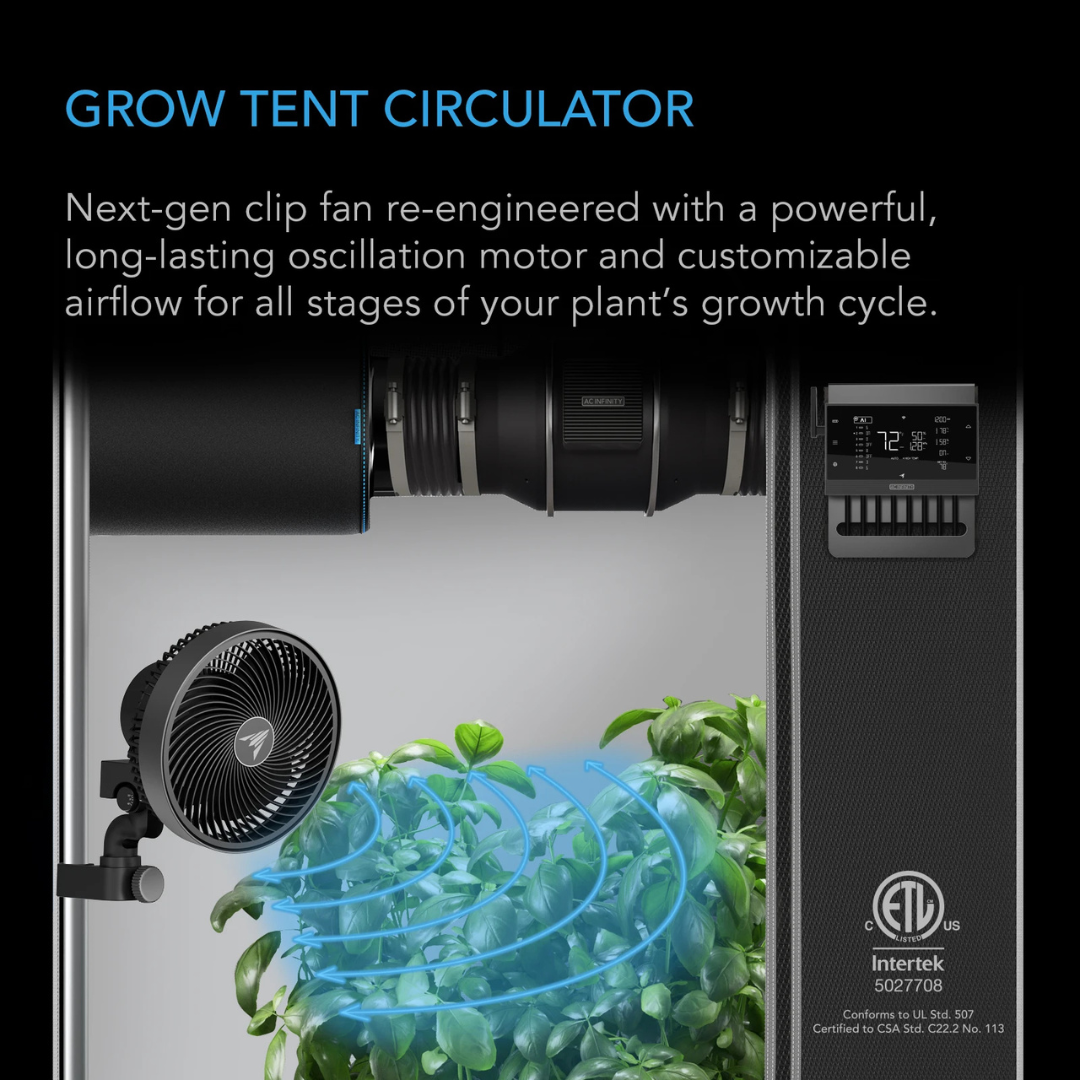

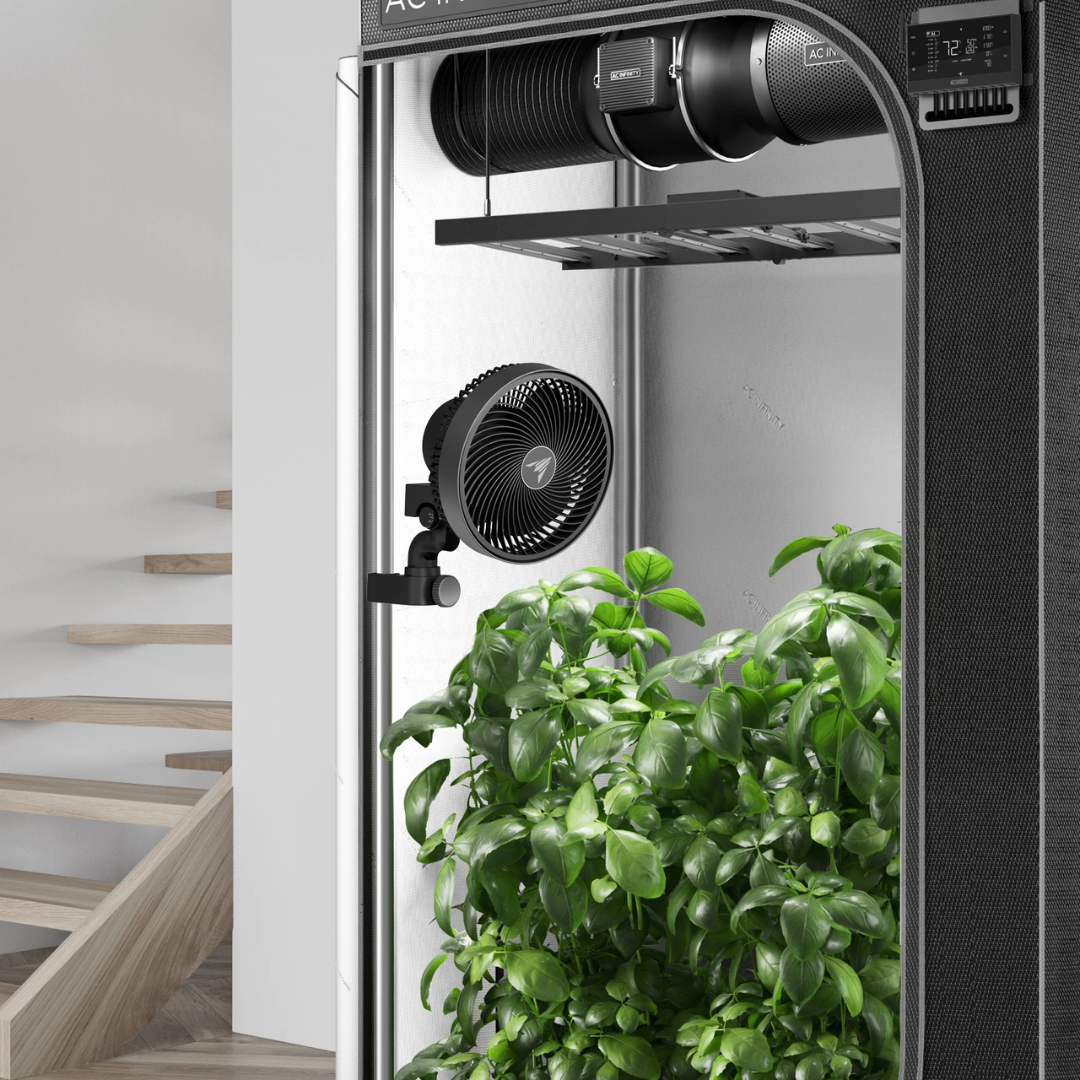

A 9-inch oscillating clip fan designed to provide targeted, adjustable air circulation throughout grow tents and indoor growing spaces. Its larger impeller supports plant stages ranging from germination and seedlings through vegetative and flowering growth.
The fan combines 10 digital speeds, 10 Dynamic Wind modes, and 10 oscillation ranges for flexible control over airflow strength and coverage. Its IP54-rated enclosure, brushless EC motor, reinforced gearing, and secure pole clamp support continuous operation in grow environments.
Key Features
-
10 Fan Speeds: Provides adjustable airflow ranging from gentle circulation to stronger air movement.
-

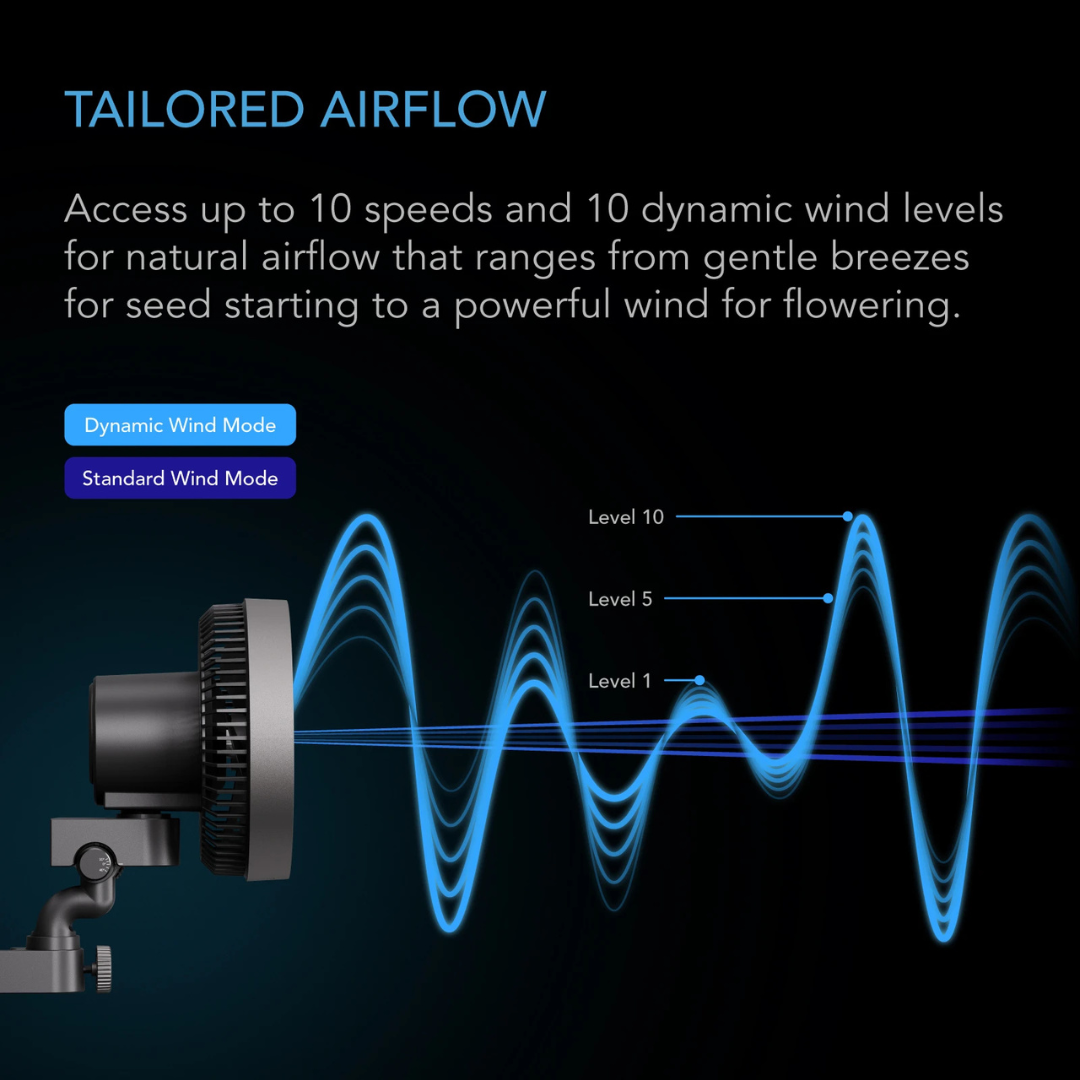

Dynamic Wind Modes: Includes 10 modes that alternate between speed levels to simulate a natural breeze.
-

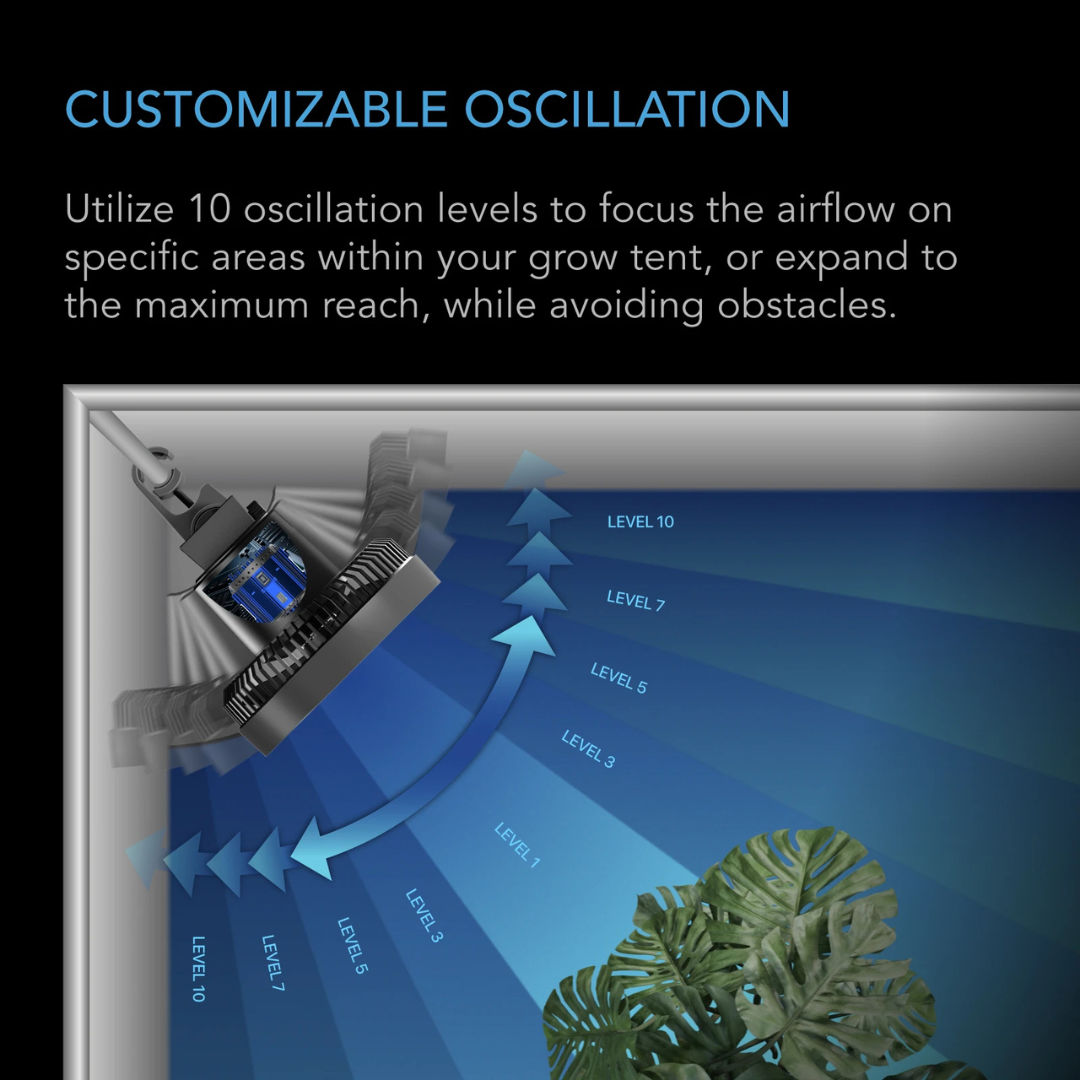

Adjustable Oscillation: Offers 10 oscillation ranges for focused airflow or wider coverage while avoiding tent walls and other obstacles.
-
Maximum Oscillation Range: Oscillates across an angle of up to 90°.
-
Adjustable Fan Head: Tilts vertically to direct airflow toward the desired area.
-

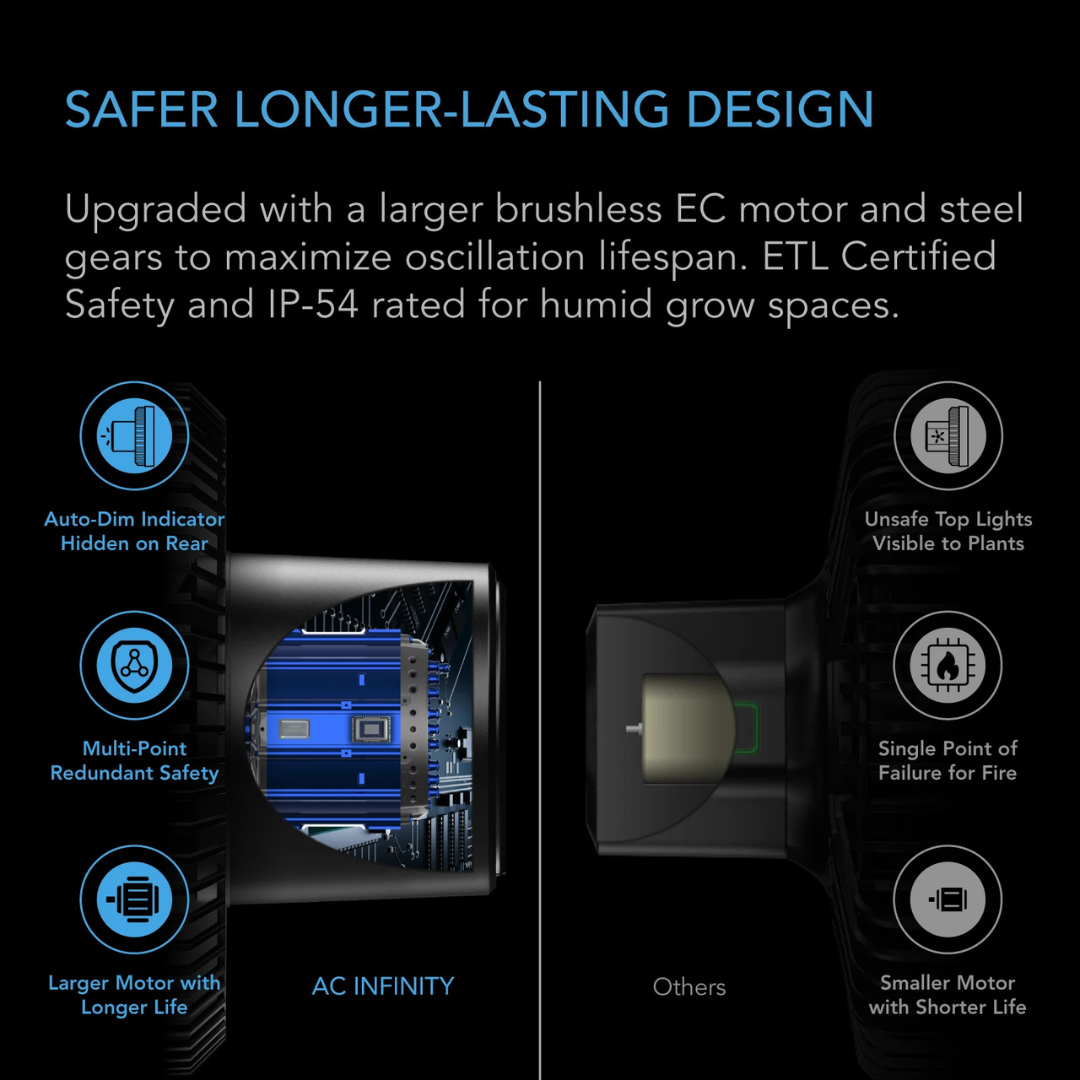

Brushless EC Motor: Robust motor construction supports efficient and long-lasting operation.
-
Reinforced Construction: Carbon-steel gears and dual-ball bearings support dependable performance and flexible mounting.
-
IP54 Protection: Sealed construction provides increased resistance to dust and liquid ingress in humid grow environments.
-
Secure Grip Clip: Compact metal clamp uses a vise-grip-style design for a firm hold on grow-tent poles.
-

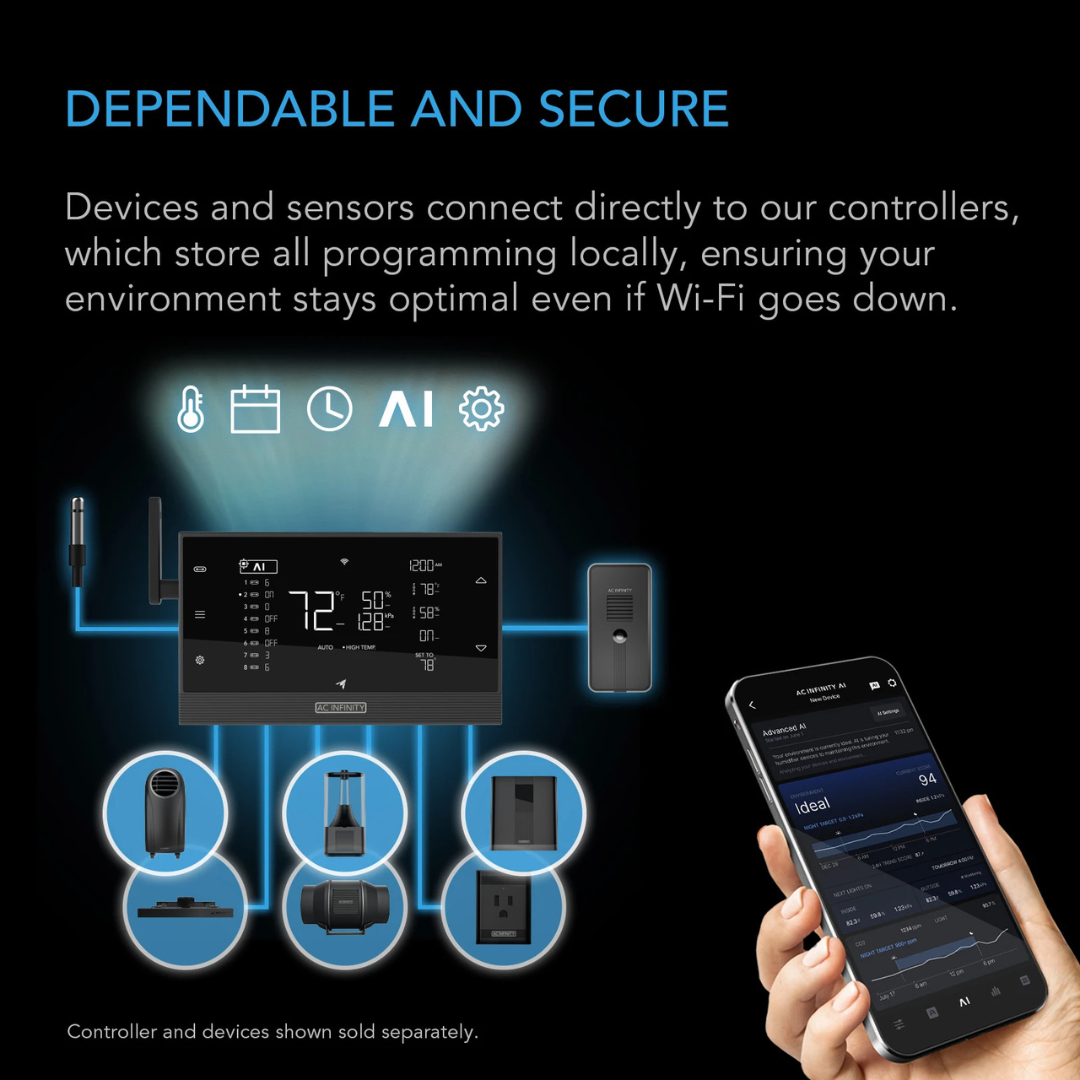

UIS Platform Support: Connects to compatible UIS controllers for climate triggers, timers, cycles, scheduling, automation, and Wi-Fi app control.
-
Electrical Safety Compliance: Meets ETL electrical-appliance safety standards.

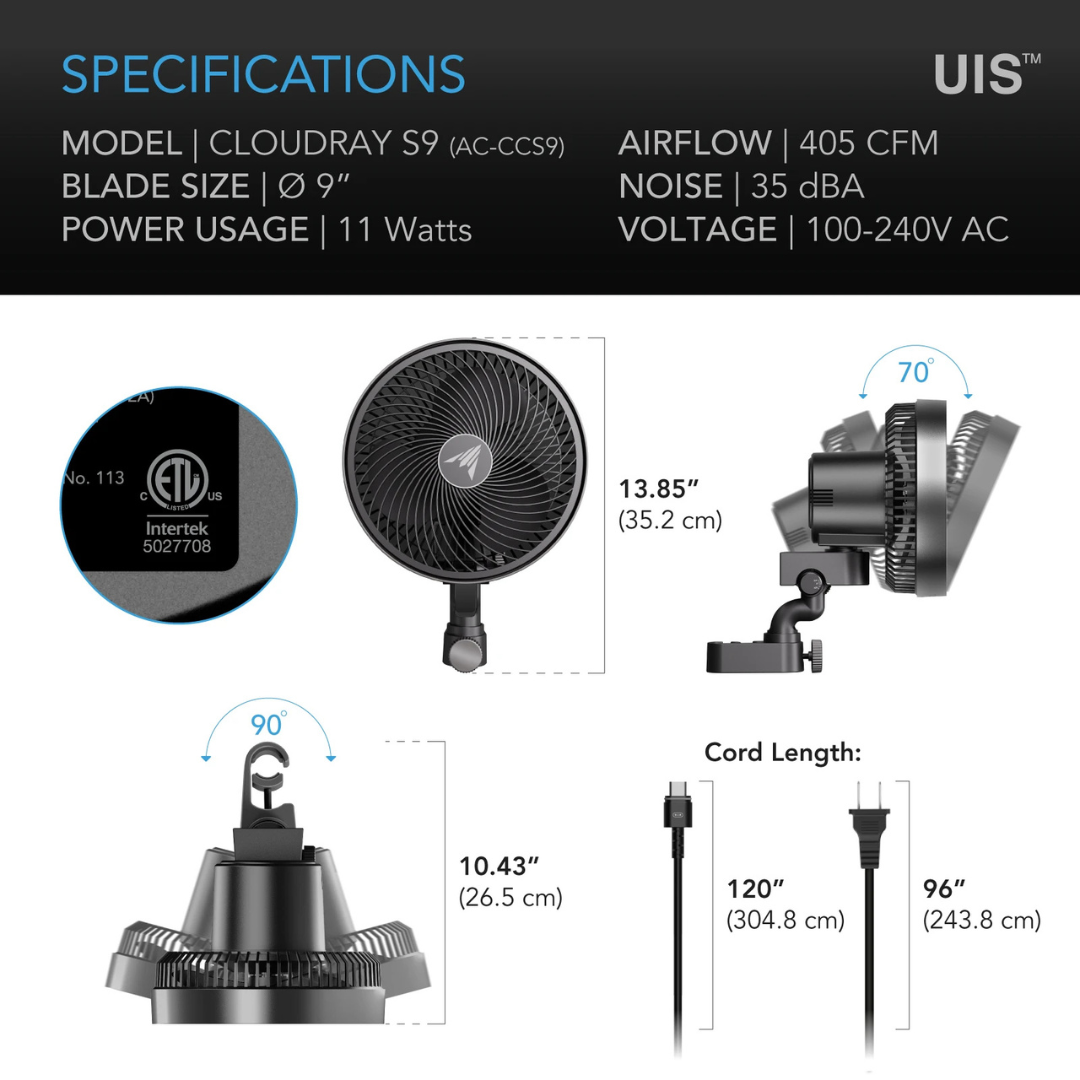

Specifications
-
Impeller Size: 9.0 in.
-
Maximum Airflow: 405 CFM
-
Total Noise: 35 dBA
-
Static Pressure: 25 Pa
-
Operating Voltage: 100–240V AC
-
Power: 11 W
-
Current: 0.15 A
-
Operating Humidity: 35–85% RH
-
Operating Temperature: 32–140°F
-
Waterproof Rating: IP54
-
Rotation Range: 90°
-
Tilt Angle: 55°
-
Oscillation: Automatic oscillation
-
Oscillation Settings: 10 ranges
-
Fan Bearings: Dual ball bearing
-
Mounting Positions: Horizontal or vertical
-
Life Expectancy: 67,000 hours
-
ETL Certificate Number: 5027708
Size Guide
-
Total Dimensions: 10.43 x 13.85 in. (26.5 x 35.2 cm)
-
Impeller Size: 9.0 in.
-
Cord Length to Plug: 96 in. (8 ft.)
Compatibility
-
Compatible With: Select UIS smart controllers using the included UIS cable.
-
App Compatibility: Supports remote control, climate data, and automation programming through the AC Infinity app when paired with a compatible Wi-Fi controller.
-
Oscillation Control Limitation: Oscillation is activated using the fan’s oscillation button and cannot be controlled through external UIS programming. When oscillation is enabled, it automatically starts and stops with compatible external fan programs.
-
Not Compatible With: Direct daisy-chaining or interconnection between multiple clip fans. Multiple units may instead be connected separately to a compatible UIS controller.
-
Mounting Limitation: Upside-down mounting is not recommended.
Included
- Circulation fan x 1
- Grip clip x 1
- Extension cord x 1
- Cable mount x 1
- Cable ties x 4
Warranty
-
Warranty: 2-year manufacturer warranty from the date of purchase covering qualifying manufacturing, material, and workmanship defects. The warranty excludes abuse, misuse, physical damage, water submersion, incorrect installation, improper voltage input, unintended use, and normal wear.
