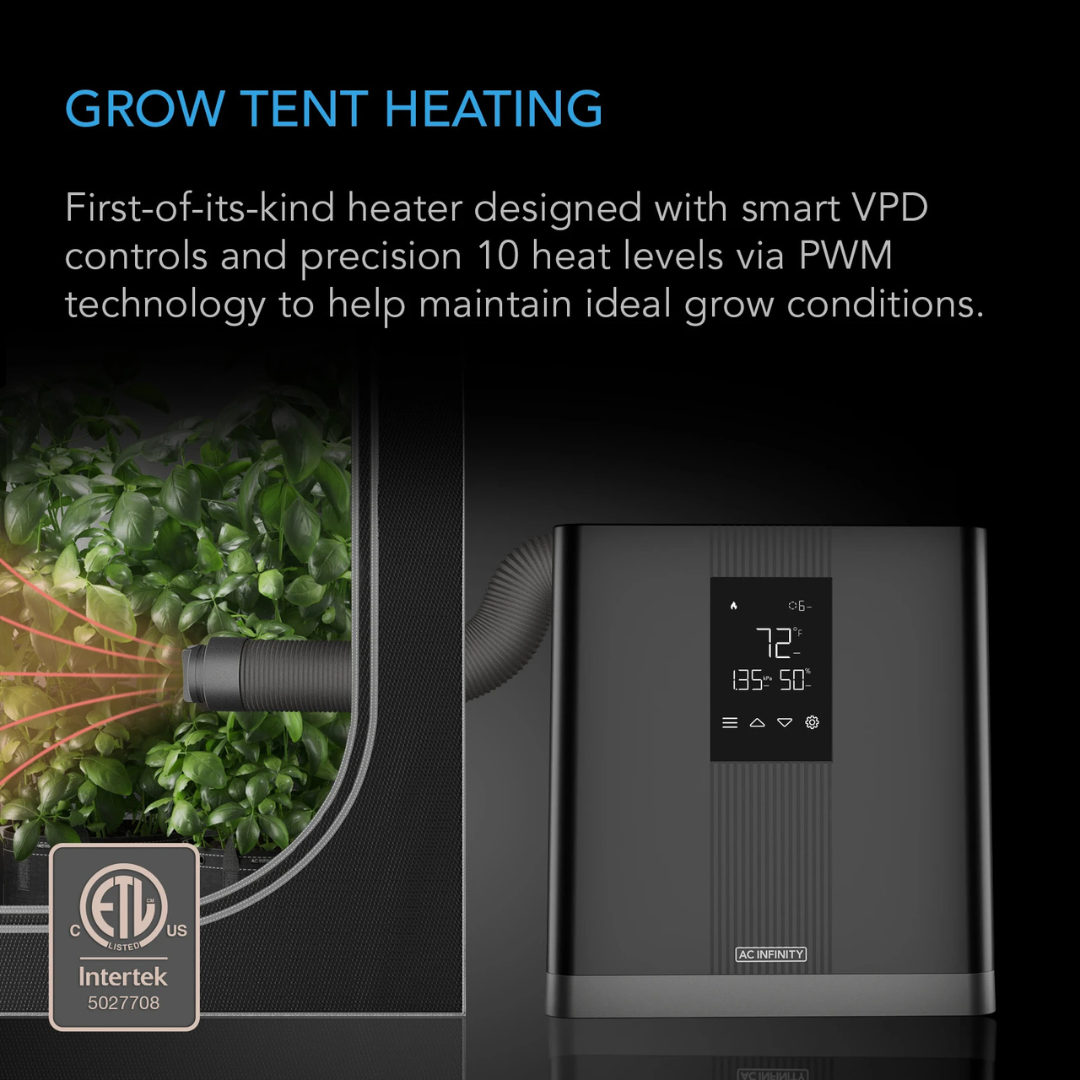

The THERMOFORGE T3 is a 530W environmental heater designed to regulate temperatures in grow tents and other indoor growing spaces. Its onboard controller uses a corded sensor probe to support temperature and VPD triggers, timers, and cycle programming.
Three PTC heating plates provide 10 adjustable heat levels, while a separate 10-level fan mode supports fresh-air intake. Flexible built-in tubing and a detachable extension direct airflow toward targeted areas, and automatic shutoff protection responds to tipping, excessive tilting, and overheating.
Key Features
-

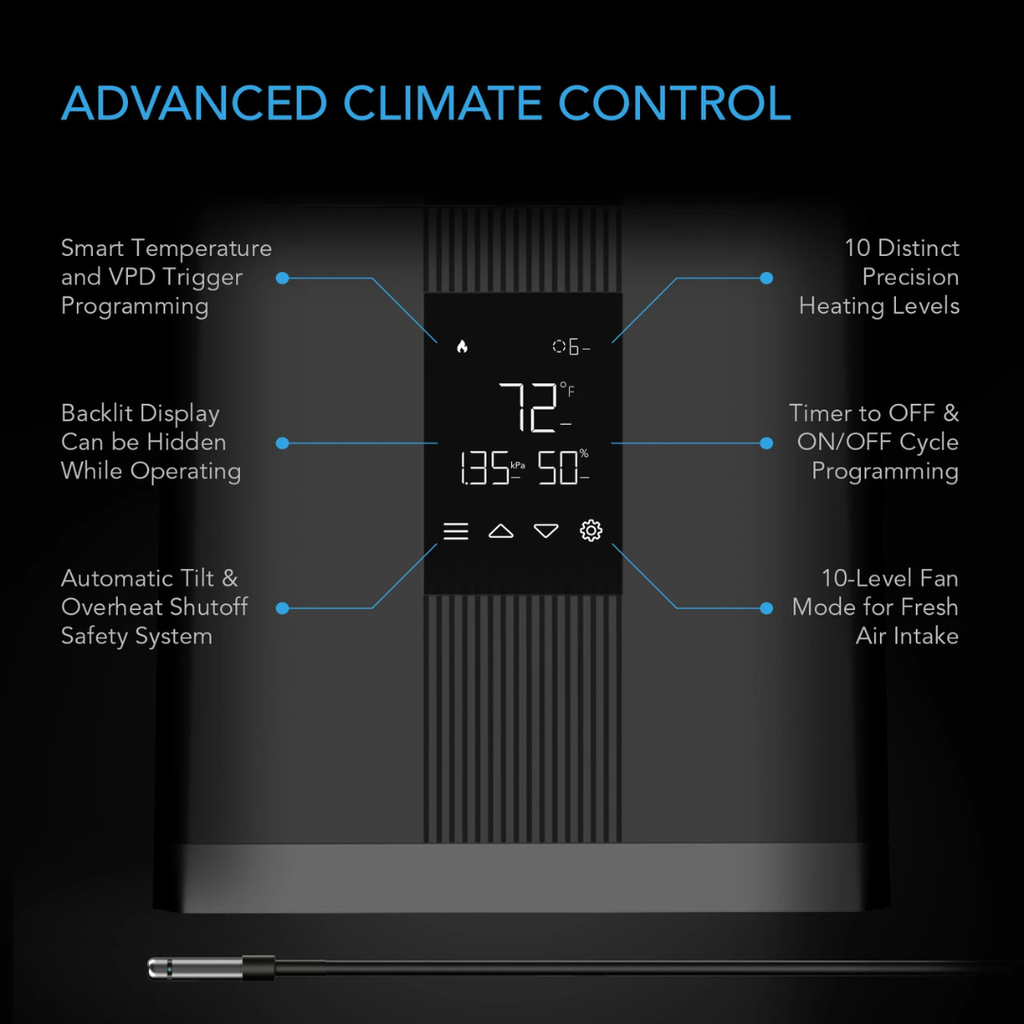

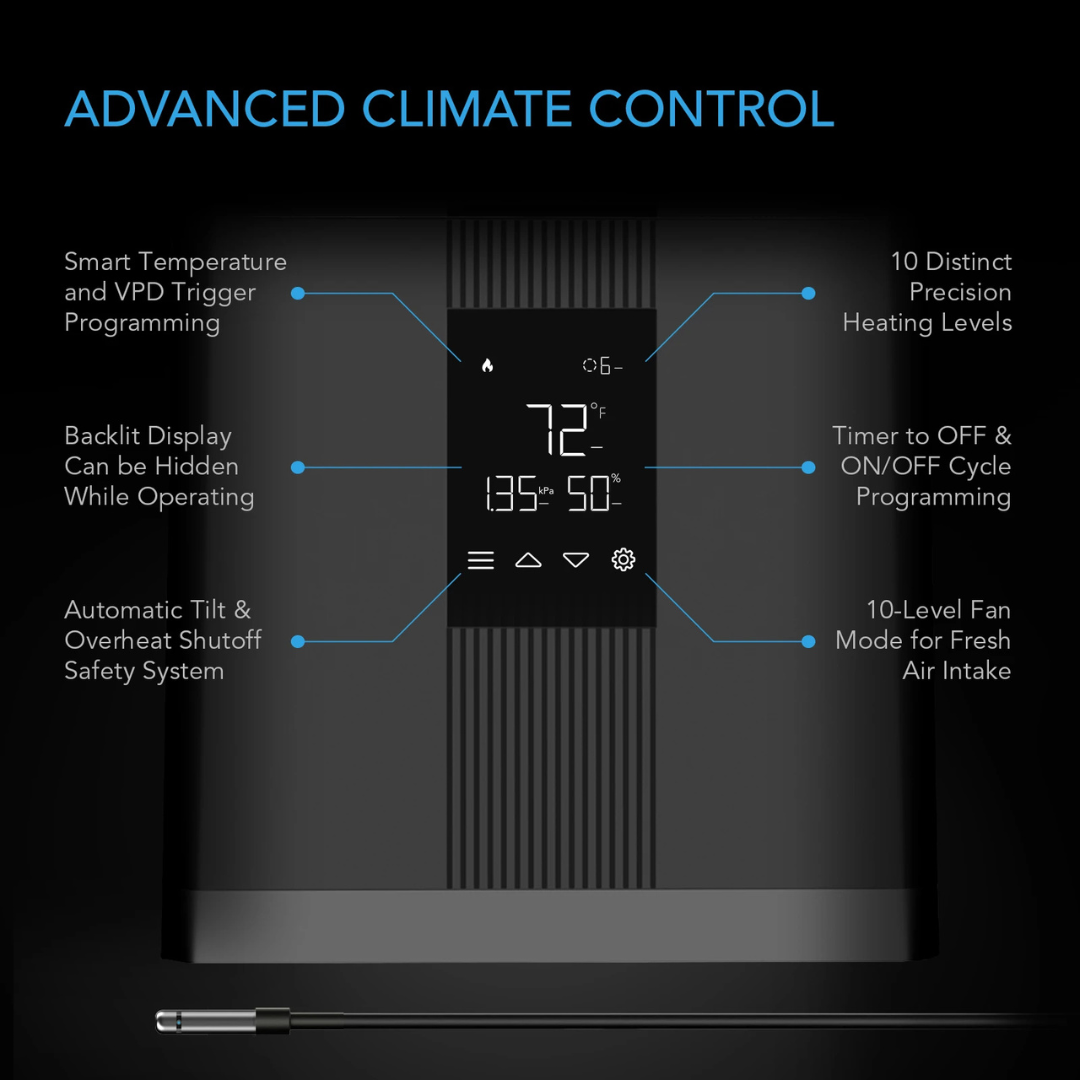

Smart Climate Control: The onboard controller supports temperature and VPD triggers, timers, and cycle programming.
-
Environmental Monitoring: A corded sensor probe measures temperature, relative humidity, and VPD.
-

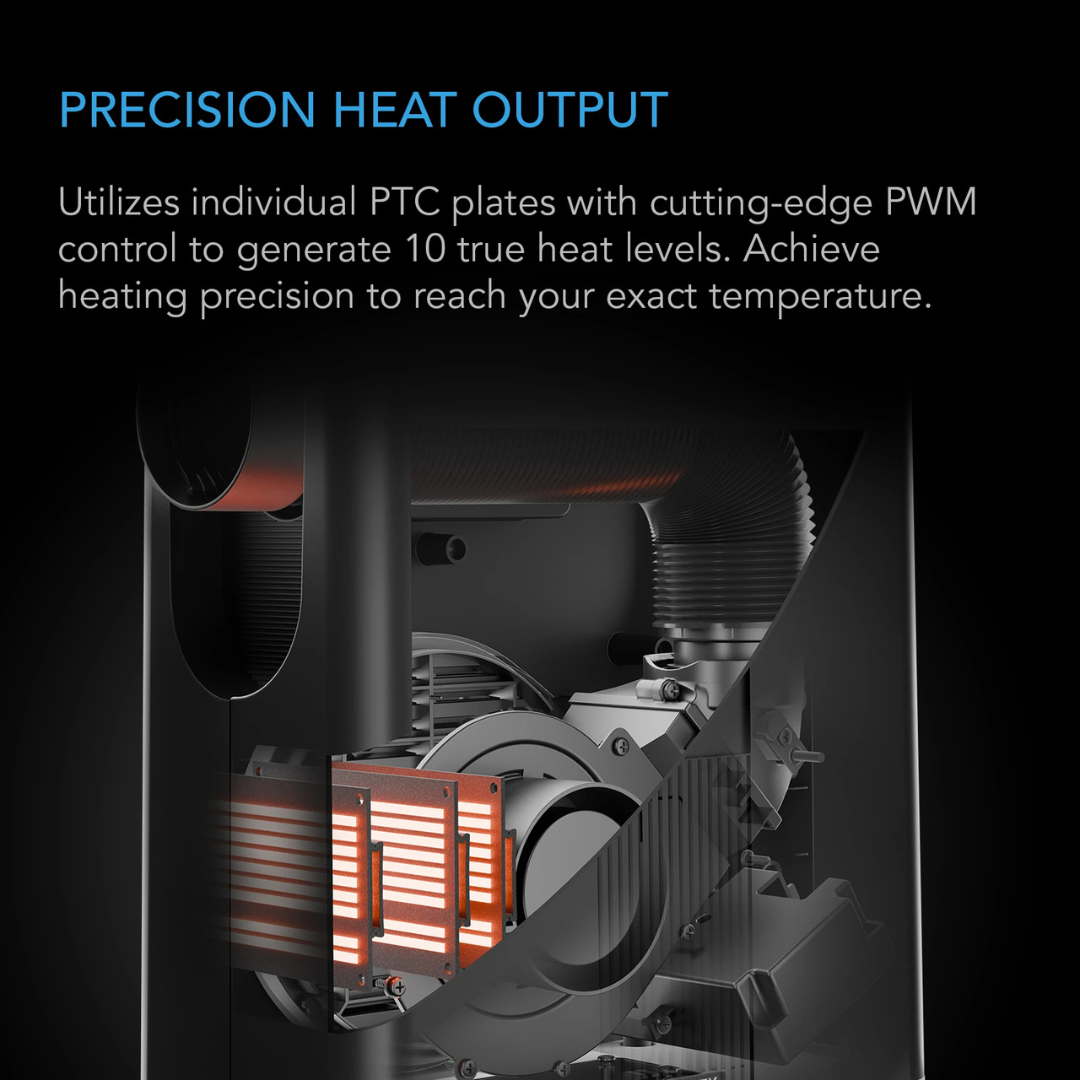

Adjustable Heating: 3 PTC plates and PWM control provide 10 heating levels for adjustable warmth output.
-
Fan Function: A separate fan mode provides 10 airflow levels for fresh-air intake.
-

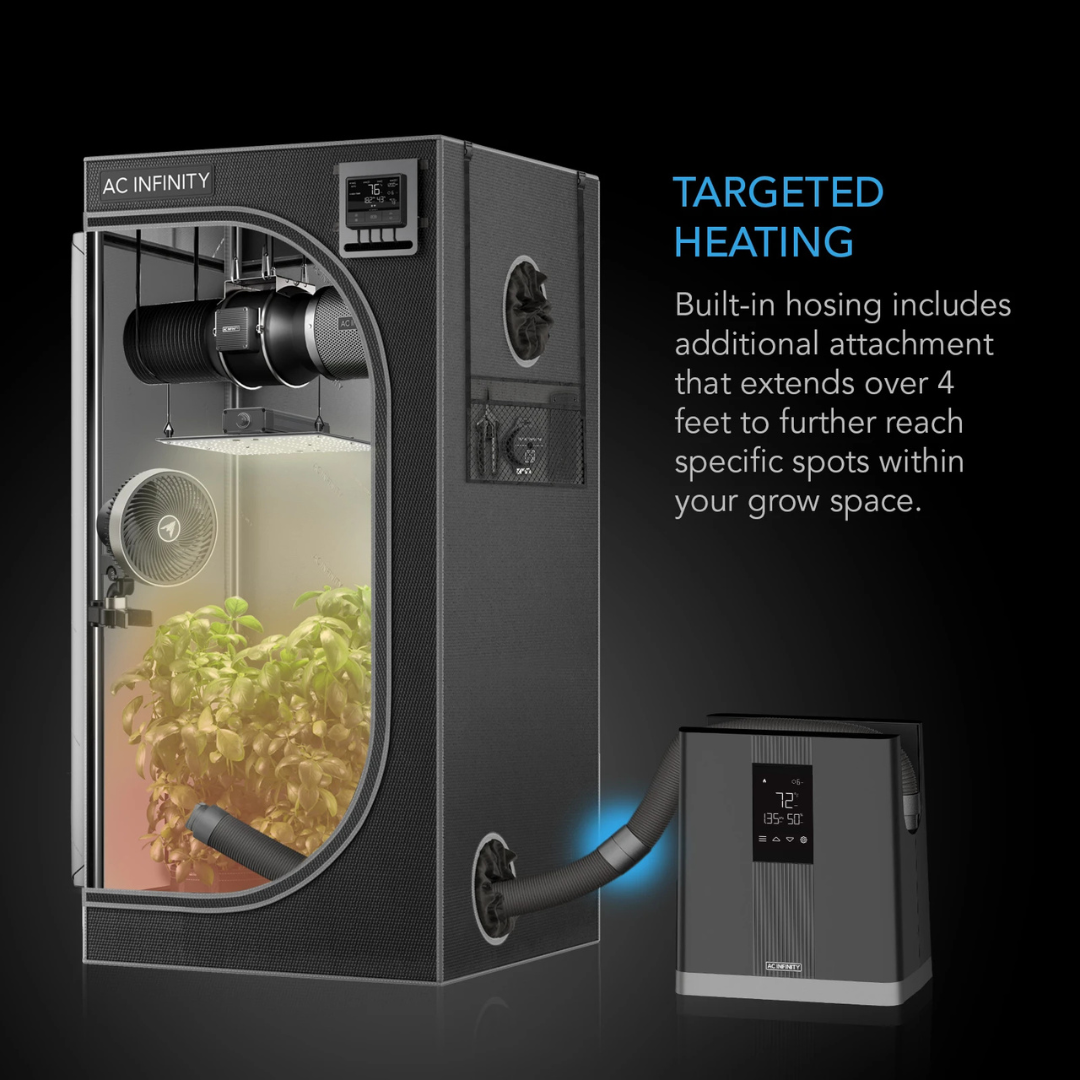

Targeted Distribution: Flexible built-in tubing directs heated air toward specific areas of the growing environment.
-
Extendable Reach: The detachable duct extension extends the heater’s reach by up to 4 ft.
-
UIS Integration: Connection to a compatible UIS controller enables 10-level control, additional automation, and schedule programming.
-
Automatic Shutoff Protection: Heating shuts off if the unit falls, tilts past a 15° angle, or overheats.
-
Convenient Placement and Storage: An integrated handle and concealed cord compartment assist with positioning and cord management.
Specifications
-
Smart Controls: VPD, temperature
-
Available Modes: Heating, fan
-
Control Range: 10 levels
-
Maximum Power Draw: 530 W
-
Voltage: 100–120V AC
-
Frequency: 60 Hz
-
Current: 5 A
-
Operating Temperature: 14 to 140ºF
-
Operating Humidity: 30% to 85% RH
-
Unit Length: 11.49 in. (29.2 cm)
-
Unit Width: 5.94 in. (15.1 cm)
-
Unit Height: 12.12 in. (30.8 cm)
-
Hose Length: 9.84 to 27.55 in. (25.0 to 70.0 cm)
-
Extension Hose Length: 19.68 to 55.11 in. (50.0 to 140.0 cm)
-
Heating Technology: 3 PTC plates with PWM control
-
Internal Overheating Protection: Heating and controller controls are disabled above 194°F until the internal temperature falls below 185°F.
-
Environmental Overheating Protection: Heating and controller controls are disabled when the sensor detects a temperature above 140°F, resuming after the temperature falls below 131°F.

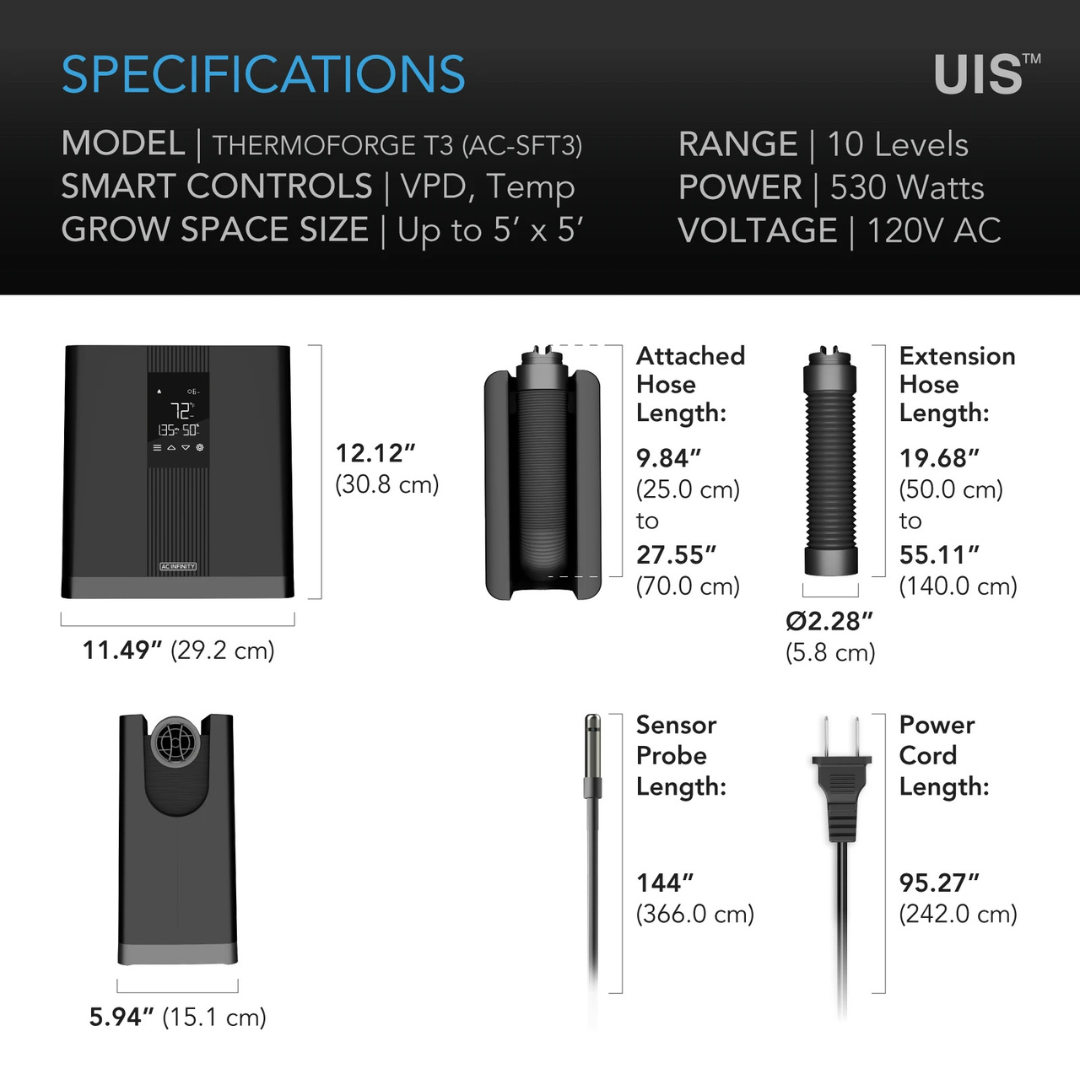

Size Guide
-
Product Dimensions: 11.49 in. x 5.94 in. x 12.12 in. (29.2 cm x 15.1 cm x 30.8 cm)
-
Built-In Hose Range: 9.84 to 27.55 in. (25.0 to 70.0 cm)
-
Extension Hose Range: 19.68 to 55.11 in. (50.0 to 140.0 cm)
Compatibility
-
Compatible With: Any UIS controller using the included UIS male-to-male extension cord.
-
Controller Operation: A connected UIS controller overrides the heater’s onboard settings, display, touch controls, and connected sensor probe.
-

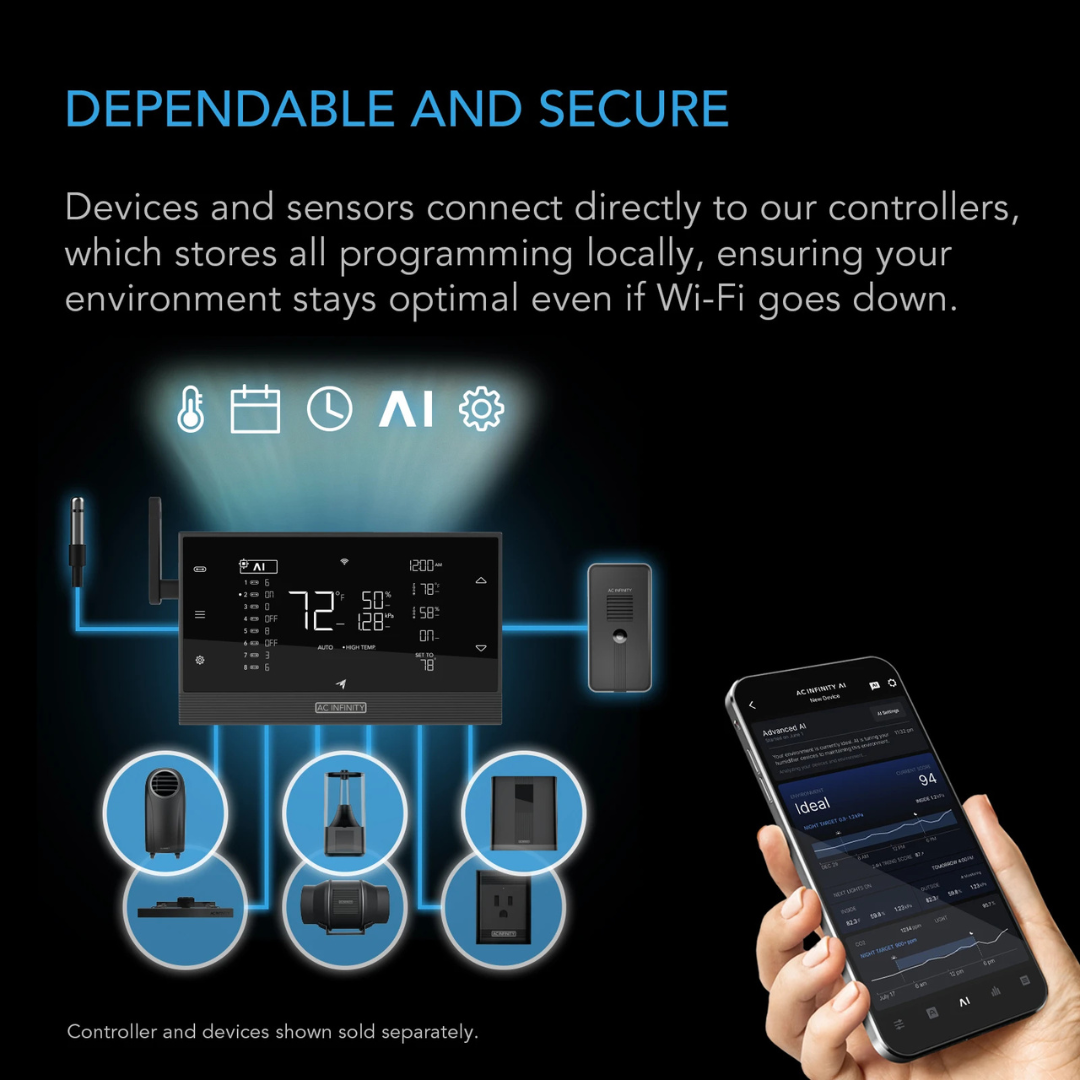

App Integration: Remote programming and climate data are available through the AC Infinity app when paired with a compatible Wi-Fi controller.
Included
- Space heater x1
- Sensor probe x1
- UIS extension cord, male-to-male x1
- Probe mounts x4
- Hook-and-loop ties x4
- Duct extension x1
Warranty
-
Warranty: 2-year warranty from the date of purchase against manufacturing defects.
