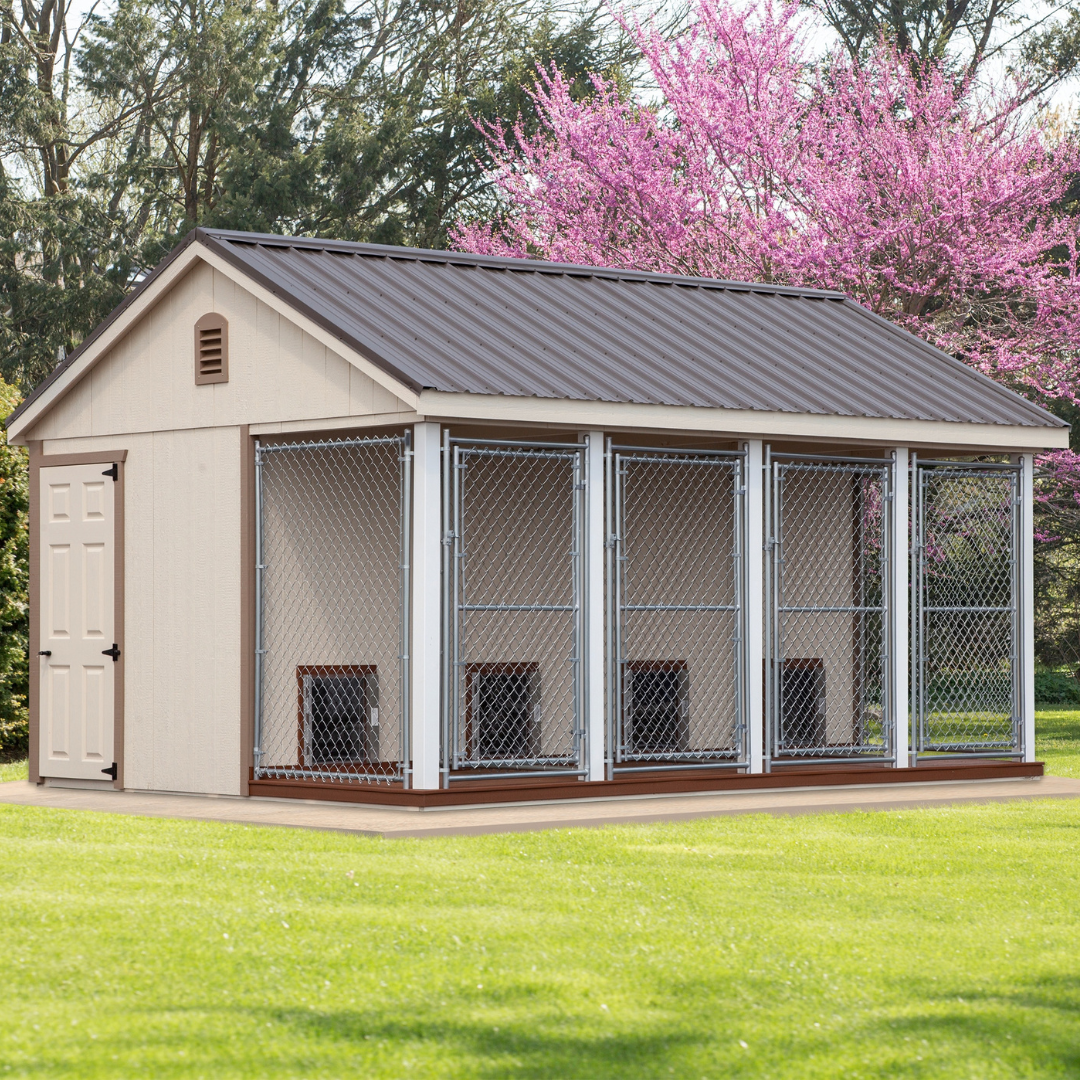

12×16 4-Run Commercial Kennel

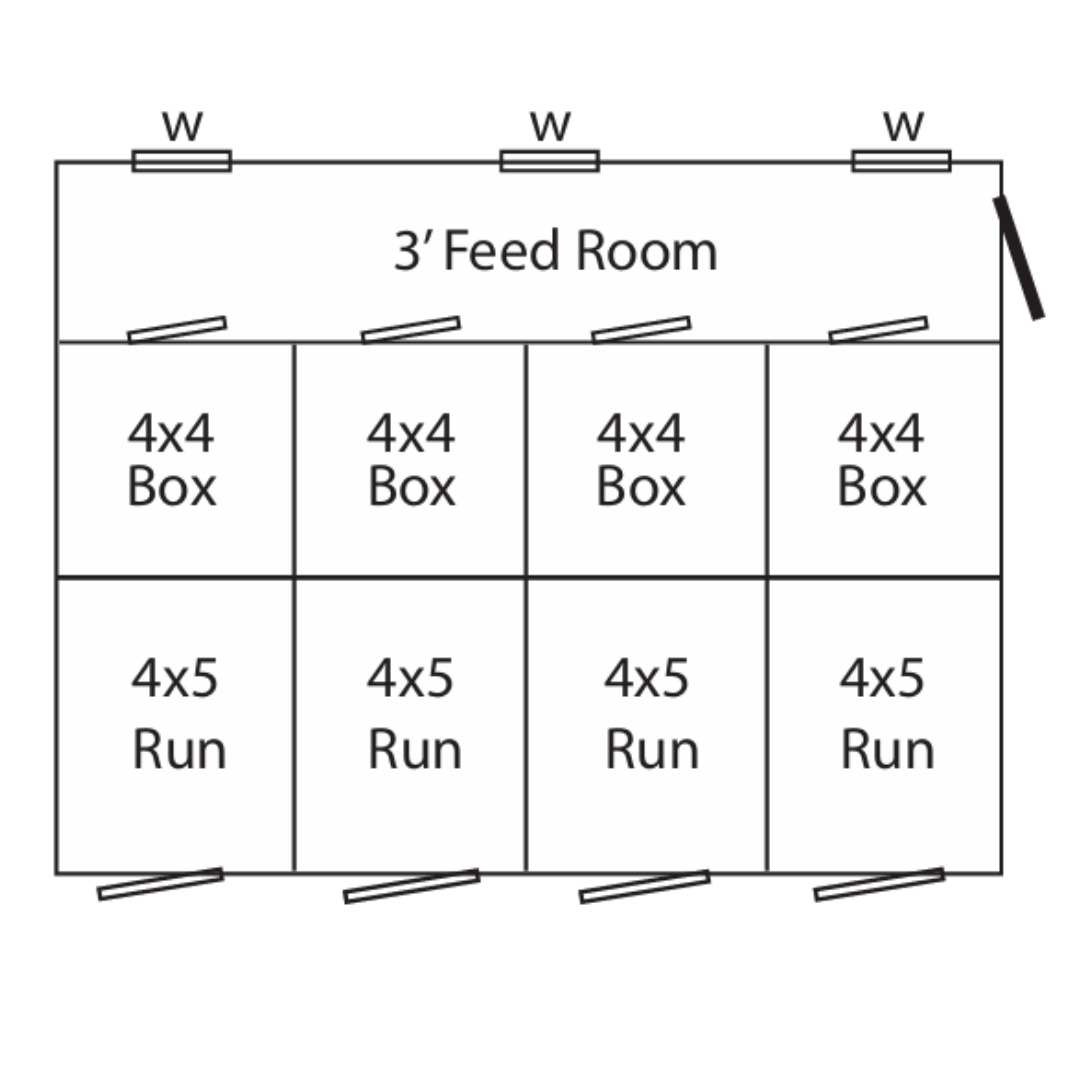

The 12×16 4-Run Commercial Kennel provides 4 individual kennel spaces in a prefabricated commercial structure designed for housing multiple dogs. Its documented floor plan consists of 4 separate runs with corresponding interior box areas and a 3 ft. feed room.
The structure combines insulated walls and ceiling, lined interior surfaces, composite run decking, chain-link run panels, screened insulated windows, and separate dog-access doors. It is built in Lancaster County, Pennsylvania and is intended as a complete commercial kennel structure.
Key Features
- 4-Run Configuration: Provides 4 separate kennel runs with corresponding interior box spaces.

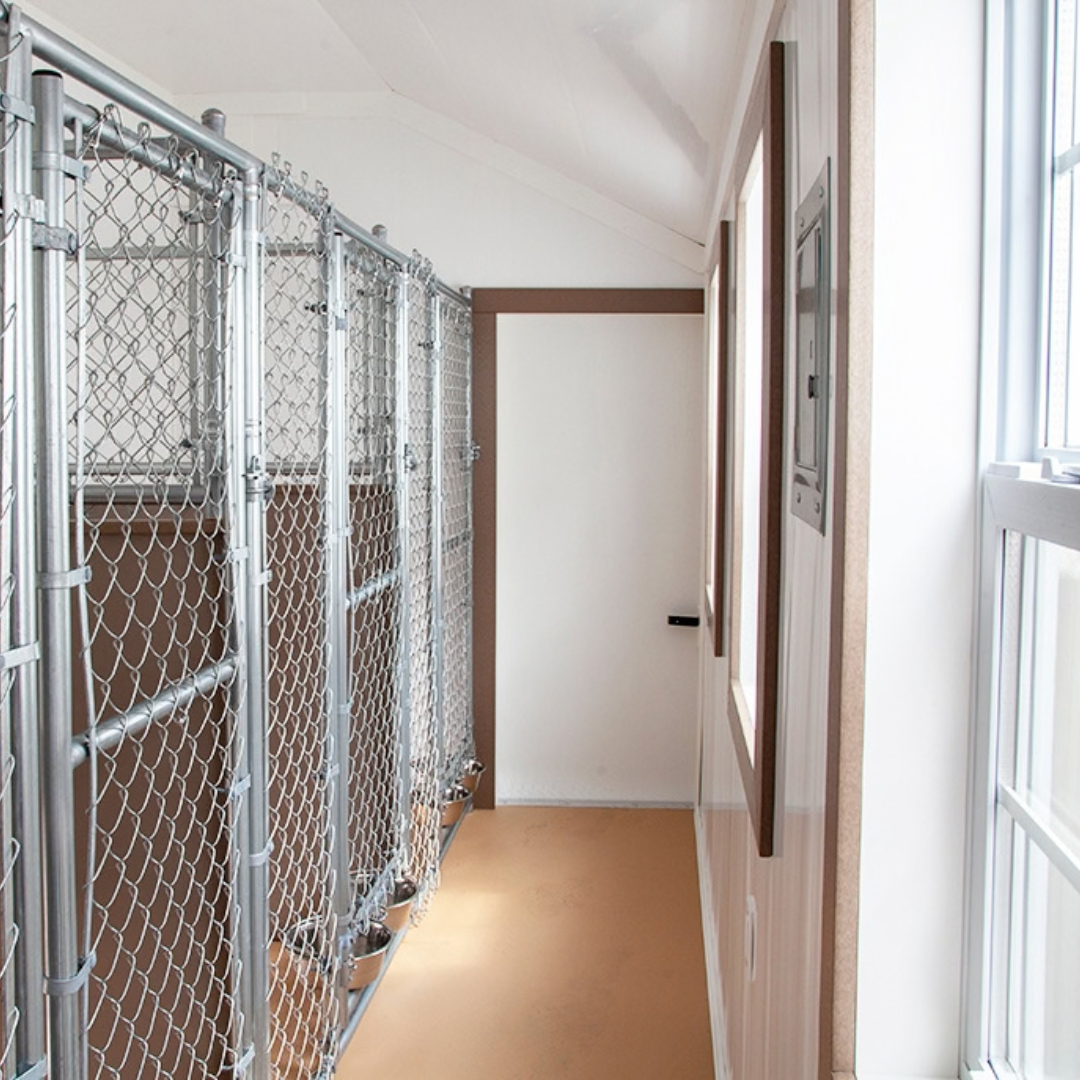

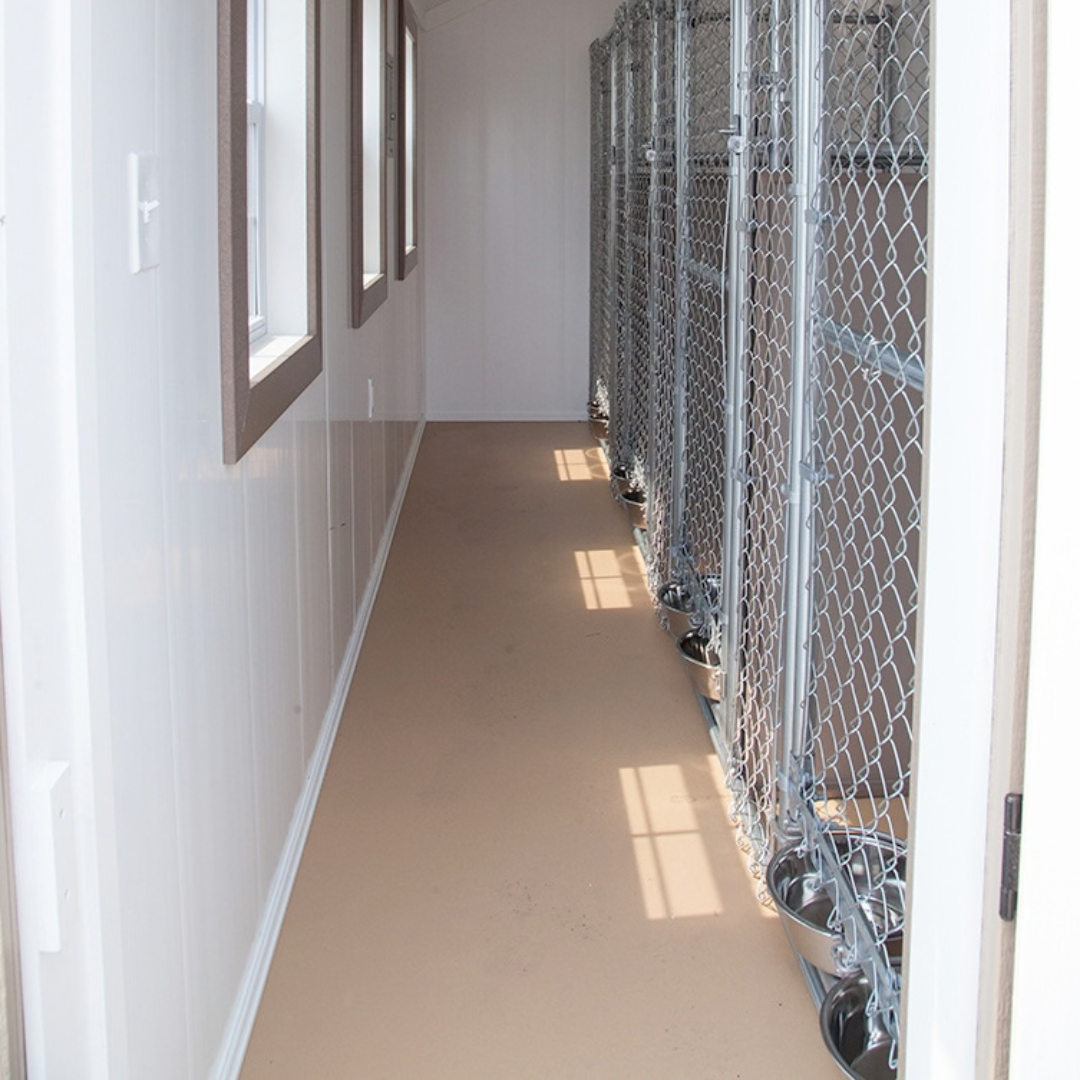

- Feed Room: The documented floor plan includes a 3 ft. feed room positioned along the interior side of the kennel.
- Pressure-Treated Floor Framing: Standard construction uses pressure-treated 2×4 floor joists and 4×6 runners.
- Poly-Urea-Coated Interior Floor: Features 5/8 in. Smartfloor coated with Poly-Urea.
- Insulated Construction: R-13 batt insulation is provided in the walls and ceiling.
- Interior Lining: The kennel interior is lined with PVC Trusscore.
- Ventilation Features: Standard construction includes vented soffit, a vented ridge cap, and insulation baffles.

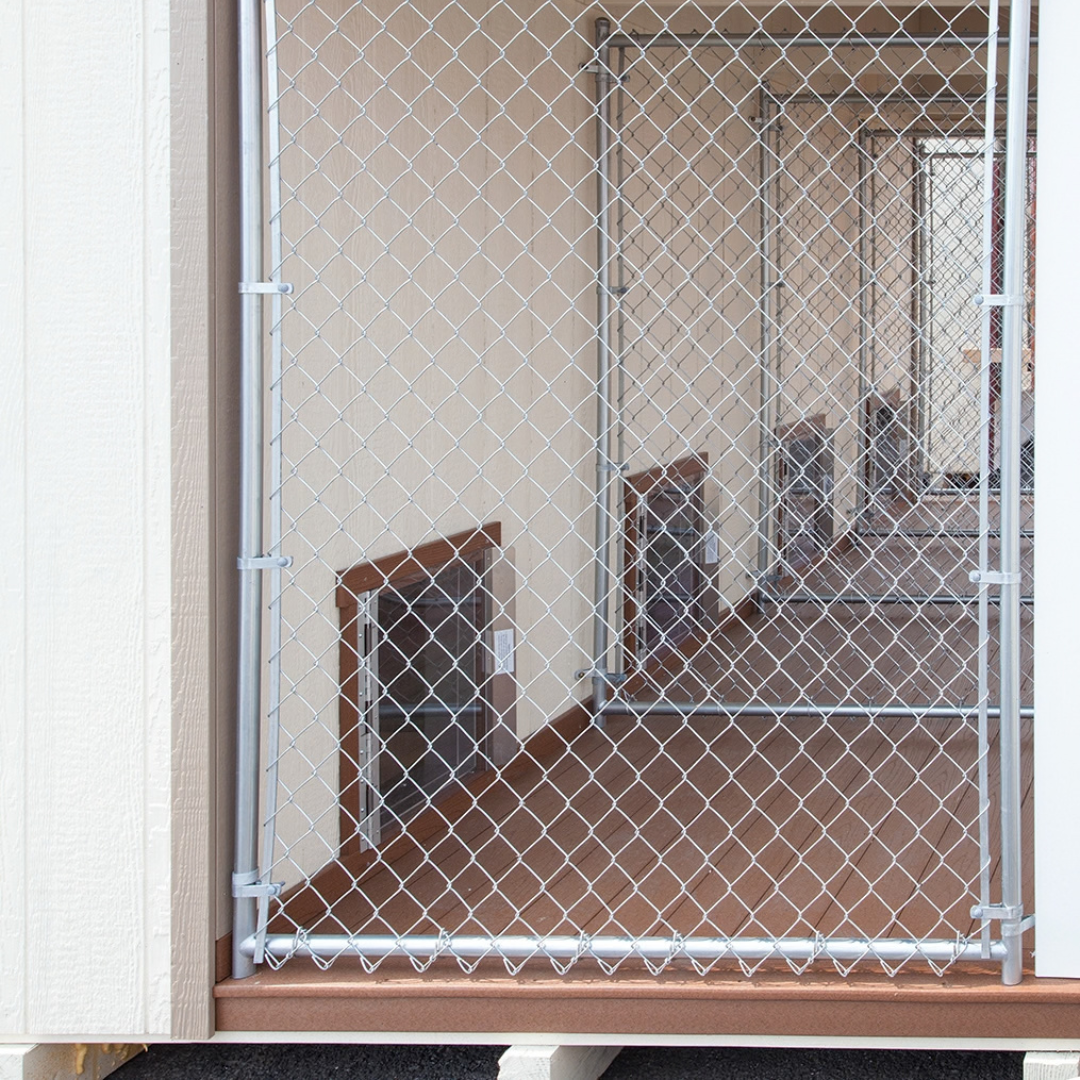

- Individual Dog Access: Spring-loaded 20 in. Plexiglass dog doors and molded plastic doggie-hole trim kits provide access between kennel areas.
- Insulated Windows: Includes screened 24 in. x 36 in. insulated double-hung windows.
- Composite Run Decking: Exterior kennel runs use composite decking.

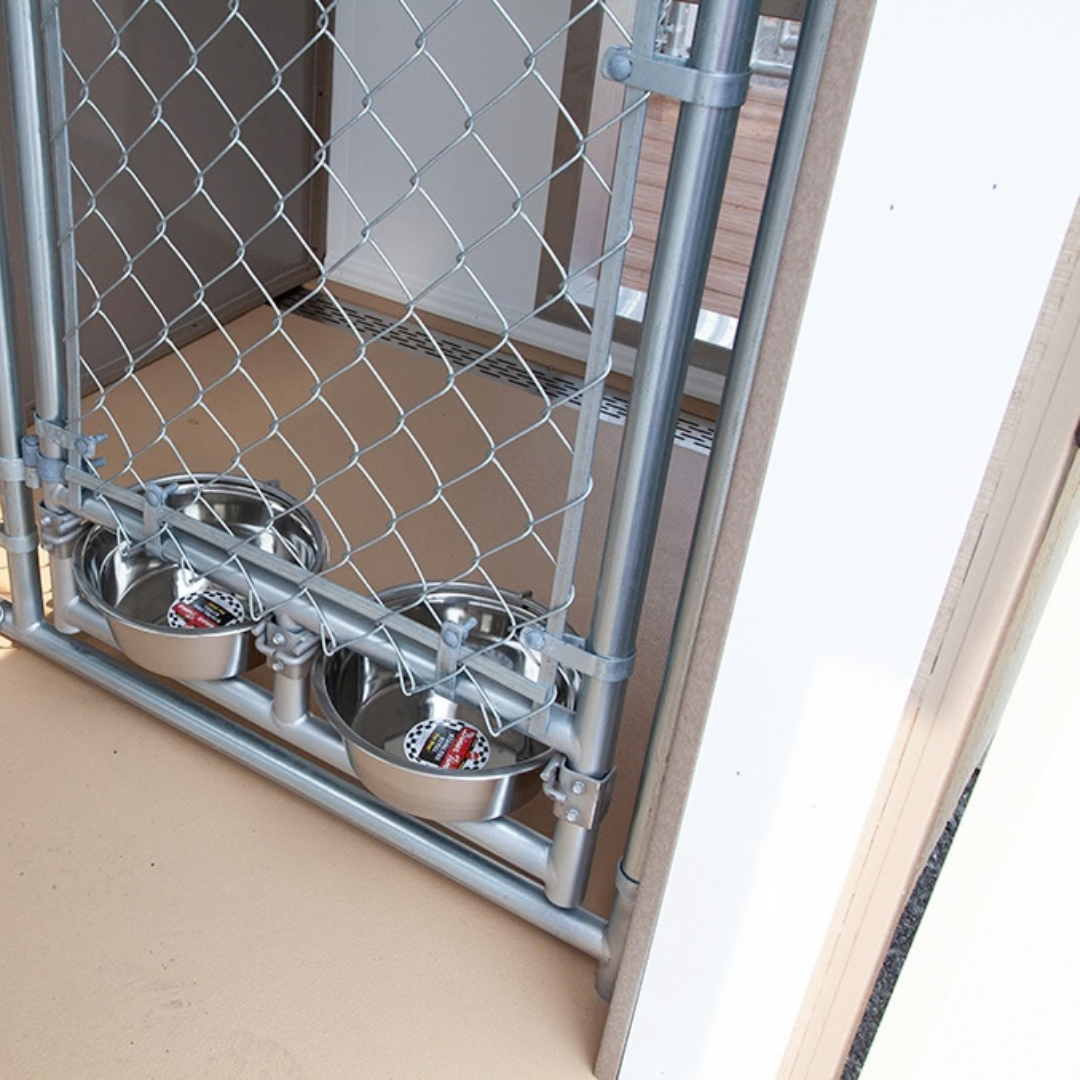

- Chain-Link Run Panels: Standard run construction uses 11.5-gauge chain-link panels.
- Exterior Run Wall Protection: Features 4 ft. high Glassboard on the exterior run wall.
- Cathedral Ceiling: A cathedral-style ceiling is included in the standard kennel construction.
- Prefabricated Construction: Built in-shop in Lancaster, Pennsylvania by Amish craftsmen.
|
|
|||
|---|---|---|---|---|
| Ship Nationwide? | ✓ | ? | ||
| Assemble Yourself? | ✓ ✕ | ✓ | ||
| Built in Shop? | ✓ | ✕ | ||
| 4+ Dog Options? | ✓ | ✕ | ||
| Completely Customizable? | ✓ | ✕ | ||
| Amish Built? | ✓ | ✕ | ||
| Made in the USA? | ✓ | ? |
Specifications
- Overall Size: 12 ft. x 16 ft.
- Number of Runs: 4
- Run Size: 4 ft. x 5 ft. each
- Box Size: 4 ft. x 4 ft. each
- Feed Room: 3 ft.
- Floor Joists: Pressure-treated 2×4
- Runners: Pressure-treated 4×6
- Interior Floor: 5/8 in. Smartfloor coated with Poly-Urea
- Wall Framing: 2×4 studs at 16 in. OC
- Insulation: R-13 batt insulation in walls and ceiling
- Interior Lining: PVC Trusscore
- Posts: Vinyl
- Exterior Run Wall: 4 ft. high Glassboard
- Ventilation: Vented soffit, vented ridge cap, and insulation baffles
- Dog Doors: Spring-loaded 20 in. Plexiglass dog doors
- Dog Door Trim: Molded plastic doggie-hole trim kit
- Entry Door: 6-panel white entry door
- Siding: LP SmartSide siding and pine board-and-batten siding
- Standard Roofing: 30-year architectural shingles
- Ceiling: Cathedral ceiling
- Windows: Screened 24 in. x 36 in. insulated double-hung windows
- Run Decking: Composite decking
- Kennel Panels: 11.5-gauge chain-link panels
Size Guide
- Overall Kennel Size: 12 ft. x 16 ft.
- Run Layout: 4 individual 4 ft. x 5 ft. runs.
- Interior Box Layout: 4 individual 4 ft. x 4 ft. boxes.
- Feed Room: 3 ft.
