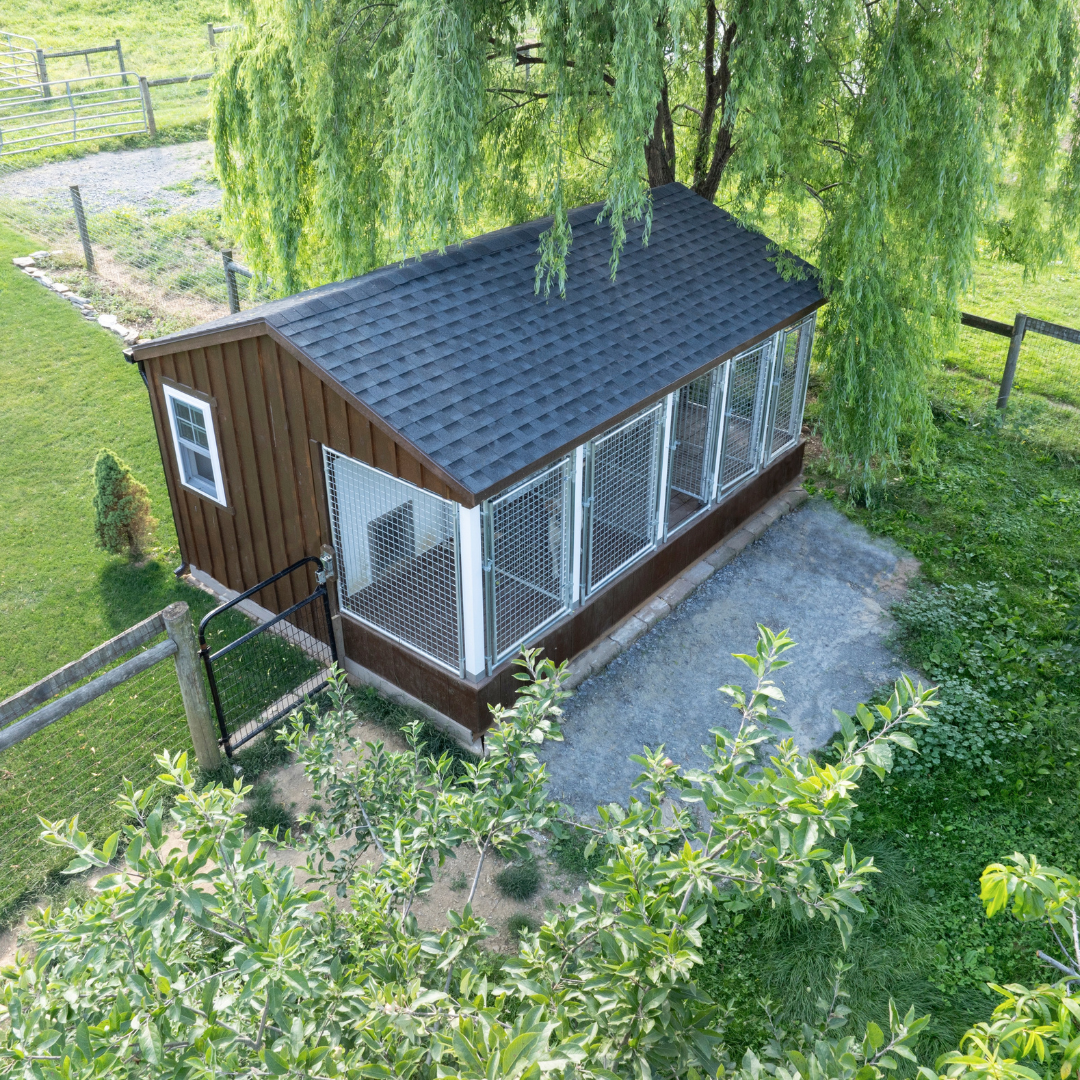

12×17 5-Run Commercial Kennel
The 12×17 5-Run Commercial Kennel is a commercial dog housing structure configured with 5 individual runs and matching interior box areas. Its floorplan includes 3 smaller runs and 2 larger runs arranged along a 3 ft. aisle, providing separate kennel spaces within one structure.
Standard construction includes pressure-treated floor framing, insulated walls and ceiling, PVC Trusscore lining, exterior siding and roofing, ventilation features, dog access doors, windows, composite decking on the runs, and chain-link panels. The kennel is Amish-built in the USA and manufactured in Lancaster County, Pennsylvania.
Key Features
- 5-Run Configuration: Designed as a commercial kennel with 5 individual dog runs and corresponding interior box areas.
- Pressure-Treated Floor Framing: Built with pressure-treated 2x4 floor joists and 4x6 runners.
- Smartfloor Surface: Features 5/8 in. Smartfloor coated with Poly-Urea.
- Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
- Interior Wall Lining: Interior construction includes PVC Trusscore lining.
- Ventilation: Standard construction includes vented soffit, a vented ridge cap, and insulation baffles.
- Dog Access: Includes spring-loaded 20 in. Plexiglass dog doors with molded plastic doggie-hole trim kits as standard features.
- Entry Door: Includes a 6-panel white entry door.
- Windows: Includes screened 24 in. x 36 in. insulated double-hung windows.
- Exterior Construction: LP SmartSide siding, pine board-and-batten siding, and a shingle roof with 30-year architectural shingles are listed among the standard features.
- Run Flooring: Composite decking is used on the runs.
- Kennel Panels: Standard construction includes 11.5-gauge chain-link panels.
- Exterior Run Wall: Features 4 ft. high Glassboard on the exterior run wall.
- Ceiling: Constructed with a cathedral ceiling.
- USA Construction: Amish-built in the USA and manufactured in Lancaster County, Pennsylvania.
|
|
|||
|---|---|---|---|---|
| Ship Nationwide? | ✓ | ? | ||
| Assemble Yourself? | ✓ ✕ | ✓ | ||
| Built in Shop? | ✓ | ✕ | ||
| 4+ Dog Options? | ✓ | ✕ | ||
| Completely Customizable? | ✓ | ✕ | ||
| Amish Built? | ✓ | ✕ | ||
| Made in the USA? | ✓ | ? |
Specifications
- Overall Size: 12 ft. x 17 ft.
- Configuration: 5 runs
- Floor Joists: Pressure-treated 2x4
- Runners: Pressure-treated 4x6
- Floor: 5/8 in. Smartfloor coated with Poly-Urea
- Wall Studs: 2x4 studs at 16 in. OC
- Insulation: R-13 batt insulation in walls and ceiling
- Interior Lining: PVC Trusscore
- Posts: Vinyl
- Exterior Run Wall: 4 ft. high Glassboard
- Ventilation: Vented soffit, vented ridge cap, insulation baffles
- Dog Door: Spring-loaded 20 in. Plexiglass dog door
- Dog Door Trim: Molded plastic doggie-hole trim kit
- Entry Door: 6-panel white entry door
- Siding: LP SmartSide siding and pine board-and-batten siding
- Roofing: 30-year architectural shingles
- Ceiling: Cathedral ceiling
- Windows: Screened 24 in. x 36 in. insulated double-hung windows
- Run Decking: Composite decking
- Panels: 11.5-gauge chain-link panels
- Colors Shown: Brown Cedar B&B siding, Mushroom stained trim, Charcoal shingles, Standard Trim Package

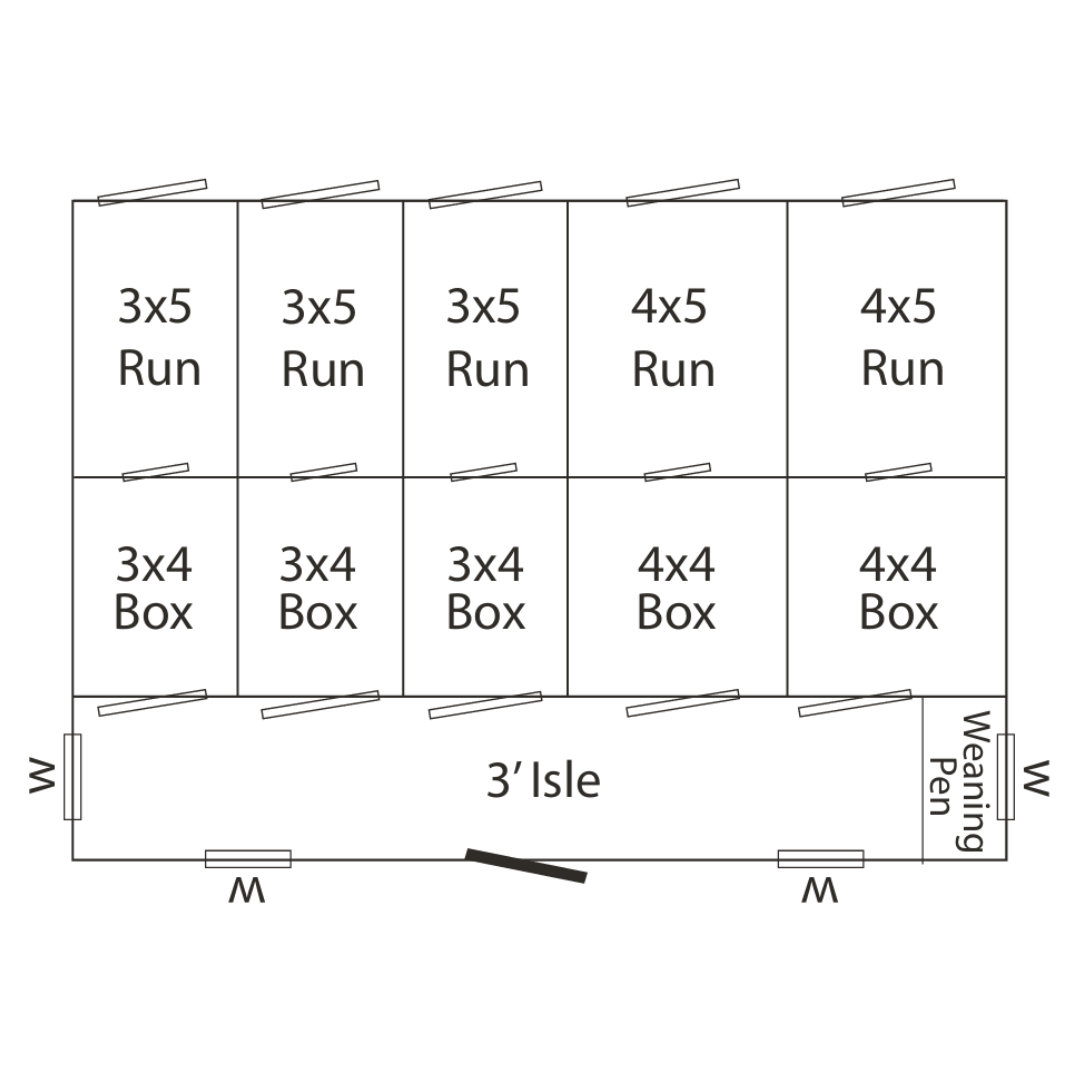

Size Guide
- Overall Kennel Size: 12 ft. x 17 ft.
- Run Layout: 3 runs labeled 3x5 and 2 runs labeled 4x5 on the official floorplan.
- Box Layout: 3 boxes labeled 3x4 and 2 boxes labeled 4x4 on the official floorplan.

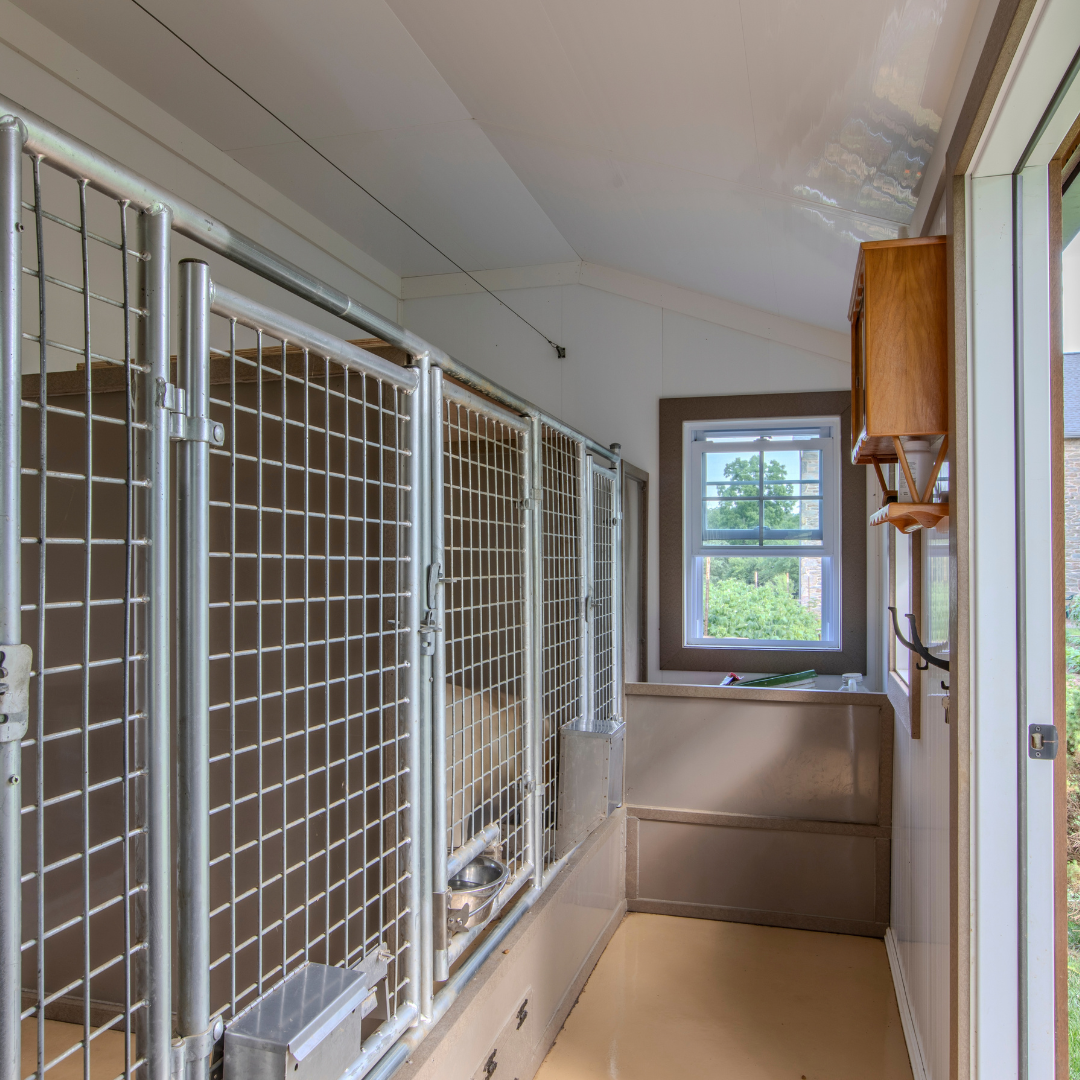

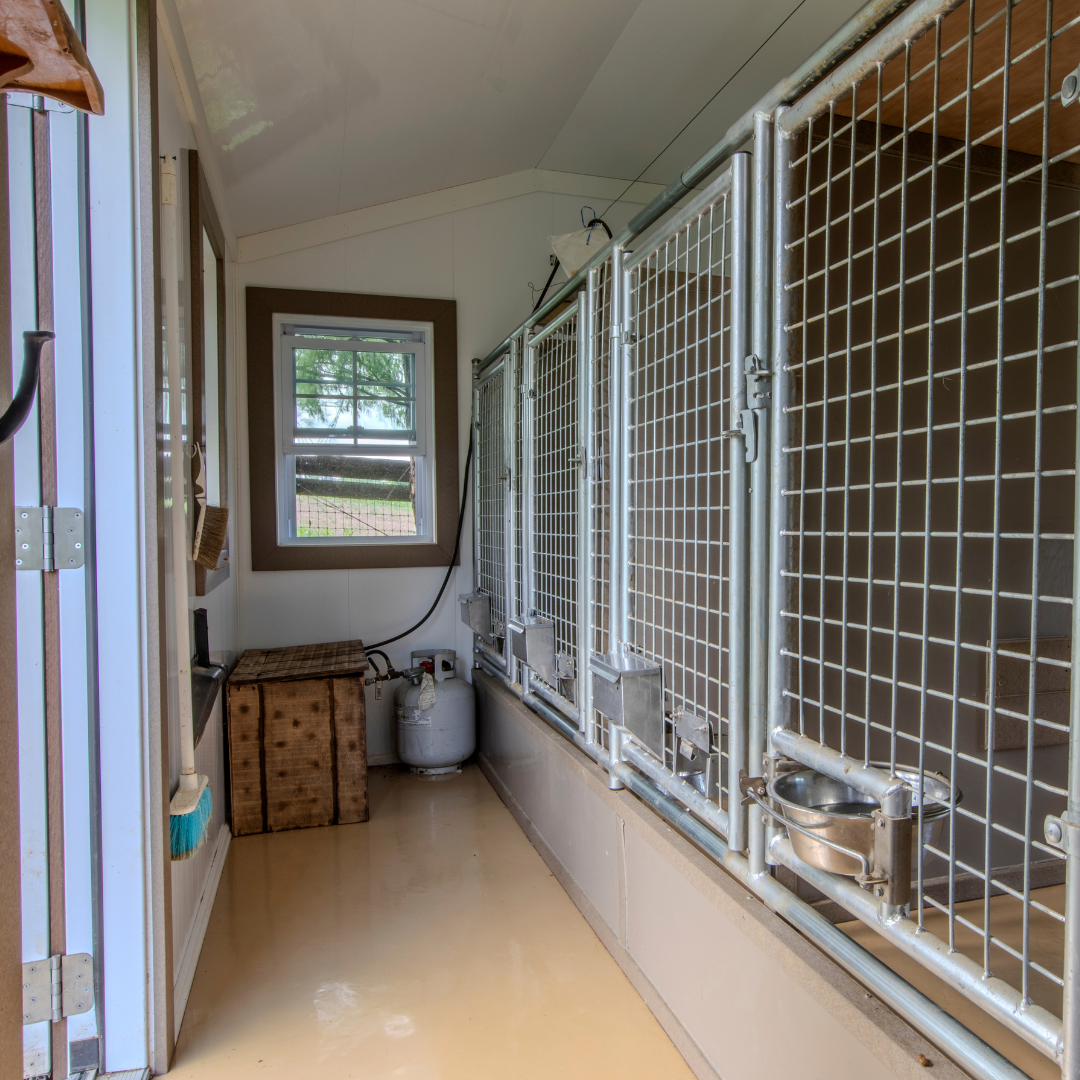

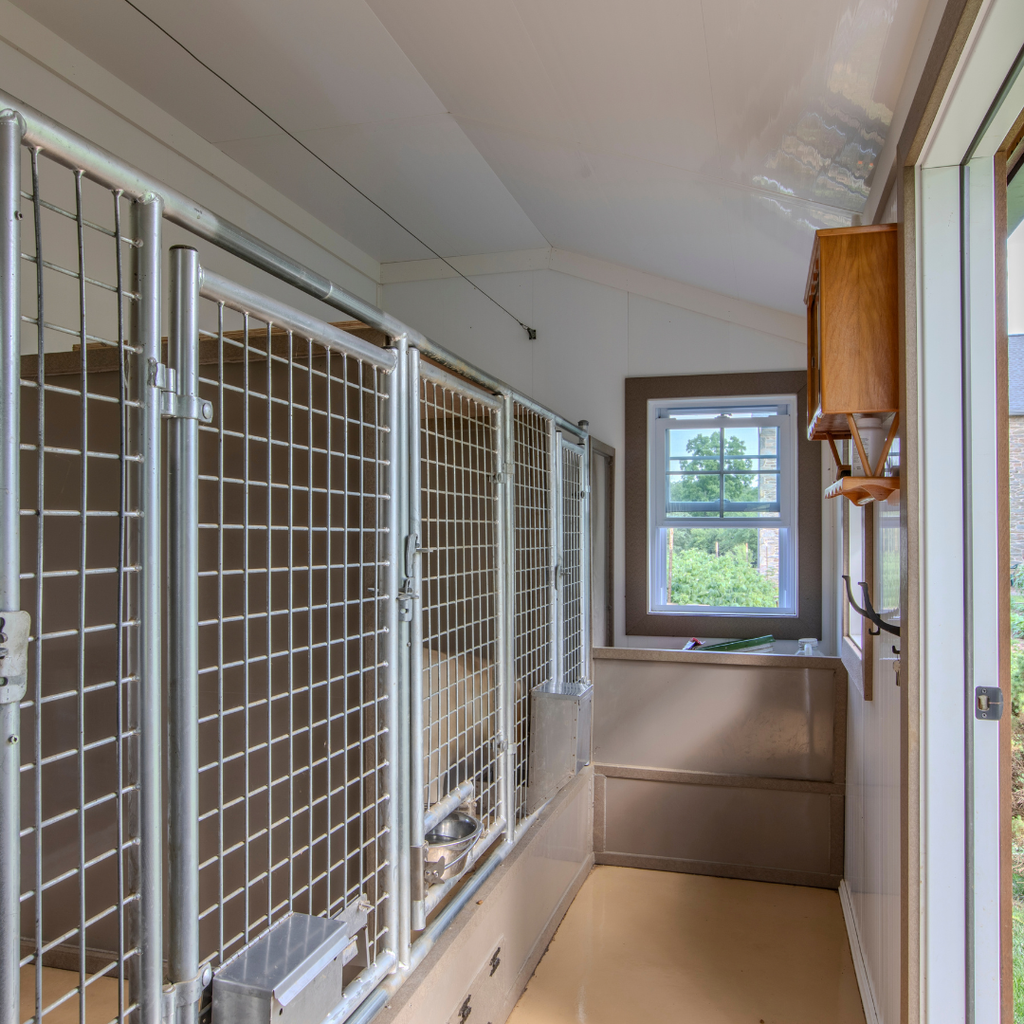

- Aisle: 3 ft. aisle.
