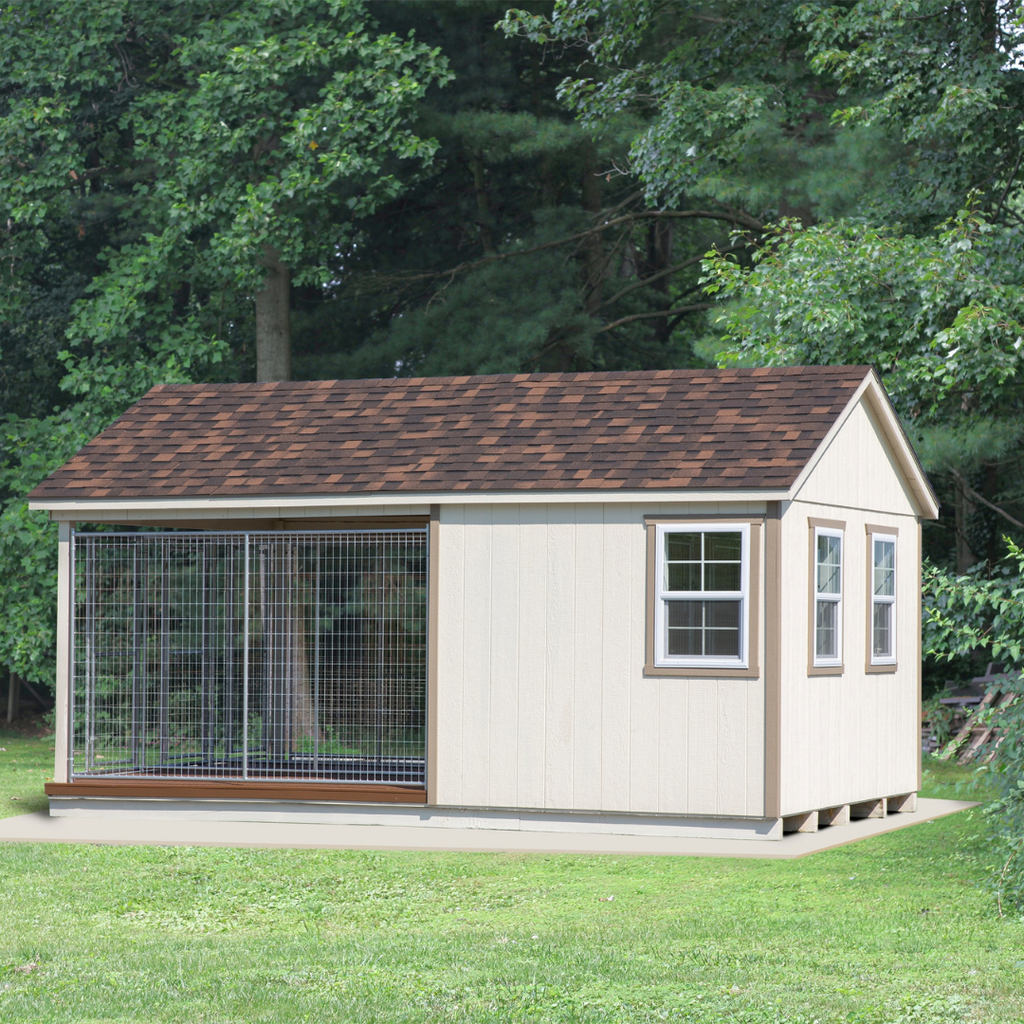

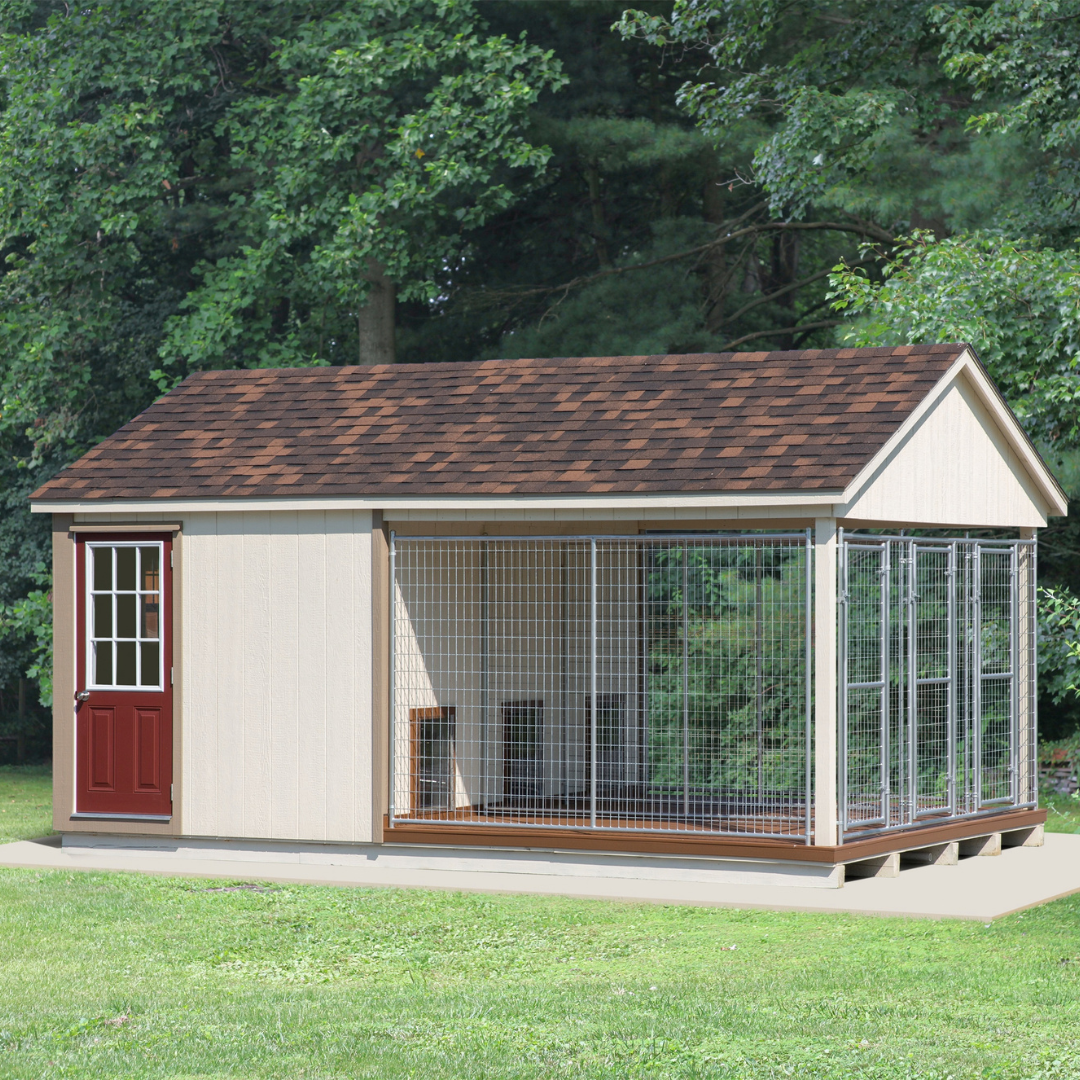

12×18 3-Run Commercial Kennel

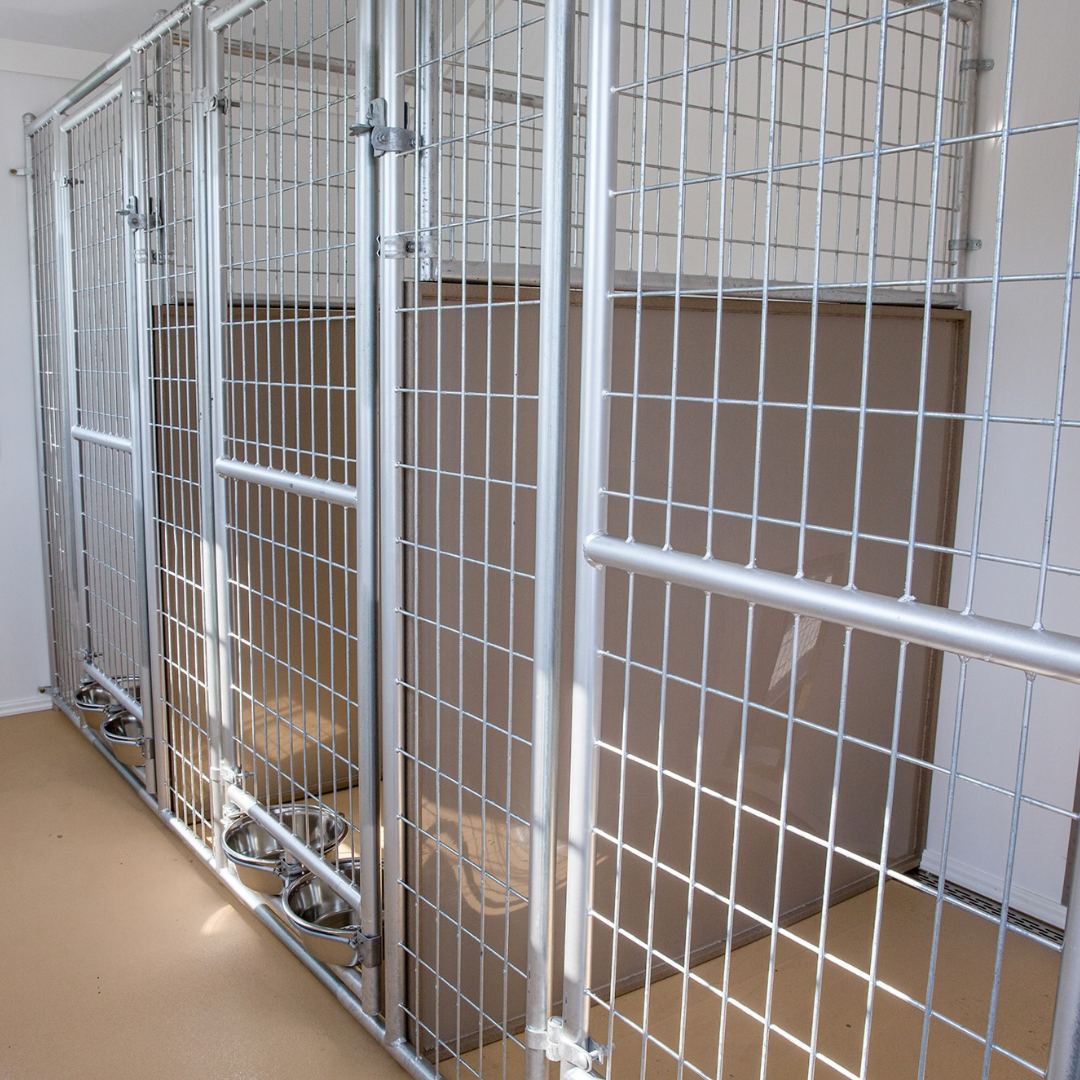

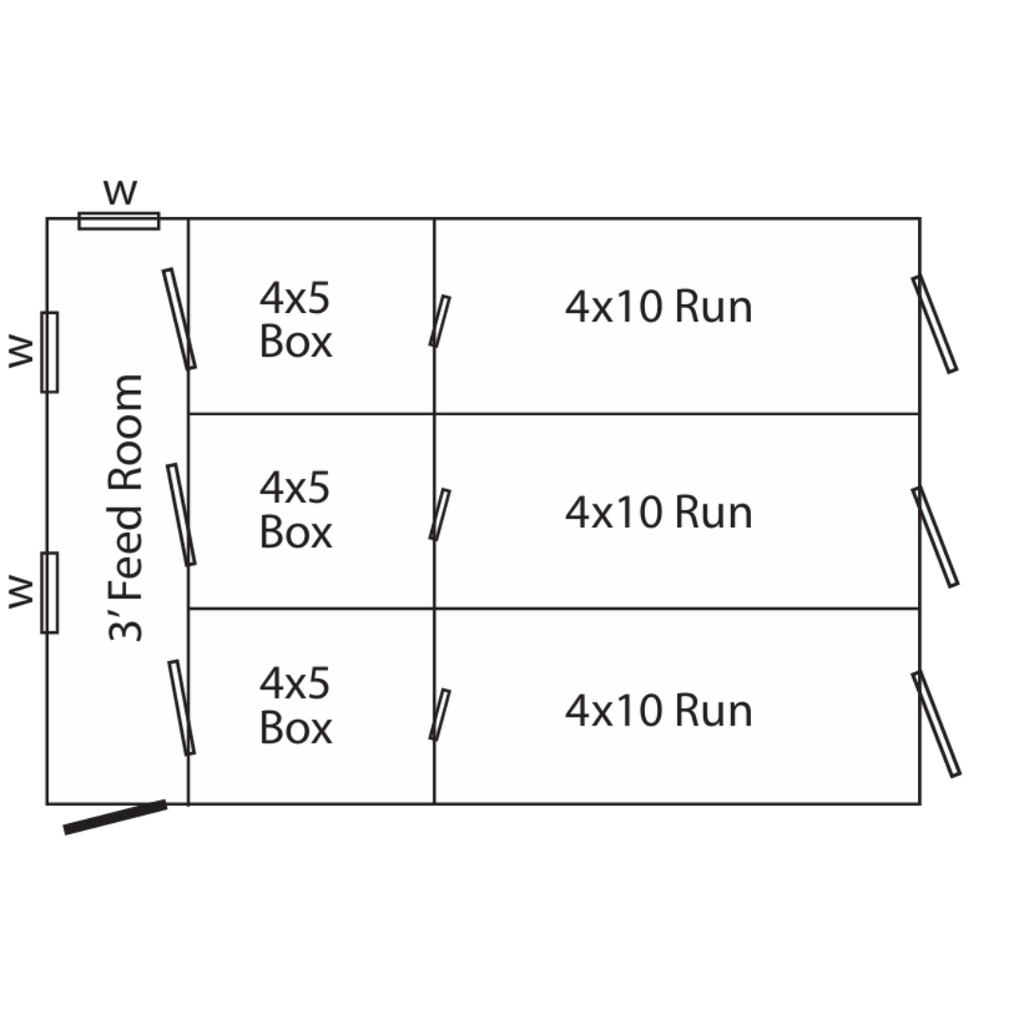

The 12×18 3-Run Commercial Kennel is a compact commercial kennel structure designed to house 3 dogs in individual indoor-and-run spaces. Its floor plan provides 3 separate 4 ft. x 5 ft. kennel boxes, each paired with a 4 ft. x 10 ft. dog run.

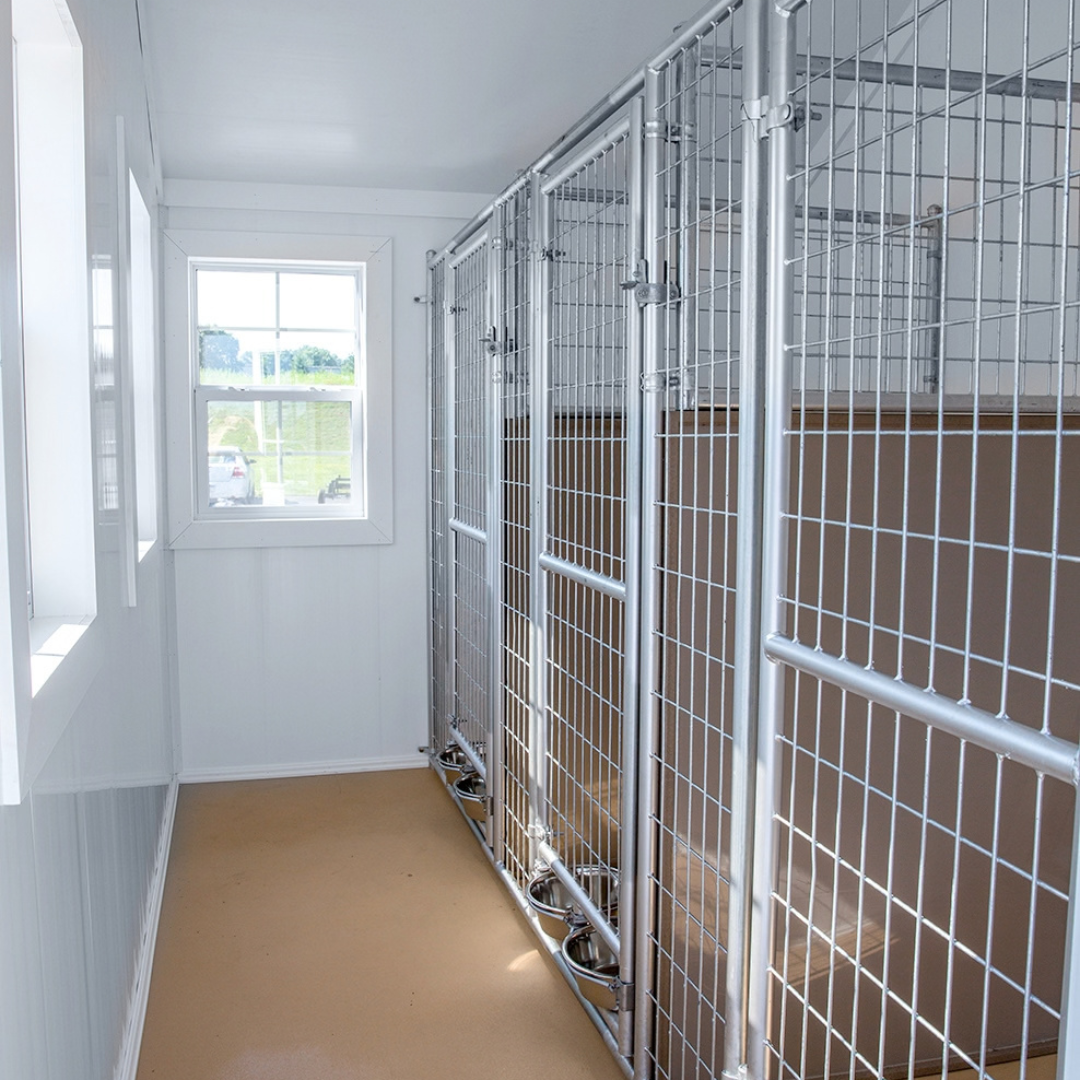

A dedicated 3 ft. feed room runs alongside the kennel boxes, providing interior access to the individual spaces. The structure combines insulated construction, durable interior surfaces, dedicated dog doors, composite run decking, and enclosed run panels as part of its standard configuration.

Key Features

• 3-Run Configuration: Provides 3 individual dog runs with corresponding indoor kennel boxes.
• Individual Kennel Boxes: Each dog space includes a 4 ft. x 5 ft. indoor kennel box.
• 4 ft. x 10 ft. Dog Runs: Each of the 3 kennel boxes is paired with a dedicated 4 ft. x 10 ft. run.
• Dedicated Feed Room: The floor plan includes a 3 ft. feed room running alongside the kennel boxes.
• Pressure-Treated Floor Structure: Standard construction uses pressure-treated 2×4 floor joists and 4×6 runners.
• Polyurea-Coated Smartfloor: Standard interior flooring consists of 5/8-inch Smartfloor coated with polyurea.
• Insulated Construction: R-13 batt insulation is used in the walls and ceiling.
• PVC Interior Lining: The kennel interior is lined with PVC Trusscore.
• Exterior Run Wall Protection: Standard construction includes 4 ft. high Glassboard on the exterior run wall.
• Ventilated Roof Construction: Includes a vented soffit, vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Standard construction includes spring-loaded 20-inch Plexiglass dog doors with molded plastic doggie-hole trim kits.
• Insulated Windows: Includes screened 24 in. x 36 in. insulated double-hung windows.
• Composite Run Decking: Dog runs use composite decking as part of the standard construction.
• Chain-Link Run Panels: Standard run fencing uses 11.5-gauge chain-link panels.
• Architectural Shingle Roof: Standard roofing consists of 30-year architectural shingles.
• Cathedral Ceiling: The standard kennel structure includes a cathedral ceiling.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Dimensions: 12 ft. x 18 ft.
• Configuration: 3 runs
• Dog Run Dimensions: 4 ft. x 10 ft.
• Kennel Box Dimensions: 4 ft. x 5 ft.
• Feed Room Width: 3 ft.
• Floor Joists: Pressure-treated 2×4
• Runners: Pressure-treated 4×6
• Interior Flooring: 5/8-inch Smartfloor coated with polyurea
• Wall Framing: 2×4 studs at 16 in. OC
• Insulation: R-13 batt insulation in walls and ceiling
• Interior Lining: PVC Trusscore
• Exterior Run Wall: 4 ft. high Glassboard
• Posts: Vinyl
• Soffit: Vented
• Ridge Cap: Vented
• Dog Door: Spring-loaded 20-inch Plexiglass
• Entry Door: 6-panel white entry door
• Siding Options: LP SmartSide siding or Pine Board & Batten siding
• Roof: 30-year architectural shingles
• Ceiling: Cathedral ceiling
• Windows: Screened 24 in. x 36 in. insulated double-hung windows
• Run Decking: Composite decking
• Run Panels: 11.5-gauge chain-link panels

Size Guide

• Overall Kennel Size: 12 ft. x 18 ft.
• Number of Runs: 3
• Dog Run Size: 4 ft. x 10 ft.
• Kennel Box Size: 4 ft. x 5 ft.
• Feed Room: 3 ft. wide

Included

• Pressure-treated 2×4 floor joists
• Pressure-treated 4×6 runners
• 5/8-inch Smartfloor coated with polyurea
• 2×4 wall studs at 16 in. OC
• R-13 batt insulation in walls and ceiling
• PVC Trusscore interior lining
• Vinyl posts
• 4 ft. high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20-inch Plexiglass dog doors
• Molded plastic doggie-hole trim kits
• 6-panel white entry door
• LP SmartSide siding or Pine Board & Batten siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24 in. x 36 in. insulated double-hung windows
• Composite decking on runs
• 11.5-gauge chain-link panels

Product Support

• Specification Sheet
