12×42 8-Run Commercial Kennel With A Lobby

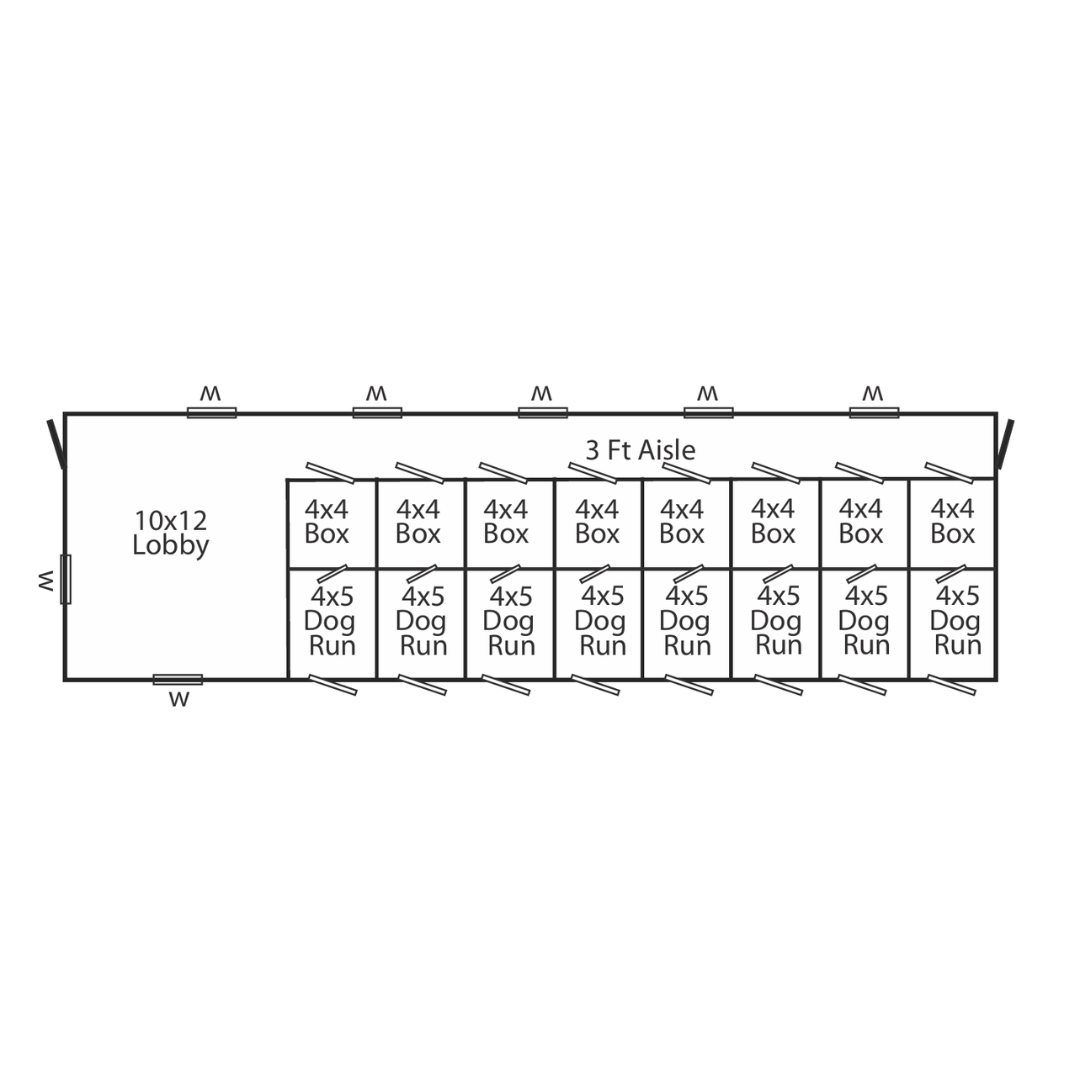

The 12×42 8-Run Commercial Kennel With A Lobby is designed for commercial dog housing with 8 individual kennel spaces and a dedicated lobby. Its floor plan combines 4x4 indoor box areas with individual 4x5 dog runs, along with a 3 ft. aisle for interior access.

A 10x12 lobby is incorporated into the structure, providing a separate enclosed area alongside the kennel spaces. Standard construction includes a polyurea-coated Smartfloor, insulated walls and ceiling, PVC Trusscore interior lining, spring-loaded Plexiglass dog doors, composite run decking, insulated windows, and chain-link kennel panels.

Key Features

• 8-Run Configuration: Designed with 8 individual kennel spaces for commercial dog housing.
• Individual Indoor Boxes: Each kennel space includes a 4x4 indoor box area.
• Individual Dog Runs: Each indoor box is paired with a 4x5 dog run.
• Dedicated Lobby: Includes a 10x12 lobby incorporated into the kennel floor plan.

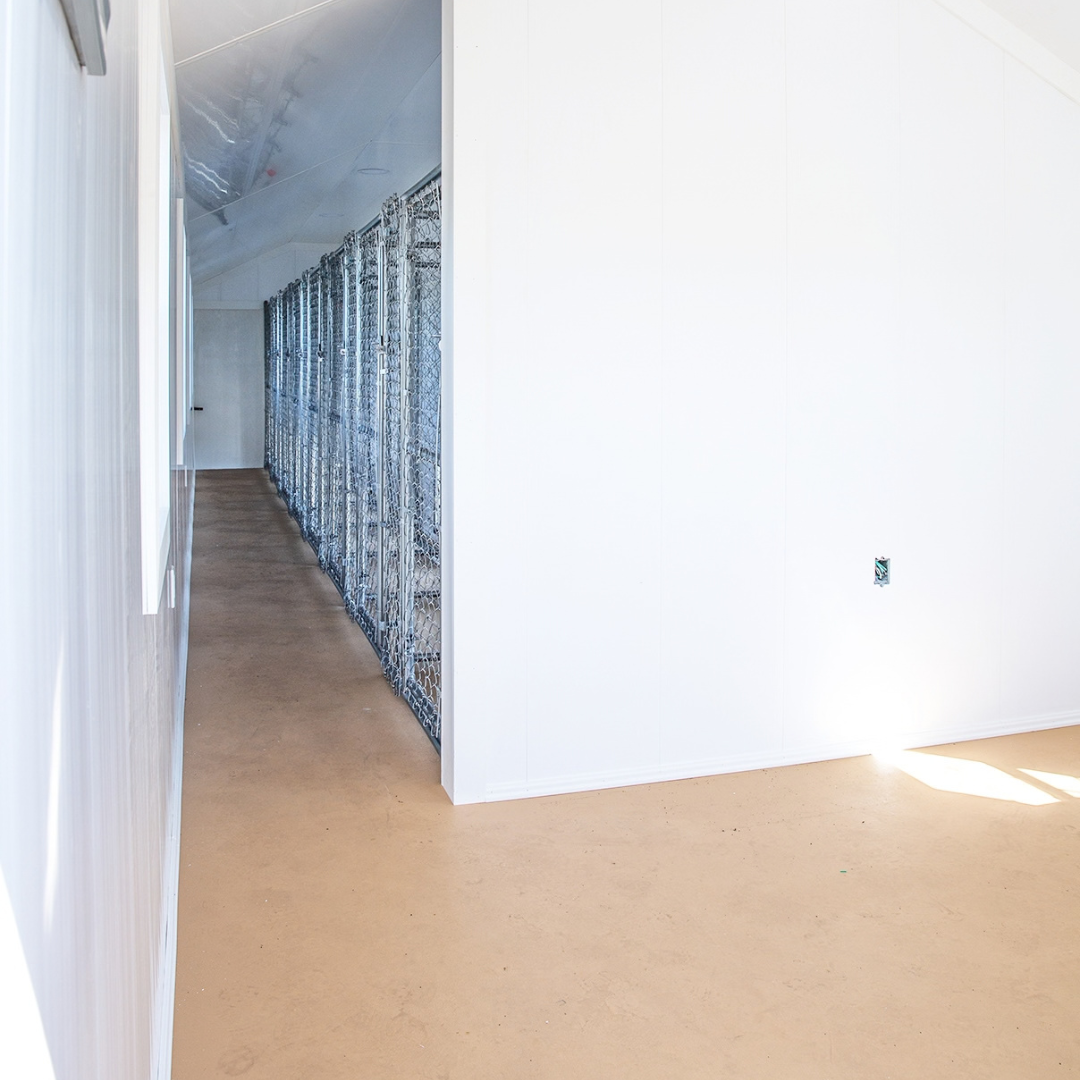

• Interior Aisle: Features a 3 ft. aisle providing access along the kennel spaces.
• Polyurea-Coated Flooring: Features 5/8″ Smartfloor coated with Poly-Urea.
• Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
• PVC Interior Lining: Interior areas feature PVC Trusscore lining.
• Ventilated Construction: Includes a vented soffit, vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Features spring-loaded 20″ Plexiglass dog doors with molded plastic doggie hole trim kits.
• Insulated Windows: Includes screened 24″x36″ insulated double-hung windows.
• Composite Run Decking: Dog runs feature composite decking.

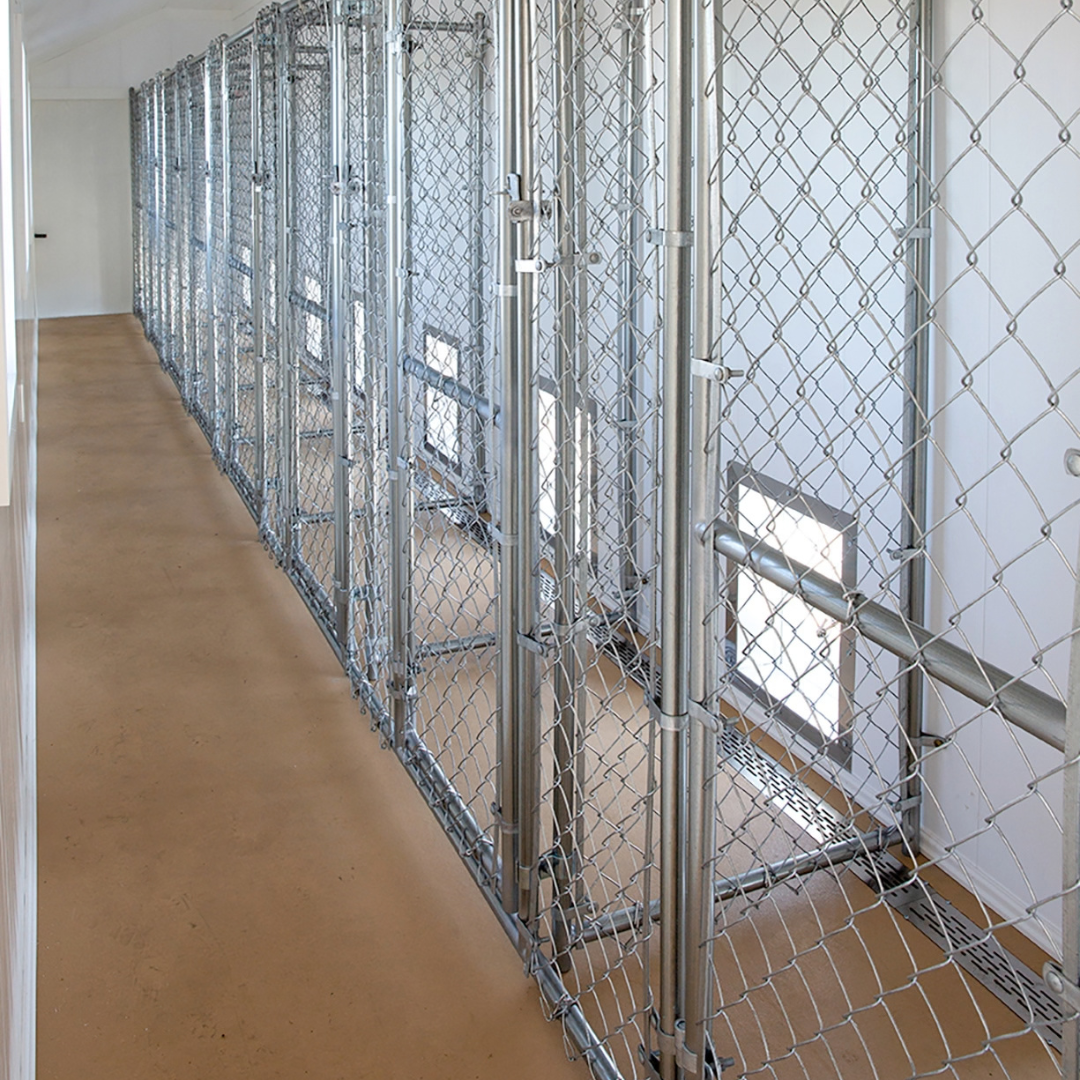

• Chain-Link Kennel Panels: Standard construction includes 11.5 Ga chain-link panels.
• Architectural Shingle Roof: Includes a shingle roof with 30-year architectural shingles.
• Cathedral Ceiling: Features a cathedral ceiling as part of the standard kennel structure.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Size: 12x42
• Configuration: 8 Run
• Individual Box Size: 4x4
• Individual Dog Run Size: 4x5
• Lobby Size: 10x12
• Interior Aisle: 3 ft.
• Floor Joists: Pressure Treated – 2×4 Floor Joists
• Runners: 4×6 Runners
• Flooring: 5/8″ Smartfloor Coasted with Poly-Urea
• Wall Framing: 2×4 Studs in Walls 16″OC
• Insulation: R-13 Batten Insulation in Walls & Ceiling
• Interior Lining: PVC Trusscore Lined
• Posts: Vinyl Posts
• Exterior Run Wall: 4′ High Glassboard
• Soffit: Vented Soffit
• Ridge Cap: Vented Ridge Cap
• Insulation Baffles: Included
• Dog Door: Spring Loaded 20″ Plexiglass Dog Door
• Dog Door Trim: Molded Plastic Doggie Hole Trim Kit
• Entry Door: 6-Panel White Entry Door
• Siding: LP Smartside Siding; Pine Board & Batten Siding
• Roof: Shingle Roof – 30 Year Architectural Shingles
• Ceiling: Catedral Ceiling
• Windows: Screened 24″x36″ Insulated Double Hung Windows
• Run Decking: Composite Decking on Runs
• Kennel Panels: 11.5 Ga Chainlink Panels
• Shown Siding Color: Light Gray
• Shown Trim Color: Dark Gray
• Shown Shingle Color: Nickel Gray
• Shown Trim Package: Standard Trim Package

Size Guide

• Overall Kennel Size: 12x42
• Number of Runs: 8
• Individual Box Size: 4x4
• Individual Dog Run Size: 4x5
• Lobby: 10x12
• Interior Aisle: 3 ft.

Included

• Pressure-treated 2×4 floor joists and 4×6 runners
• 5/8″ Smartfloor coated with Poly-Urea
• R-13 batt insulation in walls and ceiling
• PVC Trusscore lining
• Vinyl posts
• 4′ high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20″ Plexiglass dog doors
• Molded plastic doggie hole trim kits
• 6-panel white entry door
• LP Smartside siding or Pine Board & Batten siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24″x36″ insulated double-hung windows
• Composite decking on runs
• 11.5 Ga chain-link panels

Product Support

• Specification Sheet
