14×24 6-Run Commercial Kennel

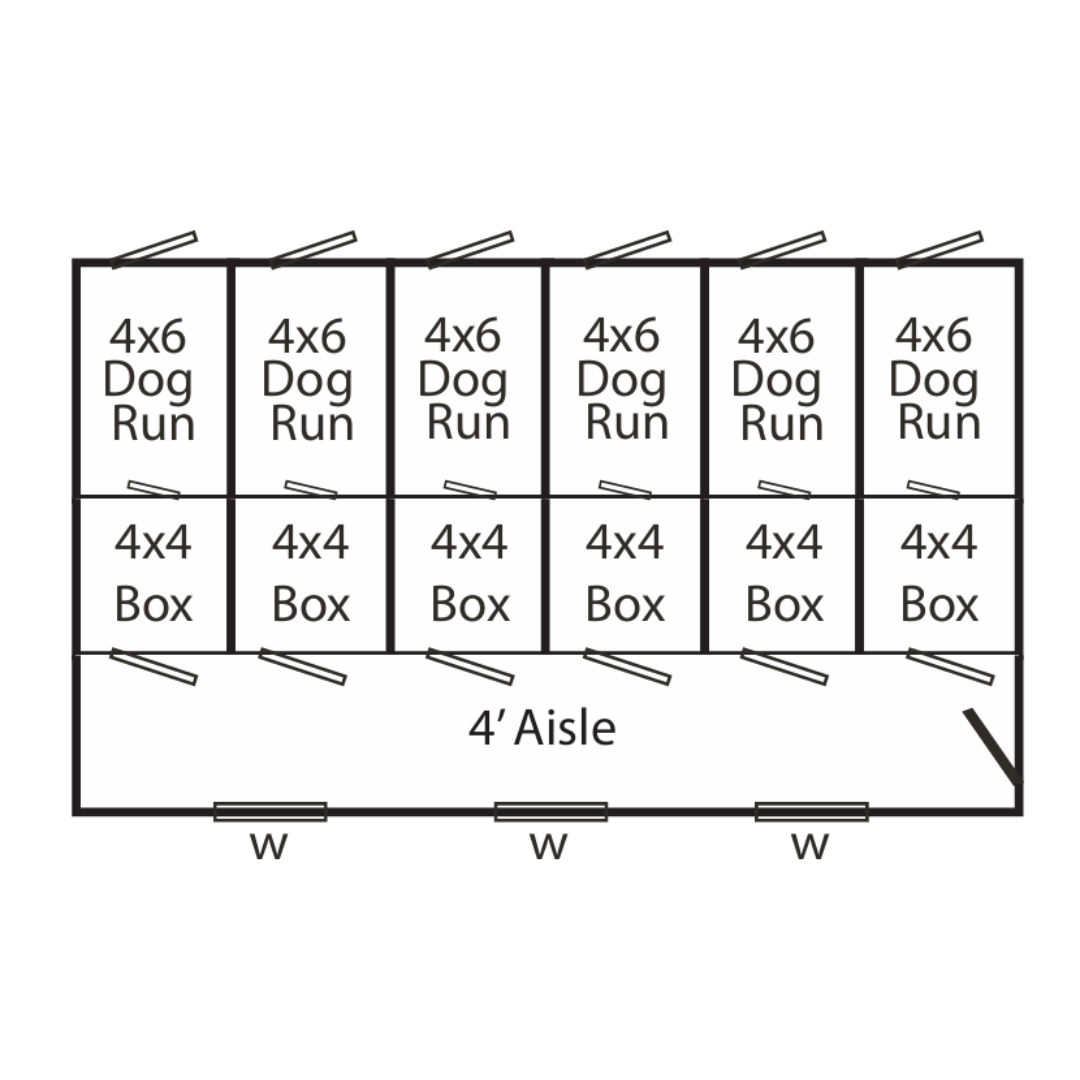

The 14×24 6-Run Commercial Kennel is a complete multi-dog kennel structure with 6 individual dog runs and corresponding indoor kennel boxes. Its official floor plan uses 4 ft. x 6 ft. dog runs paired with 4 ft. x 4 ft. interior boxes, arranged along a 4 ft. aisle.

The kennel uses insulated construction, polyurea-coated interior flooring, composite run decking, dedicated dog doors, insulated windows, and chain-link run panels as part of its standard configuration. Optional upgrades shown on the official materials are excluded from this customer-facing description.

Key Features

• 6-Run Configuration: Provides 6 individual dog runs with corresponding indoor kennel boxes.
• Dedicated Indoor Boxes: Each run is paired with a 4 ft. x 4 ft. interior kennel box.

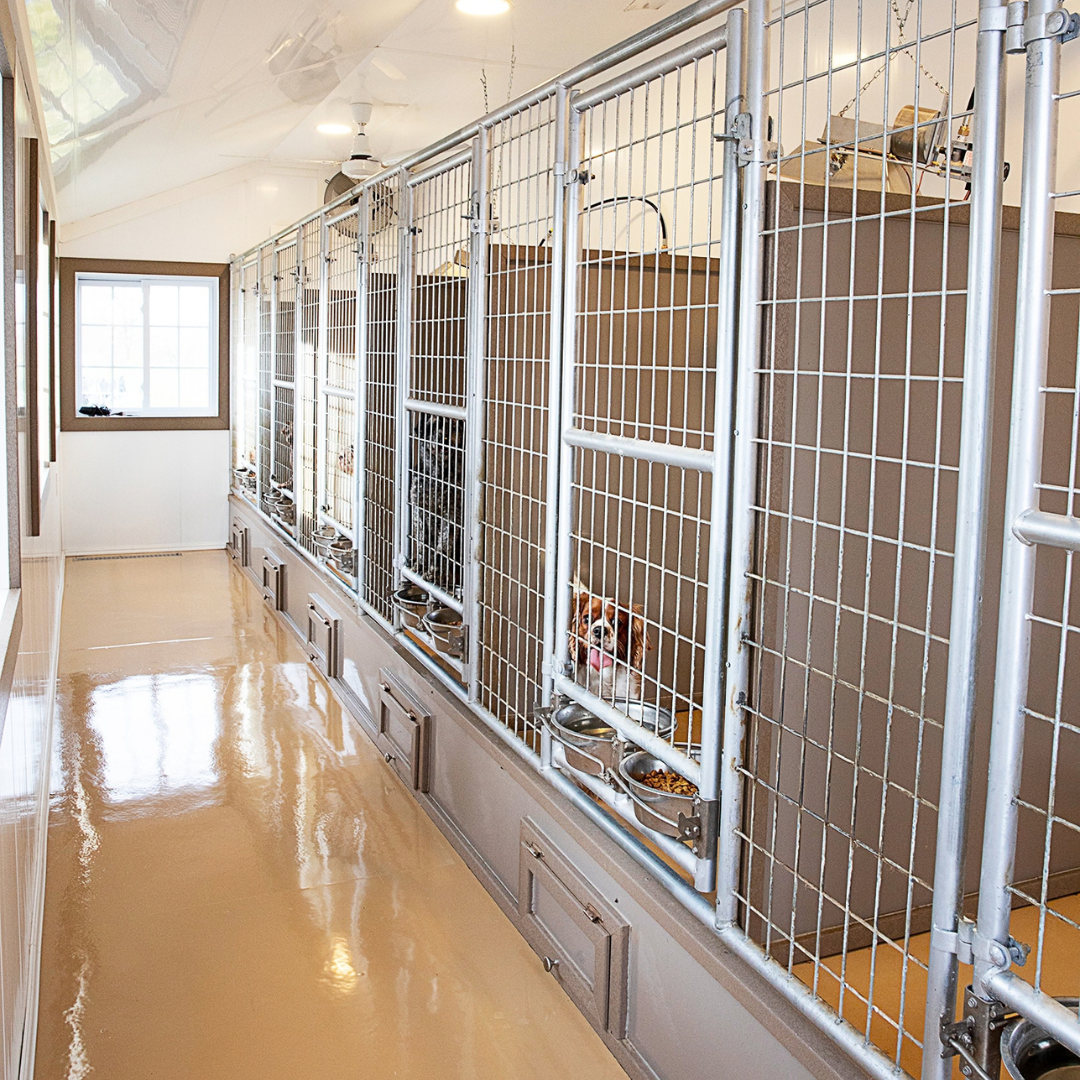

• 4 ft. Interior Aisle: A 4 ft. aisle provides access along the row of kennel boxes.
• Pressure-Treated Floor Structure: Standard construction includes pressure-treated 2×4 floor joists and 4×6 runners.
• Polyurea-Coated Smartfloor: Includes 5/8-inch Smartfloor coated with polyurea as the standard interior flooring.
• Insulated Construction: R-13 batt insulation is used in the walls and ceiling.
• PVC Interior Lining: PVC Trusscore lining is included as part of the standard interior construction.
• Exterior Run Wall Protection: Includes 4 ft. high Glassboard on the exterior run wall.
• Ventilated Roof Construction: Standard features include a vented soffit, vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Includes spring-loaded 20-inch Plexiglass dog doors with molded plastic doggie-hole trim kits.
• Insulated Windows: Includes screened 24 in. x 36 in. insulated double-hung windows.
• Composite Run Decking: Exterior dog runs use composite decking as part of the standard construction.
• Chain-Link Run Panels: Standard run fencing uses 11.5-gauge chain-link panels.
• Architectural Shingle Roof: Standard roofing consists of 30-year architectural shingles.
• Cathedral Ceiling: A cathedral ceiling is included as part of the standard kennel construction.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Dimensions: 14 ft. x 24 ft.
• Configuration: 6 runs
• Dog Run Dimensions: 4 ft. x 6 ft.
• Kennel Box Dimensions: 4 ft. x 4 ft.
• Interior Aisle Width: 4 ft.
• Floor Joists: Pressure-treated 2×4
• Runners: Pressure-treated 4×6
• Interior Flooring: 5/8-inch Smartfloor coated with polyurea
• Wall Framing: 2×4 studs at 16 in. OC
• Insulation: R-13 batt insulation in walls and ceiling
• Interior Lining: PVC Trusscore
• Exterior Run Wall: 4 ft. high Glassboard
• Posts: Vinyl
• Soffit: Vented
• Ridge Cap: Vented
• Dog Door: Spring-loaded 20-inch Plexiglass
• Entry Door: 6-panel white entry door
• Siding Options: LP SmartSide siding or Pine Board & Batten siding
• Roof: 30-year architectural shingles
• Ceiling: Cathedral ceiling
• Windows: Screened 24 in. x 36 in. insulated double-hung windows
• Run Decking: Composite decking
• Run Panels: 11.5-gauge chain-link panels

Size Guide

• Overall Kennel Size: 14 ft. x 24 ft.
• Number of Runs: 6
• Dog Run Size: 4 ft. x 6 ft.
• Kennel Box Size: 4 ft. x 4 ft.
• Interior Aisle: 4 ft.

Included

• Pressure-treated 2×4 floor joists
• Pressure-treated 4×6 runners
• 5/8-inch Smartfloor coated with polyurea
• 2×4 wall studs at 16 in. OC
• R-13 batt insulation in walls and ceiling
• PVC Trusscore interior lining
• Vinyl posts
• 4 ft. high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20-inch Plexiglass dog doors
• Molded plastic doggie-hole trim kits
• 6-panel white entry door
• LP SmartSide siding or Pine Board & Batten siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24 in. x 36 in. insulated double-hung windows
• Composite decking on runs
• 11.5-gauge chain-link panels
