Description
14×54 12-Run Commercial Kennel

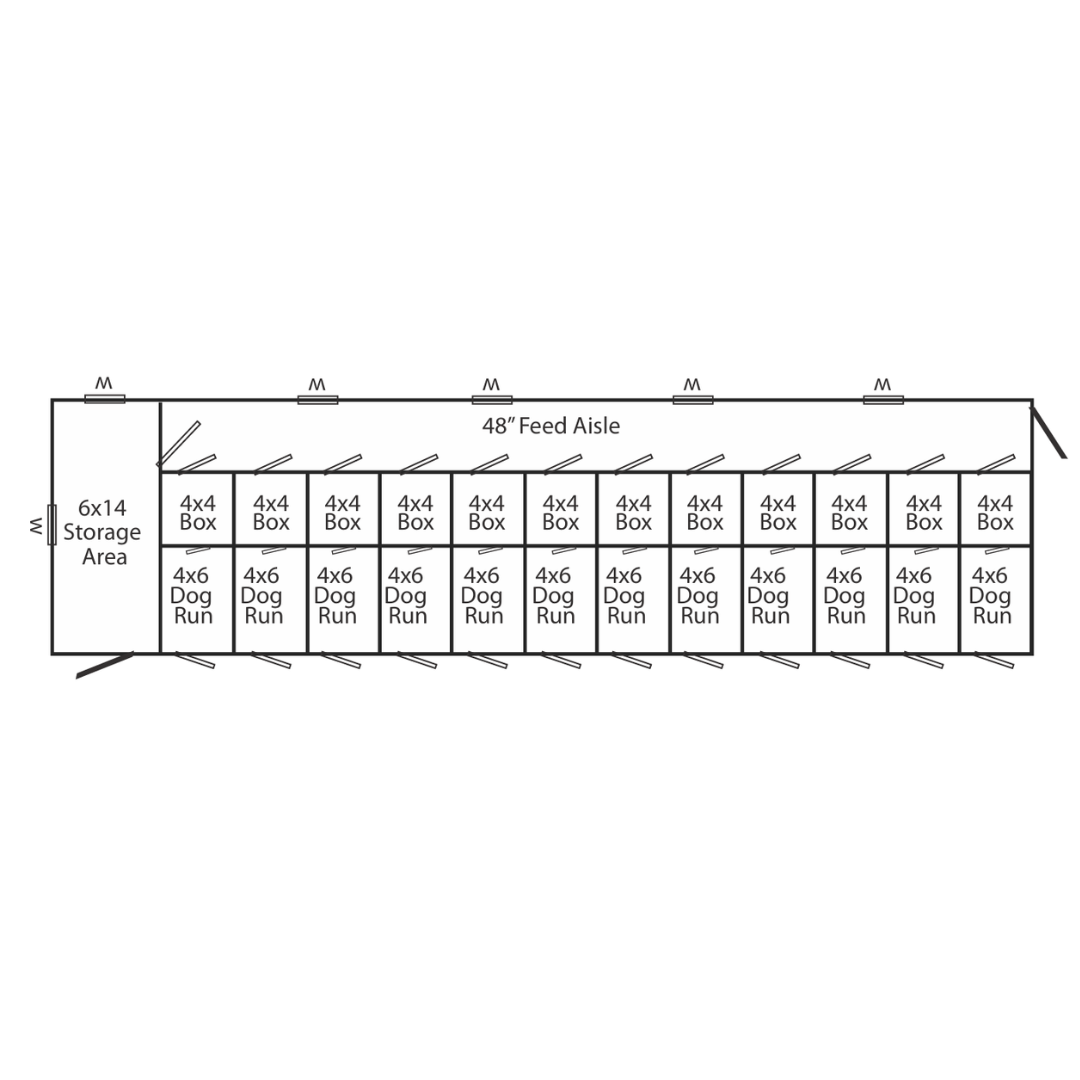

The 14×54 12-Run Commercial Kennel is designed for commercial dog housing with 12 individual kennel spaces. Its floor plan pairs 4x4 indoor box areas with 4x6 dog runs and includes a 48” feed aisle for access along the kennel row.
A 6x14 storage area is incorporated into the layout, providing a dedicated space separate from the individual kennel runs. The standard structure includes insulated construction, polyurea-coated Smartfloor, PVC Trusscore lining, spring-loaded Plexiglass dog doors, composite decking, and chain-link kennel panels.
Key Features
- 12-Run Configuration: Designed with 12 individual kennel spaces for commercial dog housing.
- Individual Indoor Boxes: Each kennel space includes a 4x4 indoor box area.
- Individual Dog Runs: Each kennel space is paired with a 4x6 dog run.
- Feed Aisle: The layout includes a 48” feed aisle running alongside the kennel spaces.

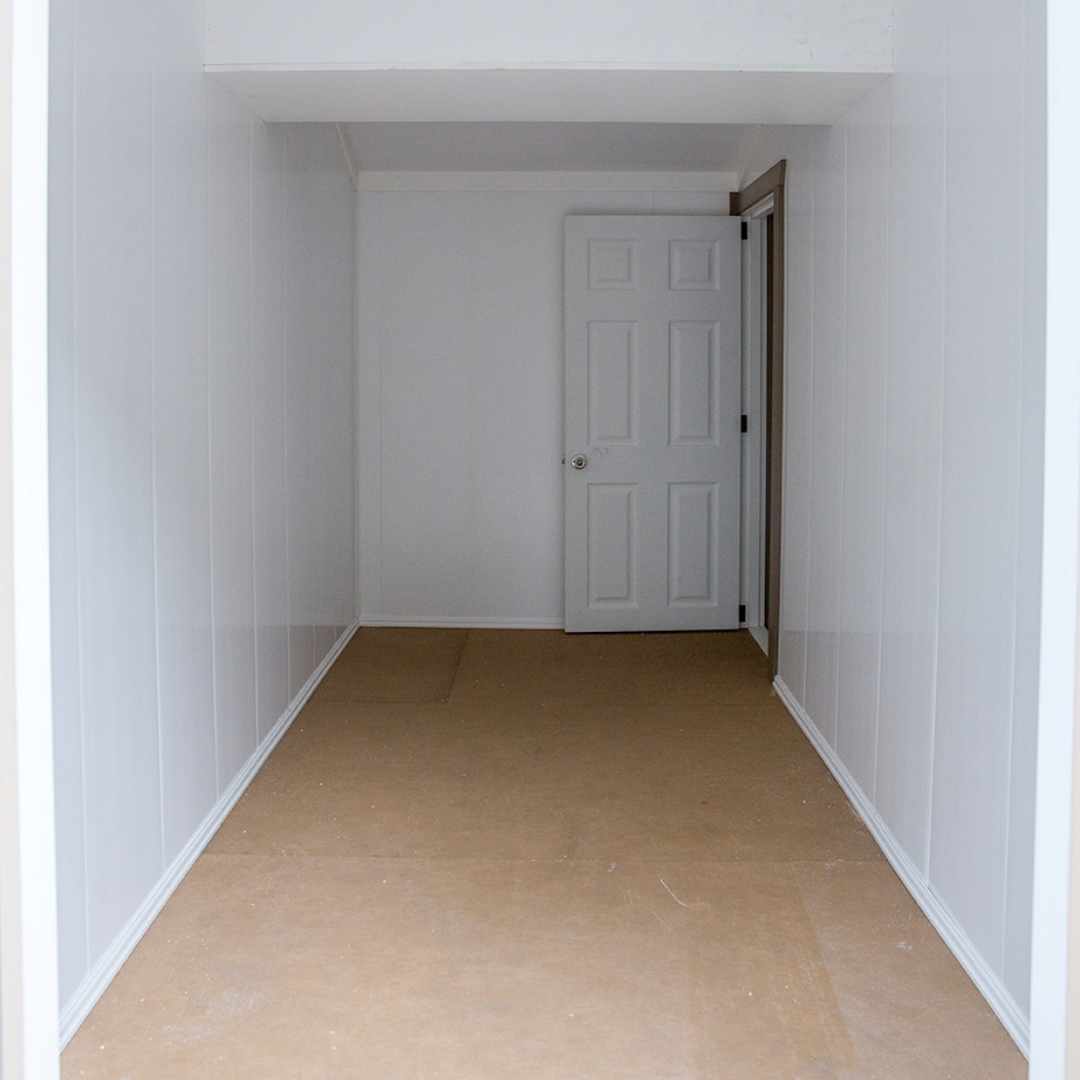

- Storage Area: Includes a dedicated 6x14 storage area within the kennel layout.
- Polyurea-Coated Flooring: Features 5/8″ Smartfloor coated with Poly-Urea.
- Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
- PVC Interior Lining: Interior surfaces are lined with PVC Trusscore.
- Ventilated Construction: Includes a vented soffit, vented ridge cap, and insulation baffles.
- Spring-Loaded Dog Doors: Standard construction includes spring-loaded 20″ Plexiglass dog doors with molded plastic doggie hole trim kits.
- Insulated Windows: Includes screened 24″x36″ insulated double-hung windows.
- Composite Run Decking: Run areas feature composite decking.
- Chain-Link Panels: Standard kennel construction uses 11.5 Ga chain-link panels.
- Architectural Shingle Roof: Includes a shingle roof with 30-year architectural shingles.
- Cathedral Ceiling: Features a cathedral ceiling as part of the standard kennel construction.
|
|
|||
|---|---|---|---|---|
| Ship Nationwide? | ✓ | ? | ||
| Assemble Yourself? | ✓ ✕ | ✓ | ||
| Built in Shop? | ✓ | ✕ | ||
| 4+ Dog Options? | ✓ | ✕ | ||
| Completely Customizable? | ✓ | ✕ | ||
| Amish Built? | ✓ | ✕ | ||
| Made in the USA? | ✓ | ? |
Specifications
- Overall Size: 14×54
- Configuration: 12 Run
- Individual Box Size: 4x4
- Individual Dog Run Size: 4x6
- Feed Aisle: 48”
- Storage Area: 6x14
- Floor Joists: Pressure Treated – 2×4 Floor Joists
- Runners: 4×6 Runners
- Flooring: 5/8″ Smartfloor Coated with Poly-Urea
- Wall Framing: 2×4 Studs in Walls 16″OC
- Insulation: R-13 Batten Insulation in Walls & Ceiling
- Interior Lining: PVC Trusscore Lined
- Posts: Vinyl Posts
- Exterior Run Wall: 4′ High Glassboard
- Soffit: Vented Soffit
- Ridge Cap: Vented Ridge Cap
- Dog Door: Spring Loaded 20″ Plexiglass Dog Door
- Dog Door Trim: Molded Plastic Doggie Hole Trim Kit
- Entry Door: 6-Panel White Entry Door
- Siding: LP Smartside Siding; Pine Board & Batten Siding
- Roof: Shingle Roof – 30 Year Architectural Shingles
- Ceiling: Catedral Ceiling
- Windows: Screened 24″x36″ Insulated Double Hung Windows
- Run Decking: Composite Decking on Runs
- Kennel Panels: 11.5 Ga Chainlink Panels
Size Guide
- Overall Kennel Size: 14×54
- Number of Runs: 12
- Individual Box Size: 4x4
- Individual Dog Run Size: 4x6
- Feed Aisle: 48”
- Storage Area: 6x14
Included
- Pressure-treated 2×4 floor joists and 4×6 runners
- 5/8″ Smartfloor coated with Poly-Urea
- R-13 batt insulation in walls and ceiling
- PVC Trusscore lining
- Vinyl posts
- 4′ high Glassboard on exterior run wall
- Vented soffit
- Vented ridge cap
- Insulation baffles
- Spring-loaded 20″ Plexiglass dog doors
- Molded plastic doggie hole trim kits
- 6-panel white entry door
- Standard siding
- 30-year architectural shingle roof
- Cathedral ceiling
- Screened 24″x36″ insulated double-hung windows
- Composite decking on runs
- 11.5 Ga chain-link panels
