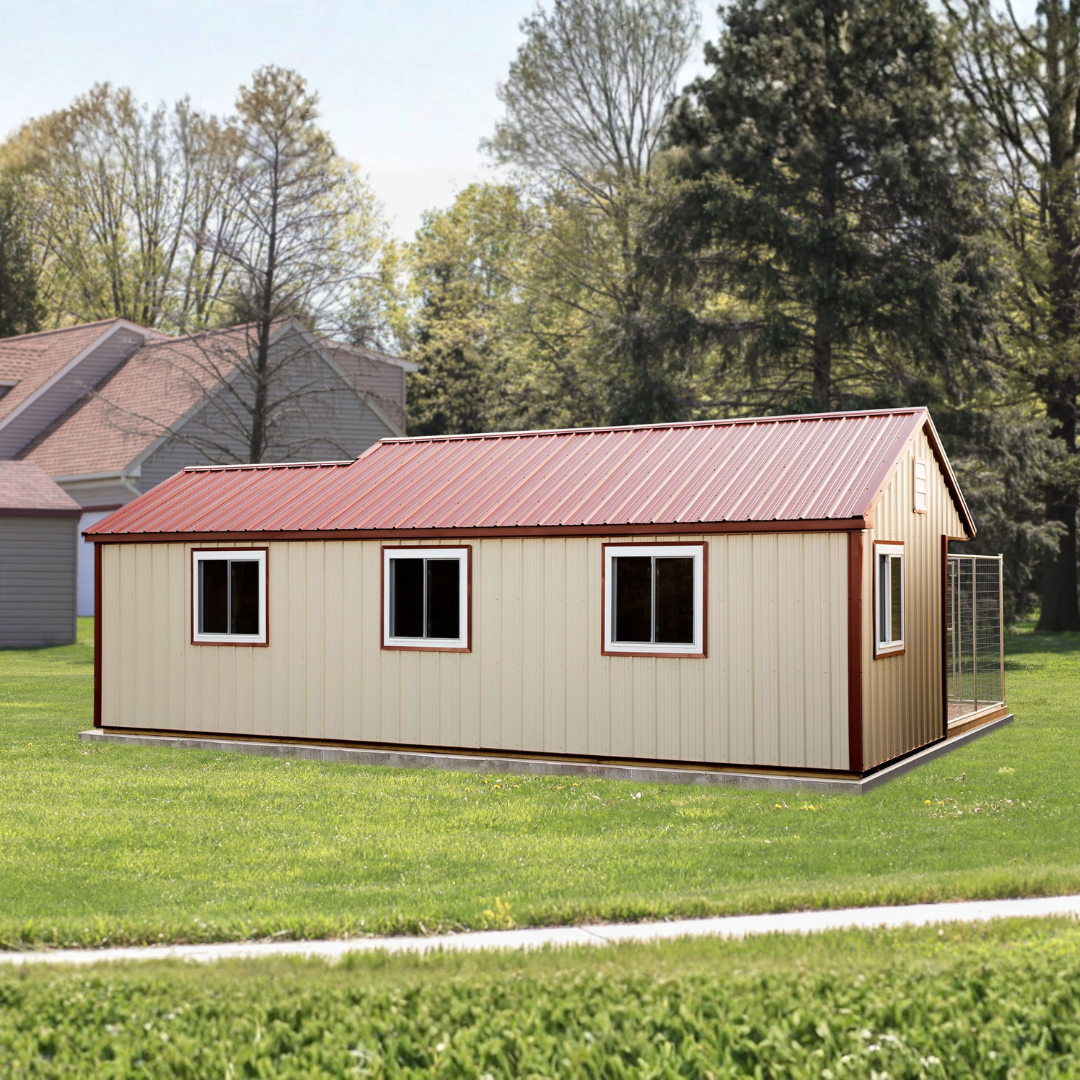

20×28 5-Run Commercial Kennel

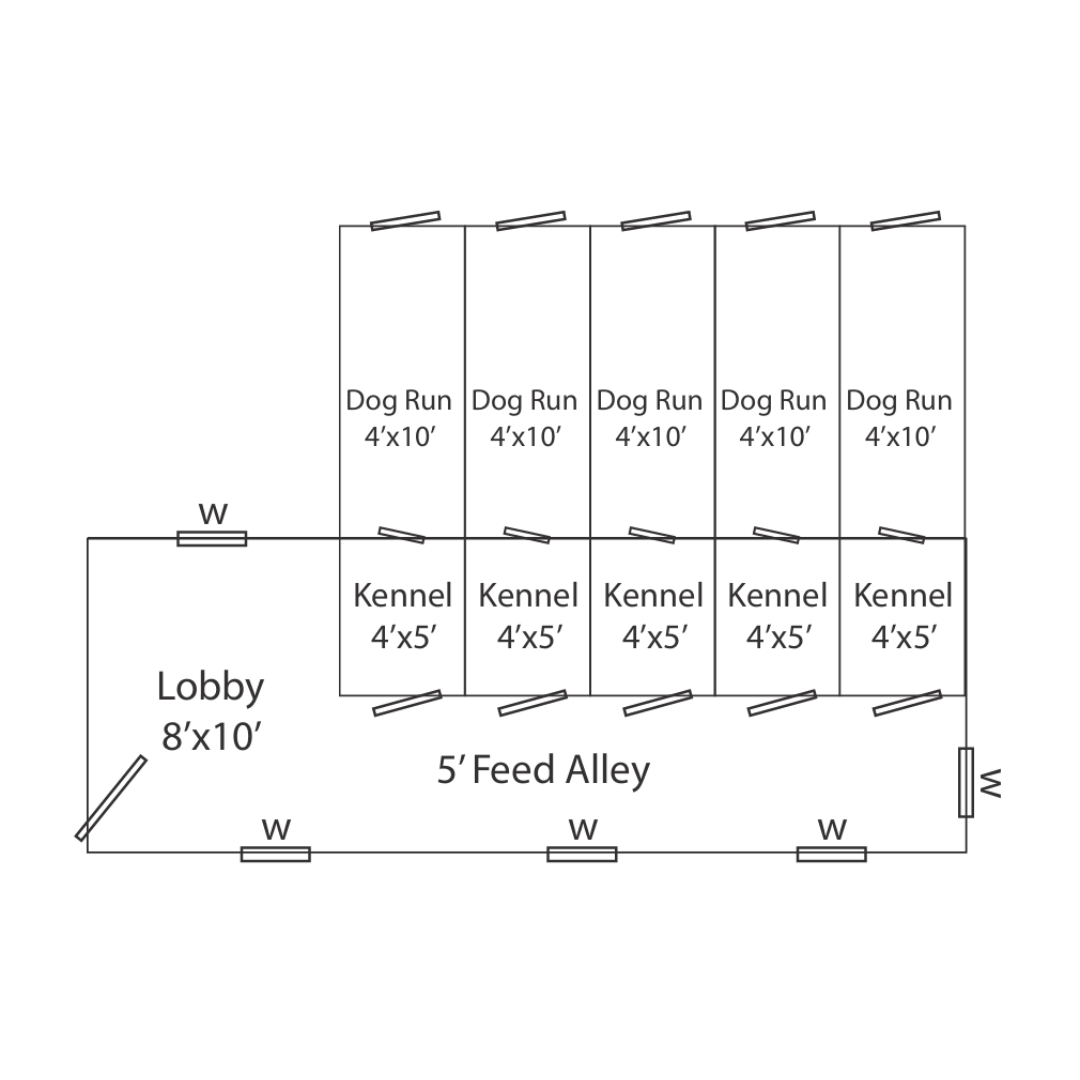

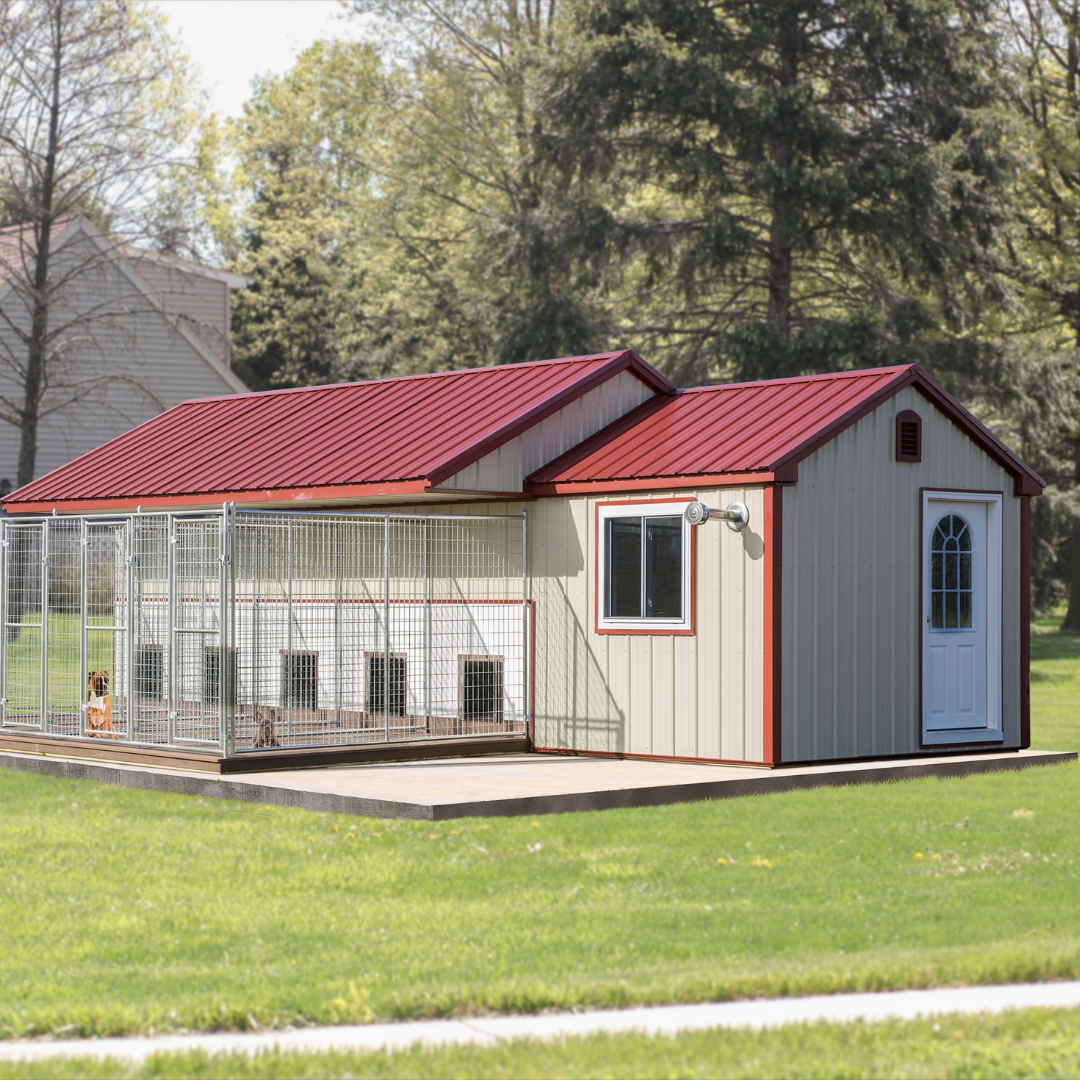

The 20×28 5-Run Commercial Kennel is designed for commercial dog housing with 5 individual kennel spaces, each combining an indoor kennel area with a dedicated outdoor dog run. The floor plan also includes a 5' feed alley and an 8'×10' lobby.

Standard construction includes a polyurea-coated Smartfloor, insulated walls and ceiling, PVC Trusscore interior lining, spring-loaded Plexiglass dog doors, screened insulated windows, composite decking on the runs, and chain-link kennel panels. The structure is Amish-built in the USA and manufactured for commercial kennel use.

Key Features

• 5-Run Configuration: Designed with 5 separate kennel and run areas for commercial dog housing.
• Indoor Kennel Areas: Each kennel space includes a 4'×5' indoor kennel area.
• Dedicated Dog Runs: Each kennel space is paired with a 4'×10' dog run.
• Lobby Area: Includes an 8'×10' lobby integrated into the kennel layout.

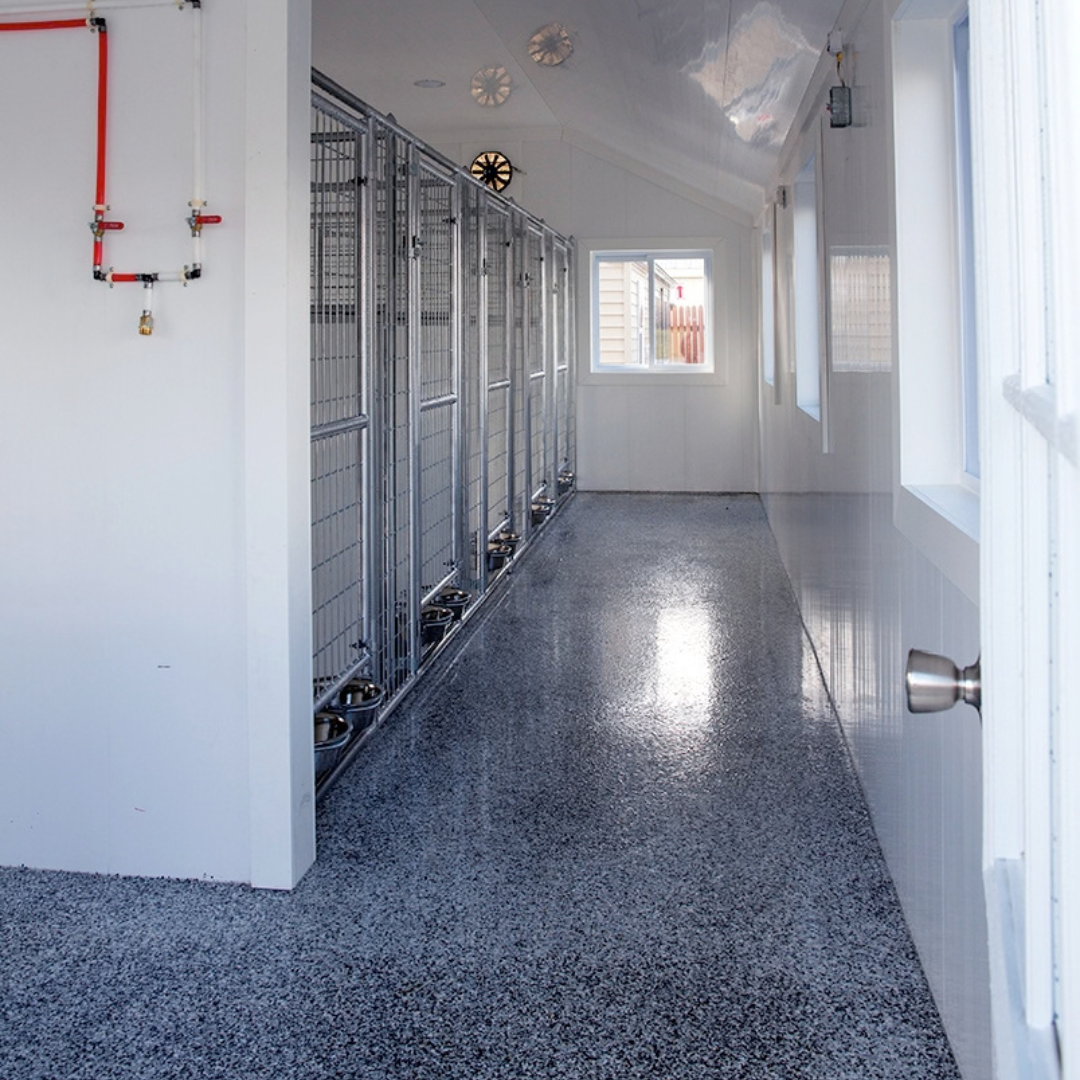

• Feed Alley: The floor plan includes a 5' feed alley for access to the kennel spaces.
• Polyurea-Coated Flooring: Features 5/8″ Smartfloor coated with Poly-Urea.
• Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
• PVC Interior Lining: Interior surfaces are lined with PVC Trusscore.
• Ventilated Roof Construction: Includes a vented soffit, vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Includes spring-loaded 20″ Plexiglass dog doors with molded plastic doggie hole trim kits.
• Insulated Windows: Includes screened 24″x36″ insulated double-hung windows.
• Composite Run Decking: Run areas feature composite decking.

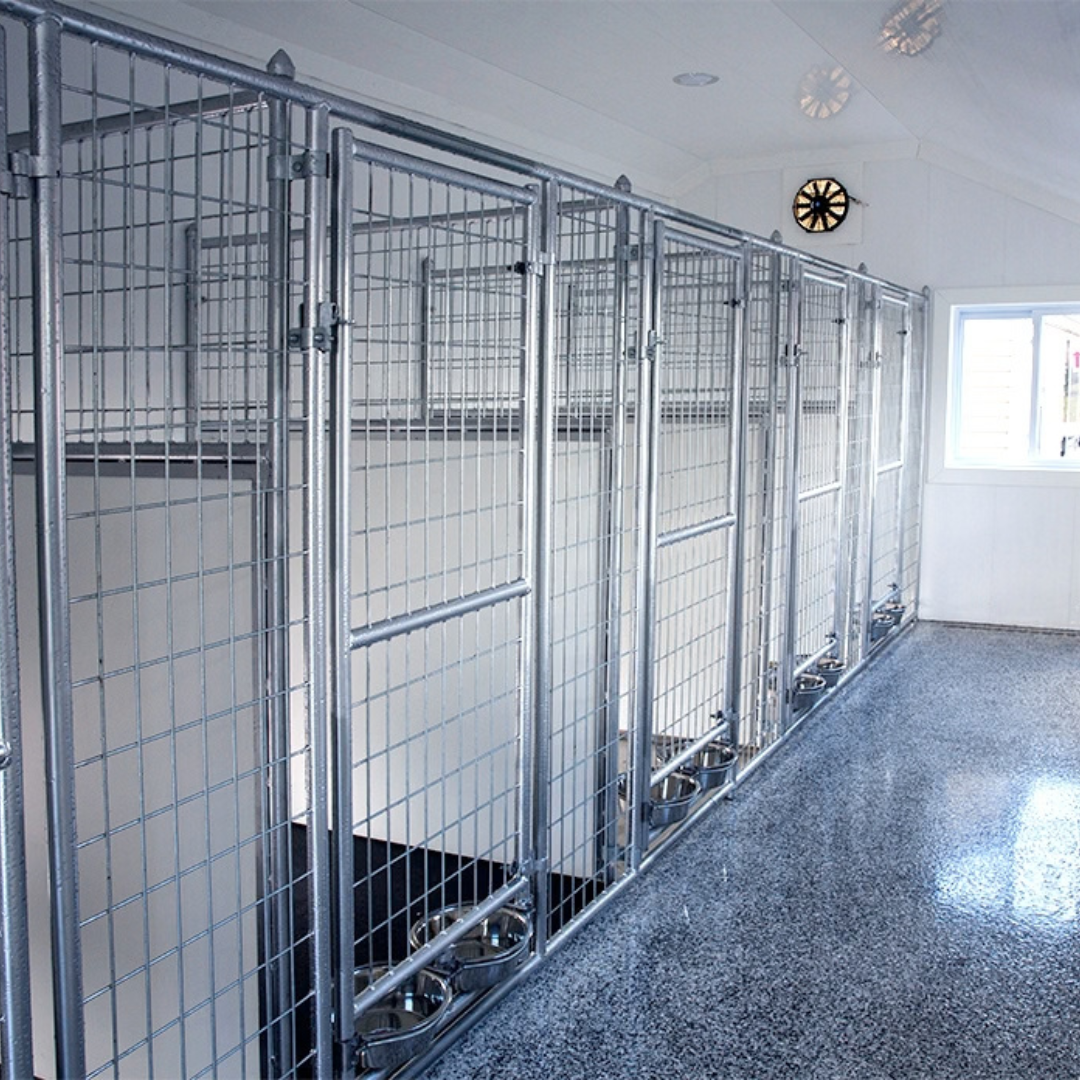

• Chain-Link Kennel Panels: Standard construction uses 11.5 Ga chain-link panels.
• Architectural Shingle Roof: Includes a shingle roof with 30-year architectural shingles.
• Cathedral Ceiling: Features a cathedral ceiling as part of the standard kennel construction.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Size: 20×28
• Configuration: 5 Run
• Individual Kennel Size: 4'×5'
• Individual Dog Run Size: 4'×10'
• Lobby Size: 8'×10'
• Feed Alley: 5'
• Floor Joists: Pressure Treated – 2×4 Floor Joists
• Runners: 4×6 Runners
• Flooring: 5/8″ Smartfloor coated with Poly-Urea
• Wall Framing: 2×4 Studs in Walls 16″OC
• Insulation: R-13 Batten Insulation in Walls & Ceiling
• Interior Lining: PVC Trusscore Lined
• Posts: Vinyl Posts
• Exterior Run Wall: 4′ High Glassboard
• Soffit: Vented Soffit
• Ridge Cap: Vented Ridge Cap
• Dog Door: Spring Loaded 20″ Plexiglass Dog Door
• Dog Door Trim: Molded Plastic Doggie Hole Trim Kit
• Entry Door: 6-Panel White Entry Door
• Siding: LP Smartside Siding; Pine Board & Batten Siding
• Roof: Shingle Roof – 30 Year Architectural Shingles
• Ceiling: Cathedral Ceiling
• Windows: Screened 24″x36″ Insulated Double Hung Windows
• Run Decking: Composite Decking on Runs
• Kennel Panels: 11.5 Ga Chainlink Panels

Size Guide

• Overall Kennel Size: 20×28
• Number of Runs: 5
• Individual Kennel Size: 4'×5'
• Individual Dog Run Size: 4'×10'
• Lobby: 8'×10'
• Feed Alley: 5'

Included

• Pressure-treated 2×4 floor joists and 4×6 runners
• 5/8″ Smartfloor coated with Poly-Urea
• R-13 batt insulation in walls and ceiling
• PVC Trusscore lining
• Vinyl posts
• 4′ high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20″ Plexiglass dog doors
• Molded plastic doggie hole trim kits
• 6-panel white entry door
• Standard siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24″x36″ insulated double-hung windows
• Composite decking on runs
• 11.5 Ga chain-link panels
