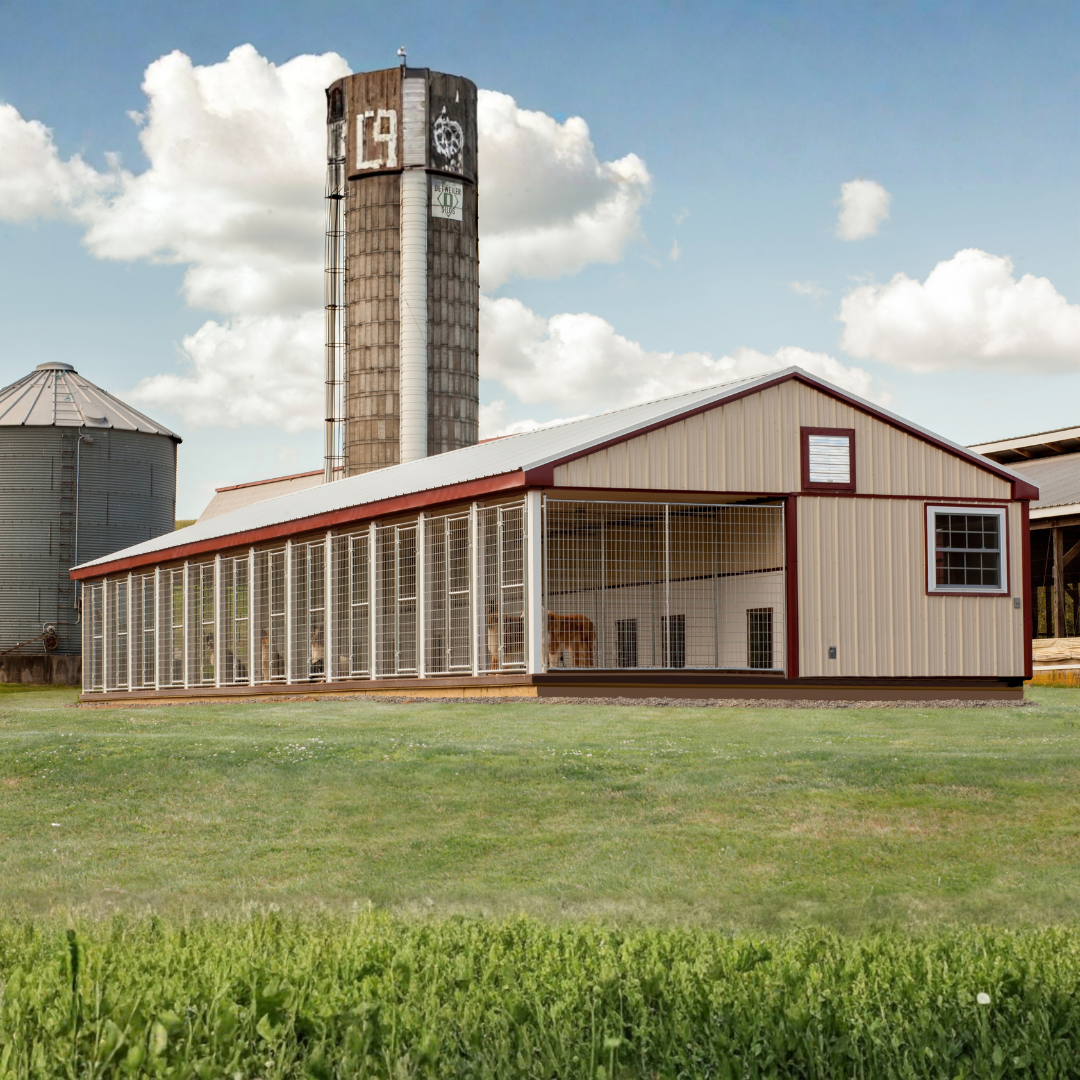

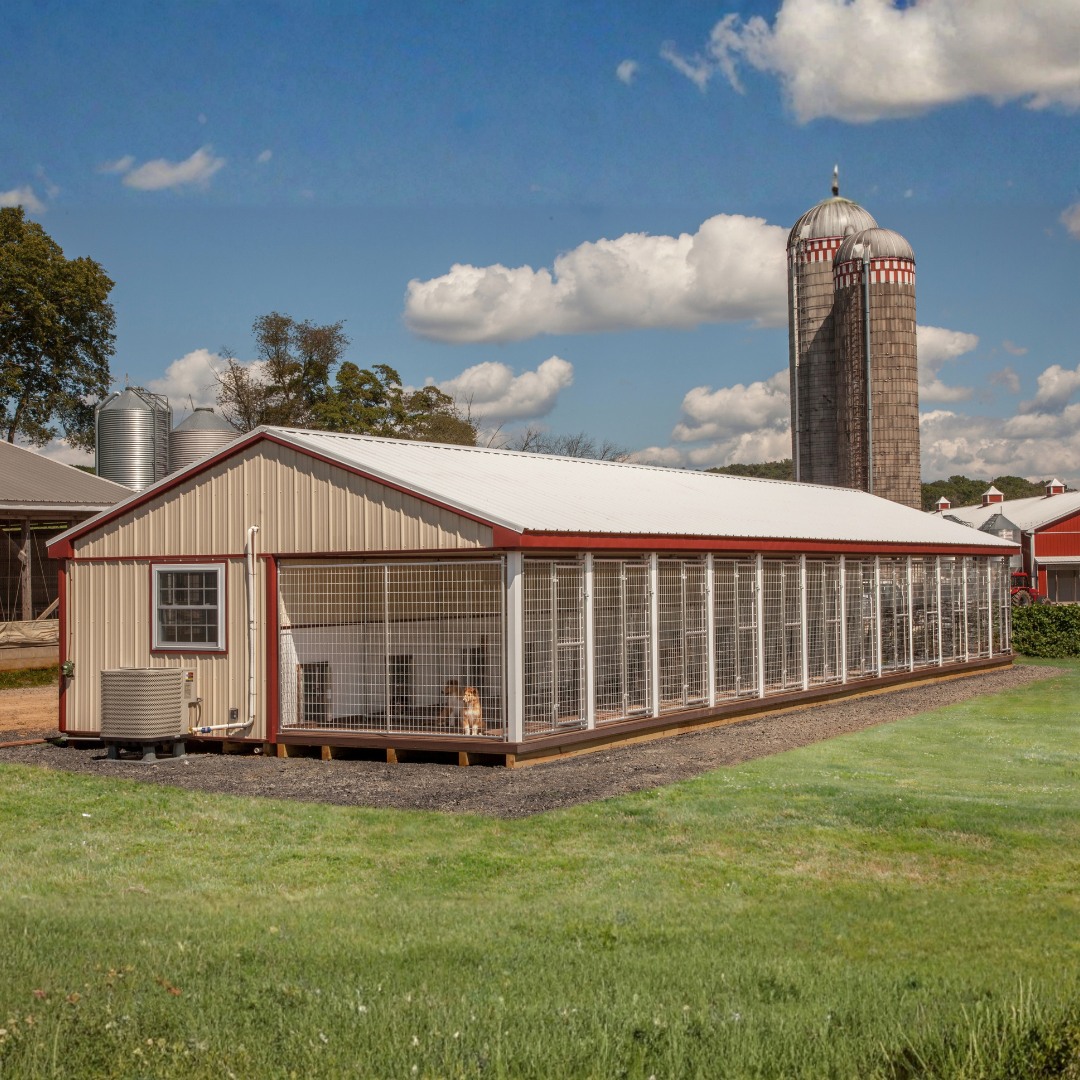

20×60 12-Run Commercial Kennel

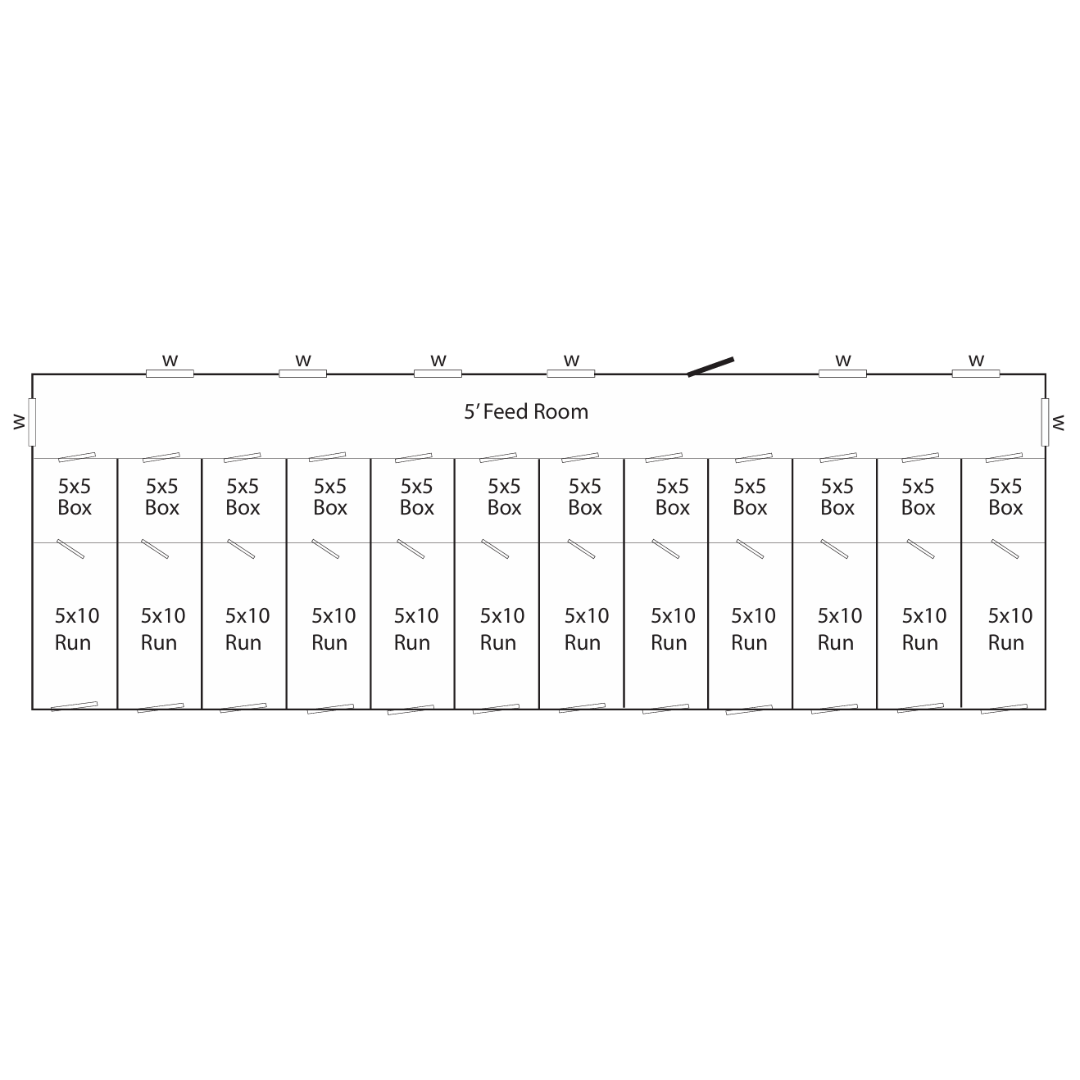

This 20×60 commercial kennel is designed to provide housing for up to 12 dogs in a purpose-built commercial kennel structure. The layout combines dedicated kennel spaces with outdoor run areas and is suited to professional dog-care operations.

Standard construction includes a polyurea-coated Smartfloor, insulated walls and ceiling, PVC Trusscore interior lining, composite decking on the runs, chain-link panels, insulated double-hung windows, and spring-loaded Plexiglass dog doors. The 20×60 kennel is prefabricated in two 10-ft.-wide sections and finished on site.

Key Features

• Commercial 12-Run Configuration: Designed as a commercial kennel with space for 12 dogs.
• Polyurea-Coated Flooring: Features 5/8″ Smartfloor coated with Poly-Urea.
• Pressure-Treated Floor Structure: Built with pressure-treated 2×4 floor joists and 4×6 runners.
• Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
• PVC Interior Lining: Interior surfaces are lined with PVC Trusscore.
• Exterior Run Wall Protection: Features 4′ high Glassboard on the exterior run wall.
• Ventilated Roof Construction: Includes vented soffit, a vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Equipped with spring-loaded 20″ Plexiglass dog doors and molded plastic doggie hole trim kits.
• Entry Door: Includes a 6-panel white entry door.
• Siding Options: Standard construction provides LP SmartSide siding and Pine Board & Batten siding options.
• Architectural Shingle Roof: Features a shingle roof with 30-year architectural shingles.
• Cathedral Ceiling: Designed with a cathedral ceiling.
• Insulated Windows: Includes screened 24″x36″ insulated double-hung windows.

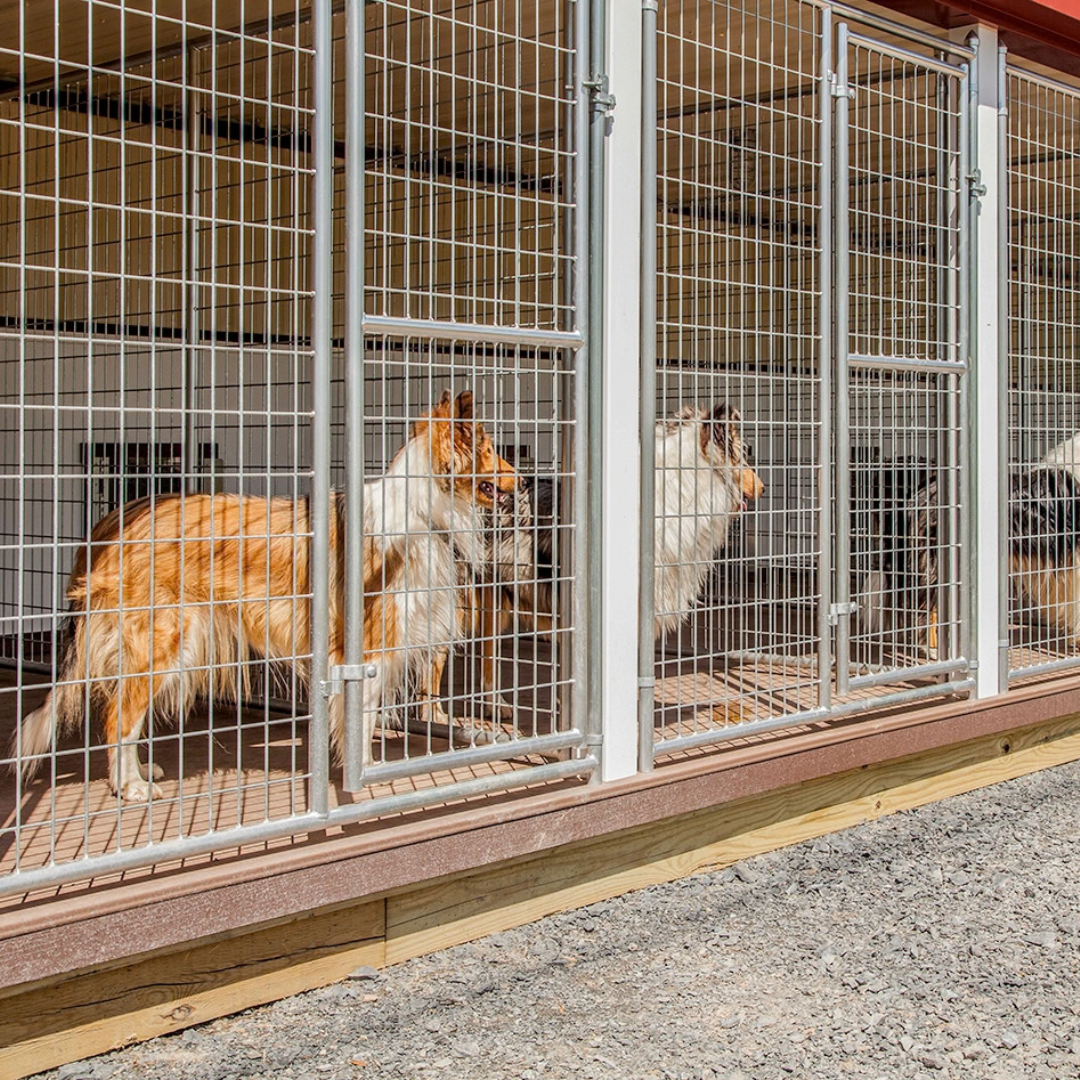

• Composite Run Decking: Run areas feature composite decking.

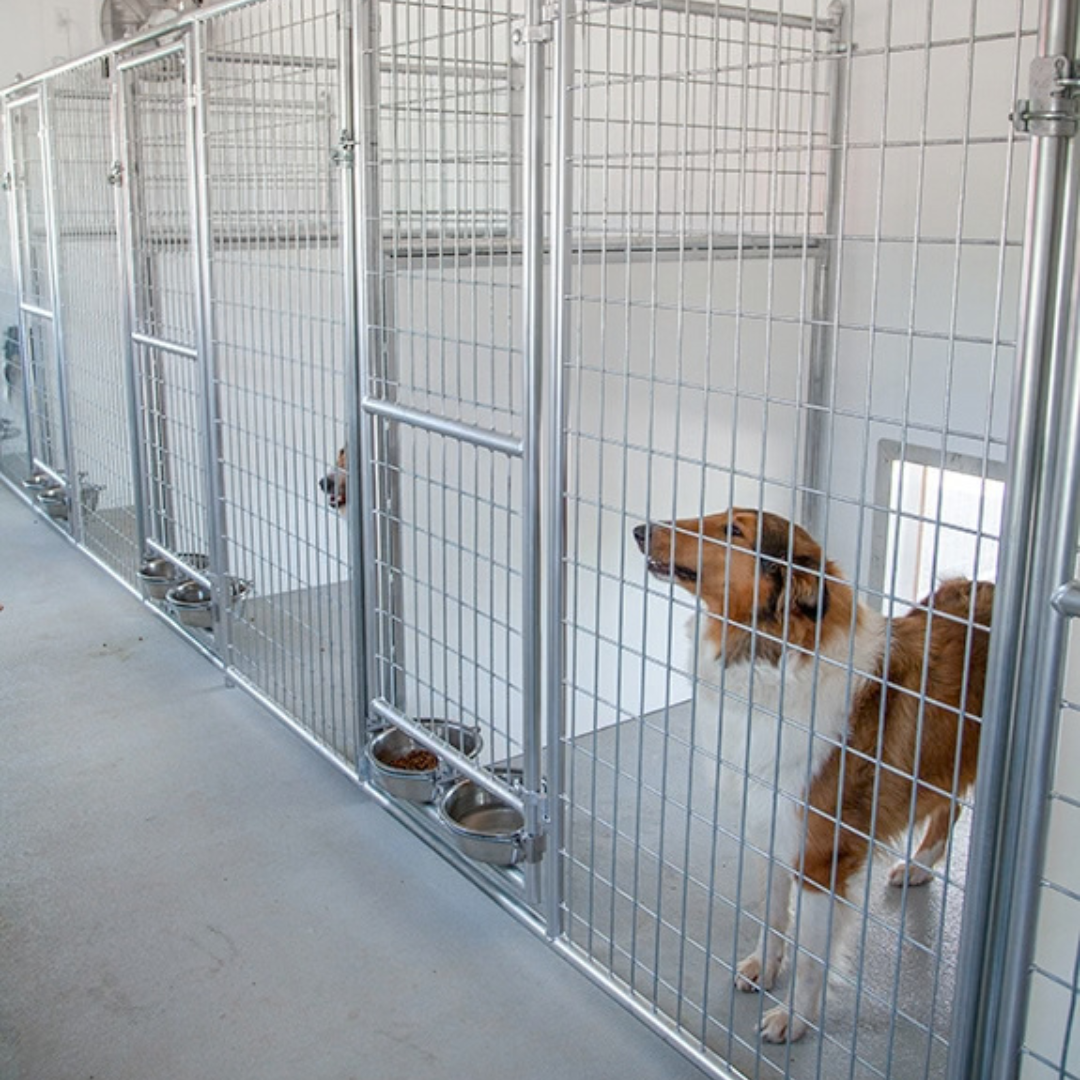

• Chain-Link Panels: Standard kennel construction uses 11.5-gauge chain-link panels.
• Prefabricated Construction: The 20×60 kennel is prefabricated in two 10-ft.-wide sections and finished on site.
• USA Construction: Amish-built in the USA.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Size: 20×60
• Configuration: 12 Run
• Capacity: 12 dogs
• Floor Joists: Pressure Treated – 2×4 Floor Joists
• Runners: 4×6 Runners
• Flooring: 5/8″ Smartfloor Coasted with Poly-Urea
• Wall Studs: 2×4 Studs in Walls 16″OC
• Insulation: R-13 Batten Insulation in Walls & Ceiling
• Interior Lining: PVC Trusscore Lined
• Posts: Vinyl Posts
• Exterior Run Wall: 4′ High Glassboard
• Soffit: Vented Soffit
• Ridge Cap: Vented Ridge Cap
• Insulation Baffles: Included
• Dog Door: Spring Loaded 20″ Plexiglass Dog Door
• Dog Door Trim: Molded Plastic Doggie Hole Trim Kit
• Entry Door: 6-Panel White Entry Door
• Siding: LP Smartside Siding; Pine Board & Batten Siding
• Roof: Shingle Roof – 30 Year Architectural Shingles
• Ceiling: Catedral Ceiling
• Windows: Screened 24″x36″ Insulated Double Hung Windows
• Run Decking: Composite Decking on Runs
• Kennel Panels: 11.5 Ga Chainlink Panels
• Prefabrication: Two 10' wide sections; finished on site

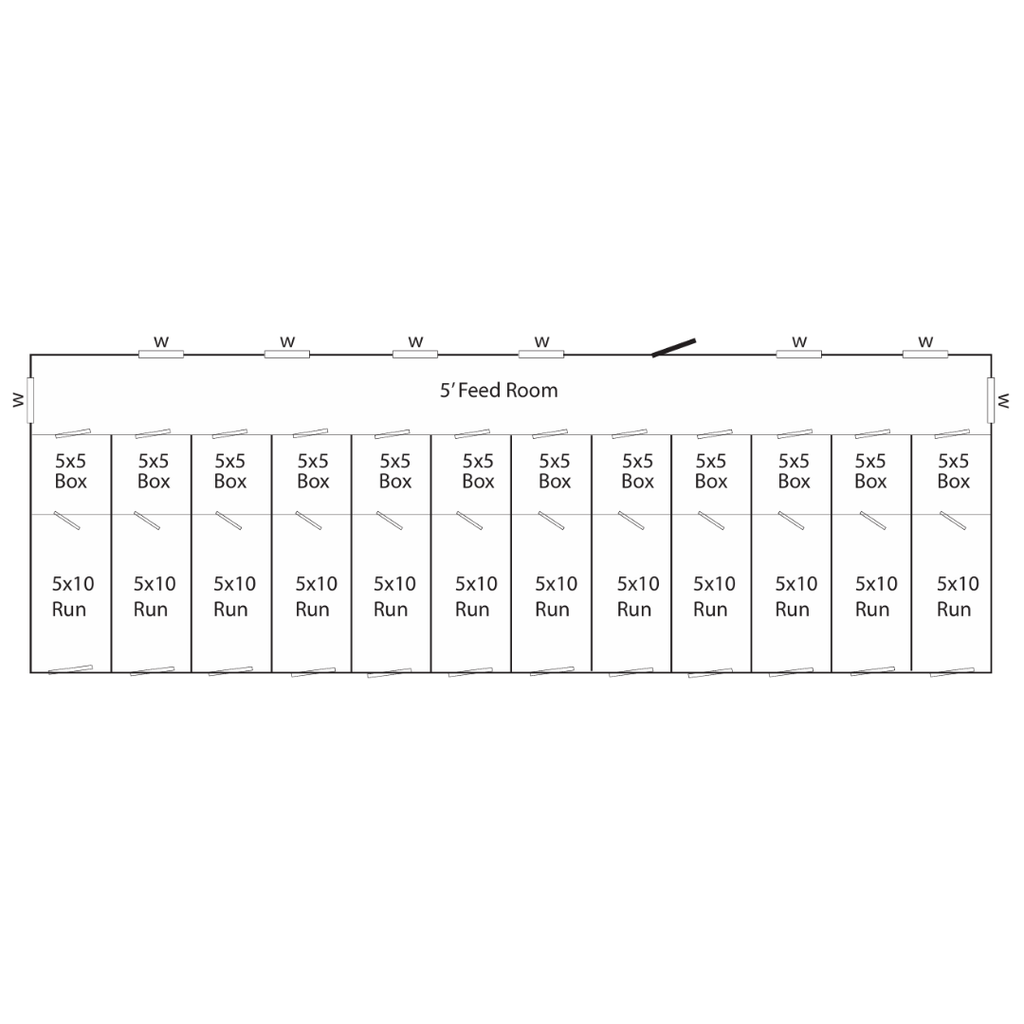

Size Guide

• Overall Kennel Size: 20×60
• Number of Runs: 12
• Capacity: 12 dogs

Included

• Pressure-treated 2×4 floor joists and 4×6 runners
• 5/8″ Smartfloor coated with Poly-Urea
• R-13 batt insulation in walls and ceiling
• PVC Trusscore lining
• Vinyl posts
• 4′ high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20″ Plexiglass dog doors
• Molded plastic doggie hole trim kits
• 6-panel white entry door
• Standard siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24″x36″ insulated double-hung windows
• Composite decking on runs
• 11.5 Ga chain-link panels
