23×60 9-Run Dog Commercial Kennel With An Office

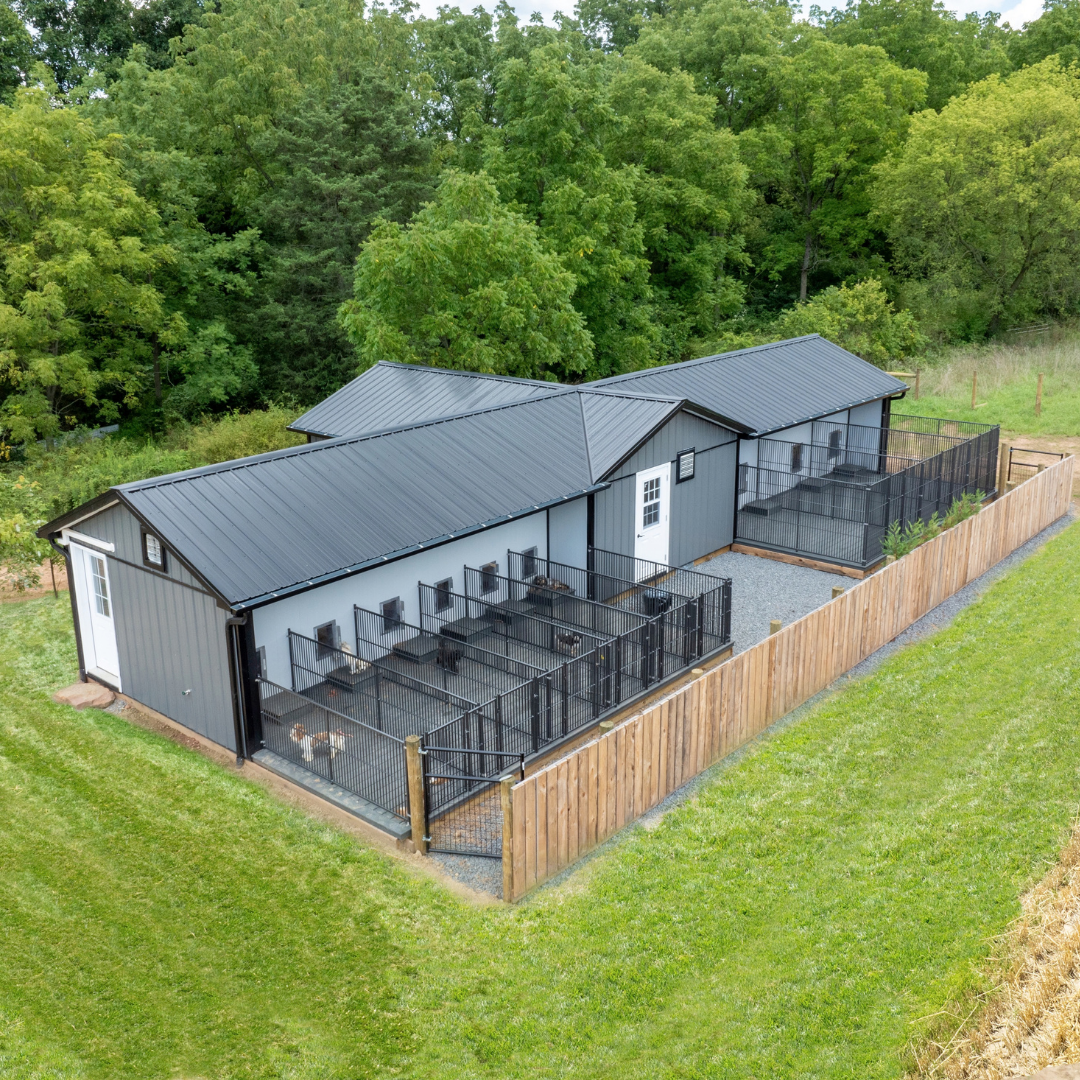

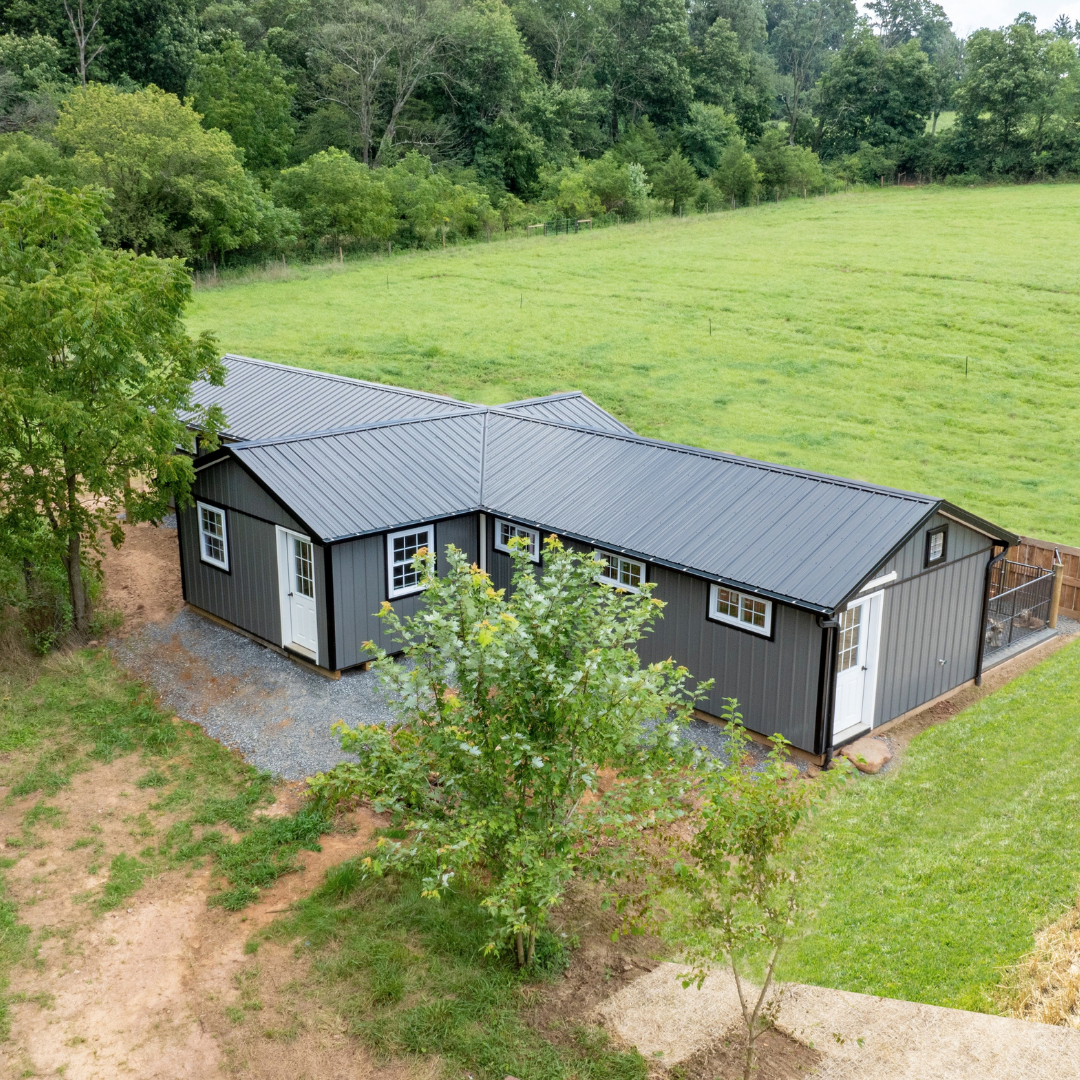

The 23×60 9-Run Dog Commercial Kennel With An Office is a custom commercial kennel configuration designed with 9 kennel runs, a dedicated 10 ft. x 15 ft. office, and a central weaning area. The layout provides separate indoor kennel boxes and outdoor runs while incorporating dedicated work and puppy-care spaces.

This configuration features dark gray siding, black trim, a black metal roof, gray PVC run flooring, white Glassboard run walls, and powder-coated aluminum fencing. It also incorporates climate-control, drainage, water, whelping, and ventilation features suited to commercial boarding, breeding, and rescue applications.

Key Features

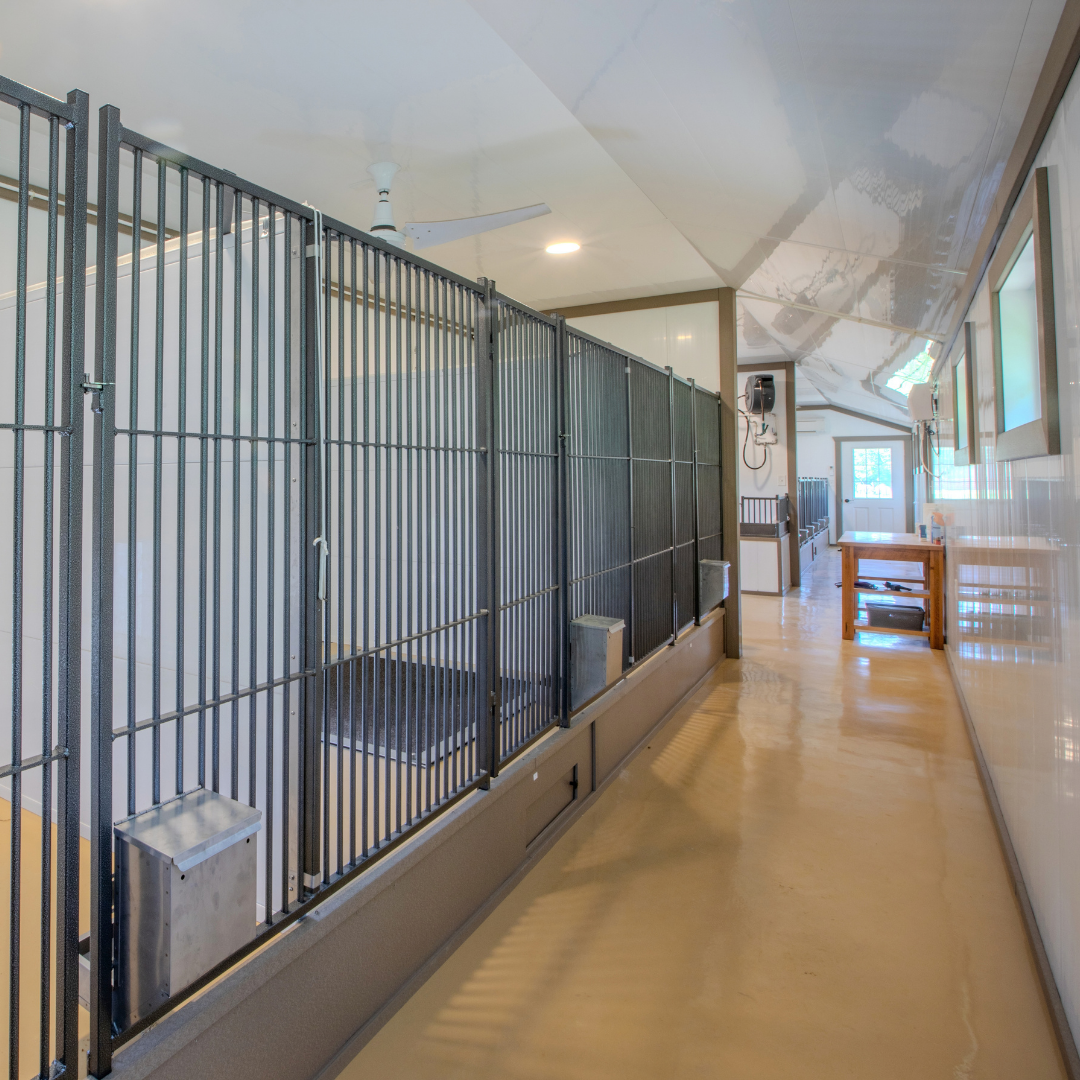

• 9-Run Commercial Layout: Features 9 individual kennel box and run configurations within a 23 ft. x 60 ft. commercial kennel.
• Dedicated Office: Includes a 10 ft. x 15 ft. office integrated into the kennel layout.

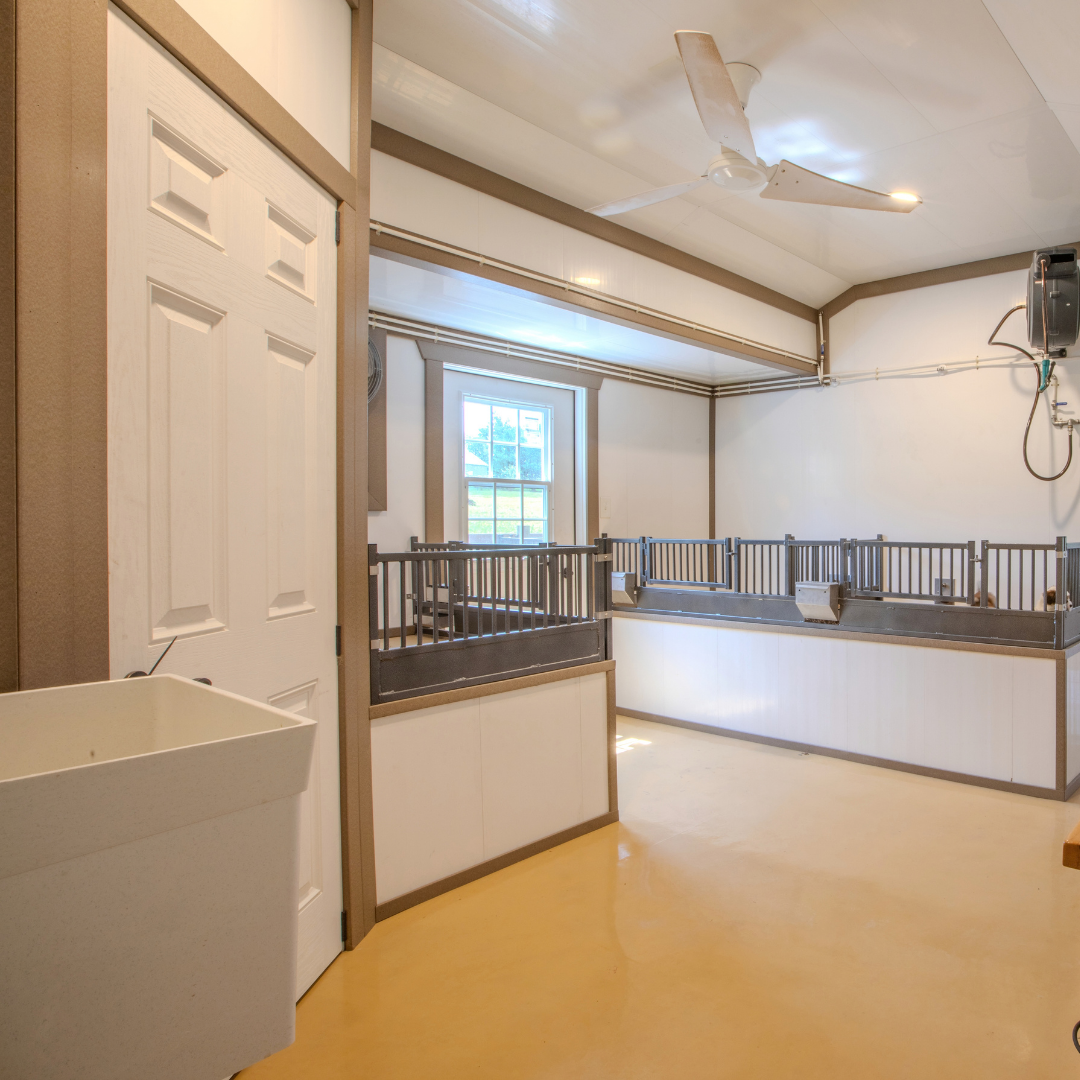

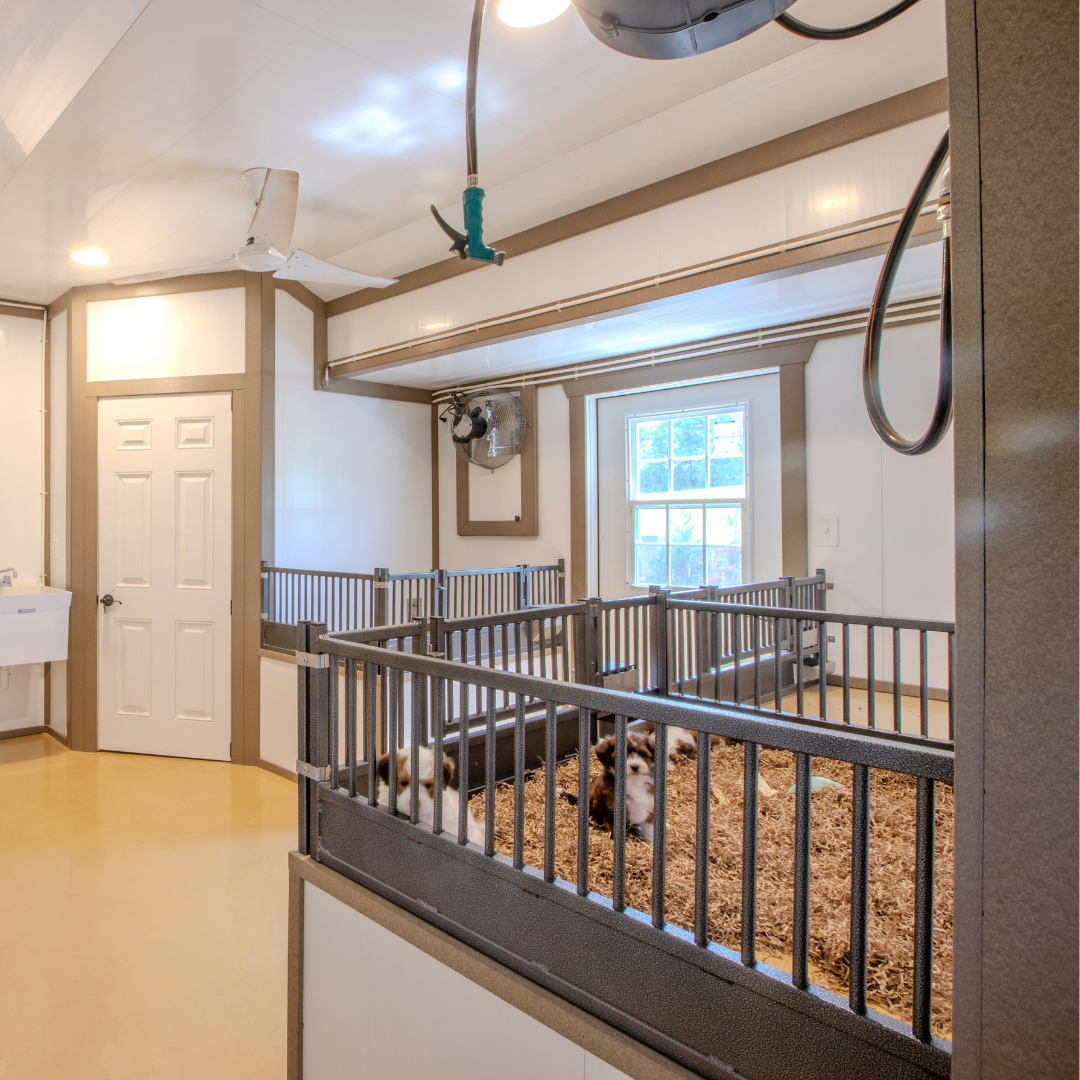

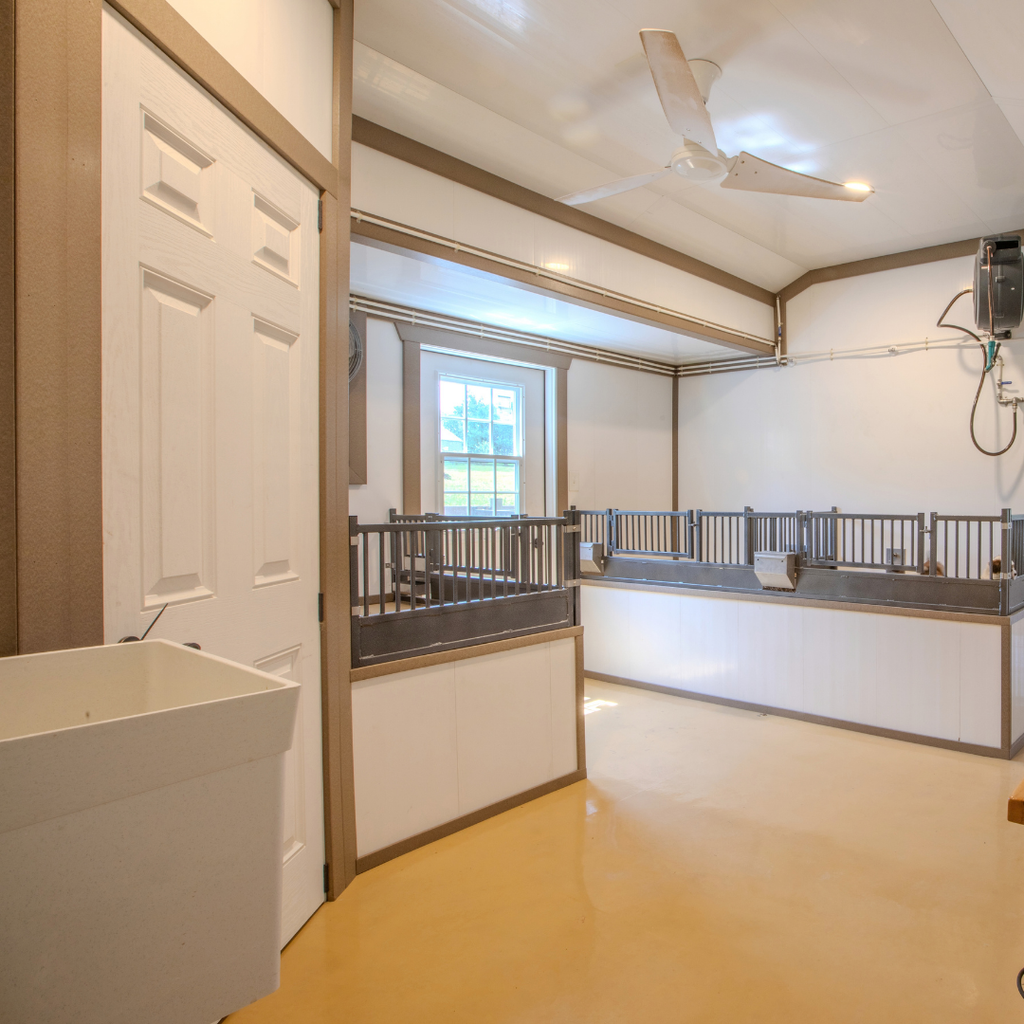

• Weaning Area: The floor plan includes a dedicated weaning room, and the main area incorporates raised weaning pens for puppy care and monitoring.
• Commercial Kennel Construction: Features dark gray siding, black trim, a black metal roof, gray PVC run flooring, white Glassboard run walls, and powder-coated aluminum fencing.
• Insulated Metal Roof: The metal roof uses multiple layers, including house wrap, and is insulated for long-lasting protection.
• Canine Dog Doors: Features canine dog doors with dual-swing hinges and soft-close operation.
• Whelping Nests: Includes 5 EZS whelping nests for dedicated puppy-care areas.
• Hot Water System: Includes a 20-gal. electric hot water heater.
• Humidity Management: Includes both a humidifier and dehumidifier.
• Floor Drainage: Features 40 in. floor drains to support kennel cleaning and drainage.
• Lixit Water Lines: Includes Lixit water lines for kennel watering.
• Ventilation and Climate Control: Uses a 16 in. exhaust fan, 3 ceiling fans, and a 30,000 BTU mini-split air conditioner for airflow and climate management.
• High Divider Panels: Includes 6 ft. high Norlock divider panels to help separate kennel areas.
• Raised Interior Pens: Indoor pens feature raised flooring while the outdoor runs remain at ground level; exterior steps provide access between the levels.
• Gutters and Downspouts: Includes gutters and downspouts as part of the kennel configuration.
• Customizable Design: Layout, materials, and features can be customized to suit individual kennel-operation requirements.

Specifications

• Overall Size: 23 ft. x 60 ft.
• Number of Runs: 9
• Office: 10 ft. x 15 ft.
• Siding Color: Dark Gray
• Trim: Black
• Roof: Black Metal Roof
• Double-Hung Windows: 6 34 in. x 40 in. windows
• Slider Windows: 2 20 in. x 40 in. windows
• Run Flooring: Gray PVC
• Run Wall: White Glassboard
• Fencing: Powder-coated aluminum
• Hot Water Heater: Electric, 20 gal.
• Exhaust Fan: 16 in.
• Ceiling Fans: 3
• Air Conditioner: 30,000 BTU mini split
• Divider Panels: 6 ft. high Norlock divider panels
• Whelping Nests: 5 EZS whelping nests

Size Guide

• Overall Kennel: 23 ft. x 60 ft.
• Office: 10 ft. x 15 ft.
• Kennel Runs: 9
• Kennel Box Sizes Shown in Floor Plan: 4 ft. x 6 ft.; 3 ft. 4 in. x 6 ft.; 8 ft. x 6 ft.; 6 ft. x 6 ft.
• Run Sizes Shown in Floor Plan: 4 ft. x 12 ft.; 3 ft. 4 in. x 12 ft.; 8 ft. x 12 ft.; 6 ft. x 12 ft.

Included

• 10 ft. x 15 ft. office
• 9 kennel runs
• Dedicated weaning room
• Raised weaning pens
• 6 34 in. x 40 in. double-hung windows
• 2 20 in. x 40 in. slider windows
• Gray PVC run flooring
• White Glassboard run walls
• Powder-coated aluminum fencing
• Canine dog doors with dual-swing hinges and soft-close operation
• 5 EZS whelping nests
• 20-gal. electric hot water heater
• Humidifier
• Dehumidifier
• 40 in. floor drains
• Lixit water lines
• 16 in. exhaust fan
• 3 ceiling fans
• 30,000 BTU mini-split air conditioner
• 6 ft. high Norlock divider panels
• Gutters and downspouts

Warranty

Warranty: Not provided on the official product page

Product Support

• Specification Sheet
