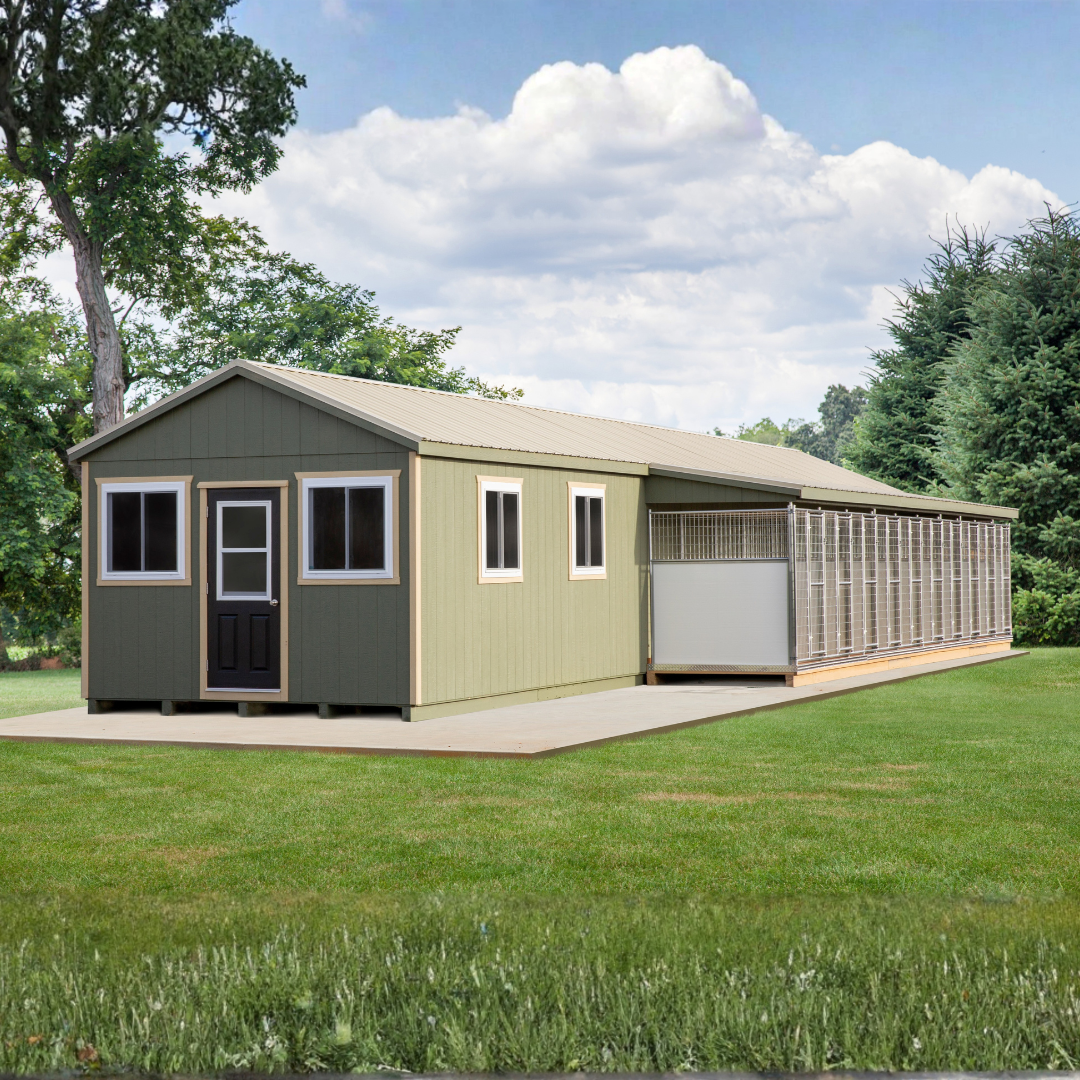

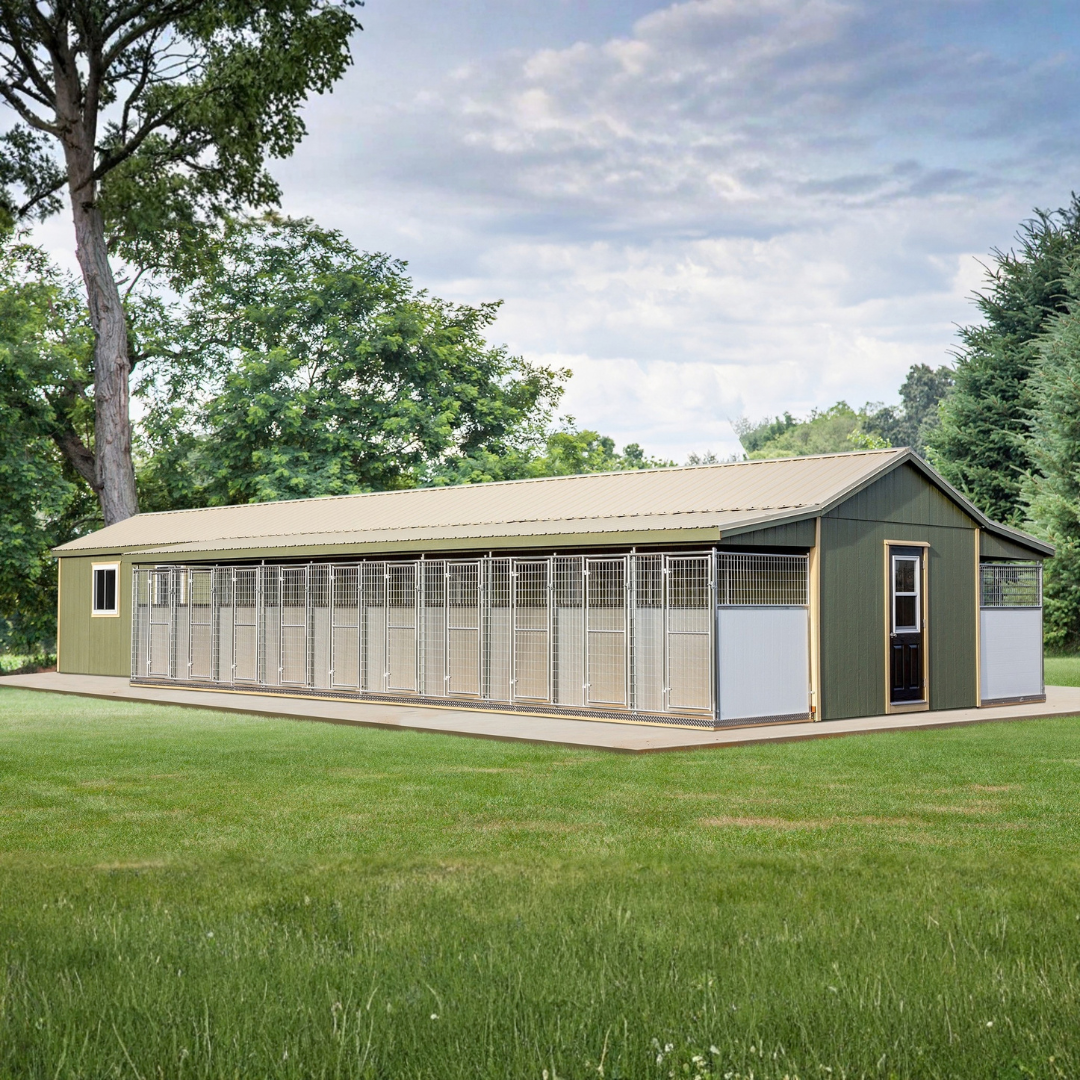

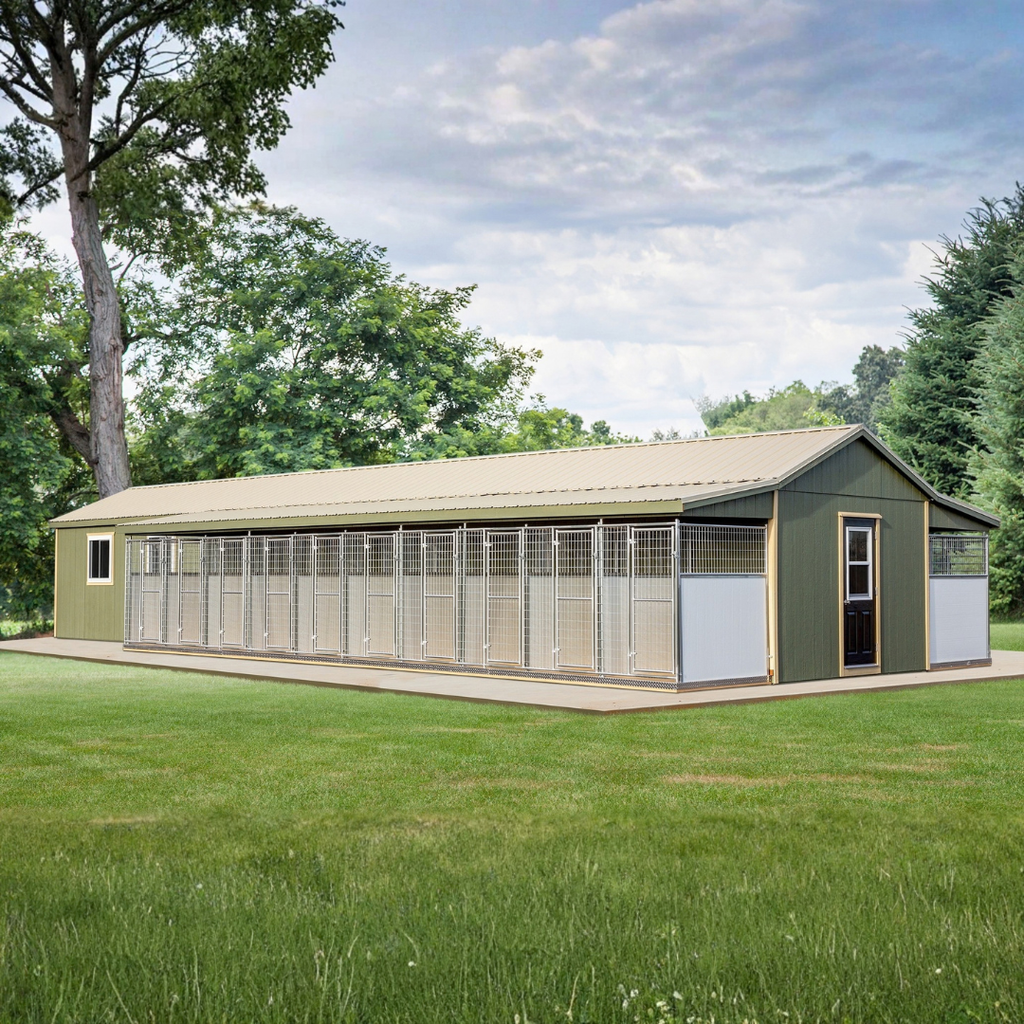

24×60 16-Run Commercial Kennel

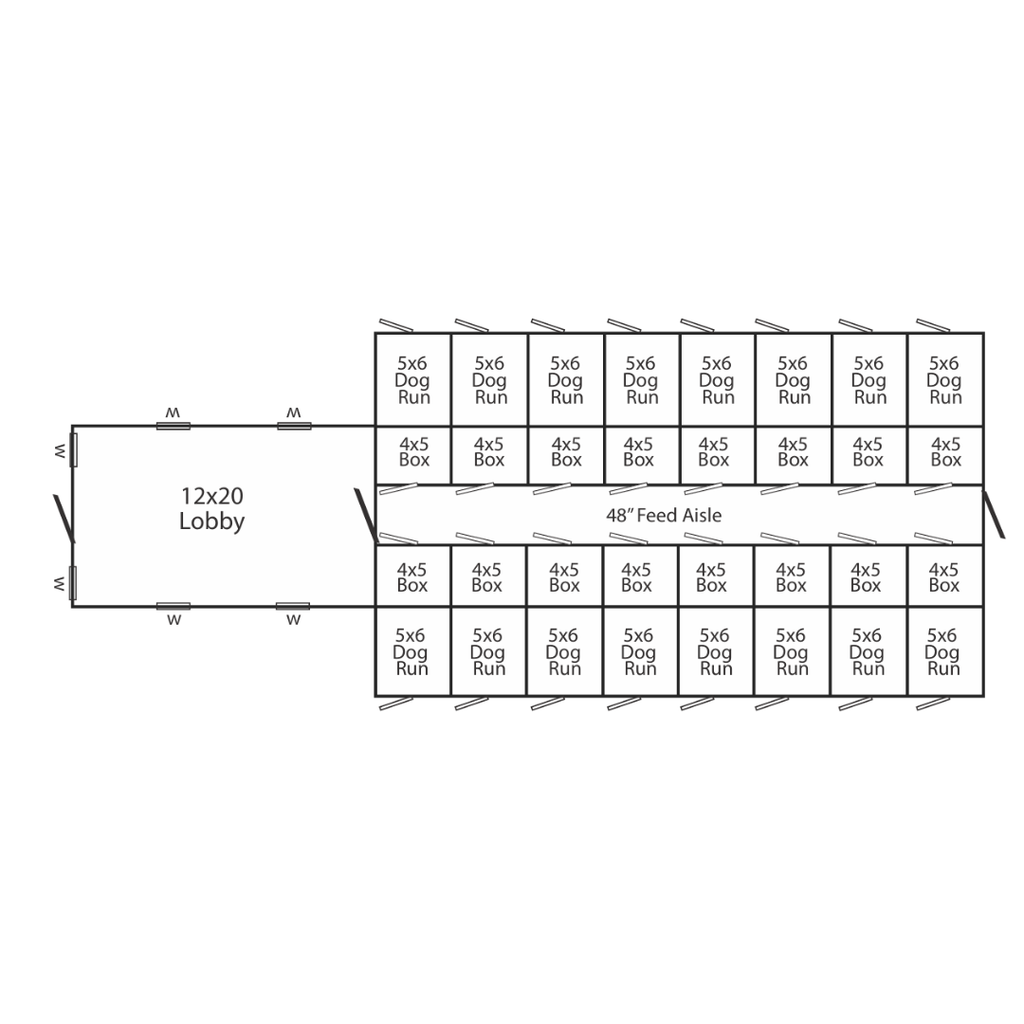

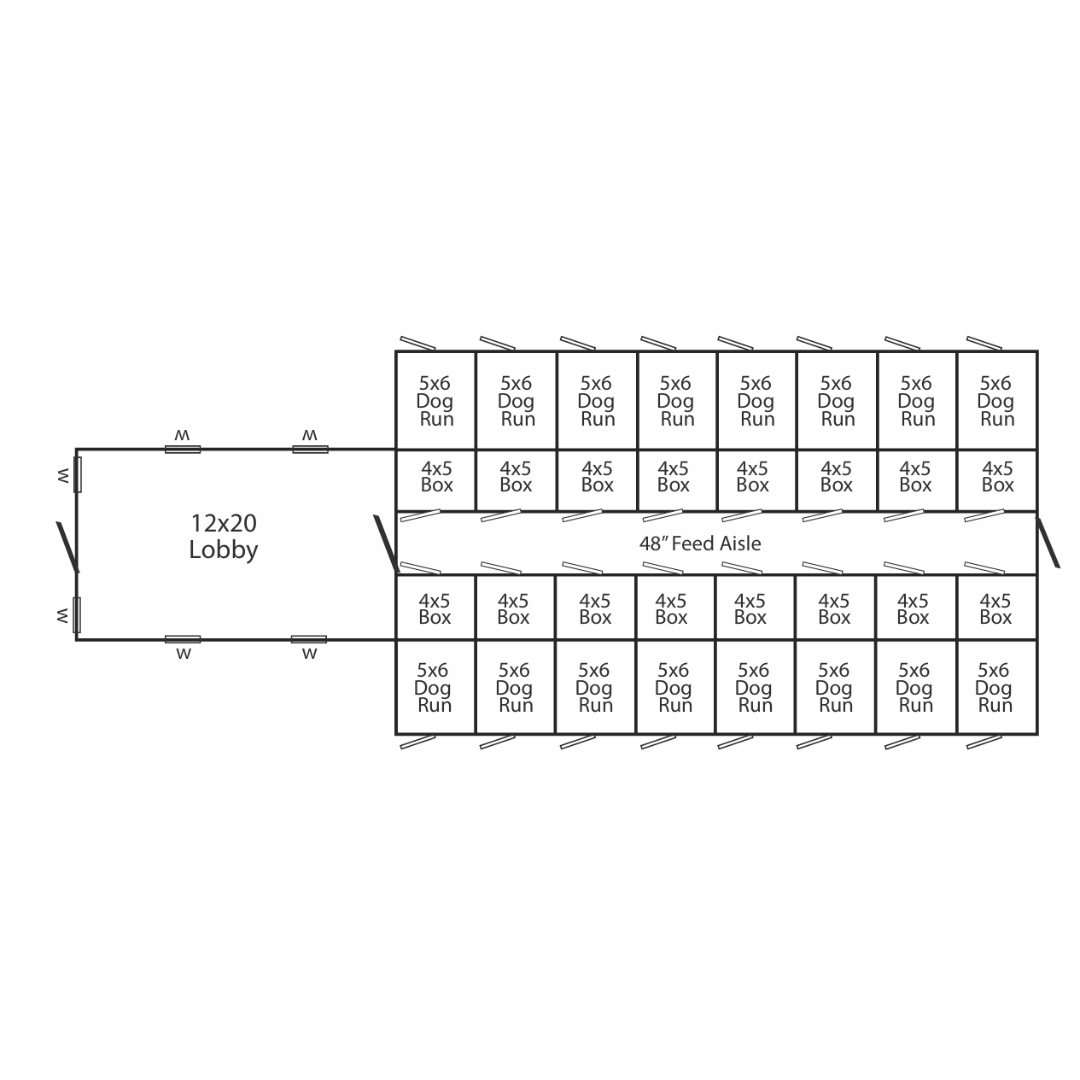

The 24×60 16-Run Commercial Kennel is designed as a large commercial dog-housing structure with 16 individual kennel spaces. Its floor plan combines indoor box areas with dedicated dog runs, a central feed aisle, and a 12×20 lobby area.

Standard construction includes a polyurea-coated Smartfloor, insulated walls and ceiling, PVC Trusscore interior lining, composite decking on the runs, chain-link kennel panels, screened insulated windows, spring-loaded Plexiglass dog doors, and an architectural shingle roof.

Key Features

• 16-Run Configuration: Designed with 16 individual kennel spaces for commercial dog housing.
• Dedicated Box and Run Areas: The floor plan provides individual indoor box spaces paired with dedicated outdoor dog runs.

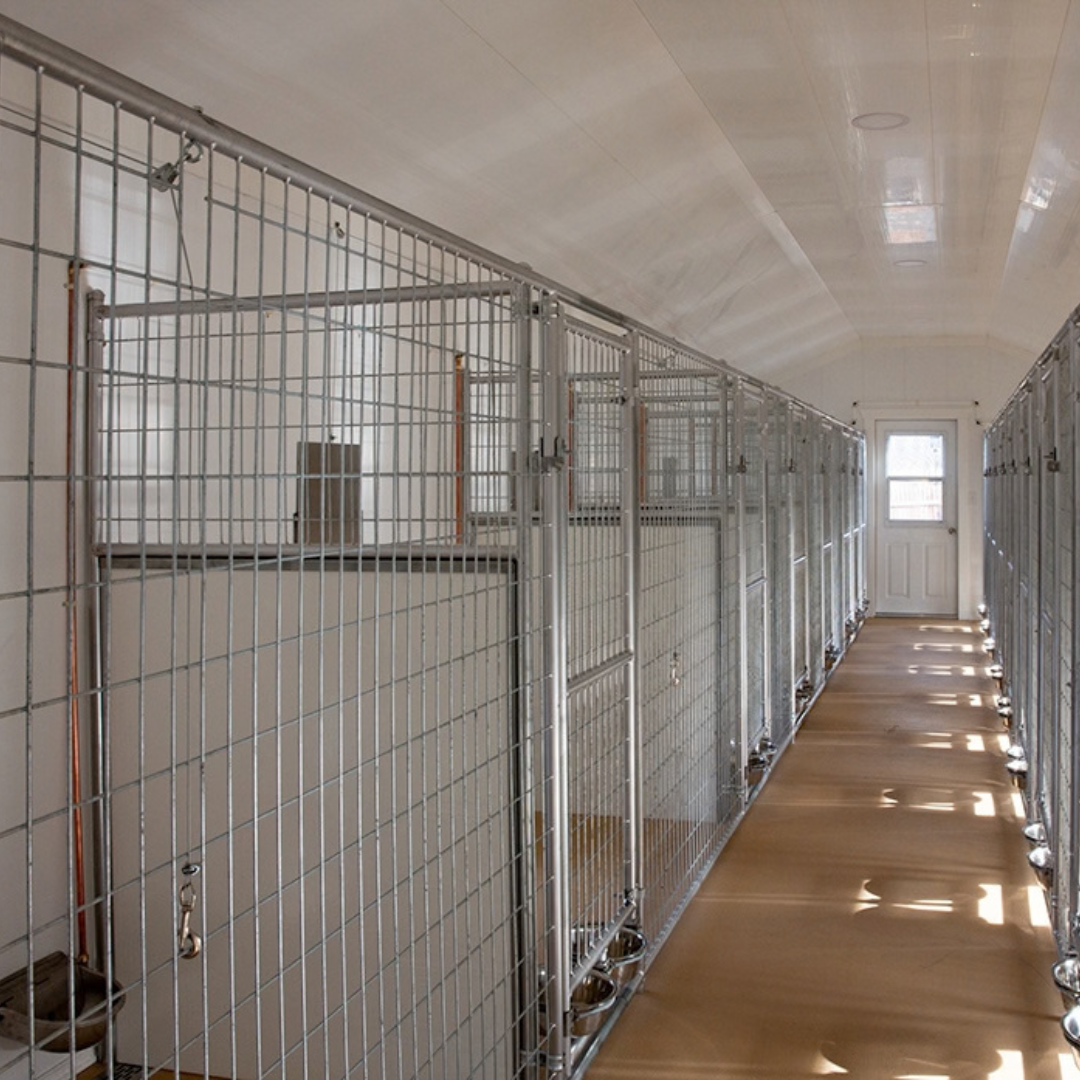

• Central Feed Aisle: Features a 48″ feed aisle through the kennel layout.

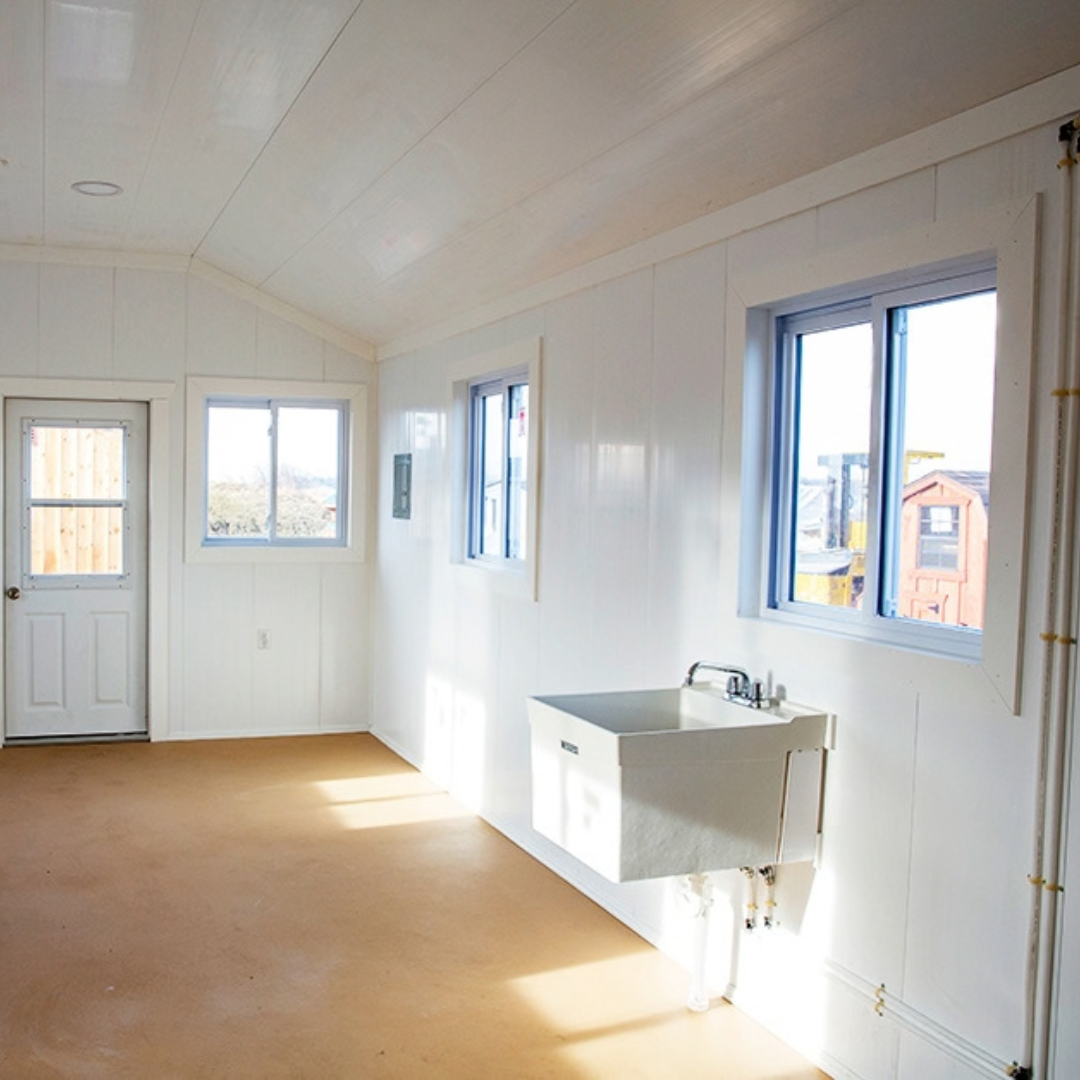

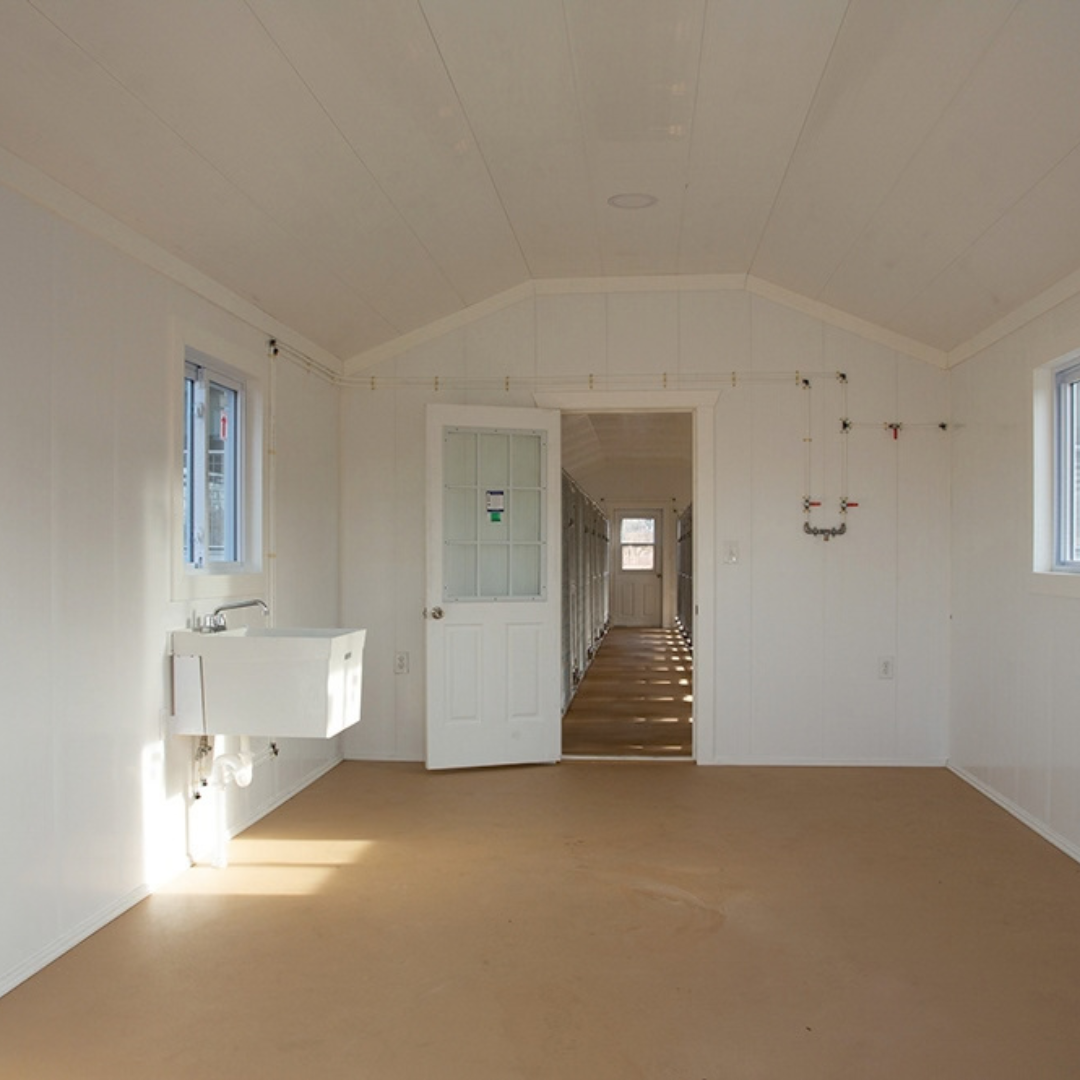

• Lobby Area: Includes a 12×20 lobby incorporated into the kennel floor plan.
• Polyurea-Coated Flooring: Uses 5/8″ Smartfloor coated with Poly-Urea.
• Insulated Construction: R-13 batt insulation is installed in the walls and ceiling.
• PVC Interior Lining: Interior kennel areas feature PVC Trusscore lining.
• Exterior Run Wall Protection: Features 4′ high Glassboard on the exterior run wall.
• Ventilated Construction: Includes a vented soffit, vented ridge cap, and insulation baffles.
• Spring-Loaded Dog Doors: Includes spring-loaded 20″ Plexiglass dog doors with molded plastic doggie hole trim kits.
• Insulated Windows: Features screened 24″x36″ insulated double-hung windows.
• Composite Run Decking: Run areas are constructed with composite decking.
• Chain-Link Kennel Panels: Uses 11.5 Ga chain-link panels in the standard configuration.
• Architectural Shingle Roof: Standard construction includes a shingle roof with 30-year architectural shingles.
• Cathedral Ceiling: Features a cathedral ceiling within the kennel structure.

	The Dog Kennel Collection	Competitors
Ship Nationwide?	✓	?
Assemble Yourself?	✓ ✕	✓
Built in Shop?	✓	✕
4+ Dog Options?	✓	✕
Completely Customizable?	✓	✕
Amish Built?	✓	✕
Made in the USA?	✓	?

Specifications

• Overall Size: 24×60
• Configuration: 16 Run
• Capacity: 16
• Individual Box Size: 4×5
• Individual Dog Run Size: 5×6
• Feed Aisle: 48″
• Lobby Size: 12×20
• Floor Joists: Pressure Treated – 2×4 Floor Joists
• Runners: 4×6 Runners
• Flooring: 5/8″ Smartfloor Coated with Poly-Urea
• Wall Framing: 2×4 Studs in Walls 16″OC
• Insulation: R-13 Batten Insulation in Walls & Ceiling
• Interior Lining: PVC Trusscore Lined
• Posts: Vinyl Posts
• Exterior Run Wall: 4′ High Glassboard
• Soffit: Vented Soffit
• Ridge Cap: Vented Ridge Cap
• Insulation Baffles: Included
• Dog Doors: Spring Loaded 20″ Plexiglass Dog Door
• Dog Door Trim: Molded Plastic Doggie Hole Trim Kit
• Entry Door: 6-Panel White Entry Door
• Siding: LP Smartside Siding; Pine Board & Batten Siding
• Roof: Shingle Roof – 30 Year Architectural Shingles
• Ceiling: Cathedral Ceiling
• Windows: Screened 24″x36″ Insulated Double Hung Windows
• Run Decking: Composite Decking on Runs
• Kennel Panels: 11.5 Ga Chainlink Panels

Size Guide

• Overall Kennel Size: 24×60
• Number of Runs: 16
• Capacity: 16
• Individual Box Size: 4×5
• Individual Dog Run Size: 5×6
• Lobby: 12×20
• Feed Aisle: 48″

Included

• Pressure-treated 2×4 floor joists and 4×6 runners
• 5/8″ Smartfloor coated with Poly-Urea
• R-13 batt insulation in walls and ceiling
• PVC Trusscore lining
• Vinyl posts
• 4′ high Glassboard on exterior run wall
• Vented soffit
• Vented ridge cap
• Insulation baffles
• Spring-loaded 20″ Plexiglass dog doors
• Molded plastic doggie hole trim kits
• 6-panel white entry door
• Standard siding
• 30-year architectural shingle roof
• Cathedral ceiling
• Screened 24″x36″ insulated double-hung windows
• Composite decking on runs
• 11.5 Ga chain-link pane
