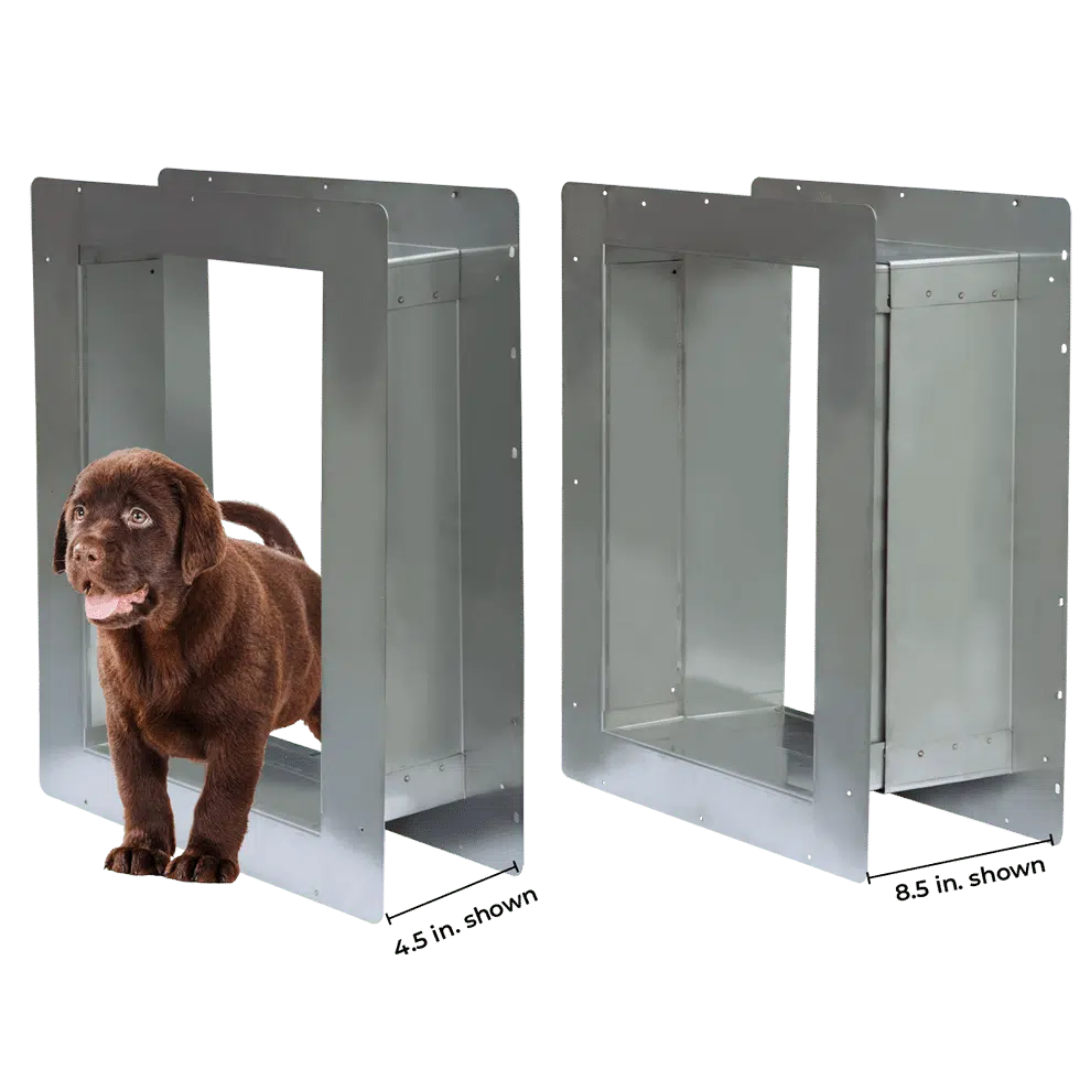

The Stainless Steel Dog Door Trim is an adjustable two-piece trim system designed to finish the edges around a dog-door opening. Its adjustable construction accommodates different wall depths while covering the inside and outside edges of the opening.
Made from stainless steel for durability and impact resistance, the trim is designed for frequent kennel use. It is available in 5 opening sizes and 2 wall-thickness ranges, allowing the appropriate combination to be selected for the installation.
Key Features
Adjustable Two-Piece Design: Uses 2 panels, with one positioned on the inside and the other on the outside of the dog-door opening. The panels adjust until the required wall depth is reached.
Two Wall-Depth Options: Available for walls measuring 4.5–8.5 in. thick or 8.5–12.5 in. thick.
Durable Construction: Stainless steel construction provides durability and impact resistance for frequent use.
Multiple Opening Sizes: Offered in 17 x 24 in., 17 x 20 in., 14 x 19 in., 12 x 18 in., and 10 x 15 in. sizes.
Installation Hardware Included: The official 2026 catalog states that all trim kits include the hardware needed for installation.
Specifications
Material: Stainless steel
Design: Adjustable two-panel dog door trim
Wall Thickness Options: 4.5–8.5 in.; 8.5–12.5 in.
Available Sizes: 17 x 24 in.; 17 x 20 in.; 14 x 19 in.; 12 x 18 in.; 10 x 15 in.
Size Guide
17 x 24 in.: Rough Opening: 15.5 x 22.5 in.
17 x 20 in.: Rough Opening: 15.5 x 18.5 in.
14 x 19 in.: Rough Opening: 12.5 x 17.5 in.
12 x 18 in.: Rough Opening: 10.5 x 16.5 in.
10 x 15 in.: Rough Opening: 8.5 x 13.5 in.
