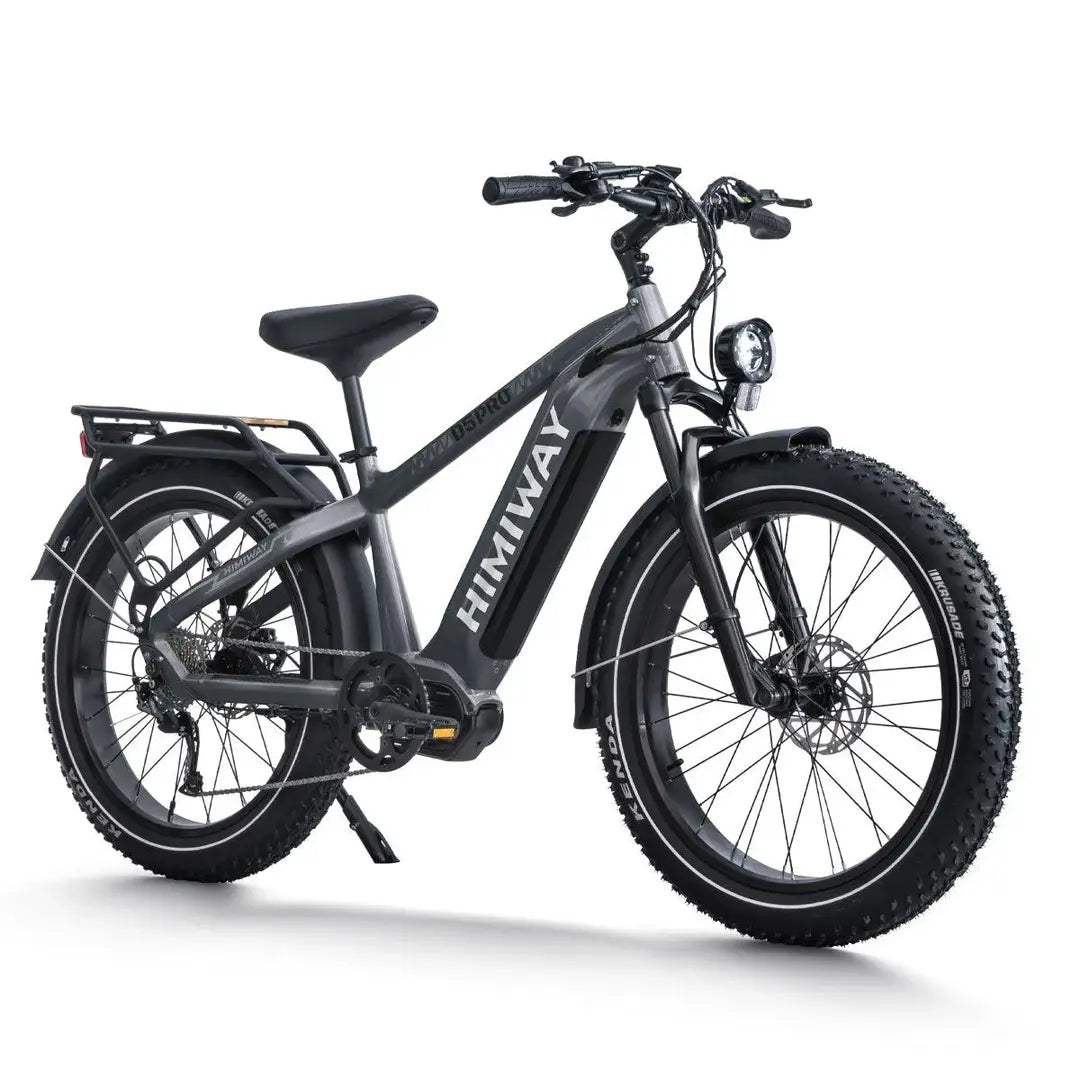

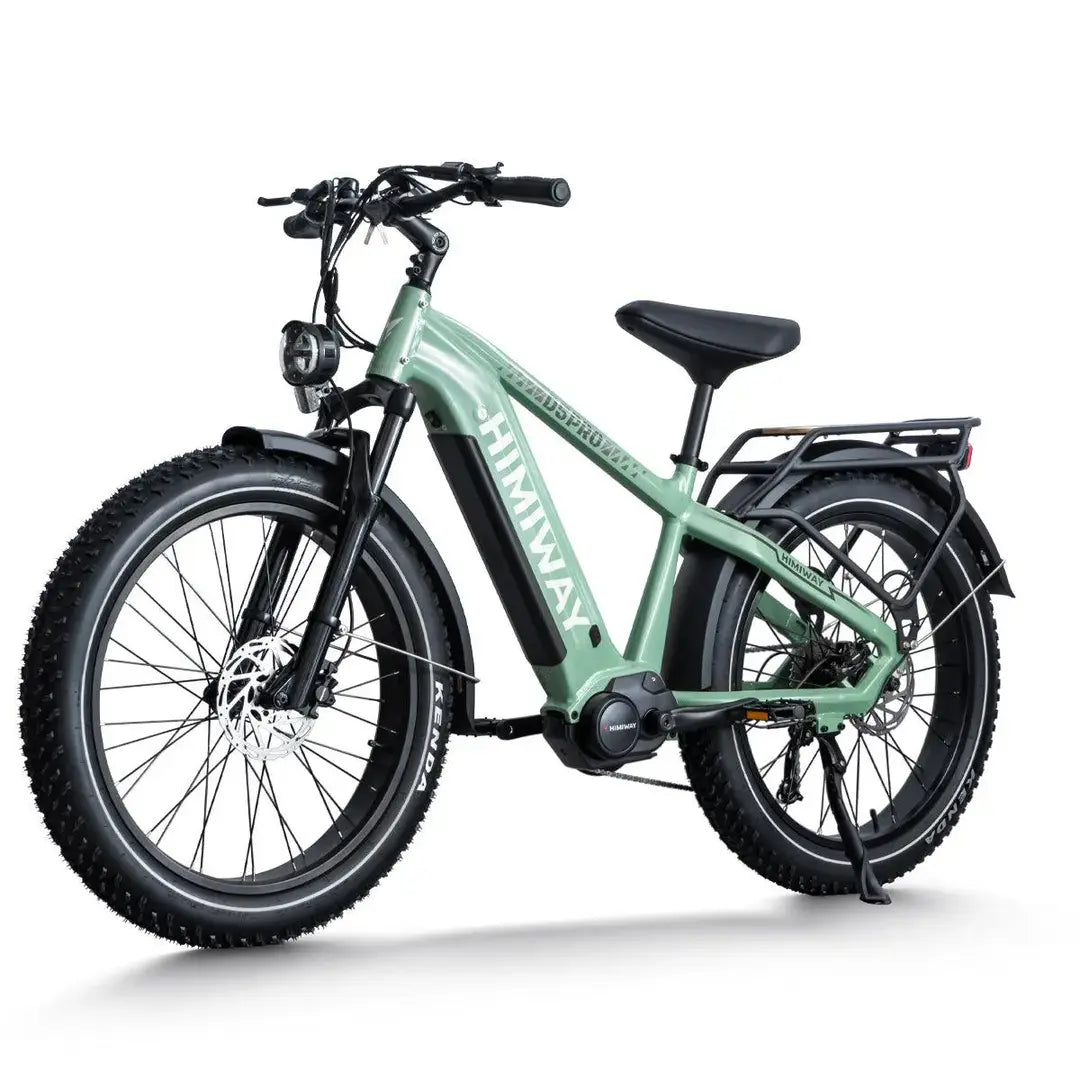

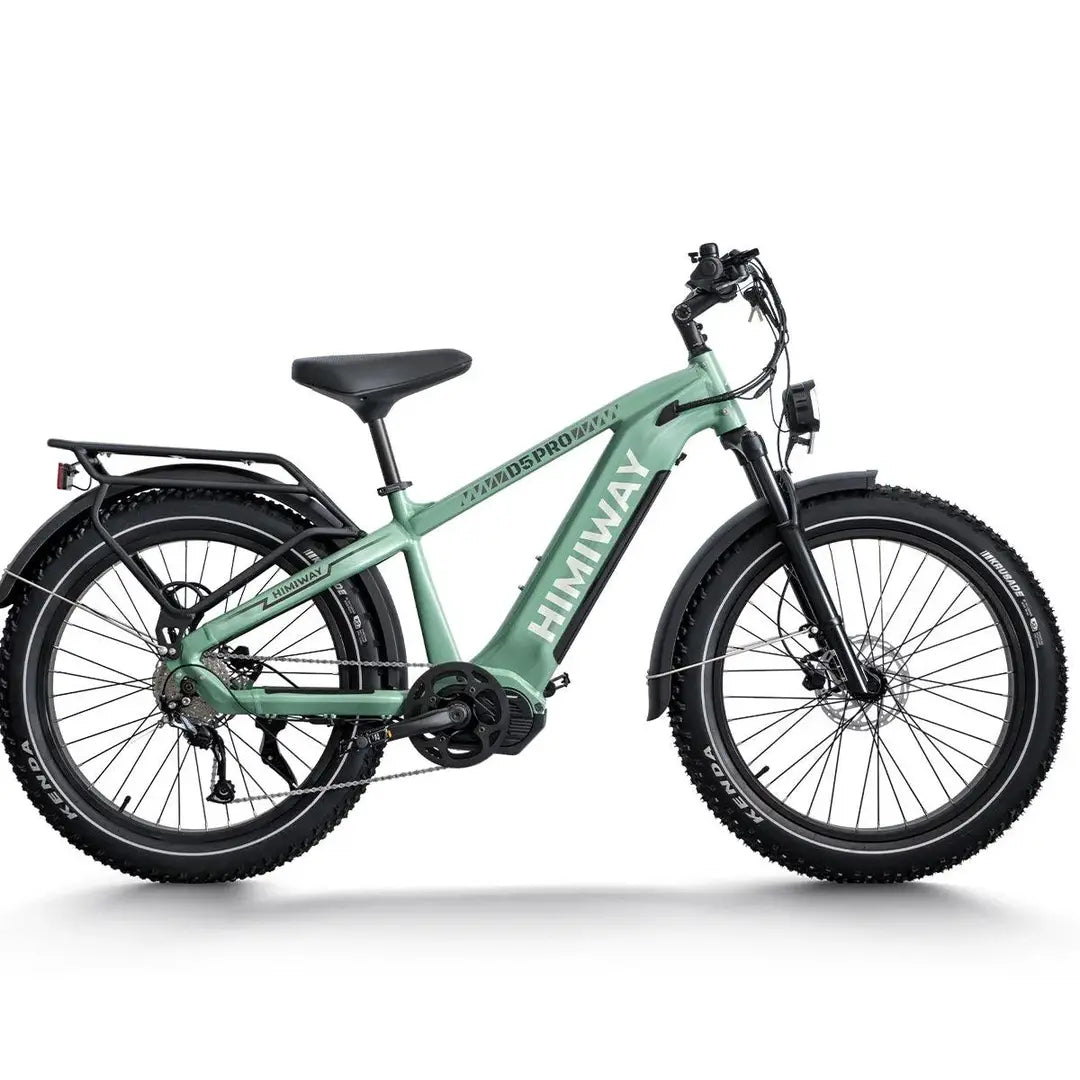

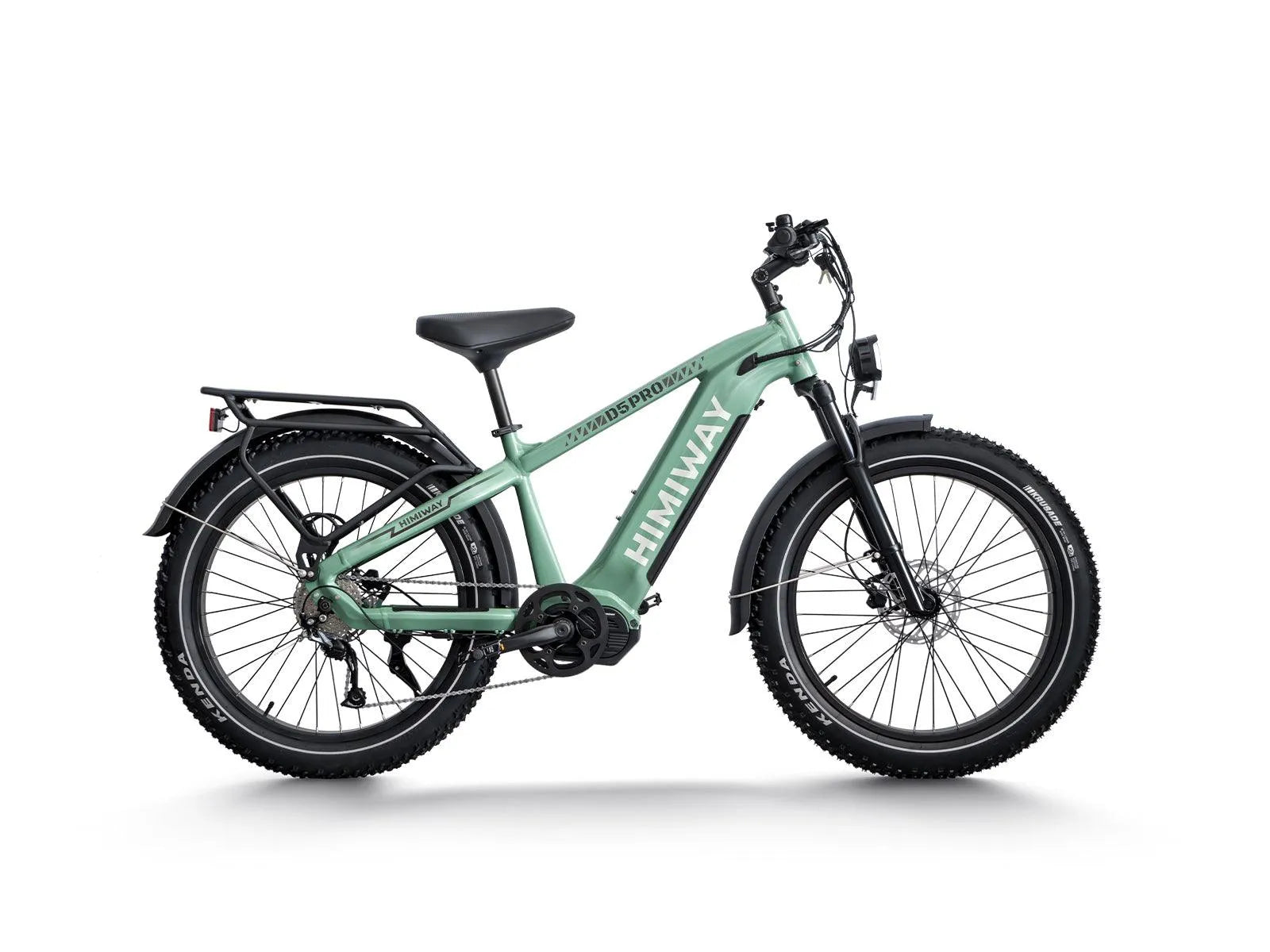

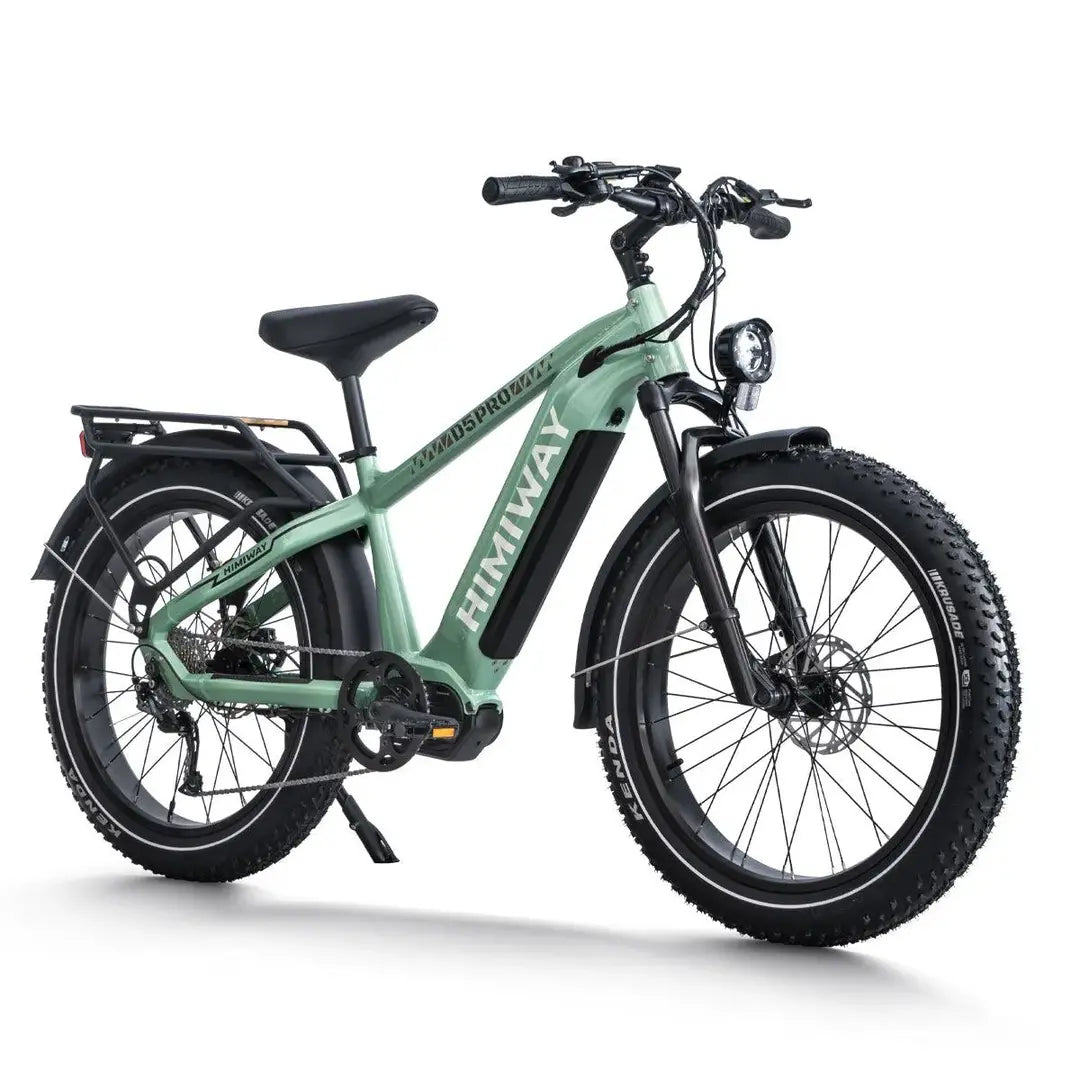

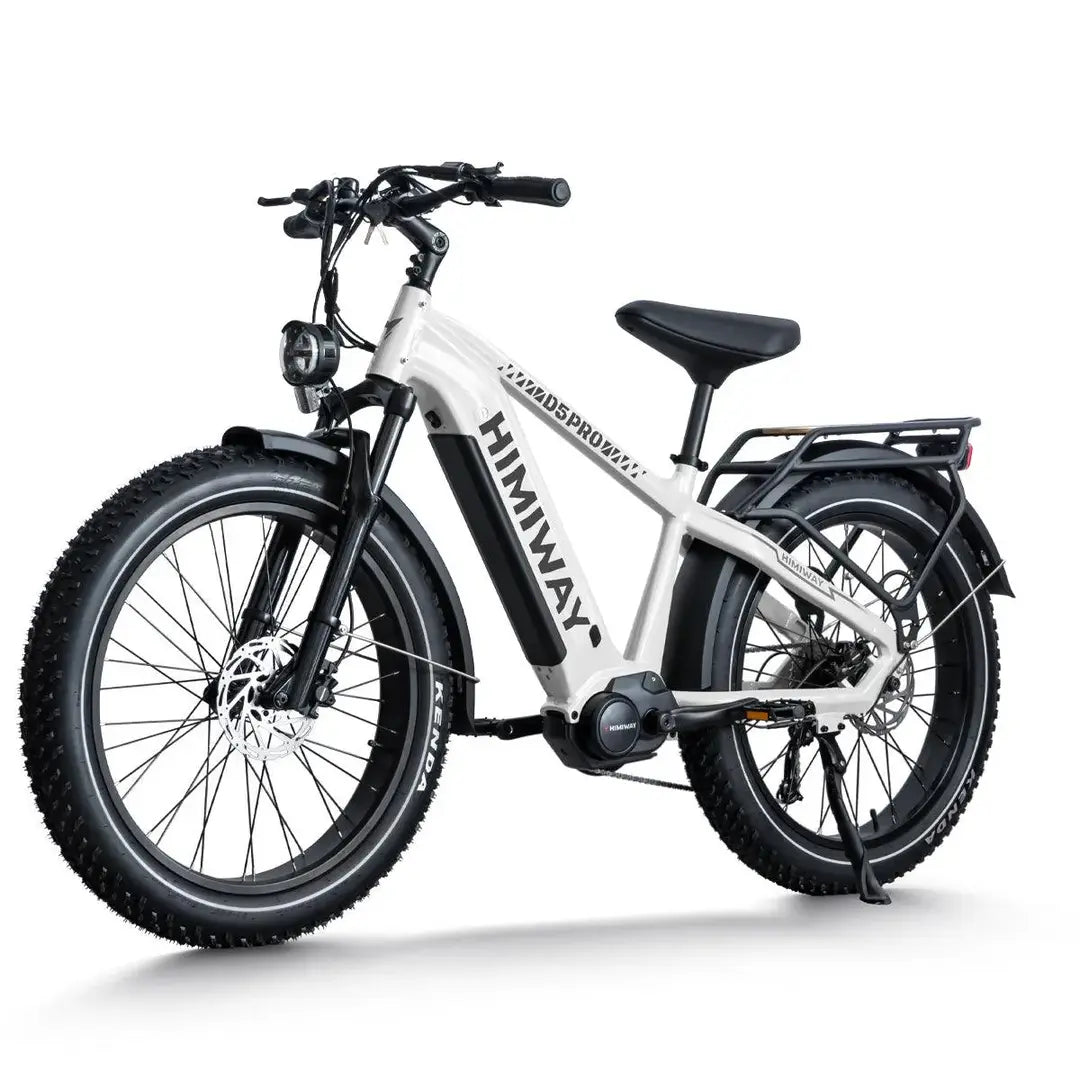

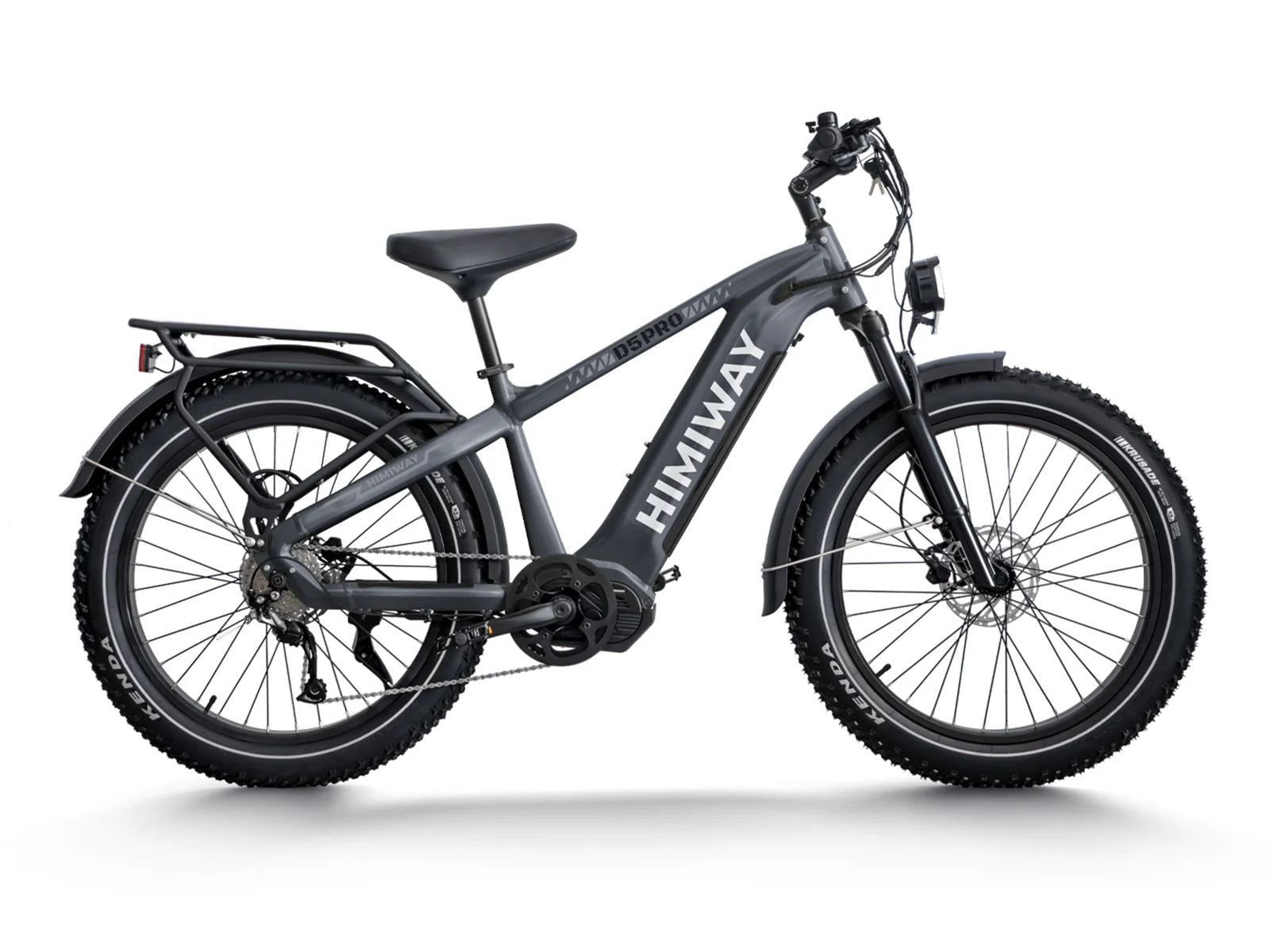

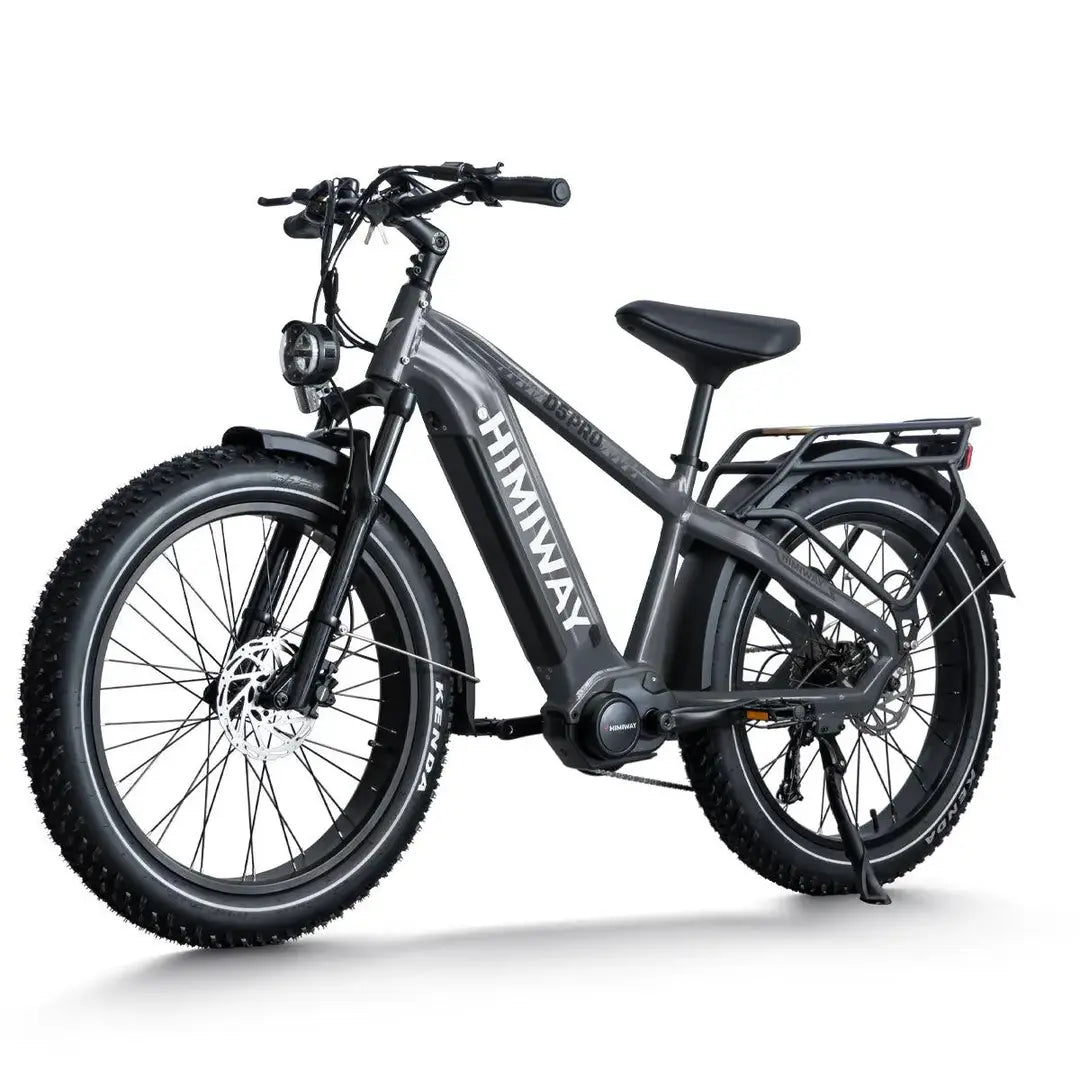

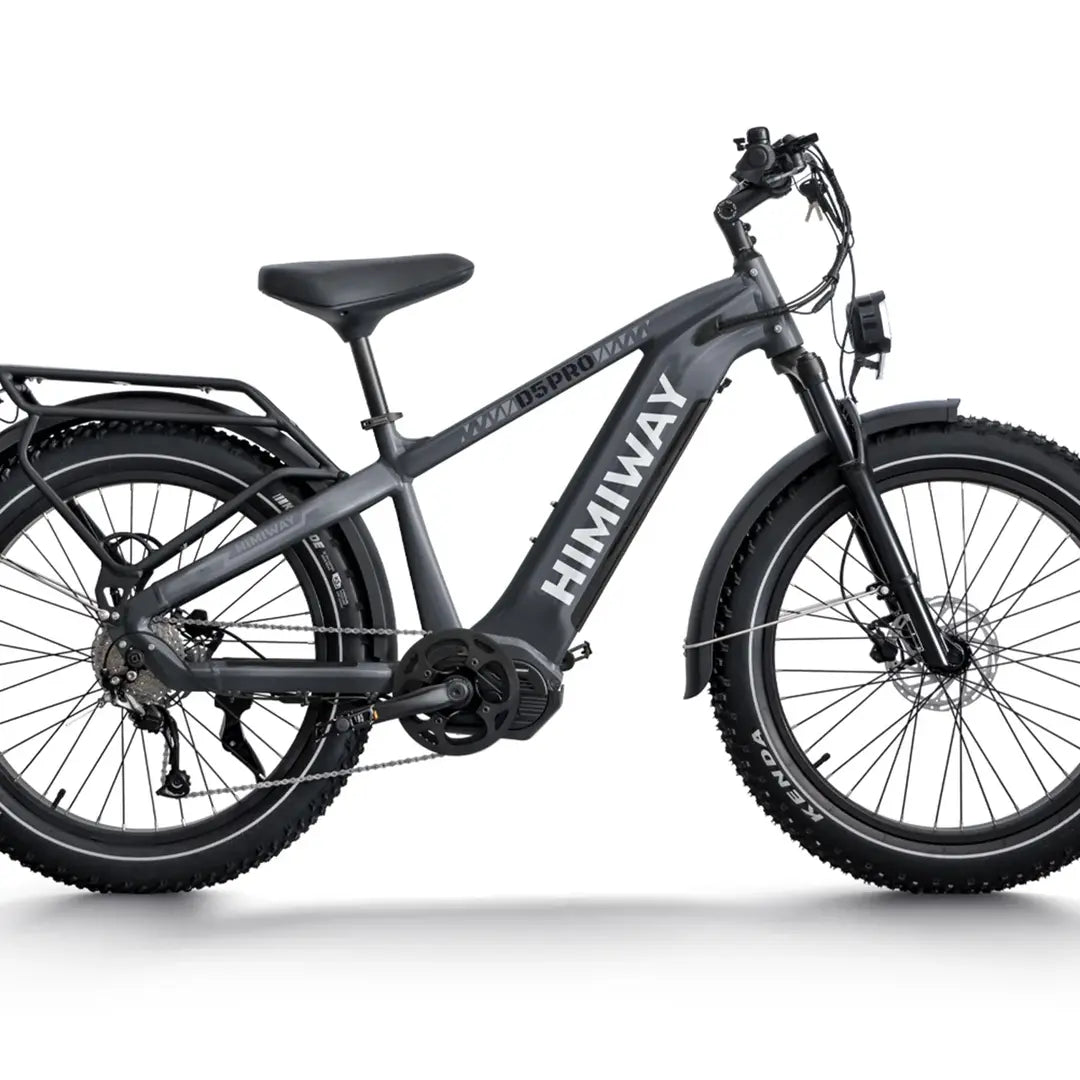

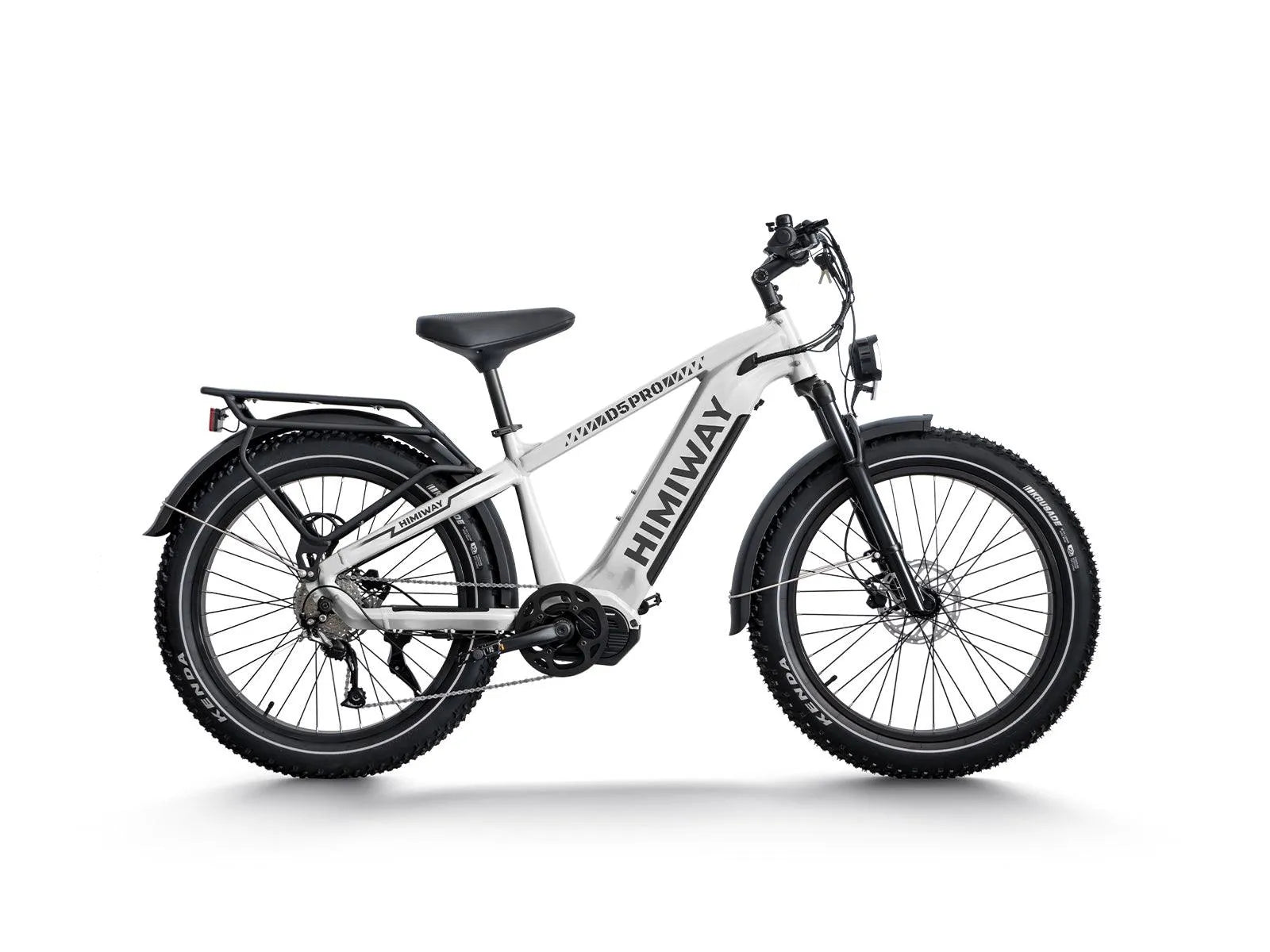

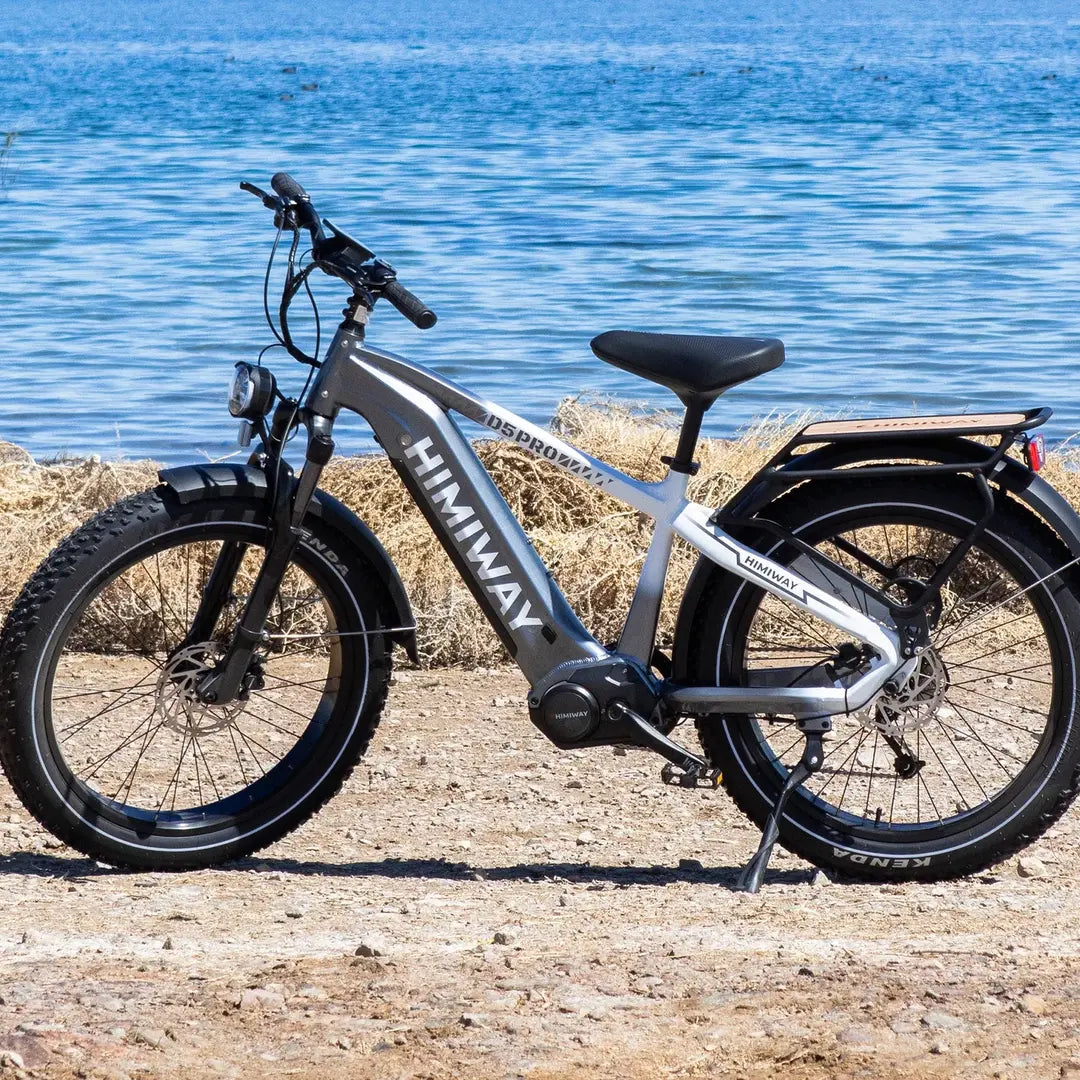

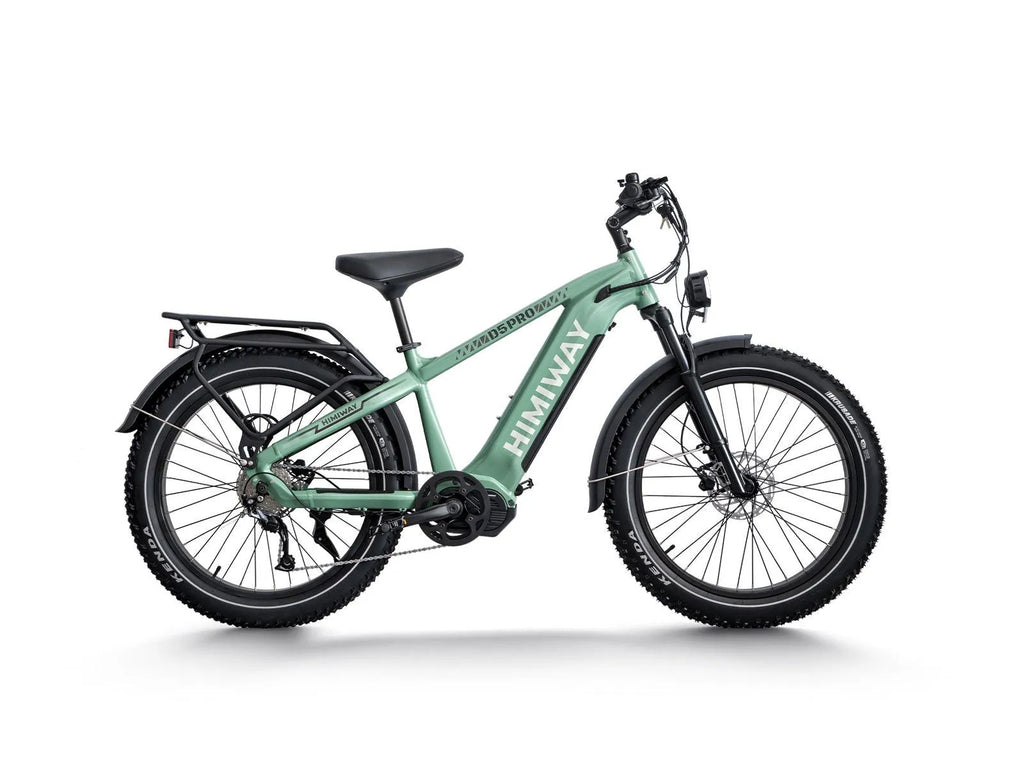

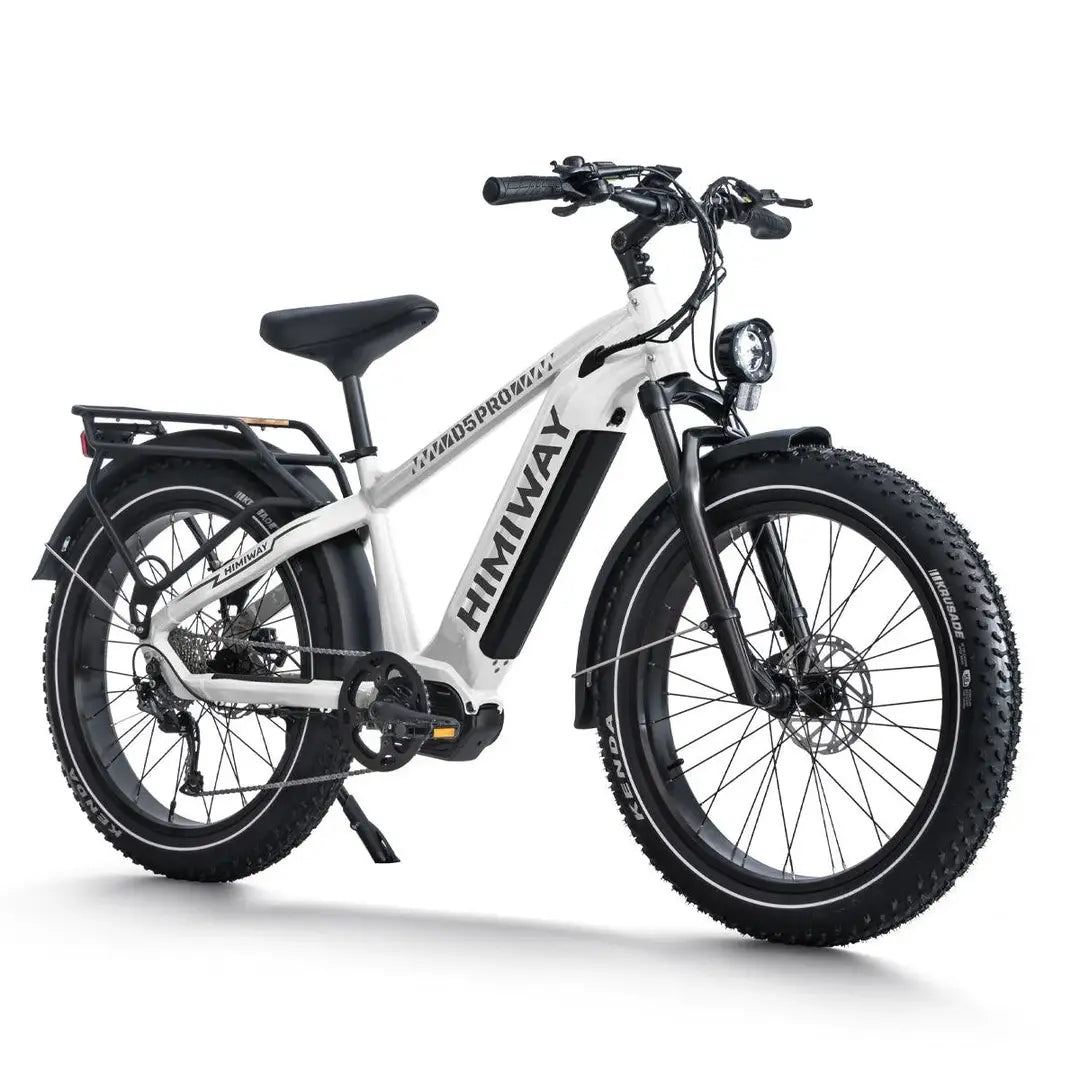

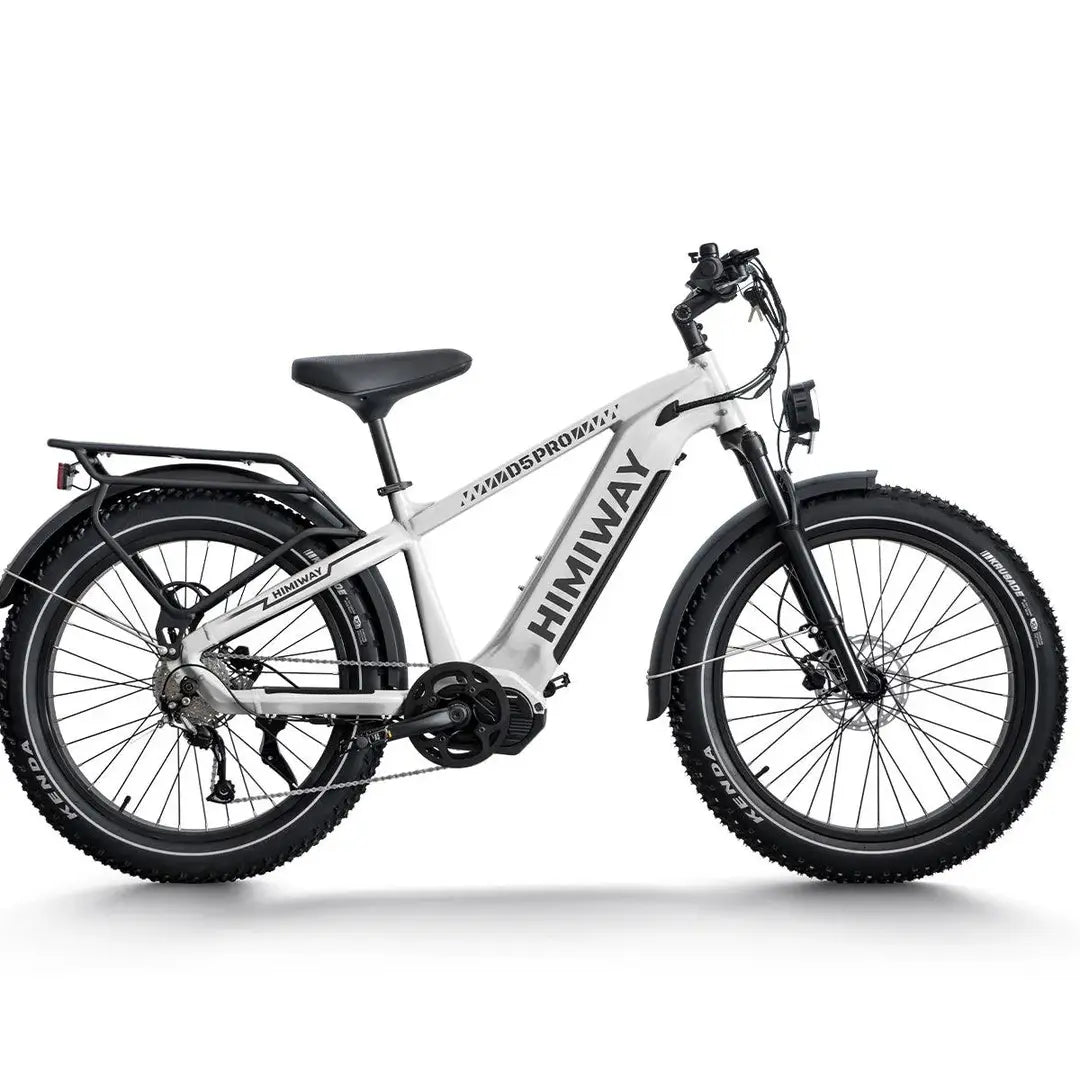

D5 Pro / All-terrain Electric Fat Bike

The D5 Pro / All-terrain Electric Fat Bike is built for riders looking for an electric bike suited to varied terrain, from gravel and mud to sandy ground and snowy roads. Its 6061 aluminum frame, 26 x 4.0 fat tires, front suspension fork, and 500W torque-sensing mid-drive motor are designed around a combination of stability, traction, and controlled electric assistance.

A 960Wh Samsung/LG battery provides up to 80 miles of stated range, while the torque sensor adjusts electric assistance according to the rider's input. The bike also features a 9-speed Shimano drivetrain, Tektro hydraulic disc brakes, a 500LM spotlight, integrated brake light, LCD display, thumb throttle, and a 400-lb. maximum payload capacity.

Key Features

• 500W Torque-Sensing Mid-Drive Motor: Uses a 500W mid-drive motor with a torque sensor and up to 130Nm of torque.
• 1300W Peak Motor Power: The product description states that the motor can reach 1300W of peak power.
• 960Wh Samsung/LG Battery: Uses a 48V 20Ah Samsung/LG lithium-ion battery with an integrated, removable design.
• Up to 80 Miles of Range: The product page states a range of up to 80 miles, with range affected by factors such as rider weight, incline, and pedal-assist levels. The technical specification lists a 60–80 mile range.
• 26 x 4.0 Fat Tires: Kenda 26 x 4.0 tires are designed for traction across gravel, sand, mountain terrain, brick roads, wetlands, snow, and grass.
• 6061 Aluminum Frame: Uses a 6061 aluminum frame described on the product page as 2X thicker than conventional e-bike frames.
• Front Suspension Fork: Features an alloy front suspension fork with lockout and adjustment, with 100mm travel.
• 9-Speed Shimano Drivetrain: Includes a Shimano Altus M2000 9-speed groupset and Shimano CS-HG201-9 11-36T freewheel.
• Hydraulic Disc Brakes: Uses Tektro HD-E3520 hydraulic brakes at the front and rear with 180mm rotors.
• Integrated Brake Light: The automatic brake light activates when the brake is used.
• 500LM Spotlight: Includes a 48V LED spotlight rated at 500LM.
• LCD Display: Uses a KD718-P LCD display with Type-C charging capability.
• Thumb Throttle: Equipped with a thumb throttle for motor control.
• 400-lb. Payload Capacity: The maximum payload capacity is 400 lb.

Specifications

• Frame: 6061 Aluminum frame
• Headset: Neco H156EM 28.644-5630
• Fork: TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
• Front Suspension: Alloy front suspension fork with lockout and adjustment
• Front Wheel Rim: MD-147 26*4.0"36H12G A/V
• Front Wheel Spoke: 12G 255/256L stainless (304M)
• Front Wheel Hub: MB015-92 M912G135*145W
• Rear Wheel Rim: MD-147 26*4.0"36H12G A/V
• Rear Wheel Spoke: 12G 256/257L stainless (304M)
• Rear Wheel Hub: GSMB019R-190F-GM14
• Tires: Kenda 26*4.0
• Battery: Samsung/LG 48V 20Ah
• Motor: 500W mid-drive motor
• Display: KD718-P LCD display with Type-C charger
• Throttle: Thumb throttle
• Sensors: Torque sensor, shifting sensor, speed sensor, brake sensor
• Crankarm: Prowheel 170mm
• Chain Ring: 44T BCD104
• Freewheel: Shimano CS-HG201-9 11-36T
• Chain: KMC E9 EPT 124L
• Groupset: Shimano Altus M2000 9 speed
• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 Hydraulic Disc Brake
• Rotors: Tektro TR180-52 F:180mm R:180mm
• Stem: Zoom TDS-C269-8FOV 31.8*90mm
• Handlebar: Promax HB-3188 22.231.8700mm
• Seatpost: Himiway Seatpost
• Saddle: Himiway Saddle
• Pedal: Aluminum pedal
• Lights: 48V LED light
• Kickstand: Heavy-duty aluminum kickstand
• Controller: 48V/22A
• Charger: U.S. standard 3.0 A fast charger
• Range: 60-80 miles
• Rider Height: 5′3″ ~ 6′5″
• Weight: 79 lb. (with battery)
• Maximum Payload Capacity: 400 lb.

Size Guide

• Recommended Rider Height: 5'3" ~ 6'5"
• Total Length: 78.7 in.
• Handlebar Height: 47 in.
• Handlebar Length: 28 in.
• Wheelbase: 49.2 in.
• Wheel Diameter: 28.7 in.
• Minimum Seat Height: 20.9 in.
• Maximum Seat Height: 31.4 in.
• Chain Stay Length: 19 in.
• Frame Stack: 24.6 in.
• Frame Reach: 17.8 in.
• Effective Top Tube Length: 24.4 in.
• Head Tube Length: 5.5 in.
• Head Angle: 65°
• Standover Height: ST 22.4 / SO 31.1
• Compatibility
• The official product page does not specify compatibility with other bicycle models or products.

Included

• E-bike
• Charger
• Manual

Warranty

• Warranty: 2 years, including coverage for all electrical components.
