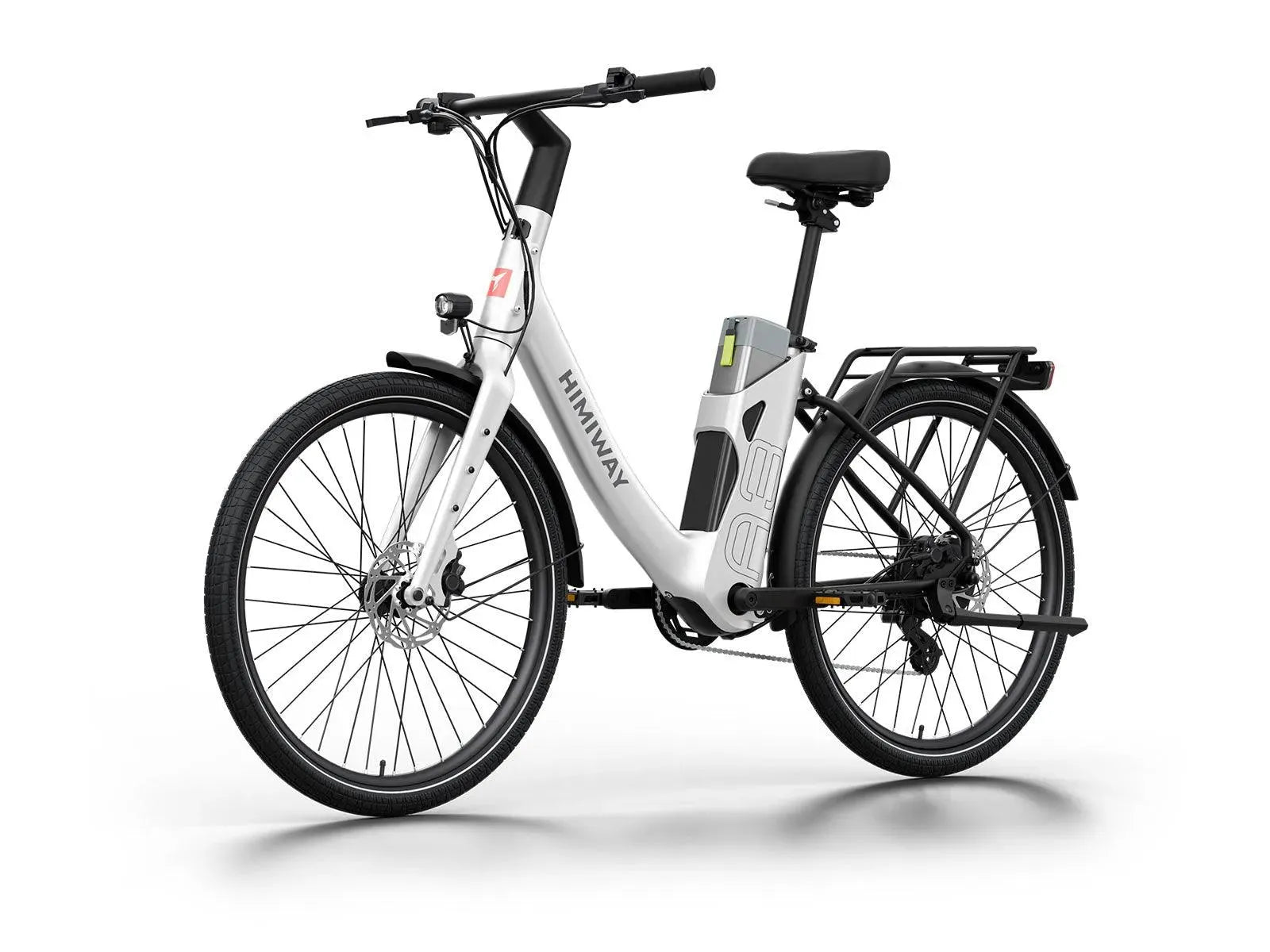

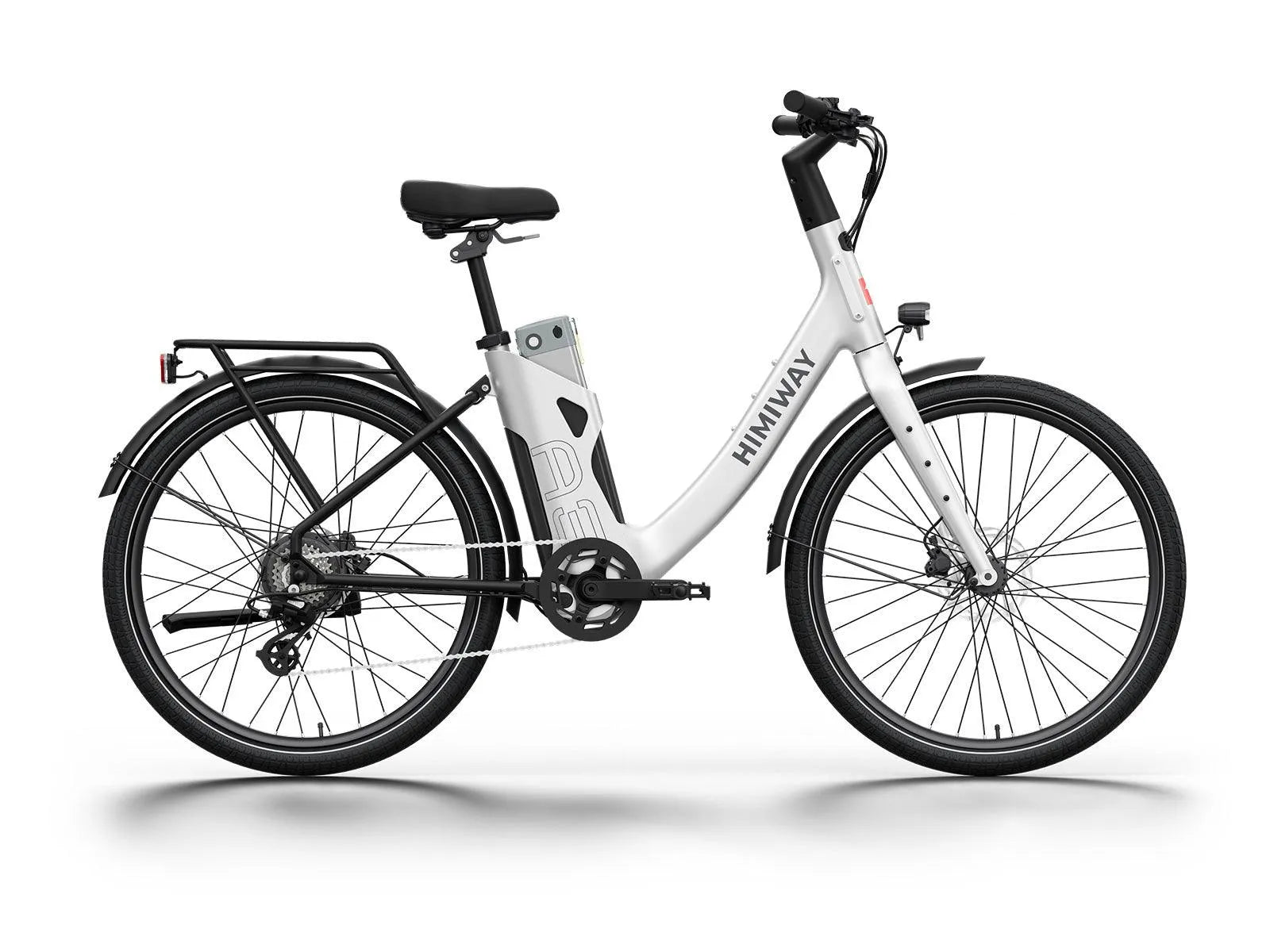

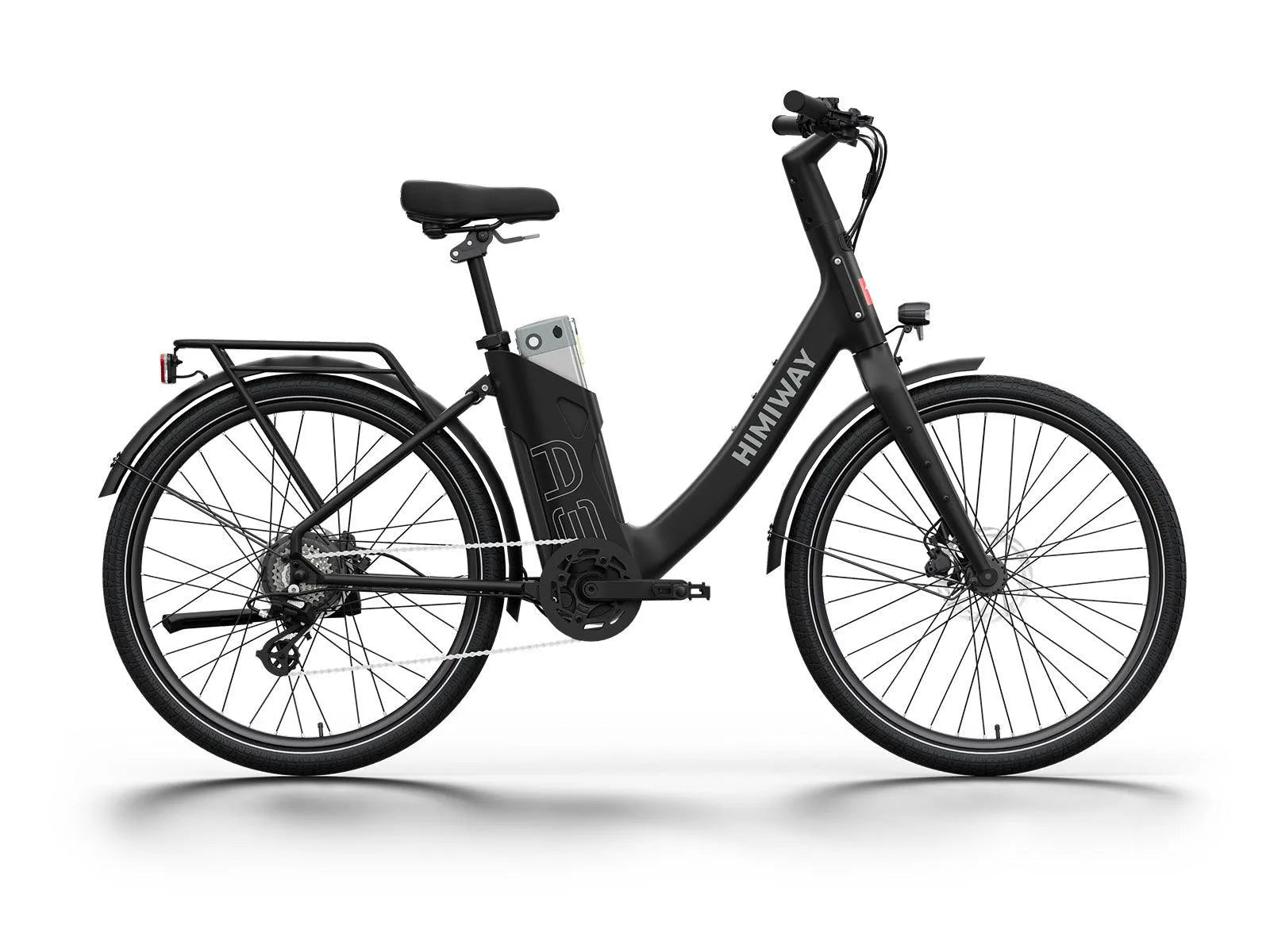

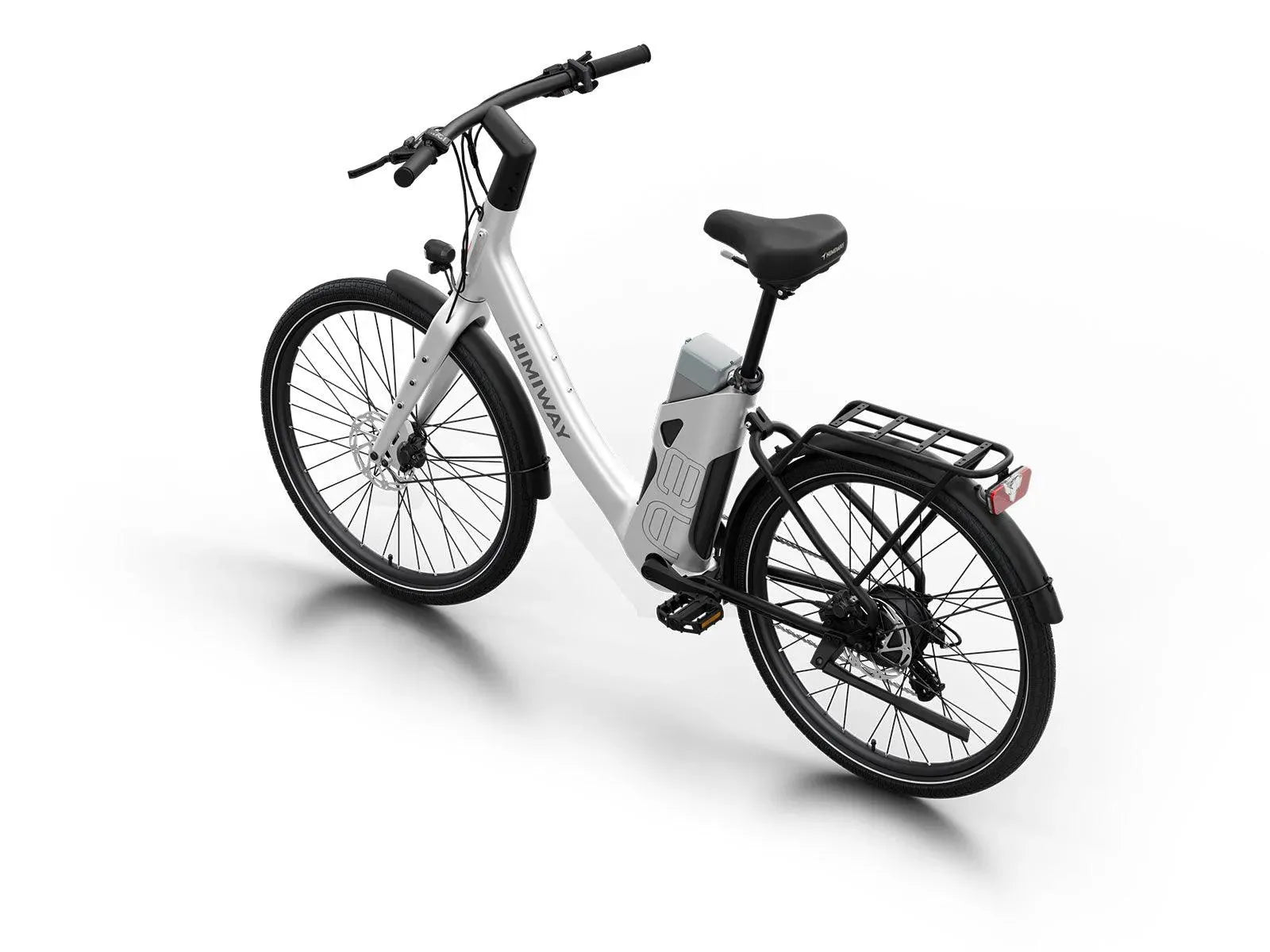

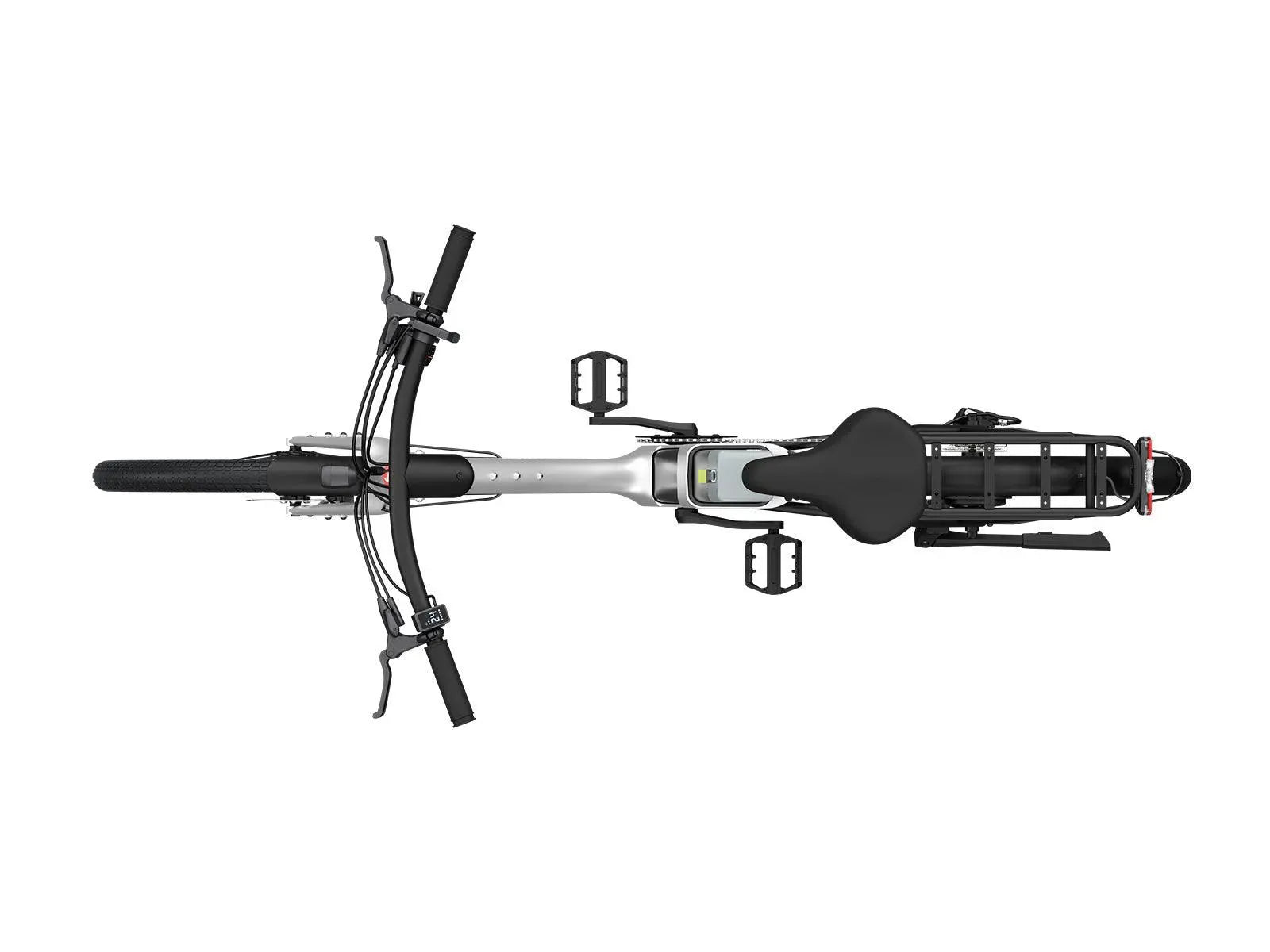

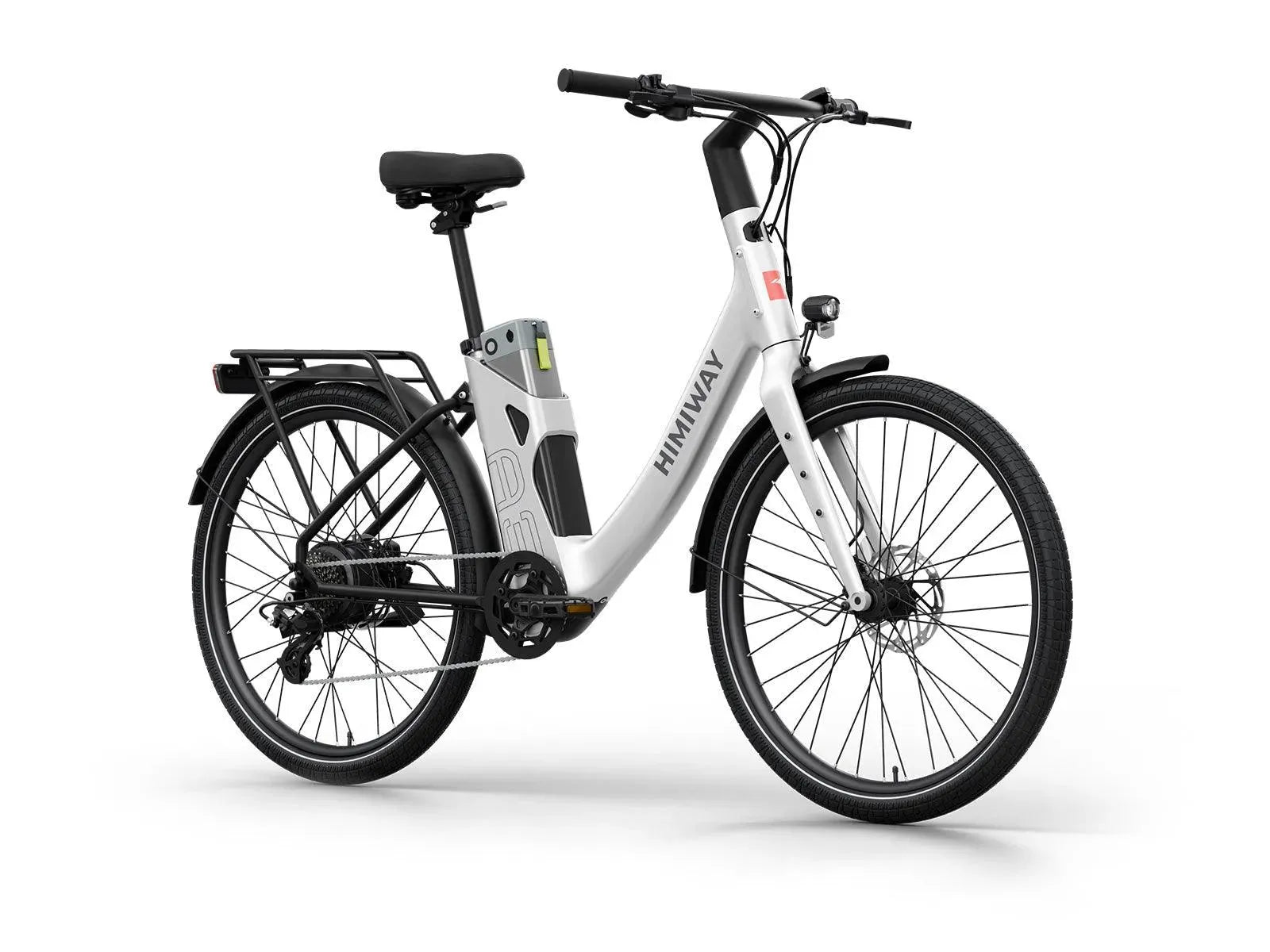

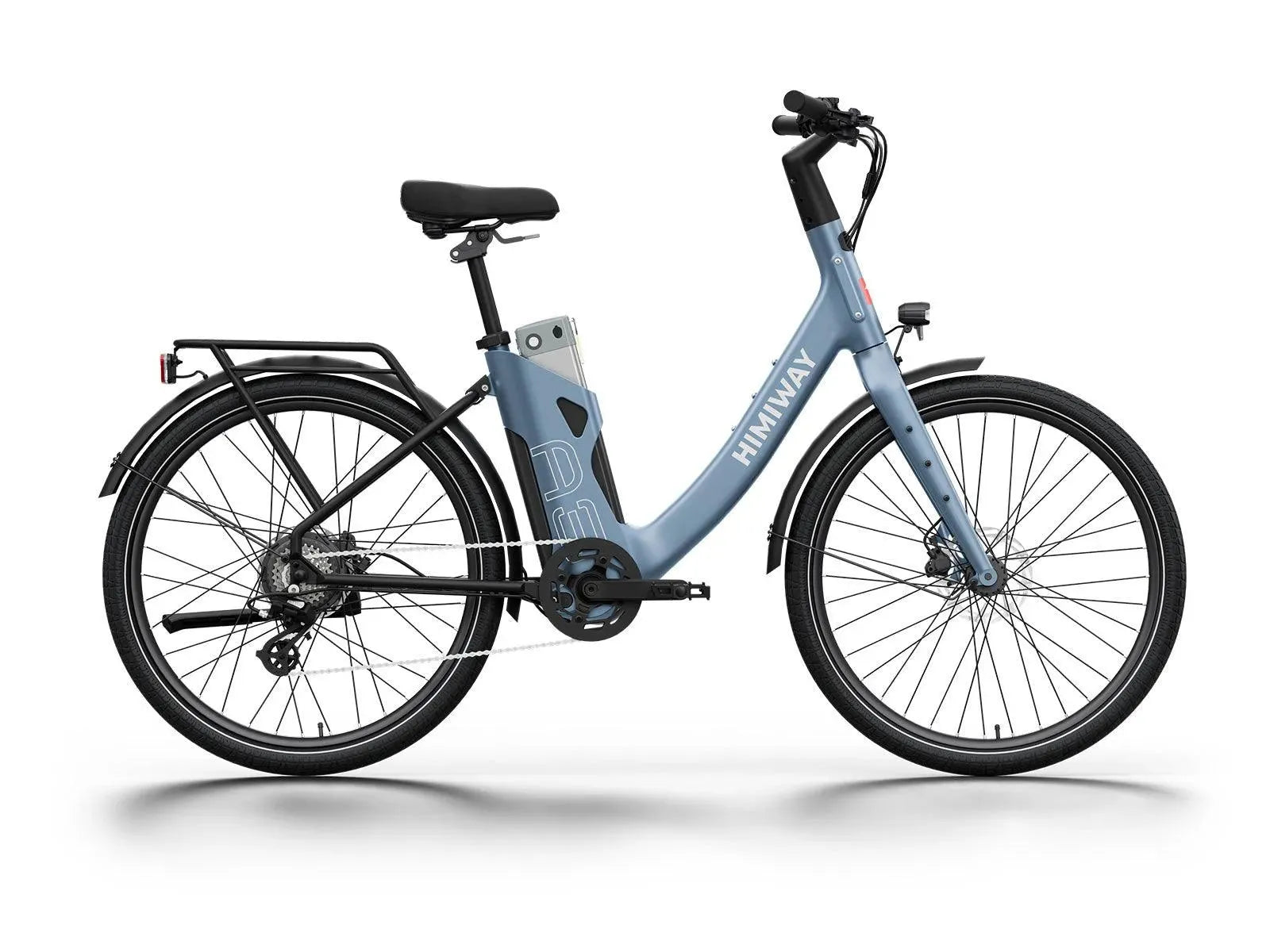

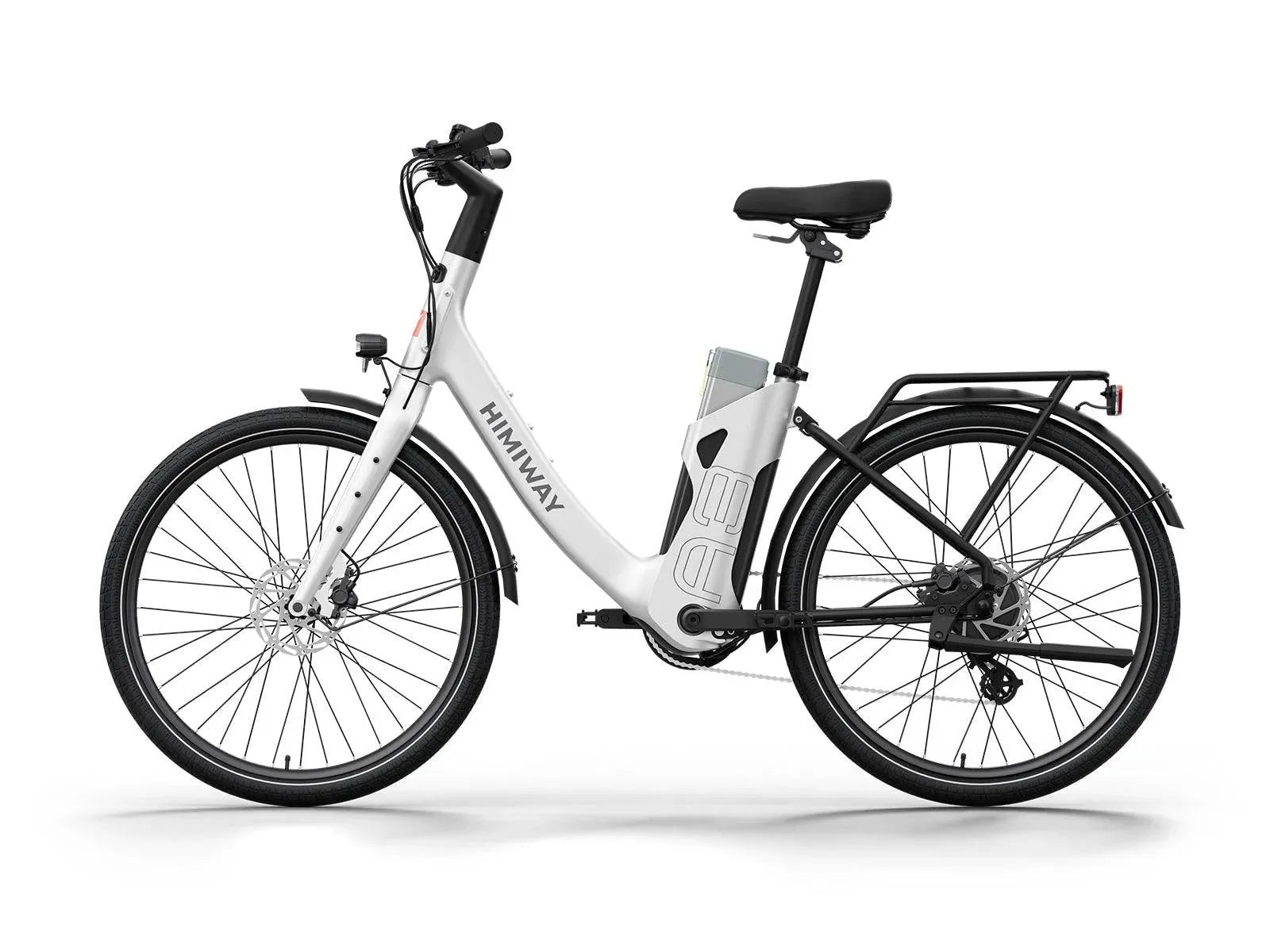

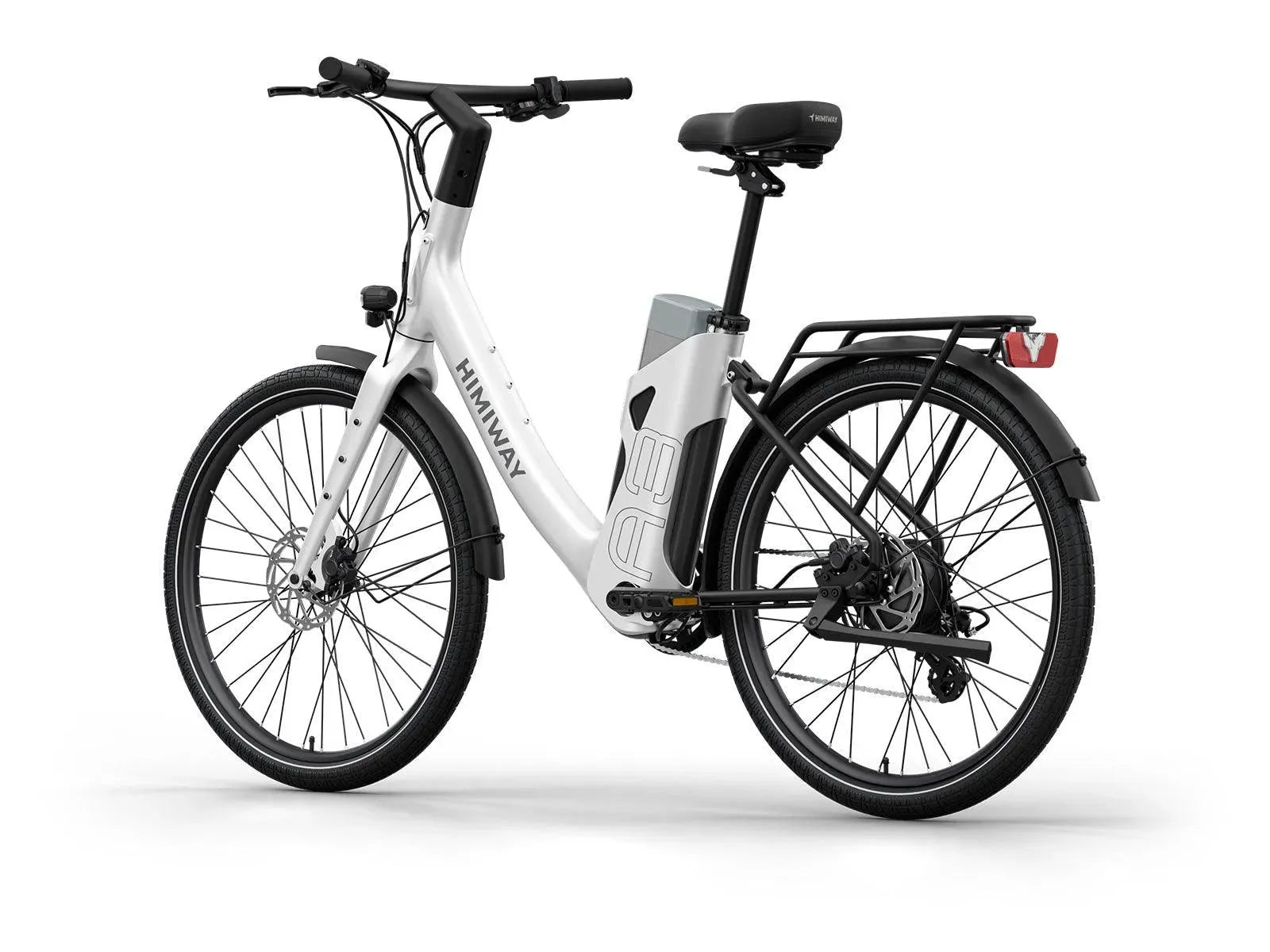

Himiway A3 / Urban Electric Commuter Bike ST

The A3 / Urban Electric Commuter Bike ST is designed for urban commuting, everyday errands, leisure rides, and light outdoor adventures. Its torque sensor measures the rider's pedal force and adjusts assistance according to effort, while the 500W brushless geared hub motor and Shimano 7-speed drivetrain provide an electric-assisted riding setup suited to varied riding conditions.

The bike features a 6061 aluminum unibody construction with integrated wiring and an integrated battery design. Its removable 48V 15Ah battery is rated IP65 and is listed with a range of up to 70 miles, while hydraulic disc brakes, integrated lighting, an adjustable aluminum kickstand, and multiple mounting points add practical features for daily riding and customization

Key Features

• Torque Sensor: Measures the force applied to the pedals and provides assistance based on the rider's effort for a more natural riding experience.
• 500W Brushless Geared Hub Motor: Uses a 500W brushless geared hub motor with 86Nm of torque.
• Long-Range Battery: Uses a removable 48V 15Ah LG 21700 battery with a listed capacity of 720Wh and an IP65 rating.
• Up to 70-Mile Range: The official specifications list a range of up to 70 miles.
• Unibody Construction: Features unibody construction with built-in wiring and an integrated battery design.
• 6061 Aluminum Construction: The front frame construction is specified as 6061 aluminum.
• Shimano 7-Speed Drivetrain: Equipped with a Shimano Altus M310 7-speed groupset and Shimano MF-TZ500-7 freewheel.
• Hydraulic Disc Brakes: Uses Tektro HD-E3520 hydraulic brakes on both the front and rear, with 160mm rotors.
• Integrated Lighting: Includes a 48V LED light, with the product page also specifying a 48V 500LM spotlight and an integrated brake light.
• Reflective Sidewall Stripe: Includes reflective sidewall striping for additional visibility.
• Adjustable Kickstand: Equipped with an adjustable aluminum kickstand.
• Mounting Points: The product page specifies up to 28 mounting points for accessories such as racks, baskets, bags, or child seats.

Specifications

• Frame: Front: 6061 aluminum; Rear: A356 Steel
• Headset: Neco A16M 444430
• Fork: 6061 aluminum, 100*12mm thru axle, rack mounts, fender mounts, post disc mount
• Front Wheel: Rim: 26"1.7536H13G A/V; Spoke: 13G257.5MM/259.5MM; Hub: R303F-12 12g36H 12100mm
• Rear Wheel: Rim: 26"1.7536H13G A/V; Spoke: 13G225.5MM/226.5MM; Hub: 48V 500W Himiway Hub Motor
• Tires: Innova IA-2128 26*2.2, 25-60PSI
• Battery: 48V 15Ah LG 21700 IP65, 720Wh
• Motor: 500W Himiway brushless gear motor
• Display: Himiway LED Display
• Throttle: Thumb throttle
• Sensors: Torque sensor, speed sensor, brake sensor
• Crankset: Crank arm: J6061-T6 170mm; Chain ring: 38T narrow wide steel chainring BCD104
• Freewheel: Shimano MF-TZ500-7 14-28T
• Chain: KMC Z8.3 EPT 112L
• Groupset: Shimano Altus M310 7 speed
• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 hydraulic brake
• Rotors: Front: 160mm; Rear: 160mm
• Handlebar: Himiway integrated handlebar-Stem, 680mm width*90mm stem
• Seatpost: Himiway flip seatpost 27.2*300
• Saddle: TTZ032X
• Pedal: Aluminum pedal
• Lights: 48V LED light
• Kickstand: Adjustable aluminum kickstand
• Controller: 48V/18A
• Charger: US standard 2.0 A smart charger
• Range: 70 miles
• Rider Height: 5'1"~6'
• Weight: 68.3 lb.
• Max Payload Capacity: 300 lb.

Size Guide

• Recommended Rider Height: 5'1"~6'
• Total Length: 70.6
• Handlebar Height: 45.3
• Wheelbase: 43.8
• Minimum Seat Height: 24
• Maximum Seat Height: 31.8
• Chain Stay Length: 18.3
• Frame Stack: 23.5
• Effective Top Tube Length: 21.1
• Wheel Diameter: 26.2
• Head Tube Length: 8.5
• Handlebar Length: 26.7
• Frame Reach: 16.4
• Head Angle: 69°
• Standover Height: 24.6

Included

• E-bike
• Rear Rack
• Charger
• Manual

Warranty

• Warranty: 2 years
