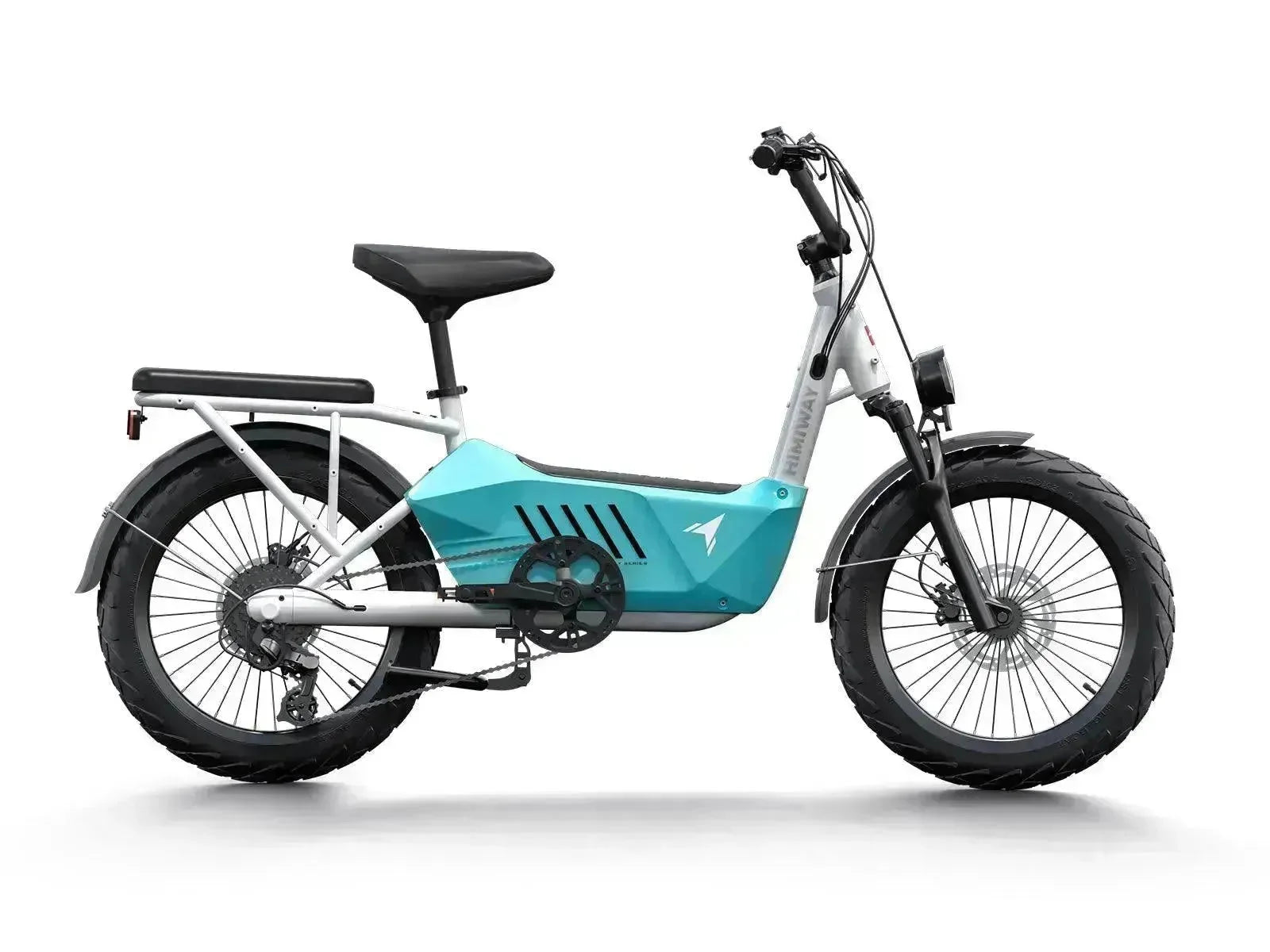

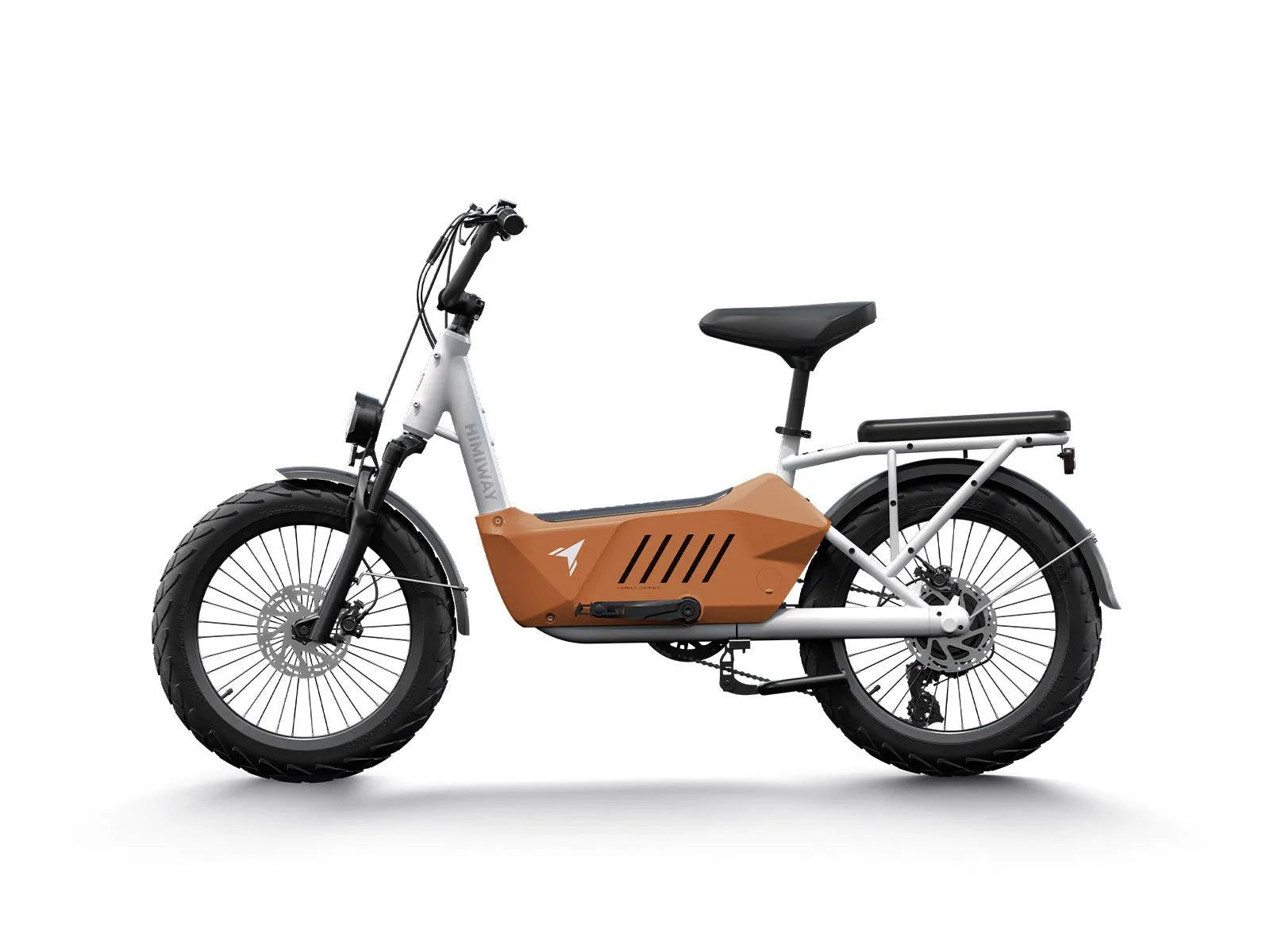

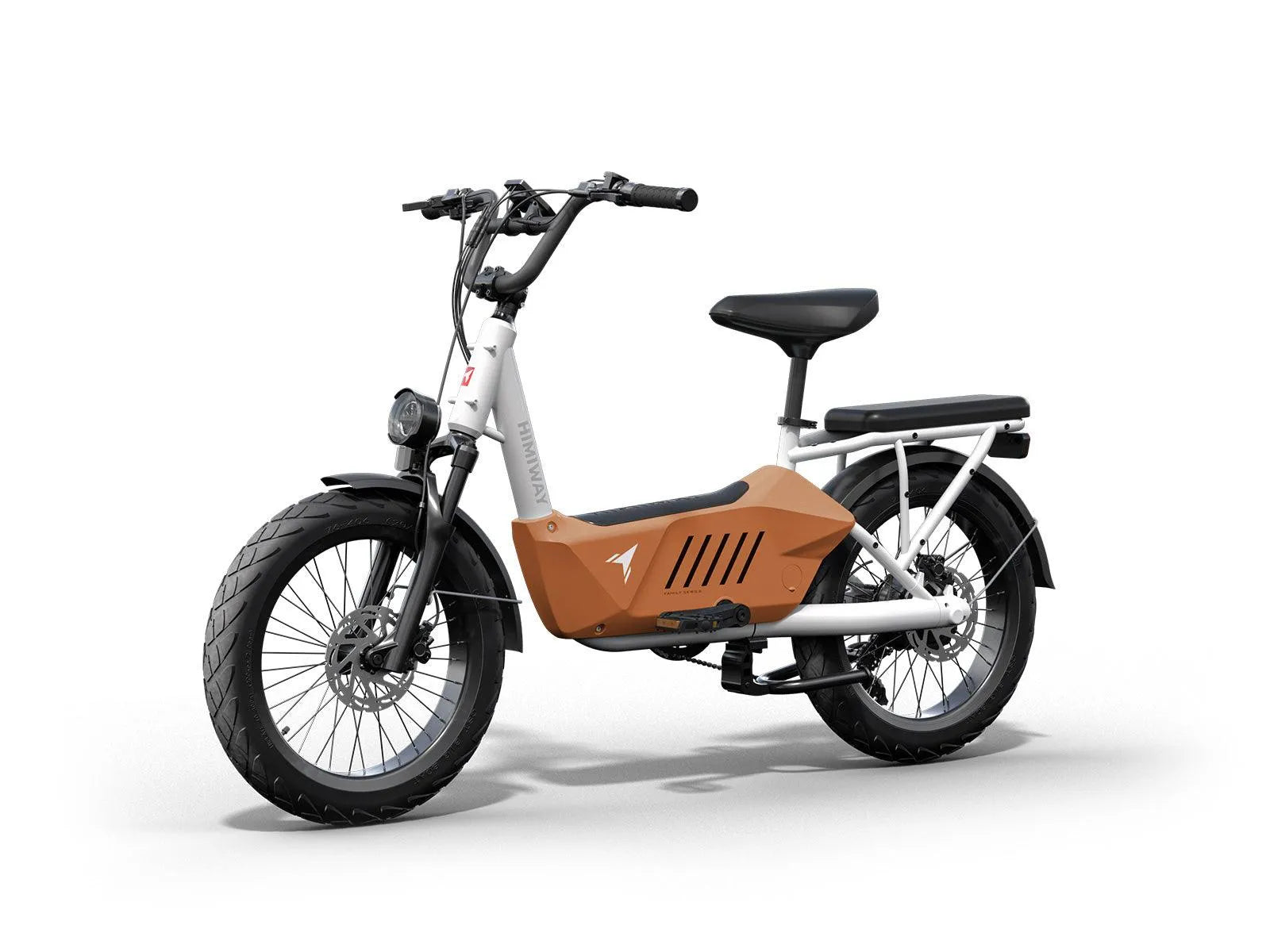

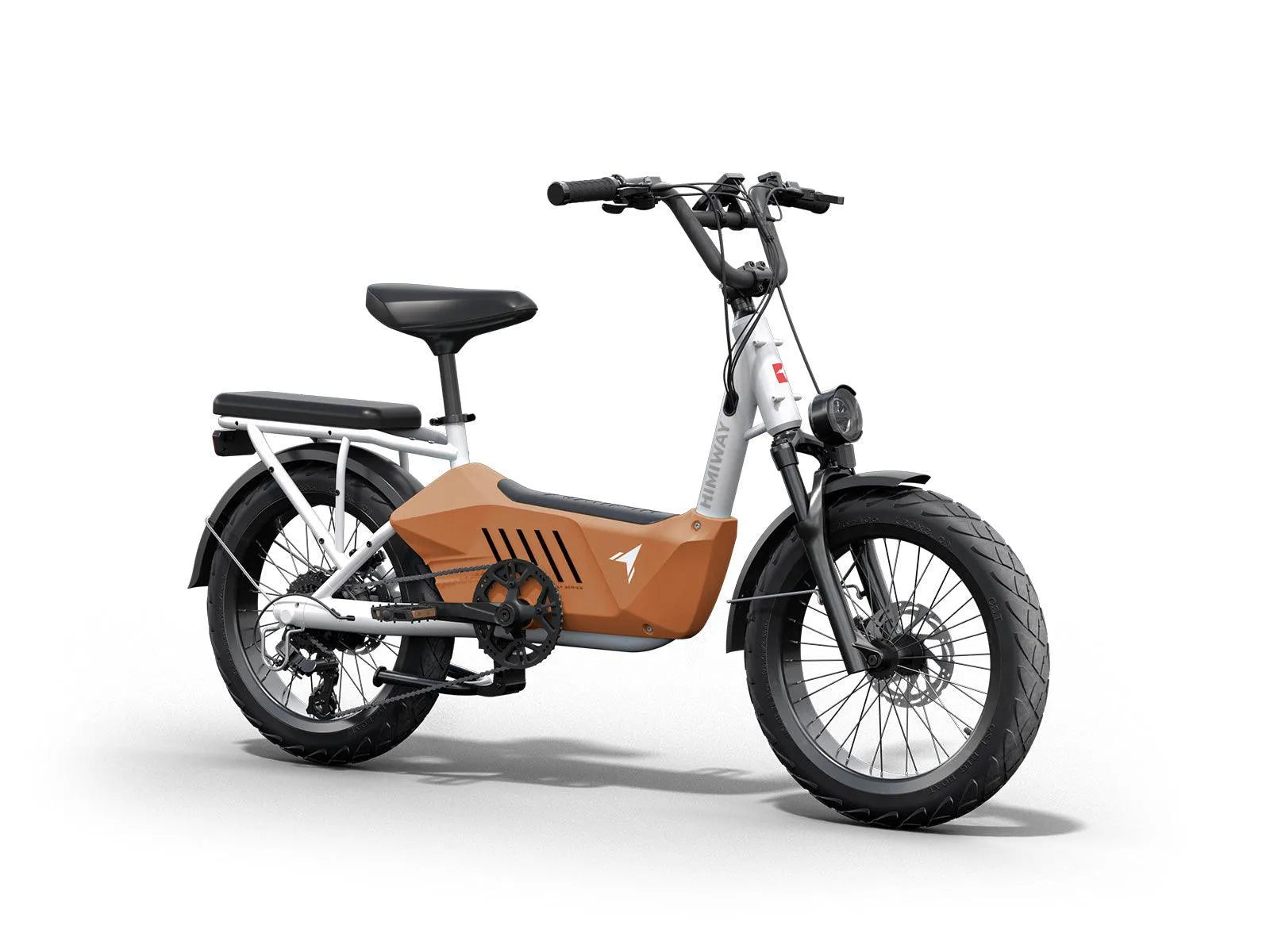

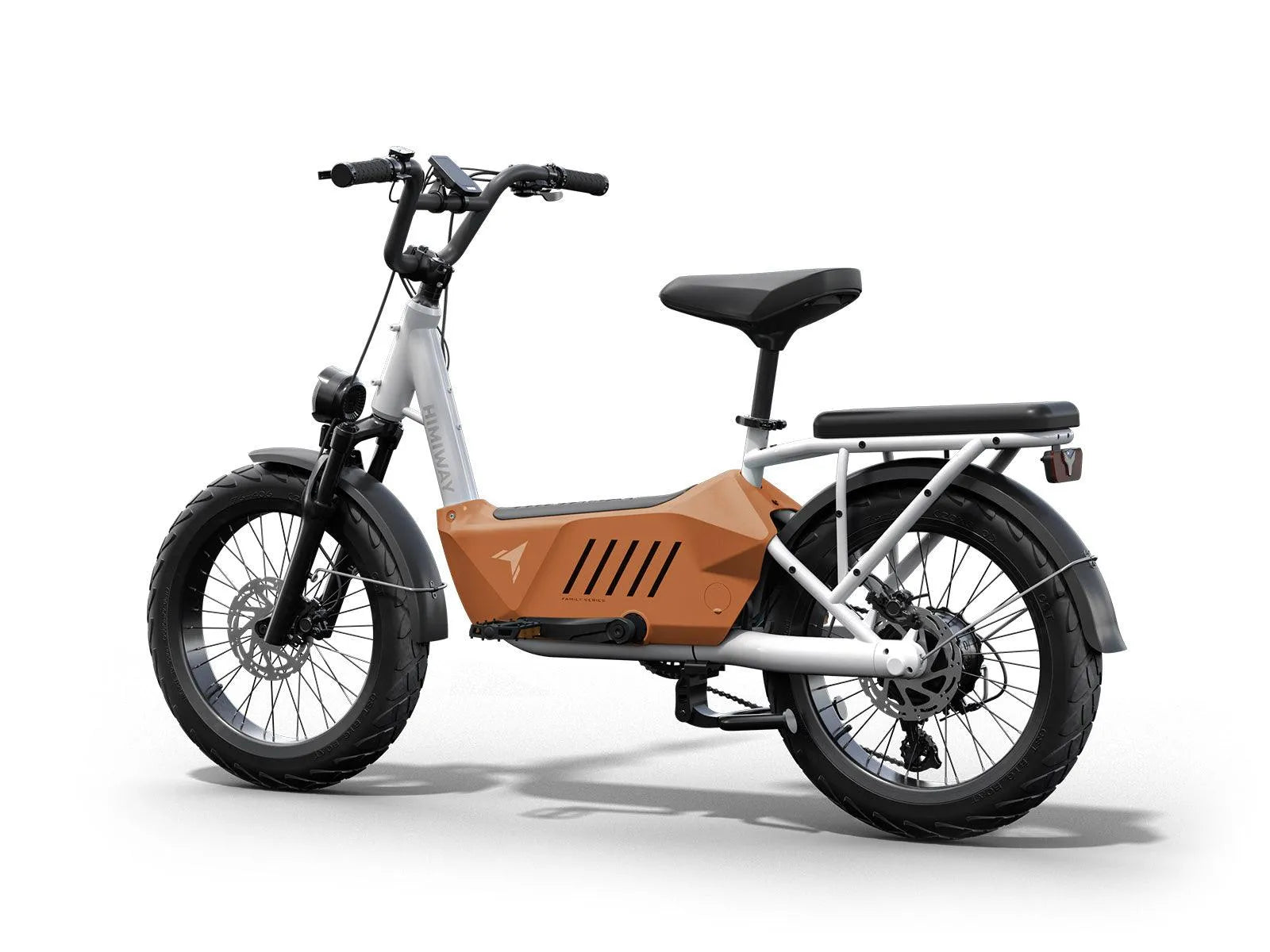

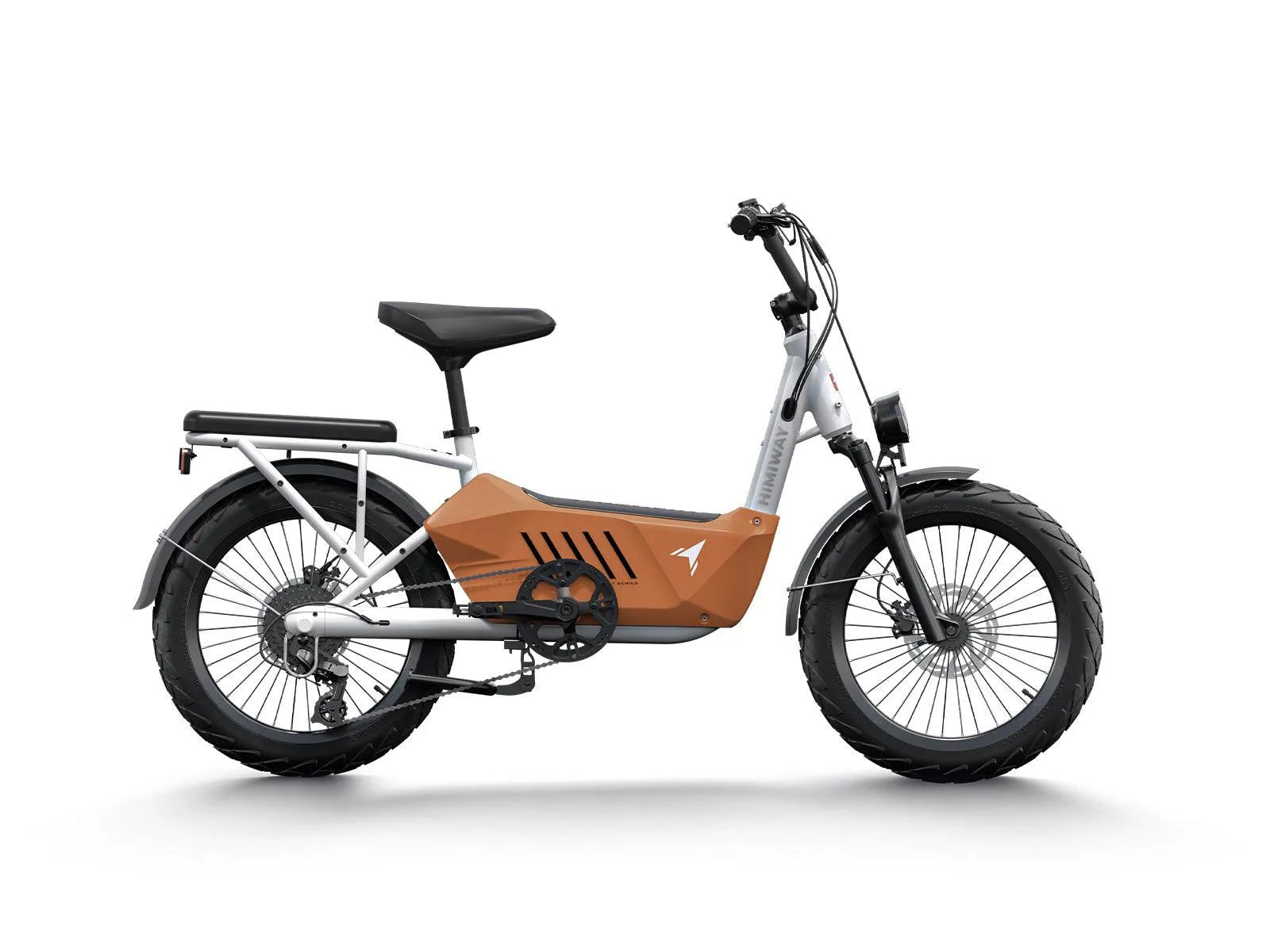

Himiway C3 / Cargo Ebike

The C3 / Cargo Ebike is designed for riders who need an electric bicycle suited to carrying heavier loads while retaining practical everyday riding features. It combines a 750W brushless geared motor, a Samsung/LG 48V 20Ah battery, 7-speed Shimano Altus gearing, and hydraulic braking in a 6061 aluminum frame. The page lists a maximum payload capacity of 440 lb. with the battery installed.

The bike also features a thumb throttle, torque, speed, and brake sensors, an LCD display, front suspension, integrated braking-activated tail lighting, and a heavy-duty aluminum kickstand. Its listed rider-height range is 5'2" ~ 6'3", with a listed range of 60-80 miles depending on riding conditions and other factors.

Key Features

750W Brushless Geared
Hub Motor

Experience superior performance with the Himiway C5's 750W motor, delivering an impressive 86Nm of torque for effortless climbs up 15° inclines and smooth rides against the wind.

750W

Motor Power

86Nm

Max Motor Torque

48V High-brightness Front Light

Enhances visibility and safety, illuminating the path ahead to better reveal unforeseen road conditions.

Auto-Illuminating Brake Light

Frame-integrated taillights illuminate automatically upon braking, enhancing safety and visibility for night riding.

Torque Sensor

Provides real-time electric assist adjustment for efficient, smooth cycling, optimizing energy use and improving safety and stability.

Double-leg Kickstand

Double leg support enhances balance, enabling greater weight carriage on your bike without tipping.

Specifications

• Frame: 6061 Aluminum frame
• Headset: Neco H114 28.64430
• Fork: TRAMA coil suspension, 60mm travel, 135mm thru axle
• Front Wheel: Rim: J57SA 2012G36H A/V | Spoke: 12G 172mm | Hub: MB016F-92-T 15135mm 12G36H
• Rear Wheel: Rim: J57SA 2012G36H A/V | Spoke: 12G 127mm/128mm | Hub: 48V 750W Himiway Hub Motor
• Tires: CST 20"x3"
• Battery: Samsung/LG 48V 20Ah
• Motor: 750W brushless gear motor
• Display: Himiway C2 LCD Display
• Throttle: Thumb throttle
• Sensors: Torque sensor | speed sensor | brake sensor
• Crankset: 44T BCD104 6061-T6 145mm
• Freewheel: Shimano MF-TZ500-7 14-28T
• Chain: KMC Z8.3 EPT 120L
• Groupset: Shimano Altus M310 7 speed
• Wheel Rotors: F:180mm R:180mm
• Rear Brake: Tektro HD-E3520 hydraulic brake
• Stem: 3D forged alloy, Ext:40mm
• Handlebar: YC-B086 22.231.8720mm
• Saddle: Himiway saddle
• Pedal: Aluminum pedal
• Kickstand: Heavy-duty aluminum kickstand
• Controller: 48V/22A
• Charger: U.S. standard 3.0 A fast charger
• Rider Height: 5'2" ~ 6'3"
• Weight: 80 lb. (with battery)
• Max. Payload Capacity: 440 lb. (with battery)
• Listed Range: 60-80 miles
• Battery Capacity: 960 Wh
• Motor Power: 750W
• Drivetrain: 7-Speed Shimano Altus M310
• Brakes: Hydraulic

Size Guide

• Total Length: 70.4
• Handlebar Height: 42
• Handlebar Length: 28.4
• Wheelbase: 47.2
• Wheel Diameter: 23
• Minimum Seat Height: 34
• Maximum Seat Height: 40
• Chain Stay Length: 23
• Frame Stack: 31.9
• Effective Top Tube Length: 17
• Head Tube Length: 8.1
• Standover Height: 19

Included

• E-bike
• Charger
• Manual

Warranty

• Warranty: 2-Year Warranty
