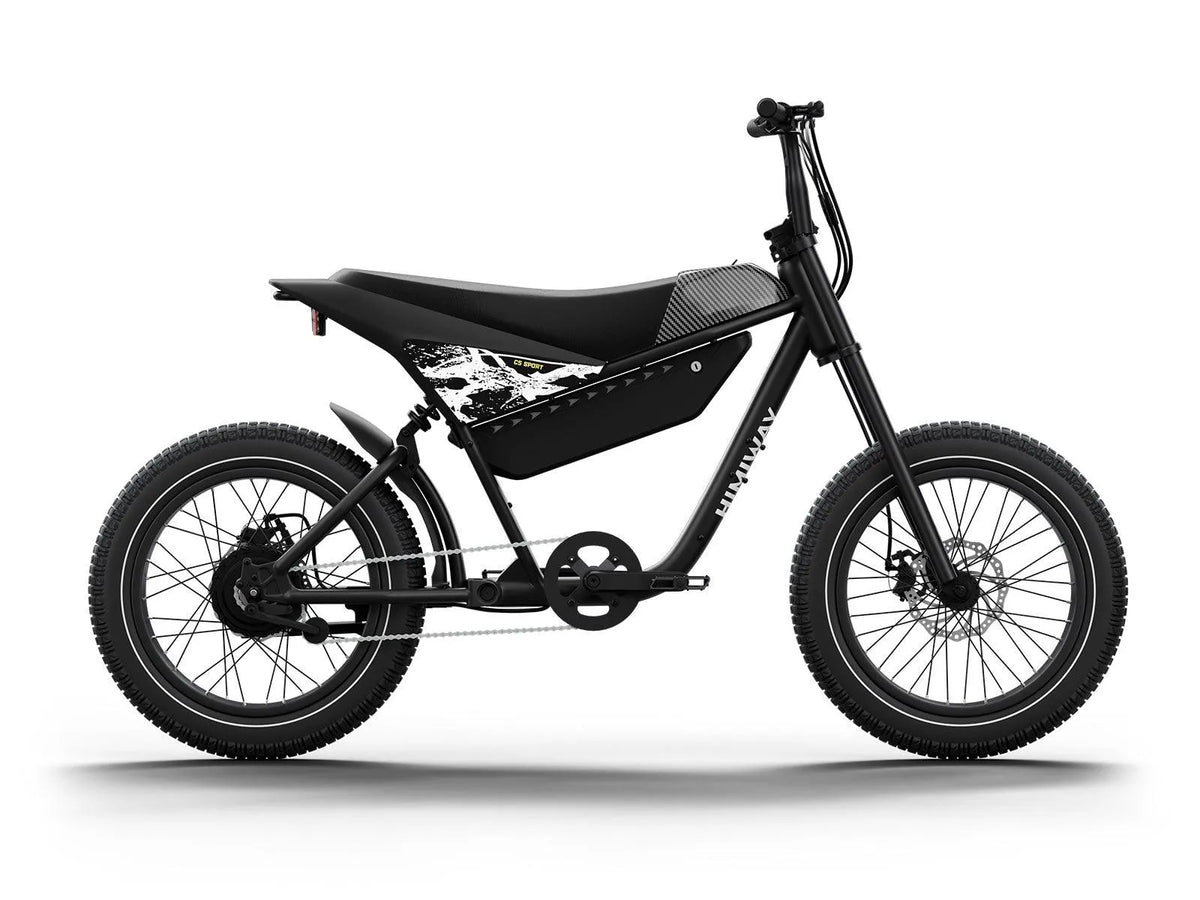

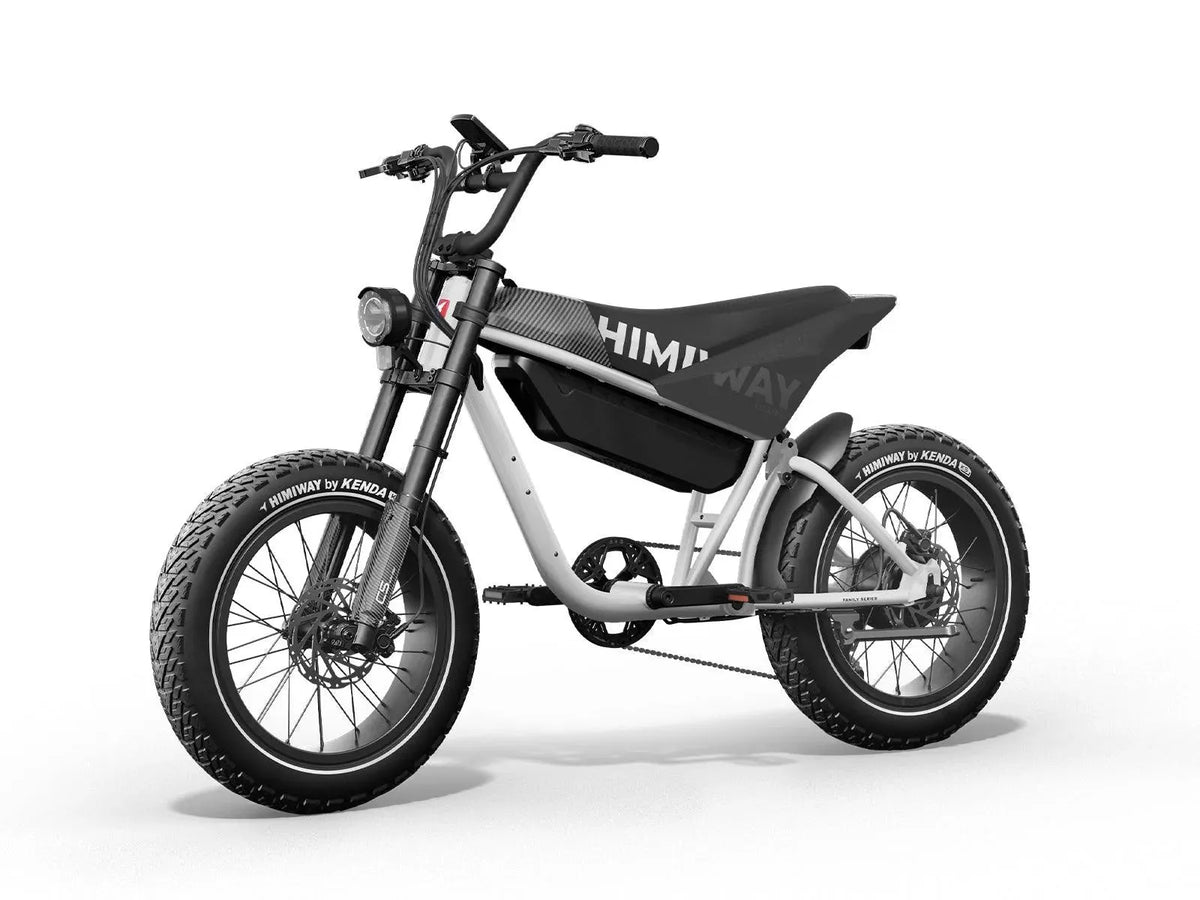

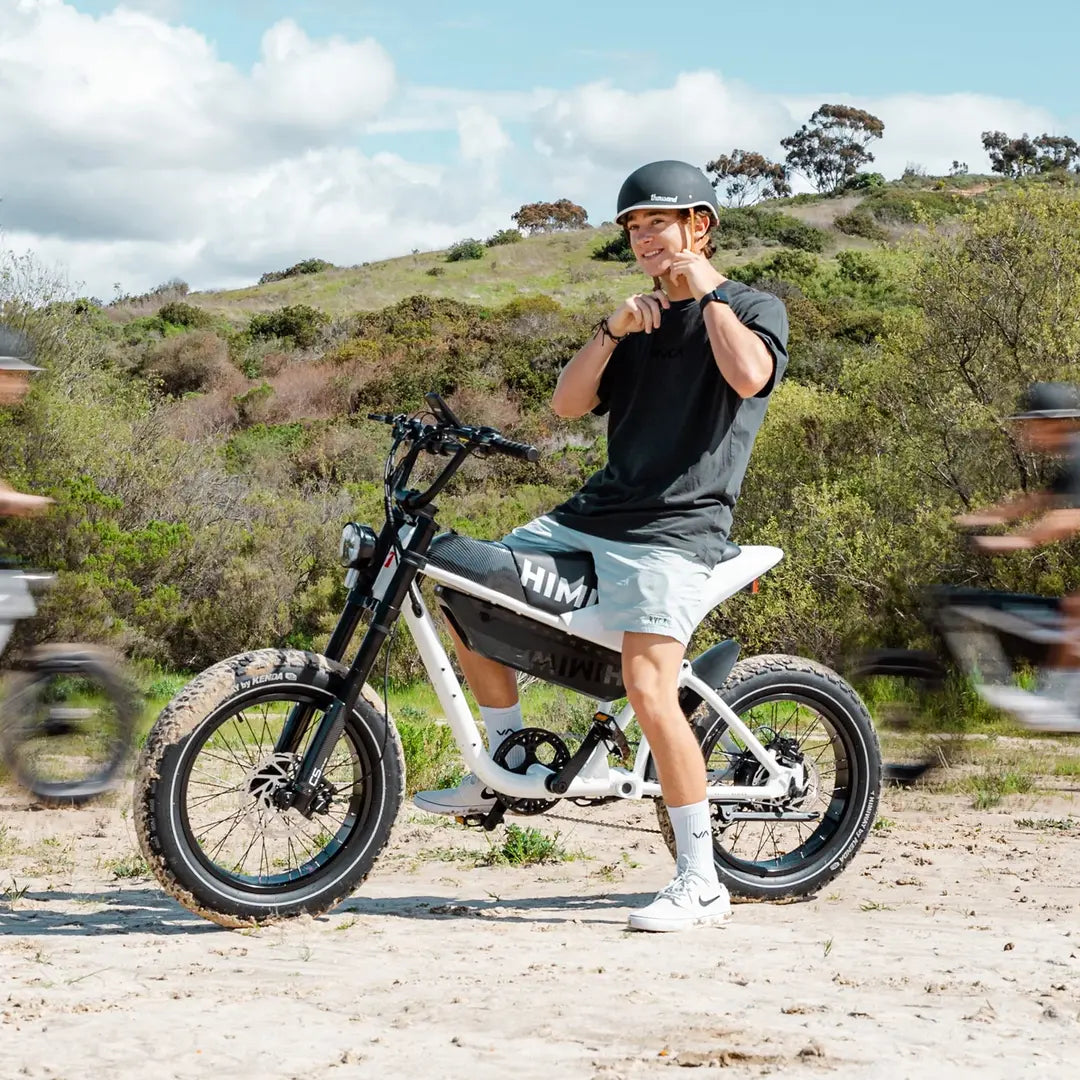

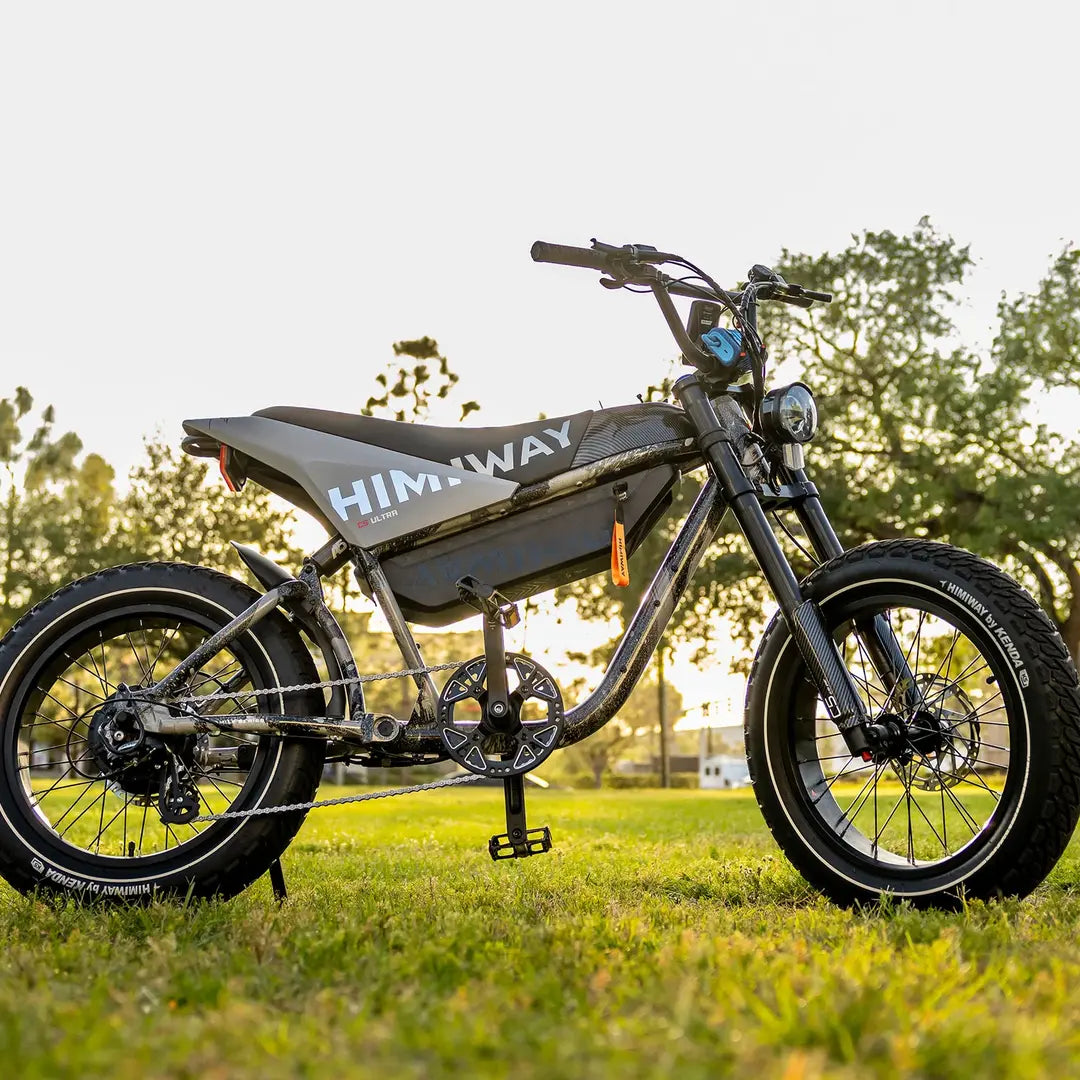

Himiway C5 Electric Motorbike

The Himiway C5 Electric Motorbike combines motorcycle-inspired styling with an electric-bike platform for urban commuting and recreational riding. It uses a 6061 aluminum frame, a 750W brushless geared hub motor, a Samsung/LG 48V 20Ah battery, an extended saddle, 20" x 4.0" tires, and a thumb throttle. The page lists a 60-80 mile range and a maximum system weight of 330 lb.

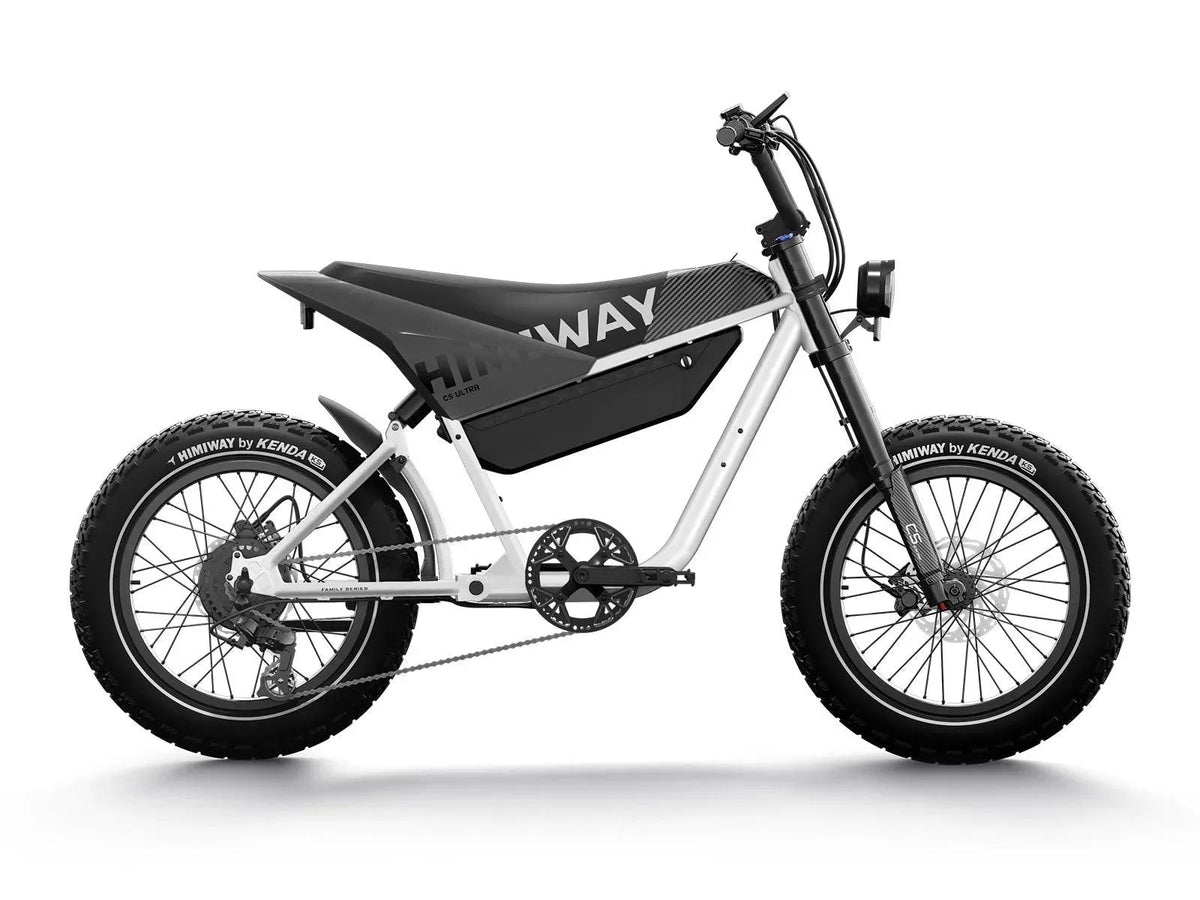

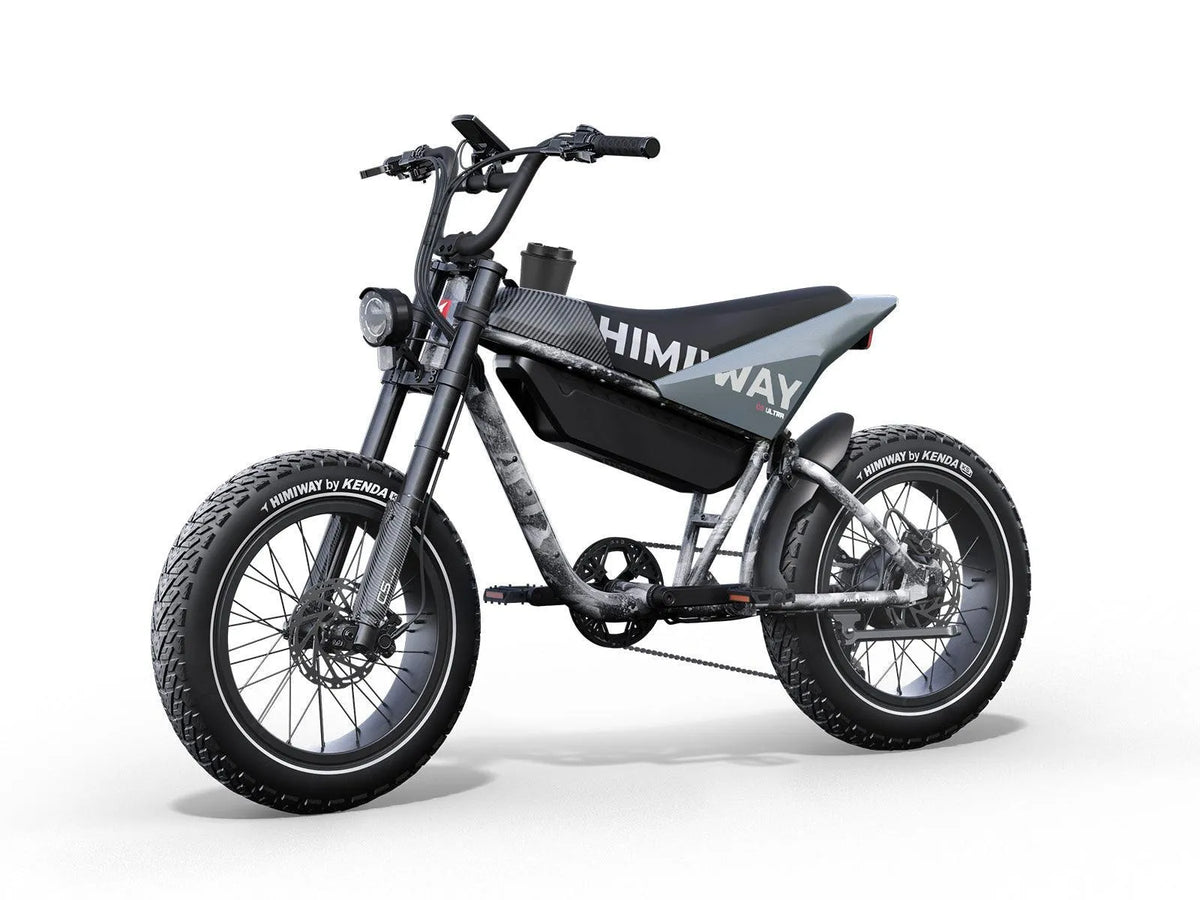

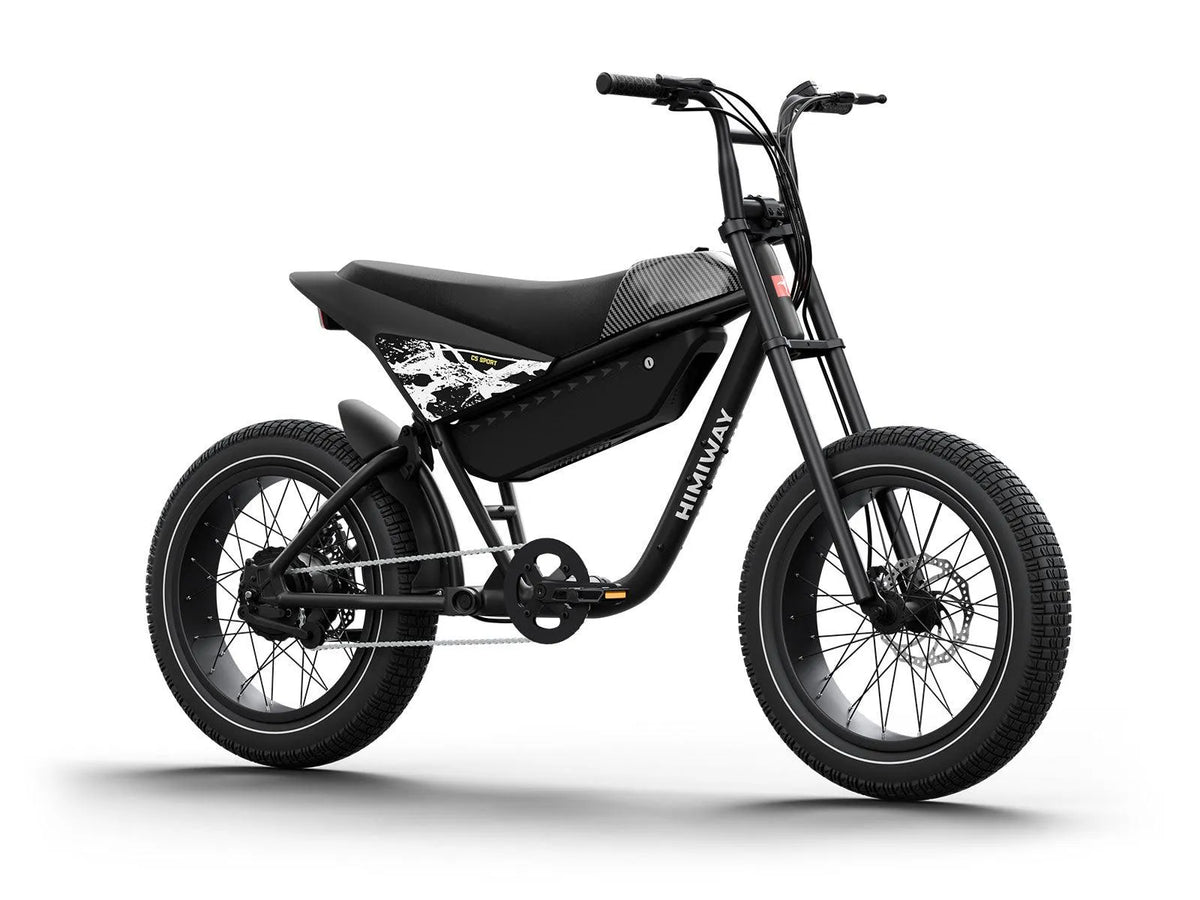

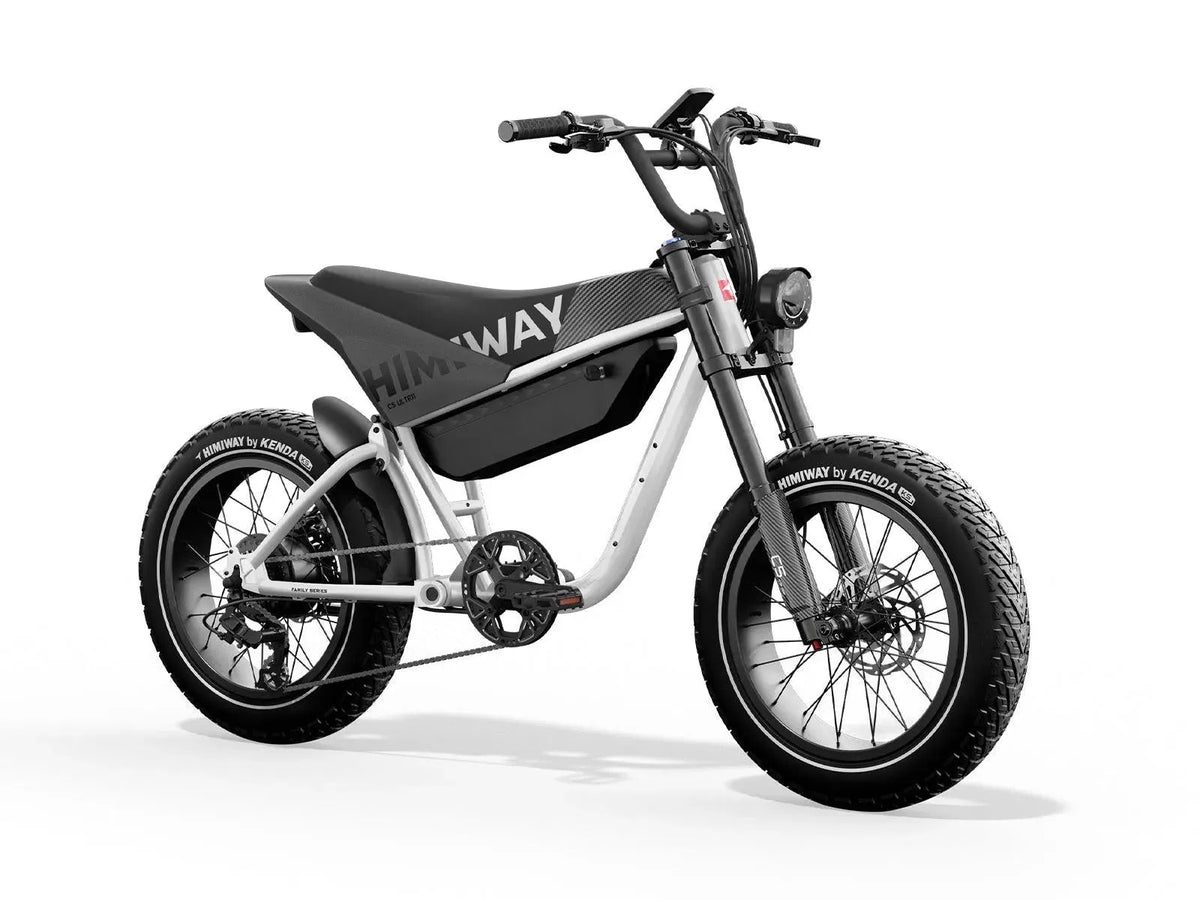

The C5 is available in Sport and Ultra builds. The Sport uses a cadence sensor, mechanical disc brakes, and a coil-shock setup, while the Ultra uses a torque sensor, hydraulic disc brakes, and an adjustable air-suspension setup. Both builds are offered with Black, Ink Gray, and White color choices on the supplied product page.

Key Features

• 750W Brushless Geared Hub Motor: Uses a 750W brushless geared motor. The product description lists 86Nm maximum motor torque and describes the motor as suitable for inclines up to 15°.
• 960Wh Battery: Uses a Samsung/LG 48V 20Ah battery. The page identifies the battery capacity as 960Wh and describes a breathing-light design.
• 60-80 Mile Range: The listed range is 60-80 miles, with actual range affected by factors including rider weight, incline, and pedal-assist level.
• 20 MPH Top Speed: The product page lists a 20 MPH top speed in its primary product summary.
• Motorbike-Inspired Design: Features a motorcycle-inspired frame design with an elongated saddle intended to provide flexible riding posture.
• 20" x 4.0" Fat Tires: Uses wide tires designed for all-terrain riding. The product description identifies the tires as 20" x 4" Kenda K-Shield fat tires.
• Extended Saddle: Uses an extended seat designed to accommodate riders of different heights and riding positions.
• Front Lighting: The product description identifies an ultra-bright 48V front headlight.

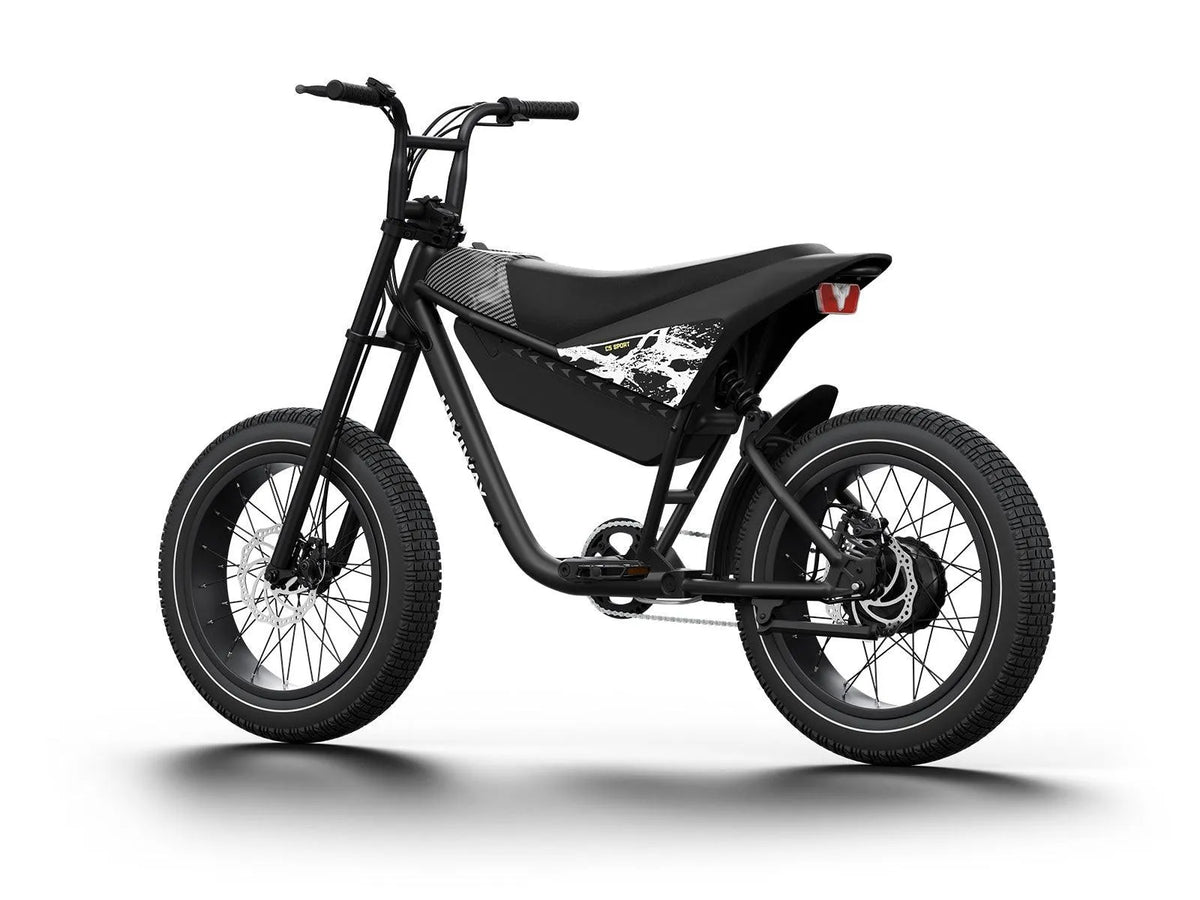

• Integrated Rear Lighting: Uses frame-integrated taillights that illuminate automatically when braking.
• Thumb Throttle: Provides thumb-throttle control.
• Pedal Assist: The page lists 0-5 levels of pedal assist.
• Breathing Battery Light: The battery incorporates a breathing-light design described on the product page.

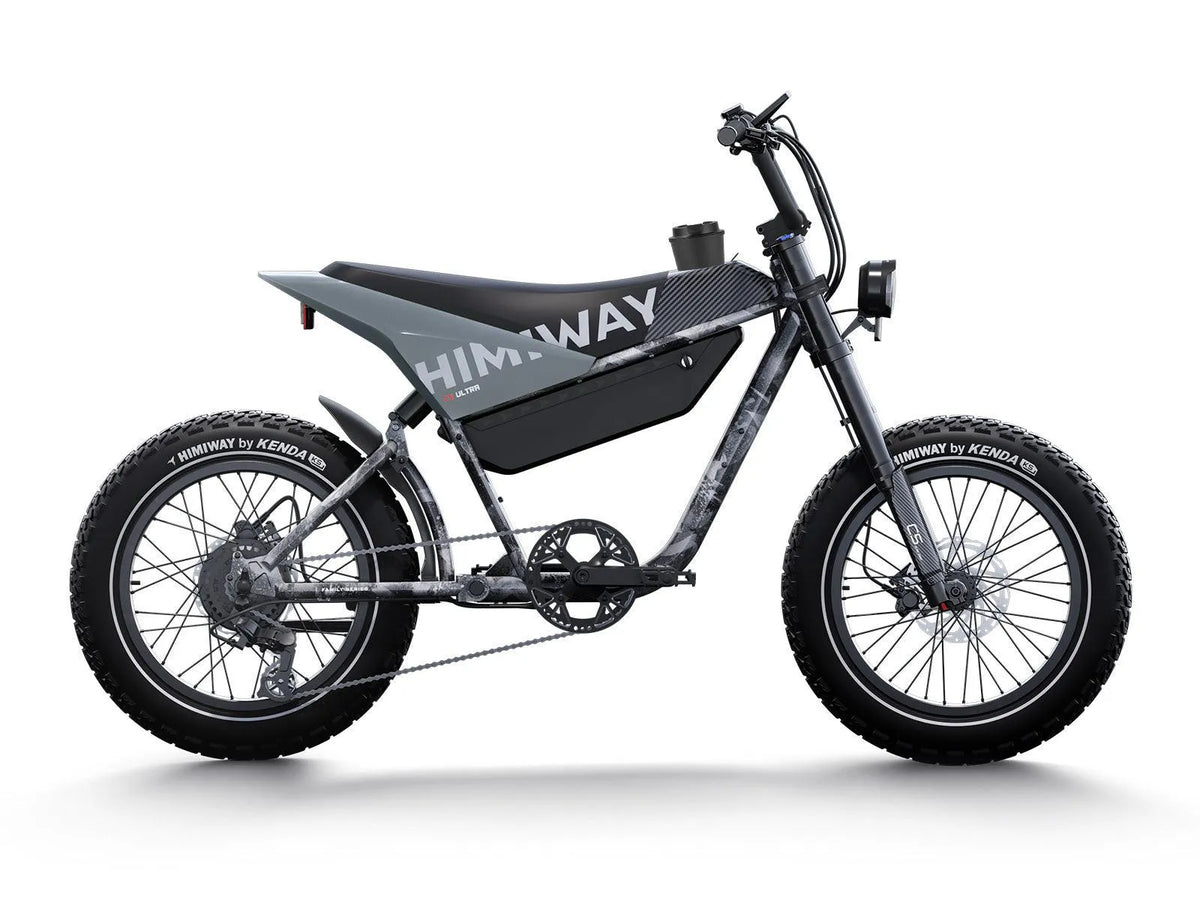

• Coffee Cup Holder: The product description identifies a built-in coffee cup holder as part of the C5's urban-oriented design.
• Sport Build: The Sport build uses a cadence sensor, mechanical disc brakes, and a coil-shock configuration.

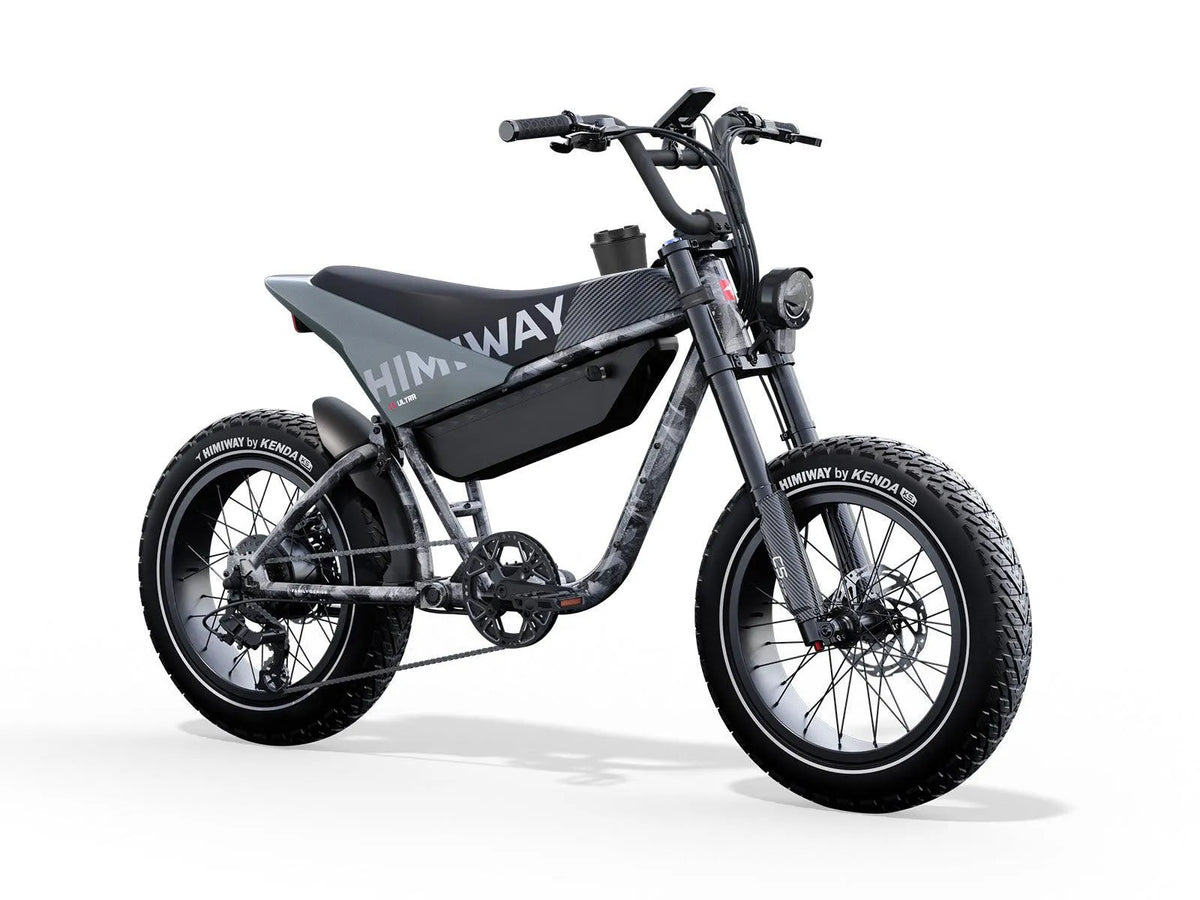

• Ultra Build: The Ultra build uses a torque sensor, hydraulic disc brakes, and premium adjustable suspension components.

Specifications

• Frame: 6061 Aluminum frame
• Recommended Rider Height: 5'4" ~ 6'3"
• Battery: Samsung/LG 48V 20Ah
• Motor: 750W brushless geared motor
• Display: Himiway C2 LCD Display
• Throttle: Thumb throttle
• Range: 60-80 miles
• Controller: 48V/22A
• Charger: U.S. standard 3.0 A fast charger
• Weight: 88 lb.
• Max. System Weight: 330 lb.
• Saddle: Extended seat
• Pedal: Aluminum pedal
• Kickstand: Heavy-duty aluminum kickstand
• Lights: 48V LED light

Sport Specifications

• Headset: H115
• Fork: Dual Crown Steel Rigid Fork
• Tires: Innova 20x4.0 lA-2149
• Sensors: Cadence Sensor
• Crankset: 142MM Alloy Crankset
• Freewheel: 16T Single Speed
• Chain: KMC Z1eHX 120L
• Brakes: Mechanical Brakes
• Stem: 28.631.840L
• Handlebar: JY-AL-SMT2,W680L21122.231.810°
• Pedal Assist: 0~5 Level Pedal Assist
• Integrated Taillight: Integrated Taillight

Ultra Specifications

• Headset: Neco H114 28.64430
• Fork: KKE R150S coil spring fork compression | Rebound adjustable, 140mm travel, 15*150mm axle
• Shock: EXA A5-RE 180*47mm
• Front Wheel: Rim: MD-147 204.0"36H12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15135MM 12G*36H
• Rear Wheel: Rim: MD-147 20*4.0"36H12G A/V | Spoke: 12G 126mm/127mm | Hub: 48V 750W Himiway Hub Motor
• Tires: Kenda X Himiway 20*4.0
• Sensors: Torque sensor | speed sensor | brake sensor
• Crankset: 44T BCD104 6061-T6 145mm
• Freewheel: Shimano MF-TZ500-7 14-28T
• Chain: KMC Z8.3 EPT 130L
• Groupset: Shimano Altus M310 7 speed
• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 hydraulic brake
• Rotors: Tektro TR180-52 F:180mm R:180mm
• Stem: 3D forged alloy Ext:40mm
• Handlebar: YC-B086 22.231.8720mm
• Seatpost: /
• Pedal: Aluminum pedal
• Lights: 48V LED light
• Kickstand: Heavy-duty aluminum kickstand

Size Guide

• Recommended Height: 5'4" ~ 6'3"
• Total Length: 70.8
• Handlebar Height: 48.8
• Wheelbase: 47
• Standover Height: 31.8
• Chain Stay Length: 22.5
• Frame Stack: 31.9
• Wheel Diameter: 23.3
• Head Tube Length: 6.7
• Handlebar Length: 26.7
• Frame Reach: 13
• Head Angle: 65°
• Sport Minimum Seat Height: 33
• Sport Maximum Seat Height: 33
• Sport Effective Top Tube Length: 29.4
• Sport Head Angle: 66.8°
• Sport Standover Height: 31.8
• Ultra Handlebar Length: 29.1
• Ultra Minimum Seat Height: 33
• Ultra Maximum Seat Height: 33
• Ultra Effective Top Tube Length: 29.4
• Ultra Head Tube Length: 6.7
• Ultra Head Angle: 66.8°
• Ultra Standover Height: 31.8"

Included

• E-bike
• Cup for Ultra
• Charger
• Manual

Warranty

• Warranty: 2-Year Warranty
