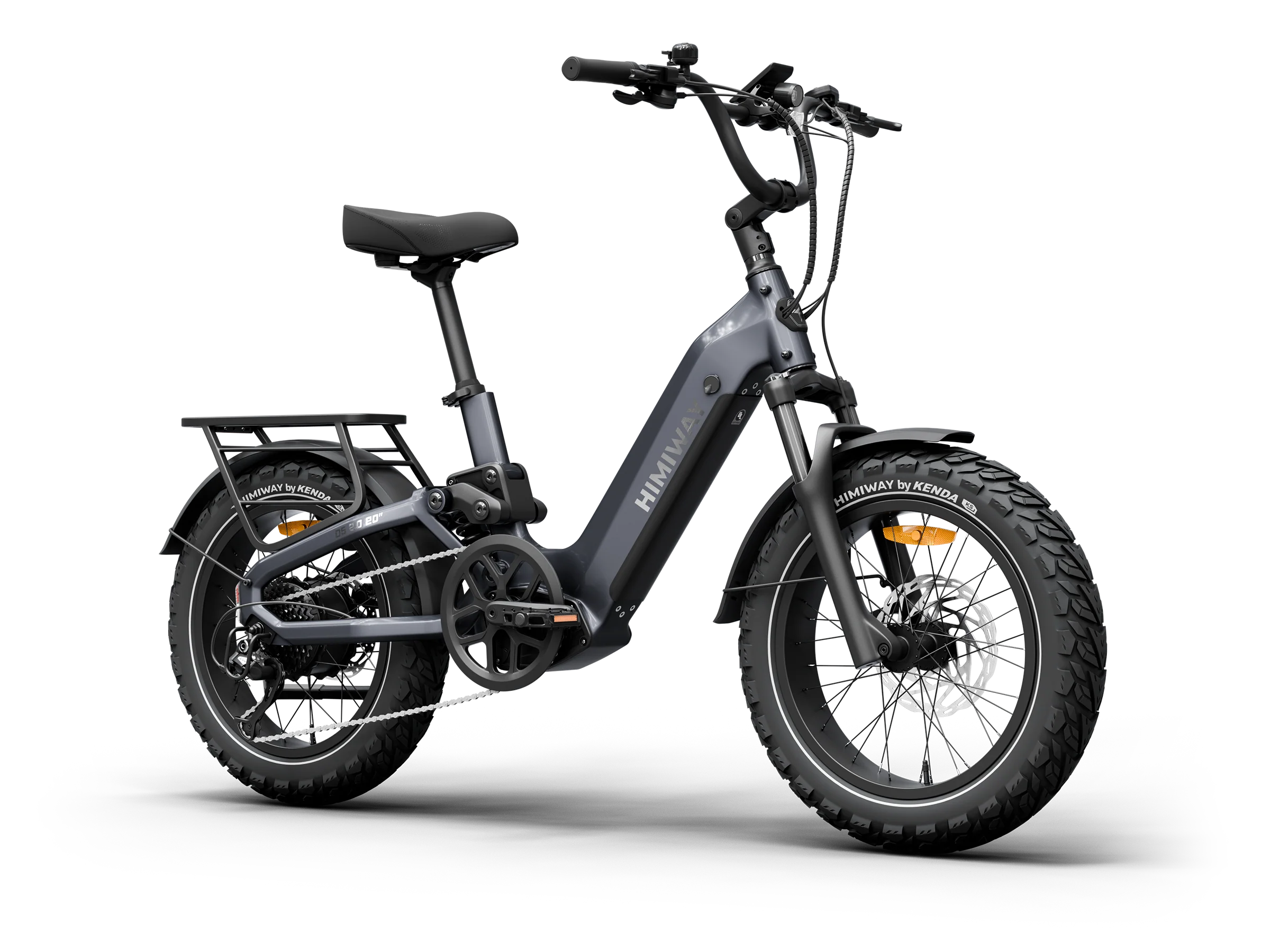

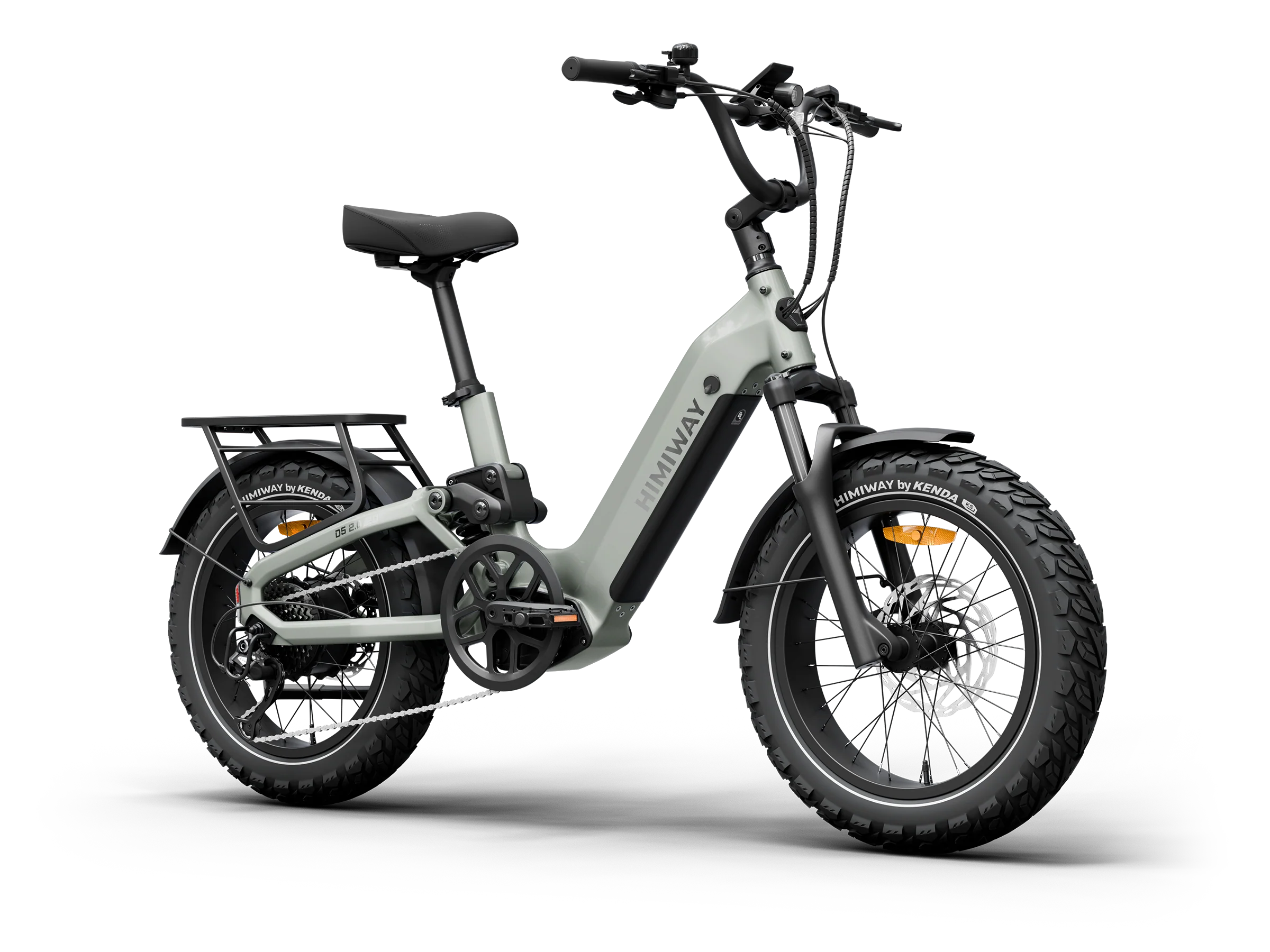

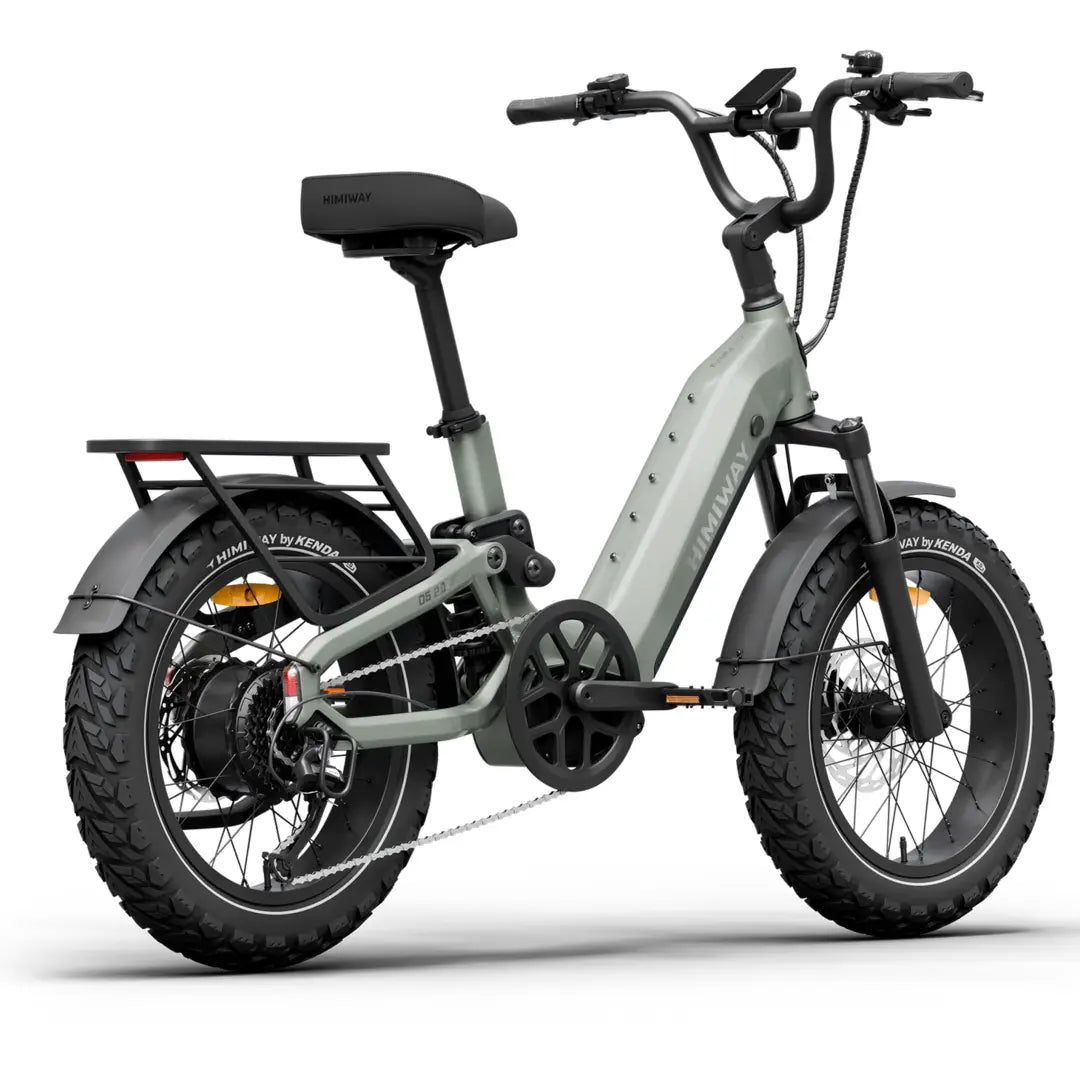

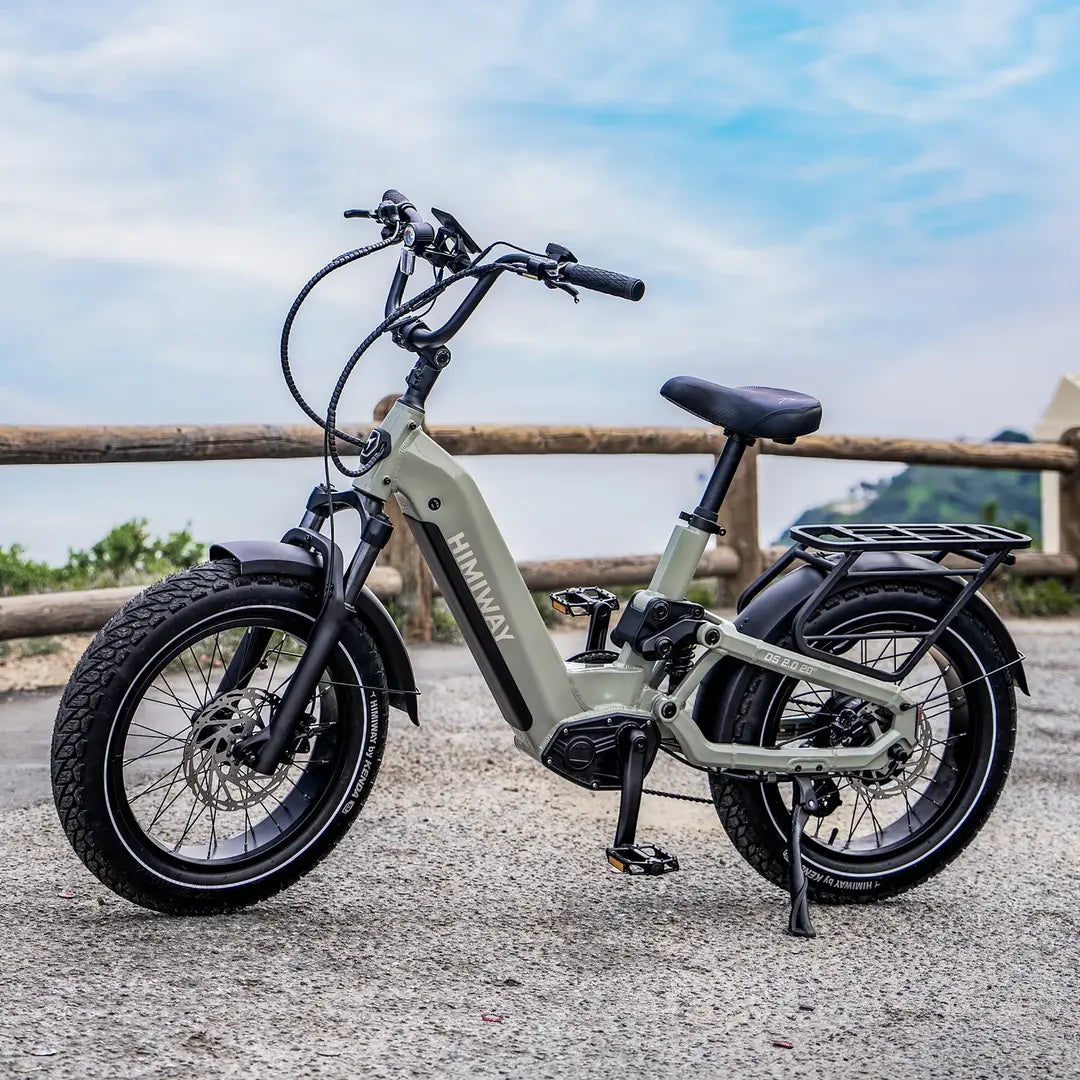

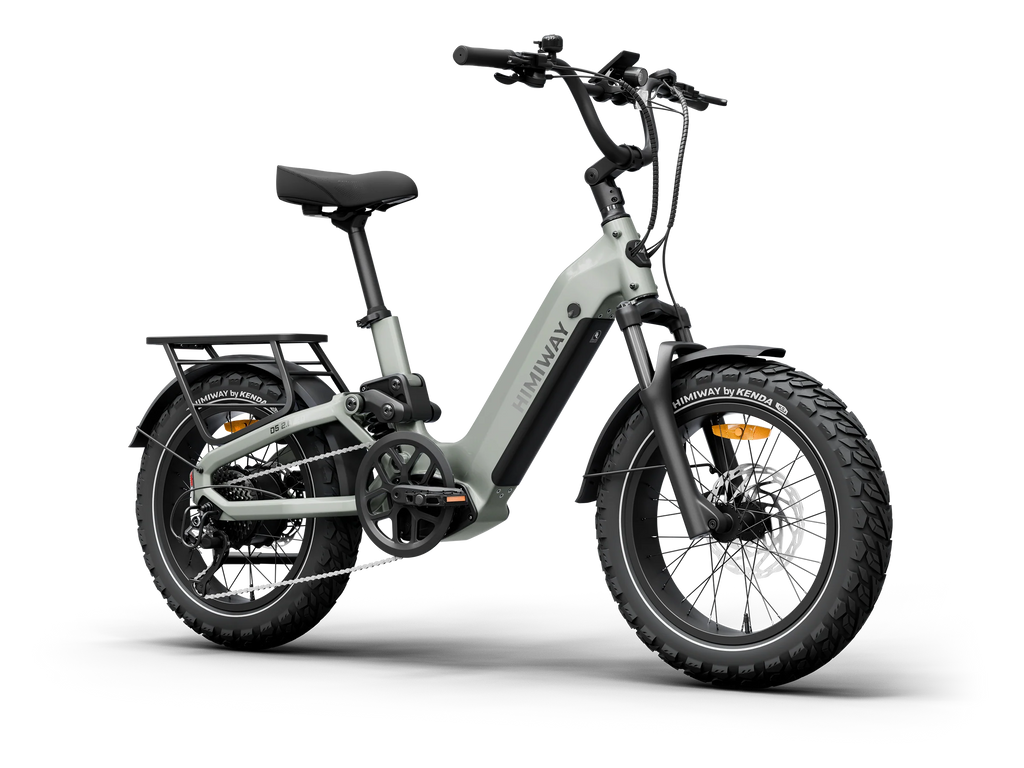

Himiway D5 2.0 20" eBike

The Himiway D5 2.0 20" is a compact full-suspension electric bike designed for riders who want easier maneuverability, a lower standover height, and a comfortable riding position. Its 20" wheels, 17" standover height, and lower center of gravity are designed to make mounting and handling more accessible.

The bike combines a 48V 750W geared hub motor with 90Nm of torque, full suspension with 90mm front and 100mm rear travel, 20×4.0" Kenda fat tires, and switchable torque/cadence sensing. It is suited to everyday transportation, neighborhood riding, recreational cycling, campground exploration, and other outdoor riding applications.

Key Features

• Full Suspension: Uses a Himiway hydraulic suspension fork with 90mm travel and a rear suspension system with 100mm travel.
• 750W Geared Hub Motor: Features a 48V, 750W motor with 90Nm of torque.
• Compact 20" Wheels: Uses 20" wheels designed for maneuverability and a lower center of gravity.
• 20×4.0" Fat Tires: Equipped with Kenda × Himiway K-Shield punch-resistant tires with reflective sidewalls.
• Torque and Cadence Modes: Allows riders to switch between torque and cadence sensor operation.
• Automatic and Manual Assist: Provides Auto Pedal Assistant operation and 5 pedal-assist levels.
• Adjustable Stem: Features a 0–60° adjustable aluminum alloy stem for adjusting the riding position.
• Full-Color Display: Includes a 3.5" full-color, high-brightness Bluetooth display with adjustable angle.
• Hydraulic Disc Brakes: Uses Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors.
• Integrated Lighting: Includes a 130 Lux/800 LM adjustable-angle integrated front LED and an integrated rear light with braking indication and steady/flash operation.
• 440-lb. Payload Capacity: The 20" version has a listed bike load capacity of 440 lb., with a rider maximum of 265 lb. (120 kg).

Specifications

• Frame: Aluminum alloy, rear wheel 100mm travel
• Fork: Himiway hydraulic suspension, 90mm travel with lock-out
• Motor: 48V, 750W, 90Nm geared hub motor
• Battery: 48V, 15Ah, IPX6
• Battery Cell: Samsung/LG 21700 cell
• Charger: 48V, 3.0A fast charger
• Display: 3.5" full color, high brightness, Bluetooth, adjustable angle
• Sensor: Torque/cadence switchable
• Throttle: Ergonomic thumb throttle
• Pedal Assist: Auto Pedal Assistant + 5 PAS levels
• Walk Mode: 1.9–3.7 MPH
• Front Light: 130 Lux/800 LM high-output integrated LED, adjustable angle
• Rear Light: Braking indicator; steady/flash rear light integrated with the frame
• Waterproof Rating: IPX5 whole bike; IPX6 battery
• Maximum Speed (Default): 20 MPH
• Maximum Speed Adjustable Range: 4–28 MPH
• Class: 1/2/3
• Throttle Range: 40 miles
• Pedal Assist Range: 70 miles
• Chainring: 52T narrow-wide chainring
• Crankset: Aluminum alloy, 170mm
• Freewheel: 8-speed, 11–34T
• Rear Derailleur: SHIMANO 8-speed
• Shift Lever: SHIMANO 8-speed
• Chain: 8-speed
• Brake: Tektro hydraulic disc brake
• Rotors: 203mm front / 180mm rear
• Brake Levers: Aluminum alloy, with power cutoff
• Rims: Aluminum alloy
• Front Hub: Aluminum alloy, anti-theft quick release
• Tires: 20×4.0 Kenda × Himiway, K-Shield punch-resistant, reflective sidewalls
• Handlebar: Aluminum alloy, Φ31.8mm, 660mm
• Grips: Durable ergonomic grips, lockable
• Stem: 0–60° adjustable, aluminum alloy, Φ31.8mm, 60mm
• Saddle: Memory foam comfort ergonomic seat
• Seatpost: Aluminum alloy, Φ33.9mm, 350mm
• Clamp: Aluminum alloy, quick release
• Fenders: Plastic, front and rear full coverage
• Rear Rack: MIK HD compatible alloy
• Pedals: Aluminum alloy
• Kickstand: Aluminum alloy, included, rear mount
• Bike Weight: 80 lb.
• Bike Load Capacity: 440 lb.
• Rear Rack Load Capacity: 120 lb.

Size Guide

• Size: Regular
• Recommended Rider Height: 4'11"–6'3" (150–190 cm)
• Total Length: 70 in. (175 cm)
• Handlebar Height: 44 in. (0°) (112 cm (0°))
• Handlebar Width: 28.3 in. (72 cm)
• Wheelbase: 46.5 in. (118 cm)
• Wheel Diameter: 23.3 in. (59 cm)
• Minimum Seat Height: 30.7 in. (78 cm)
• Seat Adjustment Height: 9 in. (23 cm)
• Chain Stay Length: 18.9 in. (48 cm)
• Frame Stack: 20.6 in. (53 cm)
• Frame Reach: 16.8 in. (42 cm)
• Effective Top Tube: 24.3 in. (62 cm)
• Head Tube Length: 5.9 in. (15 cm)
• Head Angle: 68°
• Standover Height: 16.9 in. (43 cm)

Included

• Ebike
• Tools
• Charger
• Owner's Manual
• Accessories
• Lock-out QR skewer
• Headlight
• Multi-tool
• 13–15mm wrench
• 8–10mm wrench
• Pedals
• Bell
• Drawstring bag
• Specific screw set
• Hardware

Warranty

• Warranty: 2-year warranty, including coverage for all electrical components.
