Description
Full Suspension
Travel F:100mm R:130mm
Torque / Cadence
2 Riding Experiences
750W 90Nm
Geared Hub Motor
Smart Auto
5 Assist System
400 lb.
Payload Capacity
26 × 4.0"
MAXXIS Tires

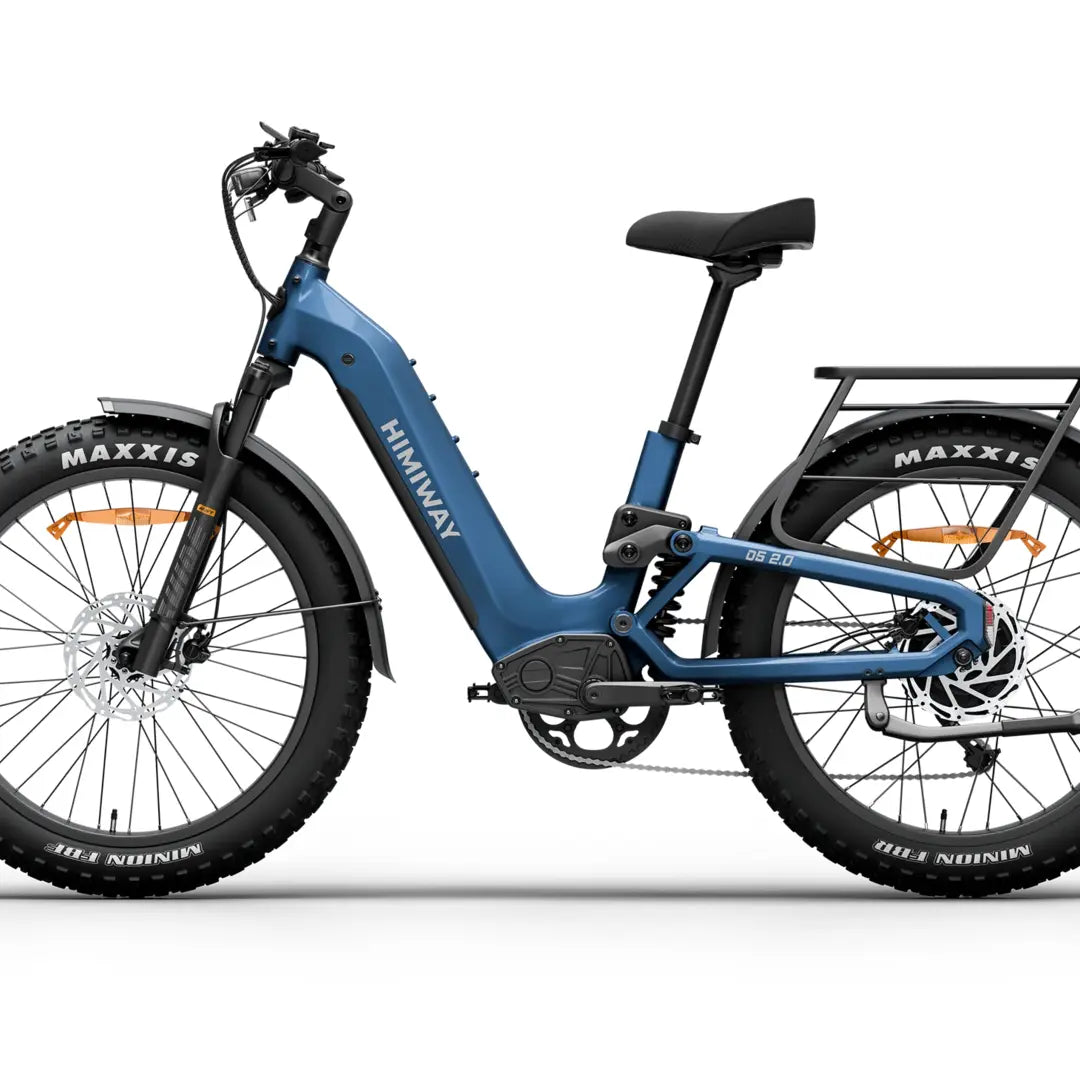

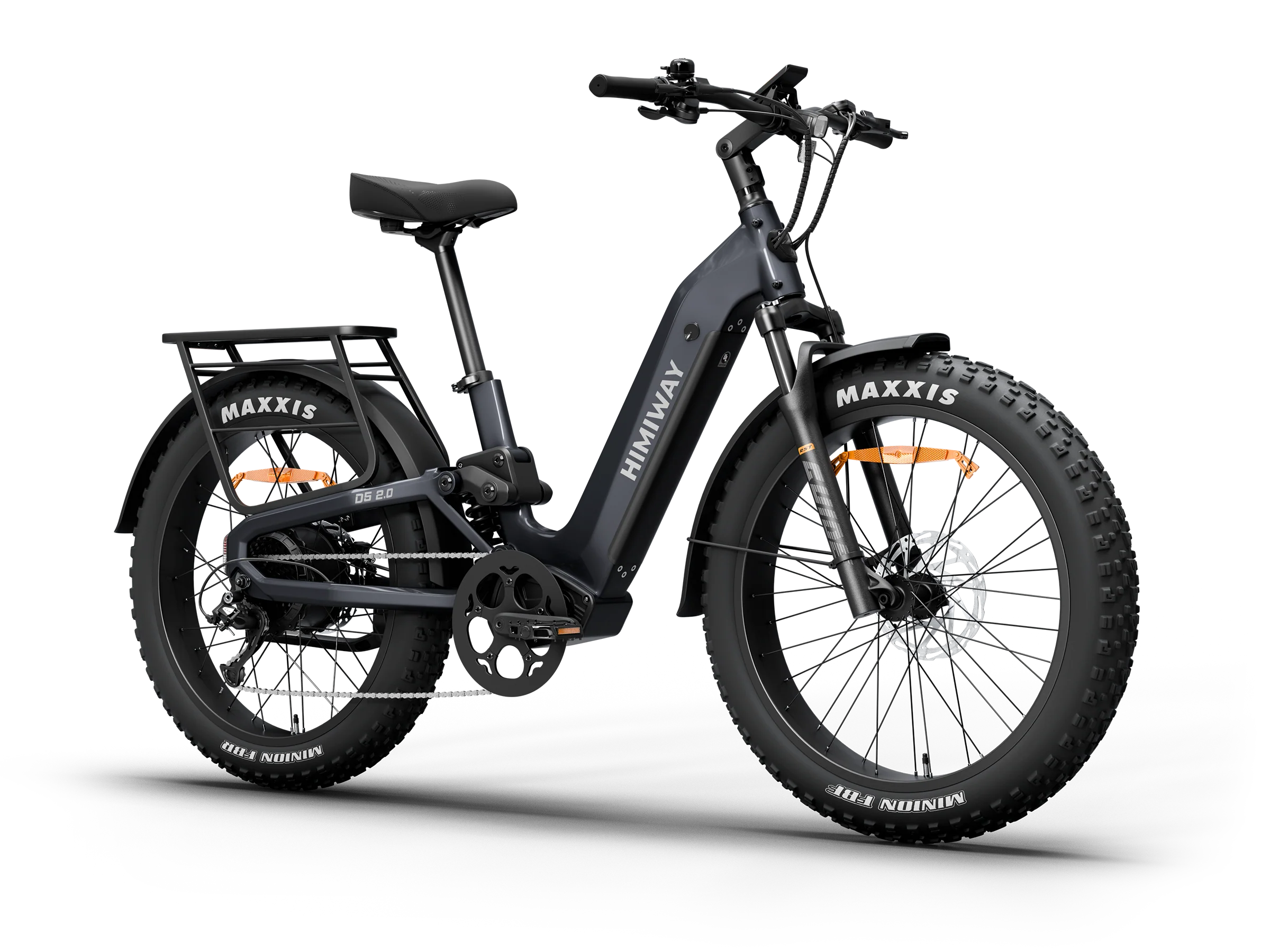

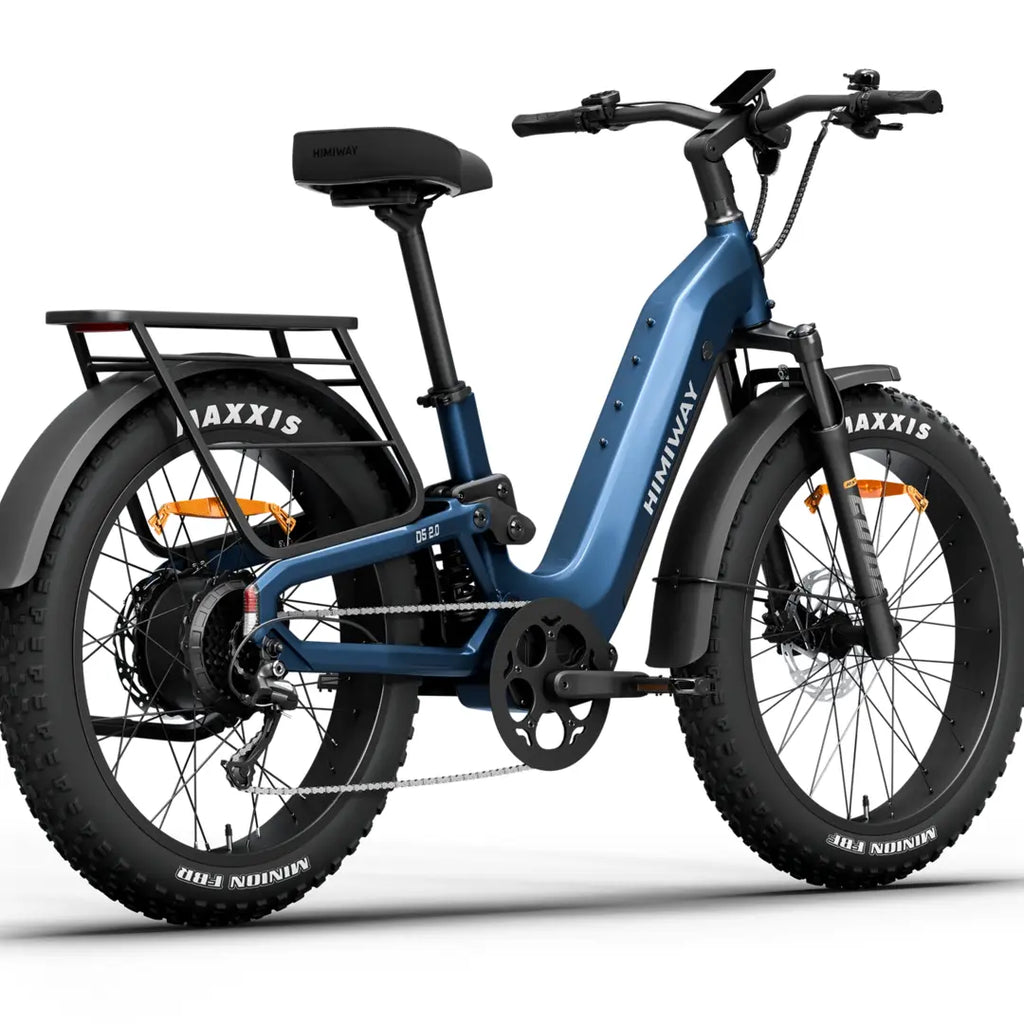

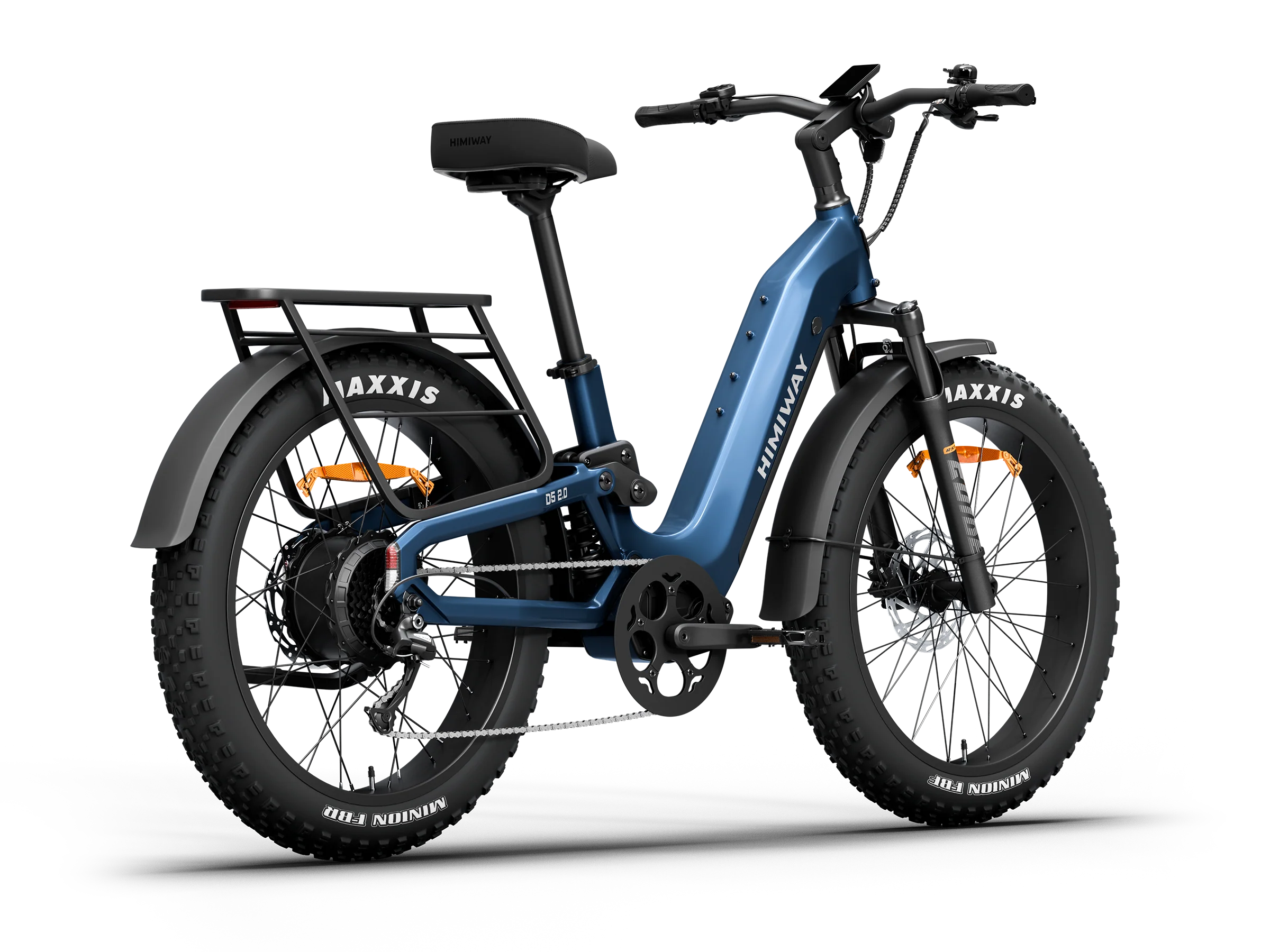

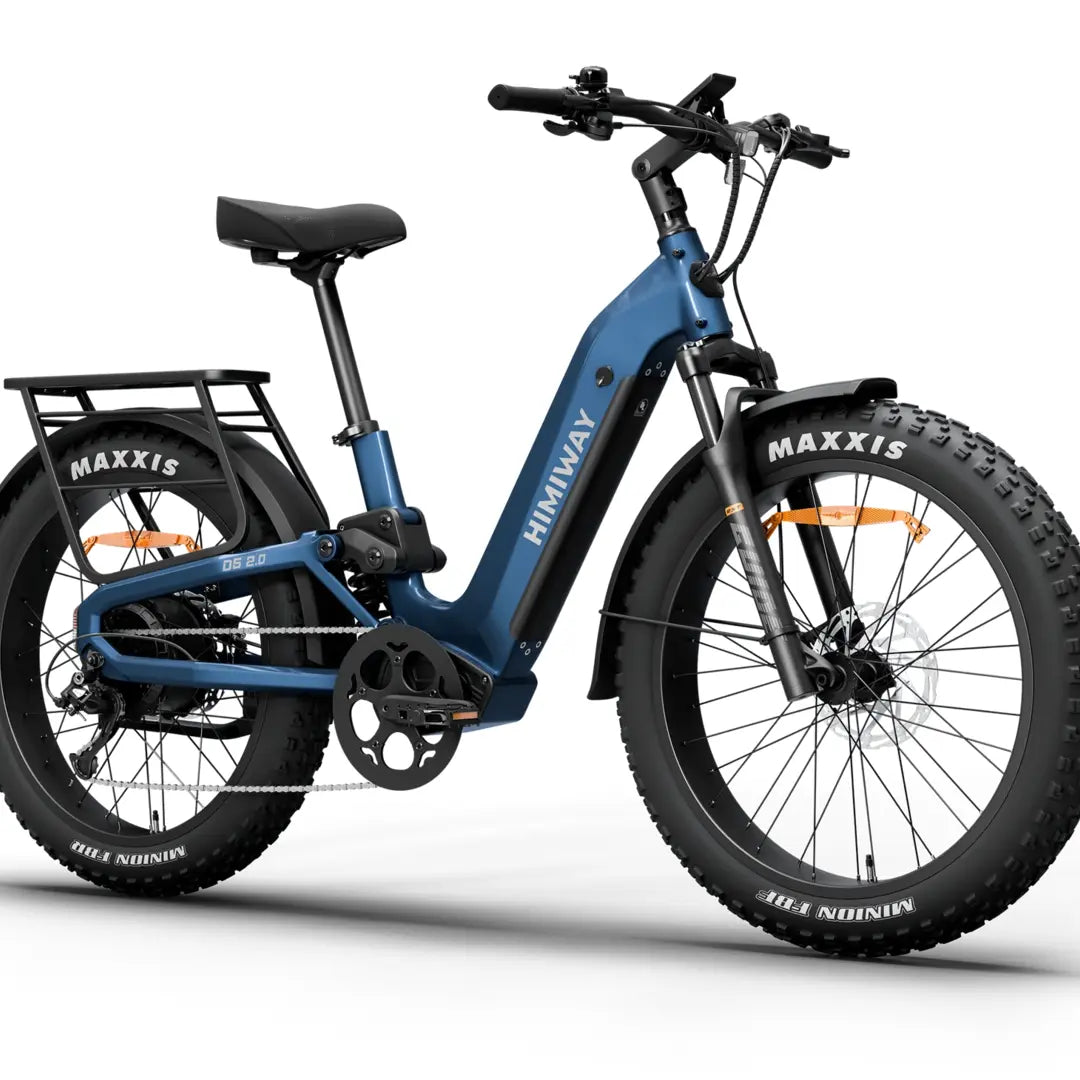

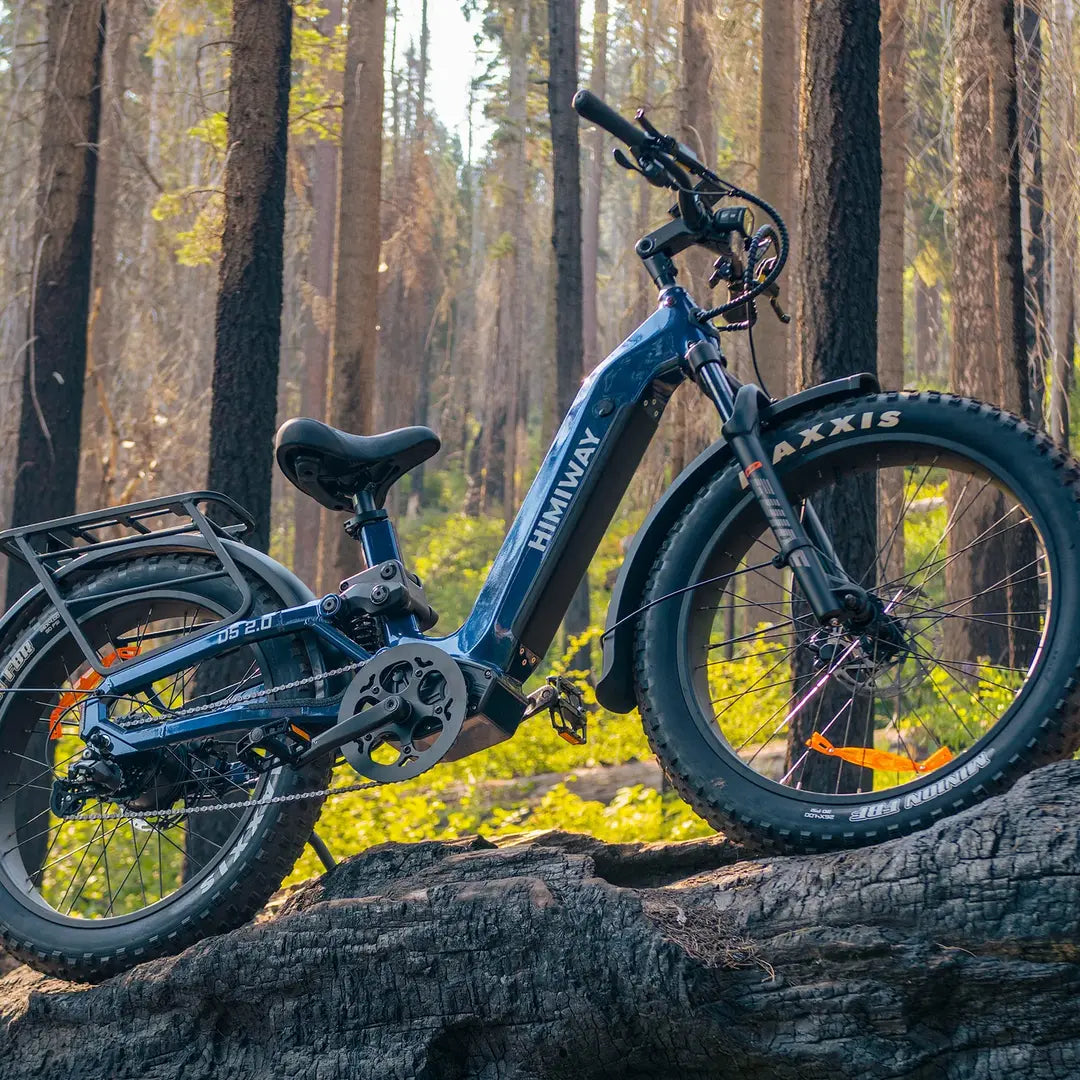

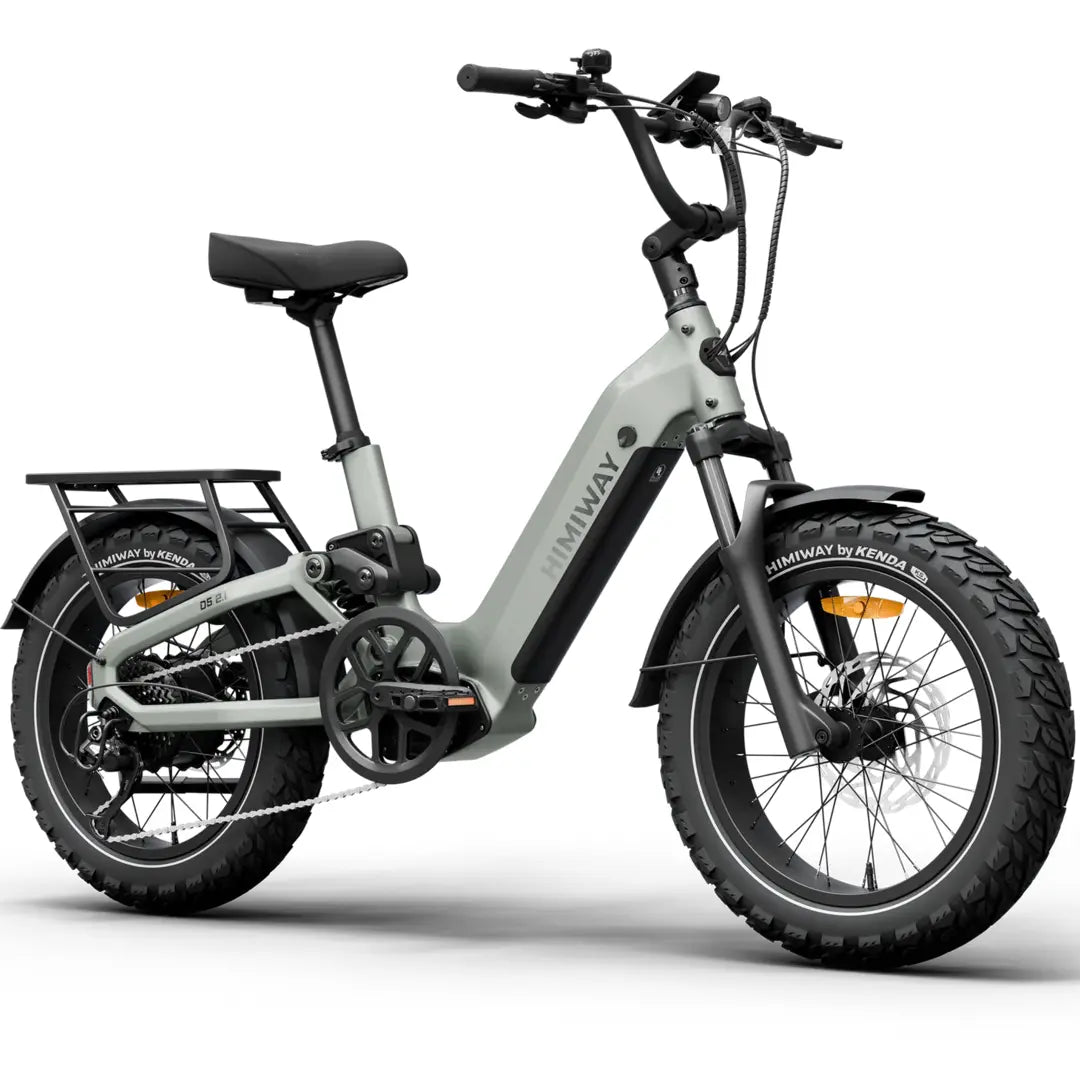

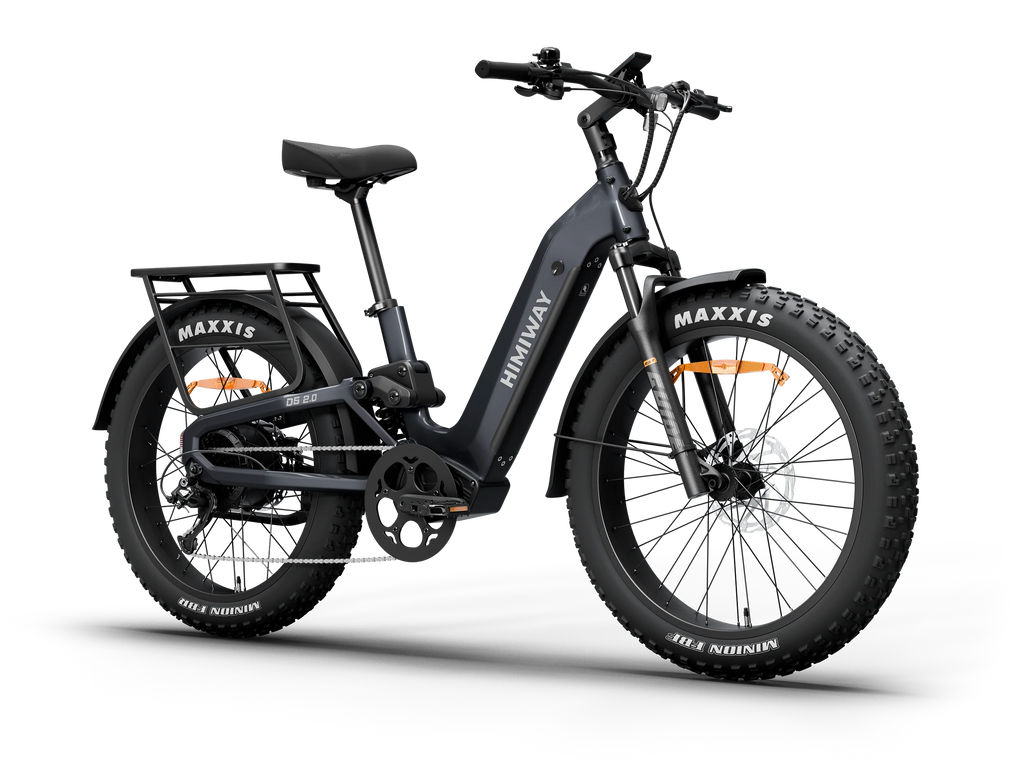

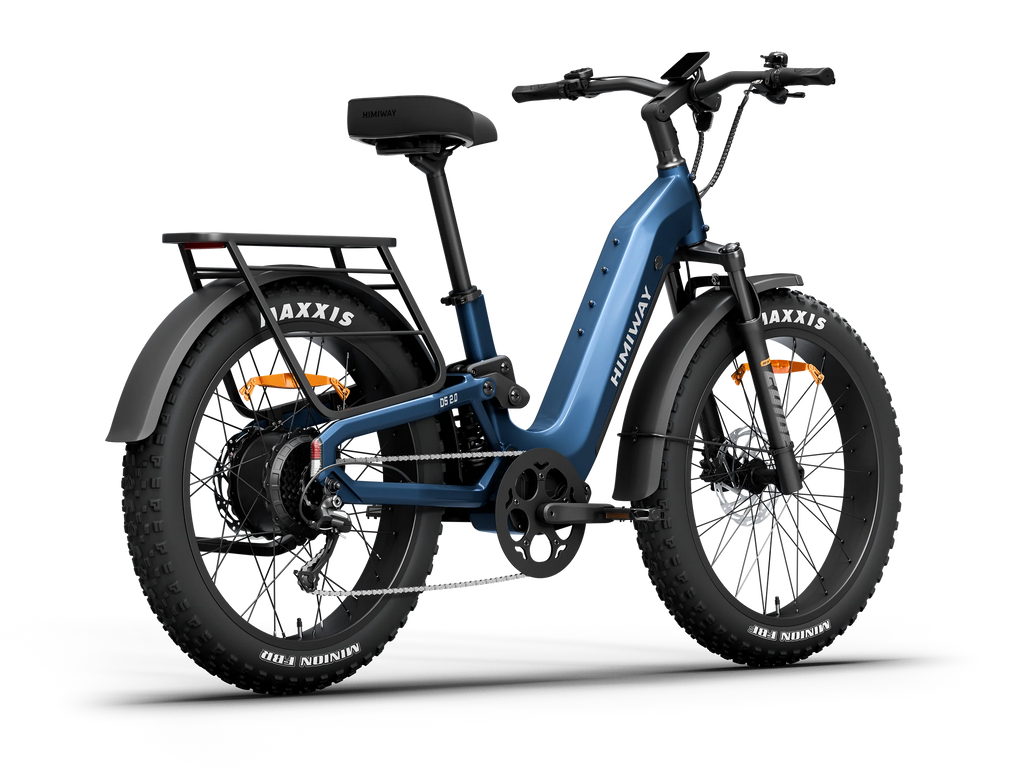

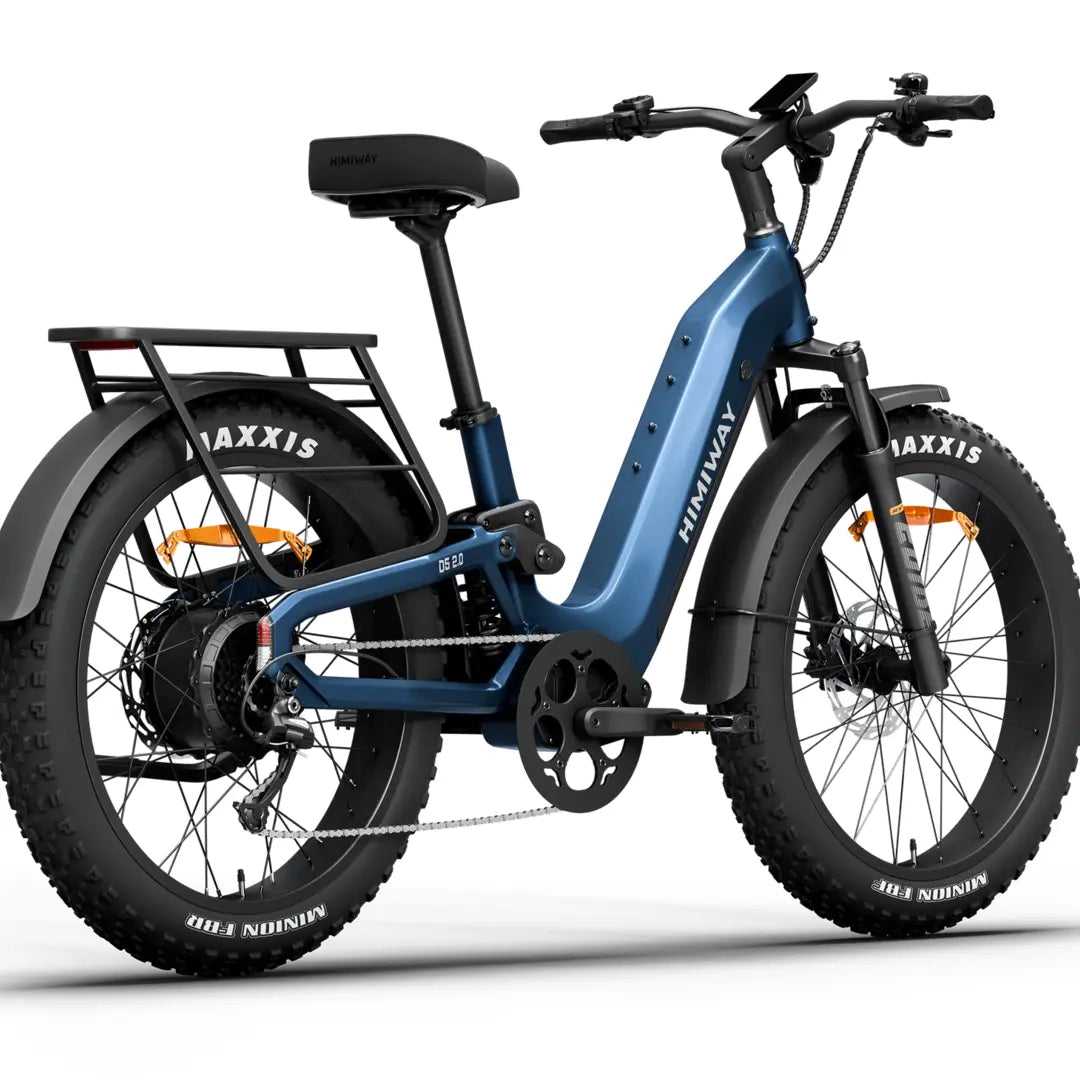

The Himiway D5 2.0 ST eBike is a full-suspension step-through electric bike designed for accessible mounting, everyday transportation, recreational riding, and longer leisure rides. Its low step-through frame, adjustable cockpit, memory-foam comfort saddle, and full-suspension system are designed around a comfortable riding position and easier access.
The bike uses a 48V, 750W rear hub motor with 90Nm of torque and a 48V, 15Ah Samsung/LG 21700-cell battery. It offers switchable torque and cadence sensor modes, an Auto Pedal Assistant with 5 PAS levels, fat tires, hydraulic disc brakes, and a 400-lb. bike load capacity.
Key Features
- Step-Through Frame: The low step-through design provides easier mounting and dismounting.
- Full Suspension: Uses an RST hydraulic suspension fork with 100mm travel and rear suspension with 130mm travel according to the detailed Technical Specifications.
- 750W Rear Hub Motor: The motor is rated at 48V, 750W and 90Nm of torque.
- Switchable Sensor Modes: Riders can switch between torque and cadence sensor modes.
- Auto Pedal Assistant: Includes an Auto Pedal Assistant and 5 PAS levels.
- Adjustable Cockpit: The aluminum-alloy stem adjusts from 0–60° for a customizable riding position.
- Comfort Saddle: Features a memory-foam comfort ergonomic seat.
- Fat Tires: Equipped with Maxxis Minion FBF / FBR 26 x 4.0 tires that are tubeless ready.
- Hydraulic Disc Brakes: Uses Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors.
- Integrated Lighting: Includes a 120 Lux high-output adjustable-angle front LED and an integrated rear light with braking indicator, turn signal, and steady/flash functions.
- MIK HD-Compatible Rear Rack: The alloy rear rack supports a listed load capacity of 120 lbs.
- Adjustable Color Display: The 3.5" full-color display features high brightness, Bluetooth, and an adjustable angle.
- Water Resistance Ratings: The whole bike is rated IPX5, while the battery is rated IPX6.
Specifications
- Frame: Aluminum alloy, rear wheel 130mm travel
- Fork: RST hydraulic suspension, 100mm travel, lock-out, nutted, rebound adjustable
- Motor: 48V, 750W, 90Nm
- Motor Type: Rear hub
- Battery: 48V, 15Ah, IPX6
- Battery Cells: Samsung/LG 21700 cell
- Charger: 48V, 3.0A fast charger
- Display: 3.5" full color, high brightness, Bluetooth, adjustable angle
- Sensor: Torque / cadence switchable
- Throttle: Ergonomic thumb throttle
- Pedal Assist: Auto Pedal Assistant + 5 PAS Levels
- Walk Mode: 1.9~3.7 MPH
- Front Light: 120 Lux high-output integrated LED, adjustable angle
- Rear Light: Braking indicator, turn signal, rear light steady/flash, integrated with the frame
- Waterproof Rating: IPX5 whole bike; IPX6 battery
- Max Speed (Default): 20 MPH
- Max Speed Adjustable Range: 4~28 MPH
- Class: 1/2/3
- Throttle Range: 40 Miles
- Pedal Assist Range: 70 Miles
- Chainring: 52T Narrow Wide Chainring
- Crankset: Aluminum alloy, 170mm
- Freewheel: 8-speed, 13-32T
- Rear Derailleur: SHIMANO 8-speed
- Shift Lever: SHIMANO 8-speed
- Chain: 8-speed
- Brakes: Tektro hydraulic disc brake
- Rotors: 203mm front / 180mm rear
- Brake Levers: Aluminum alloy, with power cutoff
- Rims: Aluminum alloy
- Front Hub: Aluminum alloy, nutted
- Tires: Maxxis Minion FBF / FBR 26 x 4.0, tubeless ready
- Handlebar: Aluminum alloy, Φ31.8mm, 680mm
- Grips: Durable ergonomic grips, lockable
- Stem: 0–60° adjustable, aluminum alloy, Φ31.8mm, 90mm
- Saddle: Memory Foam comfort ergonomic seat
- Seatpost: Aluminum alloy, Φ33.9mm
- Clamp: Aluminum alloy, quick release
- Fenders: Aluminum alloy, front and rear full coverage
- Rear Rack: MIK HD Compatible Alloy
- Pedals: Aluminum alloy
- Kickstand: Aluminum alloy, included, rear mount
- Bike Weight: 92 lbs
- Bike Load Capacity: 400 lbs
- Rear Rack Load Capacity: 120 lbs
Size Guide
- Available Size: Regular
- Recommended Rider Height: 5'1"–6'5" (165–210 cm)
- Total Length: 80.1 inch (203 cm)
- Handlebar Height: 45.6 inch (0°) (116 cm (0°))
- Handlebar Width: 26.7 inch (68 cm)
- Wheelbase: 49 inch (124 cm)
- Wheel Diameter: 28.7 inch (73 cm)
- Minimum Seat Height: 32 inch (81.5 cm)
- Seat Adjustment Height: 8 inch (20 cm)
- Chain Stay Length: 20.8 inch (53 cm)
- Frame Stack: 21.7 inch (55 cm)
- Frame Reach: 16.6 inch (42 cm)
- Effective Top Tube: 23.6 inch (60 cm)
- Head Tube Length: 5.9 inch (15 cm)
- Head Angle: 70°
- Standover Height: 19.3 inch (49 cm)
- Compatibility
- No specific external equipment compatibility information is provided on the product page beyond the bike's own MIK HD-compatible rear rack specification.
Included
- E-bike
- Rear Rack
- Protection Fender Kit
- 16 in 1 Repair Tool
- Charger
- Manual
Warranty
- Warranty: 2-year warranty, including coverage for all electrical components.
