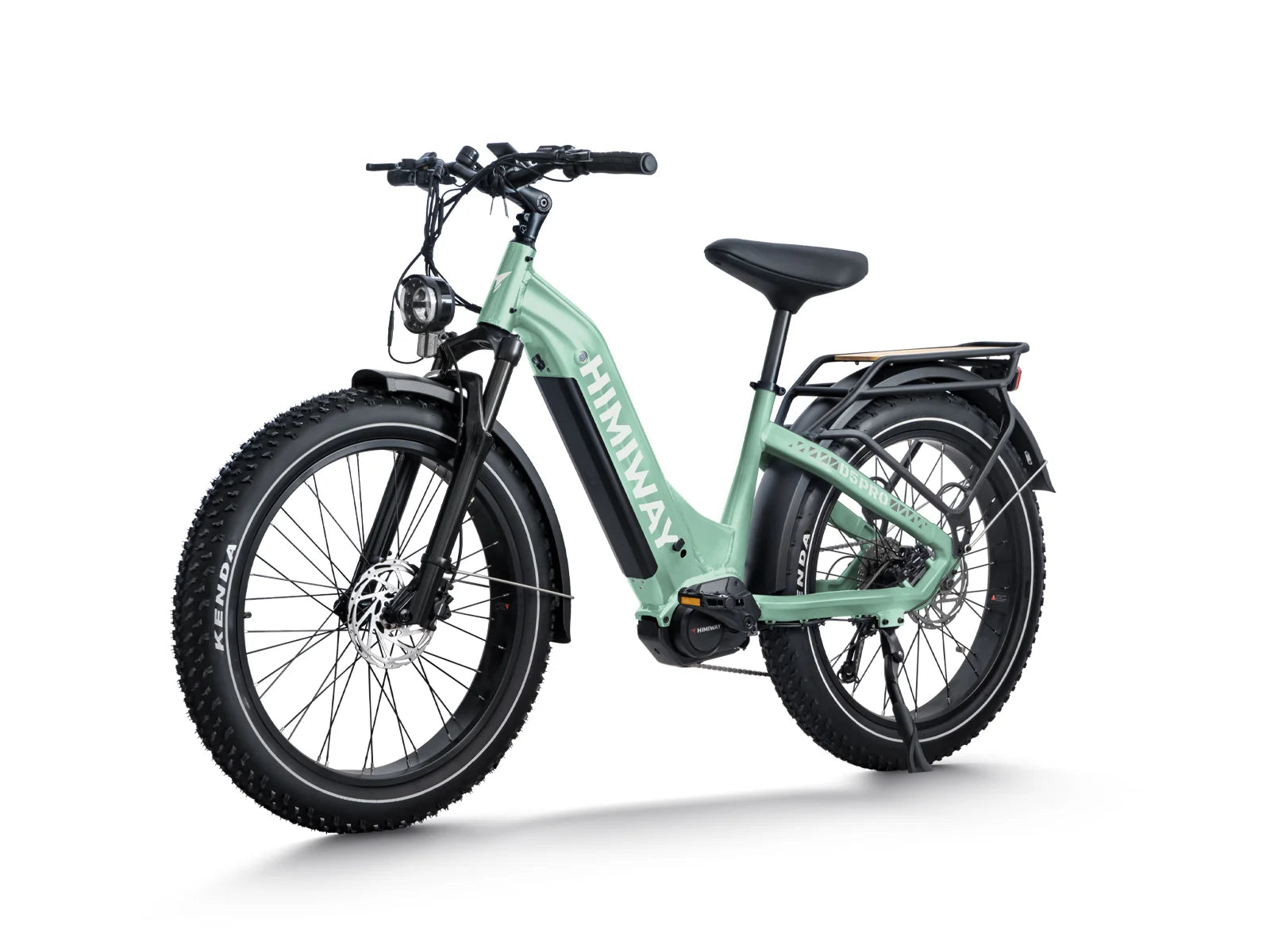

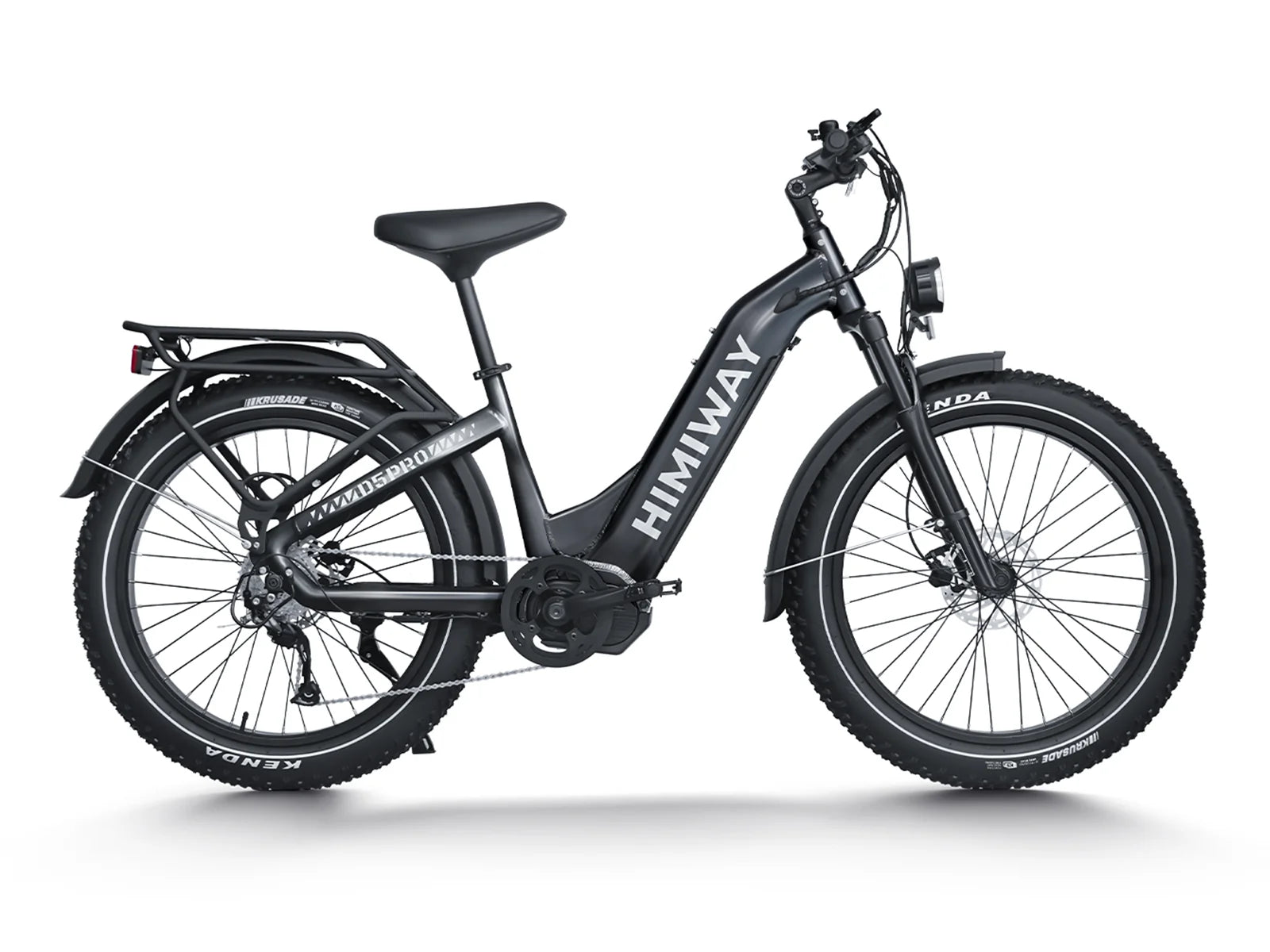

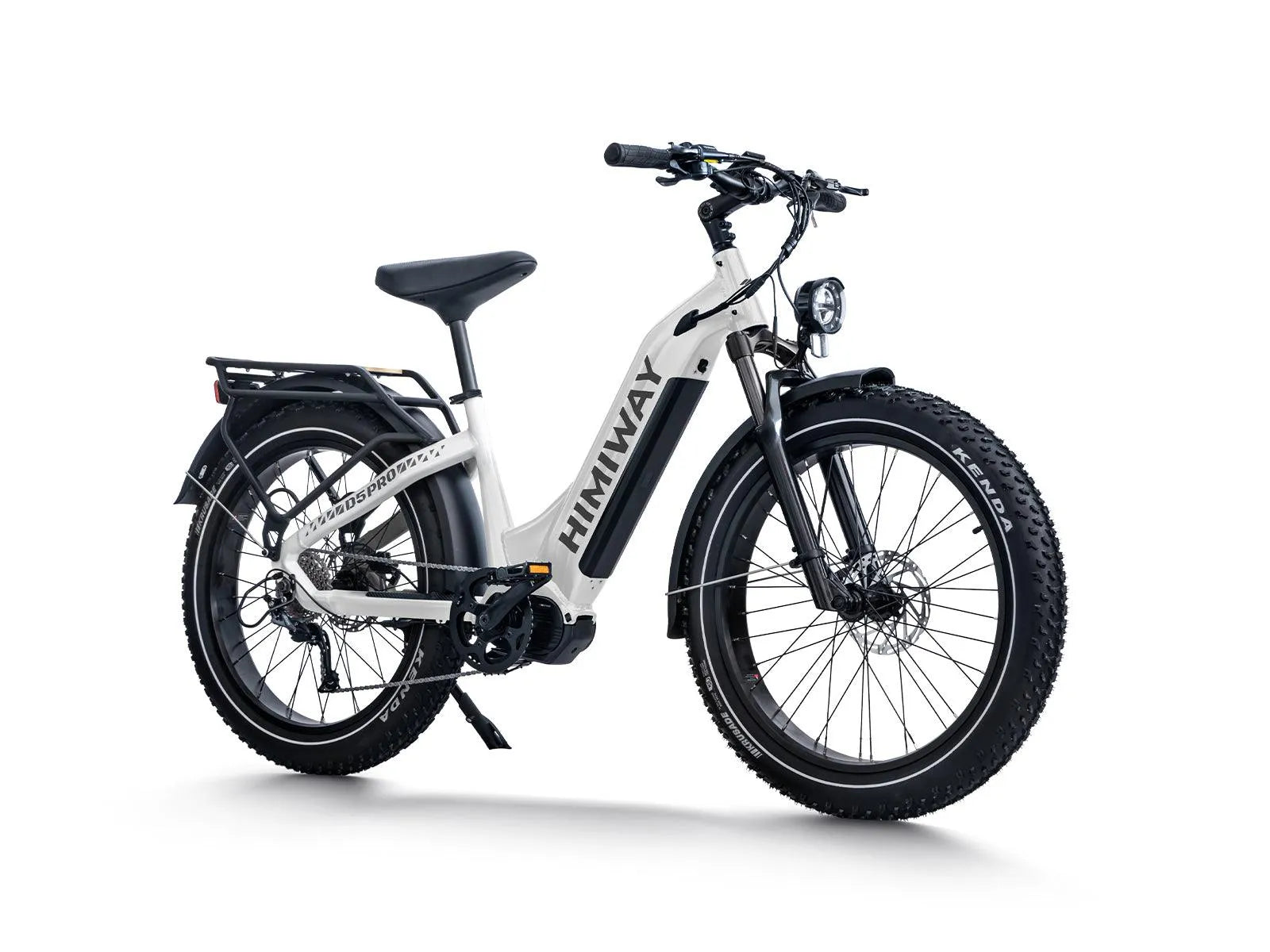

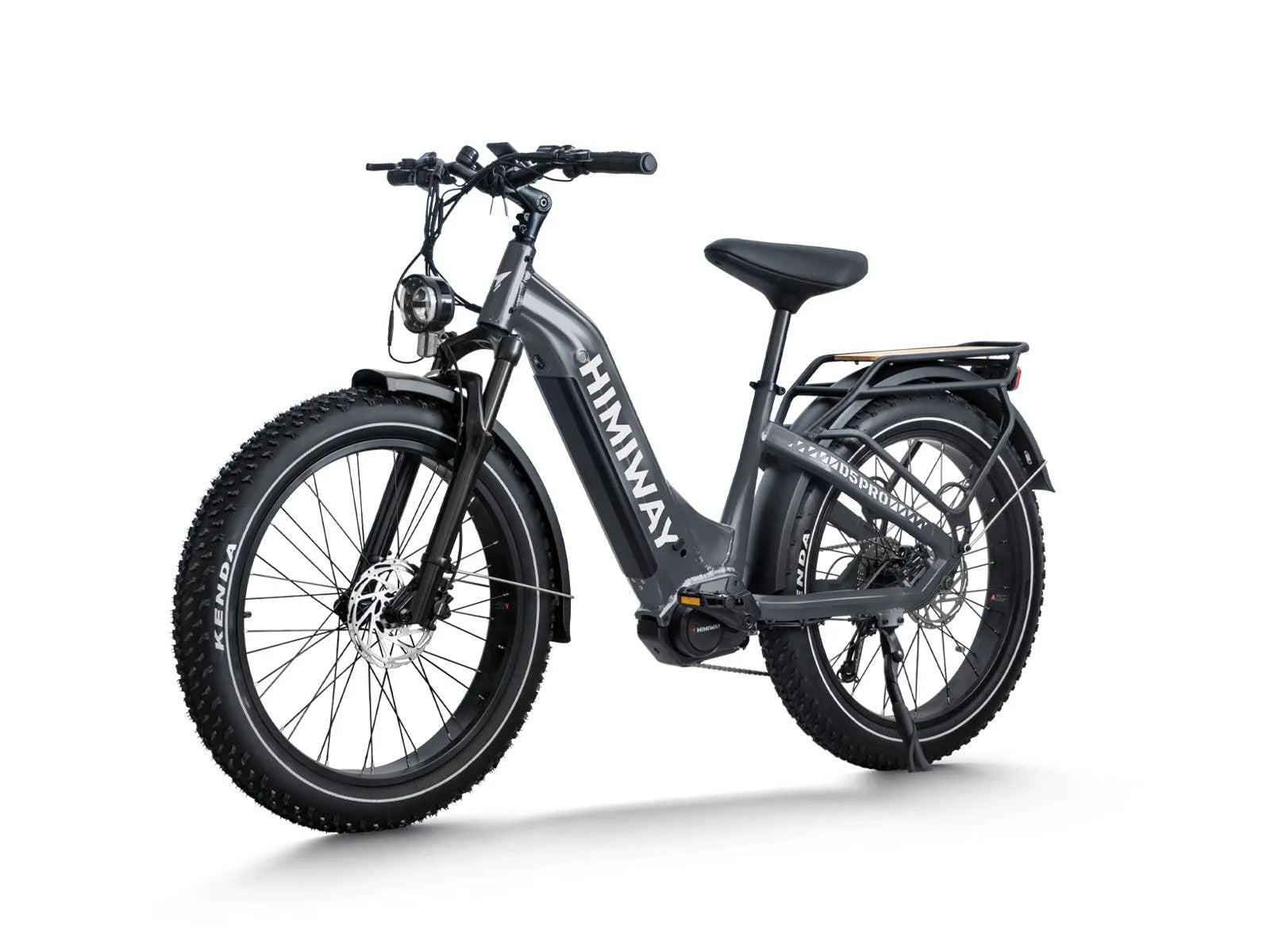

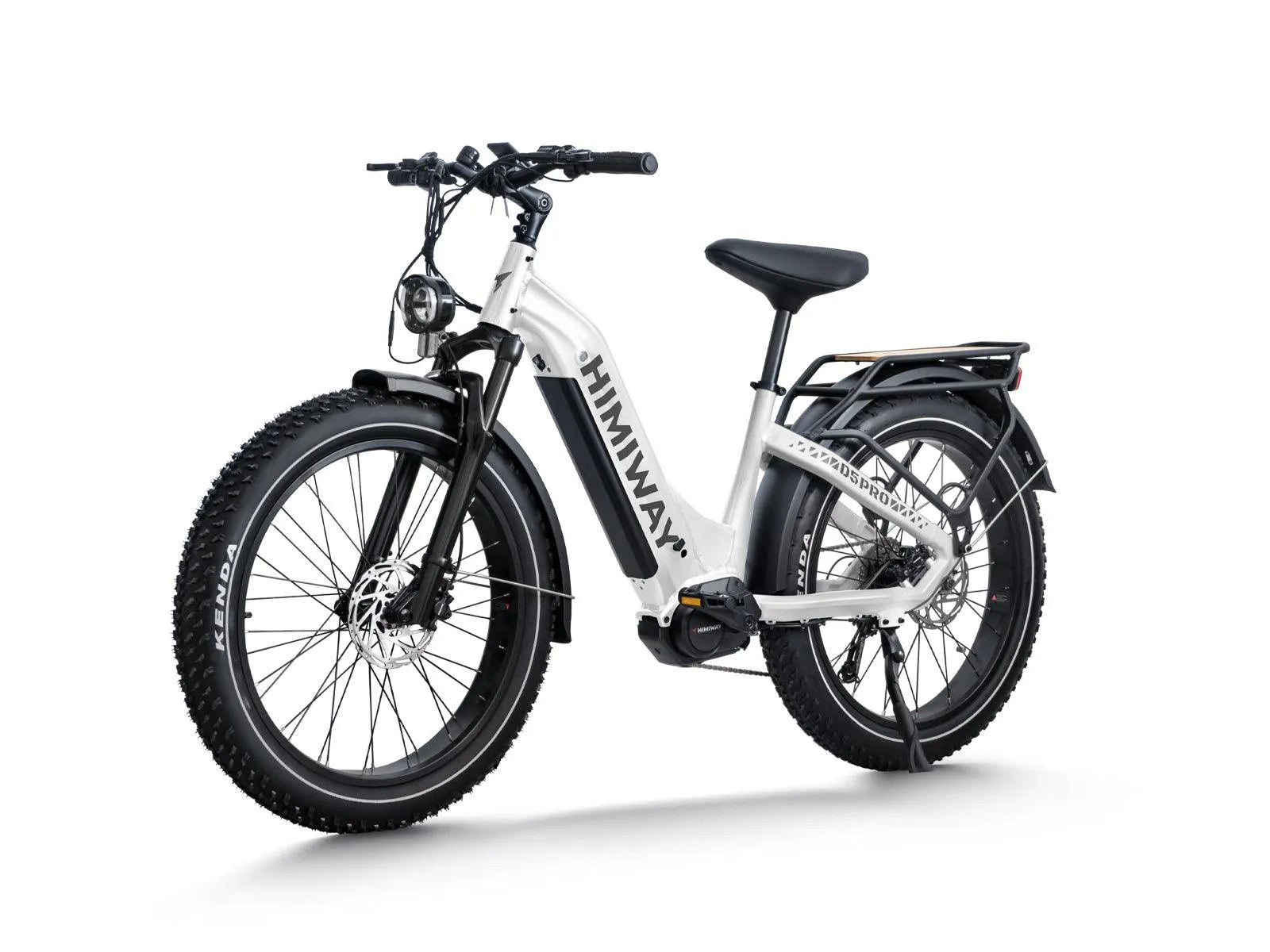

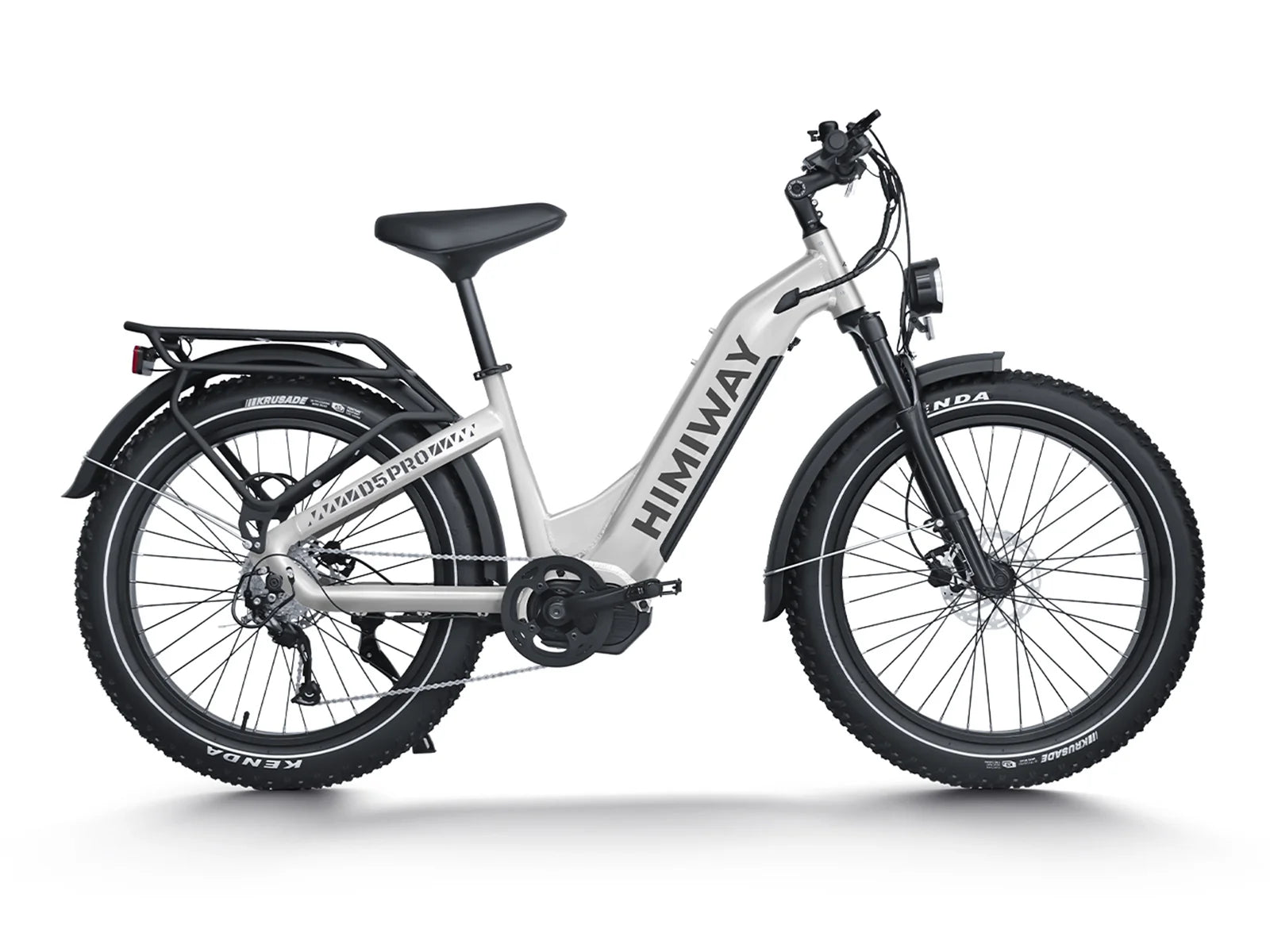

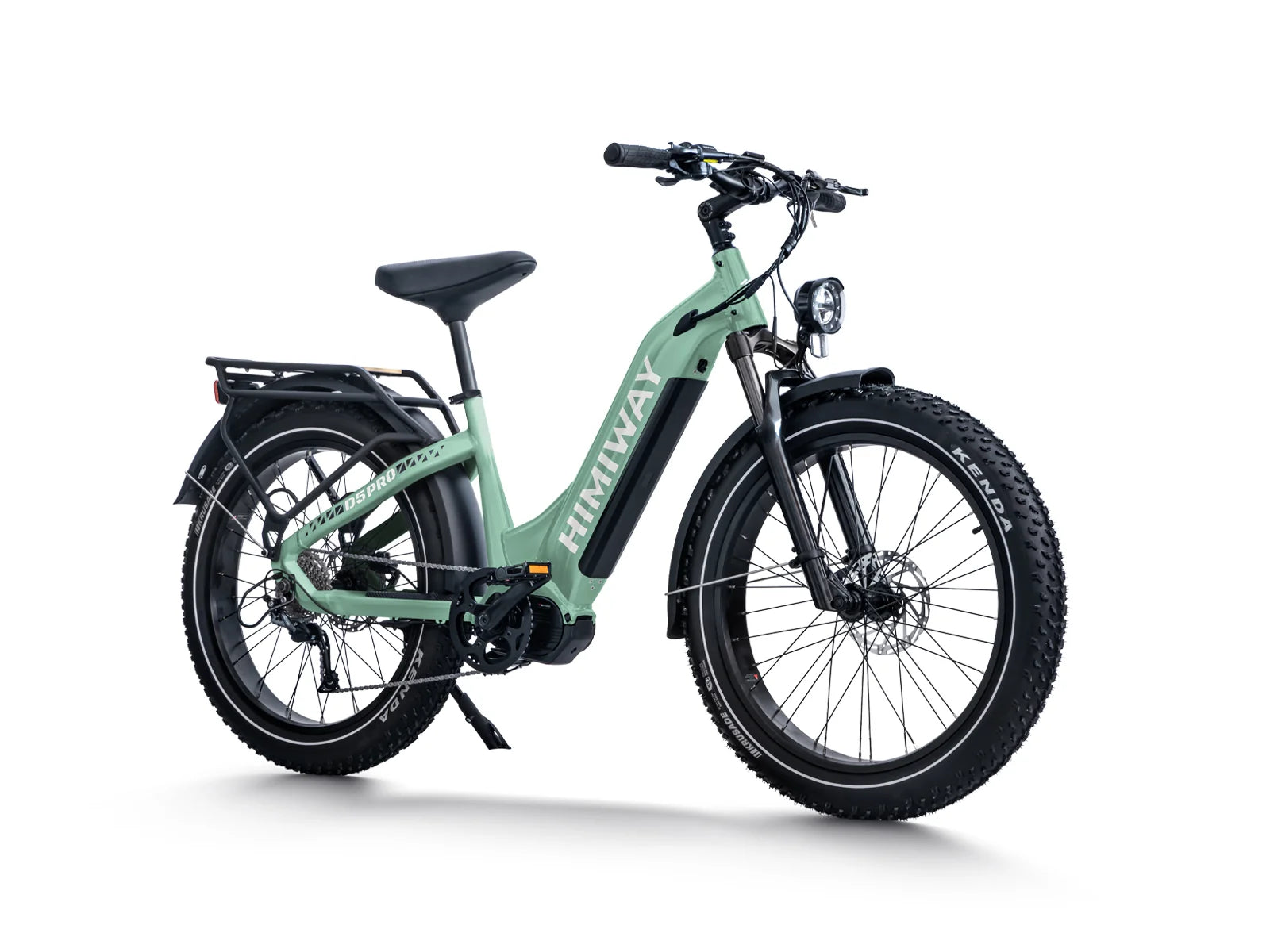

Himiway D5 Pro ST / All-terrain Electric Fat Bike

The D5 Pro ST is an all-terrain electric fat bike with an accessible step-through frame, a 500W mid-drive motor, and a 960 Wh Samsung/LG battery. Its 26" x 4.0" fat tires, front suspension, torque sensor, and 9-speed drivetrain are designed for riding across varied terrain while maintaining a practical, easy-entry design.

The bike combines a 400 lb. maximum payload capacity with a stated range of 60-80 miles. It also features hydraulic disc brakes, a thumb throttle, integrated lighting, an LCD display, and a heavy-duty aluminum kickstand.

Key Features

Hydraulic Brakes

Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.

• Step-through Frame: Provides an accessible frame design intended to make mounting and dismounting easier.
• 500W Mid-drive Motor: Uses a 500W mid-drive motor with torque-sensing assistance.
• 960 Wh Battery: Equipped with a Samsung/LG 48V 20Ah battery.
• All-terrain Fat Tires: Uses Kenda 26" x 4.0" tires for riding across varied terrain.
• Front Suspension: Features an alloy front suspension fork with lockout and adjustment and 100mm of travel.
• Torque Sensor: Includes a torque sensor along with shifting, speed, and brake sensors.
• 9-speed Drivetrain: Uses a Shimano Altus M2000 9-speed groupset with an 11-36T Shimano freewheel.
• Hydraulic Disc Brakes: Uses Tektro HD-E3520 hydraulic brakes with 180mm rotors at the front and rear.
• Integrated Brake Light: Features an automatic brake light that activates when the brake is used.
• Thumb Throttle: Includes a thumb throttle for motor control.
• LCD Display: Uses a KD718-P LCD display with Type-C charging.
• Fat-tire Wheels: Uses 26" x 4.0" wheels with stainless steel spokes and specified front and rear hubs.
• Maximum Payload: Supports a stated maximum payload capacity of 400 lb.

Specifications

• Frame: 6061 Aluminum frame
• Headset: Neco H156EM 28.644-5630
• Fork: TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle
• Front Suspension: Alloy front suspension fork with lockout and adjustment
• Front Wheel: Rim: MD-147 264.0"36H12G A/V; Spoke: 12G 255/256L stainless (304M); Hub: MB015-92 M912G135145W
• Rear Wheel: Rim: MD-147 26*4.0"36H12G A/V; Spoke: 12G 256/257L stainless (304M); Hub: GSMB019R-190F-GM14
• Tires: Kenda 26*4.0
• Battery: Samsung/LG 48V 20Ah
• Motor: 500W mid-drive motor
• Display: KD718-P LCD display with Type-C charger
• Throttle: Thumb throttle
• Sensors: Torque sensor, shifting sensor, speed sensor, brake sensor
• Crankset: Prowheel 170mm crankarm / 44T BCD104 chain ring
• Freewheel: Shimano CS-HG201-9 11-36T
• Chain: KMC E9 EPT 124L
• Groupset: Shimano Altus M2000 9 speed
• Front Brake: Tektro HD-E3520 hydraulic brake
• Rear Brake: Tektro HD-E3520 hydraulic disc brake
• Rotors: Tektro TR180-52 F:180mm R:180mm
• Stem: Zoom TDS-C269-8FOV 31.8*90mm
• Handlebar: Promax HB-3188 22.231.8700mm
• Seatpost: Himiway Seatpost
• Saddle: Himiway Saddle
• Pedal: Aluminum pedal
• Lights: 48V LED light
• Kickstand: Heavy-duty aluminum kickstand
• Range: 60-80 miles
• Controller: 48V/22A
• Charger: U.S. standard 3.0 A fast charger
• Rider Height: 5′3″ ~ 6′5″
• Weight: 79 lb. (with battery)
• Maximum Payload Capacity: 400 lb.

Size Guide

• Recommended Height: 5'3" ~ 6'5"
• Total Length: 78.7
• Handlebar Height: 47
• Handlebar Length: 28
• Wheelbase: 49.2
• Wheel Diameter: 28.7
• Minimum Seat Height: 20.9
• Maximum Seat Height: 31.4
• Chain Stay Length: 19
• Frame Stack: 24.6
• Frame Reach: 17.8
• Effective Top Tube Length: 24.4
• Head Tube Length: 5.5
• Head Angle: 65°
• Standover Height: ST 22.4 / SO 31.1

Included

• E-bike
• Protection Fender Kit
• Rear Rack
• 16 in 1 Repair Tool
• Charger
• Manual

Warranty

• Warranty: 2-Year Warranty, including coverage for all electrical components.
